Eminent Drive MT Pro 2024
2024 E-bike
Estimate price |
12,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XTR -
Suspension Full -
Motor Shimano 85Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Eminent Onset (160mm)

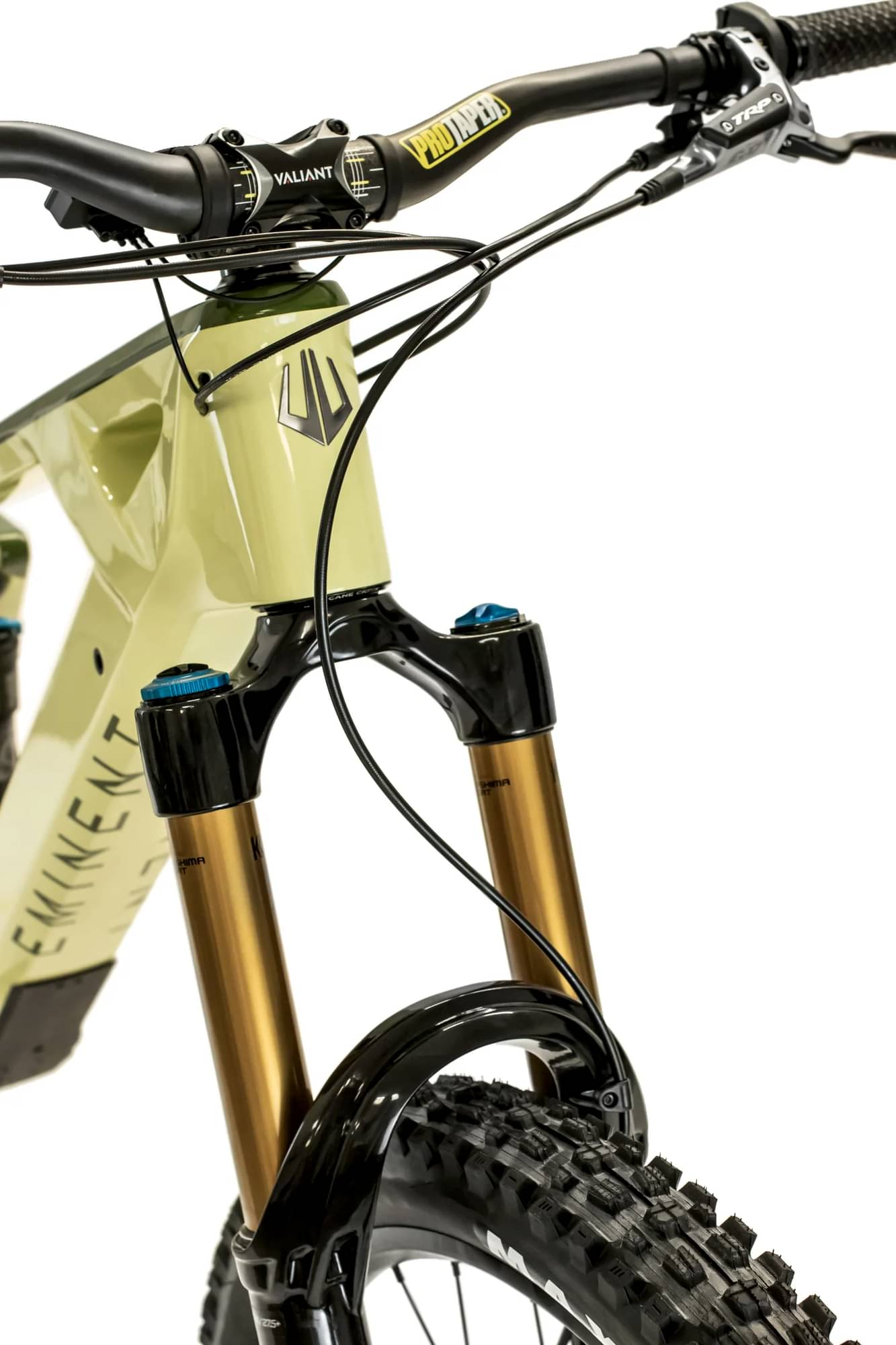

Suspension Fork
Fox Factory 38 Grip2 170, 44mm offset

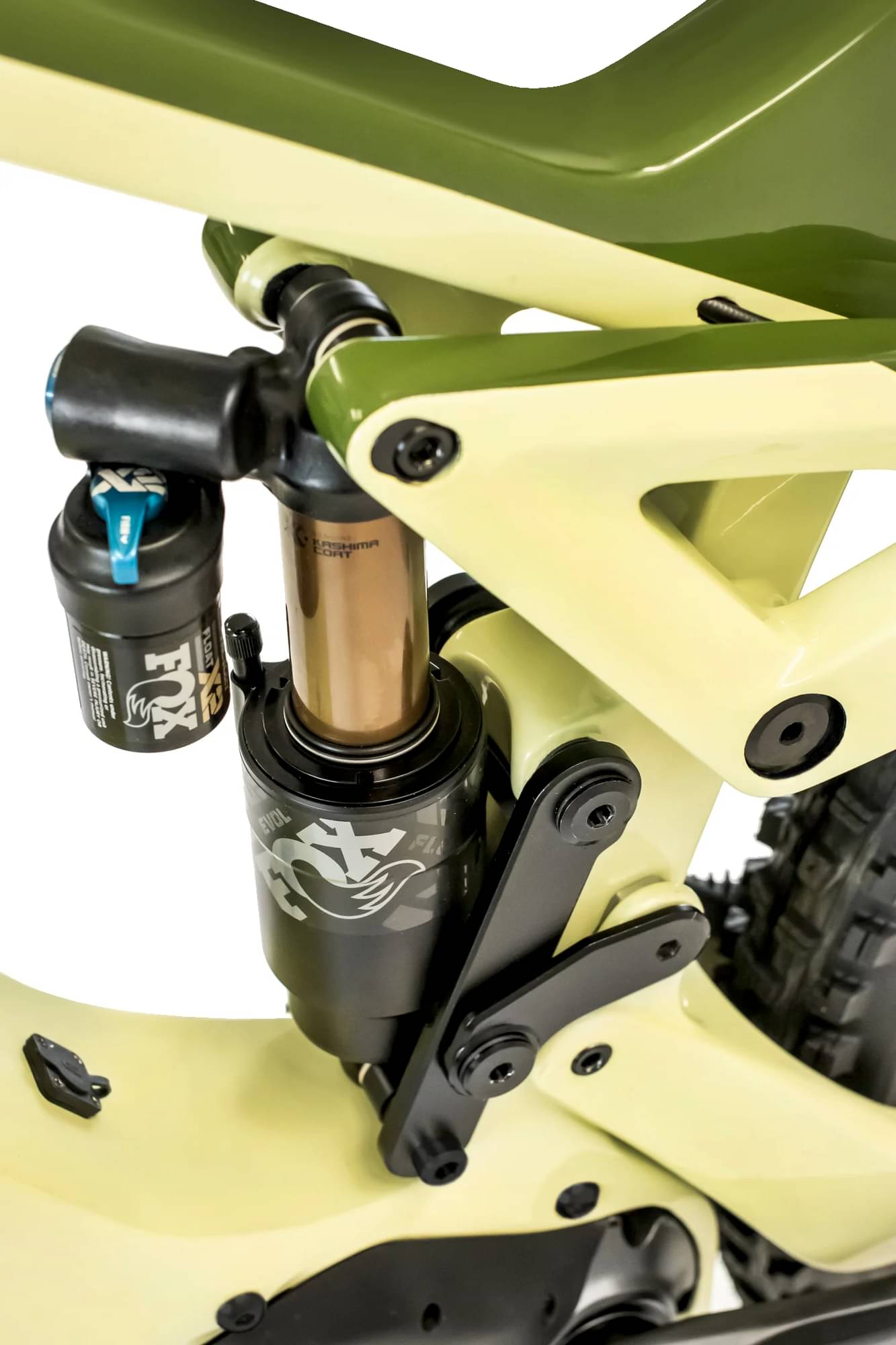

Rear Shock
Fox Factory X2, 230 x 60
Drivetrain

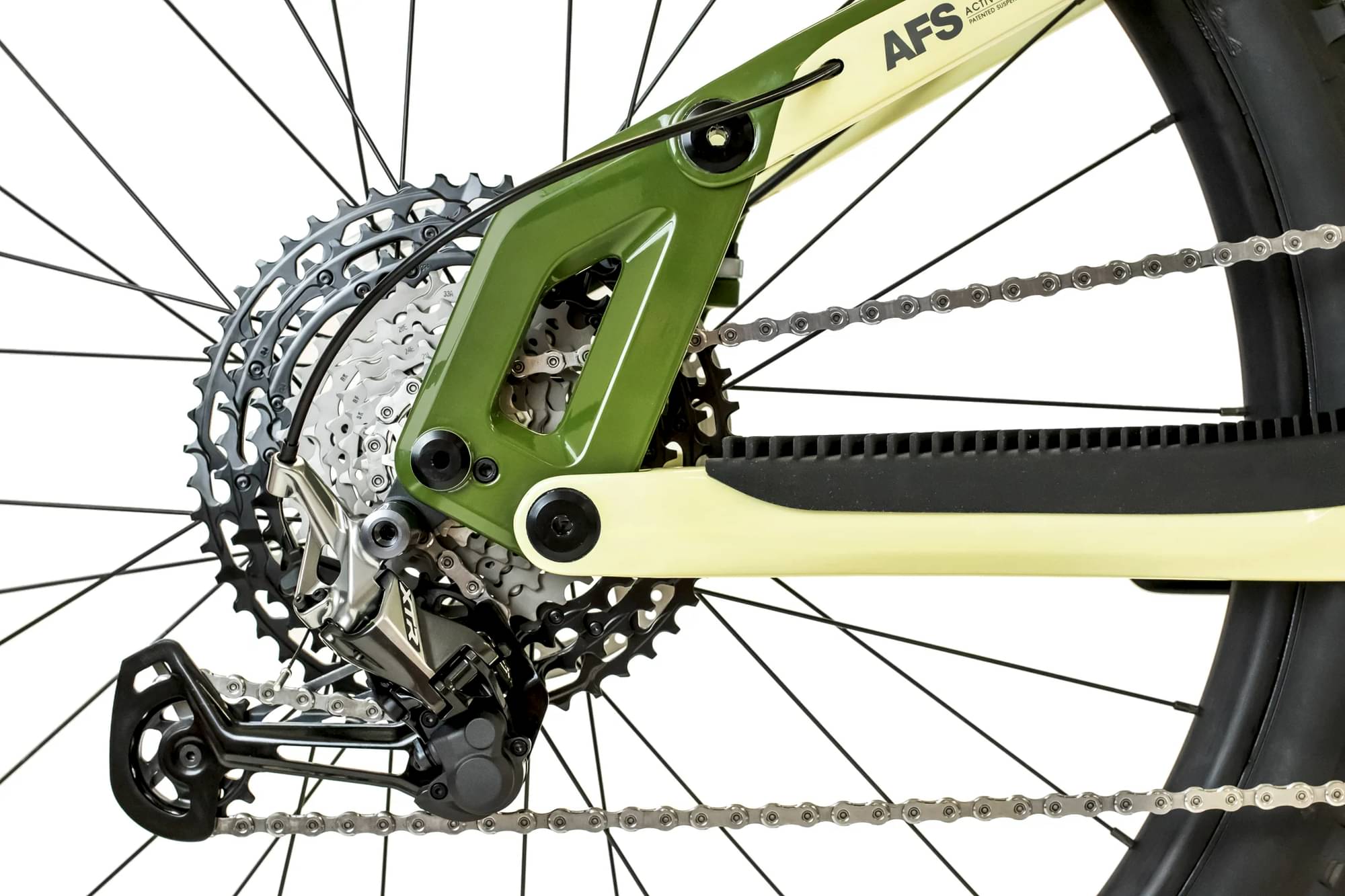

Rear Derailleur
XTR M9100 - 12 spd rear derailleur
Shift Levers
XTR M9100 - 12 spd shifter
Cassette
XTR M9100 - 12 spd cassette
Crank
XTR M9100 - Front Crank w/34T chainring
Chain
XTR M9100 - 12 spd chain
Chain Guide
Integrated Top Guide
Wheels
Rims
Crankbrothers Synthesis Enduro I9 Carbon
Tires
Maxxis
Brakes
Brakes
TRP DHR EVO 4 Piston - F & R
Cockpit
Stem
Raceface Turbine 40mm x 35mm dia.
Handlebar
Pro Taper Carbon 810mm 25mm rise x 35mm dia.
Headset
FSA
Seat
Saddle
WTB Volt Comp
Seatpost
KS Rage 34.9
Motor & Battery

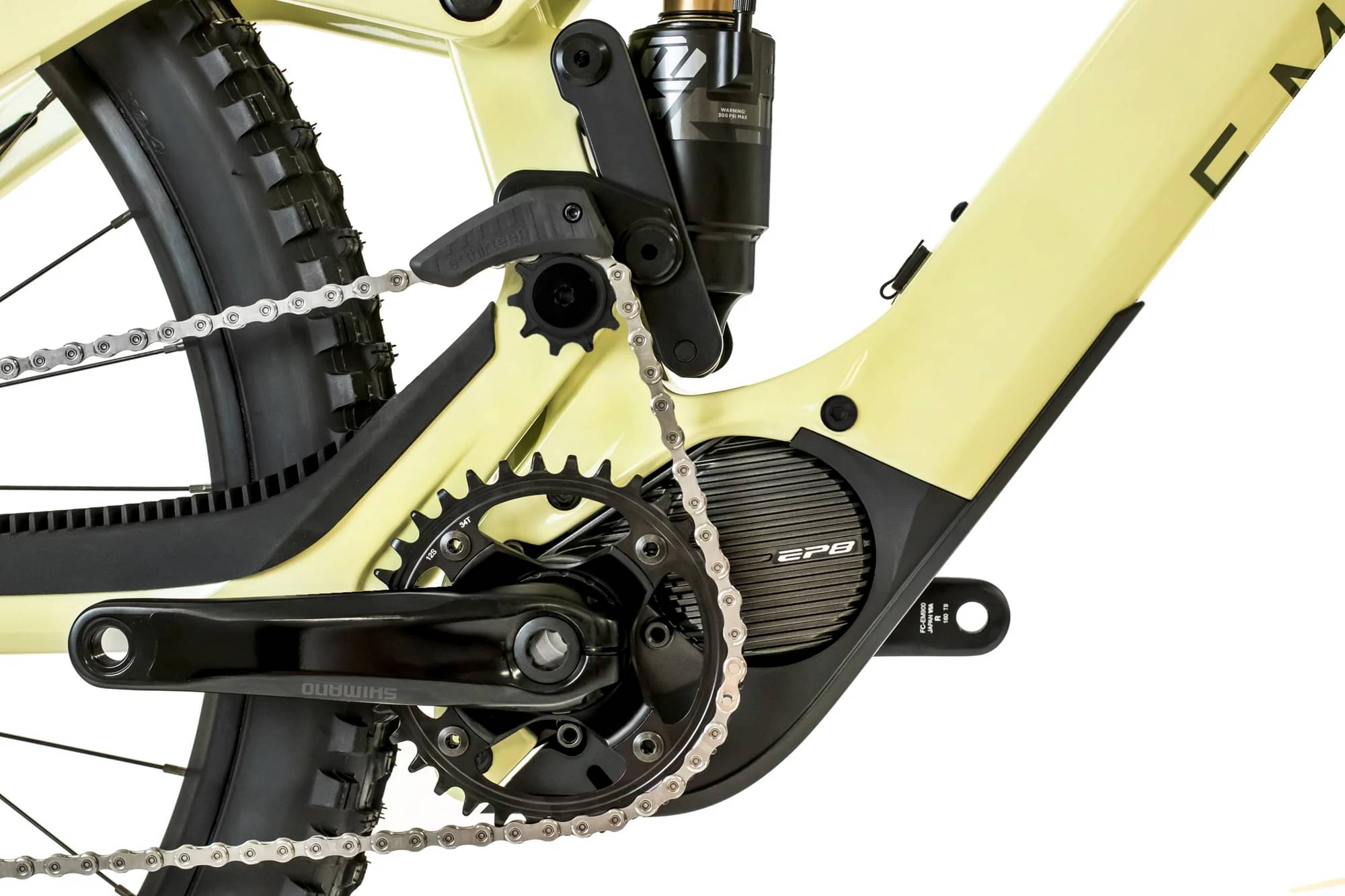

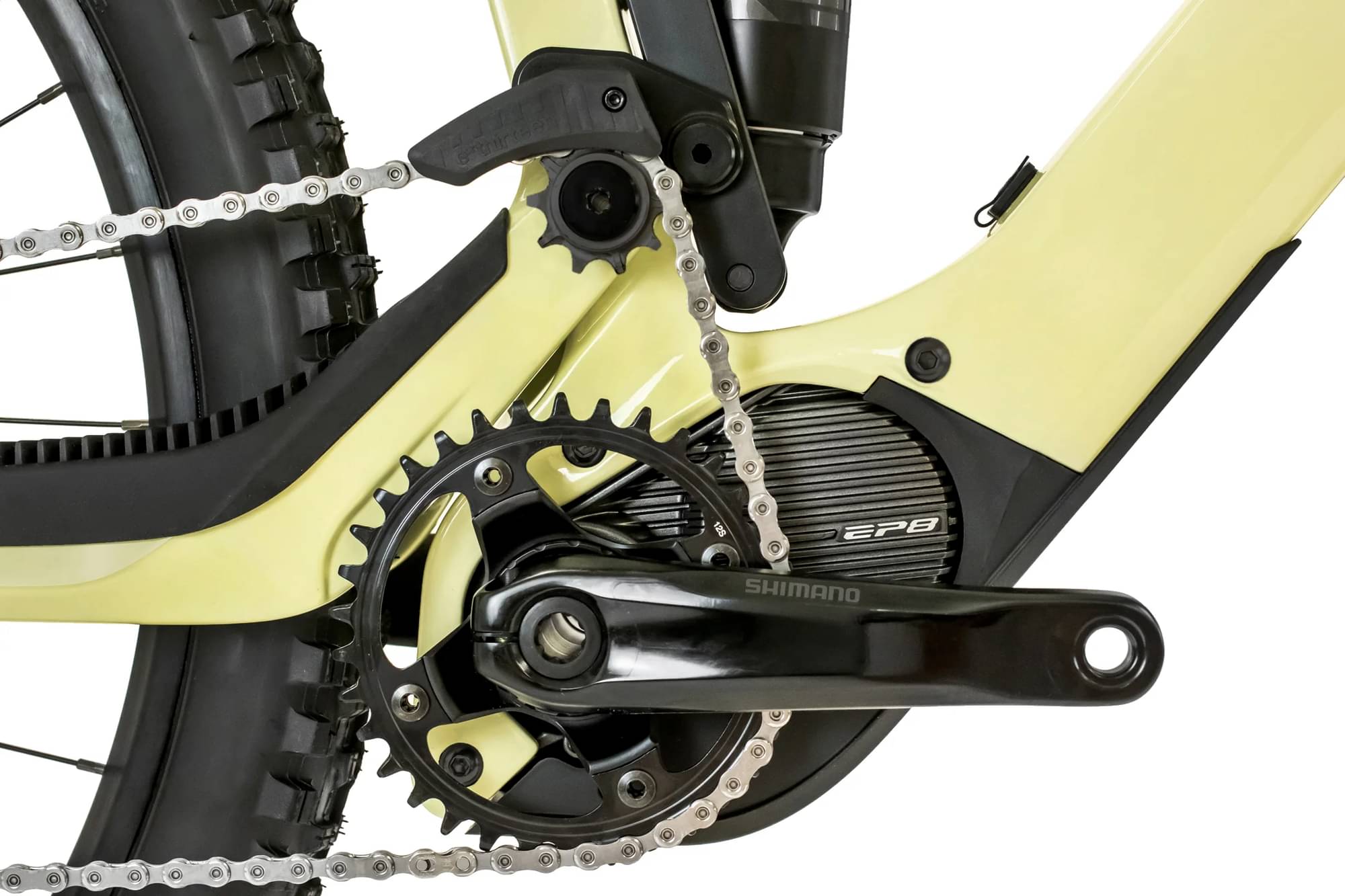

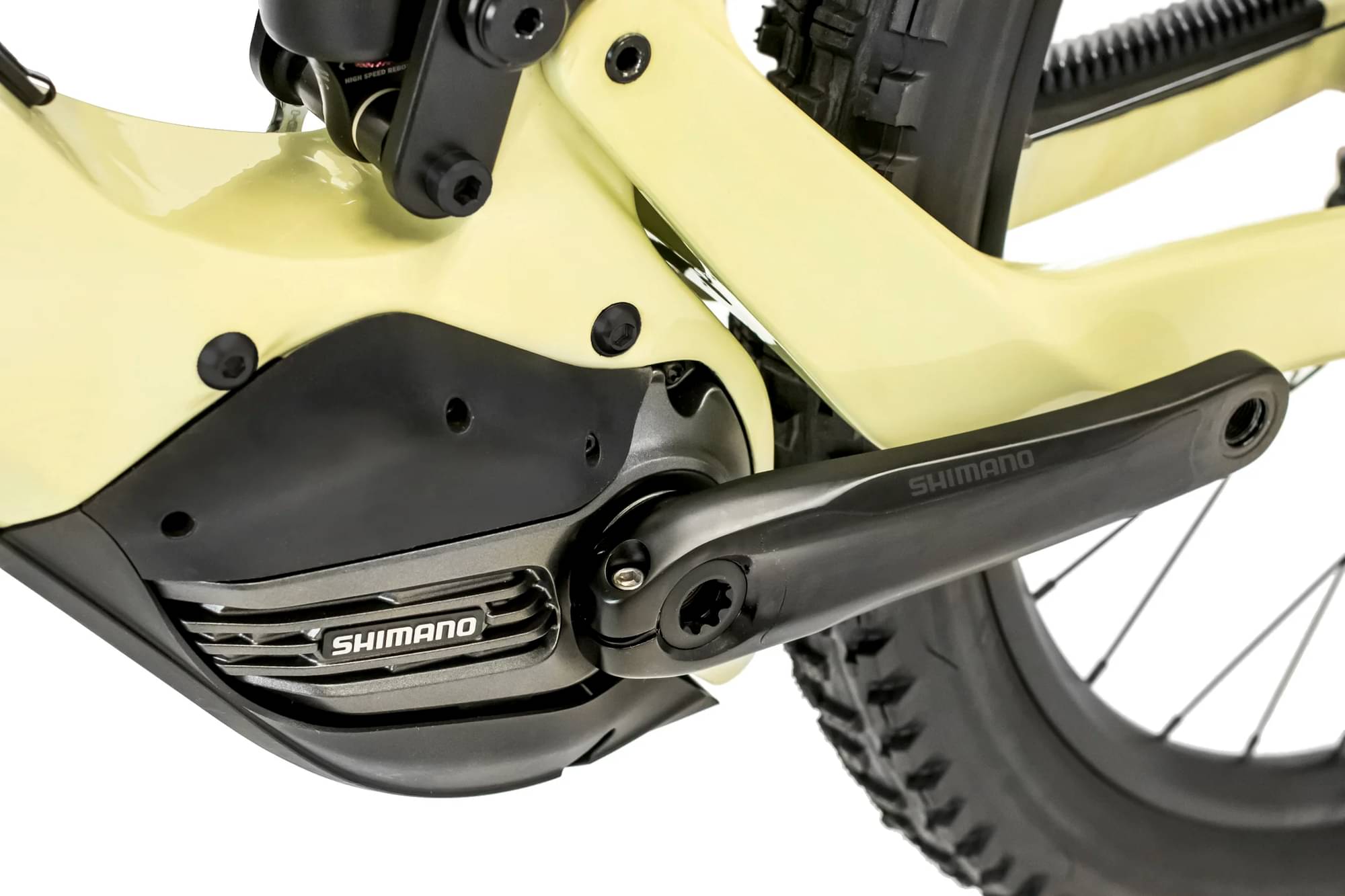

Motor
Shimano EP8
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.422 mm | 1.353 mm | 1.291 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 789 mm | 823 mm | 857 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 135 mm | 136 mm | 136 mm |
| Stack | 634 mm | 644 mm | 653 mm |
| Reach | 446 mm | 476 mm | 506 mm |
| Top Tube Length | 599 mm | 634 mm | 666 mm |
| Seat Tube Angle | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 430 mm | 450 mm | 450 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1227 mm | 1261 mm | 1295 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm |
| Standover Height | 726 mm | 726 mm | 726 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
