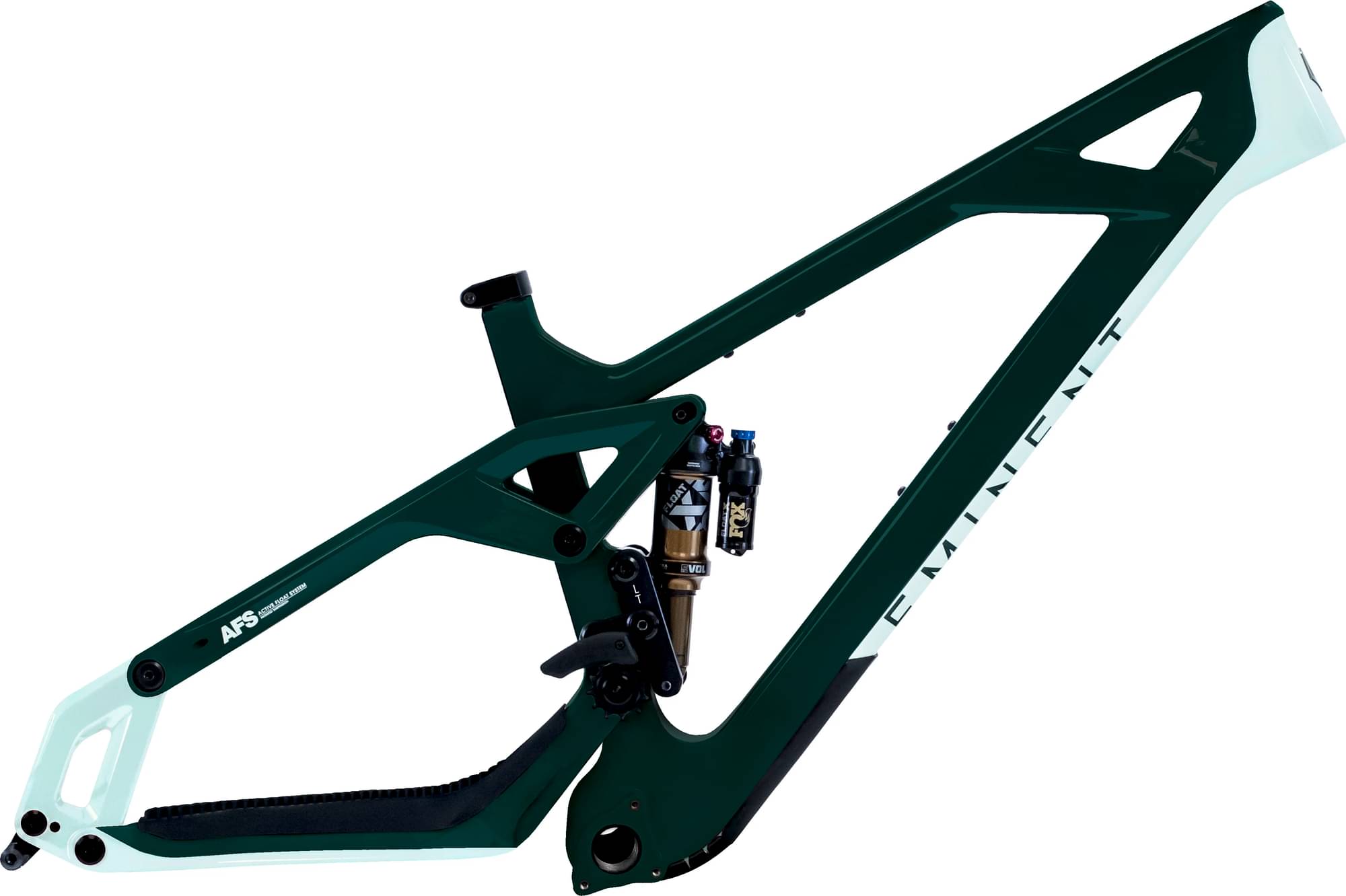

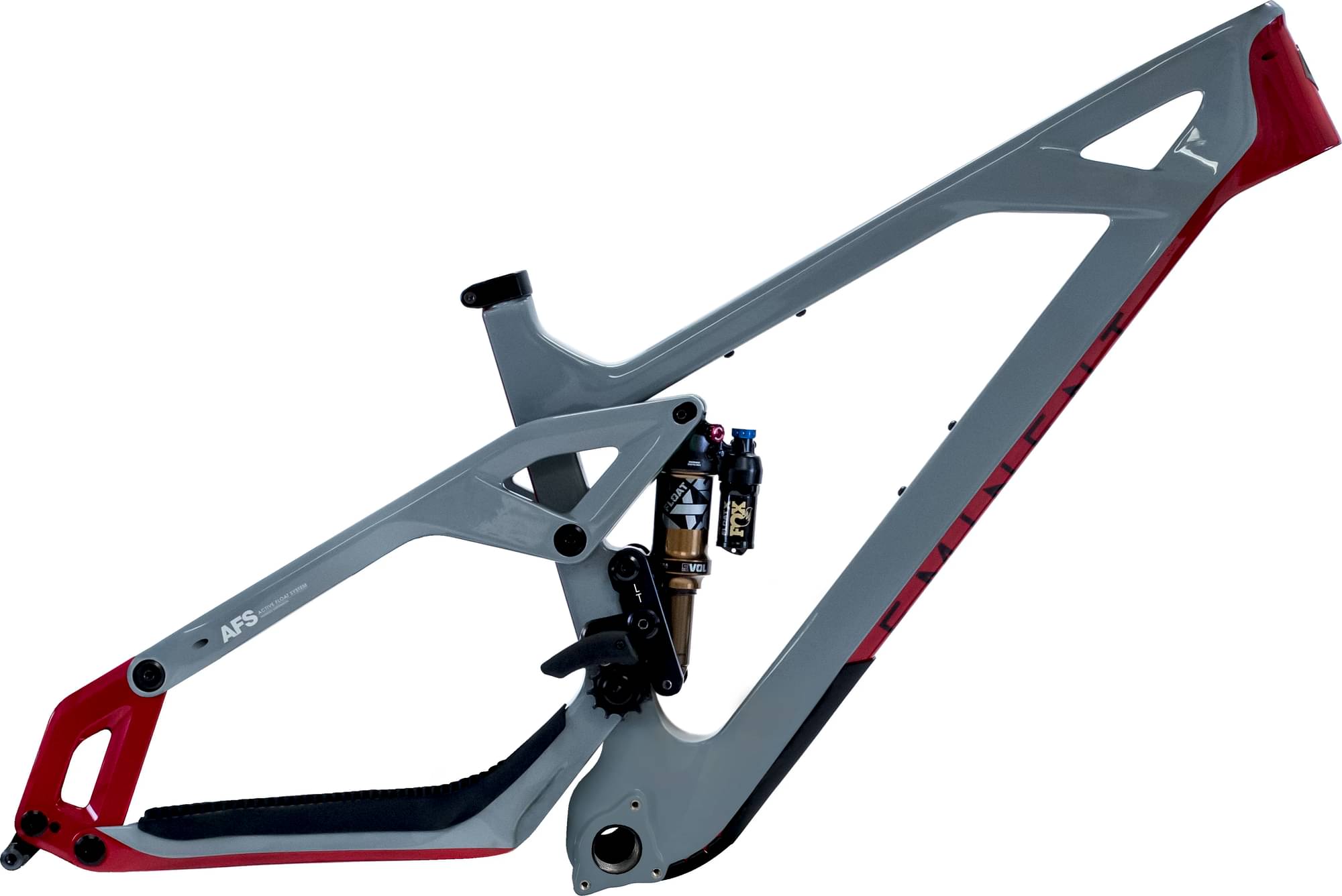

Eminent Haste LT 29 Frame 2024
2024 Mountain
Estimate price |
3,499$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Unidirectional Carbon Fiber
Drivetrain
Bottom Bracket
Threaded BSA
Seat
Seatpost
34.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 592MM | 626MM | 659MM |
|---|---|---|---|
| Stack Reach Ratio | 1.359 mm | 1.298 mm | 1.246 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm |
| Front Center | 785 mm | 820 mm | 856 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 126 mm | 126 mm |
| Stack | 625 mm | 636 mm | 648 mm |
| Reach | 460 mm | 490 mm | 520 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 430 mm | 450 mm | 450 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 123 mm | 136 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1223 mm | 1258 mm | 1294 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm |
| Standover Height | 710 mm | 710 mm | 710 mm |
| Wheels | 29" | 29" | 29" |
