Eminent Haste LT Advanced 2024
2024 Mountain
Estimate price |
7,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -

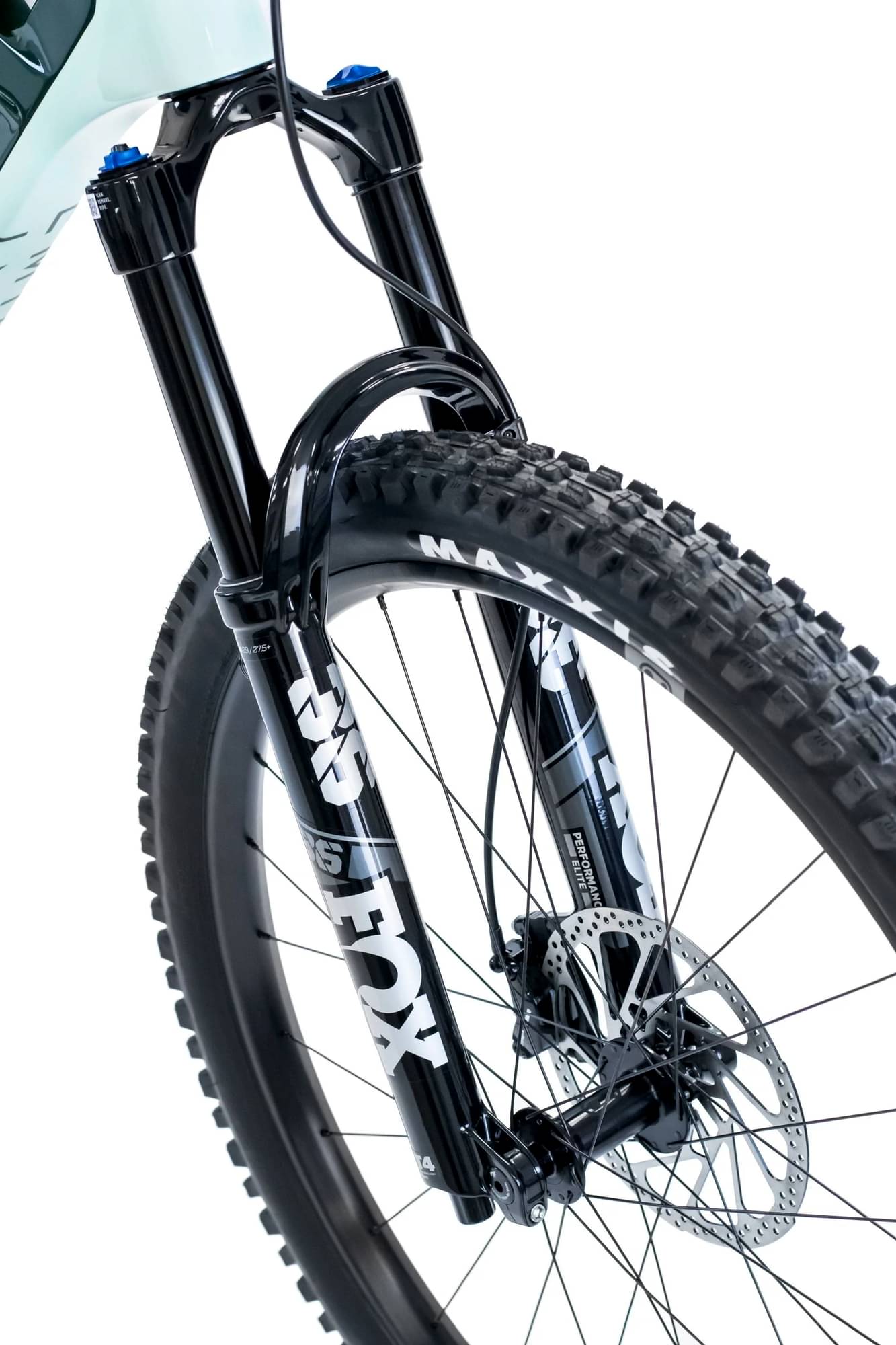

Fork Fox Performance Elite Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Eminent Haste (140mm)
Suspension Fork
Fox Performance Elite 36 Fit 4 150, 44mm offset
Rear Shock
Fox Performance Elite Float X 210 x 55
Drivetrain
Rear Derailleur
XT M8100 - 12 spd rear derailleur
Shift Levers
XT M8100 - 12 spd shifter
Cassette
XT M8100 - 12 spd cassette
Crank
XT M8100 - Front Crank w/32T chainring
Bottom Bracket
Threaded BSA
Chain
XT M8100 - 12 spd chain
Chain Guide
Integrated Top Guide
Wheels
Rims
Sun Ringle Duroc SD37 Pro Aluminum
Tires
Maxxis
Brakes
Brakes
TRP Trail EVO 4 Piston - F & R
Cockpit
Stem
Raceface Turbine 40mm x 35mm dia.
Handlebar
Pro Taper Aluminum 810mm 25mm rise x 35mm dia.
Headset
FSA
Seat
Saddle
WTB Volt Comp
Seatpost
KS Rage 34.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 592MM | 626MM | 659MM |
|---|---|---|---|
| Stack Reach Ratio | 1.359 mm | 1.298 mm | 1.246 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm |
| Front Center | 785 mm | 820 mm | 856 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 126 mm | 126 mm |
| Stack | 625 mm | 636 mm | 648 mm |
| Reach | 460 mm | 490 mm | 520 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 430 mm | 450 mm | 450 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 123 mm | 136 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1223 mm | 1258 mm | 1294 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm |
| Standover Height | 710 mm | 710 mm | 710 mm |
| Wheels | 29" | 29" | 29" |
