Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 170mm -
Groupset SLX, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Eminent Haste (160mm)
Suspension Fork
Marzocci Z1 Bomber Grip 170, 44mm offset
Rear Shock

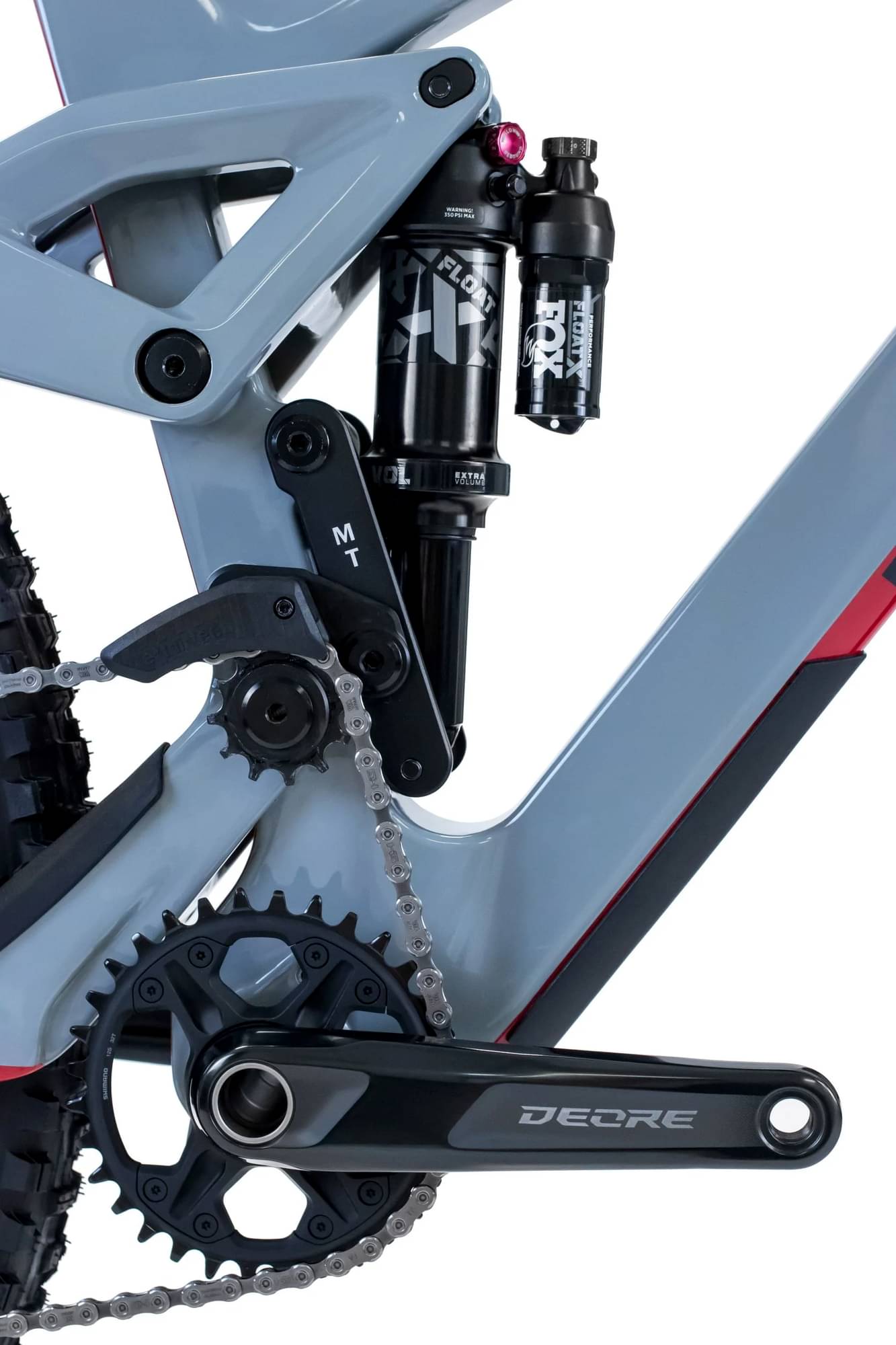

Fox Performance Float X 230 x 60
Drivetrain
Rear Derailleur
SLX M7100 - 12 spd rear derailleur
Shift Levers
SLX M7100 - 12 spd shifter
Cassette
Deore M6100 - 12 spd cassette
Crank
Deore 6100 - Front Crank w/32T chainring
Bottom Bracket
Threaded BSA
Chain
Deore M6100 - 12 spd chain
Chain Guide
Integrated Top Guide
Wheels
Rims
Sun Ringle Duroc SD37 Expert Alloy
Tires
Maxxis Assegai 2.5 F & DHRII 2.4 R
Brakes
Brakes
TRP Slate 4 Piston - F & R
Cockpit
Stem
Raceface Turbine 40mm x 35mm dia.
Handlebar
Pro Taper Aluminum 810mm 25mm rise x 35mm dia.
Headset
FSA
Seat
Saddle

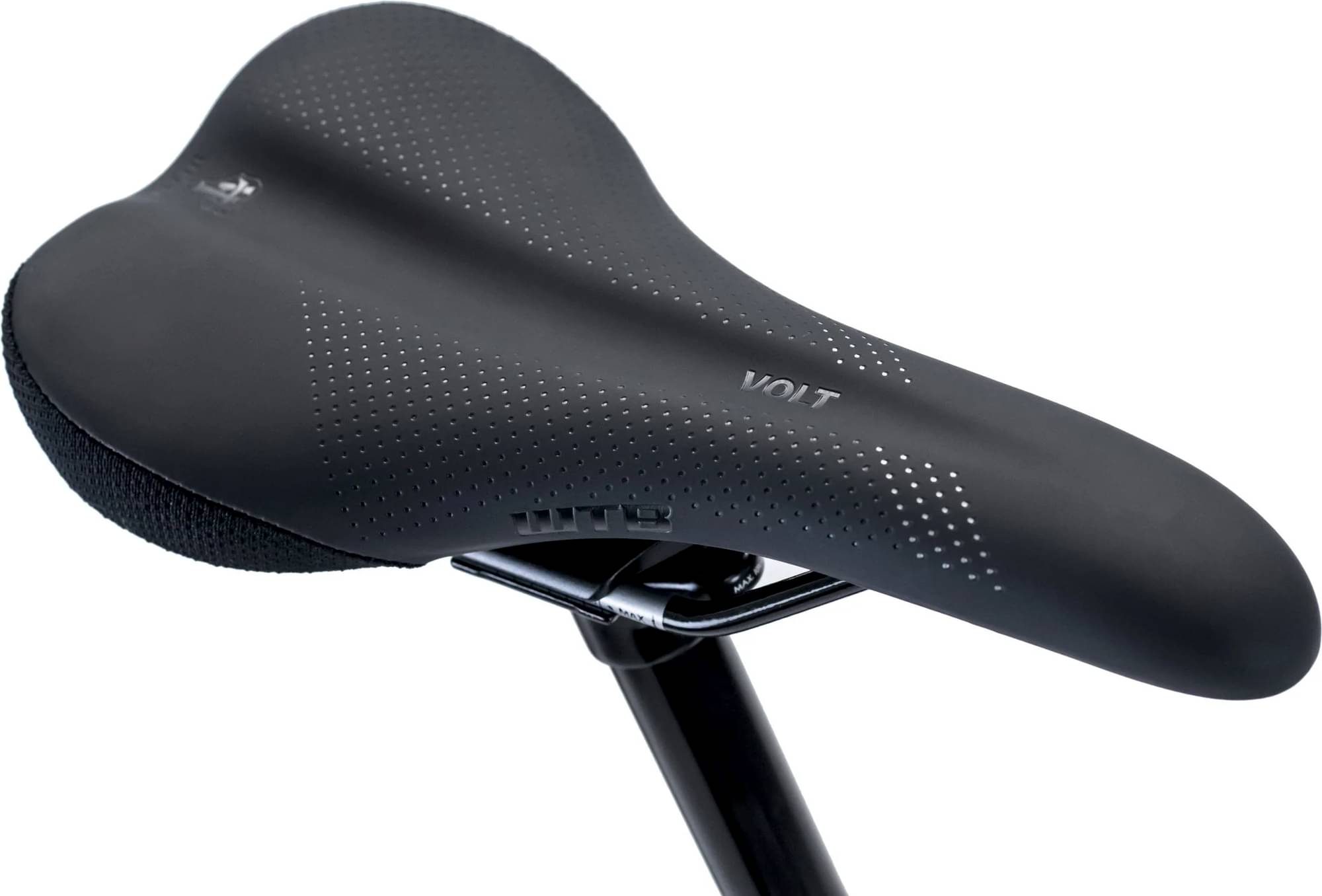

WTB Volt Comp
Seatpost
KS Rage 34.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 595MM | 629MM | 662MM |
|---|---|---|---|
| Stack Reach Ratio | 1.399 mm | 1.337 mm | 1.282 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm |
| Front Center | 793 mm | 829 mm | 864 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 136 mm | 135 mm | 136 mm |
| Stack | 631 mm | 643 mm | 655 mm |
| Reach | 451 mm | 481 mm | 511 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 430 mm | 450 mm | 450 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 113 mm | 123 mm | 136 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1232 mm | 1268 mm | 1303 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm |
| Standover Height | 717 mm | 717 mm | 717 mm |
| Wheels | 29" | 29" | 29" |
