Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Eminent Onset (140mm)
Suspension Fork
Fox 36 Fit4 Factory 15mm axle 150, 44mm offset

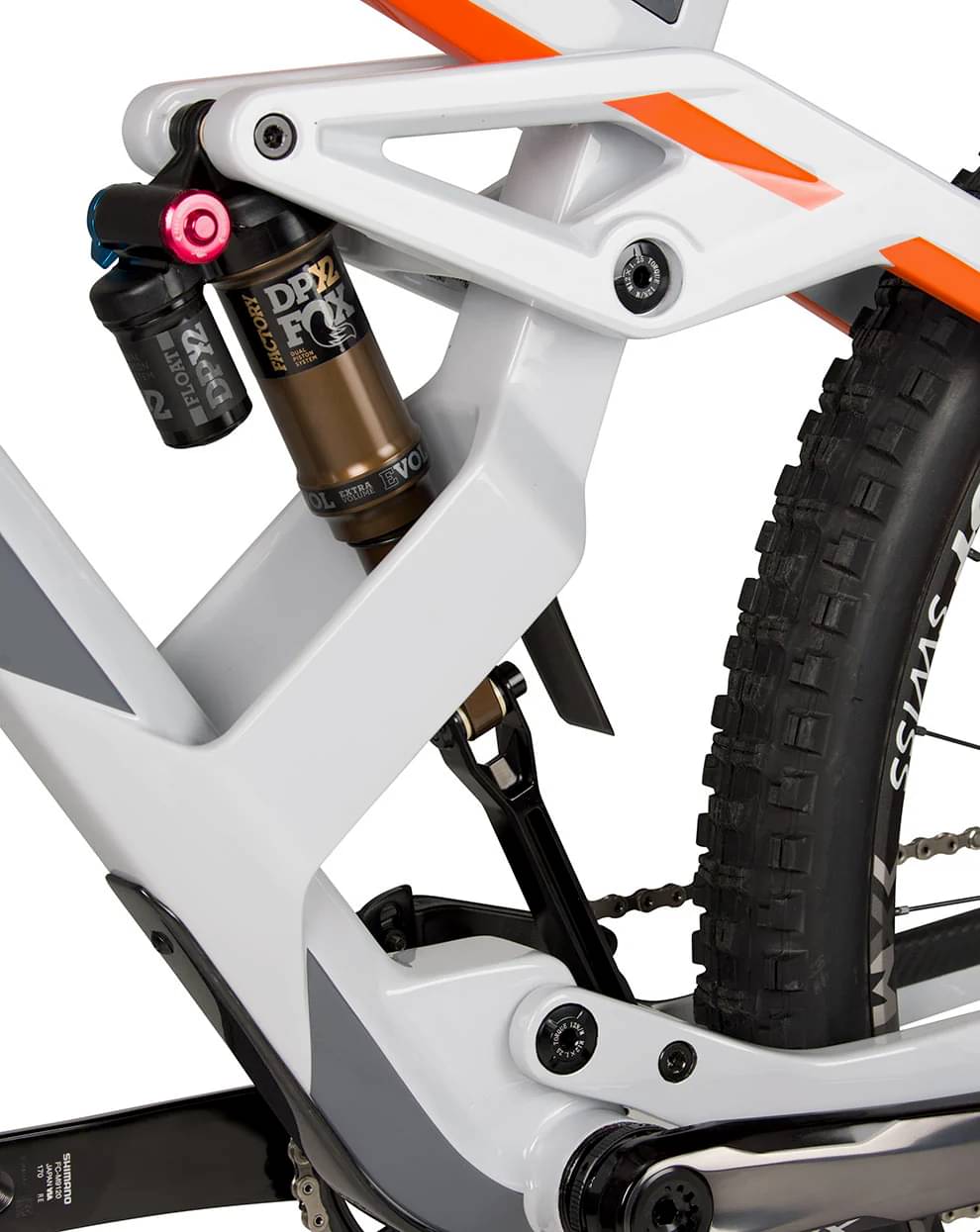

Rear Shock
Fox Float X Factory 210 x 55

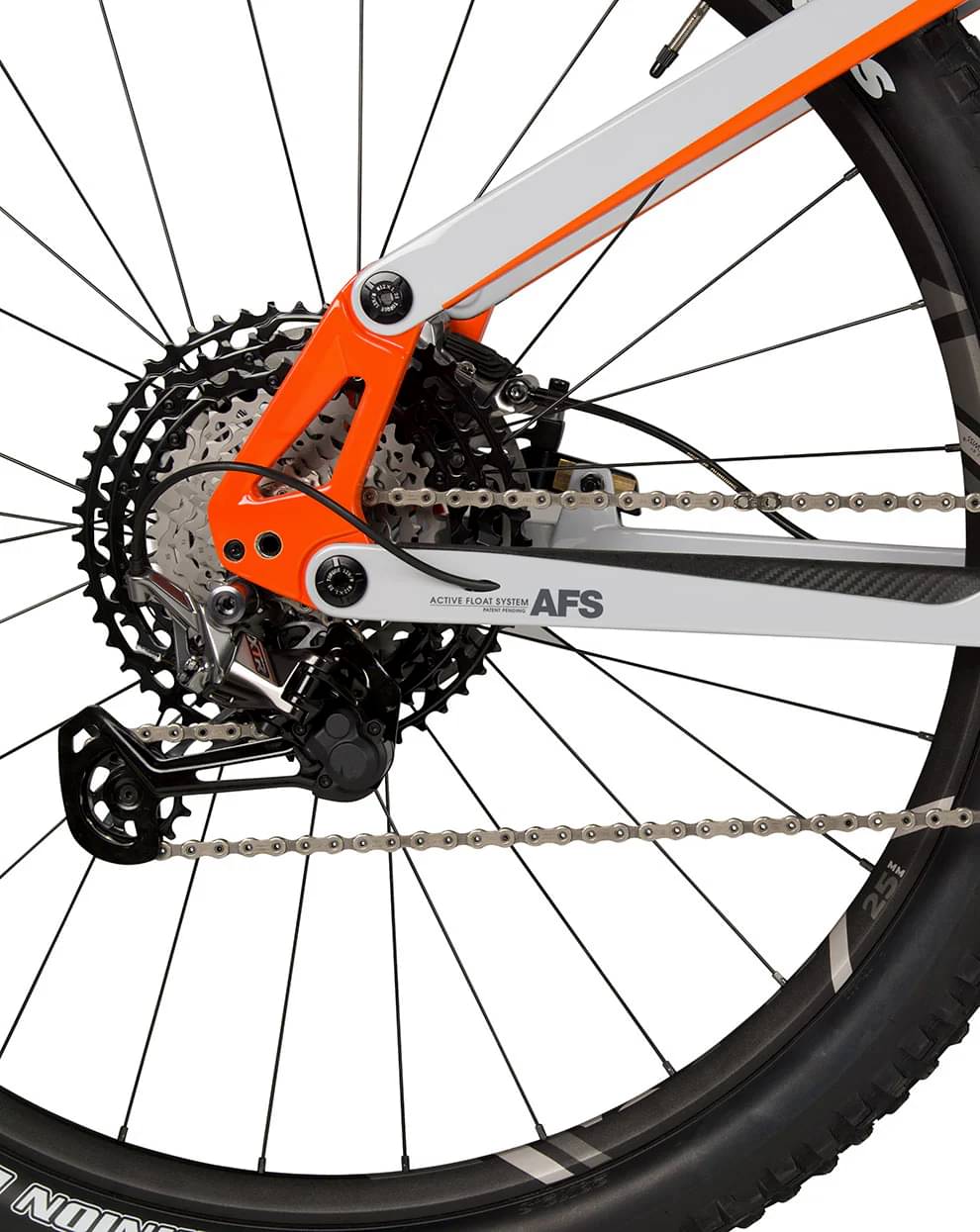

Drivetrain
Rear Derailleur
XTR M9120 - 12 spd rear derailleur
Shift Levers
XTR M9100 - 12 spd shifter
Cassette
XTR M9100 - 12 spd cassette
Crank
XTR M9120 - Front Crank w/32T chainring
Bottom Bracket
Shimano BB92
Chain
XTR M9100 - 12 spd chain
Chain Guide
MRP 1X CS ISCG-05
Wheels
Rims
Crankbrothers Synthesis Carbon I9 Hubs
Tires
Maxxis
Brakes
Brakes
TRP DHR EVO 4 Piston - F & R

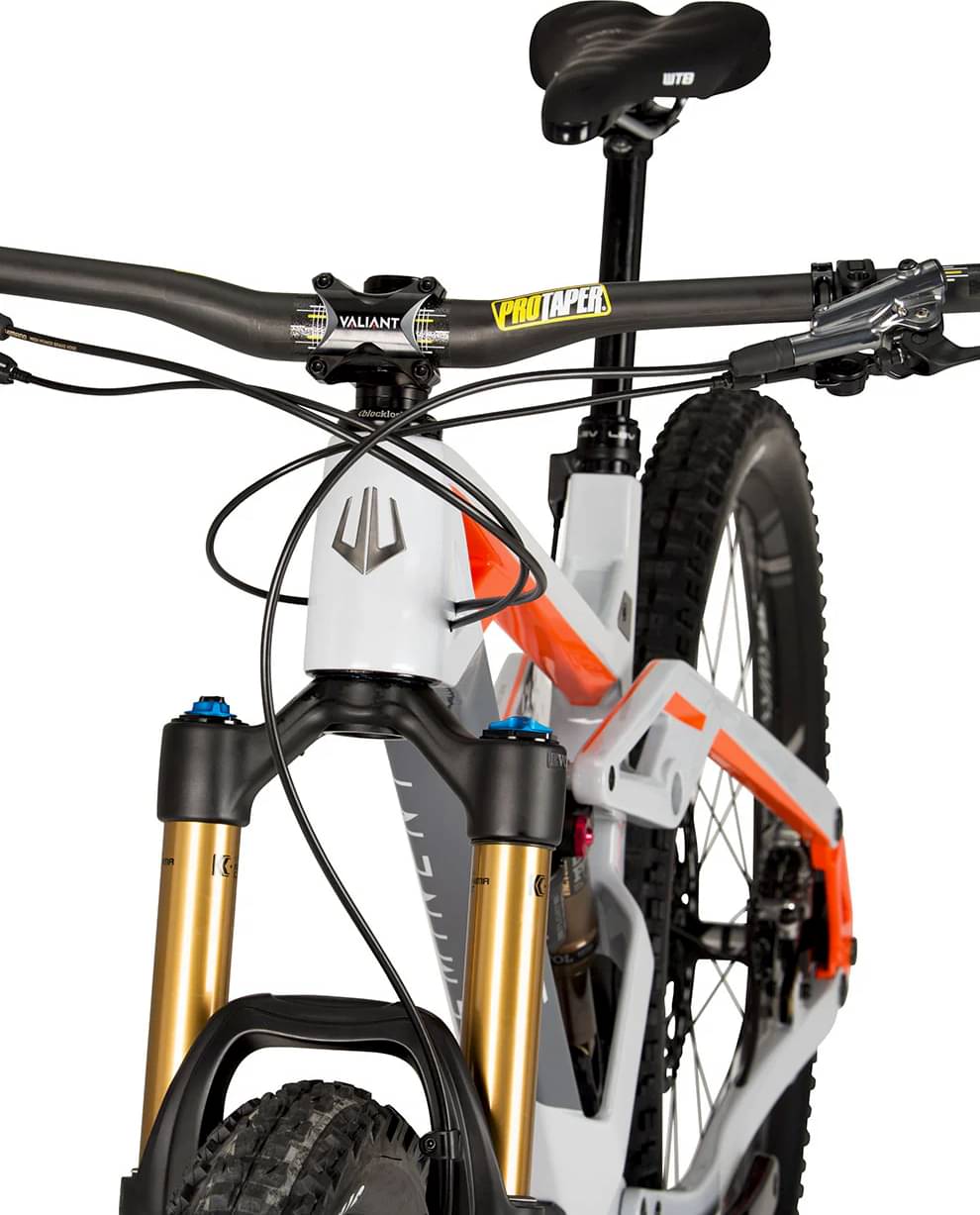

Cockpit
Stem
Raceface Turbine 40mm x 35mm dia.
Handlebar
Pro Taper Carbon 810mm

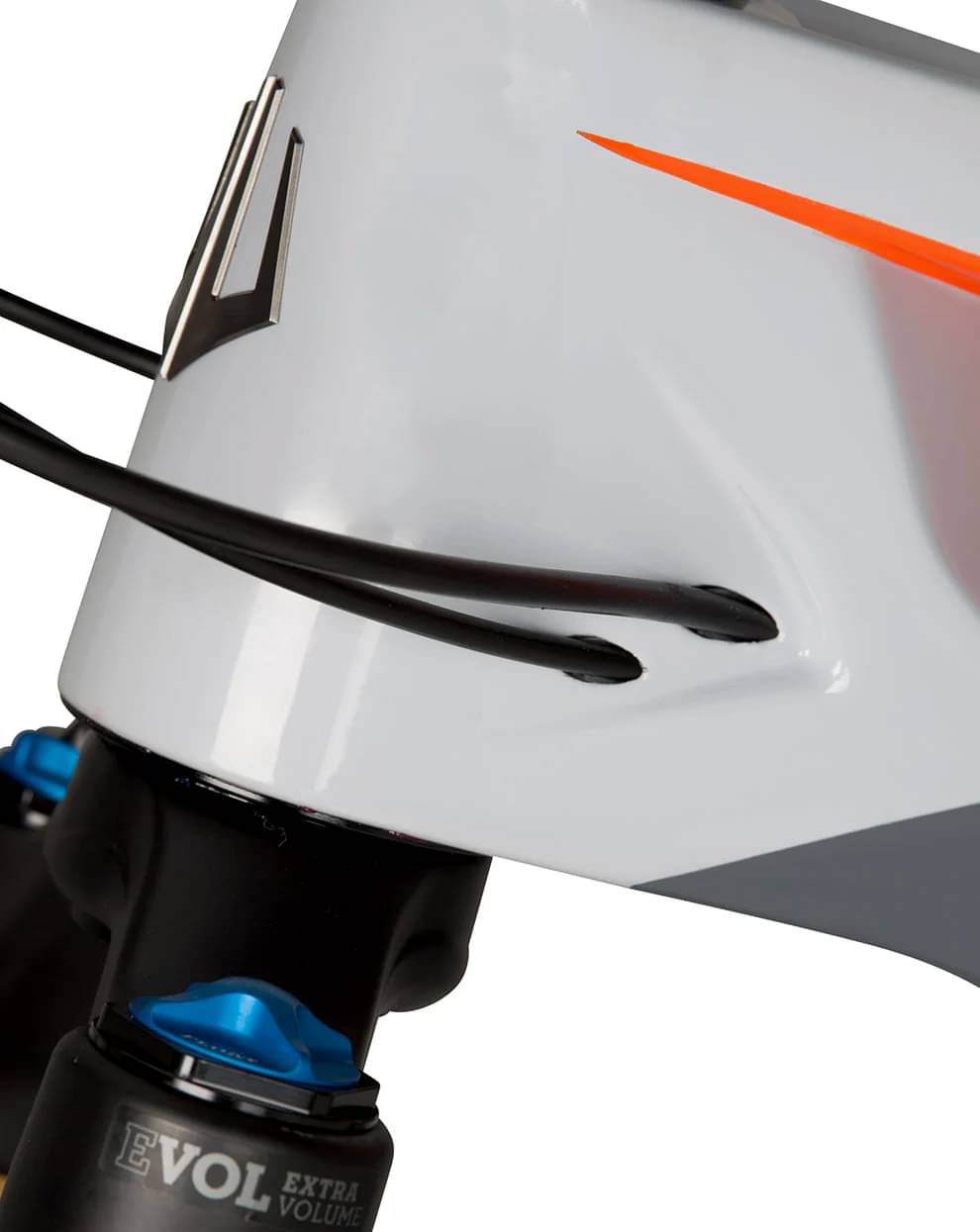

Headset
FSA
Seat
Saddle
WTB Volt Pro
Seatpost
KS Rage 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.531 mm | 1.465 mm | 1.396 mm | 1.331 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 719 mm | 747 mm | 776 mm | 814 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 117 mm | 121 mm | 117 mm |
| Stack | 623 mm | 633 mm | 642 mm | 652 mm |
| Reach | 407 mm | 432 mm | 460 mm | 490 mm |
| Top Tube Length | 572 mm | 601 mm | 629 mm | 654 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 76 ° |
| Seat Tube Length | 432 mm | 451 mm | 471 mm | 471 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1158 mm | 1187 mm | 1216 mm | 1254 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 738 mm | 738 mm | 738 mm | 738 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
