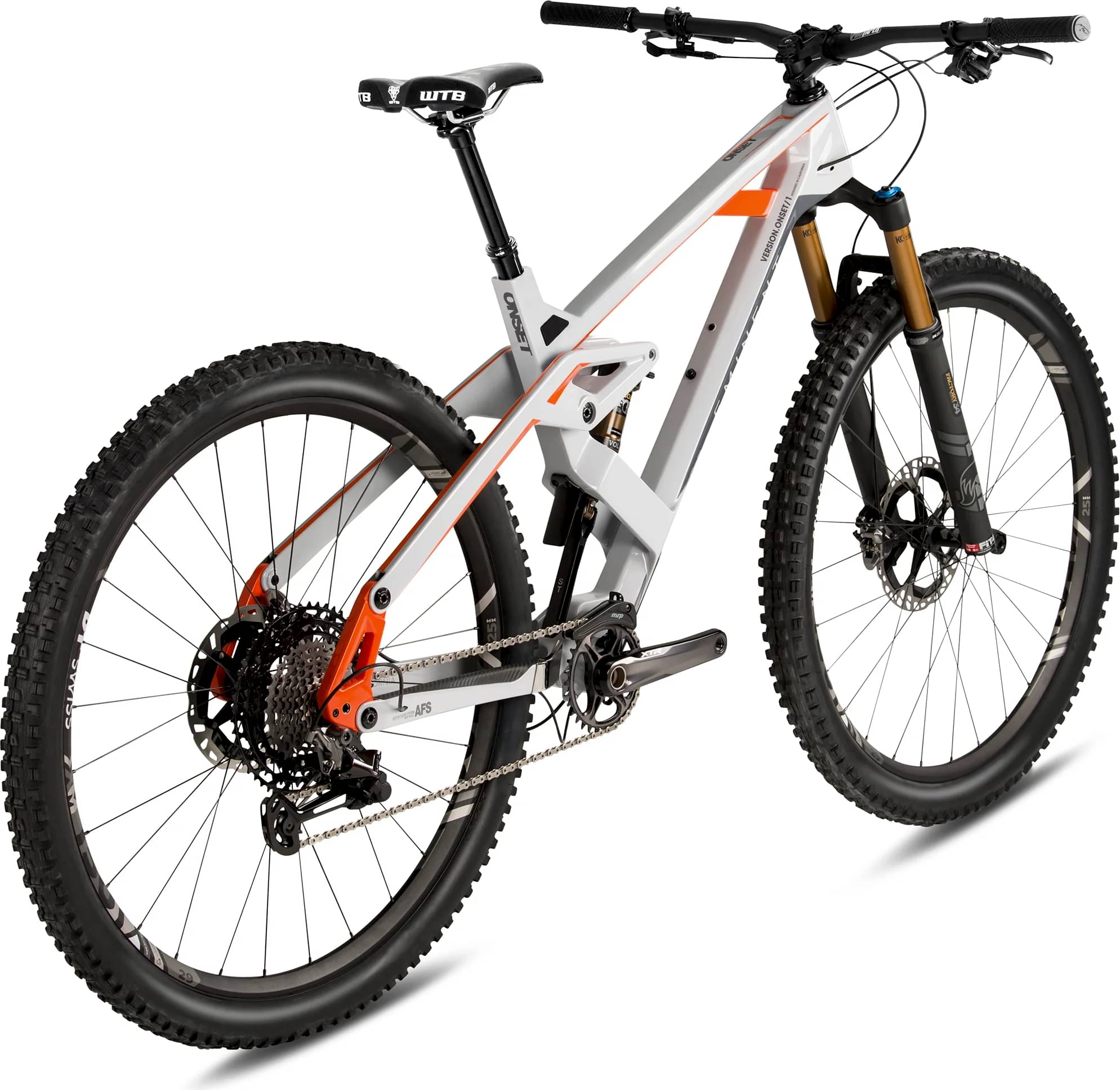

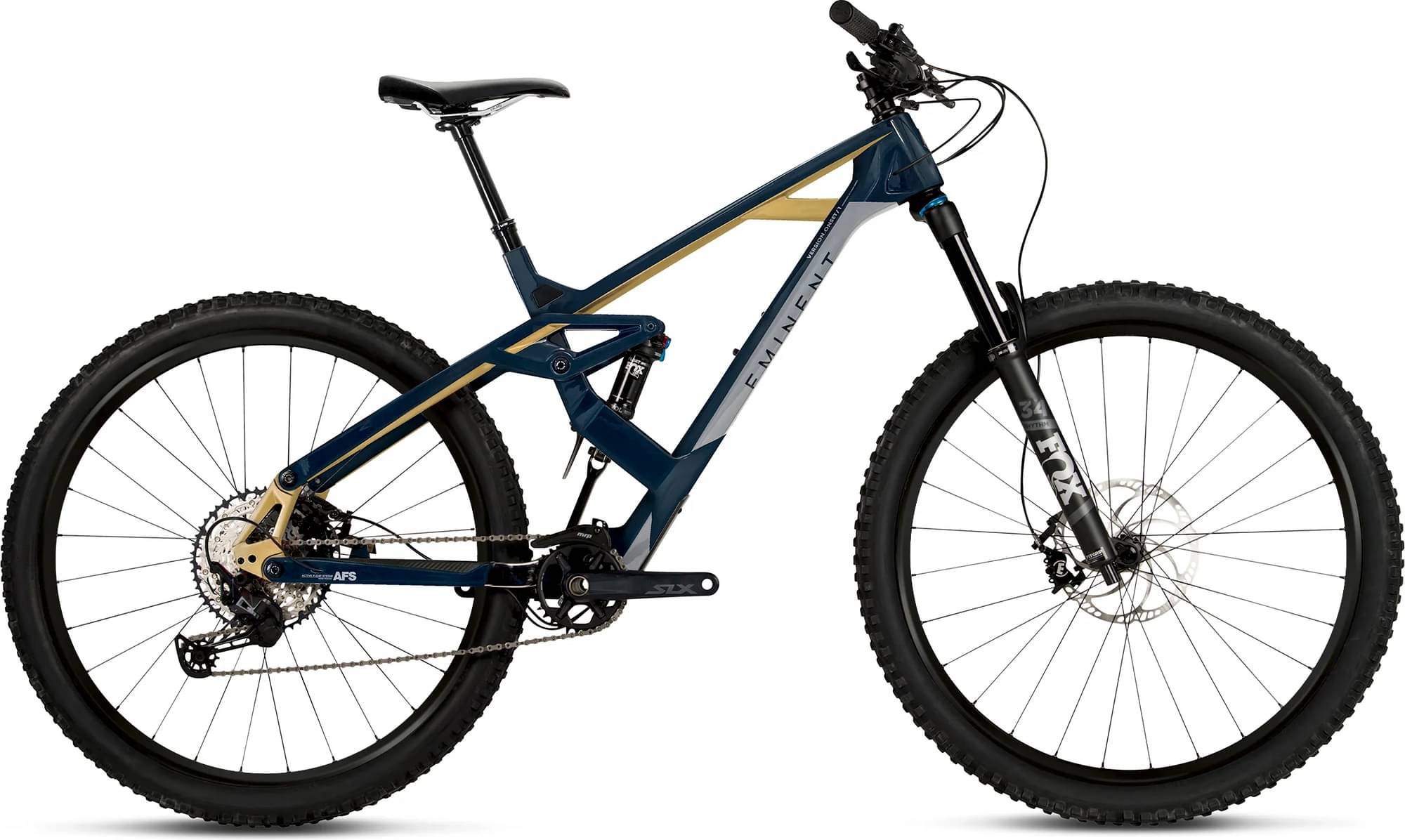

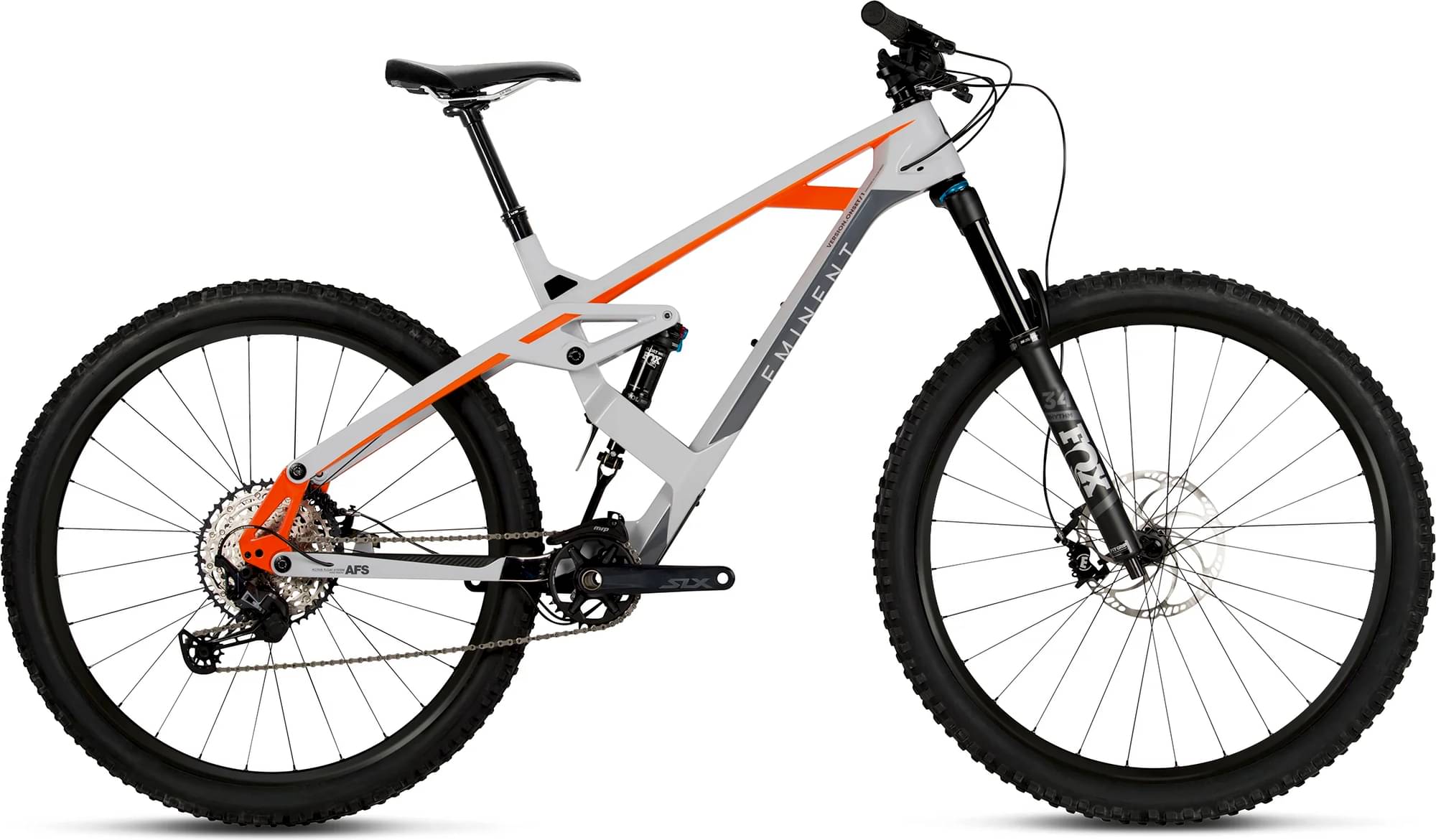

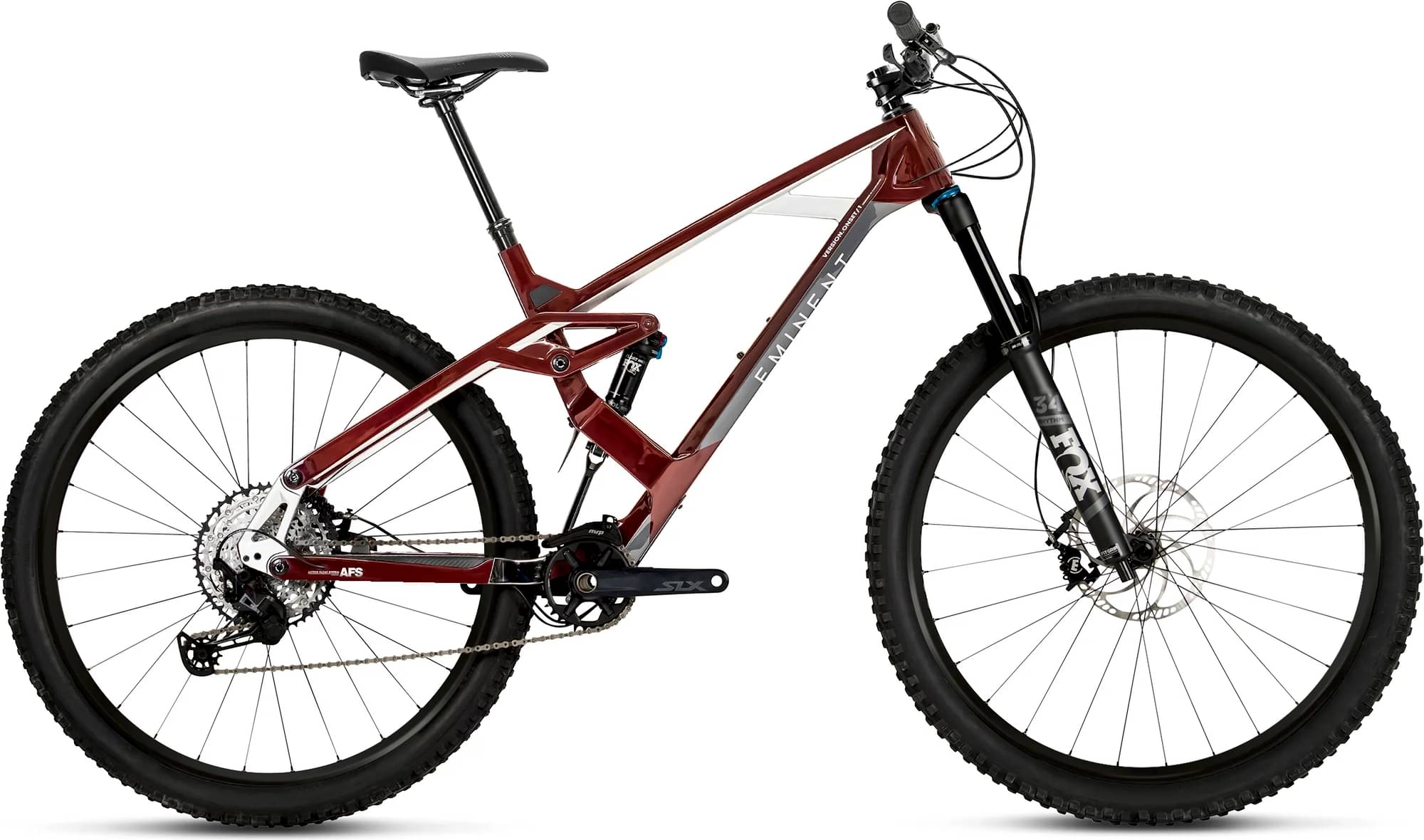

Eminent Onset ST Comp 29 2024
2024 Mountain
Estimate price |
5,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset SLX, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

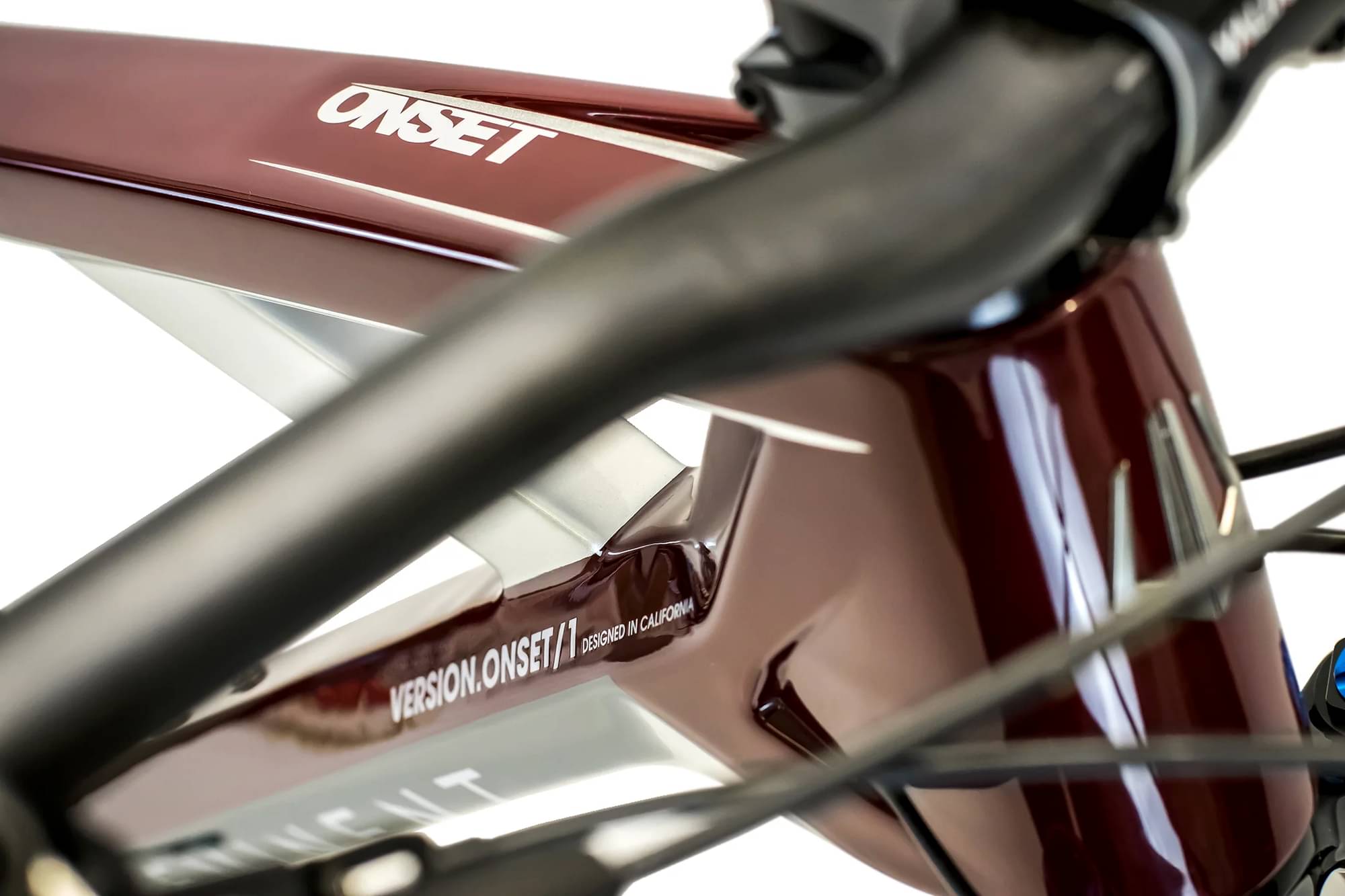

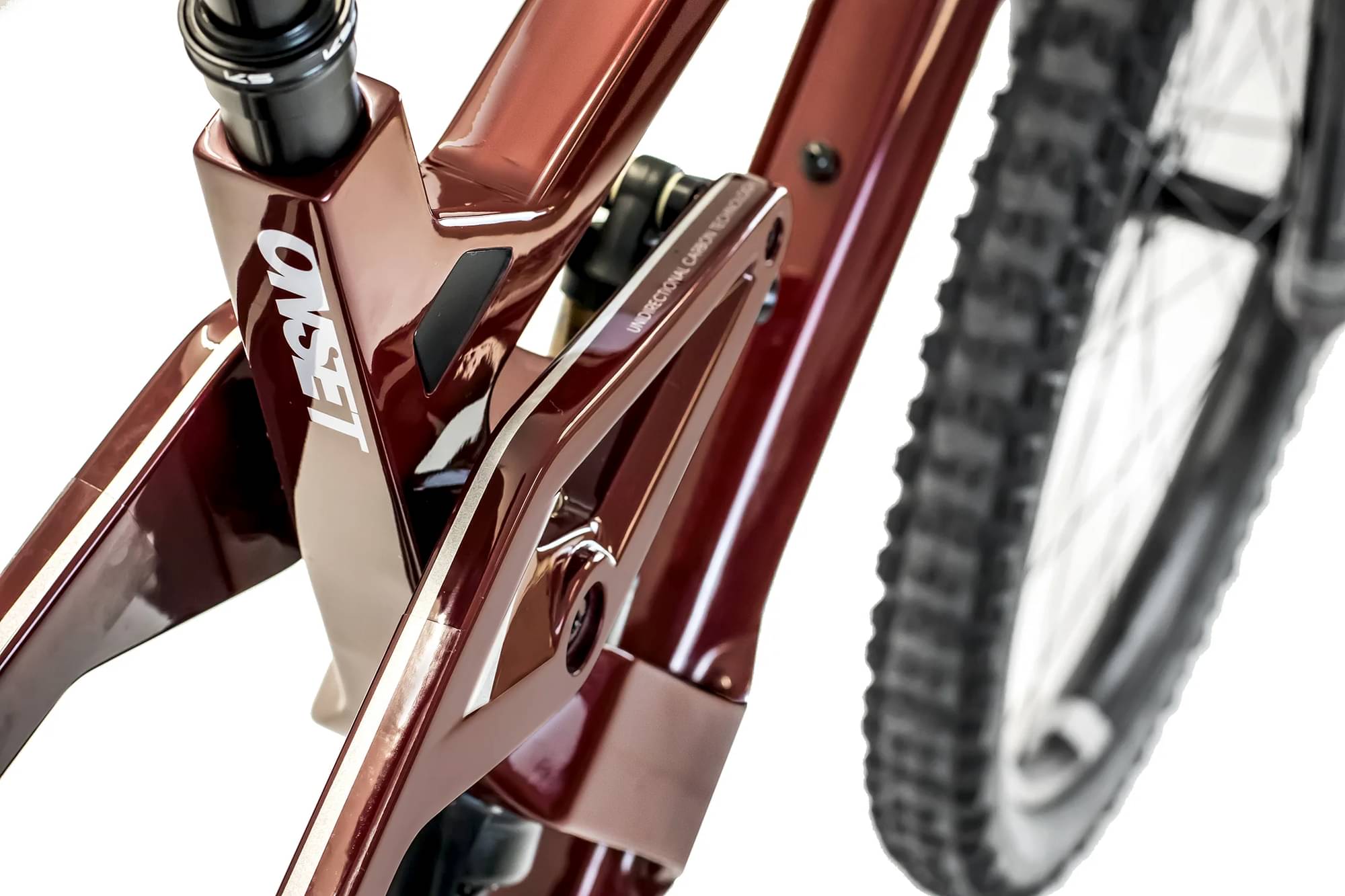

Eminent Onset (120mm)
Suspension Fork
Fox 34 Rhythm Grip 130, 44mm offset
Rear Shock
Fox Performance DPS 190 x 45

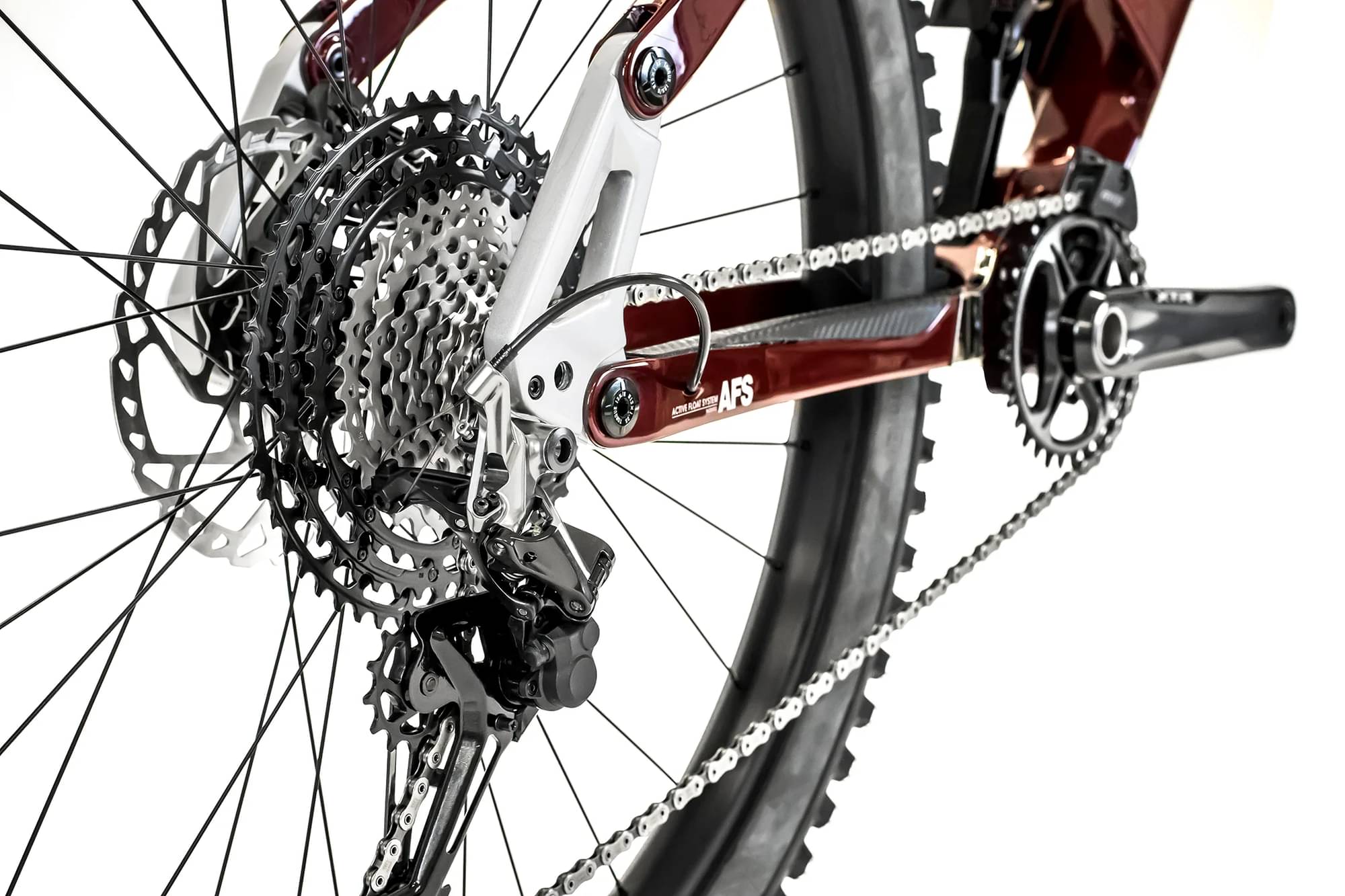

Drivetrain

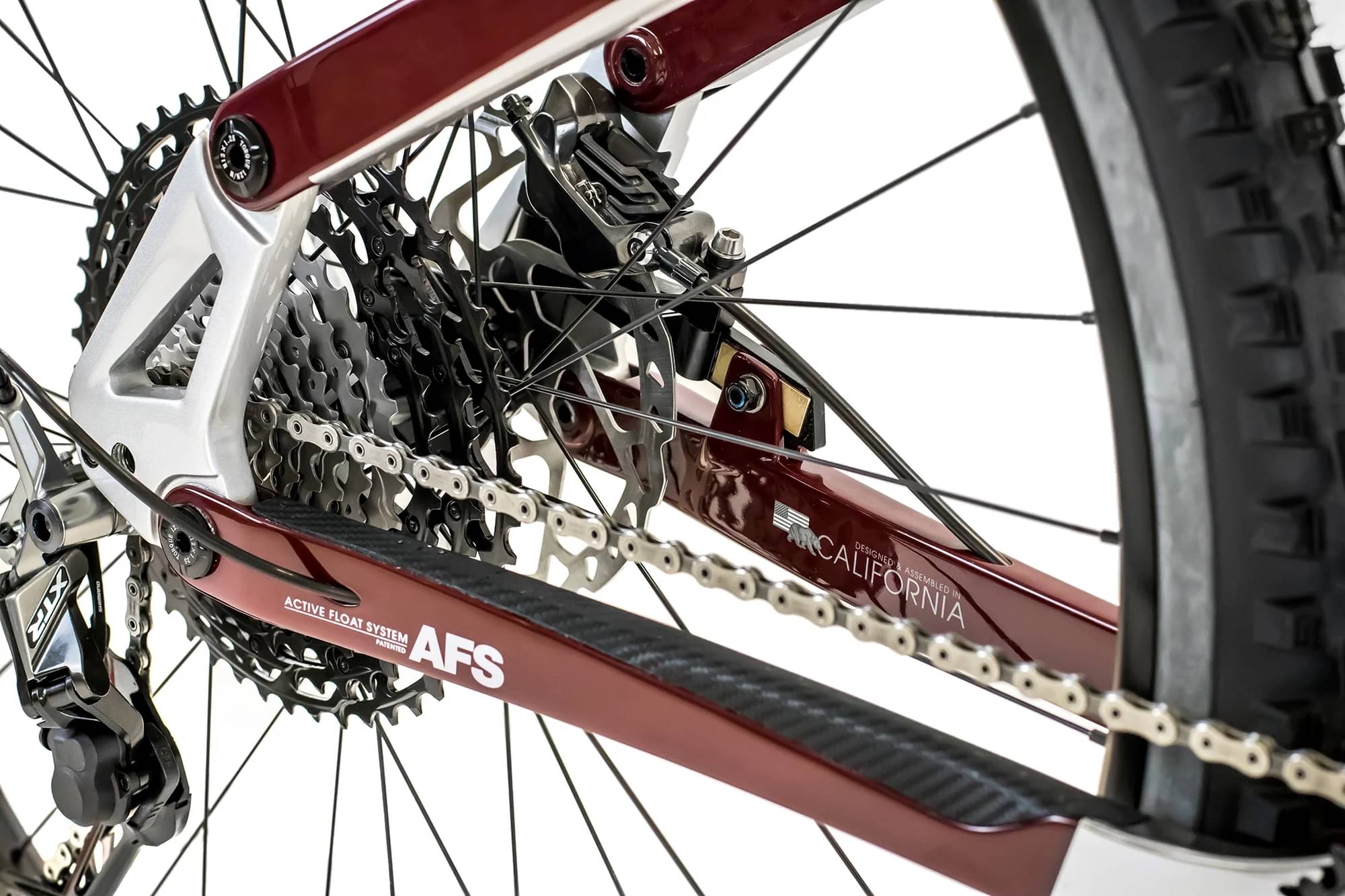

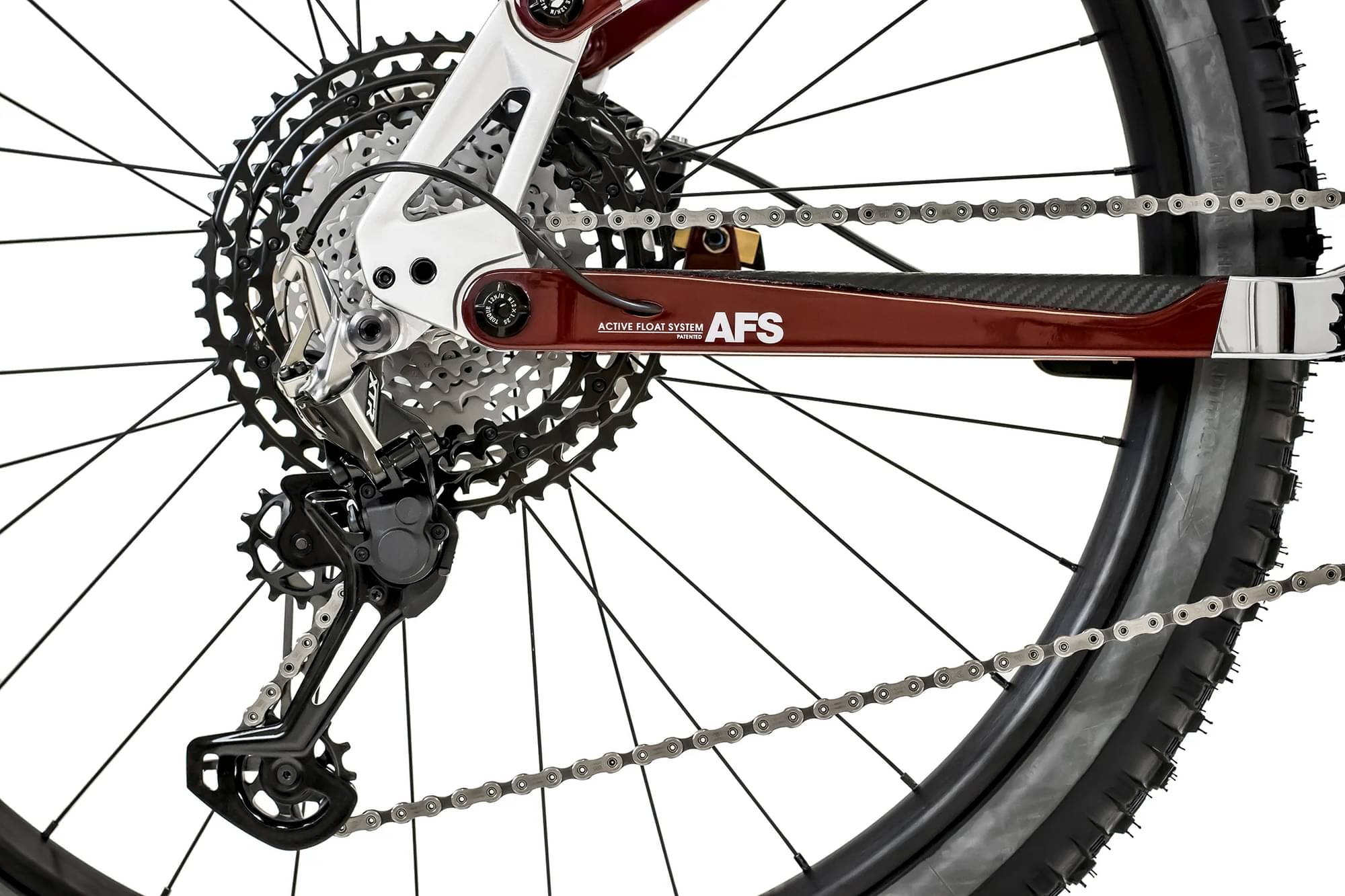

Rear Derailleur
SLX M7100 - 12 spd rear derailleur

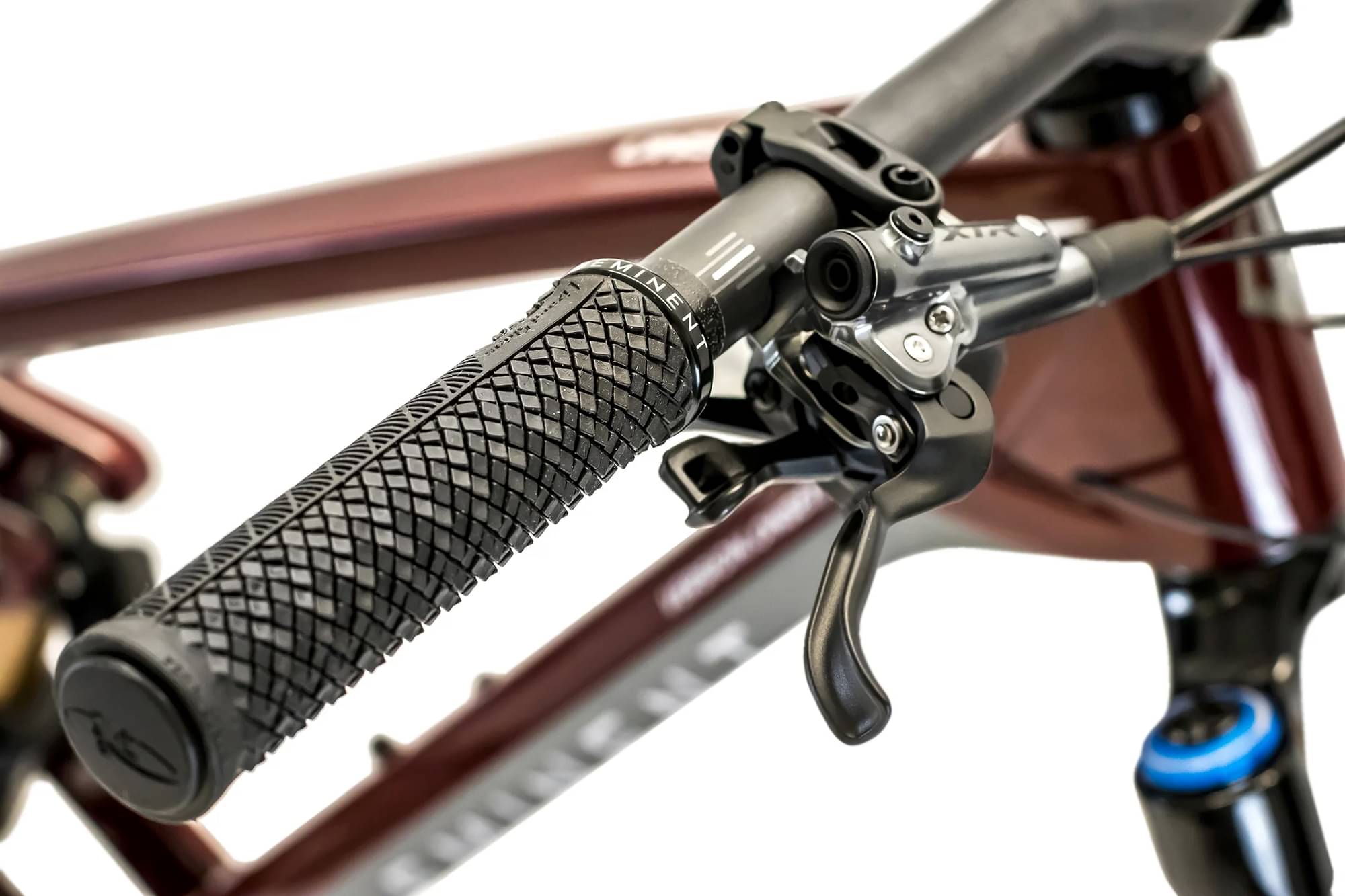

Shift Levers
SLX M7100 - 12 spd shifter
Cassette
Deore M6100 - 12 spd cassette
Crank
Deore M6100 - Front Crank w/32T chainring
Bottom Bracket
Shimano BB92
Chain
Deore M6100 - 12 spd chain
Chain Guide
MRP 1X CS ISCG-05
Wheels
Rims
Crankbrothers Synthesis Alloy
Tires
Maxxis
Brakes
Brakes

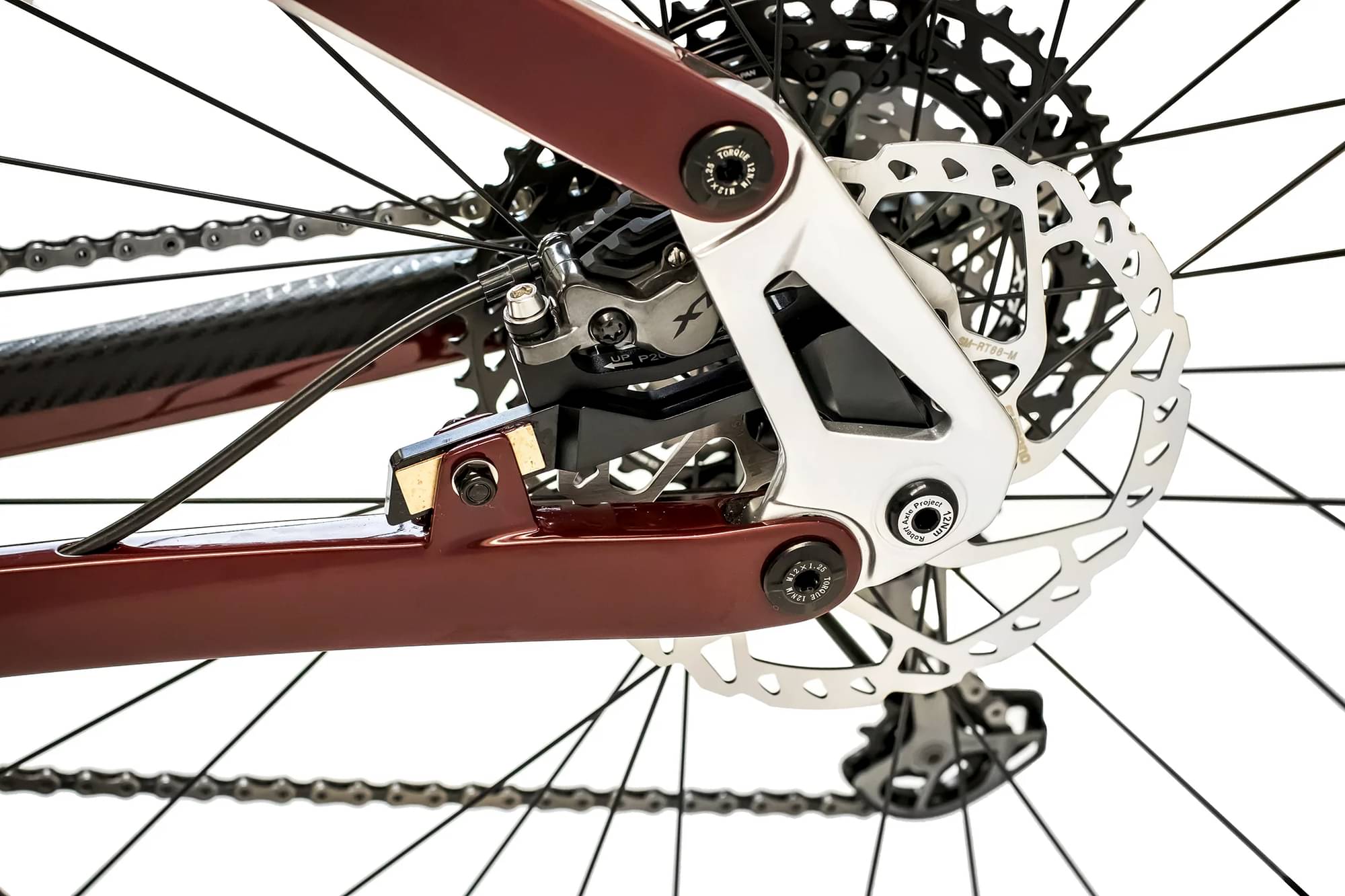

TRP Slate 4 Piston - front & rear brakes
Cockpit
Stem
Raceface Turbine 40mm x 35mm dia.
Handlebar
Pro Taper Aluminum 810mm
Headset
FSA
Seat
Saddle
WTB Volt Comp
Seatpost
KS Rage 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.483 mm | 1.42 mm | 1.36 mm | 1.288 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 712 mm | 741 mm | 770 mm | 807 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 617 mm | 626 mm | 635 mm | 644 mm |
| Reach | 416 mm | 441 mm | 467 mm | 500 mm |
| Top Tube Length | 568 mm | 597 mm | 627 mm | 650 |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 77 ° |
| Seat Tube Length | 432 mm | 451 mm | 471 mm | 471 mm |
| Head Tube Angle | 66.8 ° | 66.8 ° | 66.8 ° | 66.8 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1150 mm | 1179 mm | 1209 mm | 1246 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 731 mm | 731 mm | 731 mm | 731 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
