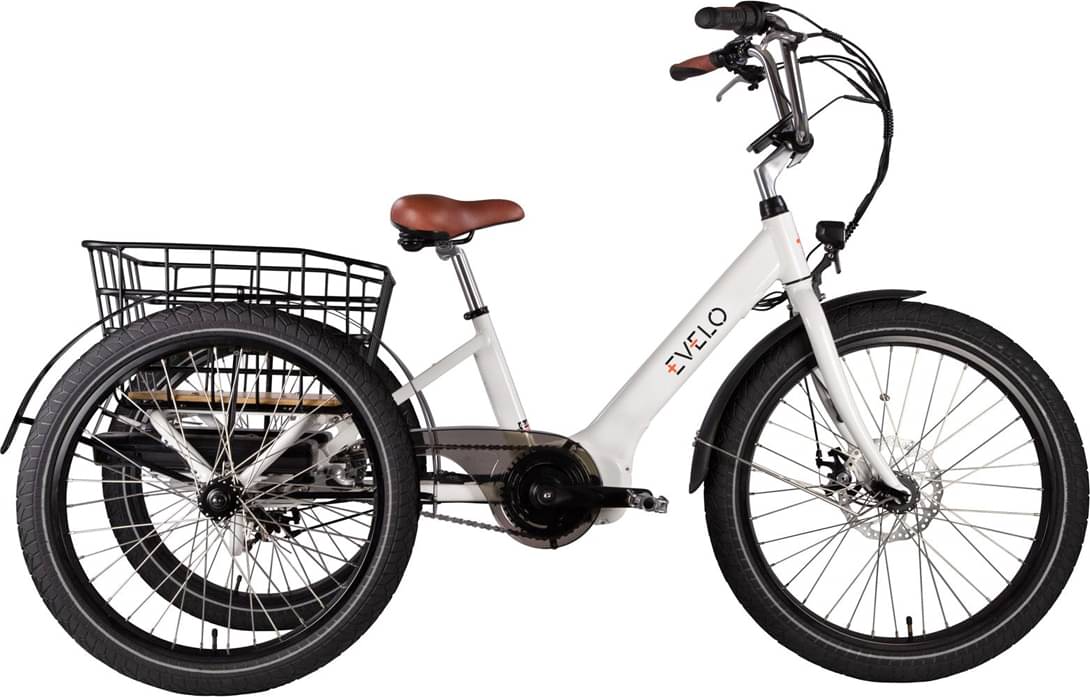

EVELO Compass 2022
2022 E-bike
Estimate price |
4,299$
Weight | 35.38 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 24" -
Groupset Nexus -
Suspension Rigid -
Motor Bafang 500W 105Nm mid-drive -
Battery Weight: 6 lbs (2.72 kg), Brand: Panasonic 18650 (Optional Panasonic), Voltage: 48 volts, Amp Hours: 10.5 ah (Optional Second 10.5ah), Watt Hours: 504 wh (Optional Dual Battery 1,008wh), Chemistry: Lithium-ion -
Drivetrain Internally Geared Hub -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 Aluminum Alloy
Suspension Fork
Rigid Aluminum Alloy, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Shimano Nexus Half-Grip Twist Shifter (Optional NuVinci Grip Twist on Right Bar)
Cassette
3 Speed 1x3 Shimano INTER3 Internally Geared Hub, 22 Tooth Rear Sprocket
Crank
Bafang E807 Aluminum Alloy Crank Arms, 170mm Length, 40 Tooth Chainring
Pedals
Wellgo Aluminum Alloy Platform with Rubber Tread
Wheels
Rims
Aluminum Alloy, Double Wall, 40mm Outer Width, 36 Hole
Spokes
Stainless Steel, 13 Gauge, Silver with Adjustable Nipples
Tires
CST Cyclopse, 24" x 2.4" (61-507)
Brakes
Brakes
Tektro Aries MDM-300 Mechanical Disc with 180mm Rotors, Tektro Four-Finger Levers with Motor Inhibitors and Parking Brake Locks
Cockpit
Stem
Zido, Quill Style, 80mm Length, 60° Angle, 25.4mm Clamp Diameter
Handlebar
High-Rise, Steel, 230mm Rise, 20° Back Sweep, 680mm Width, 25.4mm Diameter
Grips
Velo, Rubber, Ergonomic, Non-Locking
Headset
Neco, Threaded, Ball and Race, Pressed In Cups, 1-1/8" Straight
Seat
Saddle
Velo Breeze with Memory Foam (Optional Upgrade Program)
Seatpost
Promax, Aluminum Alloy, Single Bolt Clamp
Motor & Battery
Motor
Weight: 9.3 lbs (4.21 kg), Brand: Bafang BBS02, Type: Mid-Mounted Geared Motor, Nominal Output: 500 watts, Peak Output: 864 watts, Torque: 105 Newton meters
Battery
Weight: 6 lbs (2.72 kg), Brand: Panasonic 18650 (Optional Panasonic), Voltage: 48 volts, Amp Hours: 10.5 ah (Optional Second 10.5ah), Watt Hours: 504 wh (Optional Dual Battery 1,008wh), Chemistry: Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 56cm |
|---|---|
| Wheels | 24" |
| Rider Min Height | 120 cm |
About this model
Compass is an Evelo E Compass model. EVELO released 1 e-bike variation of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Utility e-bikes
Our math shows that the average cost of a dependable Utility e-bike is 3636$. However, you could also get a good Utility e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 4299$. If we compare this with the average Utility e-bike cost we notice that the price is 18.23% higher.
Average weight for Utility e-bikes
On a deeper look, we notice that the average weight of an Utility e-bike is 34.2 kg (75.4 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, Compass has a weight of 35.38 kg (78 lbs). In other words, this model is 3.45% heavier than the average Utility e-bike.
Overview of components
Fork material
Compass has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When leaving the production line, the Compass model has 24″ aluminum wheels. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
For your safety, it is important to have quality breaks on your bike. EVELO Compass has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
