EVELO Galaxy 500 2020

2020 E-bike
Estimate price | 3,999$
Weight | 26.89 kg
E-bike
Open compare Use advisor

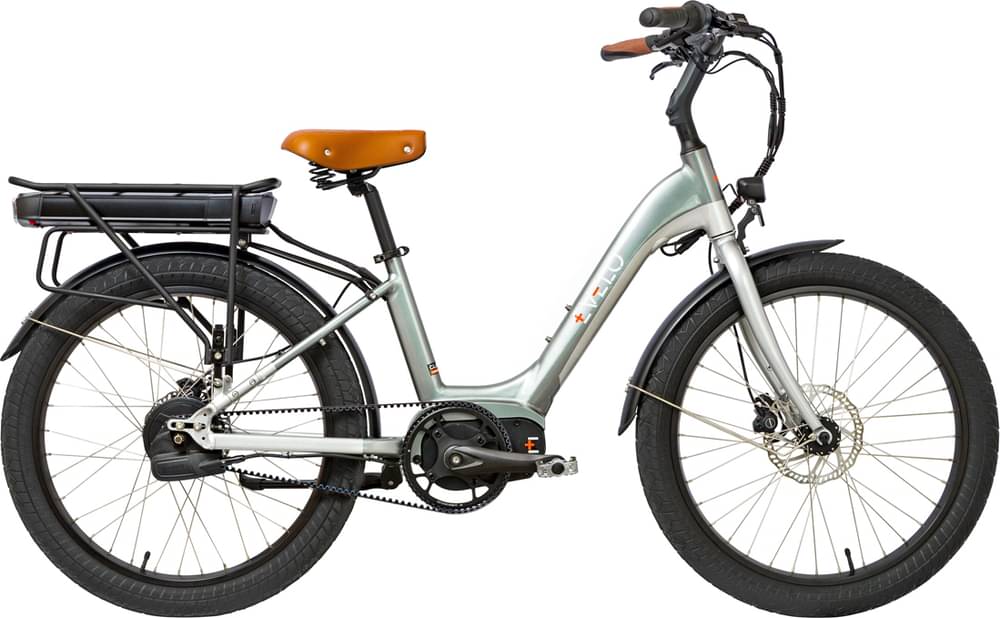

Evelo Galaxy 500 2020

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 24"
  • Suspension Rigid
  • Motor 500W 90Nm mid-drive
  • Battery Weight: 7.4 lbs (3.35 kg), Brand: Panasonic or Samsung (A Rated Cells), Greeenway (Battery Assembler), 18650 Cells (Optional Panasonic), Voltage: 36 volts, Amp Hours: 13 ah, Watt Hours: 468 wh, Chemistry: Lithium-ion
  • Drivetrain Belt Drive
  • Brakes Rim

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

6061 High-Strength Aluminum Alloy

Suspension Fork

Custom Rigid 6061 Aluminum Alloy, 52mm Offset, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer

Drivetrain

Shift Levers

Enviolo NuVinci Optimized Half-Grip Twist Shifter on Right Bar (Electronic Shifting, Choose Adaptive Cadence or Fixed Cadence with Silver Button) (Optional NuVinci Grip Twist on Right Bar)

Cassette

1 Speed 1x? Enviolo Automatic Continuously Variable Transmission 380° Gear Range Equivalent to 11-42T Cassette (Fully Automatic Electronic Shifting System), 22 Tooth Rear Cog

Crank

Forged Aluminum Alloy Crank Arms, 170mm Length, 55 Tooth Gates Carbon Drive CDX Belt Ring Chainring

Pedals

Wellgo C235 Aluminum Alloy Platform, Rubberized Grip

Wheels

Rims

Aluminum Alloy, Double Wall, 45mm Outer Width, 36 Hole, Black

Spokes

Stainless Steel, 13 Gauge, Silver with Adjustable Nipples

Tires

CST Cyclops, 24" x 2.4" (61-507)

Cockpit

Stem

Satori Stargazer Aluminum Alloy, 45° Angle, 15mm Base, 110mm Length, Three 10mm Spacers, One 18mm Tapered Bottom Spacer, 31.8mm Handlebar Clamp Diameter

Handlebar

Promax HBM-301, Swept Back, Aluminum Alloy, 80mm Rise, 20° Back Sweep, 640mm Width

Grips

Velo, Rubber, Ergonomic, Non-Locking

Headset

Integrated, Sealed Cartridge, Straight 1-1/8" (44mm Outer Diameter)

Seat

Saddle

Selle Royal RoyalGel Springer Comfort Saddle (Optional Upgrade Program)

Seatpost

Aluminum Alloy, Single-Bolt Forged Head

Motor & Battery

Motor

Weight: 9 lbs (4.08 kg), Brand: Dapu MD-250 with Custom Controller for Higher Output, Type: Mid-Mounted Geared Motor, Nominal Output: 500 watts, Peak Output: 600 watts, Torque: 90 Newton meters

Battery

Weight: 7.4 lbs (3.35 kg), Brand: Panasonic or Samsung (A Rated Cells), Greeenway (Battery Assembler), 18650 Cells (Optional Panasonic), Voltage: 36 volts, Amp Hours: 13 ah, Watt Hours: 468 wh, Chemistry: Lithium-ion

Fit data

Geometry

Numbers for sizing and ride feel.

Size15"
Wheels24"
Rider Min Height120 cm

Model Overview

Galaxy 500 is part of the Evelo E Galaxy model. 1 e-bike variation carries this model name so far.

Safety

Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.

Commuter e-bikes average price

If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.

Furthermore, this bike was made available in 2020 for 3999$. Doing a quick comparison, we notice that Galaxy 500 price is 55.66% more expensive than the average cost of a Commuter e-bike.

Average weight for Commuter e-bikes

Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.

EVELO Galaxy 500 it’s weighing 26.89 kg (59.28 lbs). At this weight, is a bit heavier than average. To sum up, it’s 6.71% heavier than the average weight of Commuter e-bikes.

Overview of components

Fork material

The fork is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.

Wheels size

When leaving the production line, the Galaxy 500 model has 24″ aluminum wheels. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.

Brakes

For your safety, it is important to have quality breaks on your bike. EVELO Galaxy 500 has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
