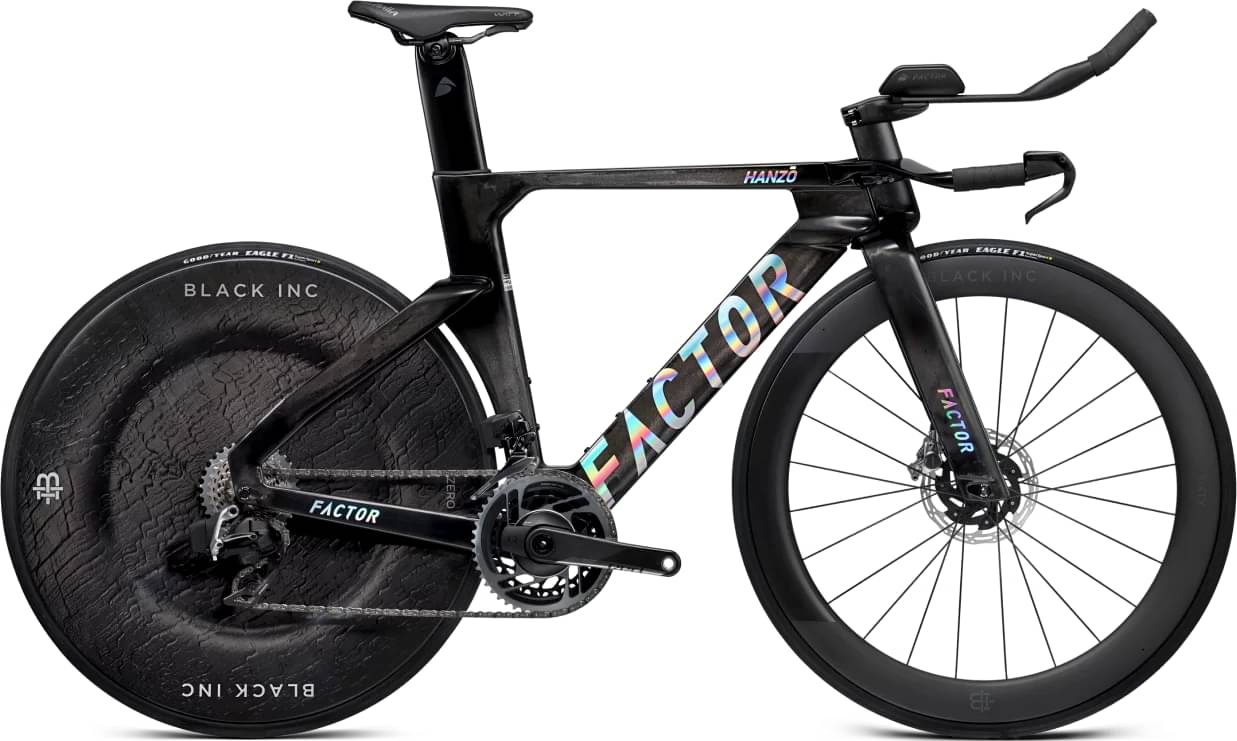

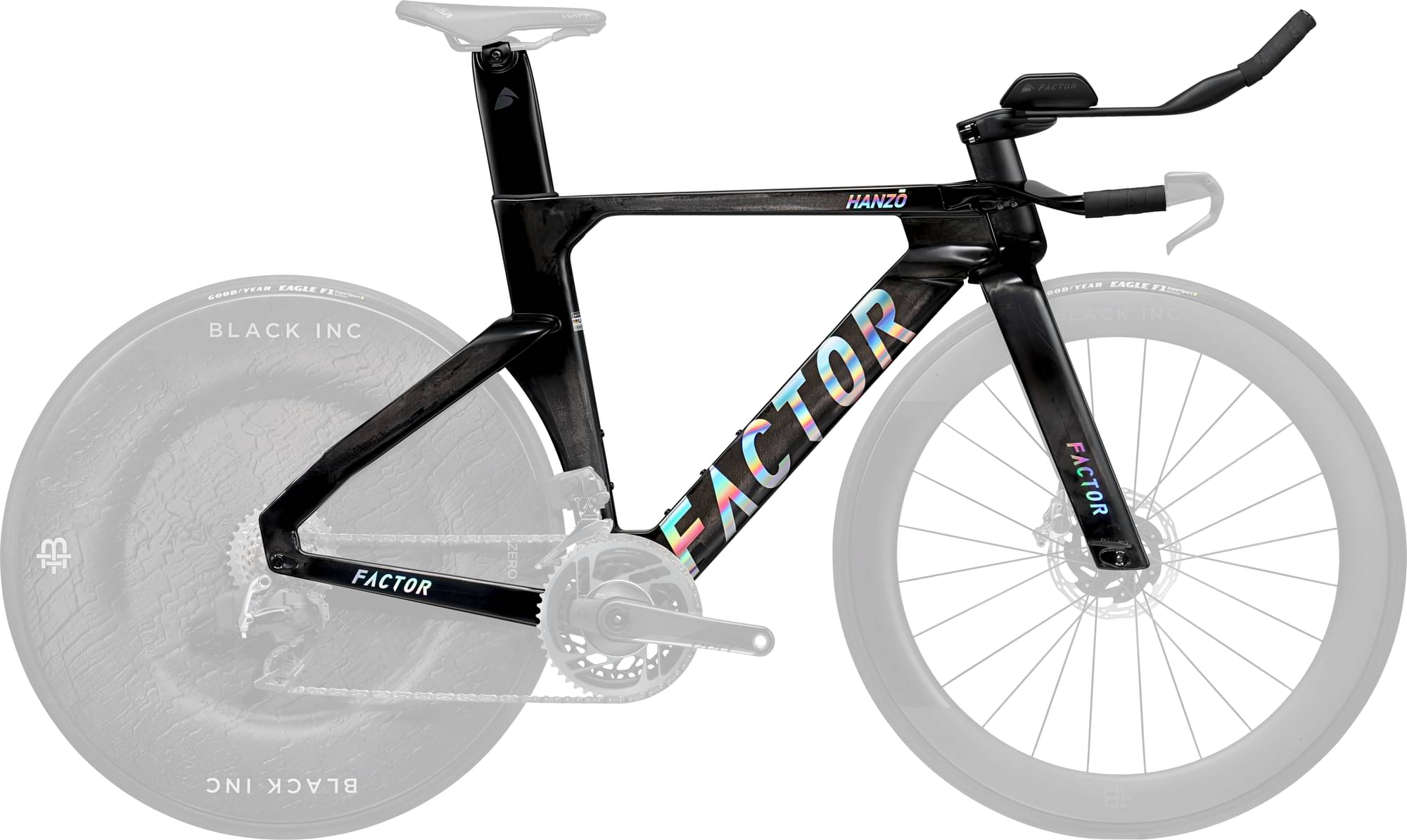

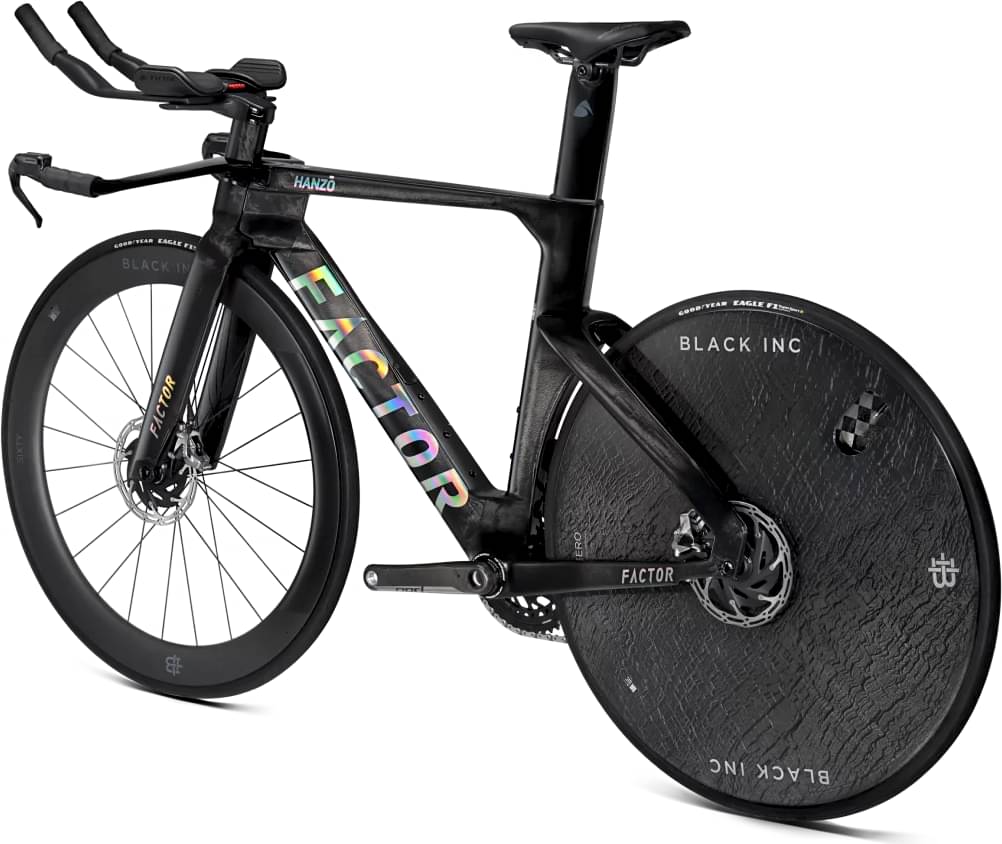

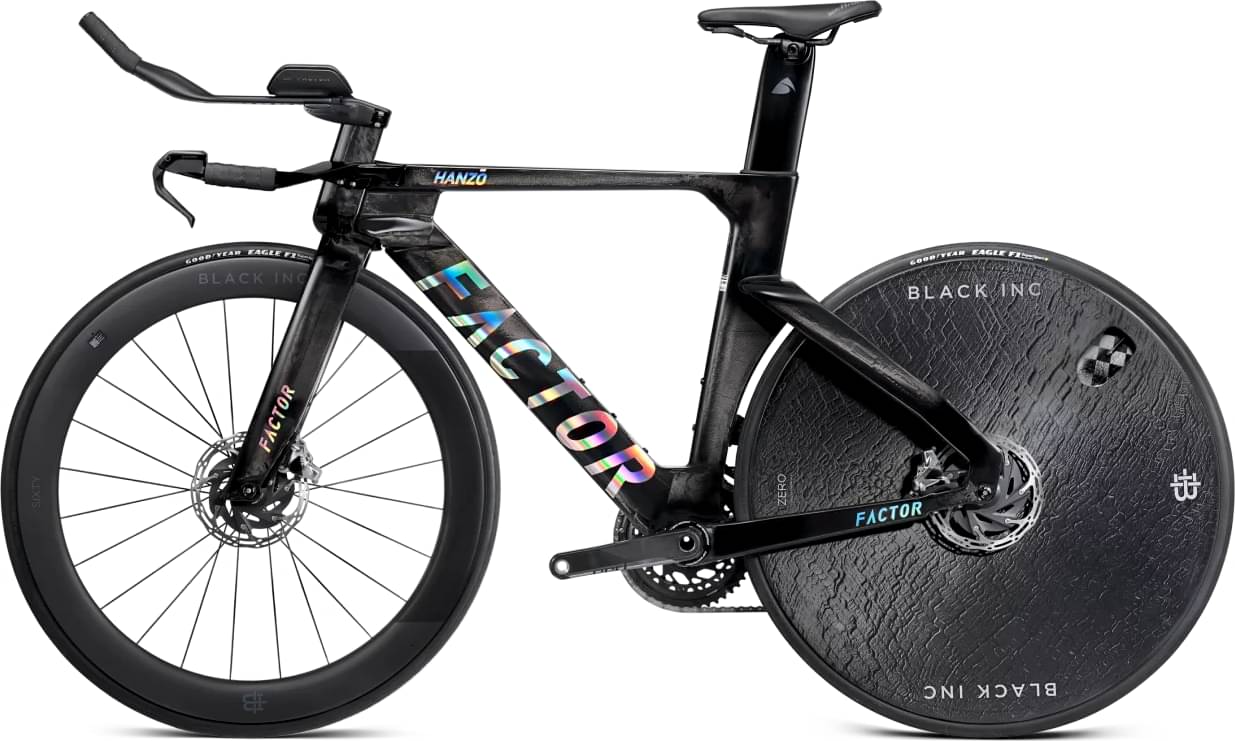

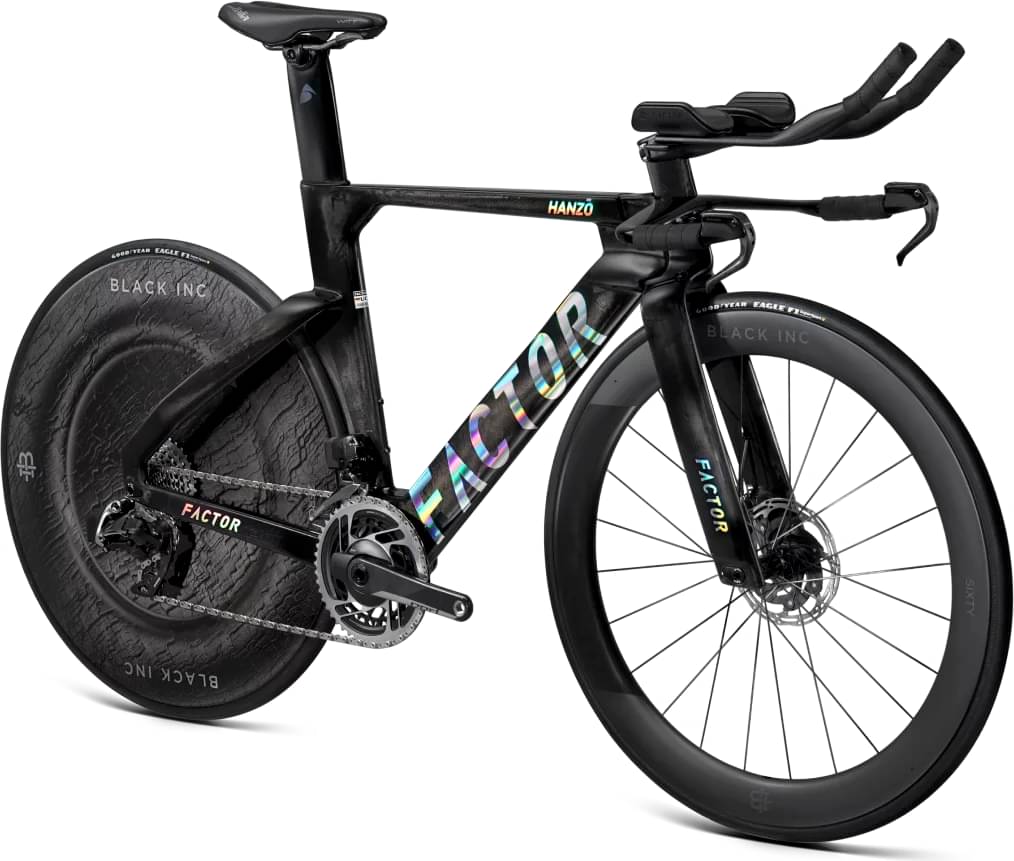

factor HANZŌ Frameset Premium 2025
2025 Road
Estimate price |
6,299$
Weight | 1.15 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Factor HANZ? Toray® & Nippon Graphite® Pan-Based Fiber
Suspension Fork
Factor Wide Stance Fork
Drivetrain
Bottom Bracket
CeramicSpeed PF4630 Aluminium cups / CeramicSpeed bearings with Wheels MFG 24mm BBRight Reducers/Adapters
Brakes
Brakes
Disc
Cockpit
Headset
CeramicSpeed SLT 1? bearings
Seat
Seatpost
Factor HANZO Carbon Zero (0mm setback). 27mm setback also available.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.285 mm | 1.274 mm | 1.291 mm | 1.286 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 581 mm | 597 mm | 618 mm | 646 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 64 mm | 60 mm | 60 mm | 60 mm |
| Stack | 501 mm | 516 mm | 541 mm | 566 mm |
| Reach | 390 mm | 405 mm | 419 mm | 440 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 491 mm | 510 mm | 535 mm | 560 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 975 mm | 991 mm | 1012 mm | 1041 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
