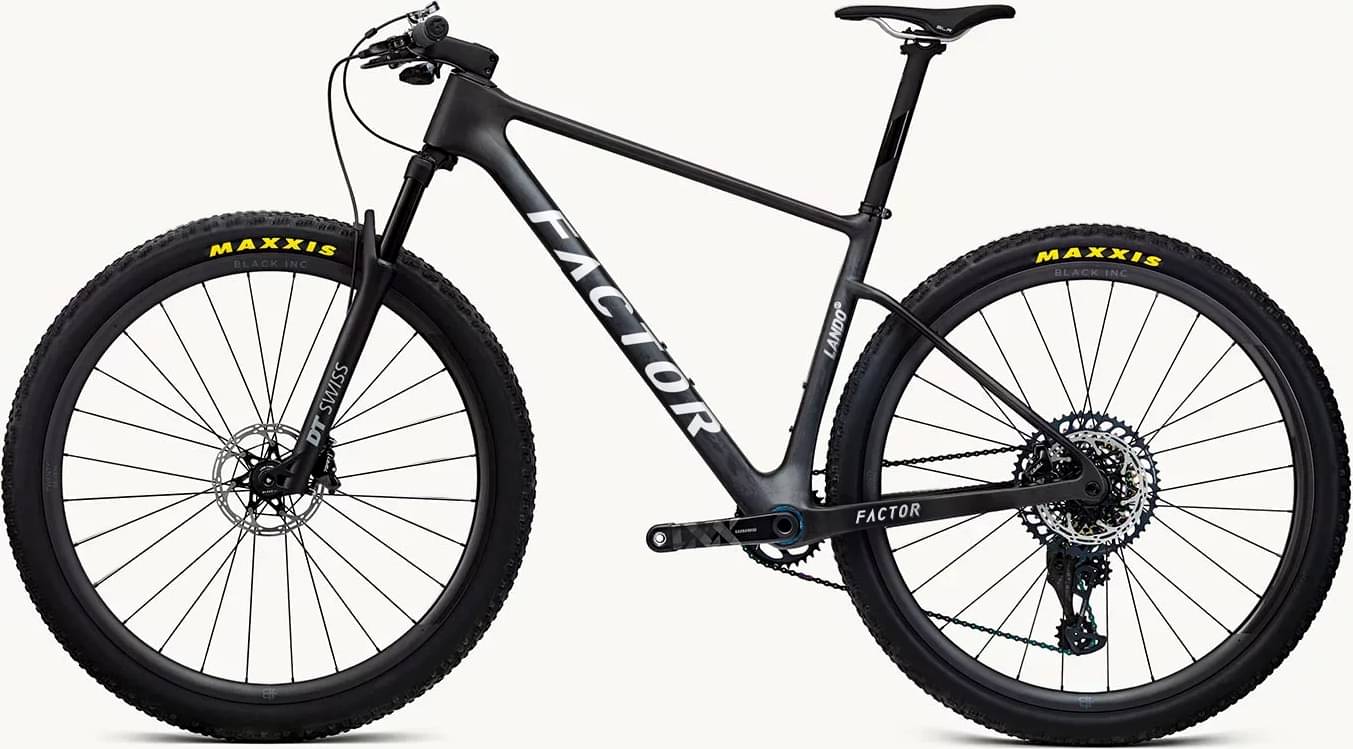

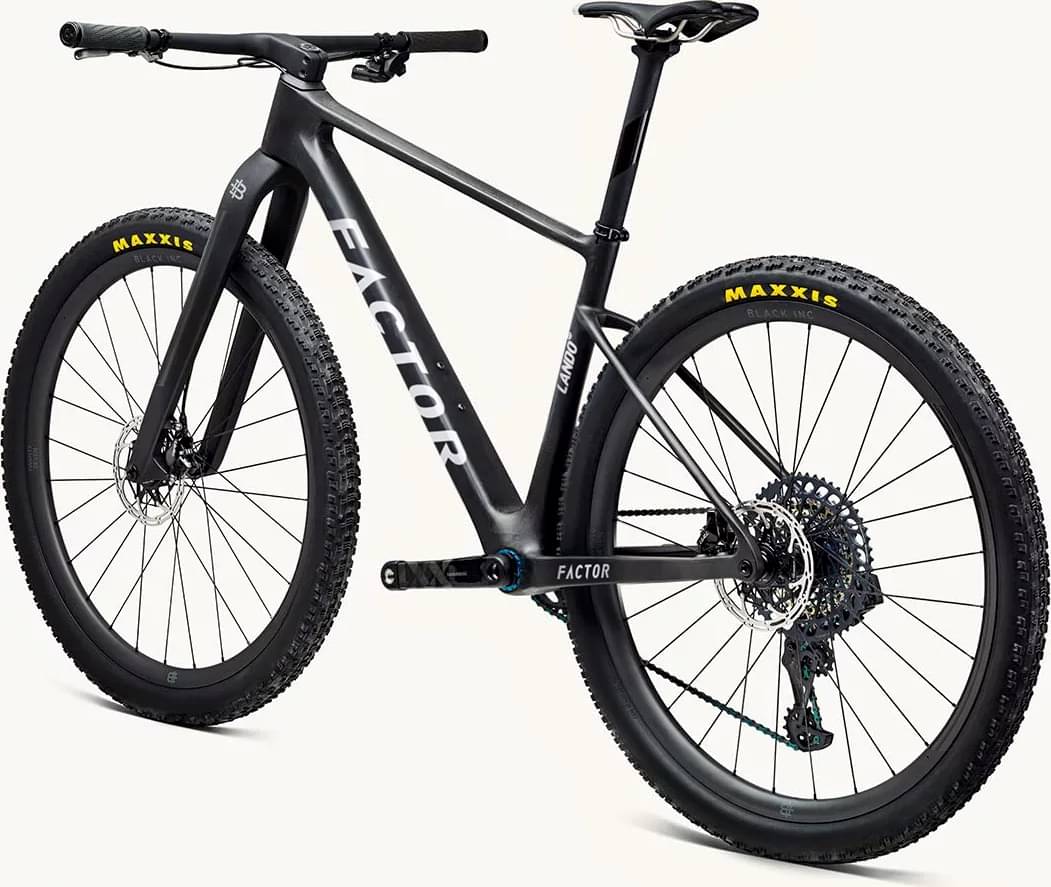

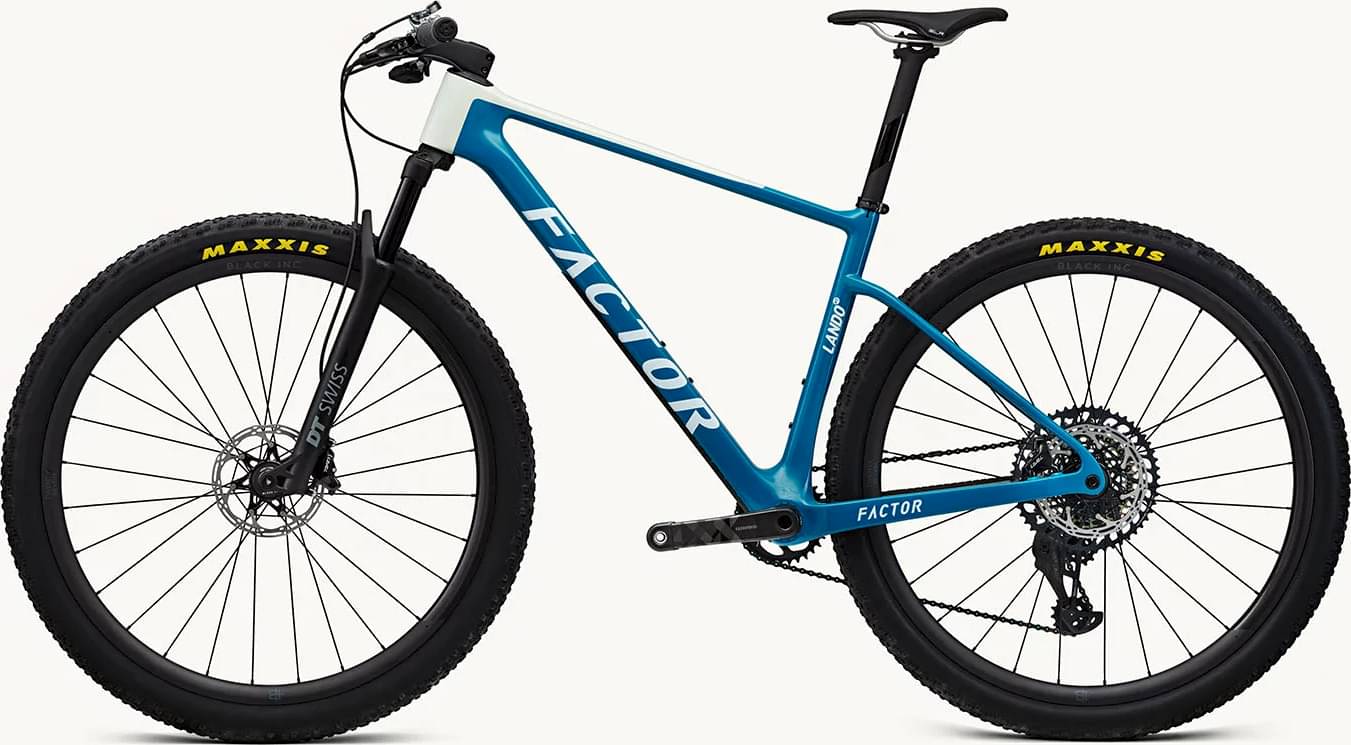

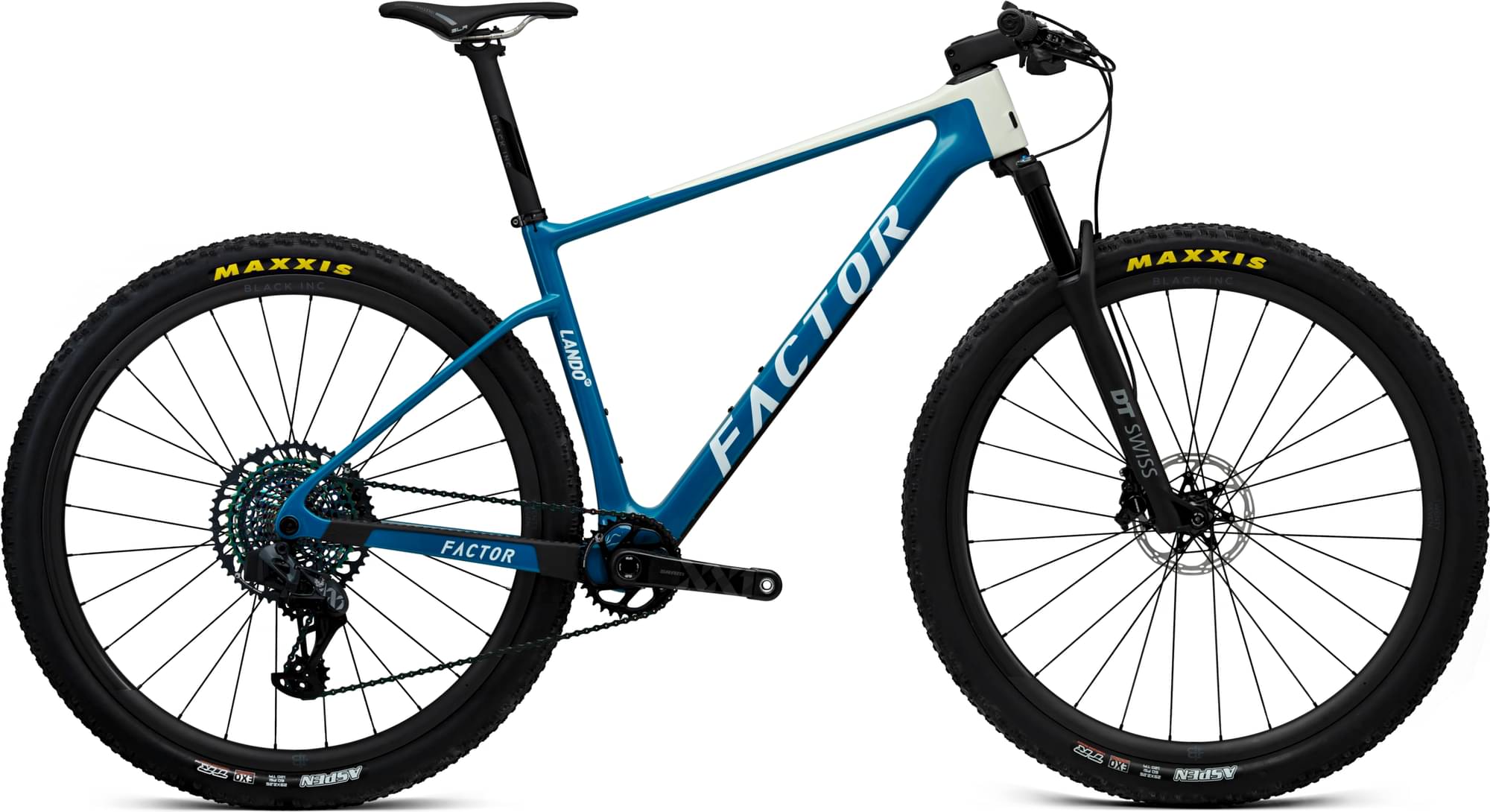

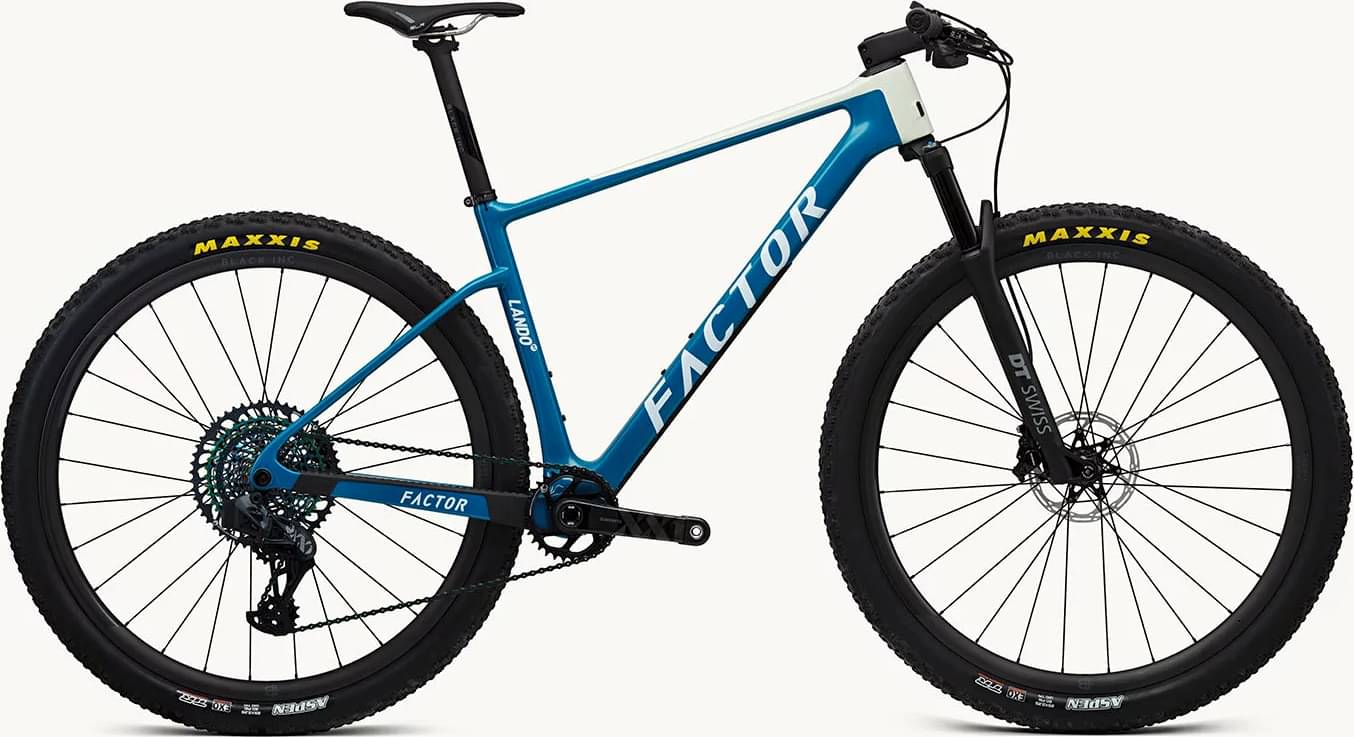

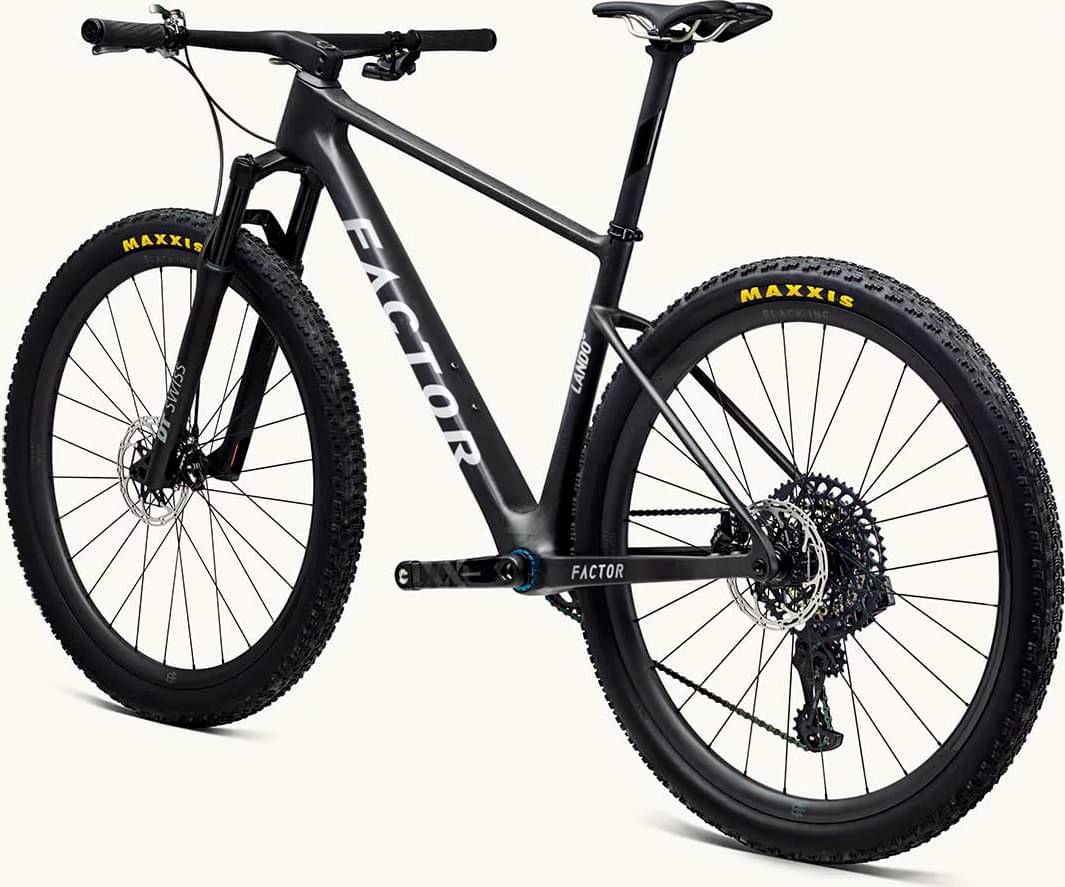

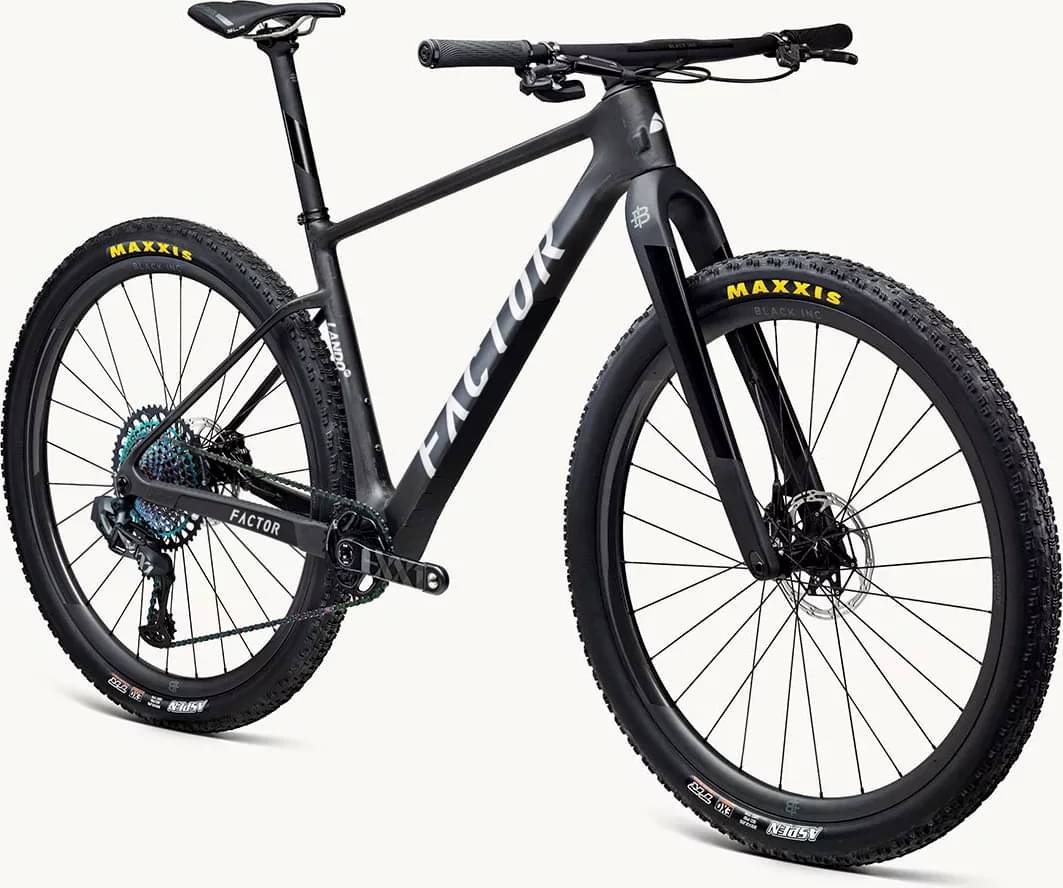

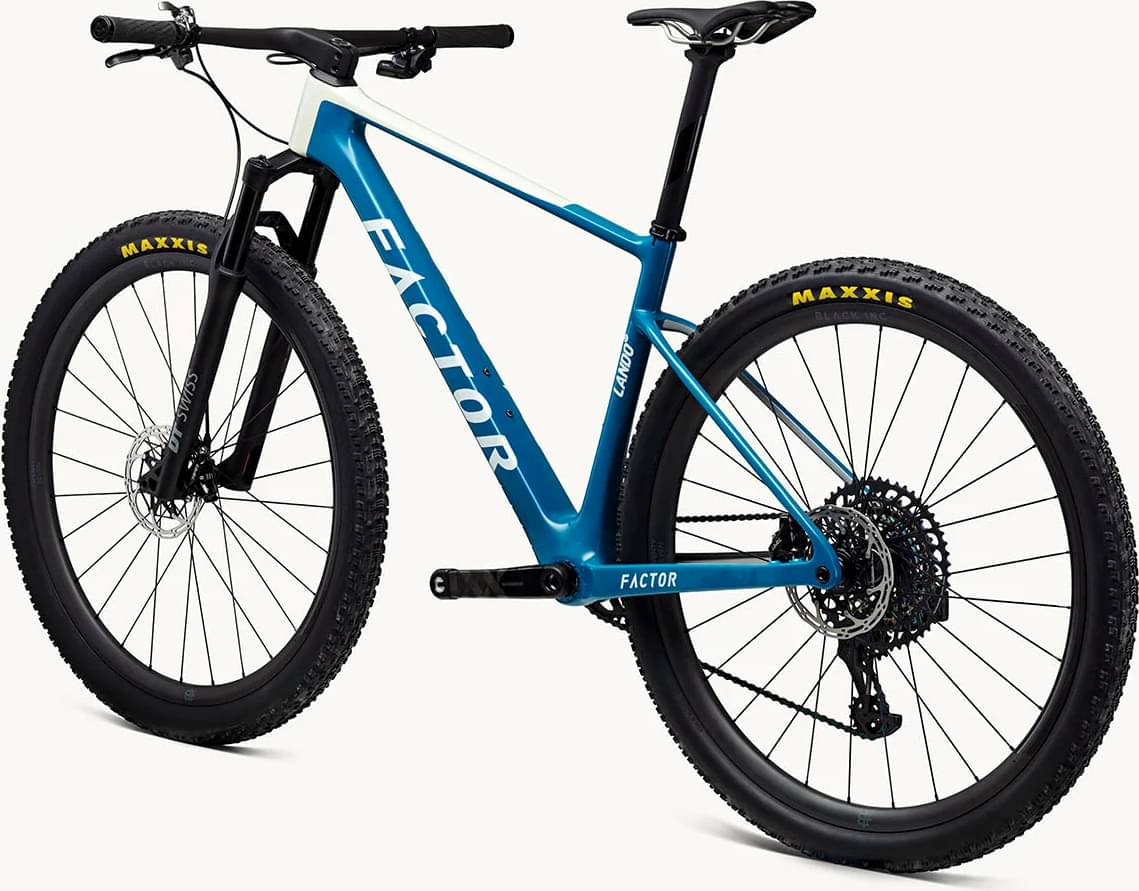

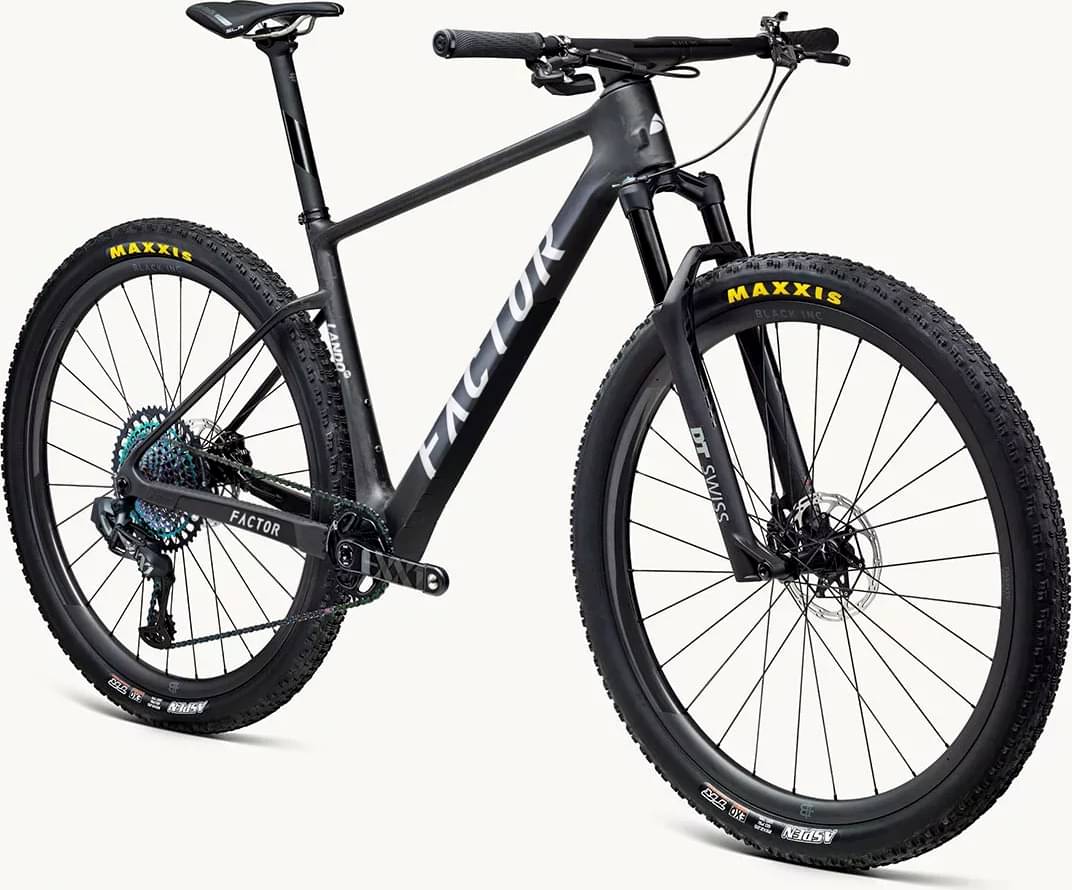

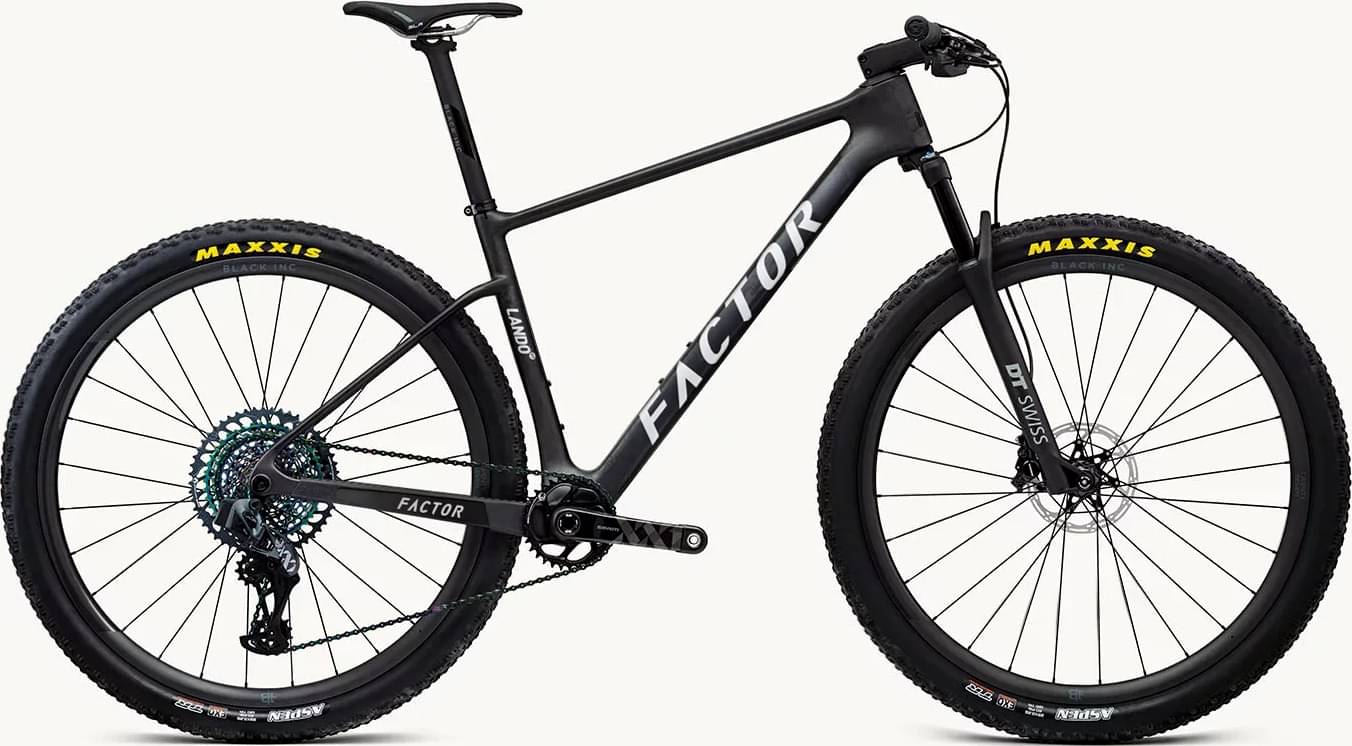

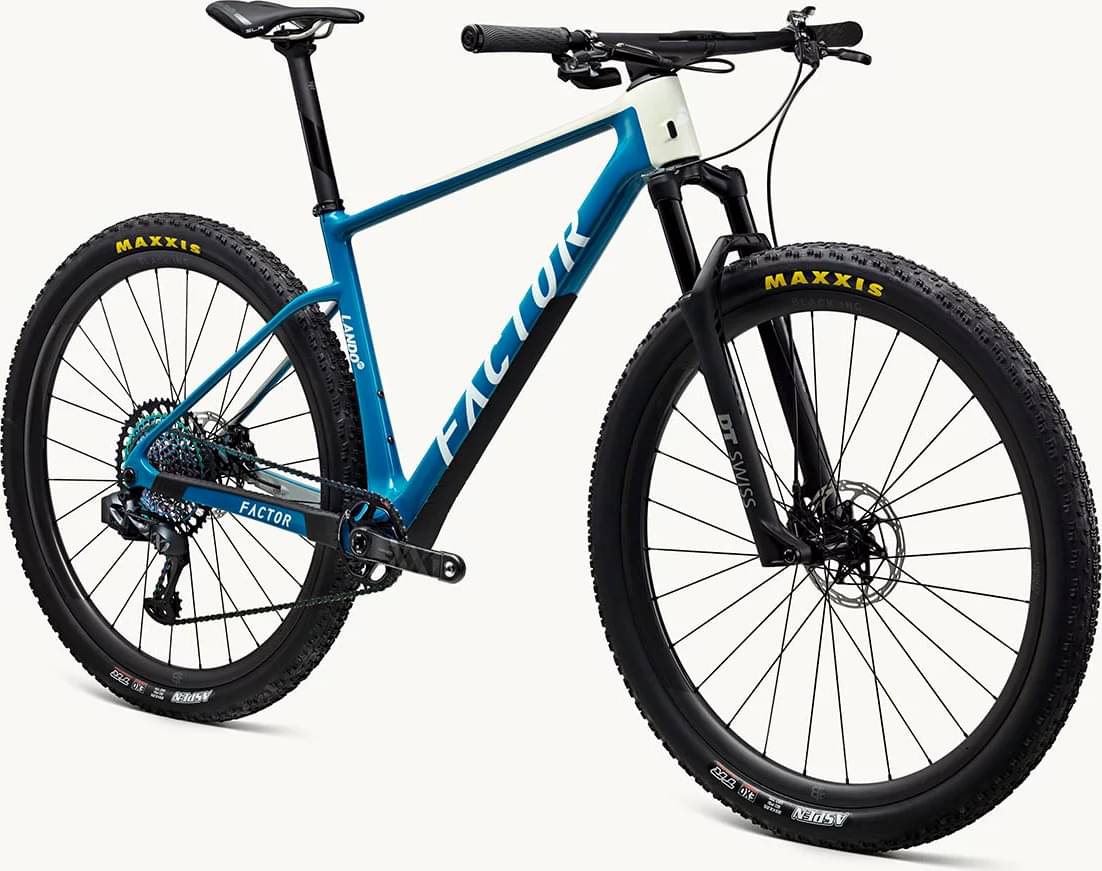

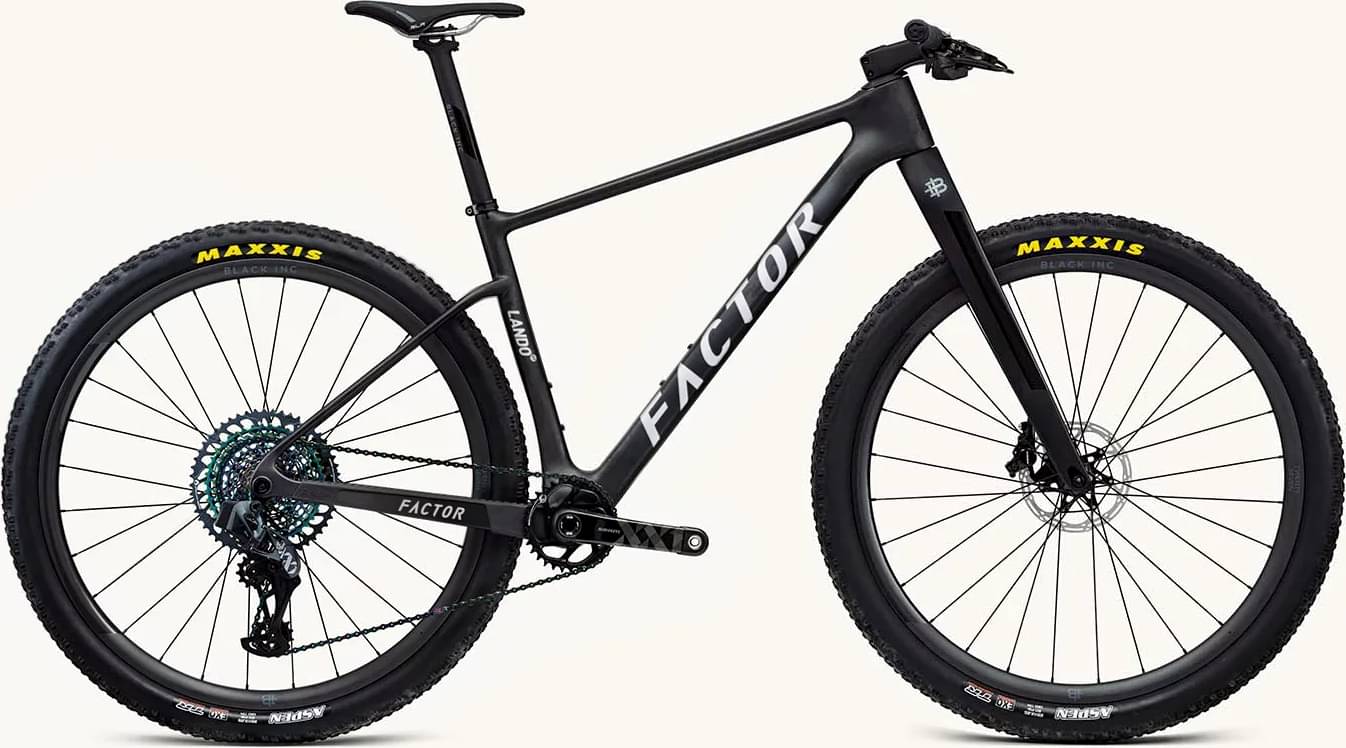

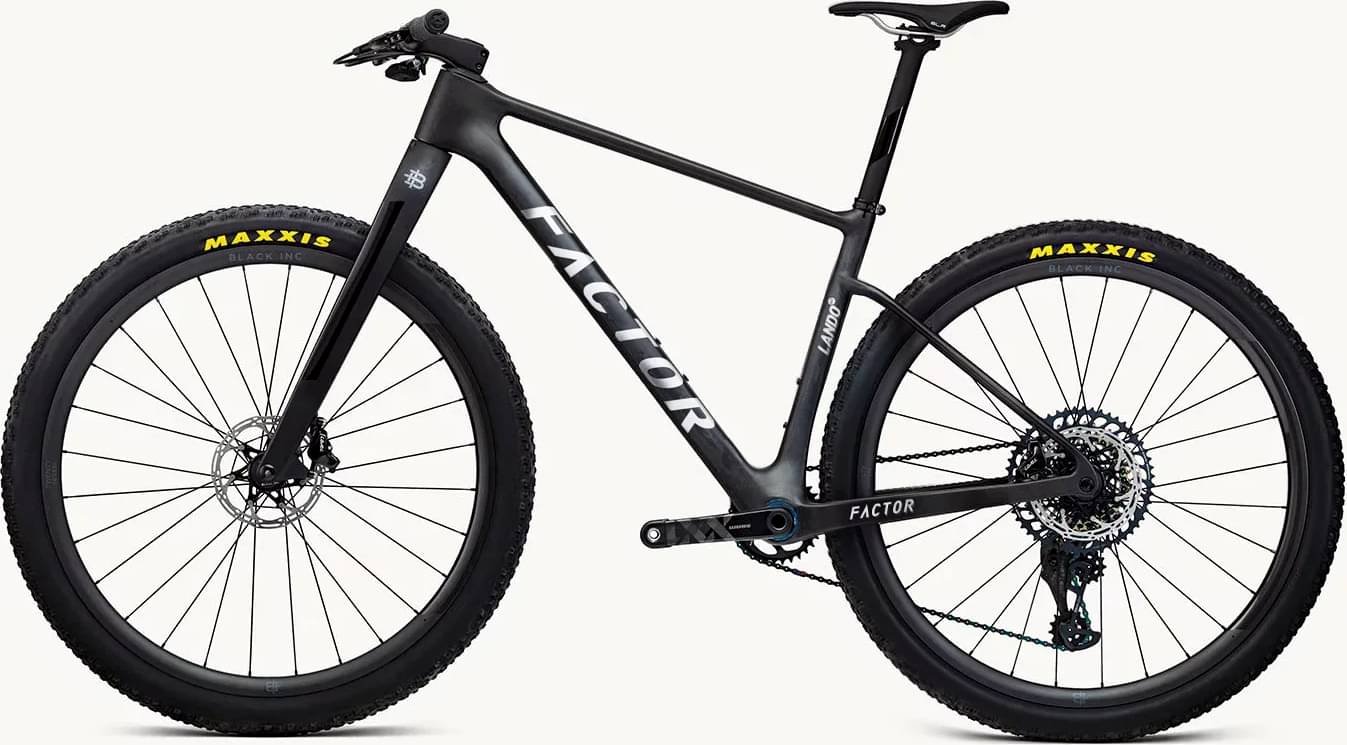

factor Lando HT – SRAM XX 2025
2025 Mountain
Estimate price |
6,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Fork DT Swiss F 232 ONE -
Groupset XX -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TeXtreme®, Toray®, Nippon Graphite® Pitch-Based Fiber
Suspension Fork
DT SWISS F 232 ONE
Rear Shock
No Rear Shock
Drivetrain
Rear Derailleur
SRAM XX
Crank
170MM
Bottom Bracket
CeramicSpeed T47 x 88.5 for 1x specific / CeramicSpeed coated bearings
Wheels
Rims
Blac Inc TWENTY SEVEN
Brakes
Brakes
Disc
Cockpit
Headset
CeramicSpeed SLT 1-1/2? bearings
Seat
Seatpost
0 setback 31.6mm round seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.546 mm | 1.478 mm | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 320 mm | 320 mm |
| Front Center | 668 mm | 691 mm | 723 mm | 759 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 94 mm | 93 mm | 94 mm | 94 mm |
| Stack | 609 mm | 613.5 mm | 618.5 mm | 633 mm |
| Reach | 394 mm | 415 mm | 445 mm | 476 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 446 mm | 462 mm | 478 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1092 mm | 1115 mm | 1147 mm | 1184 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 54 mm | 54 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
