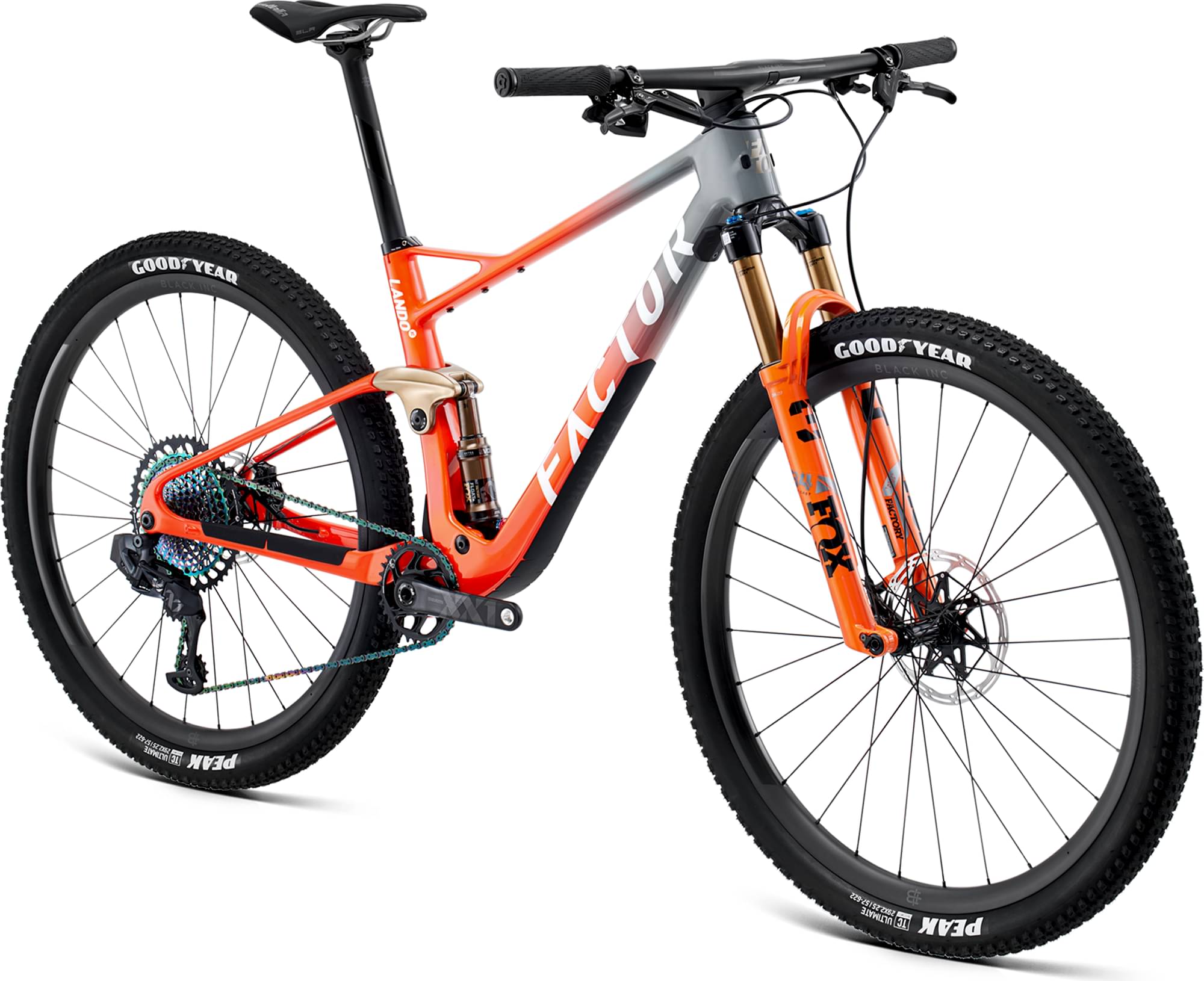

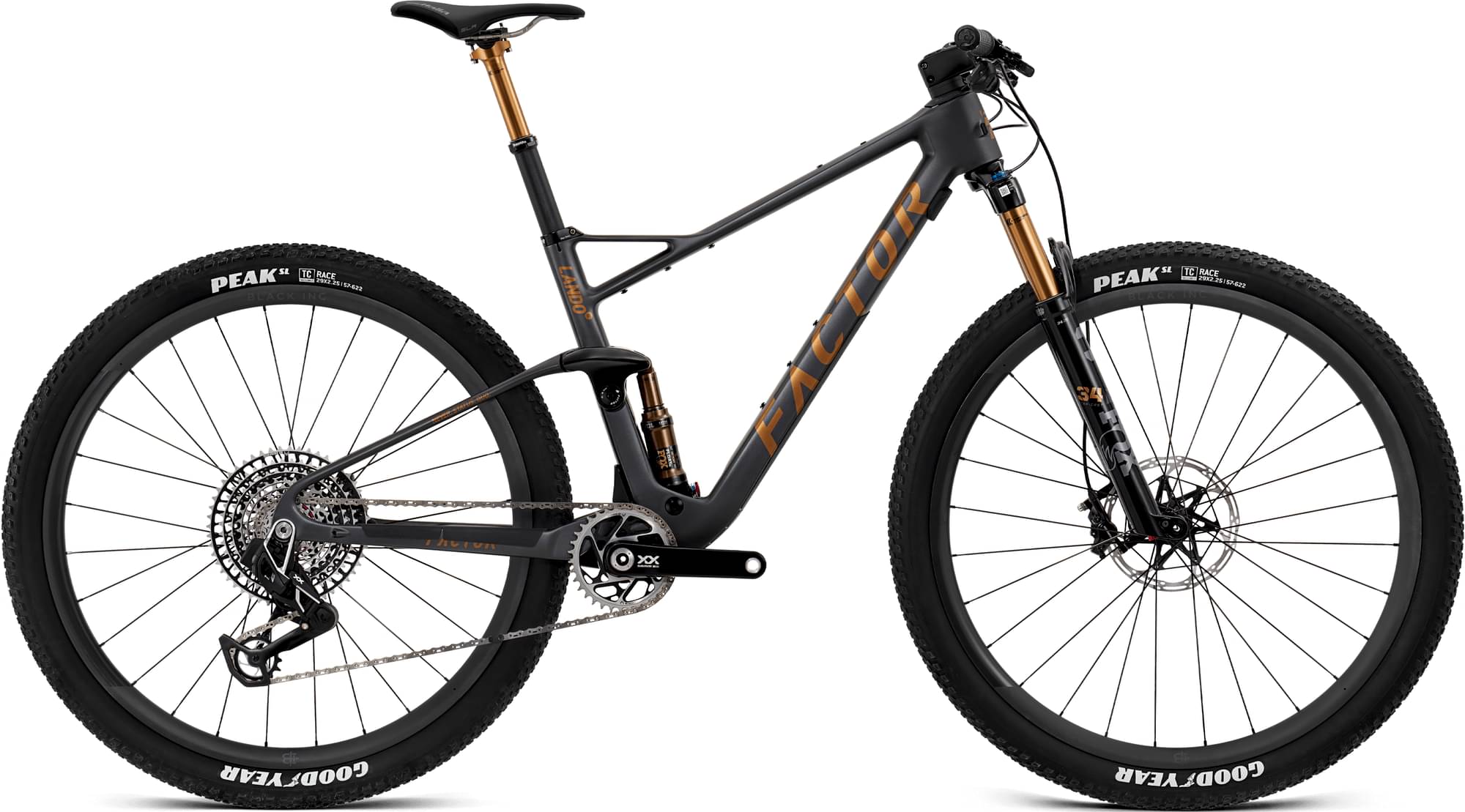

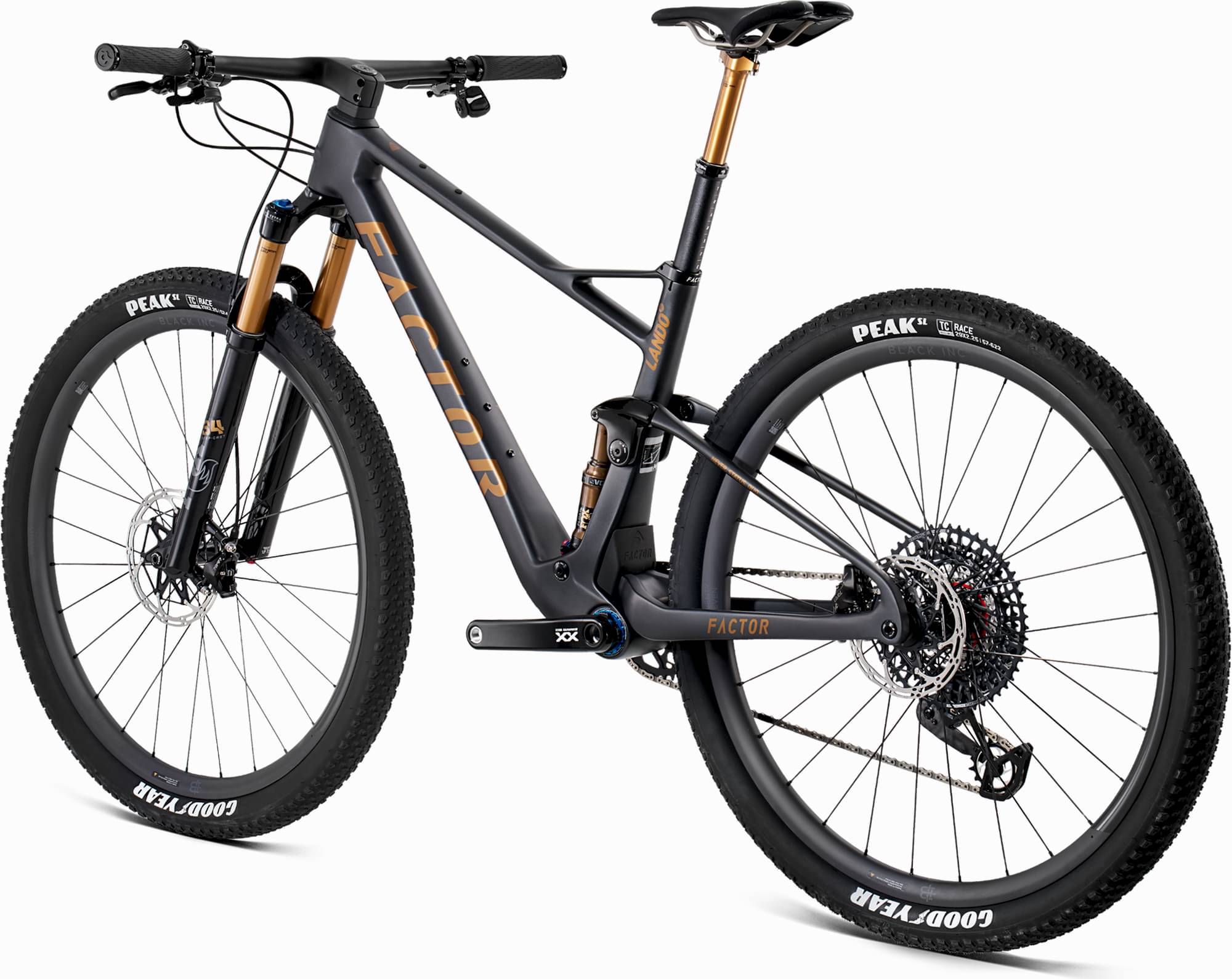

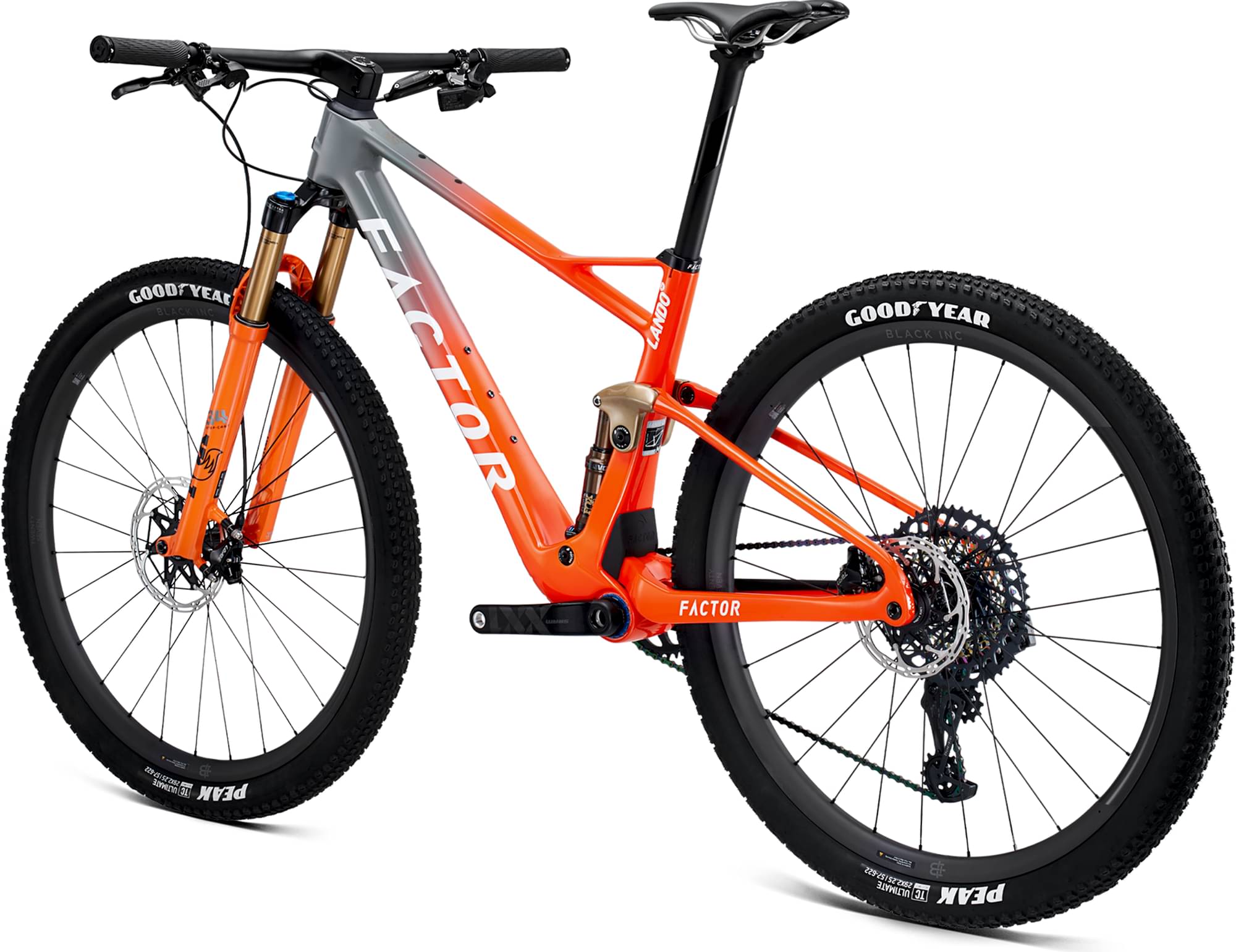

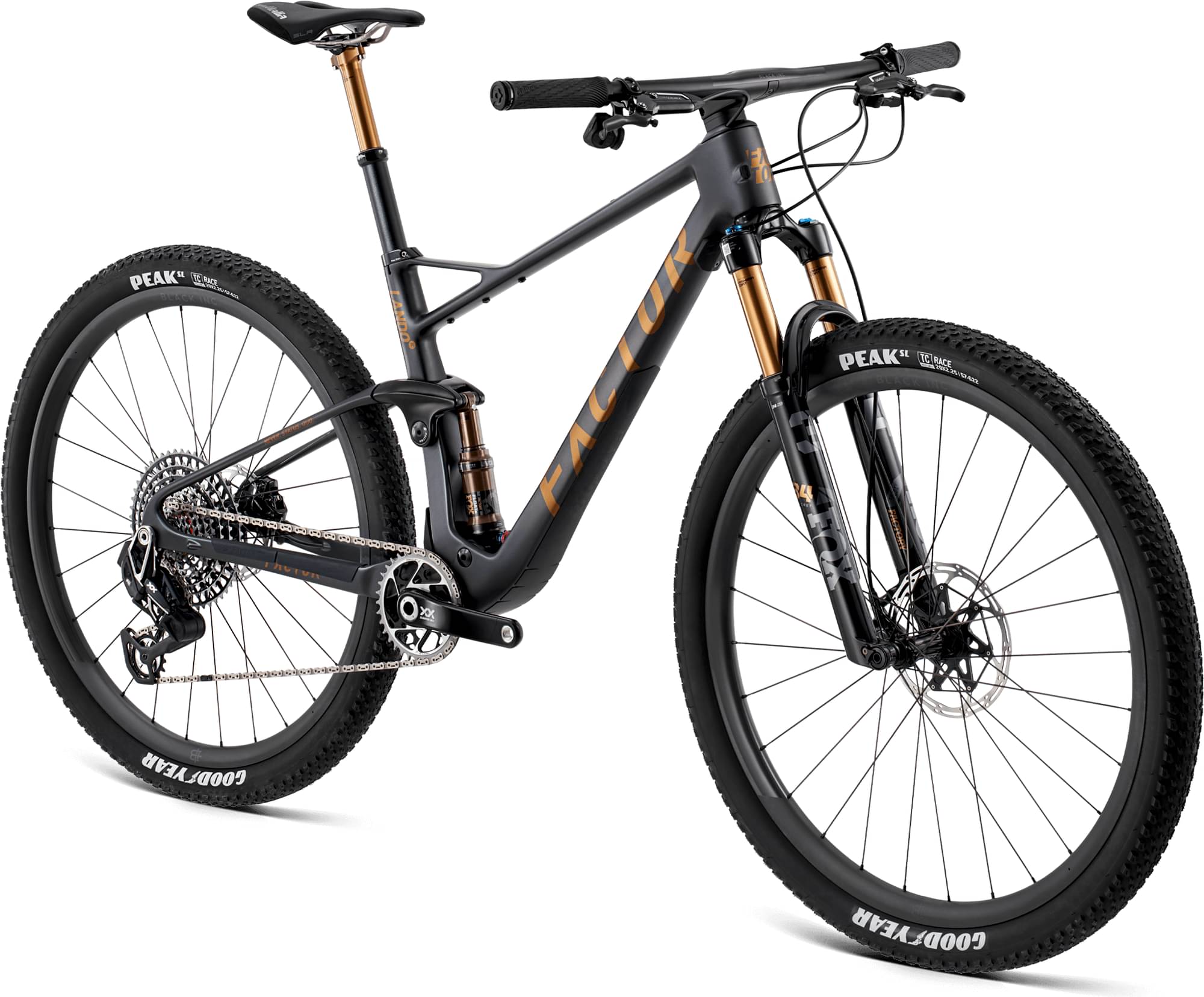

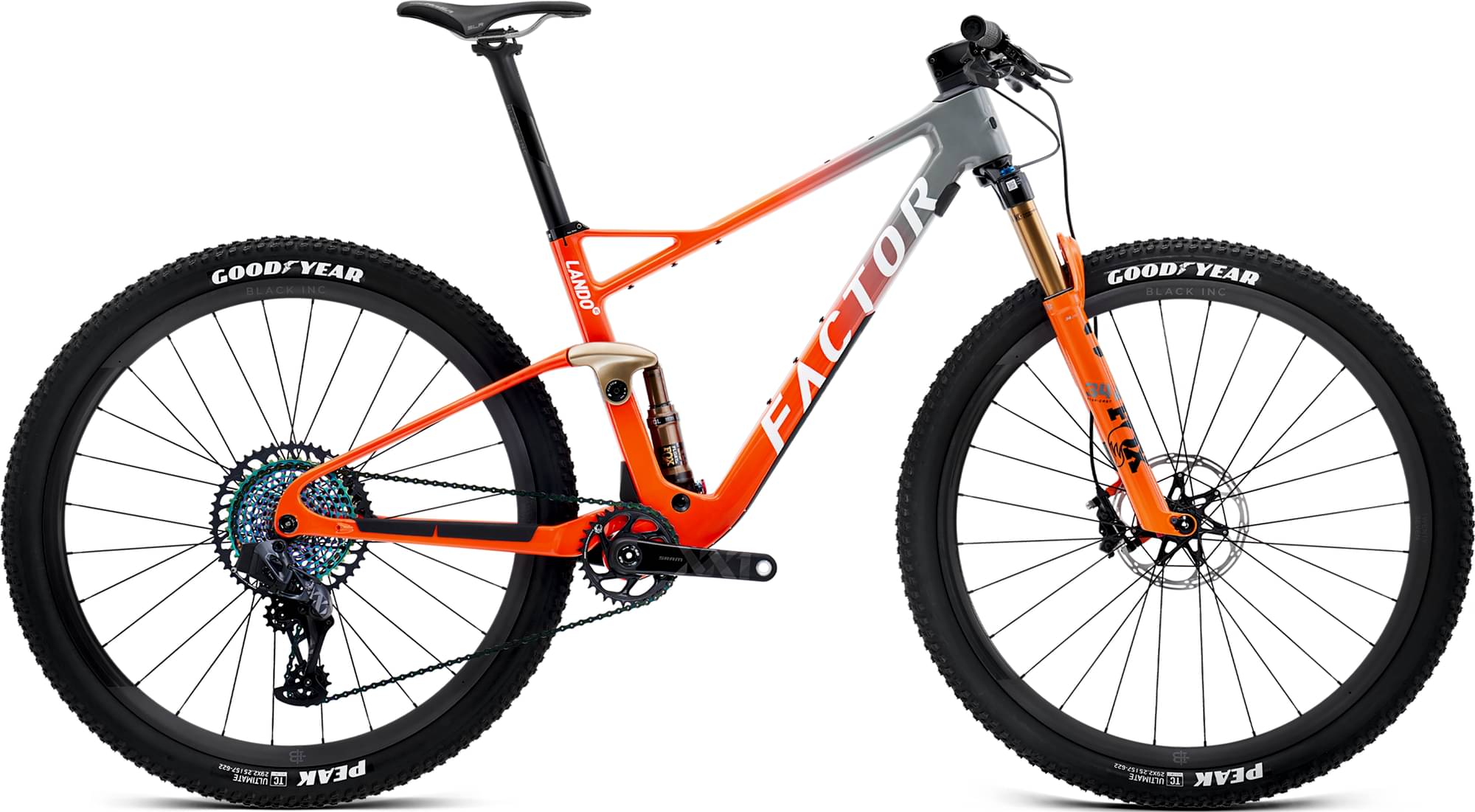

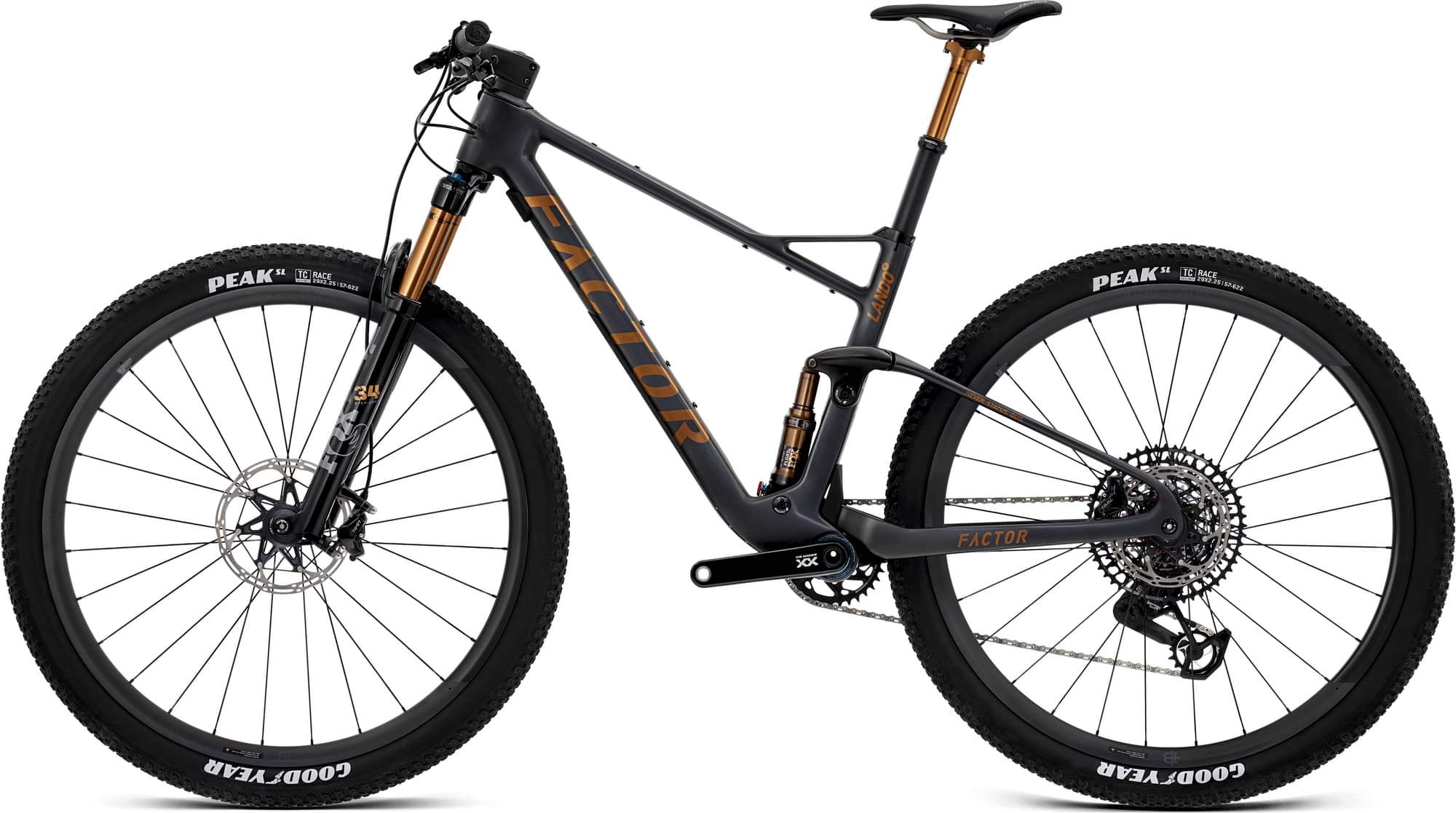

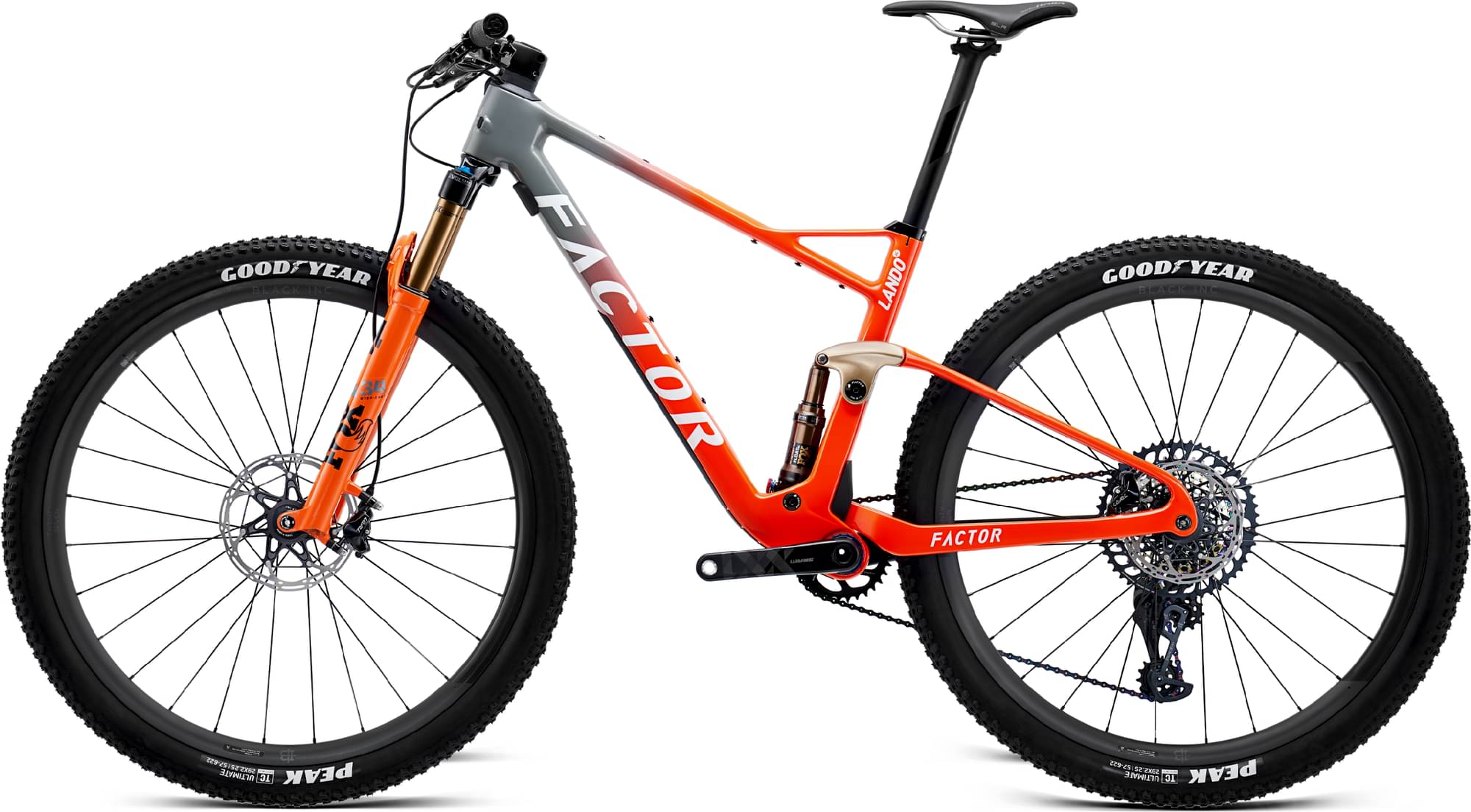

factor LANDO XC FOX – SRAM XX SL 2025
2025 Mountain
Estimate price |
8,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 115mm -
Fork Fox Float 34
-
Groupset XX -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TeXtreme®, Toray®, Nippon Graphite® Pitch-Based Fiber
Suspension Fork
FOX 34 Step Cast 29? 120mm travel 44mm offset
Rear Shock
FOX FLOAT SL 190x45mm 115mm travel
Drivetrain
Rear Derailleur
SRAM XX SL
Crank
170MM
Bottom Bracket
CeramicSpeed T47 x 88.5 for 1x specific / CeramicSpeed coated bearings
Wheels
Rims
Blac Inc TWENTY SEVEN
Brakes
Brakes
Disc
Cockpit
Headset
CeramicSpeed SLT bearings 1-1/2? upper and lower bearings, with a reducer to upper 1-1/8? steerer
Seat
Seatpost
STANDARD
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.393 mm | 1.322 mm | 1.263 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 696 mm | 718 mm | 752 mm | 786 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 95.5 mm | 95.5 mm | 95.5 mm | 95.5 mm |
| Stack | 594.5 mm | 599 mm | 608 mm | 619 mm |
| Reach | 410 mm | 430 mm | 460 mm | 490 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.2 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1128 mm | 1150 mm | 1184 mm | 1218 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 725 mm | 770 mm | 781 mm | 812 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
