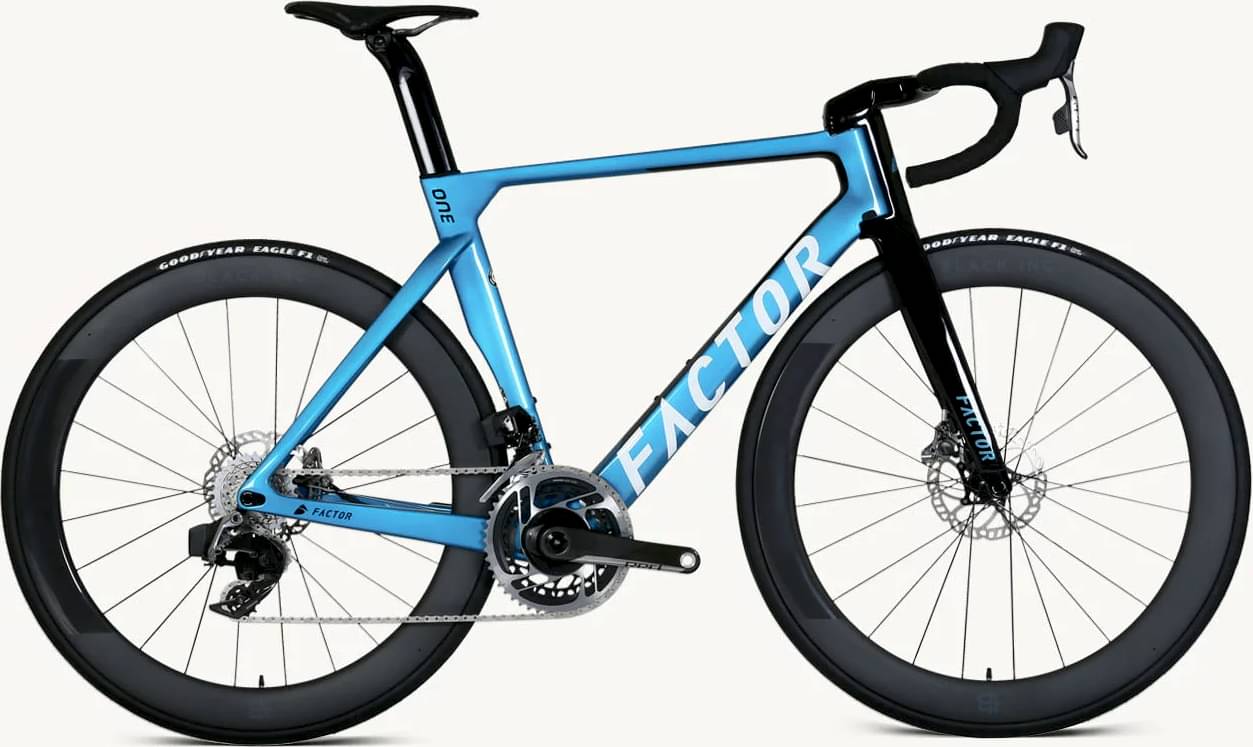

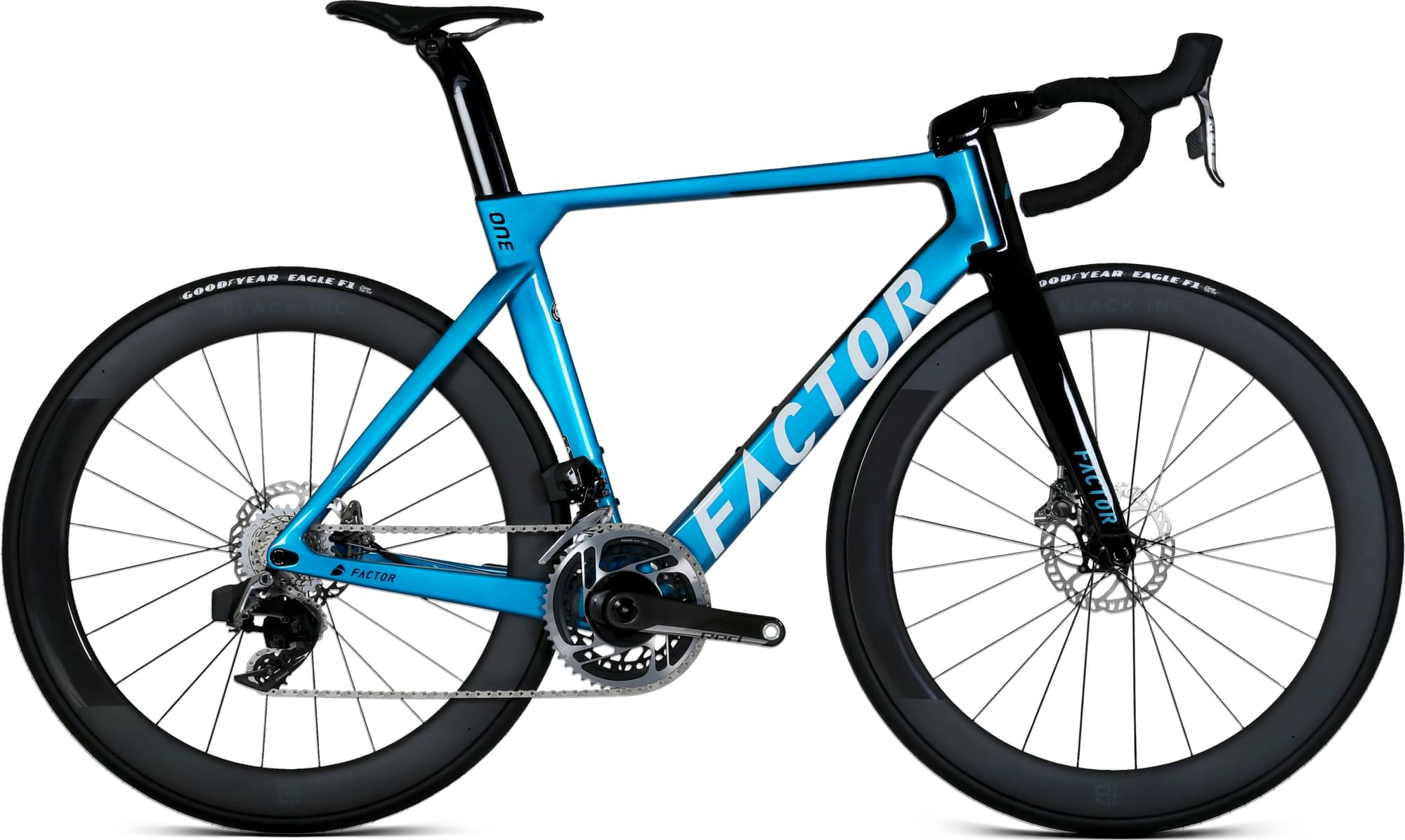

factor ONE – SRAM Force w/ Power Meter (Disc) 2024
2024 Road
Estimate price |
9,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Factor ONE RBi Carbon
Suspension Fork
Factor ONE RBi Carbon
Drivetrain
Rear Derailleur
SRAM Force w/ Power Meter (Disc)
Crank
165mm
Bottom Bracket
CeramicSpeed PF4630 Aluminium cups / CeramicSpeed bearings with Wheels MFG 24mm BBRight Reducers/Adapters
Wheels
Rims
Black Inc 28|33
Brakes
Brakes
Disc
Cockpit
Headset
FSA 1-1/8? bearings
Seat
Seatpost
Factor ONE RGi Carbon. 0 and 25mm setback.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.375 mm | 1.349 mm | 1.383 mm | 1.411 mm | 1.441 mm | 1.466 mm | 1.494 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Rake | 53 mm | 53 mm | 53 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 495 mm | 495 mm | 520 mm | 542 mm | 565 mm | 588 mm | 611 mm |
| Reach | 360 mm | 367 mm | 376 mm | 384 mm | 392 mm | 401 mm | 409 mm |
| Top Tube Length | 507 mm | 518 mm | 535 mm | 549 mm | 565 mm | 581 mm | 596 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 456 mm | 480 mm | 502 mm | 525 mm | 548 mm | 570 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 72.2 ° | 73.1 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 83 mm | 83 mm | 103 mm | 119 mm | 142 mm | 166 mm | 190 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 408 mm | 410 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
