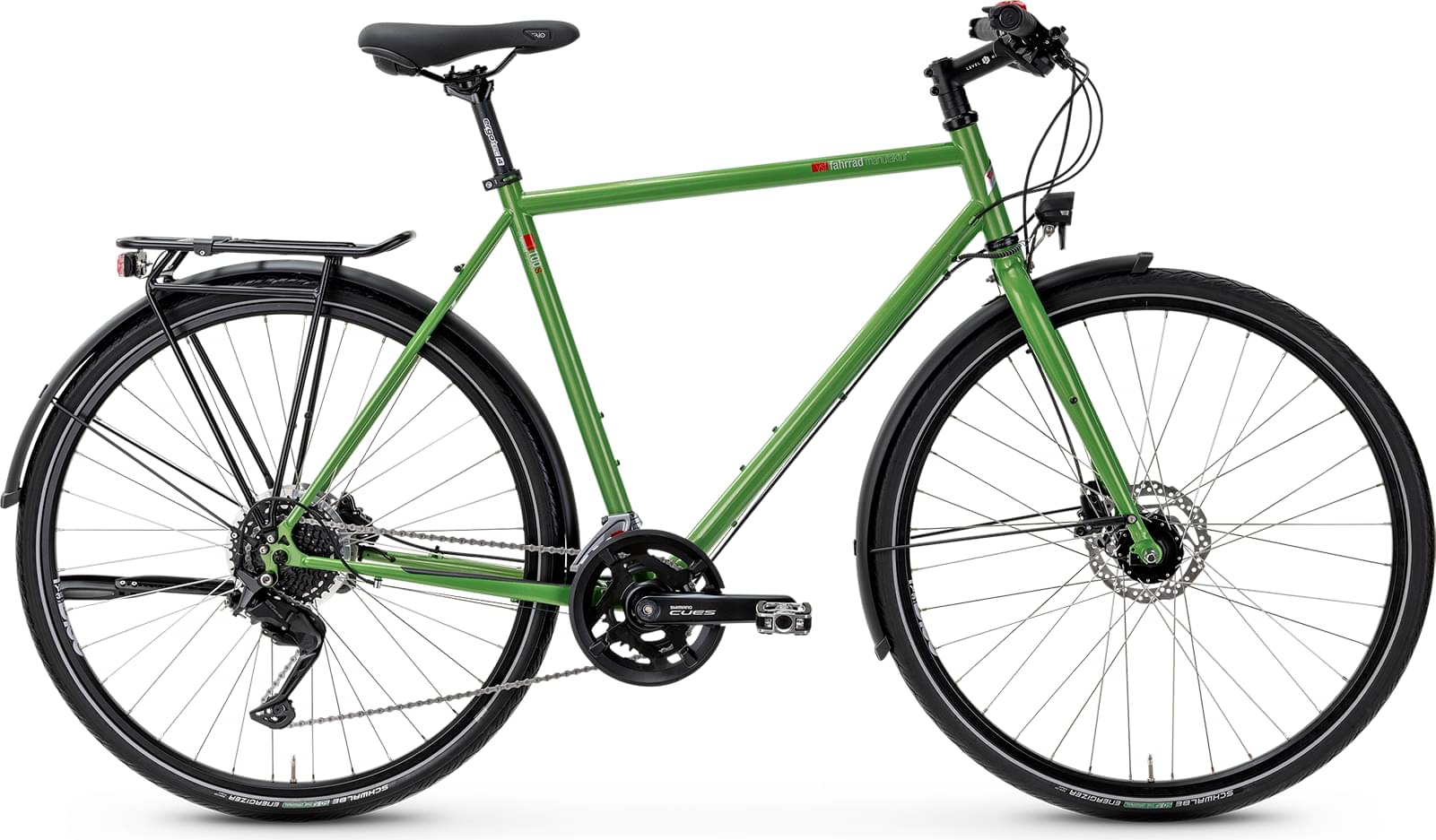

fahrradmanufaktur T-100 Sport Limited Edition 2024

2024 Urban
Weight | 15.4 kg
Open compare Use advisor
Fahrradmanufaktur T 100 Sport Limited Edition 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Steel
  • Groupset CUES
  • Suspension Rigid
  • Drivetrain 2 × 9
  • Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

25 CroMo 4

Suspension Fork

28" aluminum,

Drivetrain

Rear Derailleur

Shimano Cues FD-U4010, 2-speed

Shift Levers

Shimano Cues RD-U3020, 9-speed

Cassette

Shimano Cues CS-LG300, 9-speed, 11-36 teeth

Crank

Shimano Cues FC-U4010-2, 170 mm, Hollotech II, 46/30 teeth

Chain

Shimano CN-LG500

Chain Guide

Shimano chain guard

Pedals

Marwi SP-811

Wheels

Front Hub

Shimano DH-3D37, hub dynamo, Centerlock, 36 holes

Rear Hub

Shimano FH-QC300-HM, Centerlock, 36 holes

Rims

Shimano Cues FC-U4010-2, 170 mm, Hollotech II, 46/30 teeth

Spokes

Niro 2,0 mm

Tires

Schwalbe Marathon Citizen, 37-622, reflex

Brakes

Brakes

Shimano BR-MT200 (front 160 mm / rear 160 mm) disc

Brake Levers

Shimano Altus BL-MT200, 3-finger brake lever

Cockpit

Stem

Levelnine, aluminum, a-head, 31,8 mm

Handlebar

Levelnine, Trekking, aluminum, 640 mm

Grips

Herrmans Grit DD33, with clamp

Seat

Saddle

Selle Royal Rio

Seatpost

Humpert Ergotec Atar, patent, aluminum, 27.2 mm, 300 mm

Fit data

Geometry

Numbers for sizing and ride feel.

Size52cm57cm62cm
Wheels700700700
