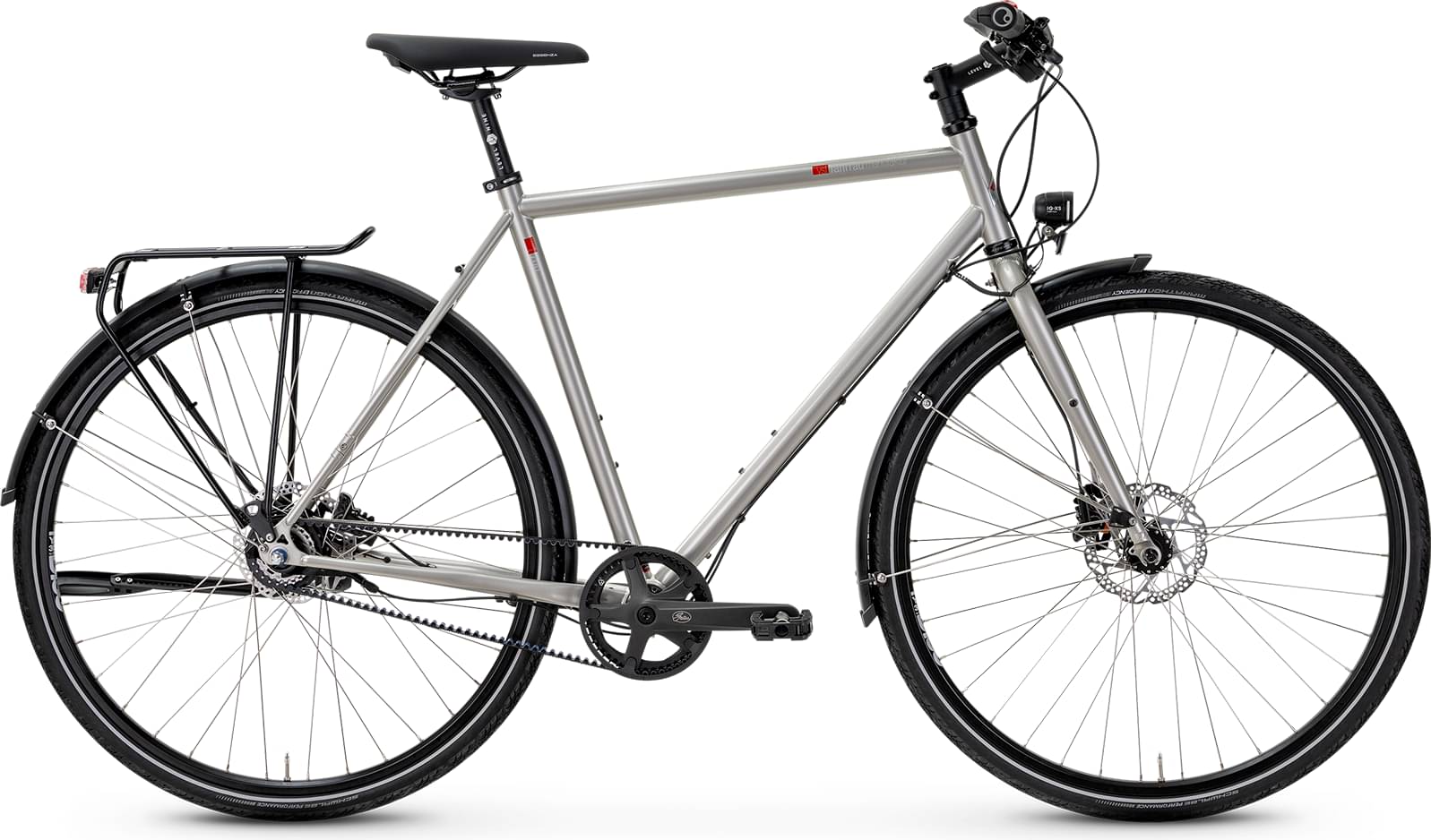

fahrradmanufaktur T-700 Limited Edition 2024
2024 Urban
Weight | 15.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Gates CDX, Alfine -
Suspension Rigid -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
25 CrMo 4, double butted
Suspension Fork
28" Aluminum,
Drivetrain
Shift Levers
Shimano Alfine 11-speed freewheel
Cassette
Gates CDX belt pulley, 24 teeth
Crank
Lasco Aluminum, 170 mm, with Gates CDX 46 teeth
Chain
Gates CDX-drive belt
Chain Guide
N.V.
Pedals
Marwi SP-823, black
Wheels
Front Hub
Shutter Precission PL-8, hub dynamo, Centerlock, 36 holes
Rear Hub
Shimano Alfine 11-speed SG-S7001-11, Centerlock, 36 holes, freewheel
Rims
Lasco Aluminum, 170 mm, with Gates CDX 46 teeth
Spokes
Niro 2,0 mm
Tires
Schwalbe Marathon Efficiency, 40-622, reflex
Brakes
Brakes
Shimano Deore BR-MT500 (front 160 mm / rear 160 mm) disc brake
Brake Levers
Shimano Deore BL-MT501, 2-finger brake lever
Cockpit
Stem
Levelnine, Aluminum, a-head, 25,4 mm
Handlebar
Levelnine, Trekking, Aluminum, 640 mm
Grips
Ergon GP1, with clamp
Seat
Saddle
Selle Royal Essenza
Seatpost
Levelnine, patent, aluminum, 27.2 mm, 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 57cm | 62cm |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
