Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Pinion, Gates CDX -
Suspension Rigid -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
25 CrMo 4, double butted, Disc, with Pinion-Interface
Suspension Fork
25CrMo 4 Gabel,
Drivetrain
Shift Levers
Pinion P1.18
Cassette
Gates CDX, 26 teeth
Crank
Pinion aluminum, 170 mm, with Gates CDX, 32 teeth
Bottom Bracket
Pinion, press-fit
Chain
Gates CDX belt
Chain Guide
Hebie Chainbar for Pinion
Pedals
VP-196 aluminum
Wheels
Front Hub
Shutter Precission PL-8, hub dynamo, Centerlock, 36 holes
Rear Hub
Pinion H2.R, 36 holes
Rims
Pinion aluminum, 170 mm, with Gates CDX, 32 teeth
Spokes
Niro ED 2,34 mm
Tires
Schwalbe Marathon Mondial, 50-584, reflex
Brakes
Brakes
Shimano Deore XT BR-M8100 (front 180 mm / rear 180 mm) Disc brake
Brake Levers
Shimano Deore XT BL-T8100, 3-finger-lever
Cockpit
Stem
Humpert Ergotec Piranha 2, 31,8 mm, safety level 6
Handlebar
Humpert Ergotec Trekking, aluminum, 620 mm, safety level 6
Grips
Ergon GP3, with clamp and integrated bar ends
Seat
Saddle
Selle Royal Scientia
Seatpost
Humpert Ergotec Skalar, patent, aluminum, 27,2 mm, 400 mm, safety level 6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 57cm | 62cm |
|---|---|---|---|
| Wheels | 650 | 650 | 650 |
About this model

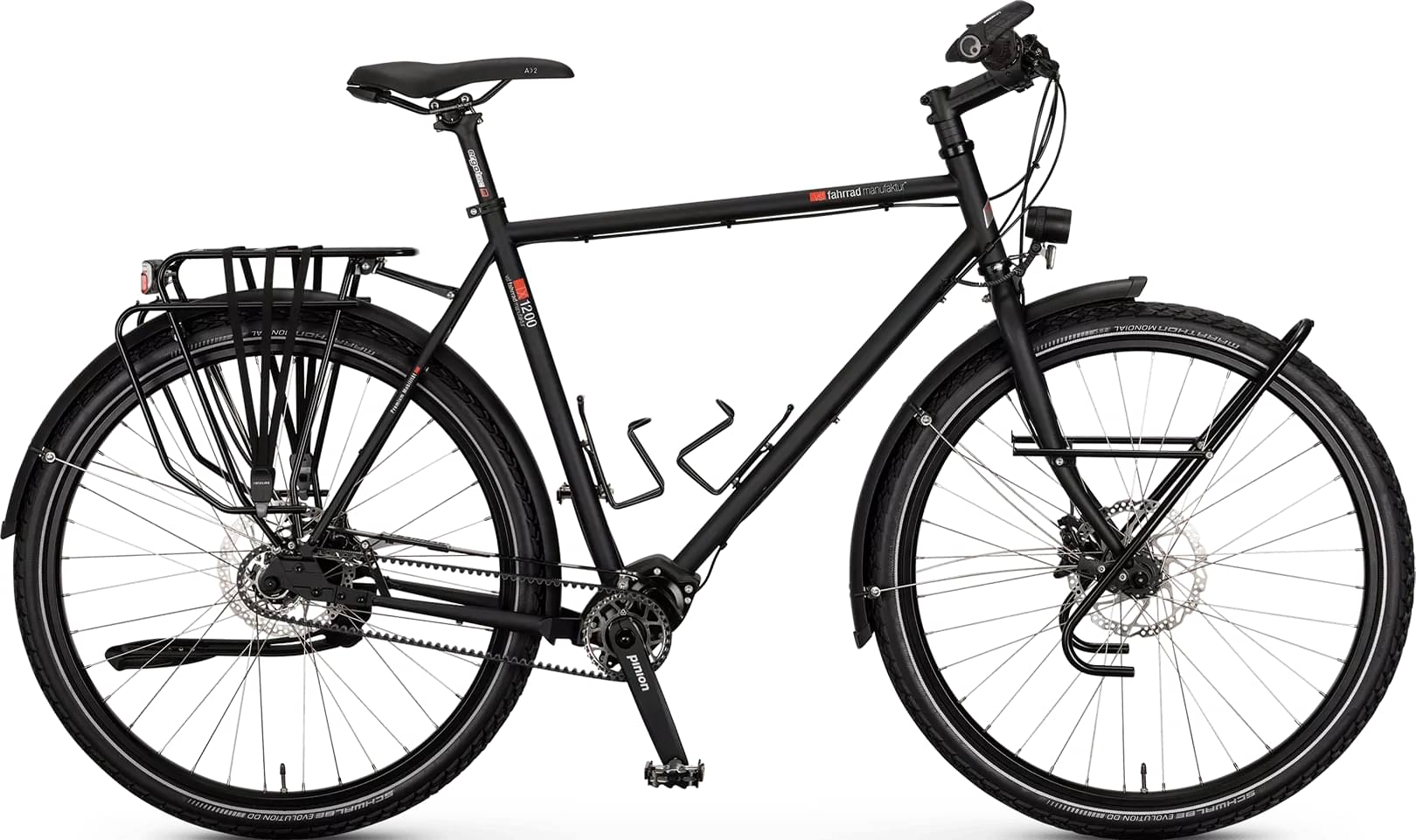

TX-1200 is a Fahrradmanufaktur Tx 1200 model. 3 bikes variations carry this model name so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Touring bikes average price
If you want an acceptable Touring bike you should know that the average price is 1007$. However, even though the average price of a Touring bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Touring bikes average weight
If we make a quick analysis of the average weight of a Touring bike, we get 13.35 kg (29.43 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Fahrradmanufaktur TX-1200 it’s weighing 18.5 kg (40.79 lbs). At this weight, is much heavier than average. In short, the average Touring bike weight is 38.58% lower than this one.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels
The TX-1200 2022 bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Fahrradmanufaktur TX-1200 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
