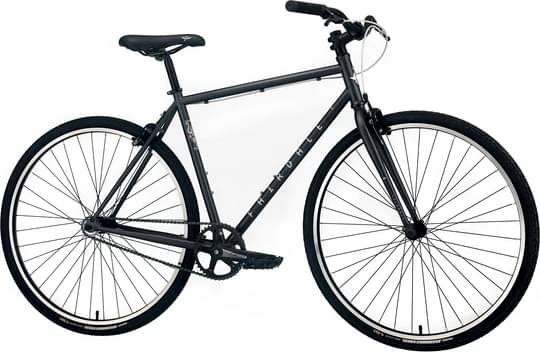

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset FSA -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
1020 Steel, with Rack and Fender mounts
Suspension Fork
1020 Steel, 1 1/8”
Drivetrain
Crank
FSA Tempo 1x (S/M=170mm, M/L=175mm)
Bottom Bracket
FSA
Chain
KMC S1
Pedals
Odyssey Twisted PC
Wheels
Front Hub
36H 3/8” Axle, Looseball
Rear Hub
36H 3/8” Axle, Looseball w/ Flip-Flop Fixed/Free
Rims
700c, 36-Hole, Schrader Valve, Aluminum
Tires
Maxxis Overdrive Excel 700 x 40mm
Brakes
Brakes
Aluminum, Dual Pivot, w/ Quick Release
Brake Levers
Aluminum, Short Pull
Cockpit
Stem
70mm, Forged Aluminum
Handlebar
Fairdale Archer v3, Aluminum
Grips
Fairdale Swan
Headset
FSA, Sealed Integrated, 45º/45º
Seat
Saddle
Fairdale Logo Saddle
Seatpost
Micro adjust, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.505 mm | 1.509 mm |
| Front Center | 597 mm | 610 mm |
| Rake | 50 mm | 50 mm |
| Trail | 62 mm | 53 mm |
| Stack | 554 mm | 584 mm |
| Reach | 368 mm | 387 mm |
| Top Tube Length | 537 mm | 565 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 475 mm | 525 mm |
| Head Tube Angle | 71 ° | 72.5 ° |
| Head Tube Length | 130 mm | 155 mm |
| Chainstay Length | 430 mm | 430 mm |
| Wheelbase | 1018 mm | 1031 mm |
| Bottom Bracket Drop | 68 mm | 68 mm |
| Standover Height | 770 mm | 809 mm |
| Wheels | 700 | 700 |
