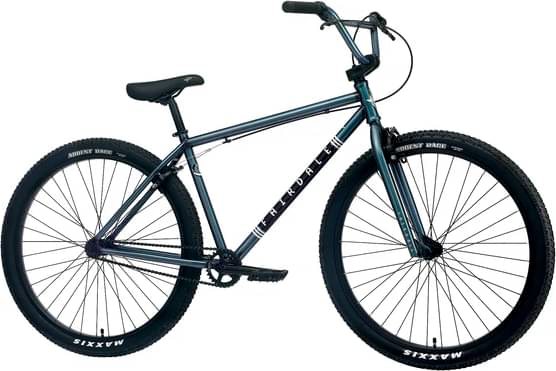

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
100% Track Certified Chromoly
Suspension Fork
100% Chromoly. One-piece machined Steerer Tube
Drivetrain
Crank
Chromoly 3-Piece, Chromoly, 175mm
Bottom Bracket
Mid, 19mm, Press-fit, Sealed
Chain
KMC S1
Pedals
Odyssey Twisted PC
Wheels
Front Hub
36-Hole, 3/8” Axle, Aluminum Shell, Sealed Bearing
Rear Hub
36-Hole, 3/8” Axle, Aluminum Shell, Sealed Bearing
Rims
Double wall, 36-Hole, Aluminum
Tires
Maxxis Ardent Race, 27.5 x 2.2”
Brakes
Brakes
Odyssey Springfield, Front and Rear
Brake Levers
Odyssey Monolever, Left and Right
Cockpit
Stem
Sunday Freeze, Top-Load, 48mm Reach
Handlebar
Fairdale MX-6 Bar, 100% Chromoly Steel
Grips
Fairdale Swan
Headset
FSA Sealed Integrated, 45º/45º
Seat
Saddle
Fairdale Taj, Railed
Seatpost
27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 27.5" (60cm) |
|---|---|
| Stack Reach Ratio | 1.278 mm |
| Front Center | 636 mm |
| Rake | 34 mm |
| Trail | 78 mm |
| Stack | 547 mm |
| Reach | 428 mm |
| Top Tube Length | 616 mm |
| Seat Tube Angle | 71 ° |
| Seat Tube Length | 445 mm |
| Head Tube Angle | 71 ° |
| Head Tube Length | 117.5 mm |
| Chainstay Length | 437 mm |
| Wheelbase | 1067 mm |
| Bottom Bracket Drop | 55 mm |
| Standover Height | 766 mm |
| Wheels | 650 |
| Rider Min Height | 120 cm |
