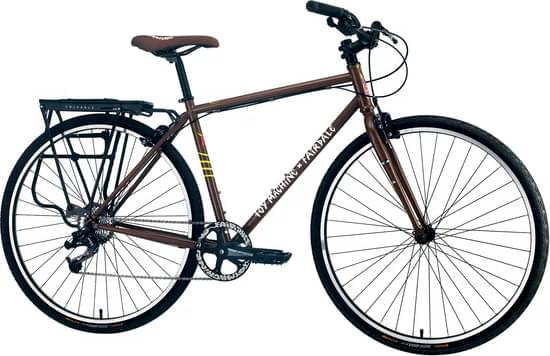

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset X4 -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
1020 Steel, with Rack and Fender mounts
Suspension Fork
1020 Steel, 1 1/8”
Drivetrain
Rear Derailleur
SRAM X4, Mid-cage, 8-Speed
Shift Levers
SRAM X4 Trigger, 8-Speed
Crank
FSA Tempo 1X (S=165mm, M=170mm, L/XL=175mm)
Bottom Bracket
FSA
Chain
KMC Z8.1, 8-Speed
Pedals
Odyssey Twisted PC
Wheels
Front Hub
36H, 3/8” Axle, Aluminum Shell, Looseball
Rear Hub
36H, 3/8” Axle, 7-Speed, Aluminum Shell, Looseball
Rims
700c, 36-Hole, Schrader Valve, Aluminum
Tires
Goodyear Transit Tour, 700c x 40mm
Brakes
Brakes
Aluminum, Dual Pivot, 55-75mm reach w/Quick Rels.
Brake Levers
Aluminum, Short Pull
Cockpit
Stem
70mm, Forged Aluminum
Handlebar
Fairdale Archer v3, Aluminum
Grips
Fairdale Swan
Headset
FSA, Sealed Integrated, 45º/45º
Seat
Saddle
Fairdale x Toy Machine
Seatpost
Micro adjust, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.435 mm | 1.462 mm | 1.488 mm | 1.48 mm |
| Front Center | 590 mm | 599 mm | 607 mm | 619 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 75 mm | 74 mm | 66 mm | 57 mm |
| Stack | 521 mm | 541 mm | 564 mm | 589 mm |
| Reach | 363 mm | 370 mm | 379 mm | 398 mm |
| Top Tube Length | 508 mm | 525 mm | 552 mm | 578 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 385 mm | 436 mm | 490 mm | 538 mm |
| Head Tube Angle | 69.6 ° | 70 ° | 71 ° | 72.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1021 mm | 1030 mm | 1038 mm | 1050 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 698 mm | 733 mm | 780 mm | 815 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
