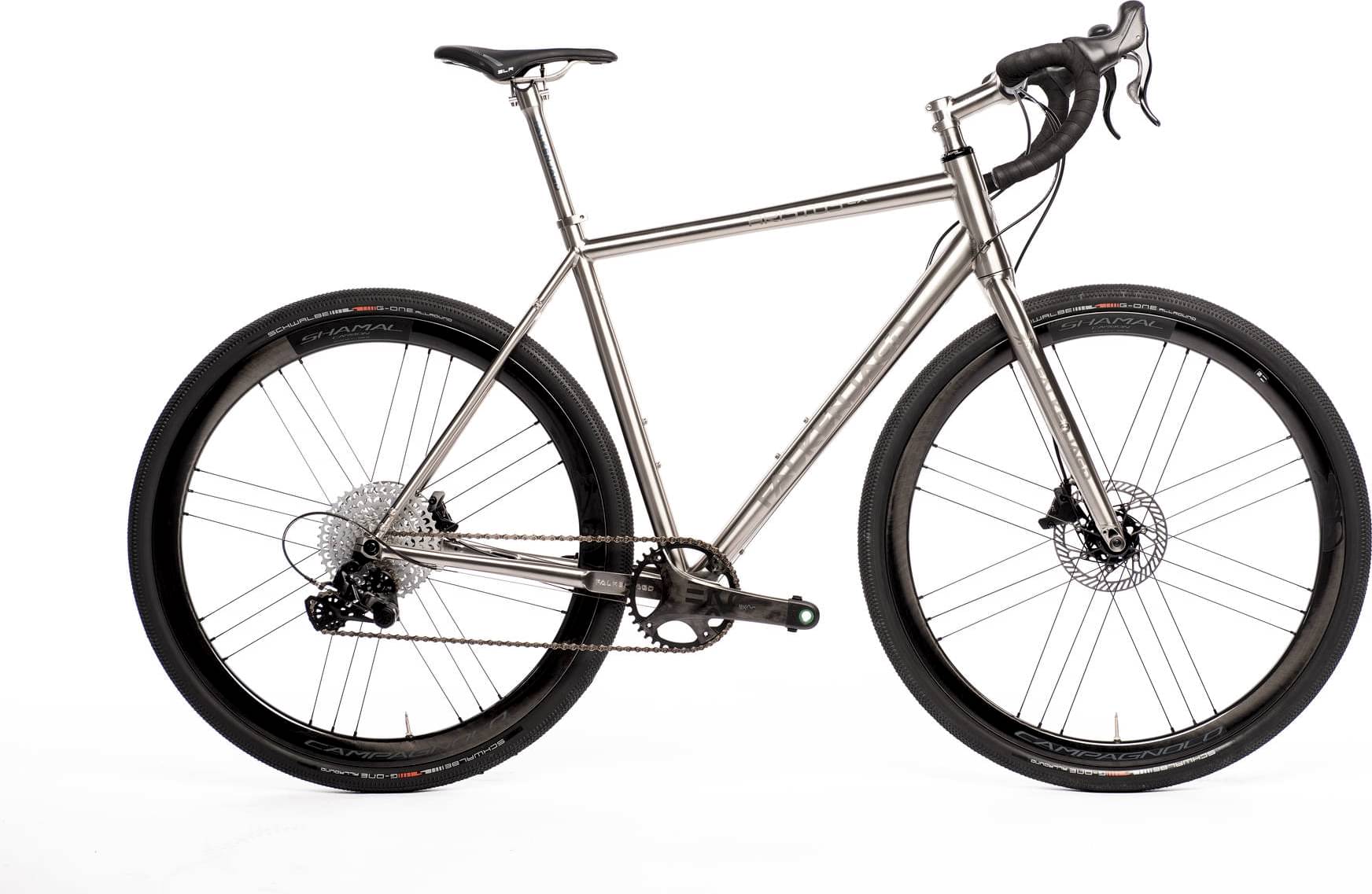

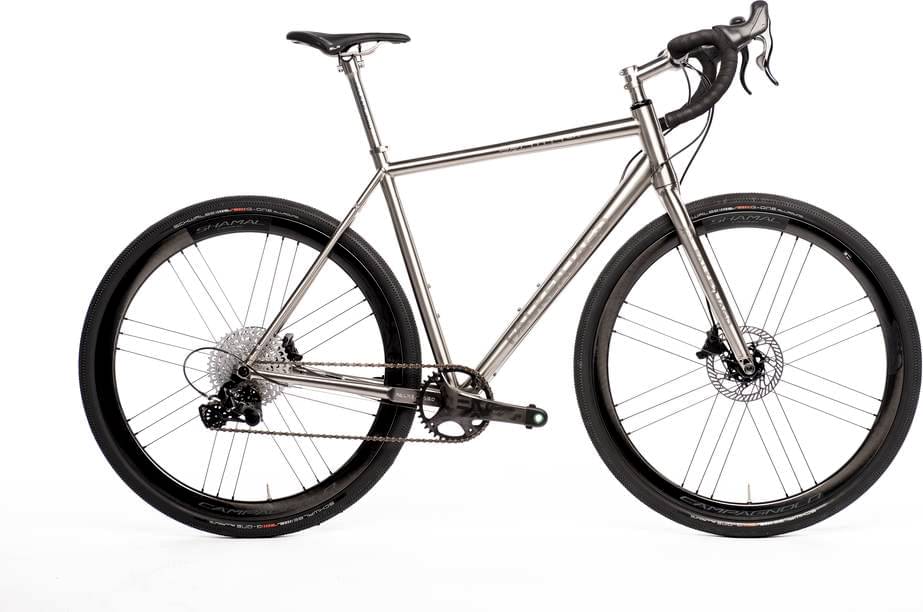

falkenjagd Aristos CX Gravel SE 2024
2024 Road
Estimate price |
5,583$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Titanium -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Campagnolo Ekar Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
XXL
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components

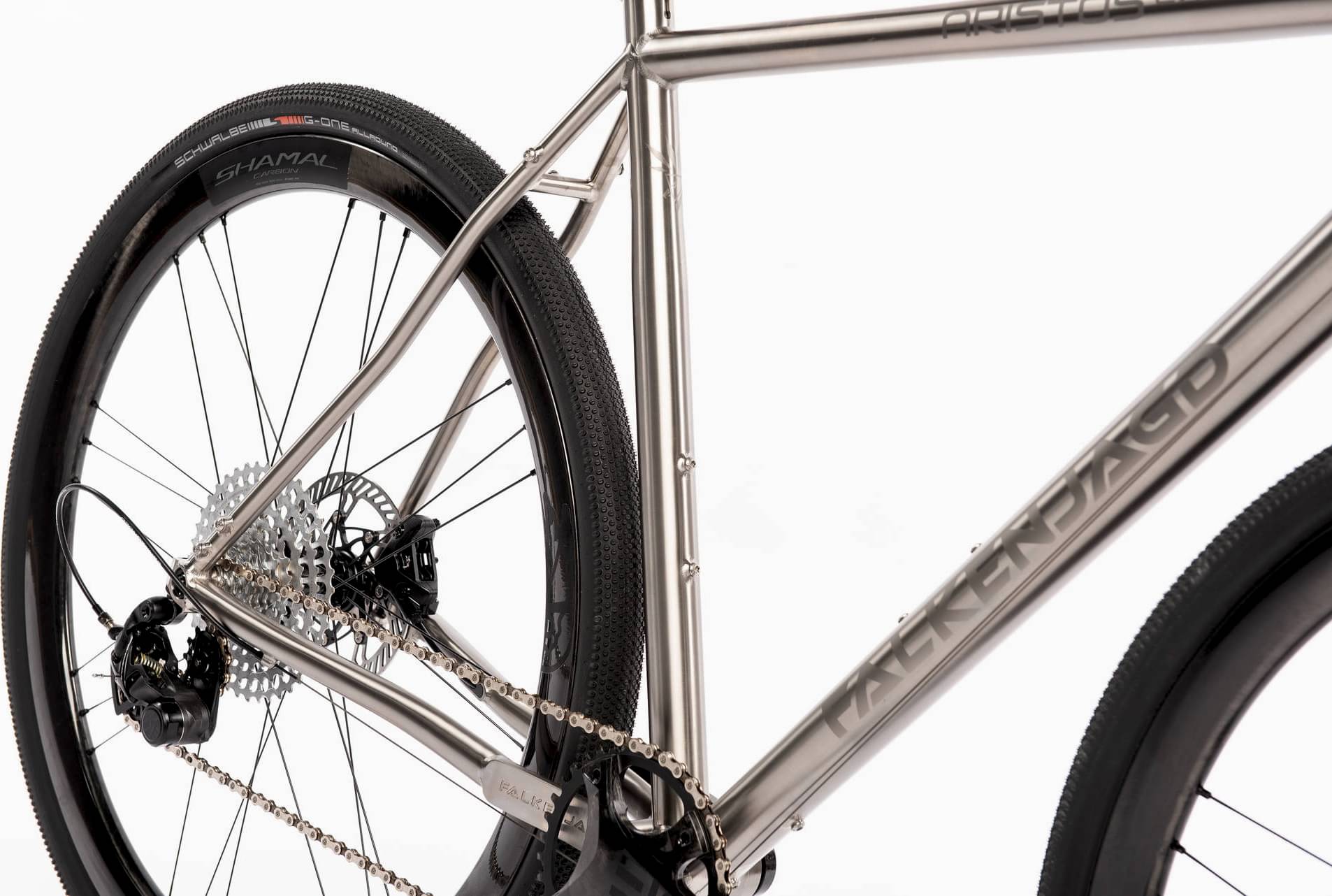

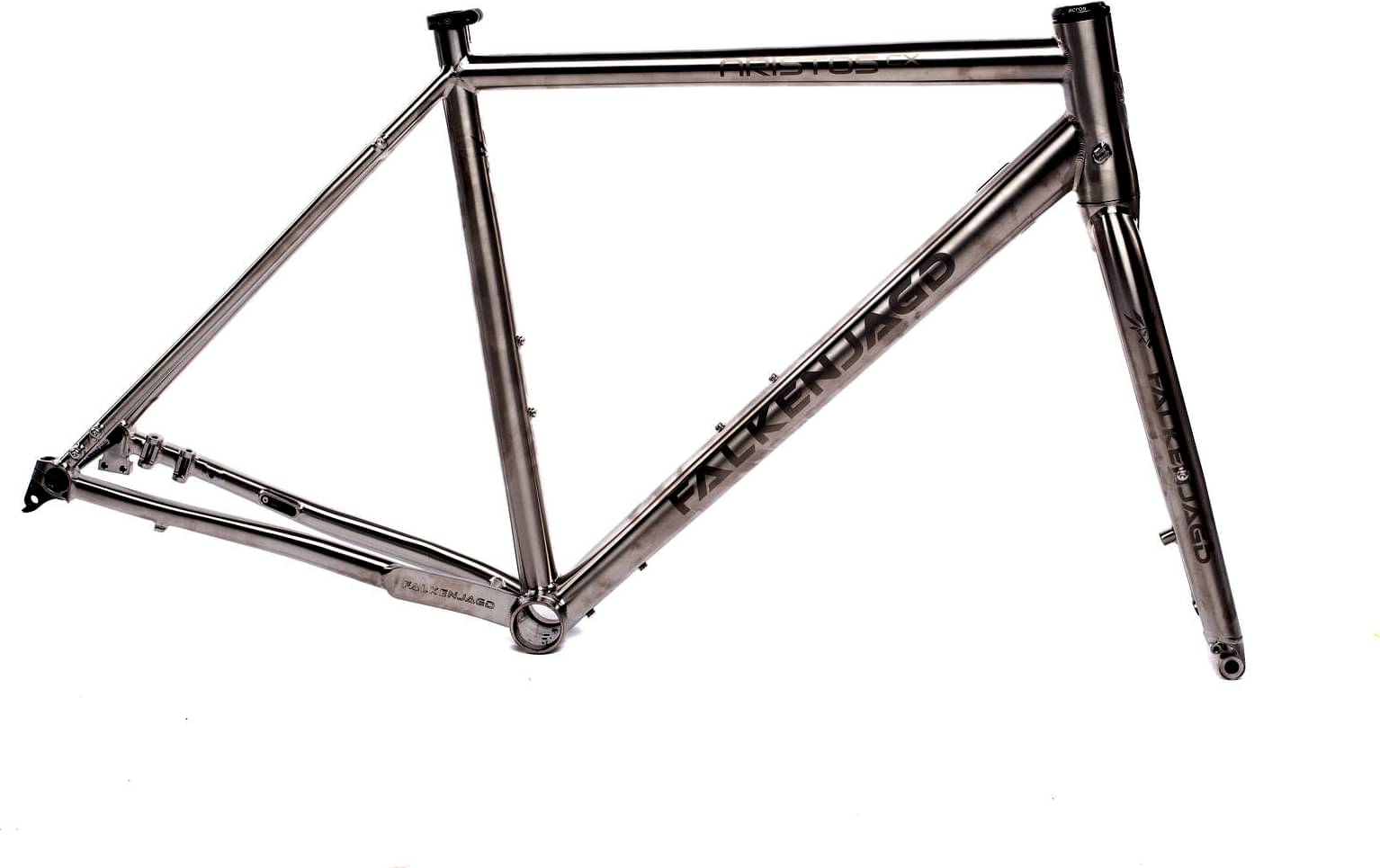

Frame
Suspension Fork
FALKENJAGD Titan Gravel NEW X-12 standard FLAT mount
Drivetrain

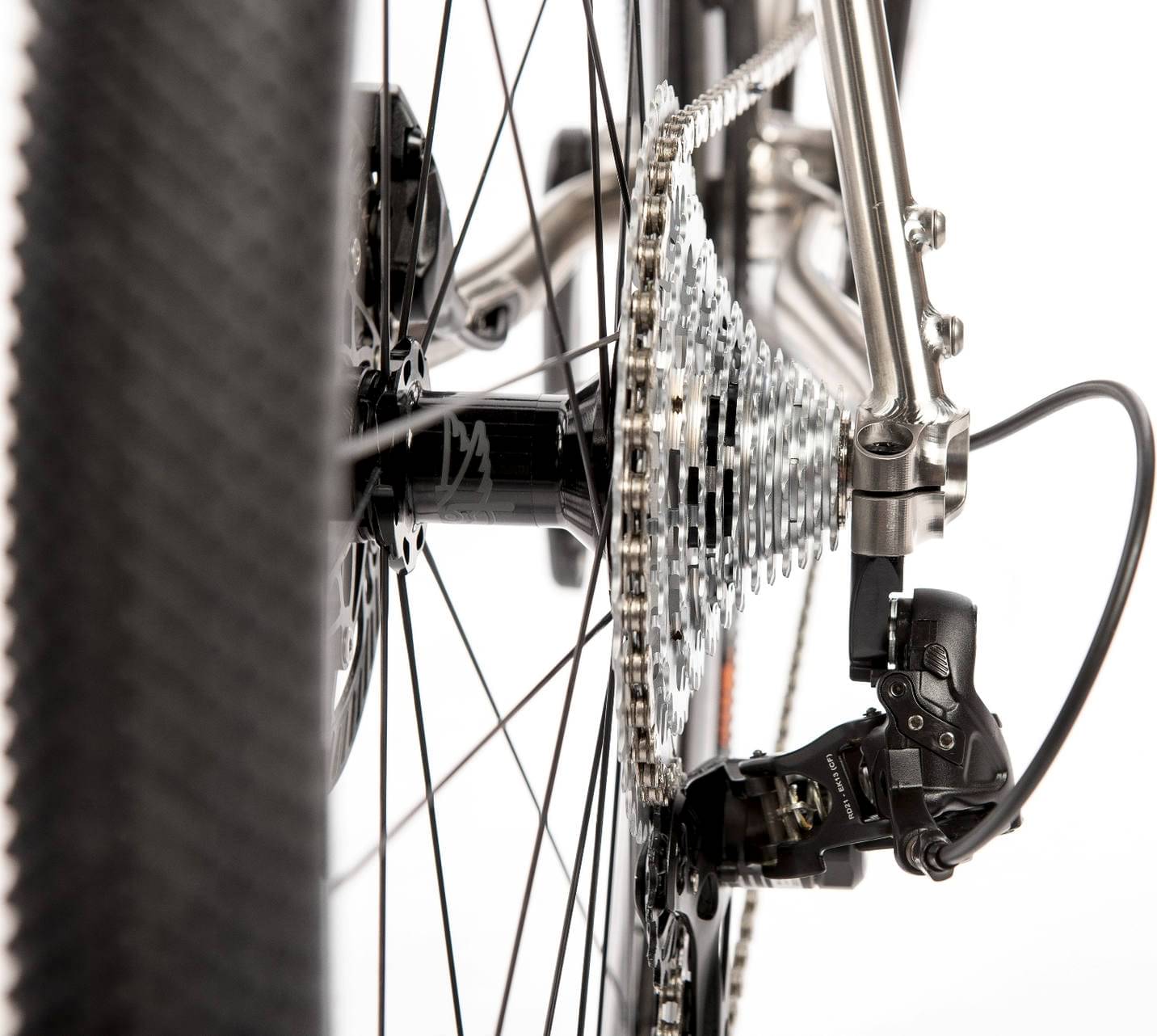

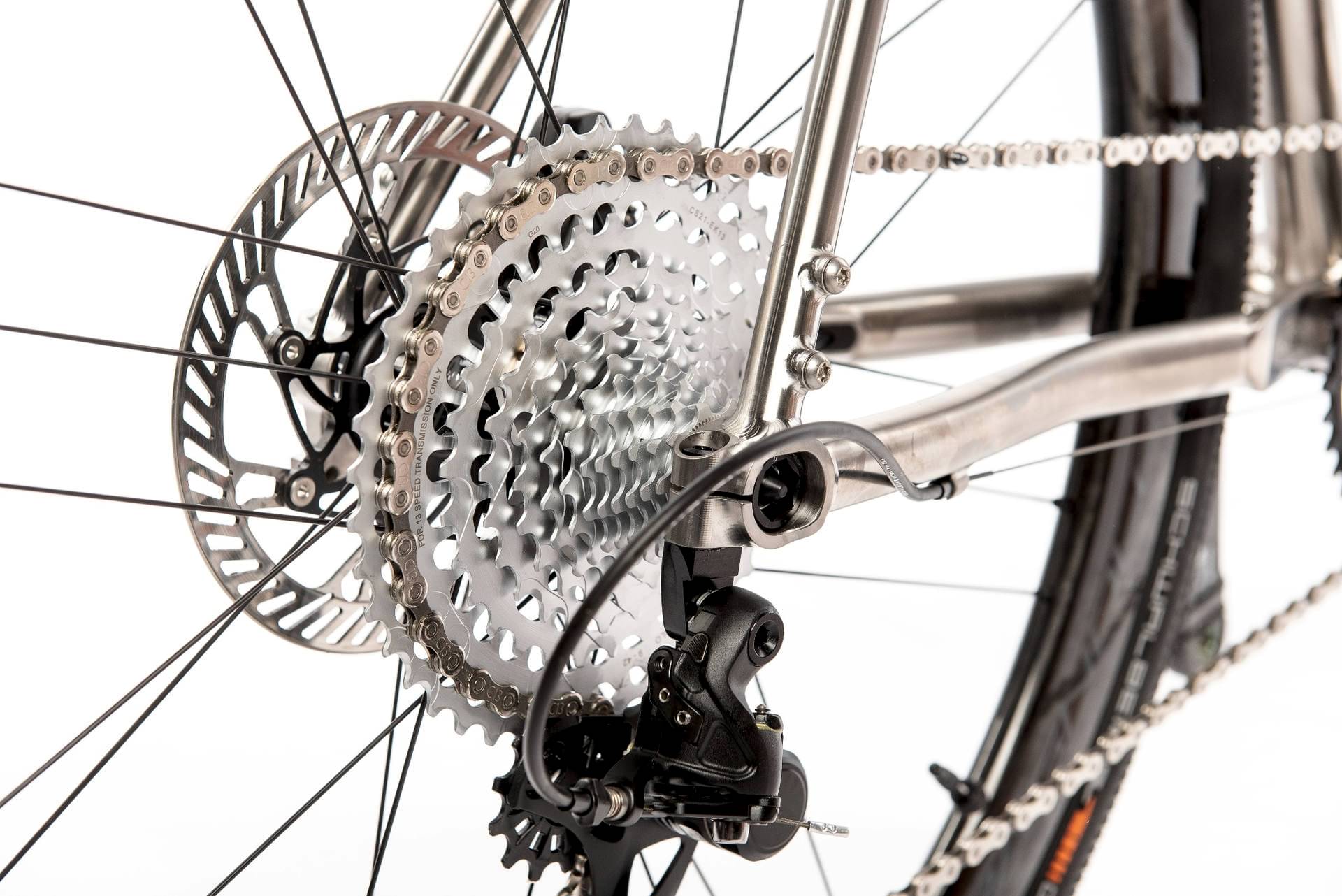

Rear Derailleur
Campagnolo EKAR GT 1x 13
Cassette
Campagnolo EKAR GT 10-48 teeth

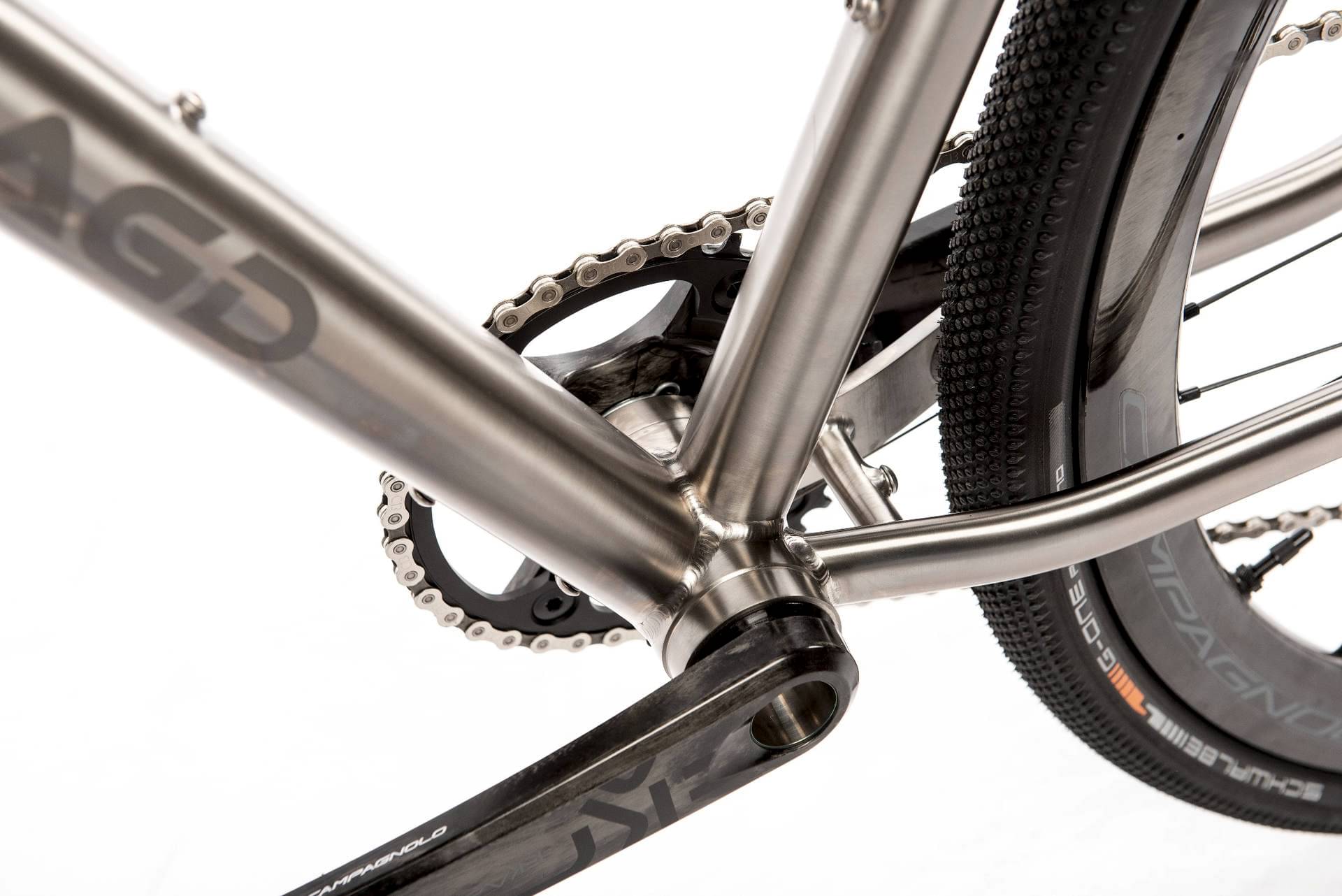

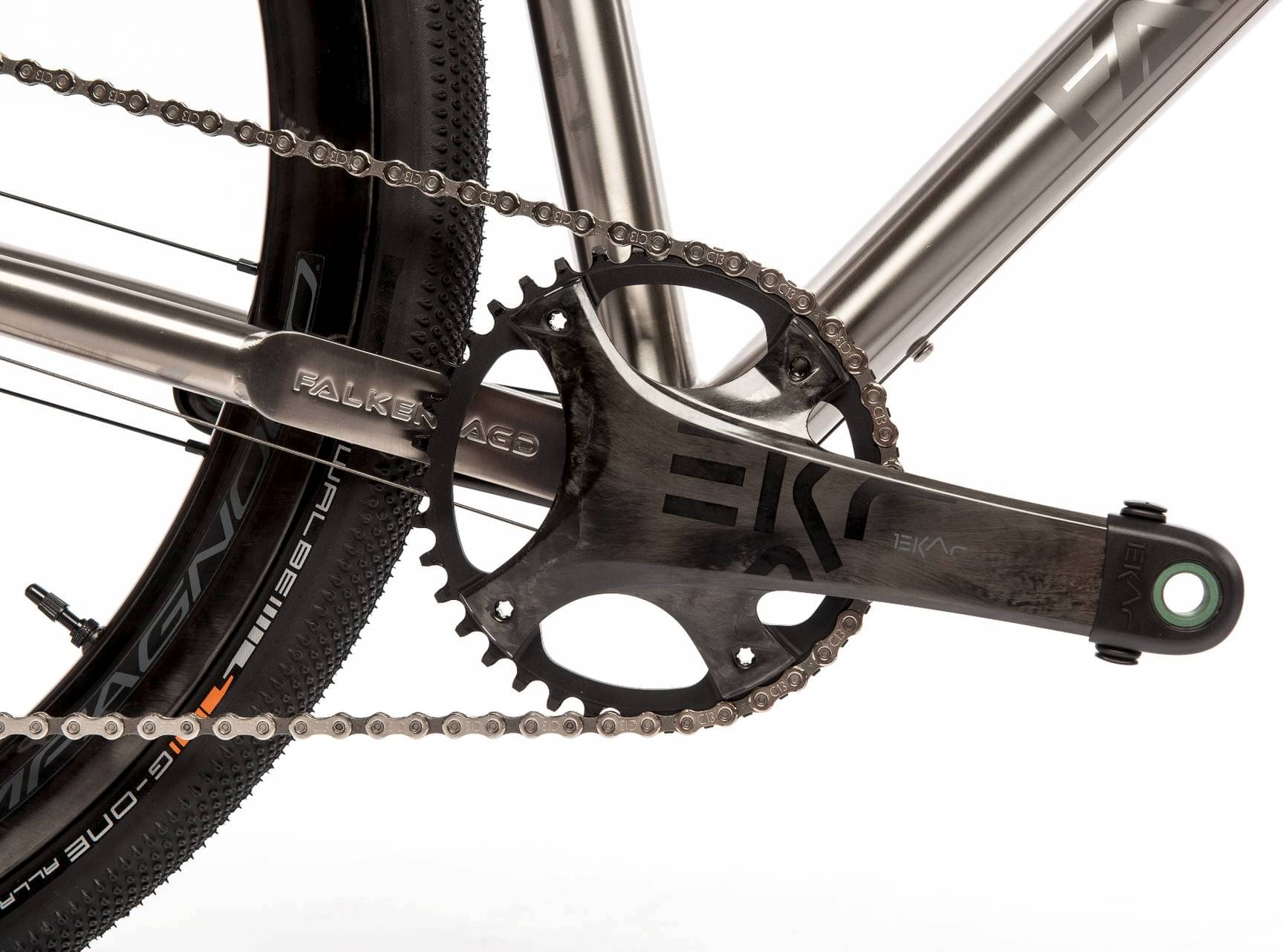

Crank
Campagnolo EKAR GT 38 teeth
Pedals
without
Wheels
Rims
Fulcrum RED 500

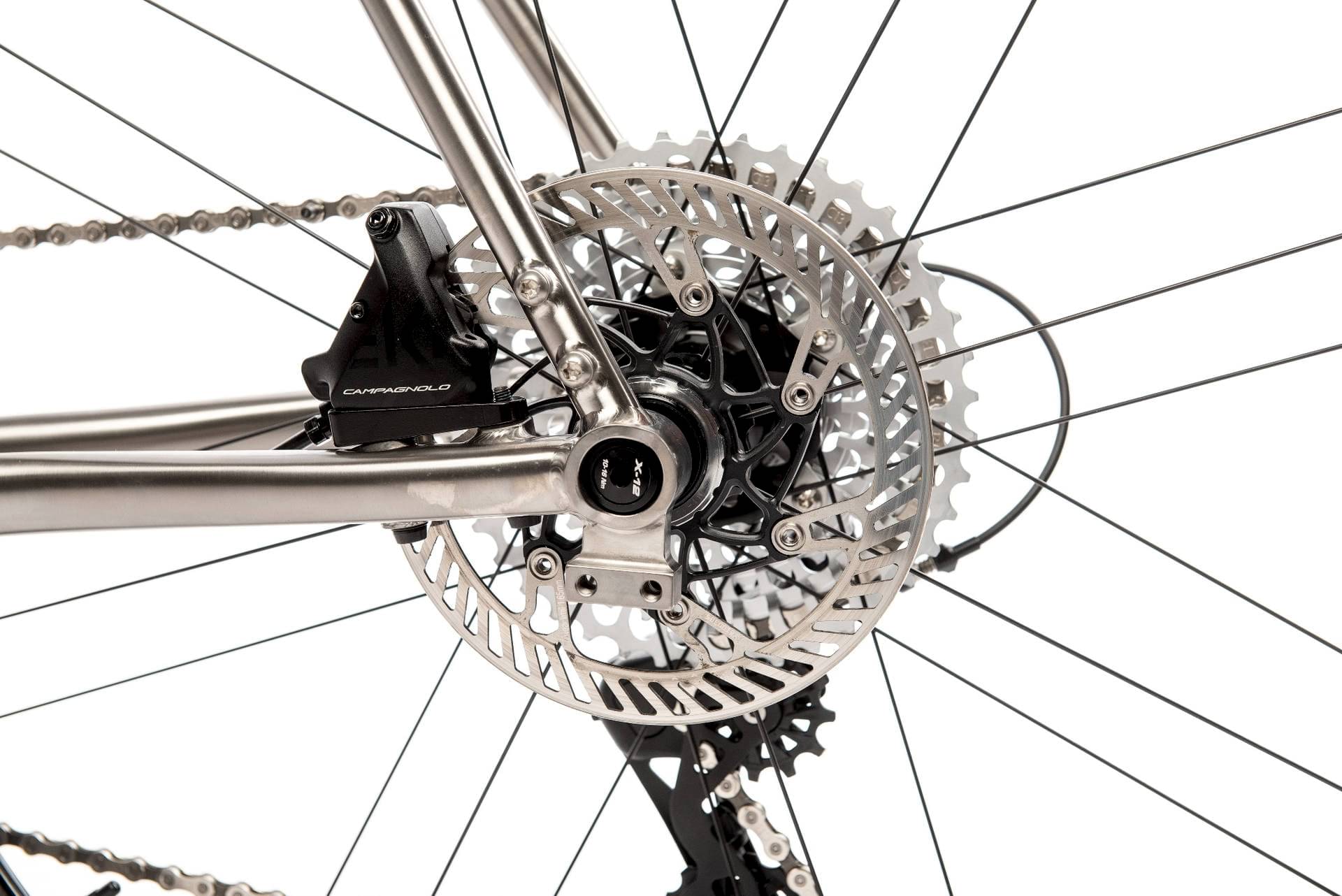

Brakes
Brakes
Campagnolo EKAR GT

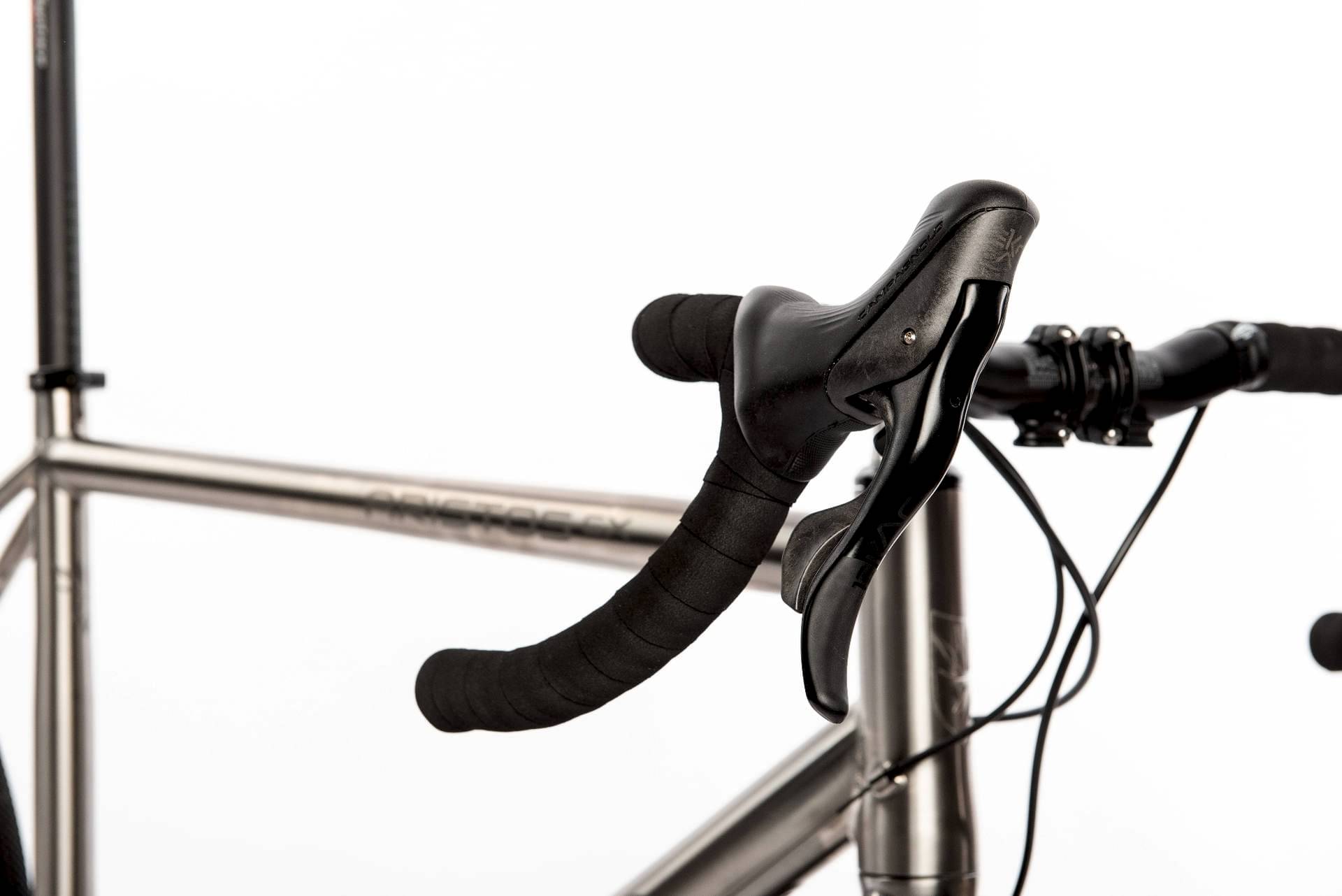

Cockpit
Stem
RENTAL STEEL Race light Black
Handlebar
Acros Gravelbar
Seat
Saddle
Selle Italia SLR Boost Magnesia
Seatpost
PARAPERA Carbon extralight
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.468 mm | 1.478 mm | 1.501 mm | 1.499 mm | 1.513 mm |
| Bottom Bracket Height | 272 mm | 273 mm | 274 mm | 275 mm | 276 mm |
| Front Center | 591 mm | 606 mm | 611 mm | 624 mm | 668 mm |
| Rake | 40 mm | 42 mm | 38 mm | 36 mm | 55 mm |
| Trail | 76 mm | 70 mm | 75 mm | 74 mm | 47 mm |
| Stack | 555 mm | 575 mm | 590 mm | 610 mm | 649 mm |
| Reach | 378 mm | 389 mm | 393 mm | 407 mm | 429 mm |
| Top Tube Length | 530 mm | 550 mm | 565 mm | 585 mm | 625 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 530 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 73 ° |
| Head Tube Length | 130 mm | 150 mm | 165 mm | 185 mm | 230 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 427 mm | 430 mm |
| Wheelbase | 1005 mm | 1021 mm | 1026 mm | 1042 mm | 1089 mm |
| Bottom Bracket Drop | 72 mm | 71 mm | 70 mm | 69 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 168 cm | 177 cm | 184 cm | 195 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm | 201 cm | 205 cm |
