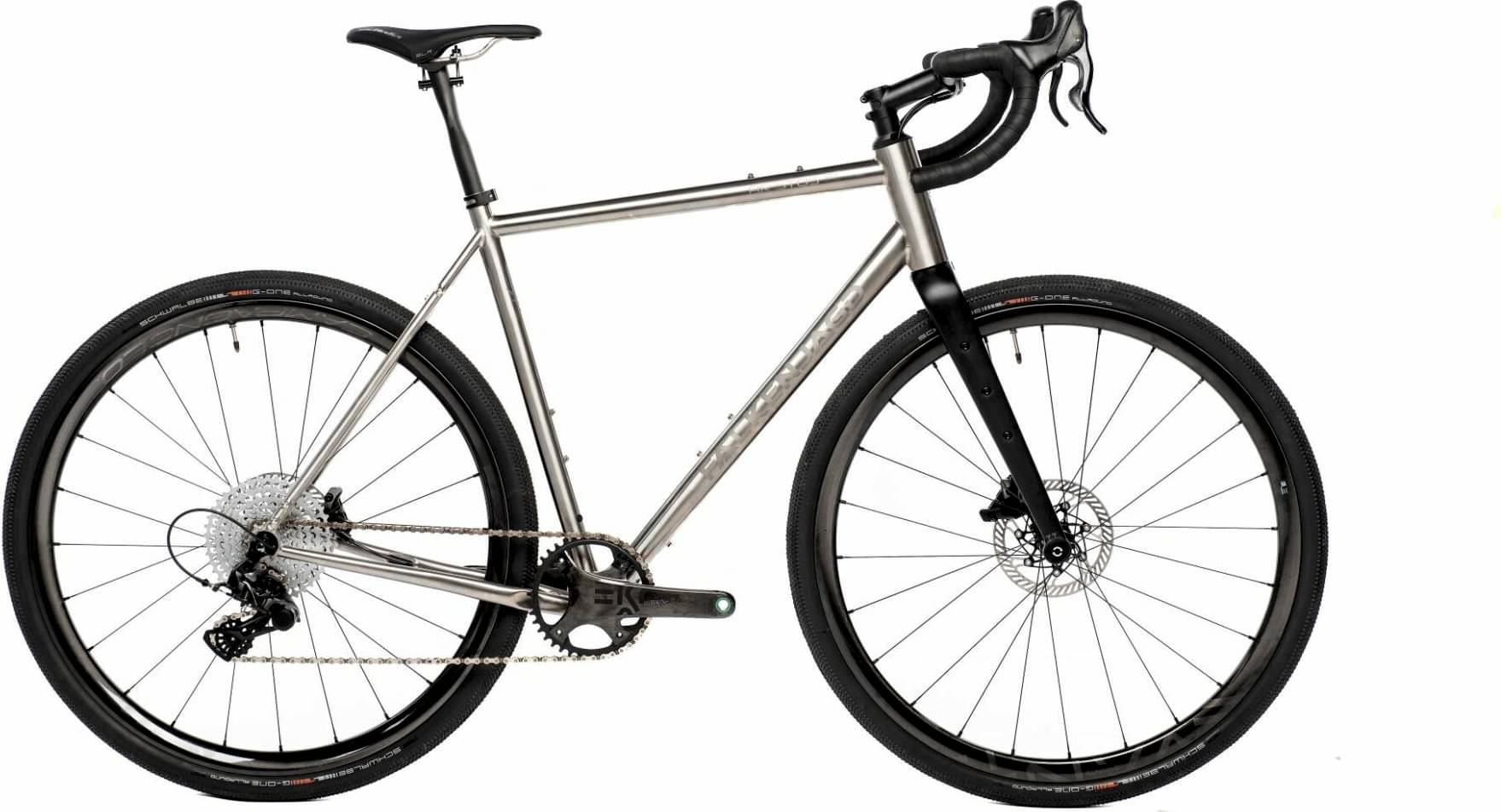

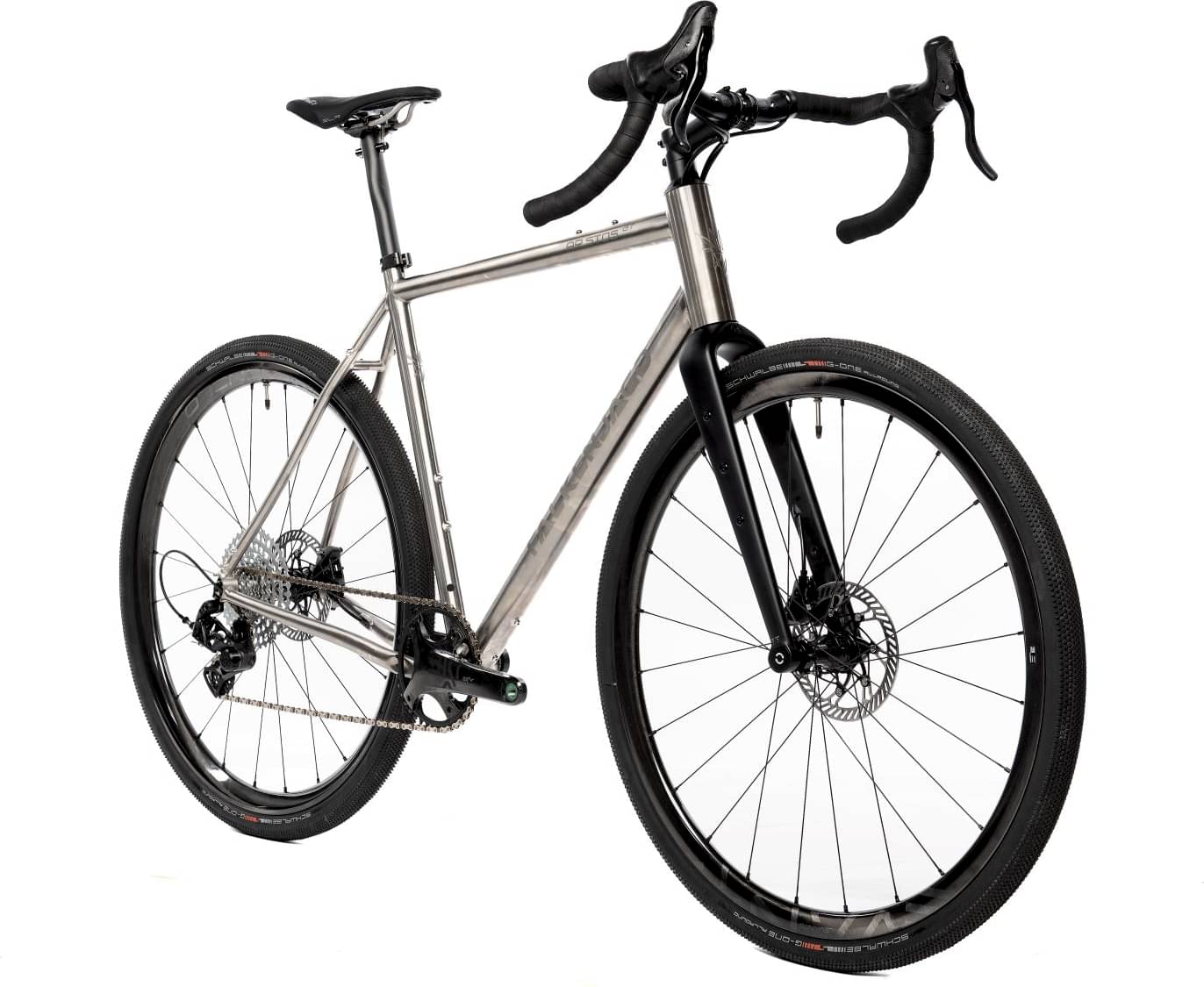

falkenjagd Aristos GT Gravel 2024
2024 Road
Estimate price |
6,281$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

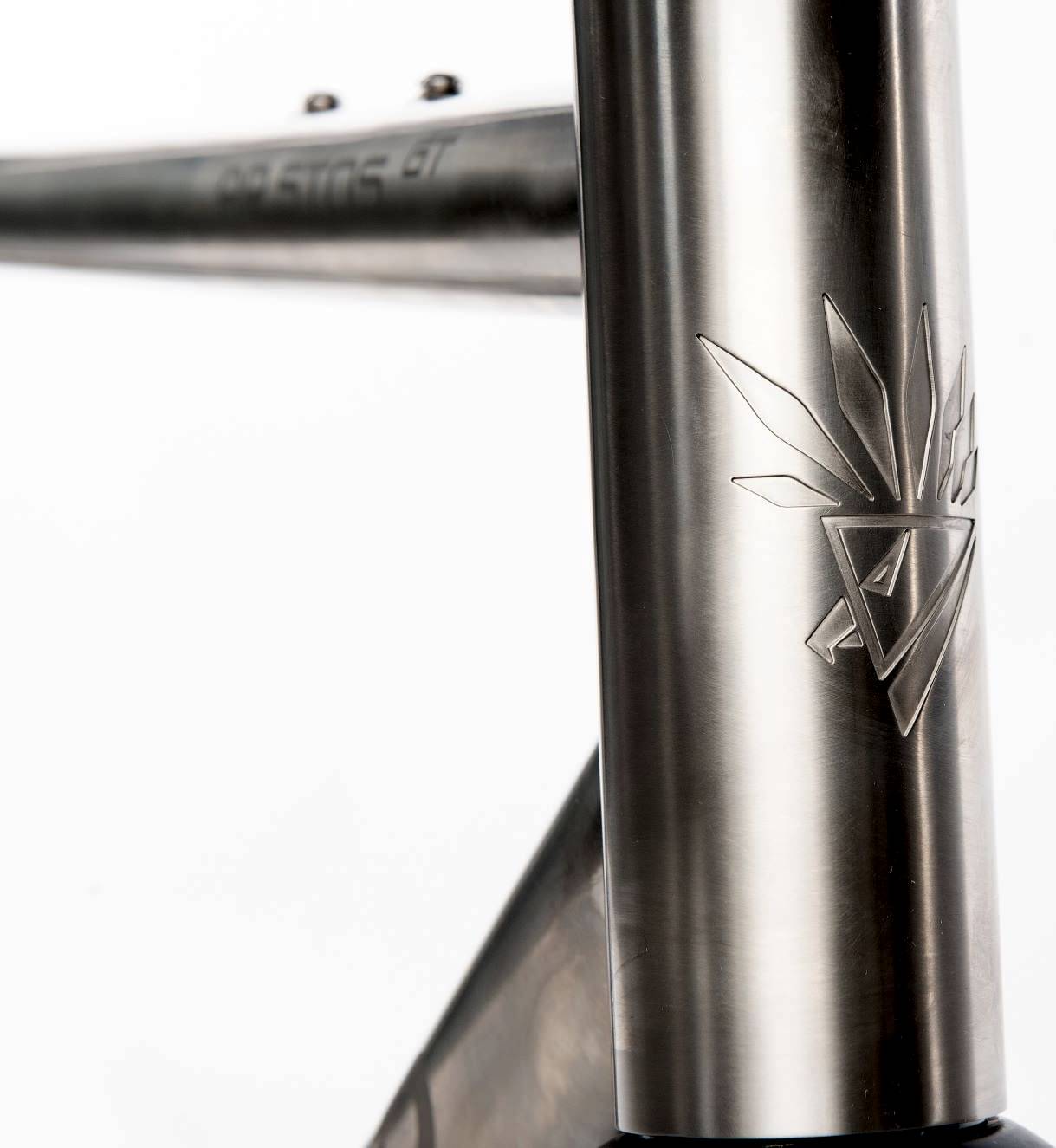

Frame Titanium -
Wheels 700c -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

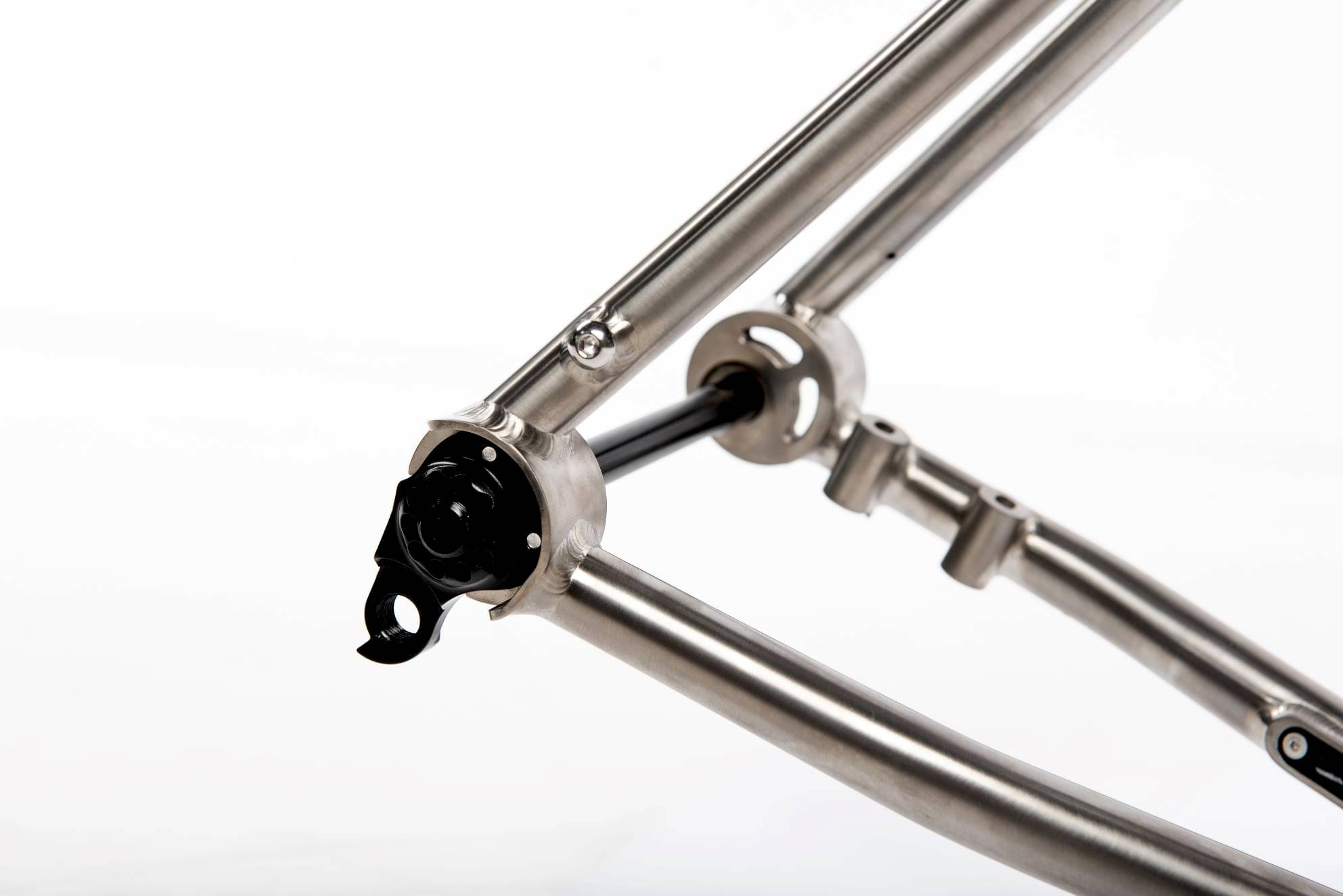

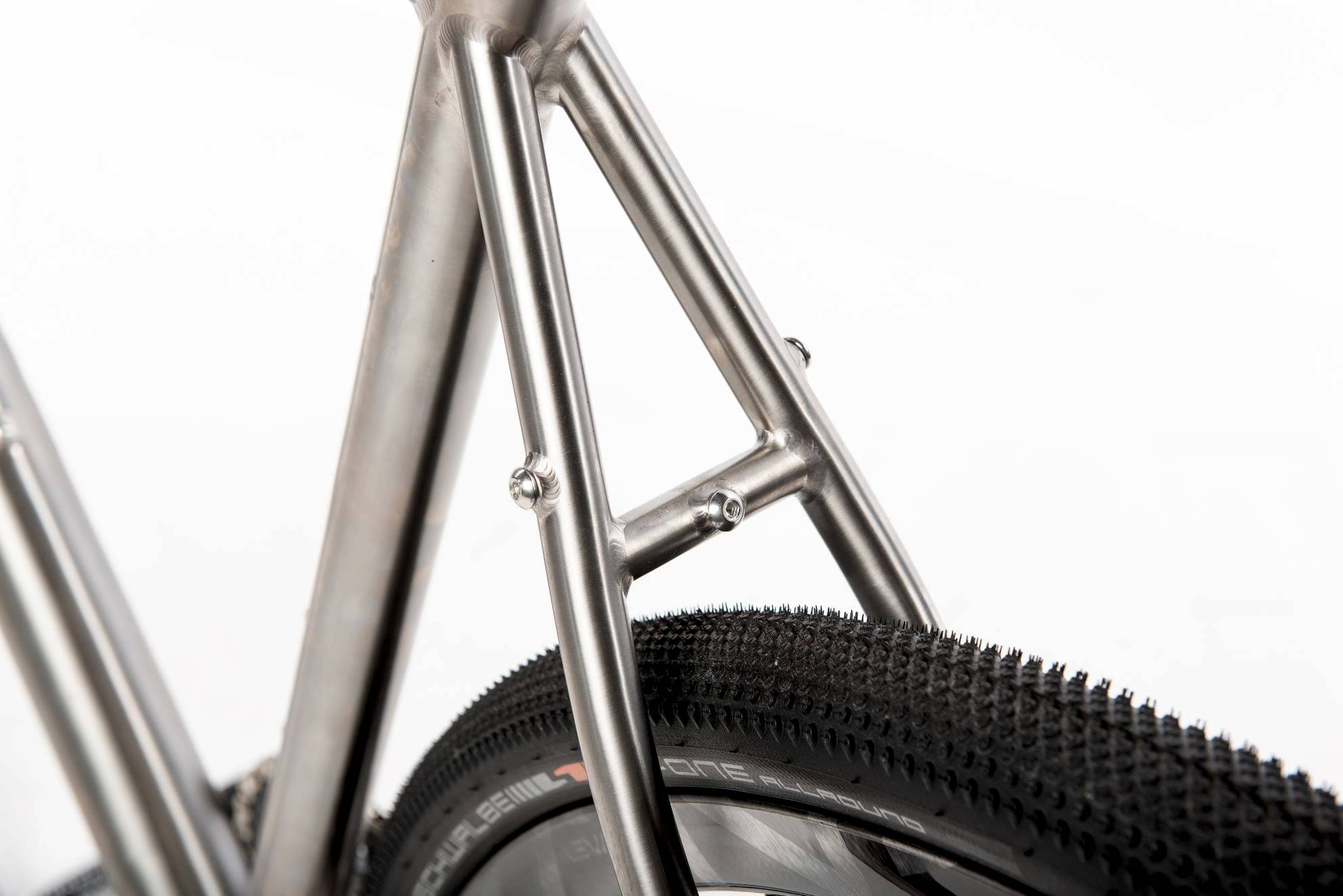

Frame

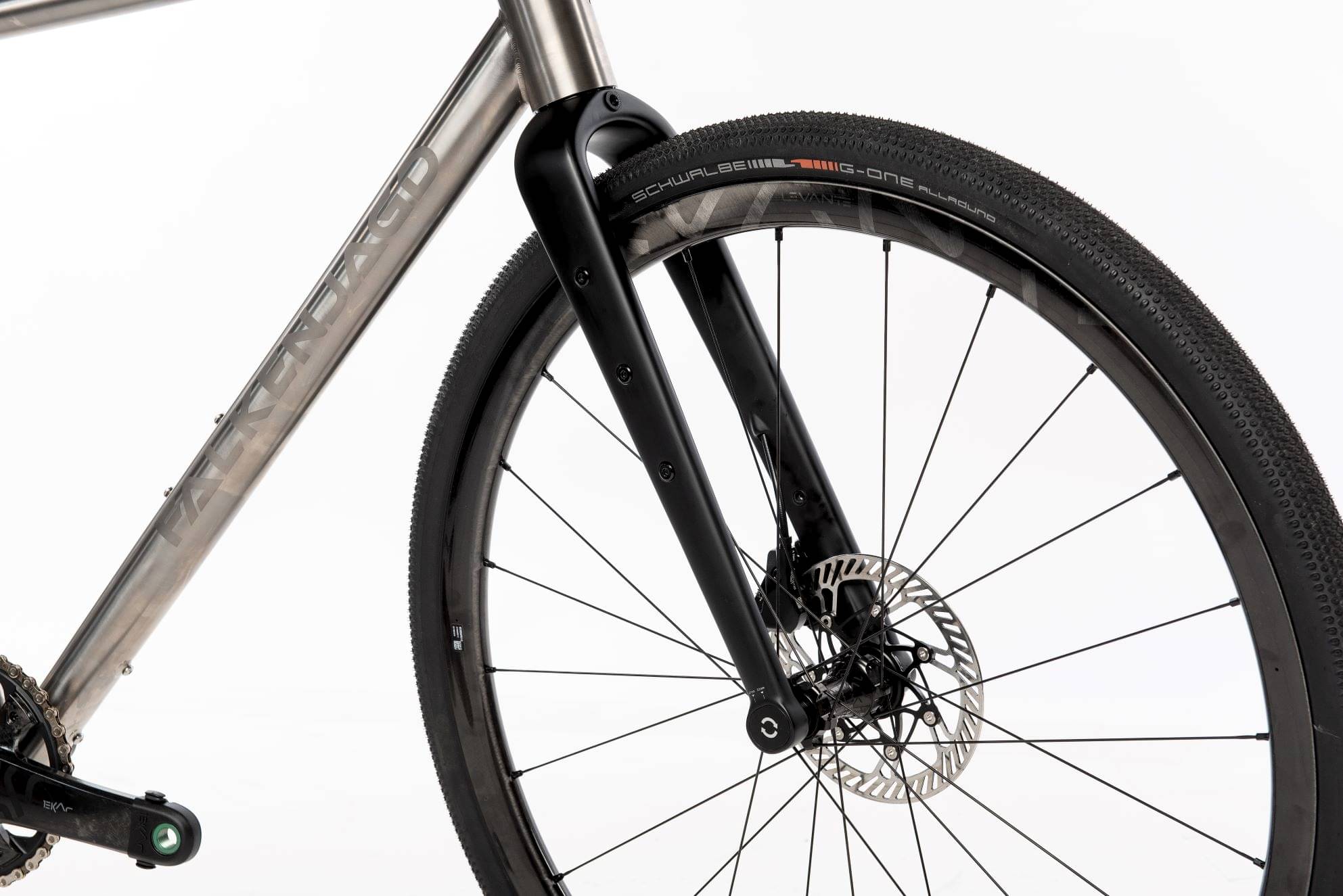

Suspension Fork
Parapera Carbon Adventure Any Cage totally integrated

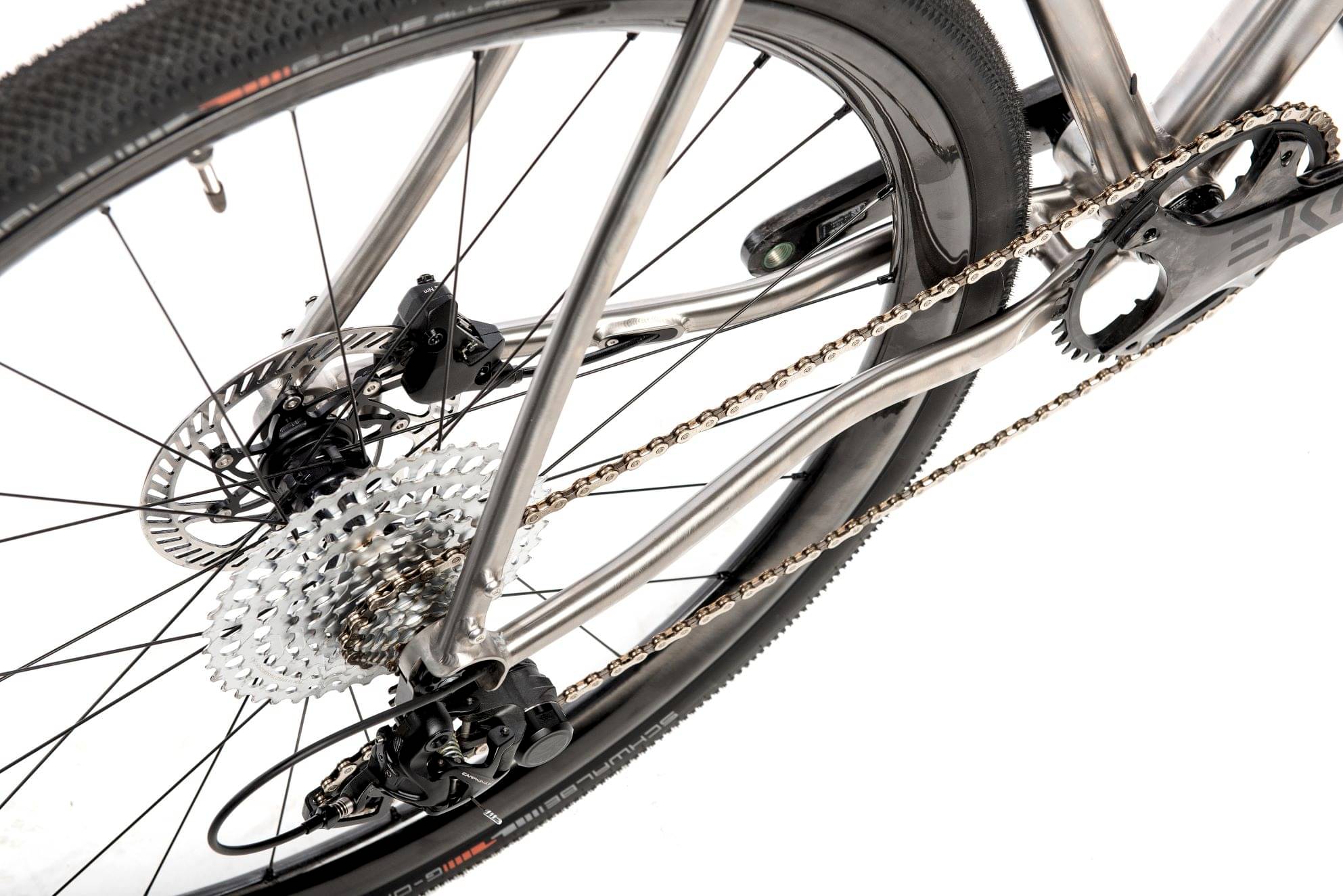

Drivetrain

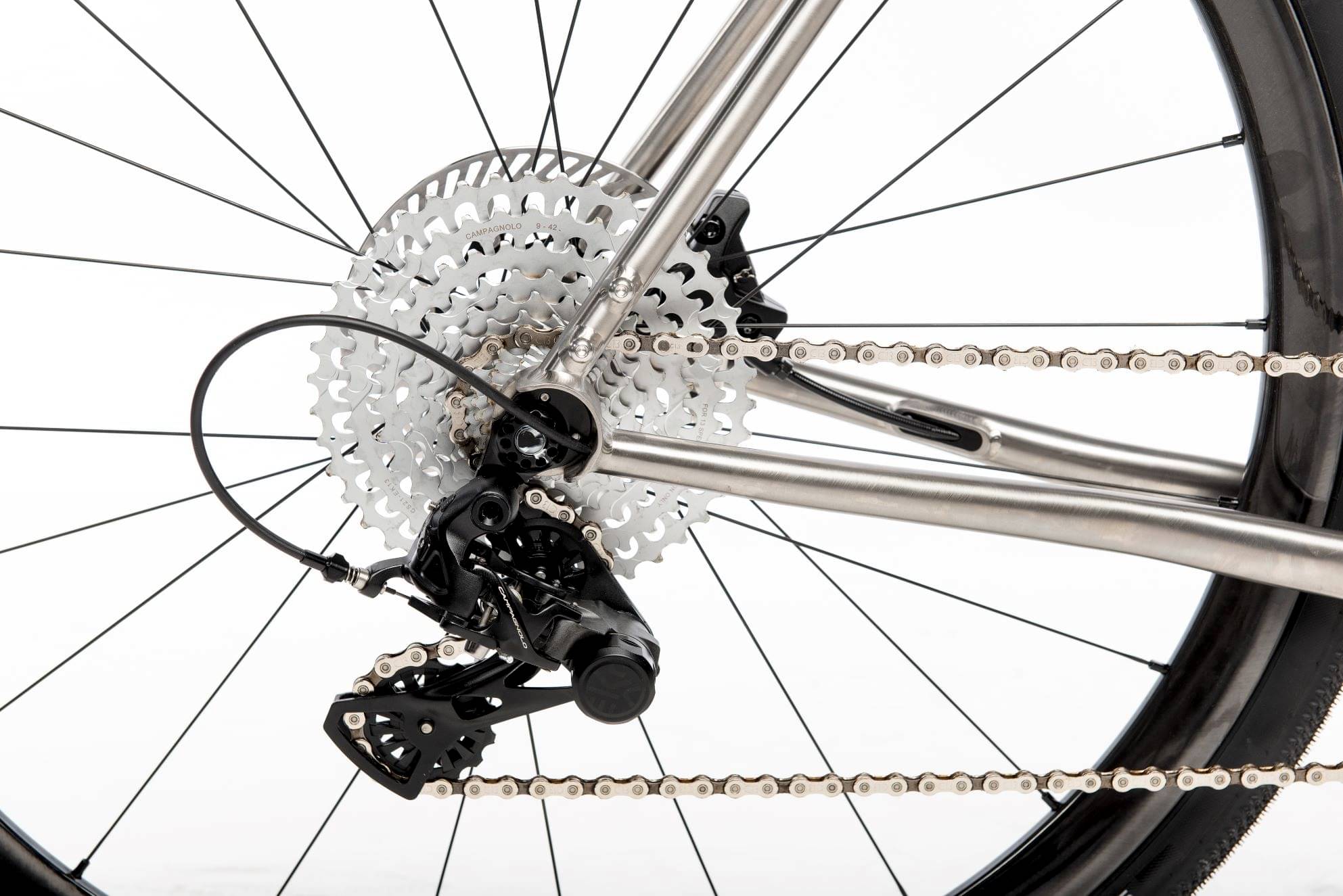

Rear Derailleur
Campagnolo Ekar 1x 13

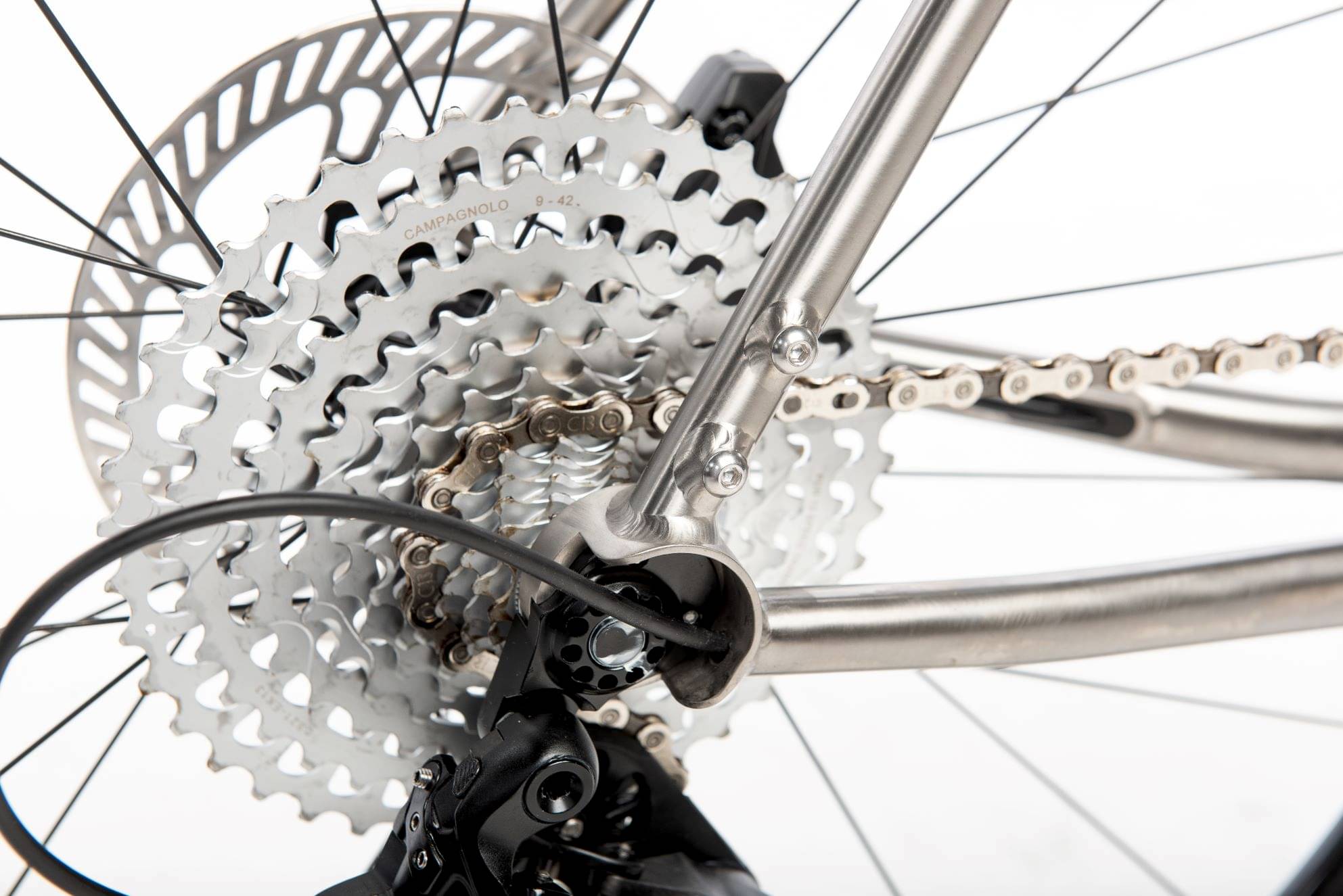

Cassette
EKAR 13-speed 10-44 teeth

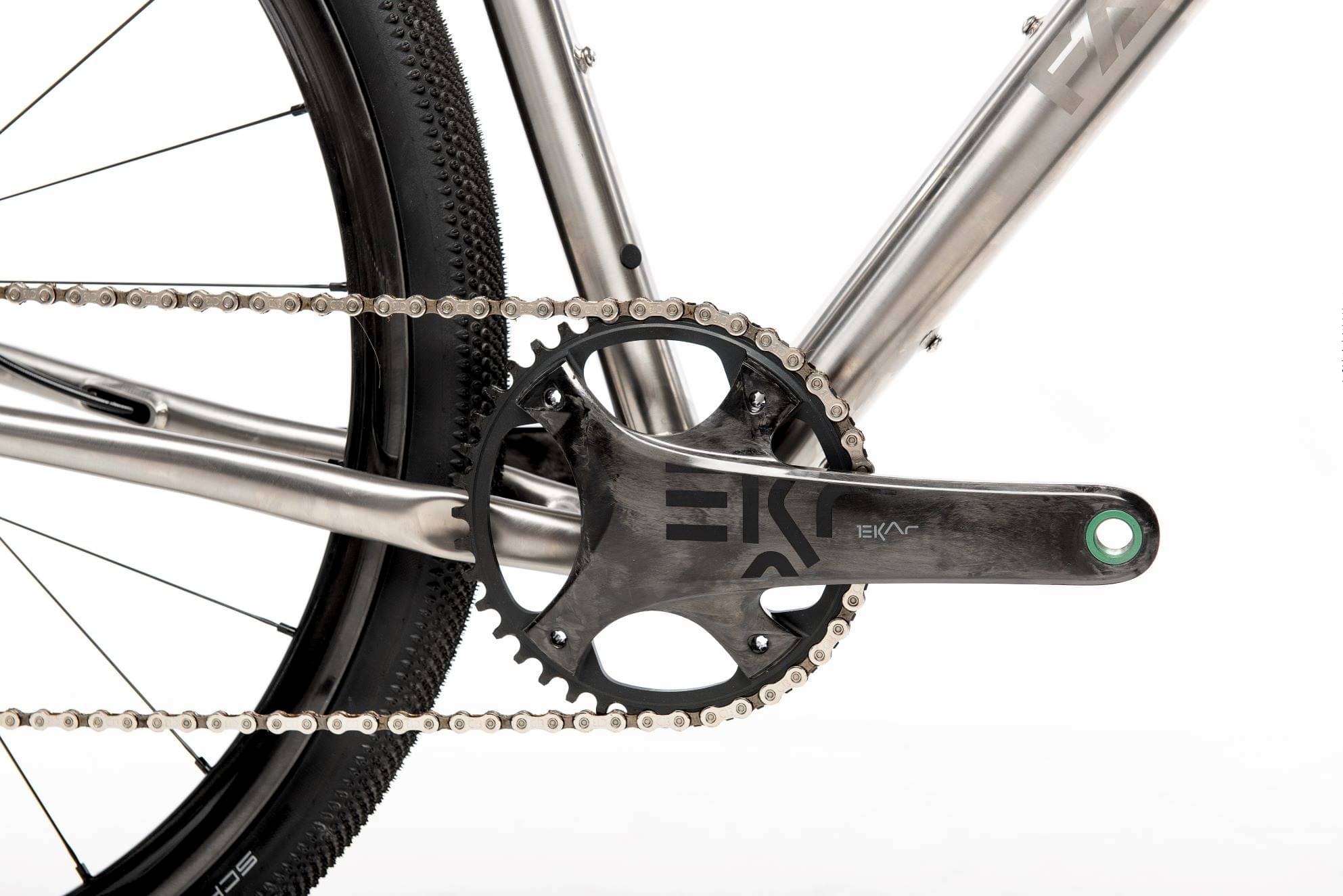

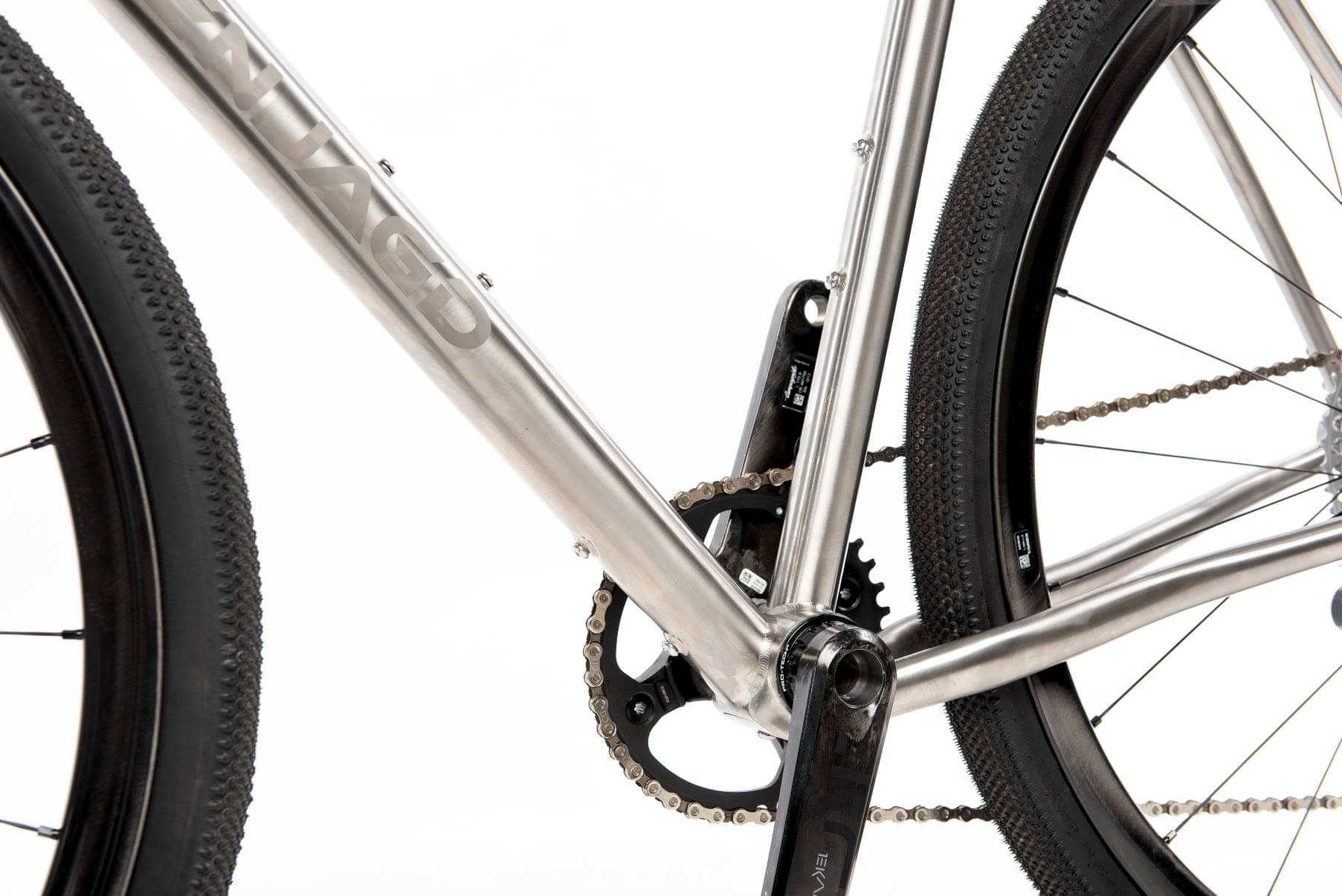

Crank
EKAR 13-speed 38T.
Pedals
without
Wheels
Rims
Mavic Allroad SL, 28 inches
Tires
Schwalbe G-One R 622-40

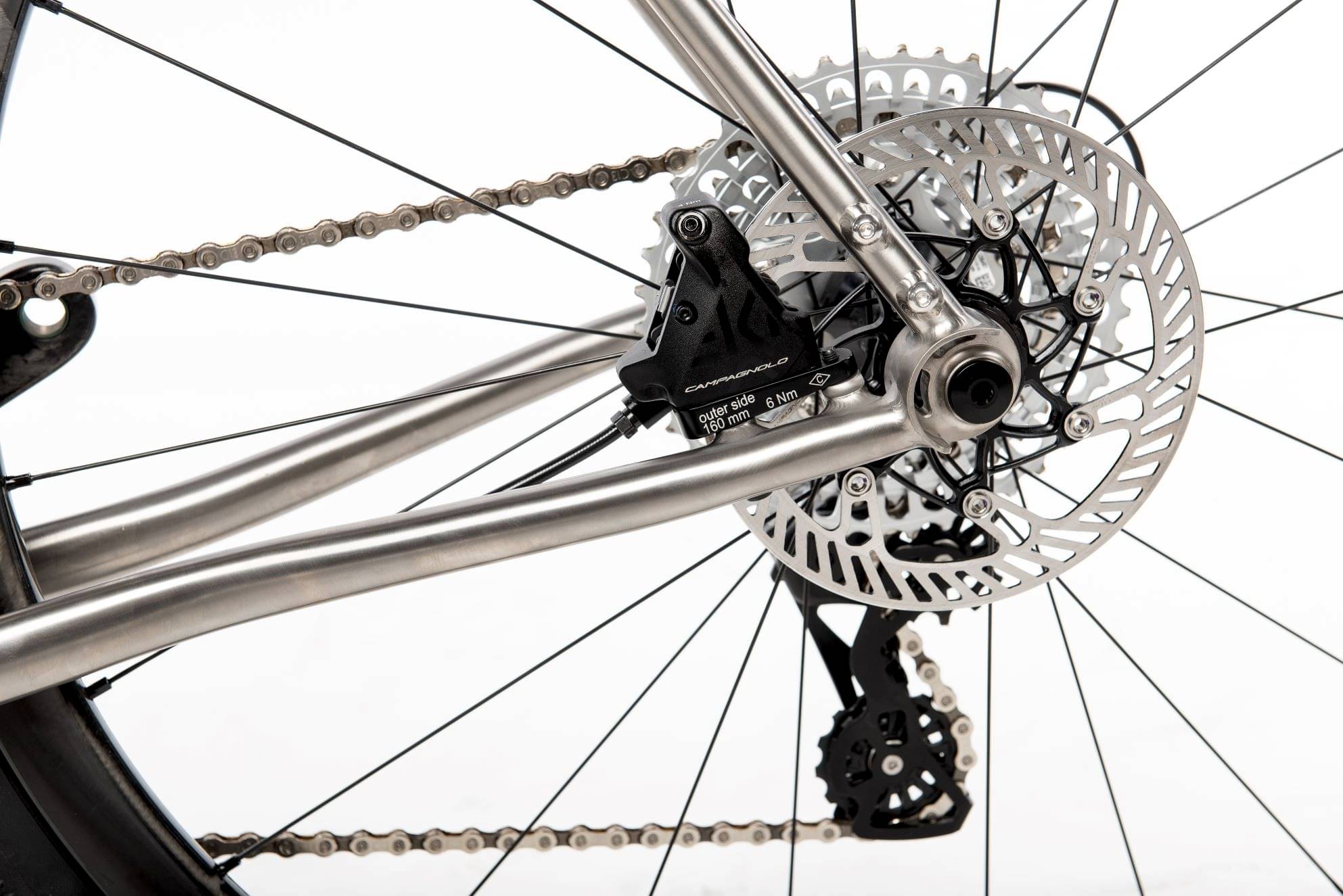

Brakes
Brakes
Depending on the Campa group you choose
Cockpit

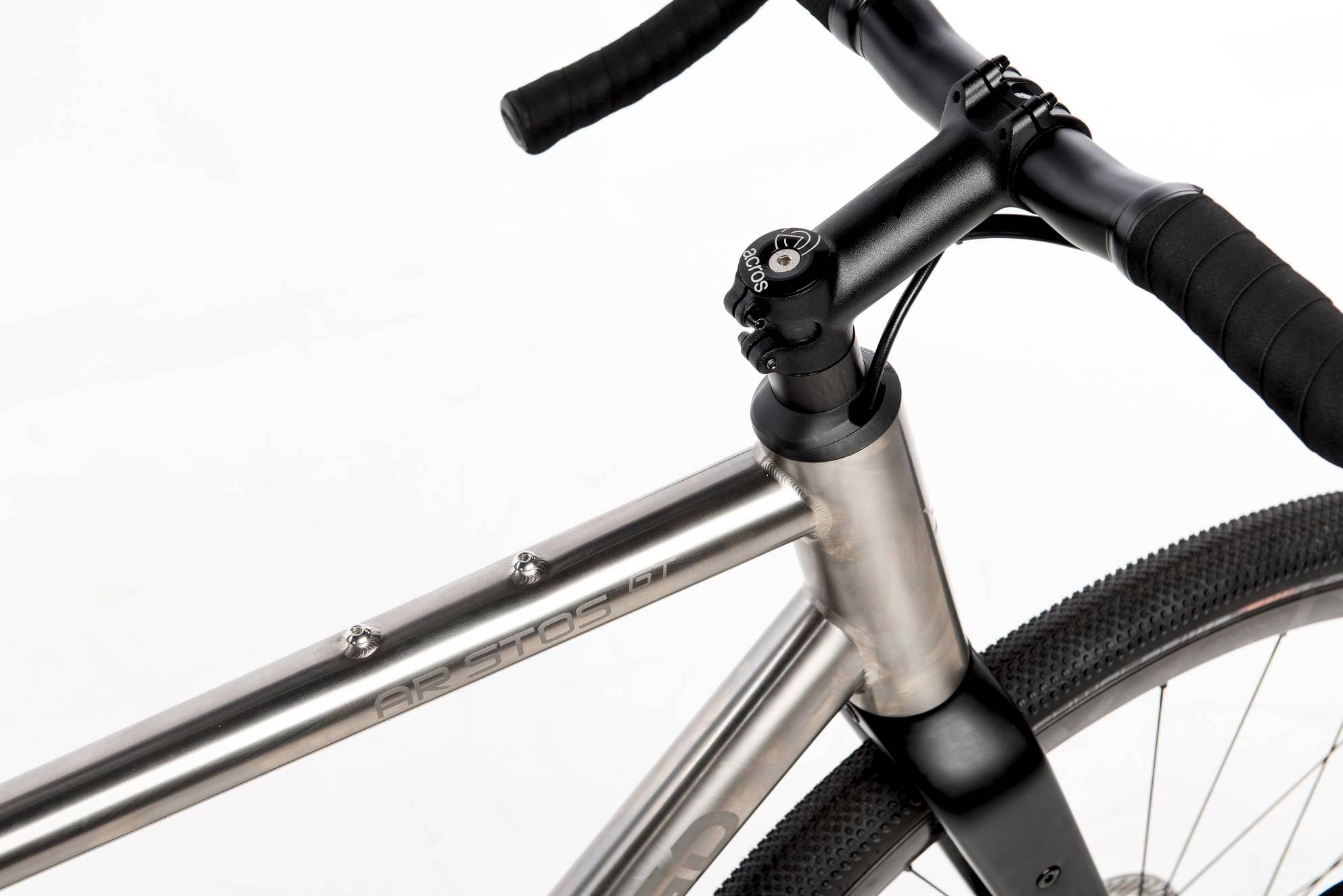

Stem
Racing steel Race light Black

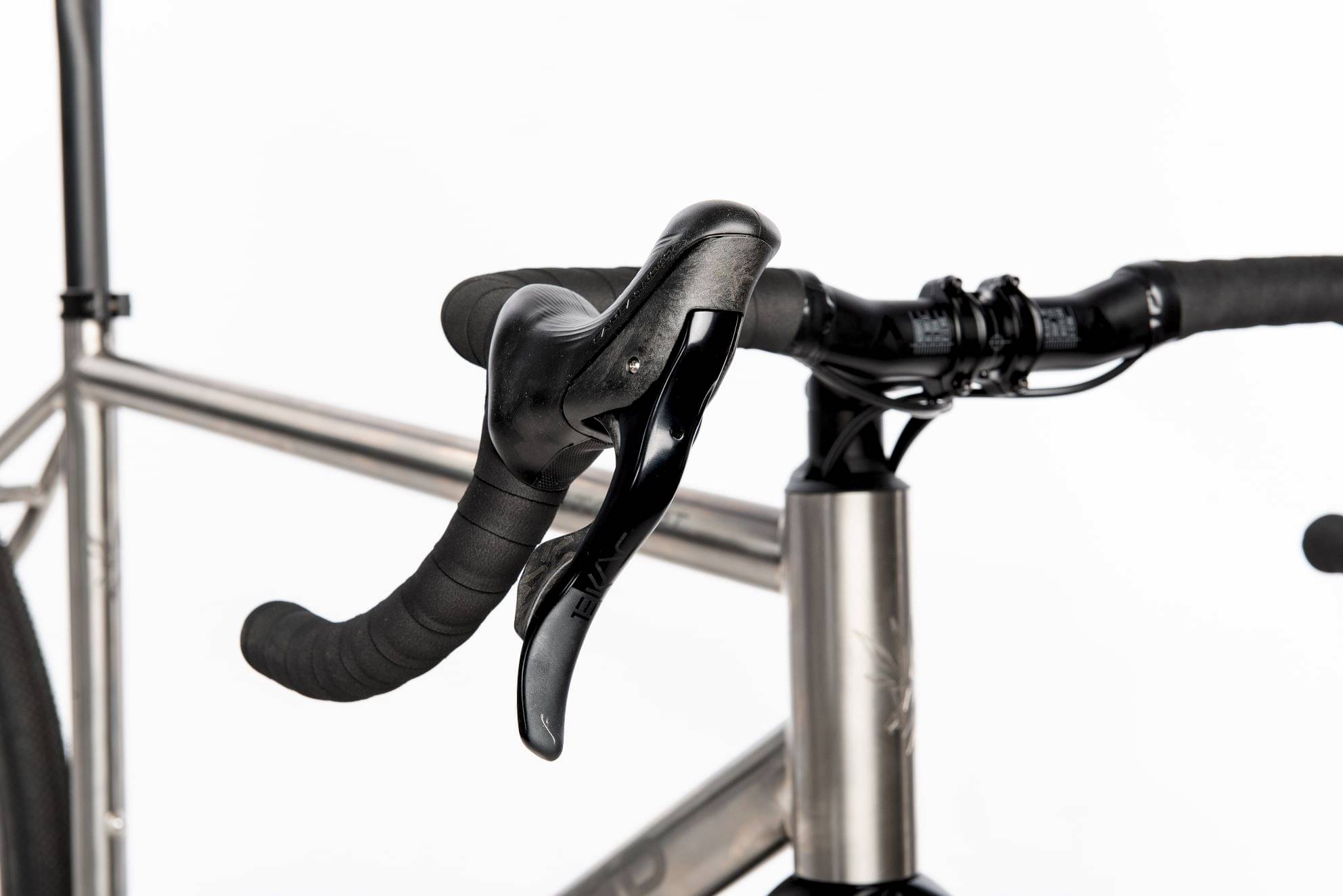

Handlebar
Syntace Racelite 440mm
Seat

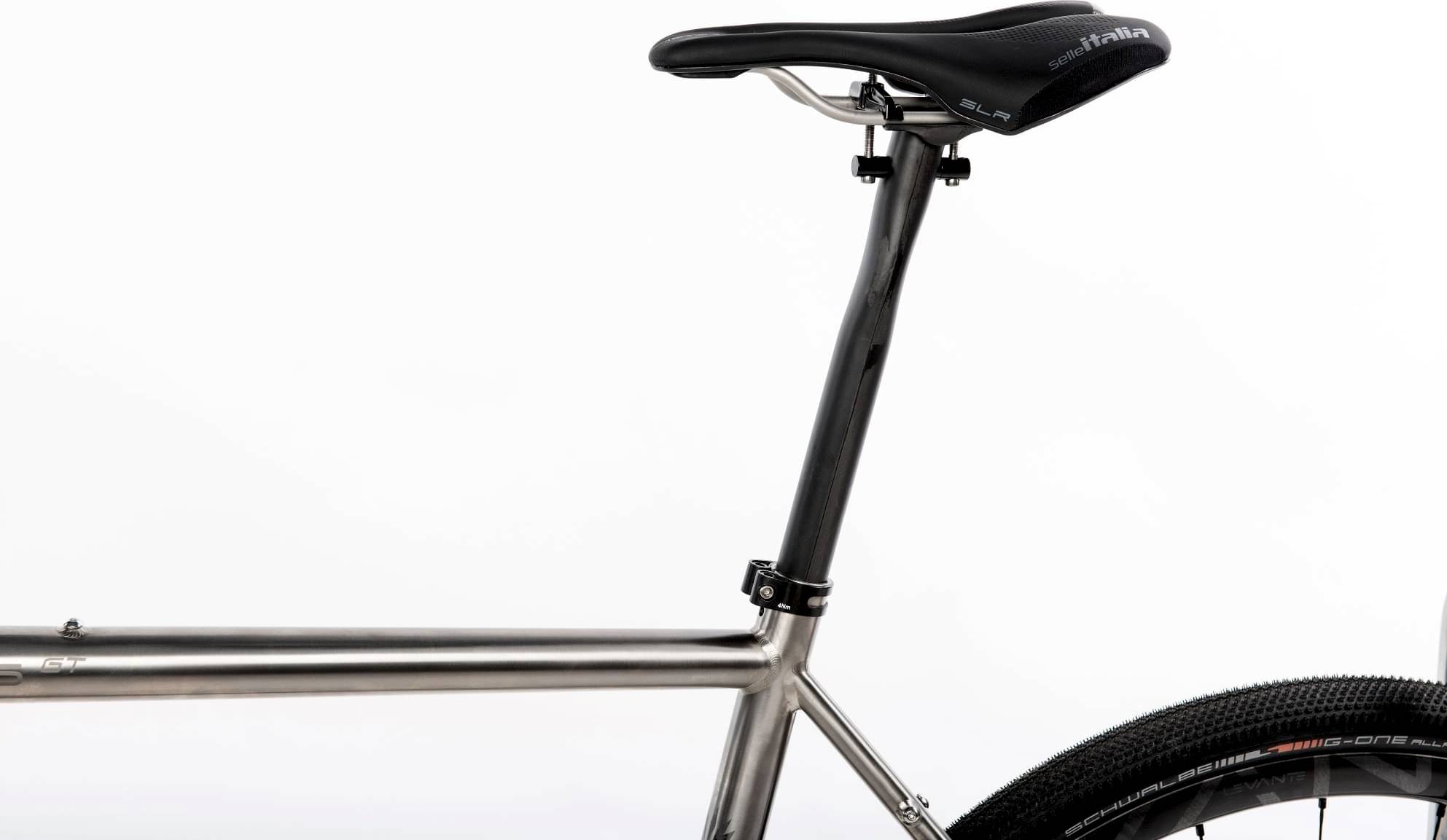

Saddle
without
Seatpost
Parapera Carbon extralight
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.471 mm | 1.478 mm | 1.505 mm | 1.502 mm | 1.513 mm |
| Stack | 556 mm | 575 mm | 590 mm | 610 mm | 649 mm |
| Reach | 378 mm | 389 mm | 392 mm | 406 mm | 429 mm |
| Top Tube Length | 545 mm | 560 mm | 570 mm | 593 mm | 633 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Head Tube Angle | 72 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 130 mm | 150 mm | 165 mm | 185 mm | 230 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
