Bike details
Overview
Key information split into simple groups.

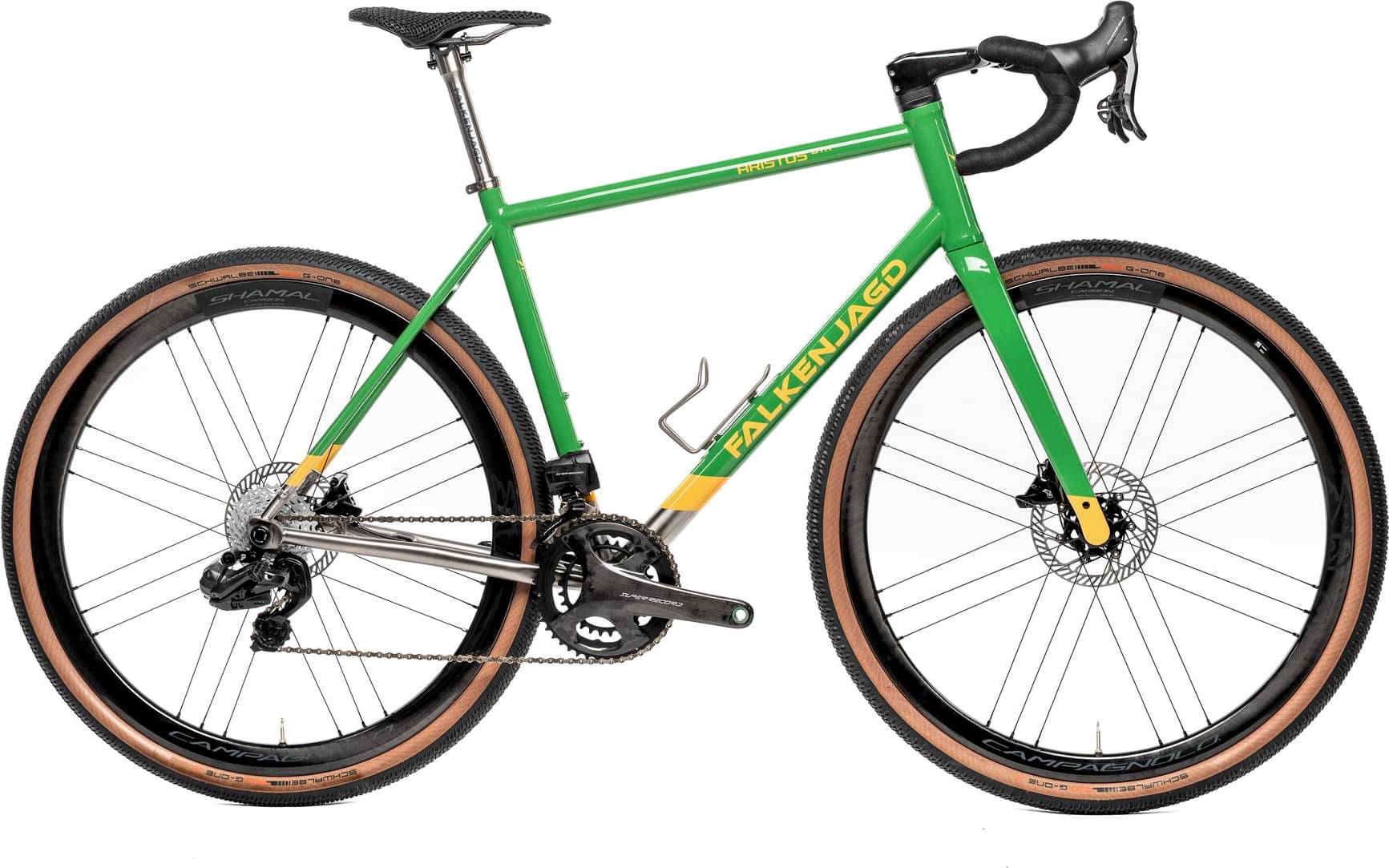

Bike summary
-
-

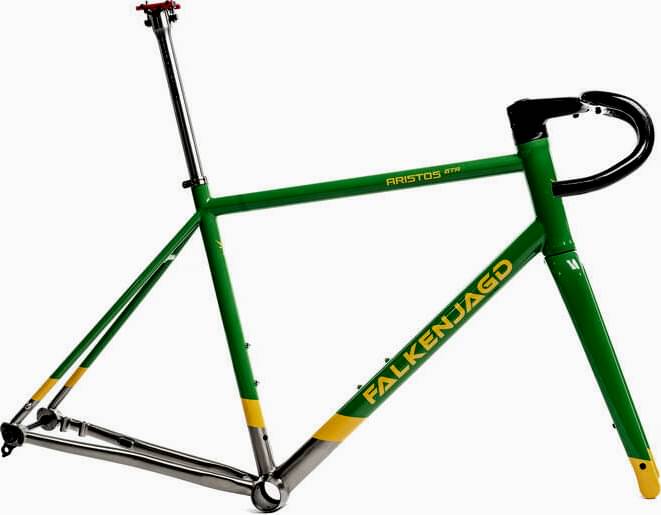

Frame Titanium -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
157cm - 167cm
SM
164cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
XXL
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components

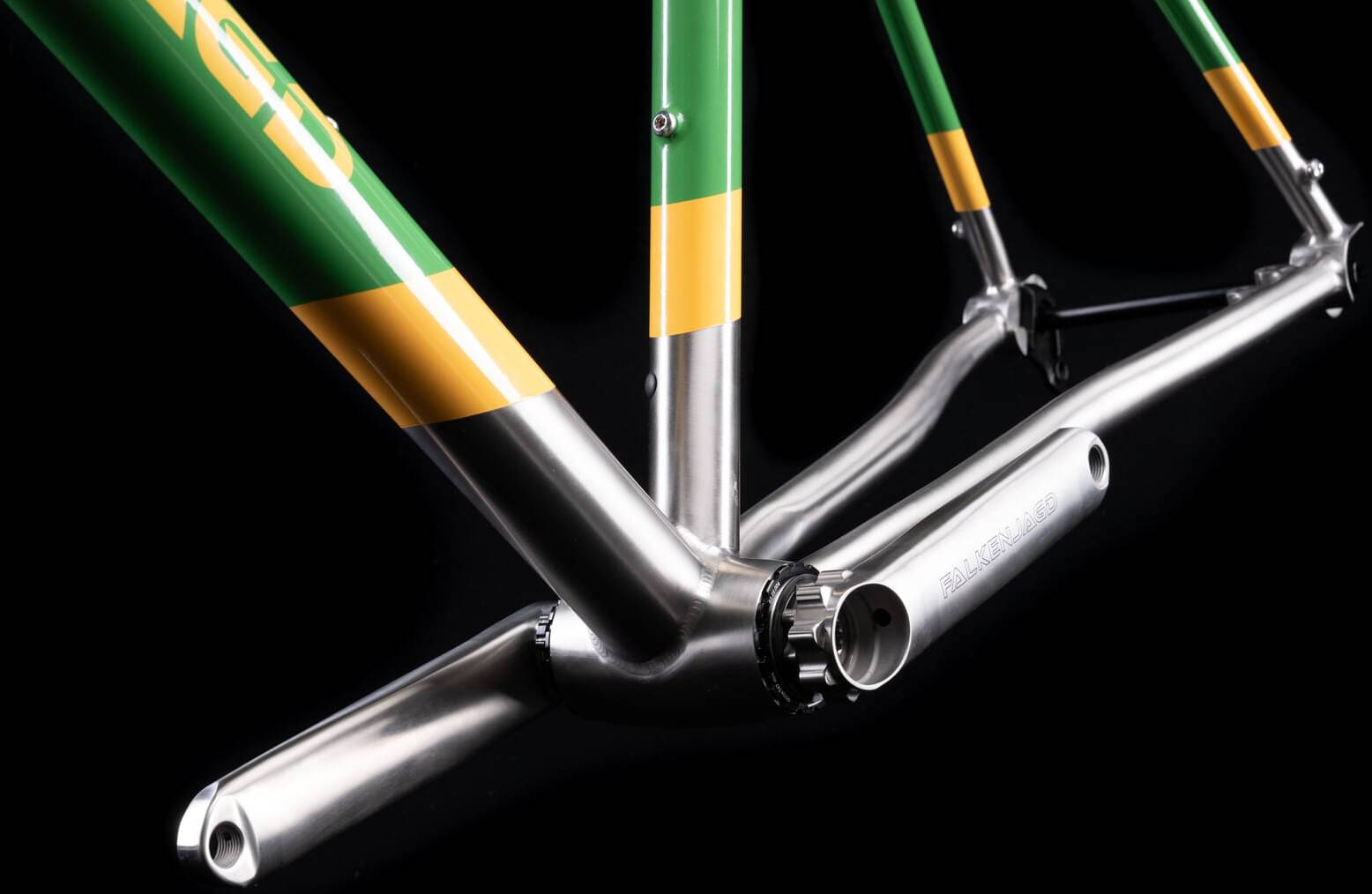

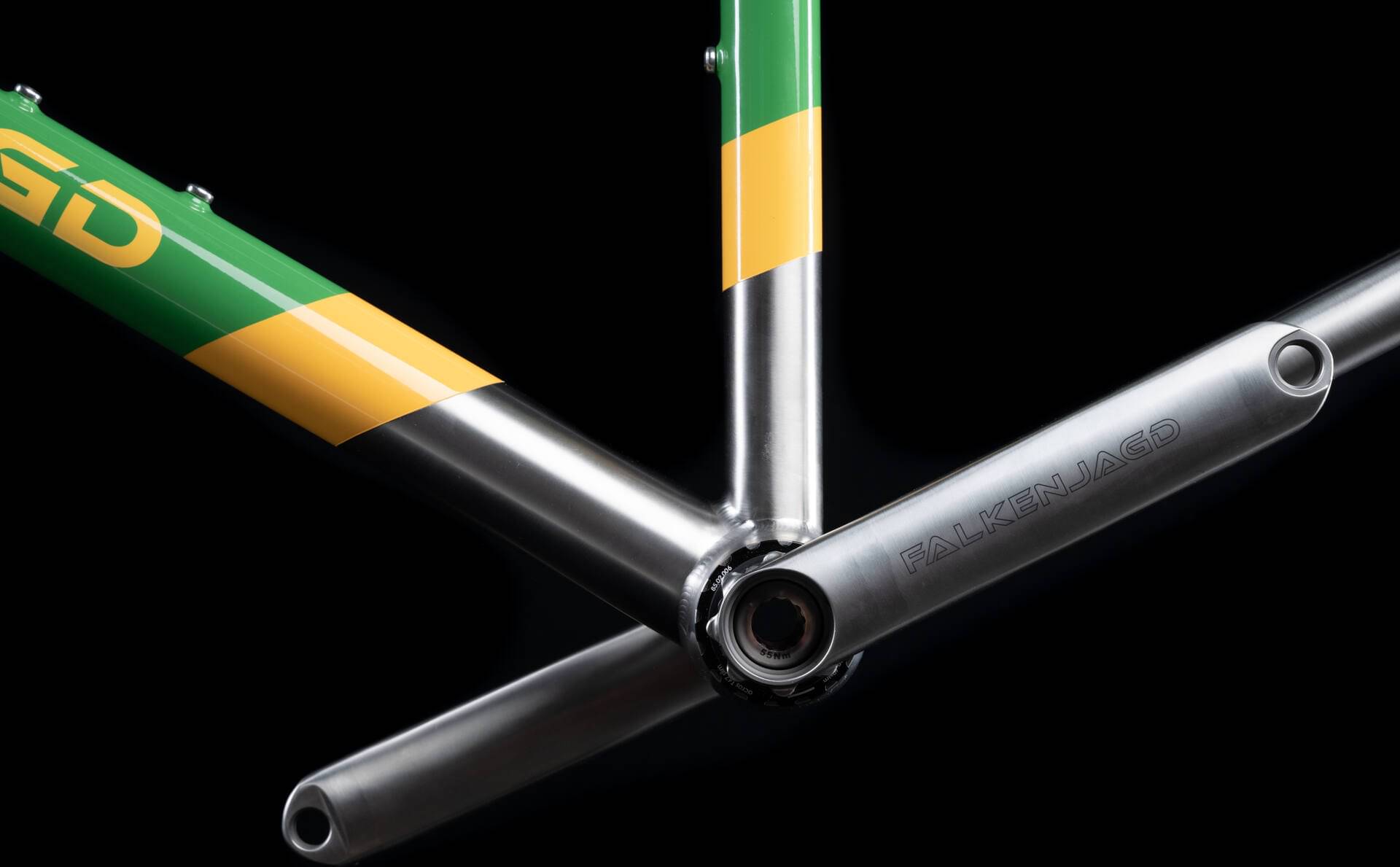

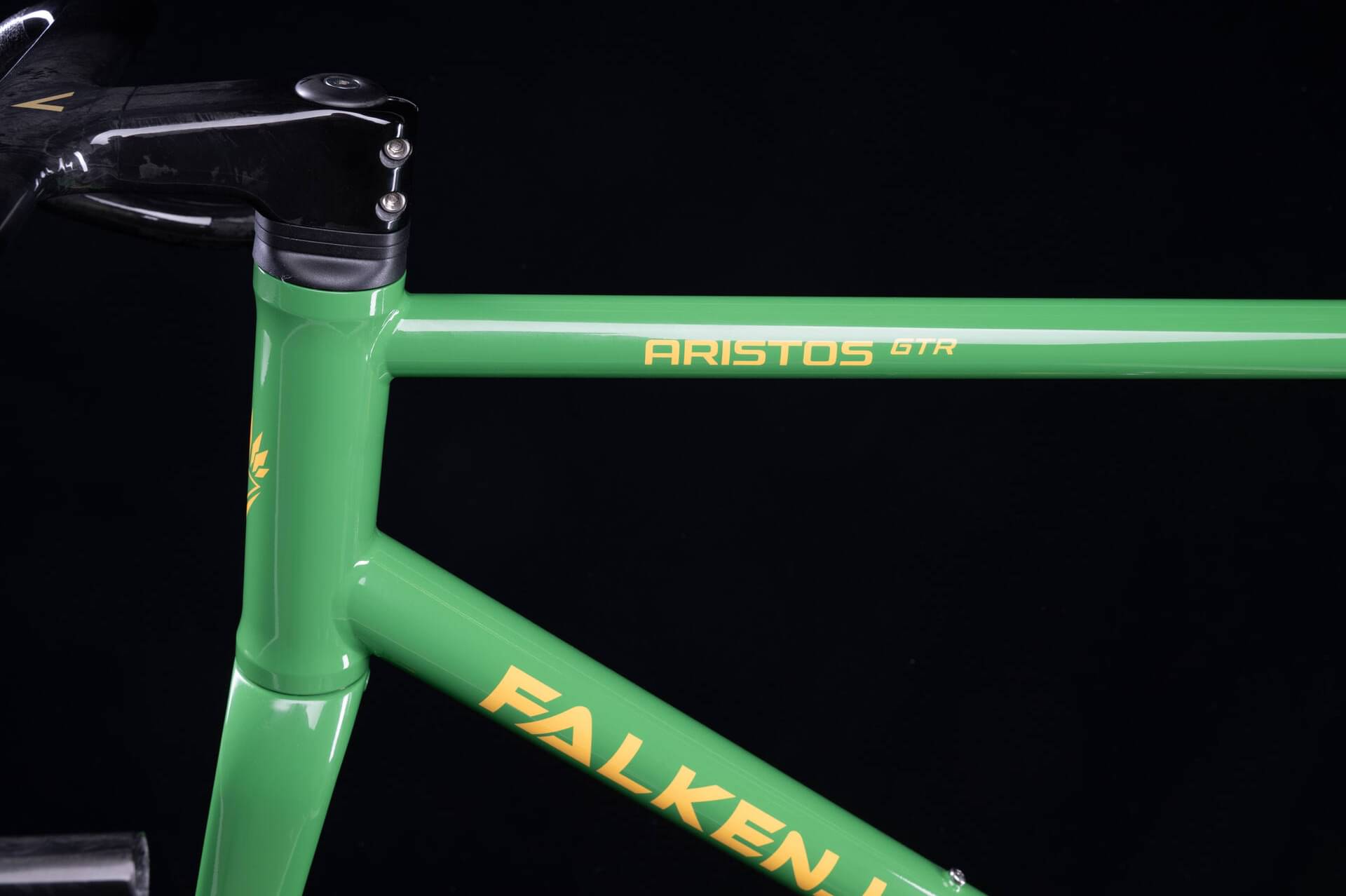

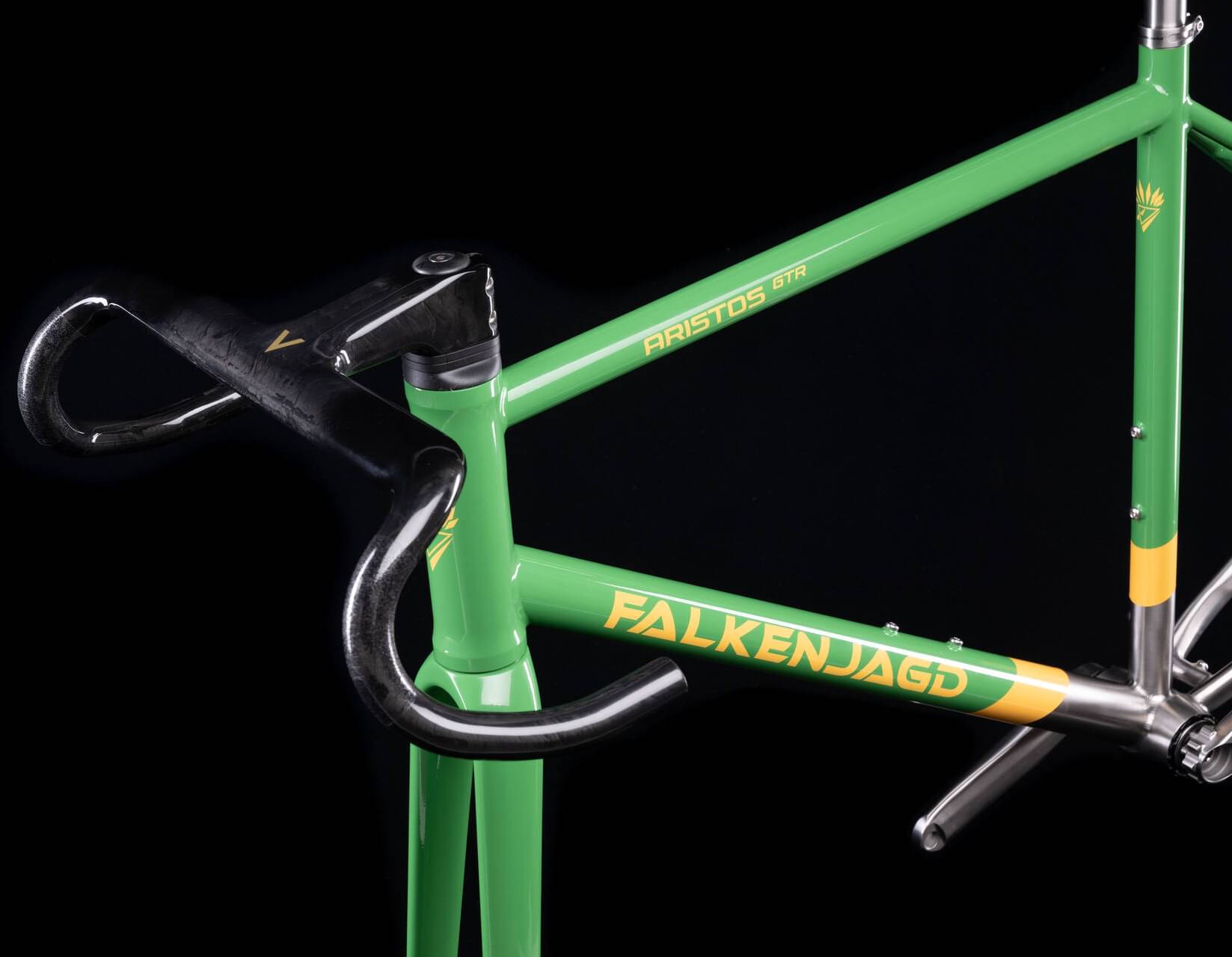

Frame
Suspension Fork

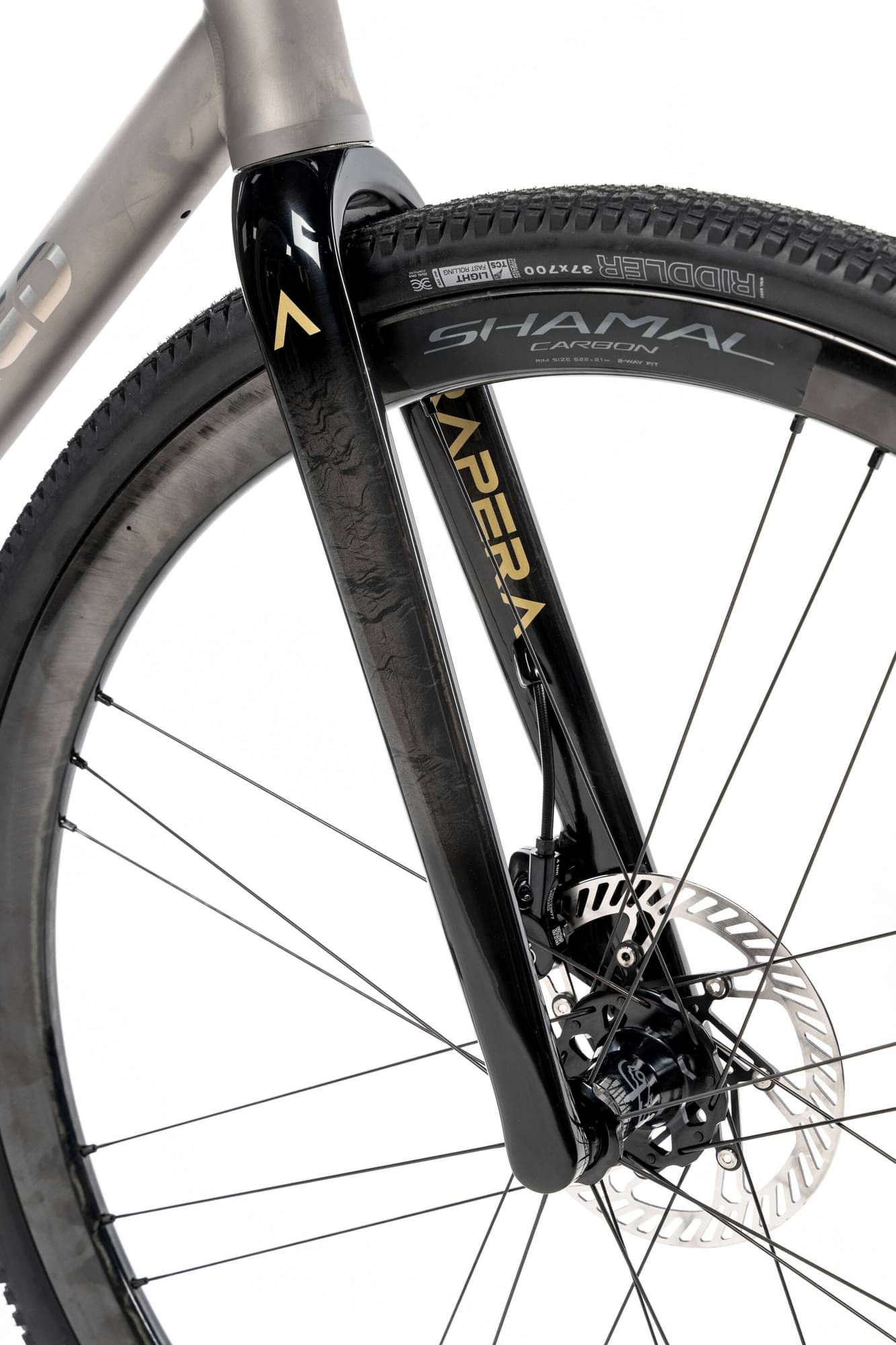

PARAPPERA Carbon Speed Gravel for 28-35mm
Drivetrain

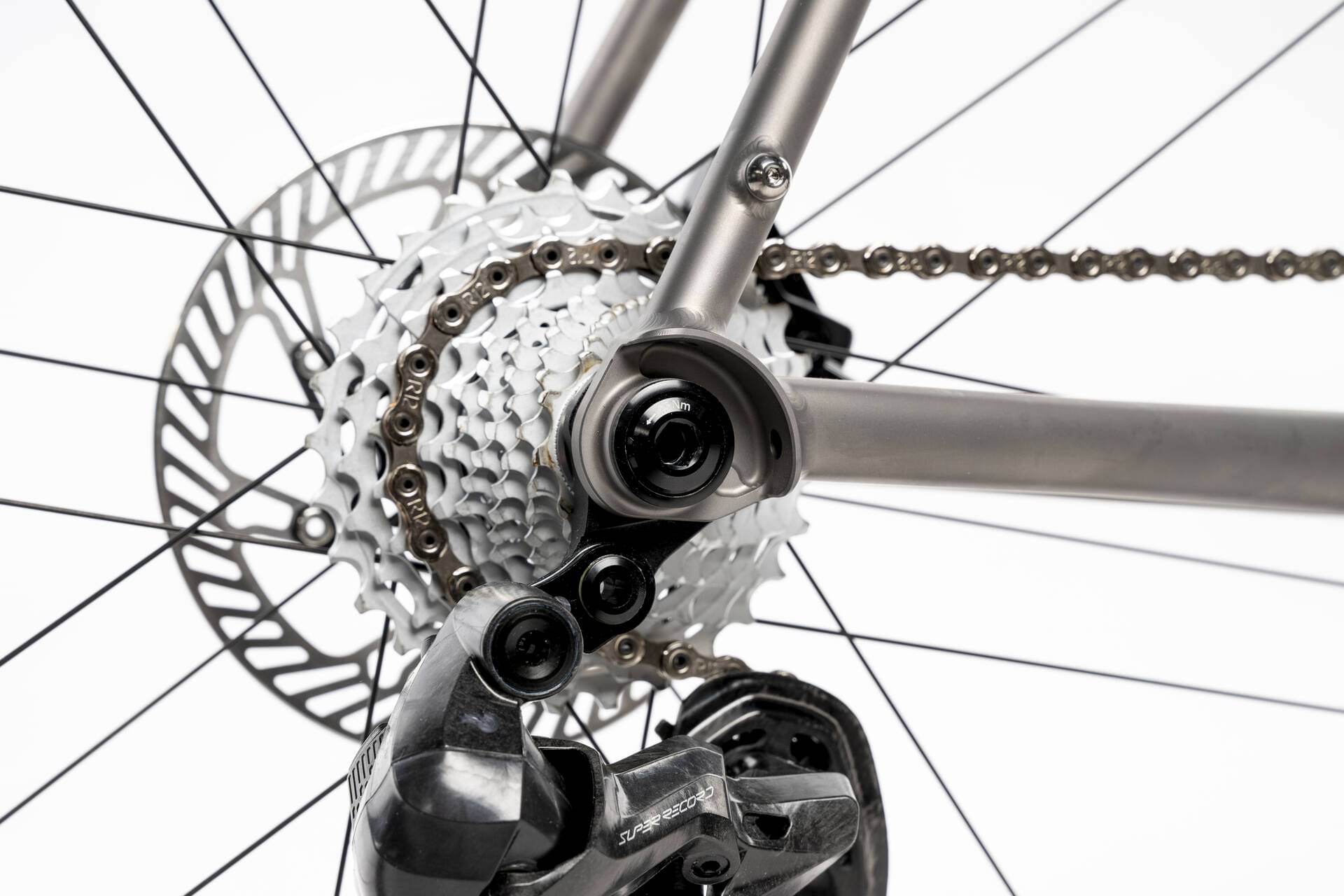

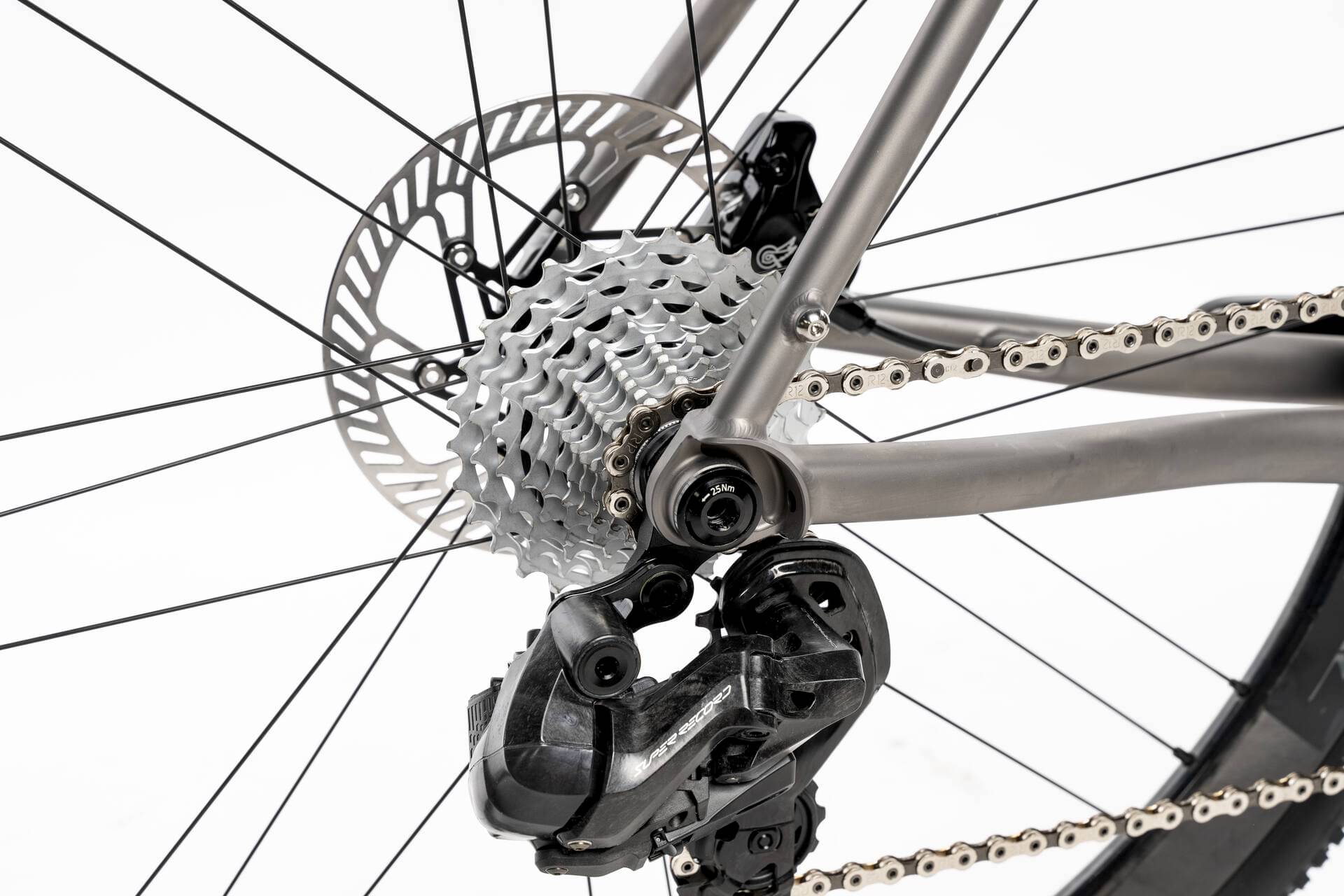

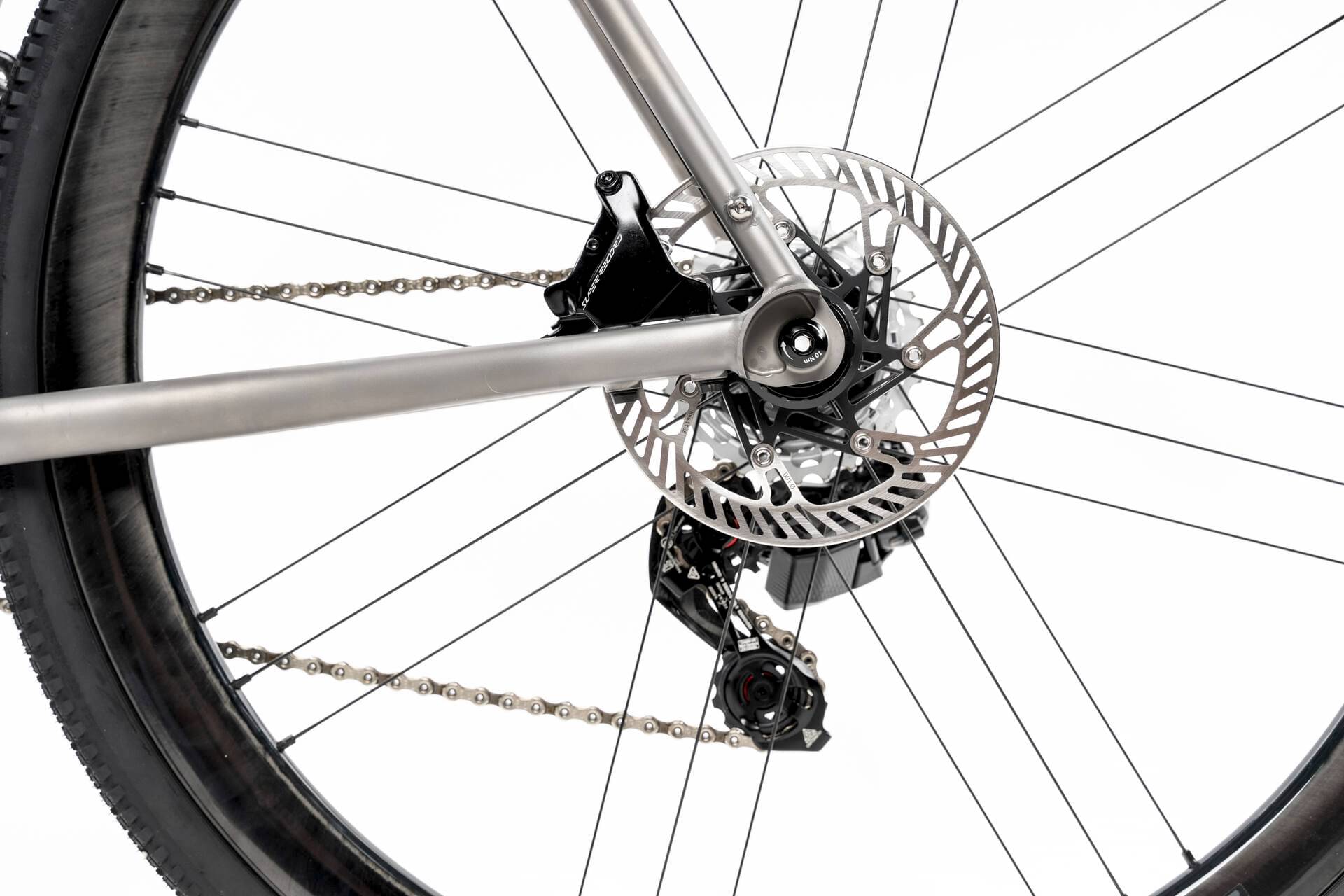

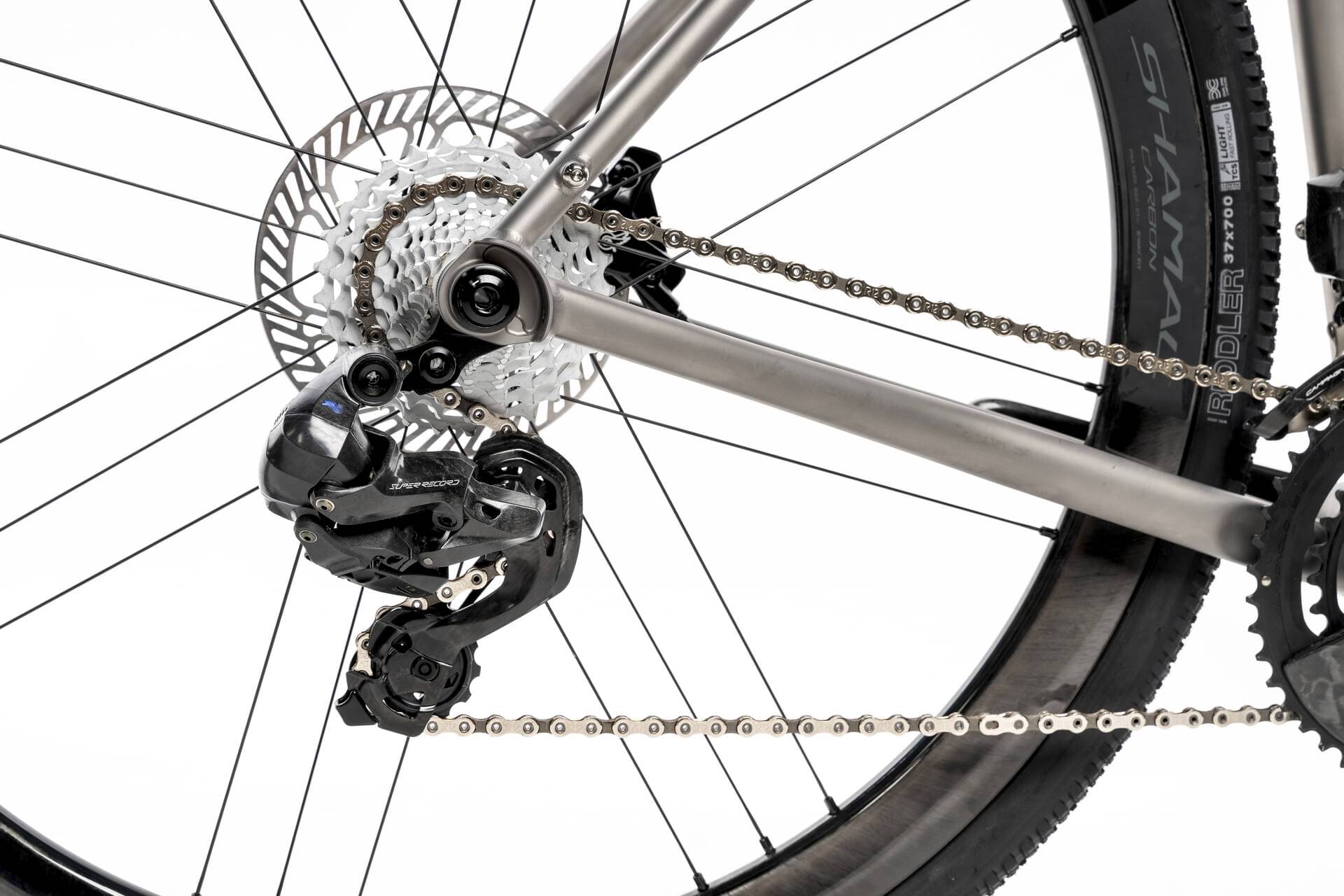

Rear Derailleur
Campagnolo Ekar 1x 13
Cassette
EKAR 13-speed 10-44 teeth

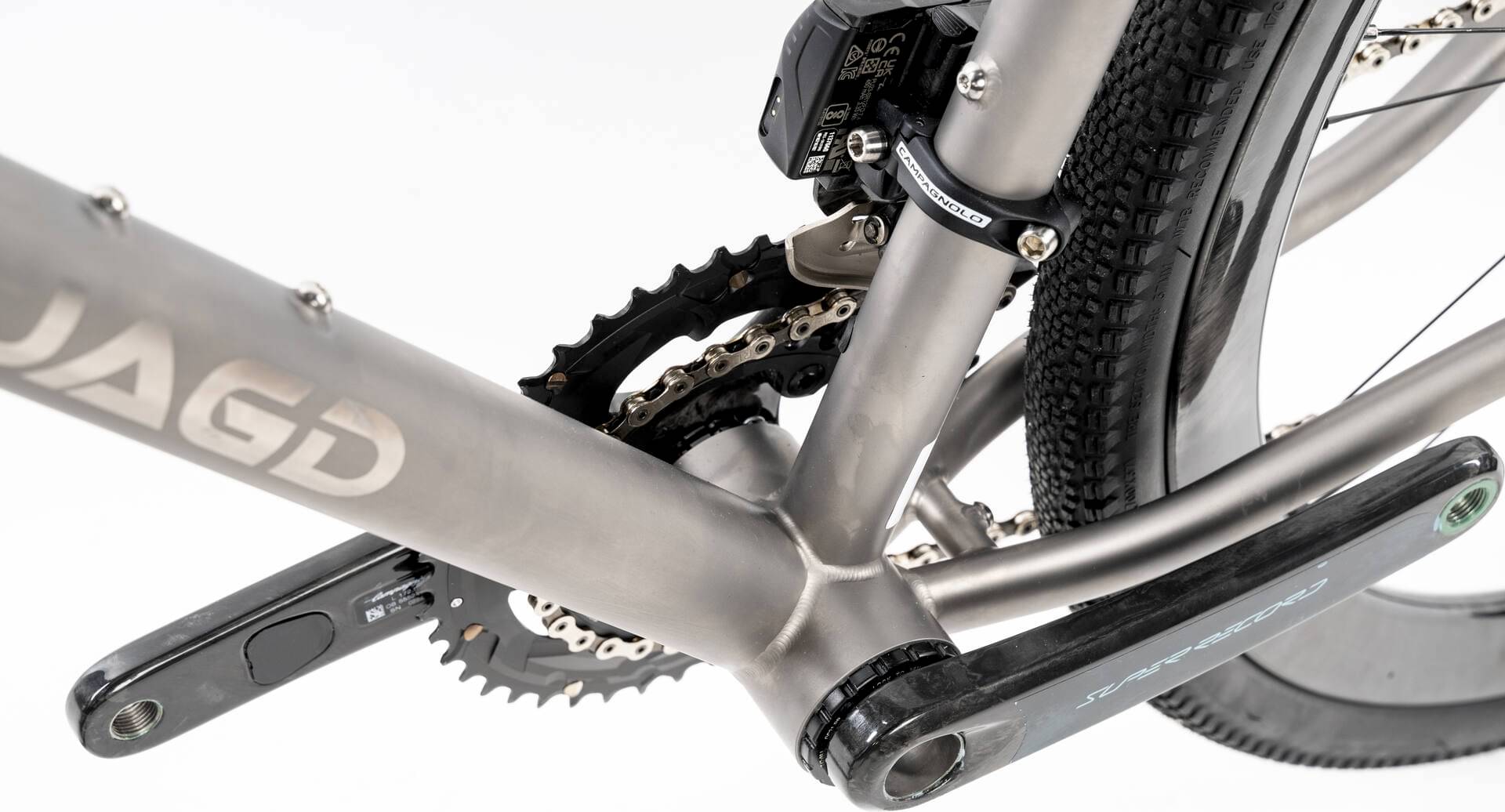

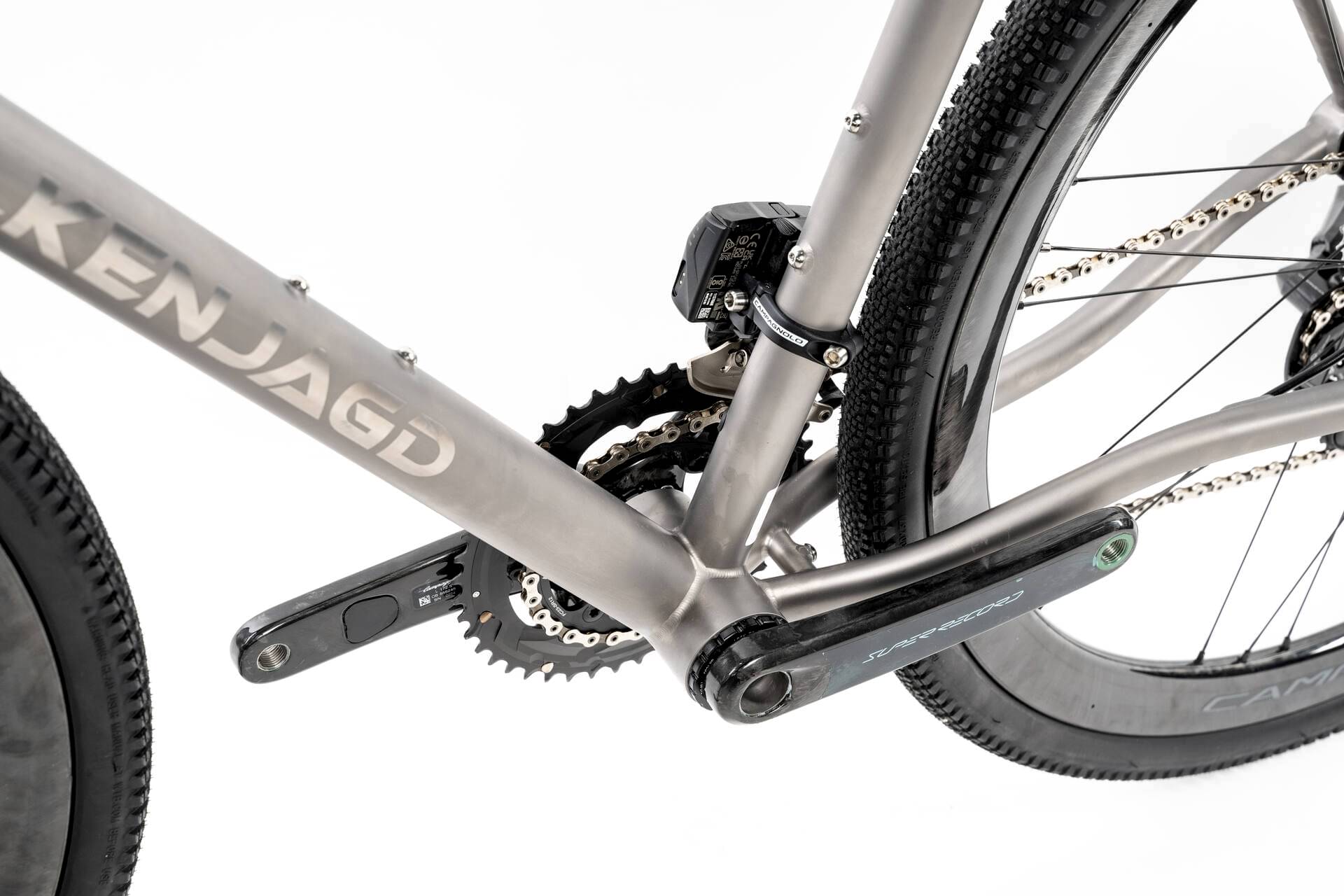

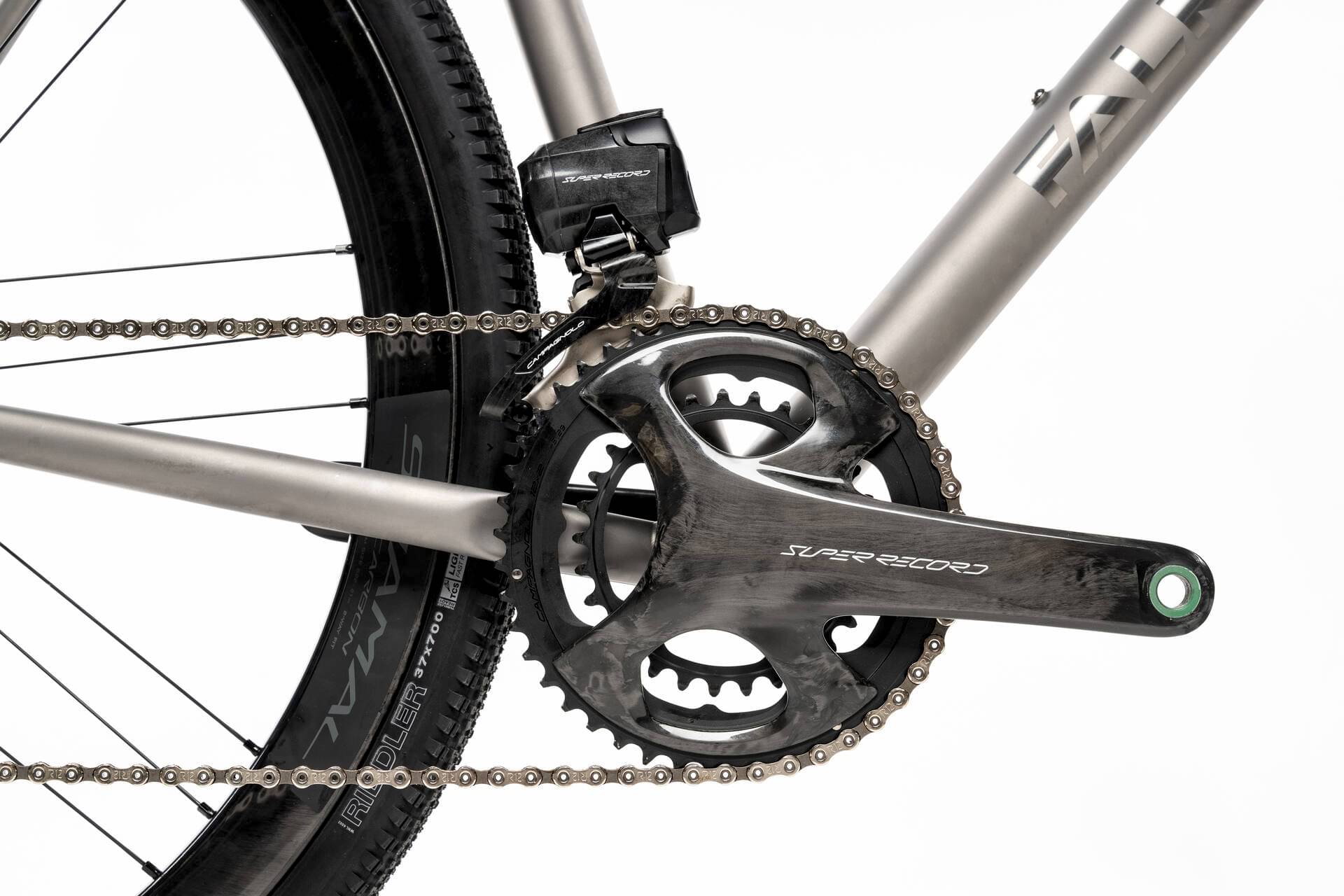

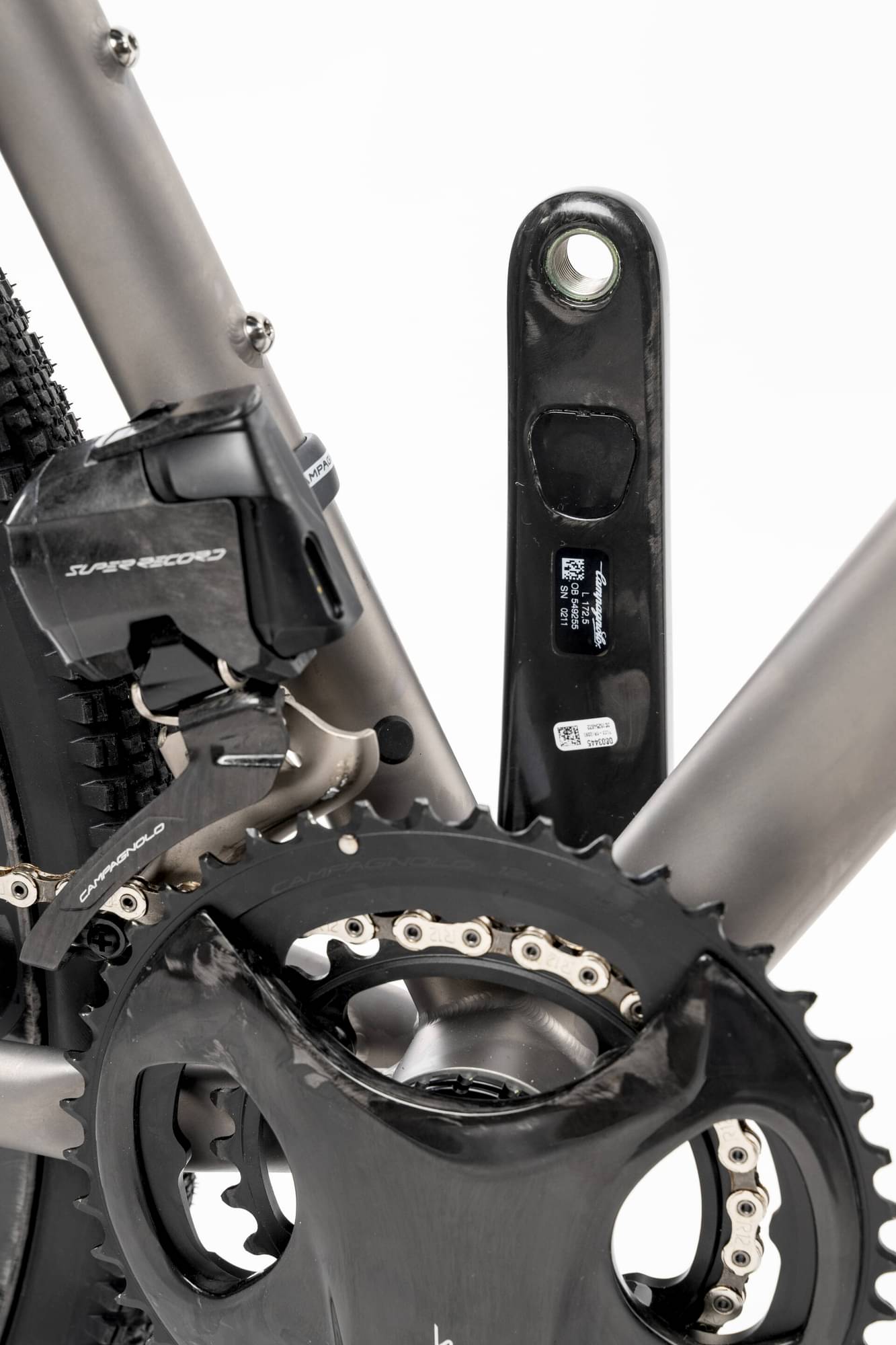

Crank
EKAR 13-speed 38T.
Pedals
without
Wheels
Rims

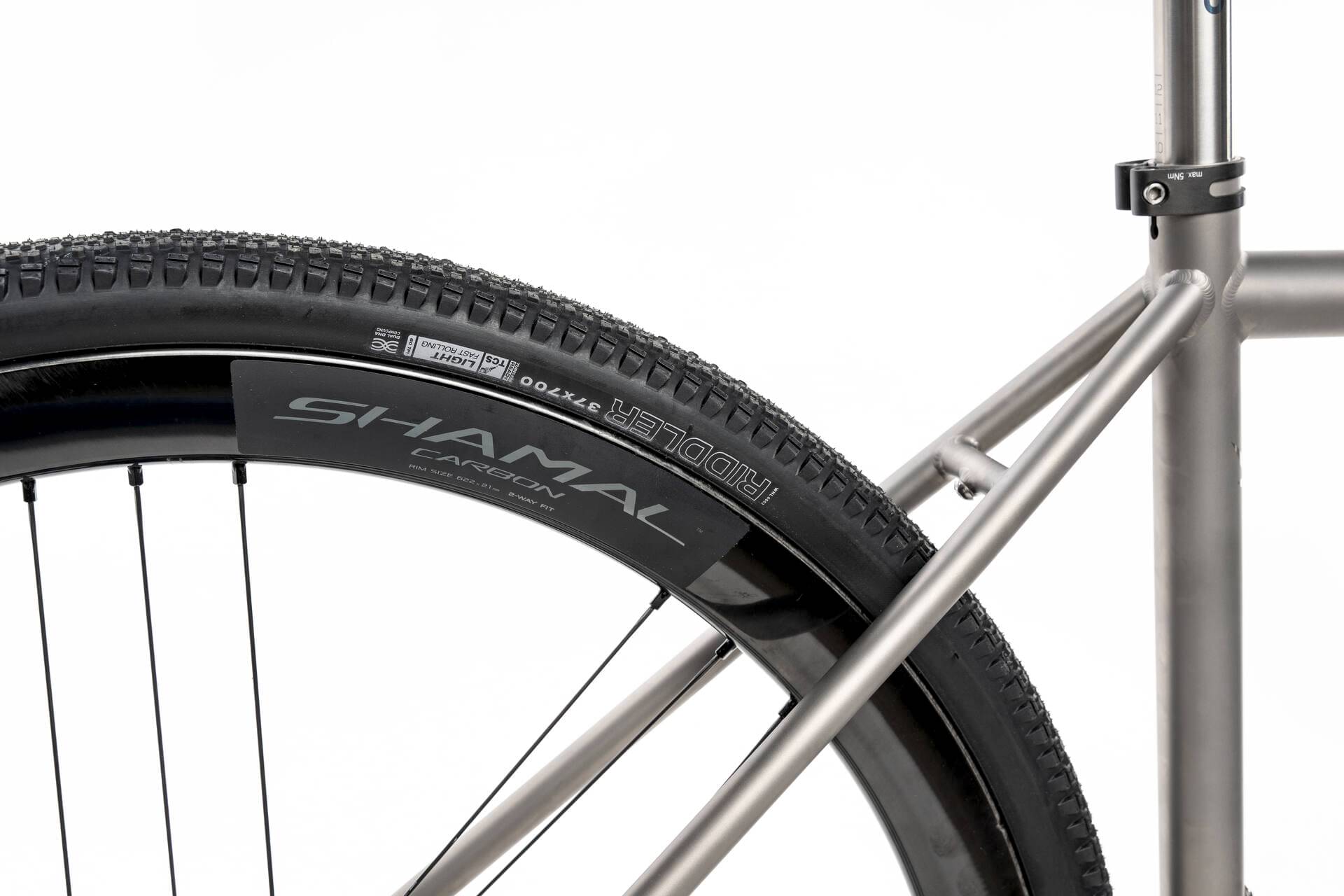

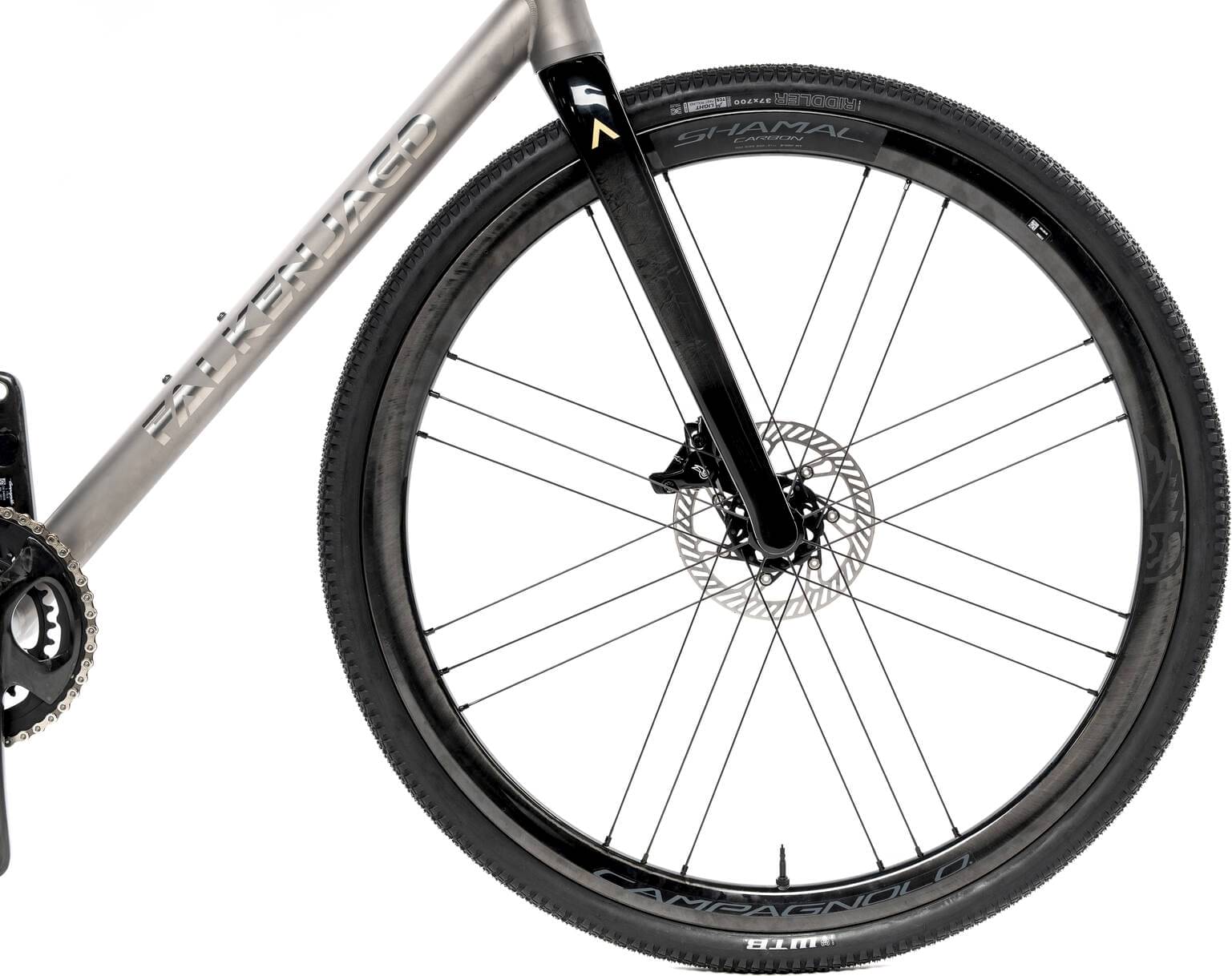

Campagnolo Shamal Carbon Disc 2024

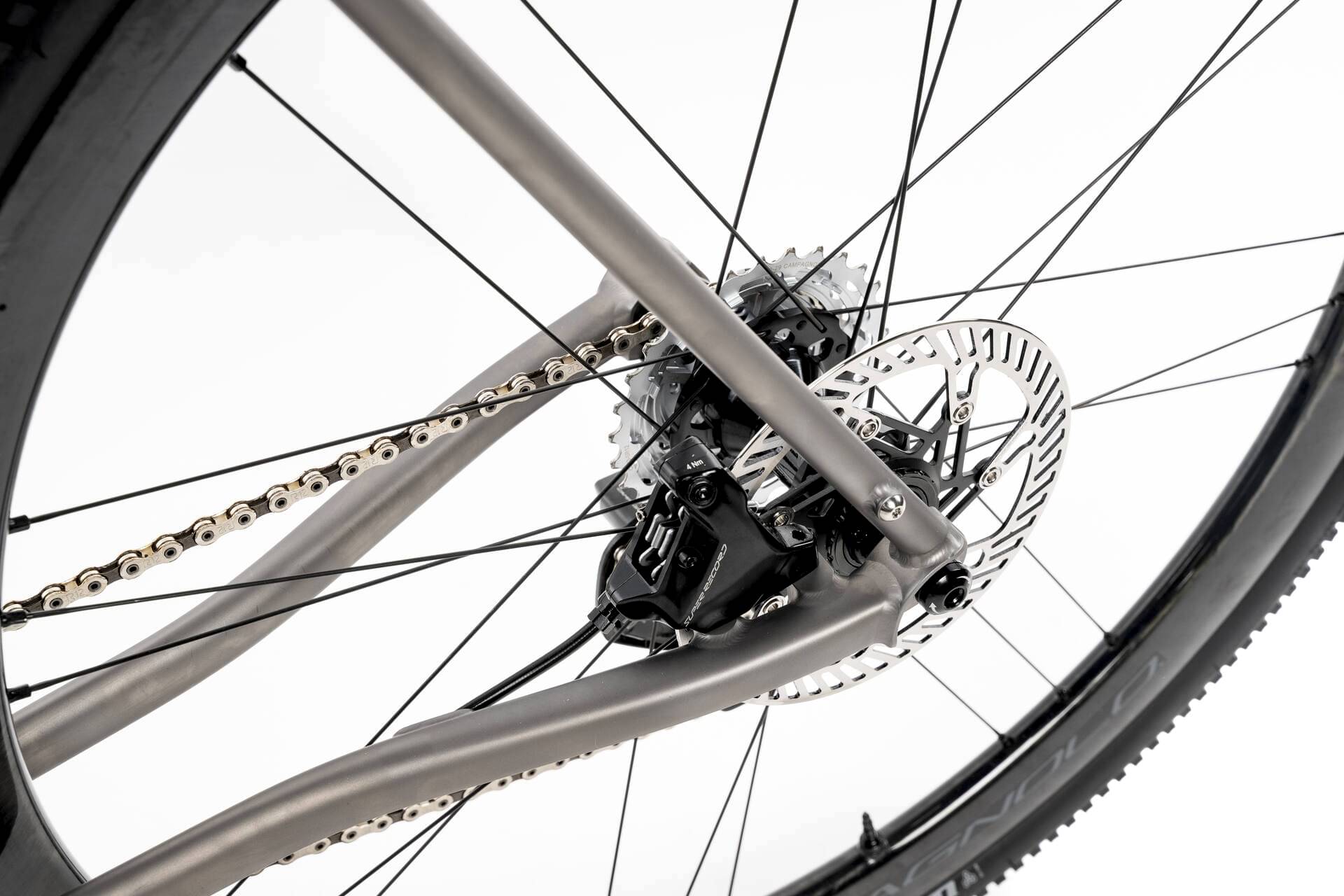

Brakes
Brakes
Depending on the Campa group selected
Cockpit

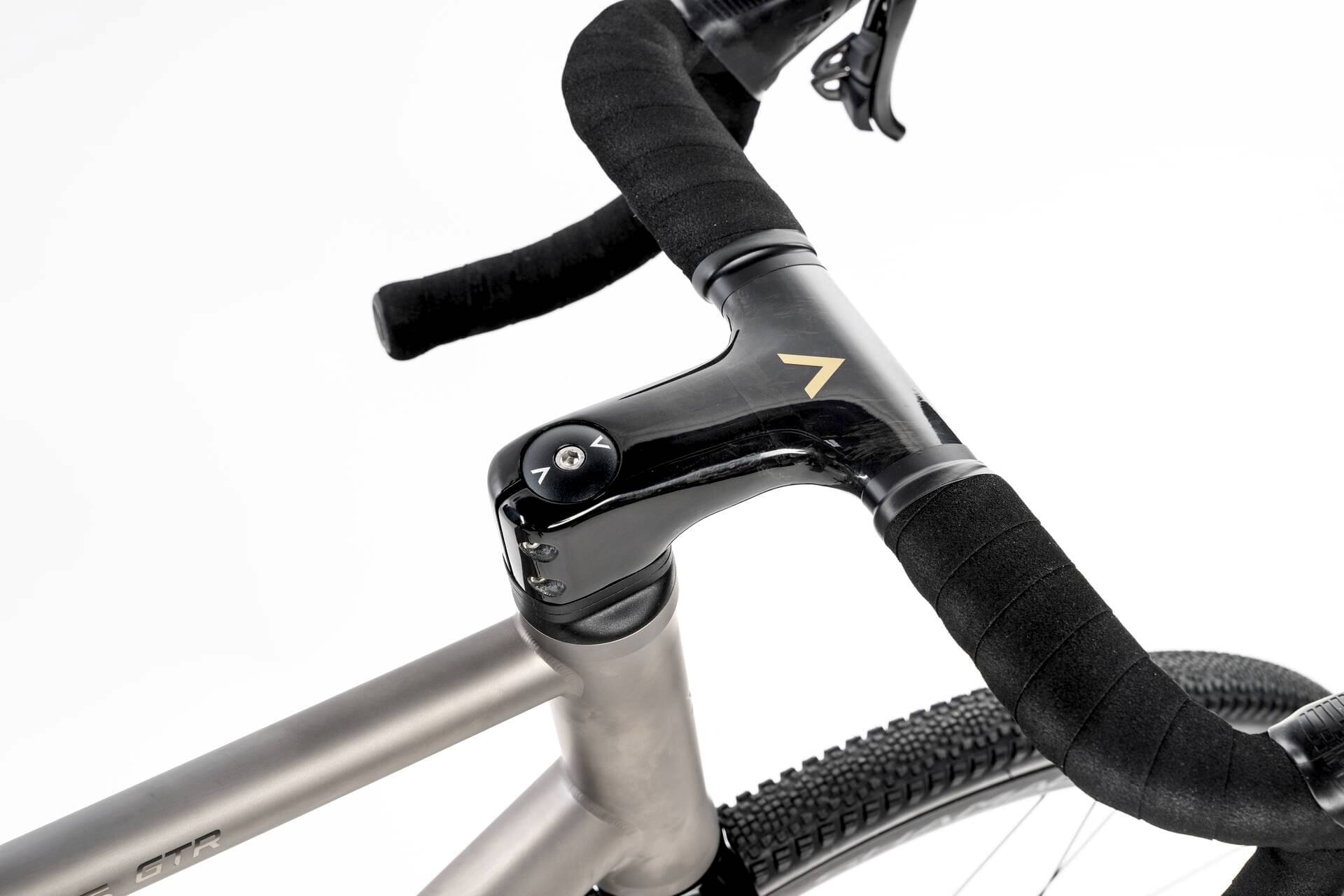

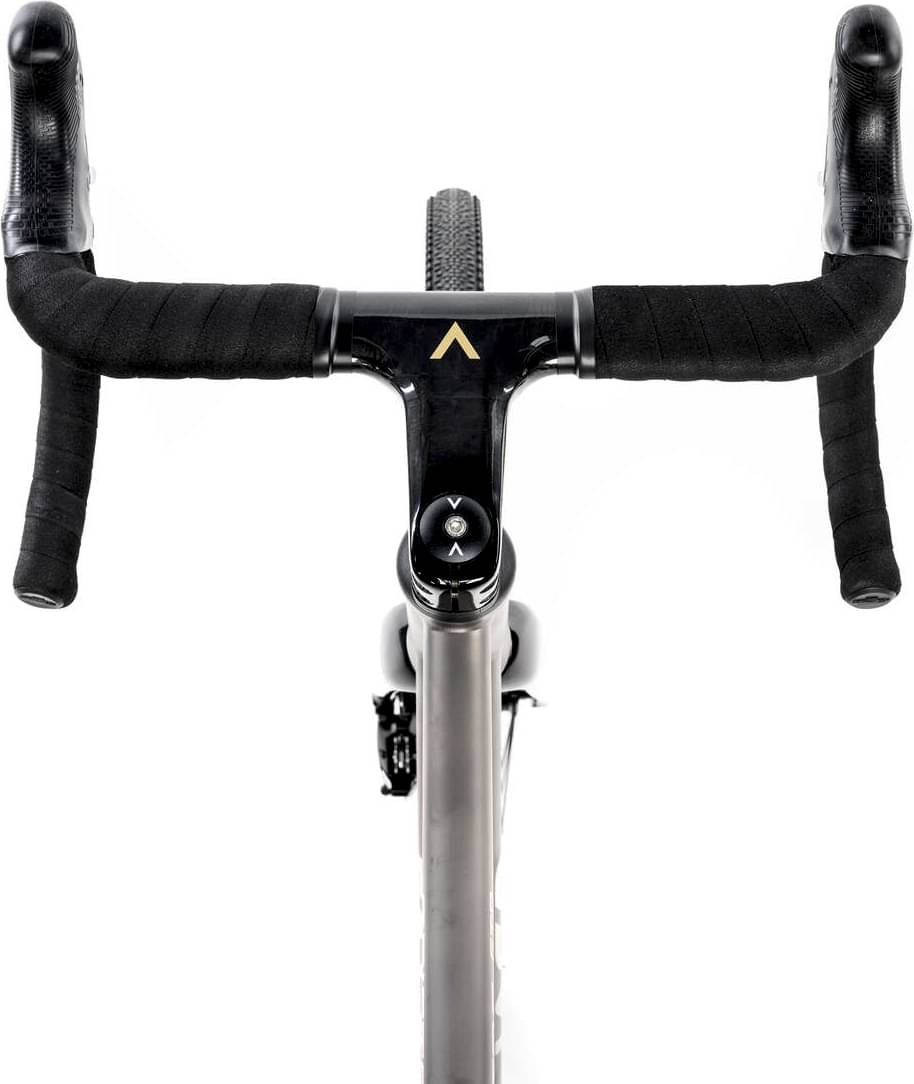

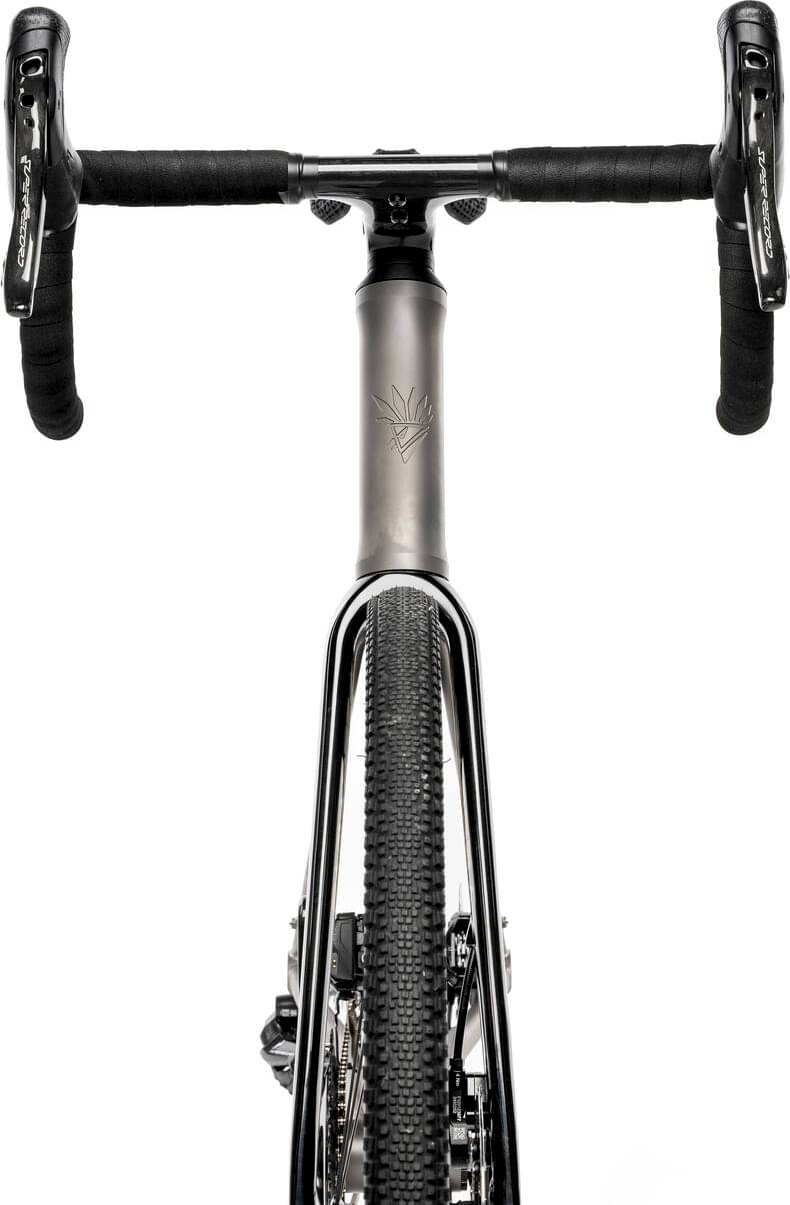

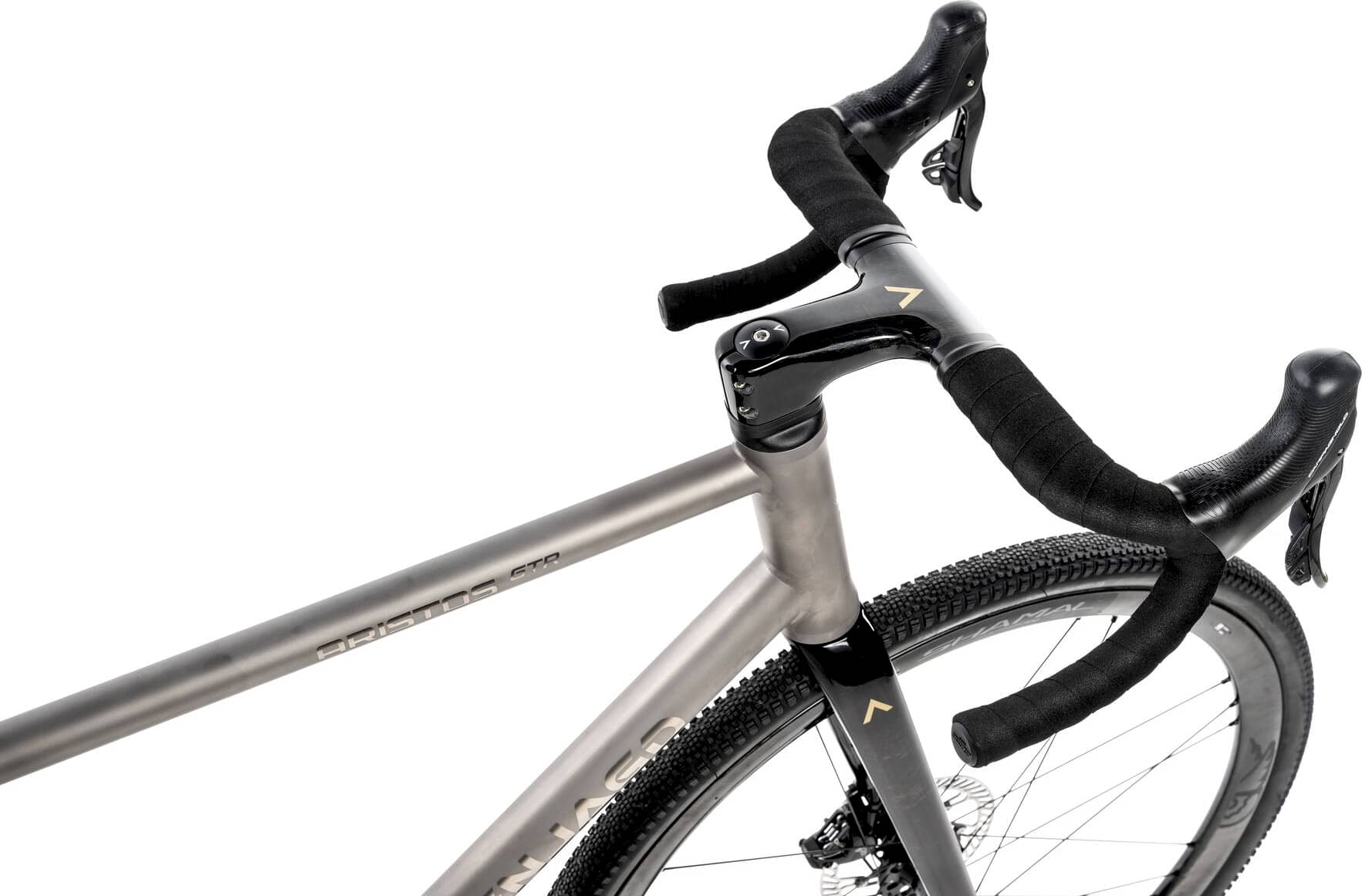

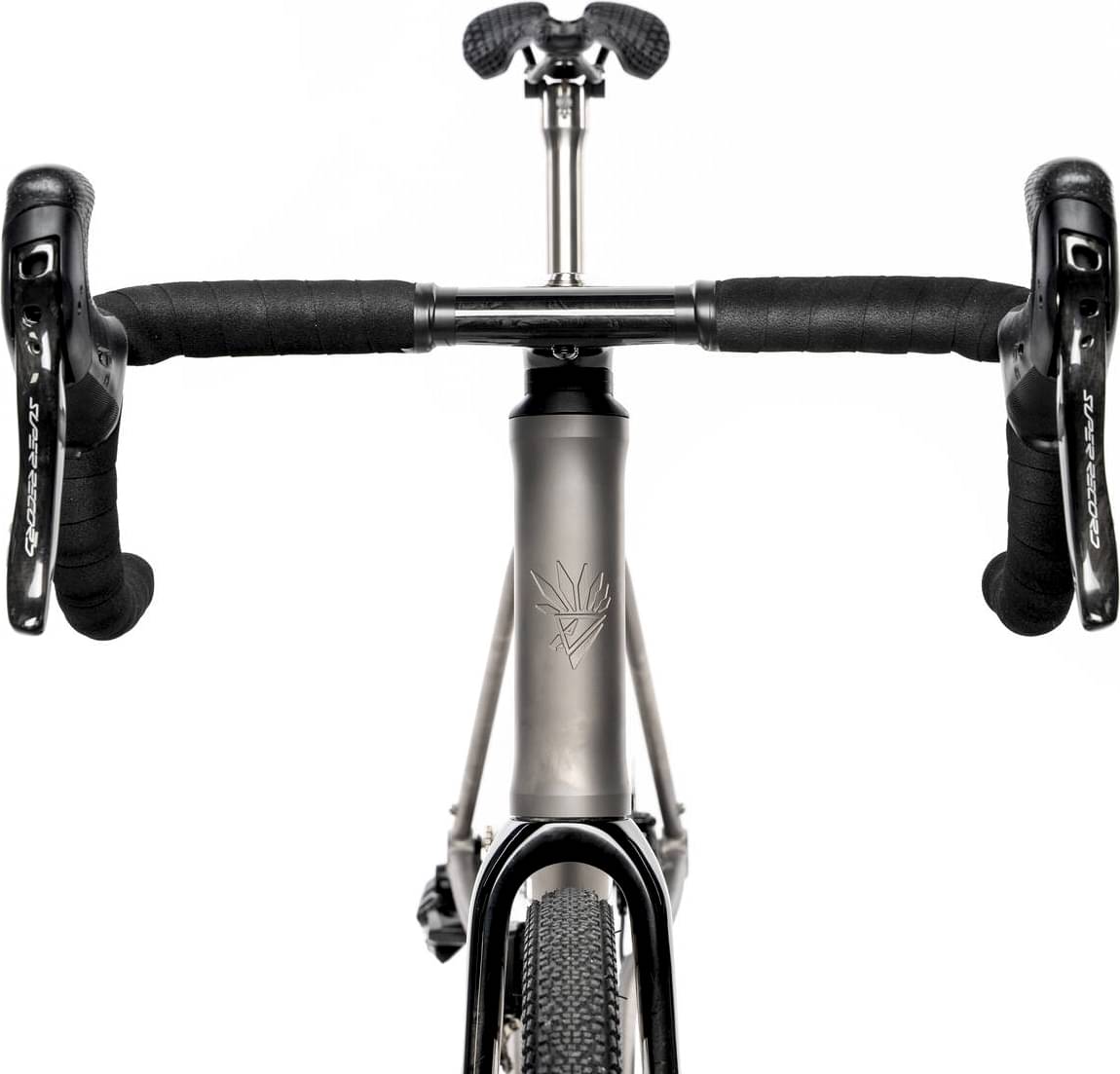

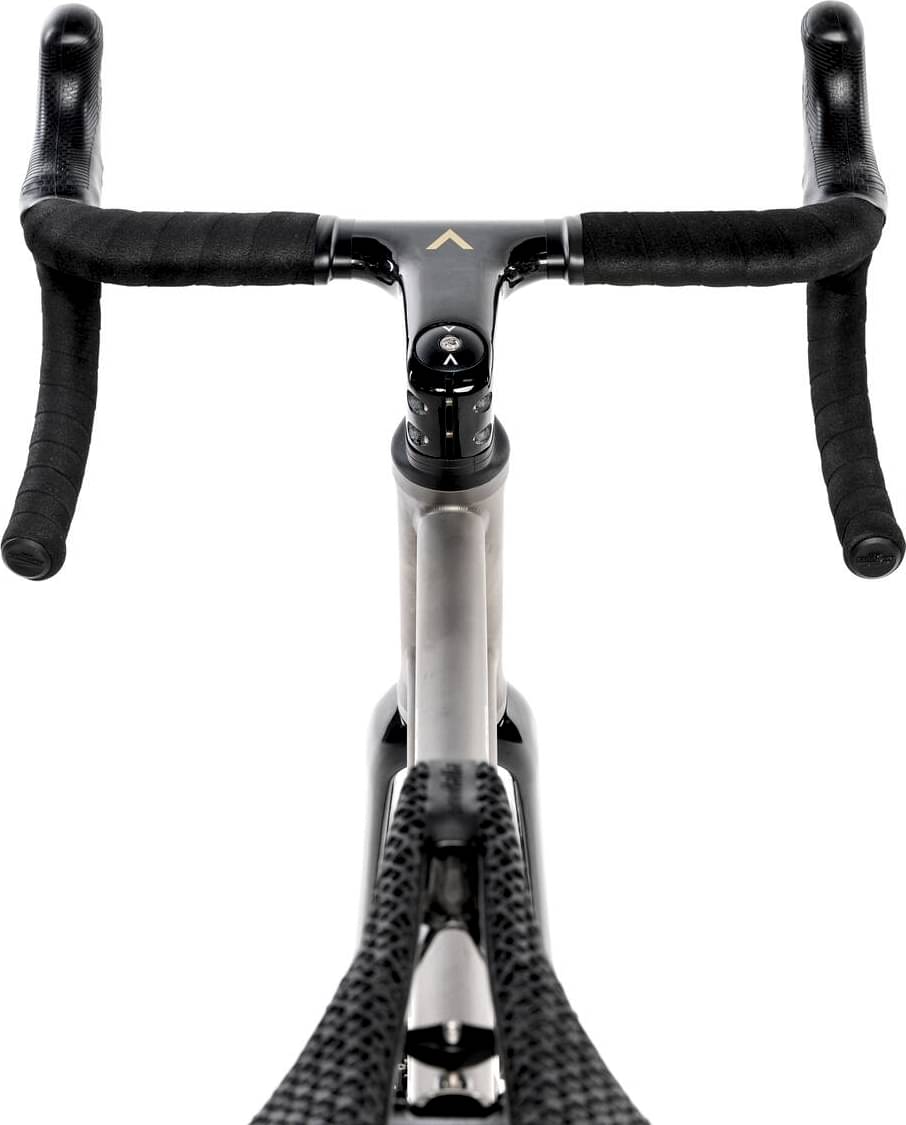

Handlebar
PARAPERA stem-handlebar combo carbon integrated
Seat
Saddle
without
Seatpost
FALCON HUNTING Titan 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.409 mm | 1.447 mm | 1.486 mm | 1.509 mm | 1.514 mm | 1.539 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 278 mm | 278 mm | 278 mm |
| Front Center | 586 mm | 591 mm | 597 mm | 607 mm | 621 mm | 635 mm |
| Rake | 47 mm | 46 mm | 47 mm | 48 mm | 46 mm | 52 mm |
| Trail | 64 mm | 62 mm | 58 mm | 55 mm | 55 mm | 46 mm |
| Stack | 537 mm | 557 mm | 578 mm | 596 mm | 616 mm | 637 mm |
| Reach | 381 mm | 385 mm | 389 mm | 395 mm | 407 mm | 414 mm |
| Top Tube Length | 535 mm | 545 mm | 560 mm | 575 mm | 595 mm | 615 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 530 mm | 560 mm | 595 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73.25 ° | 73.5 ° | 74 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1005 mm | 1010 mm | 1016 mm | 1027 mm | 1041 mm | 1055 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 71 mm | 71 mm | 71 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 164 cm | 168 cm | 177 cm | 184 cm | 195 cm |
| Rider Max Height | 167 cm | 171 cm | 180 cm | 187 cm | 201 cm | 205 cm |
