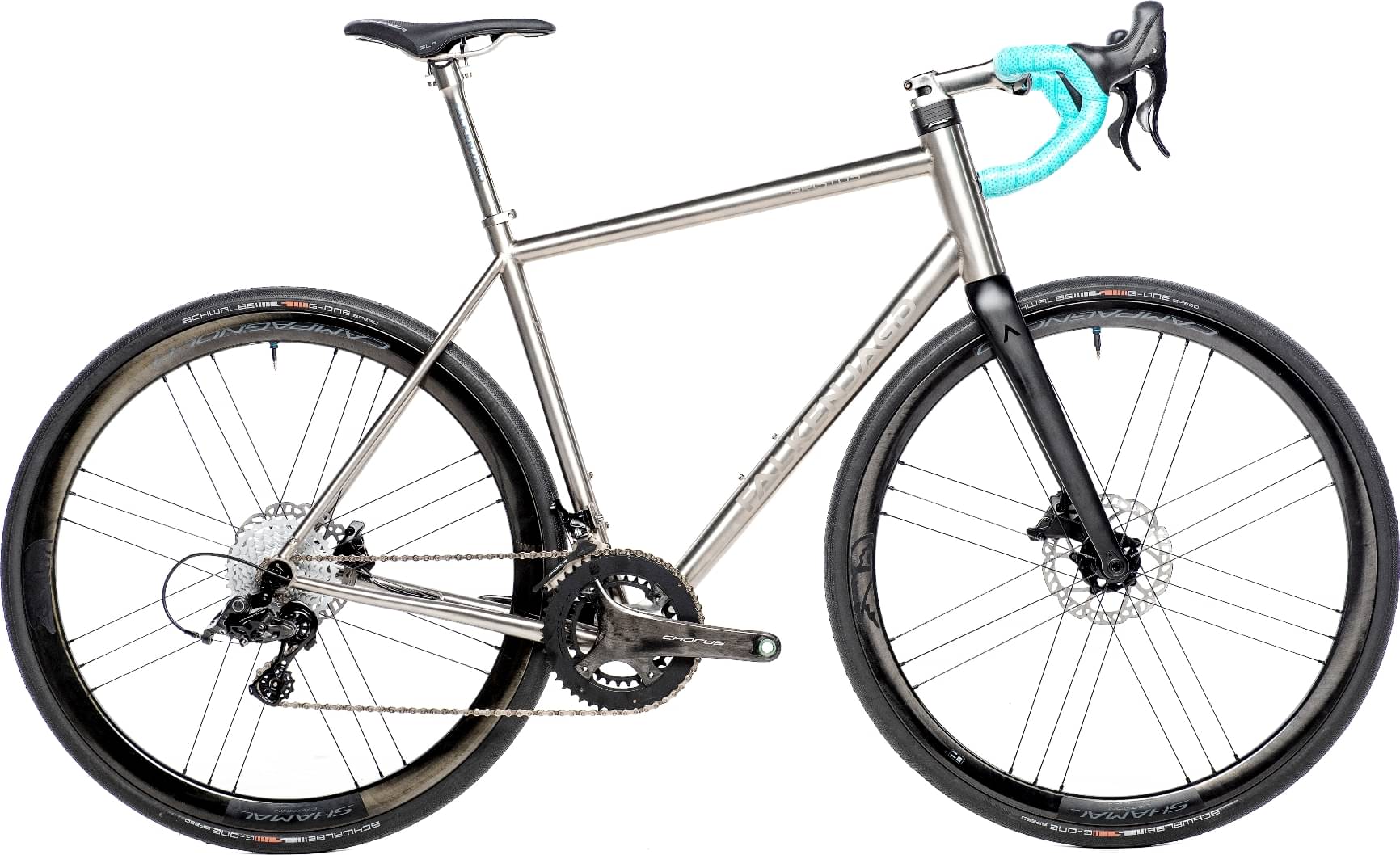

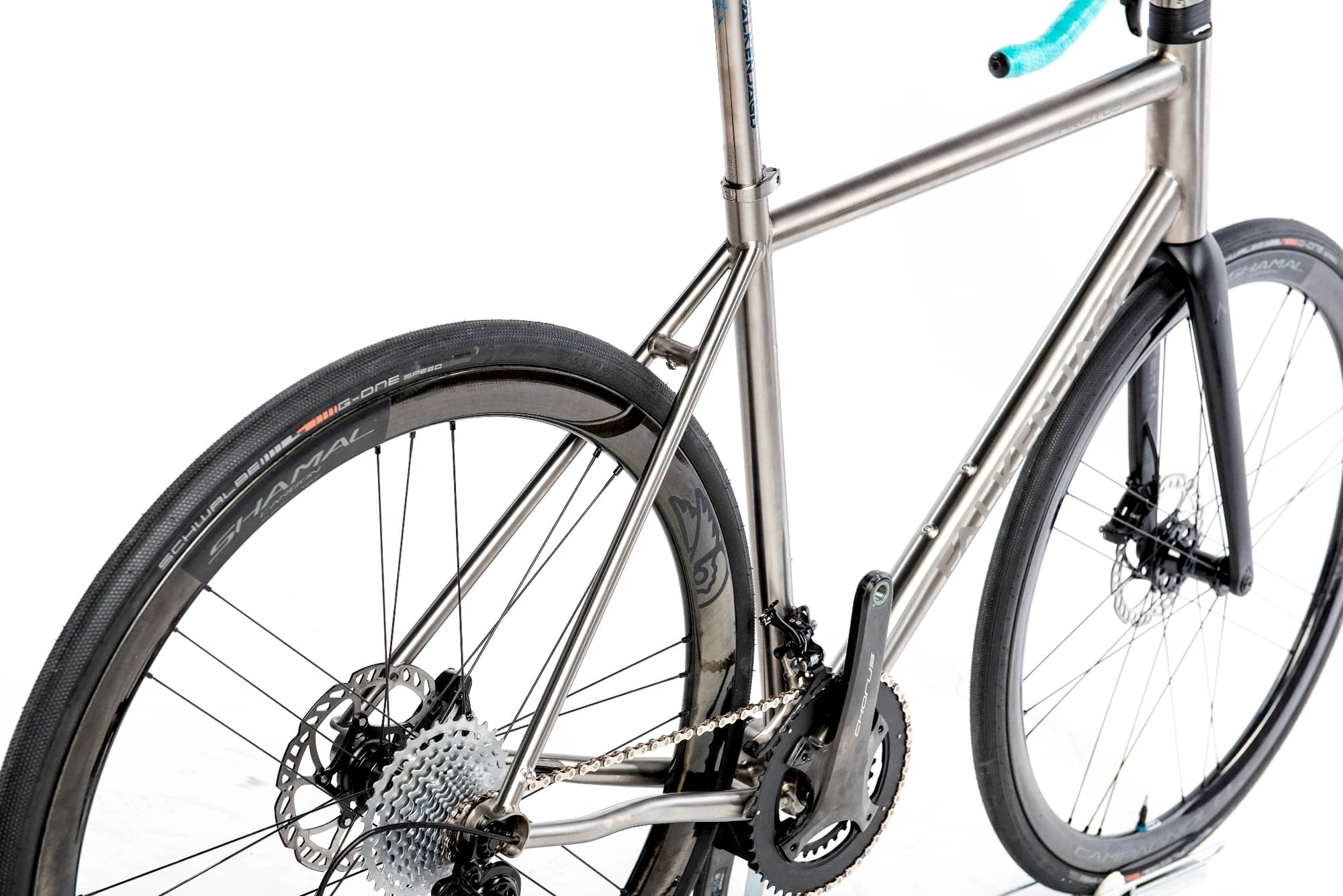

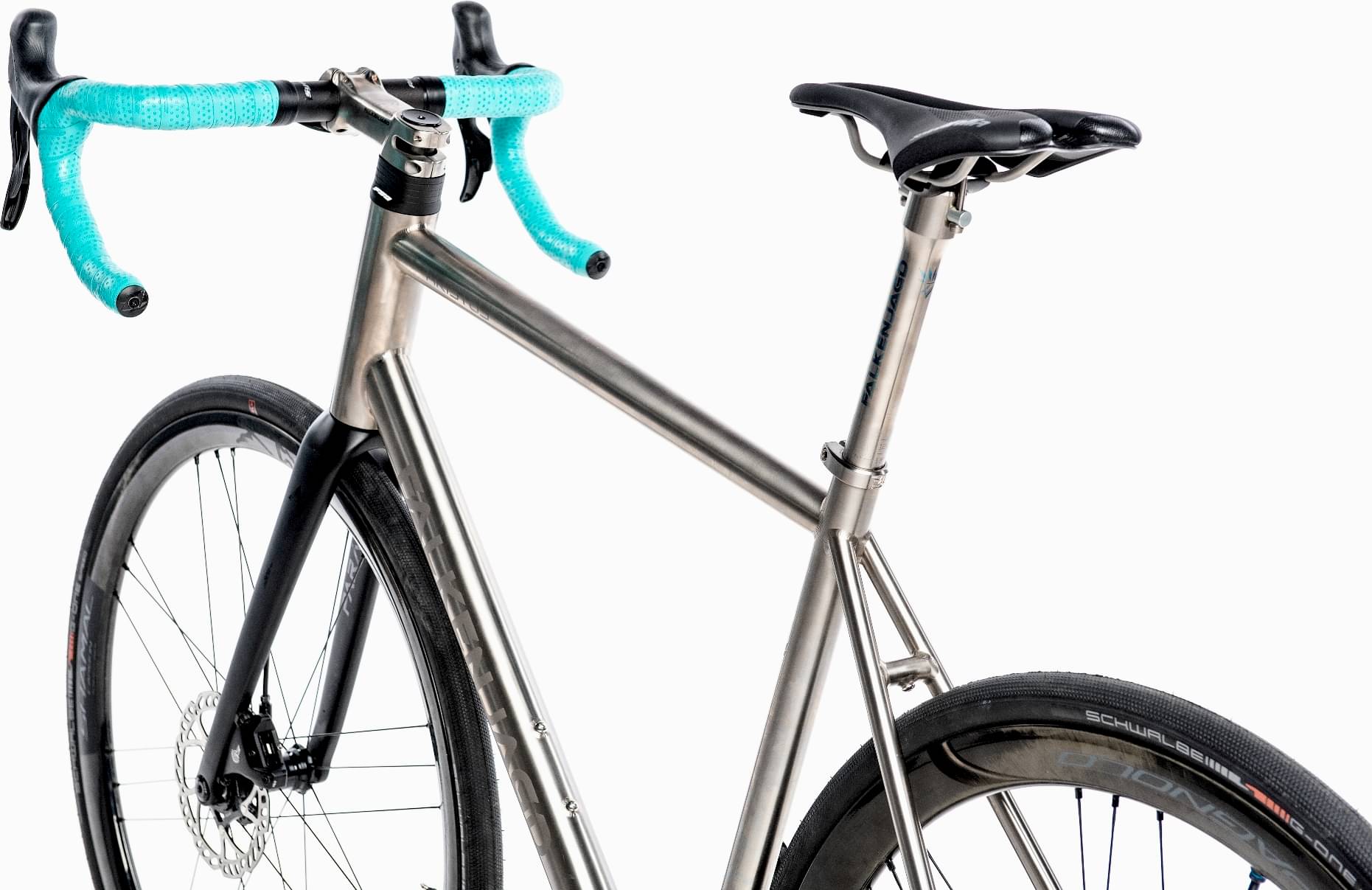

falkenjagd Aristos GTS SpeedGravel 2024
2024 Road
Estimate price |
6,397$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

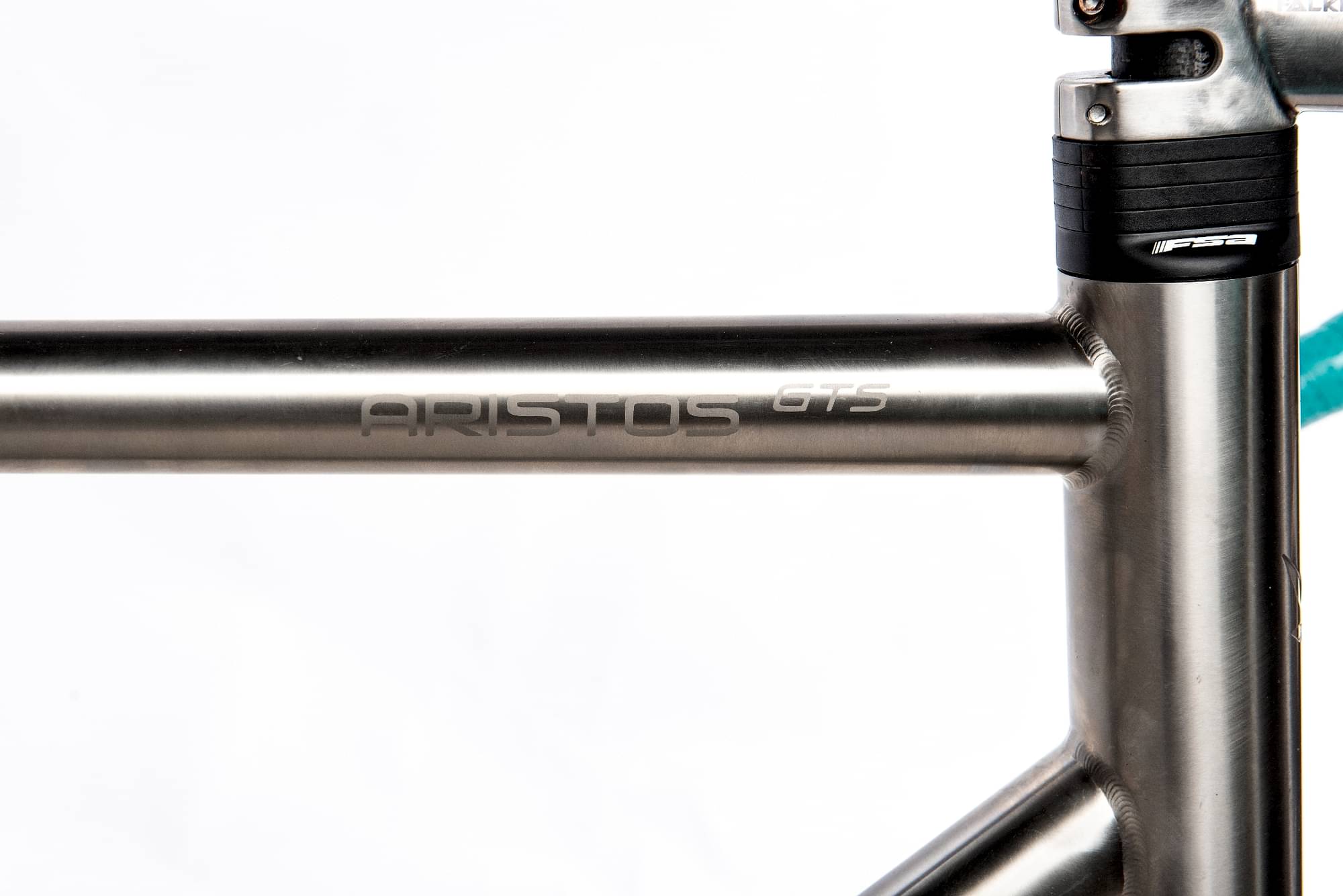

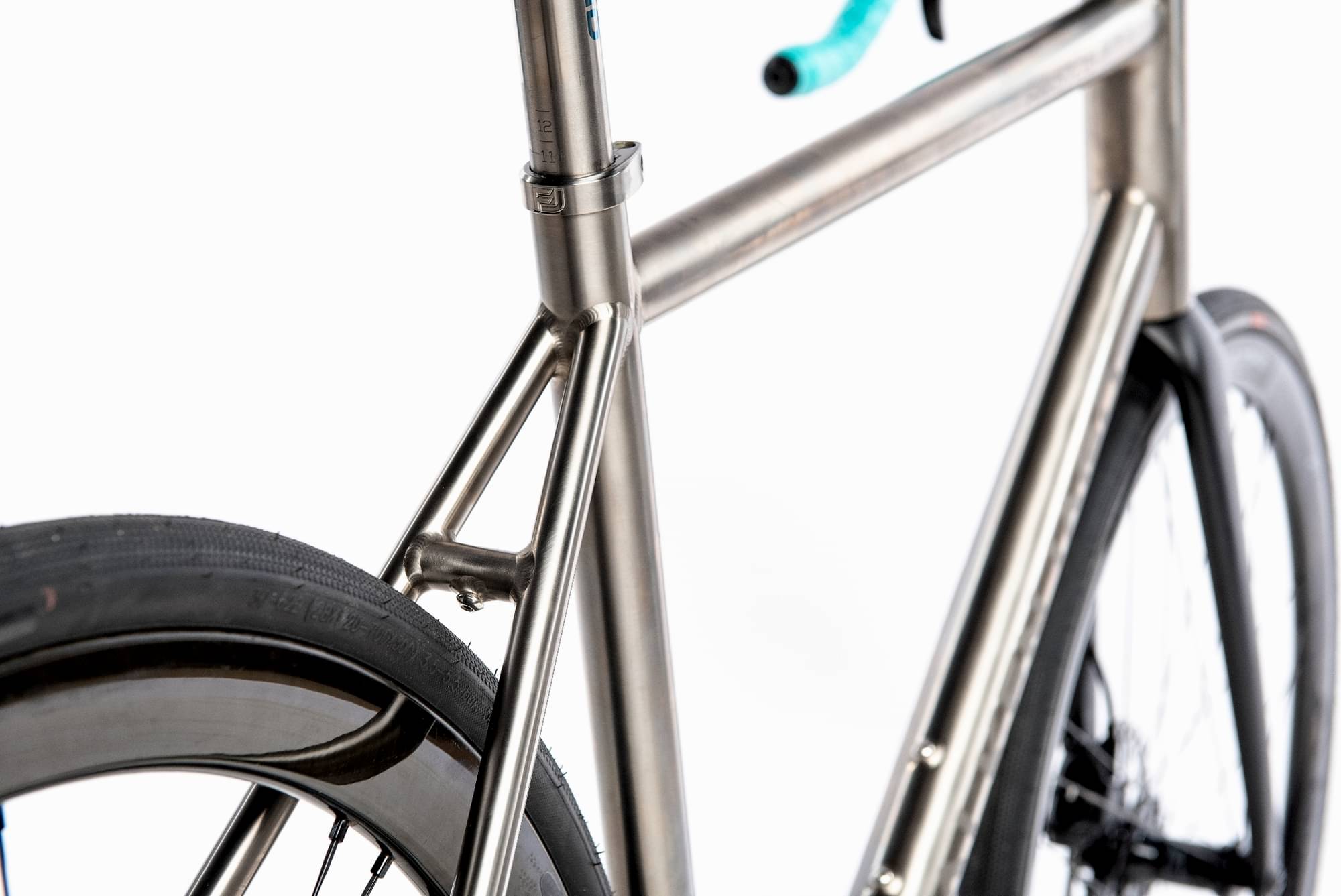

Frame Titanium -
Wheels 700c -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame

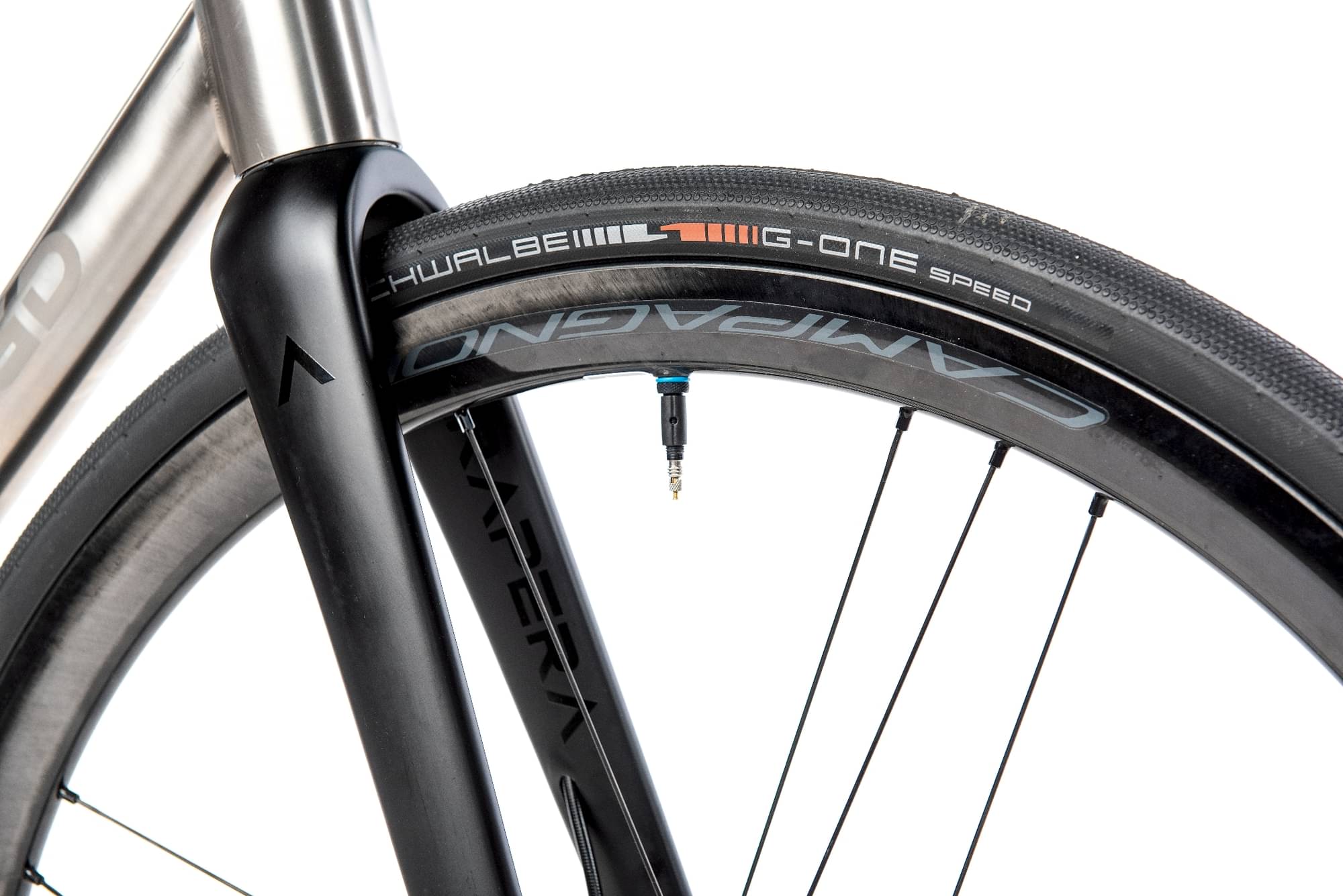

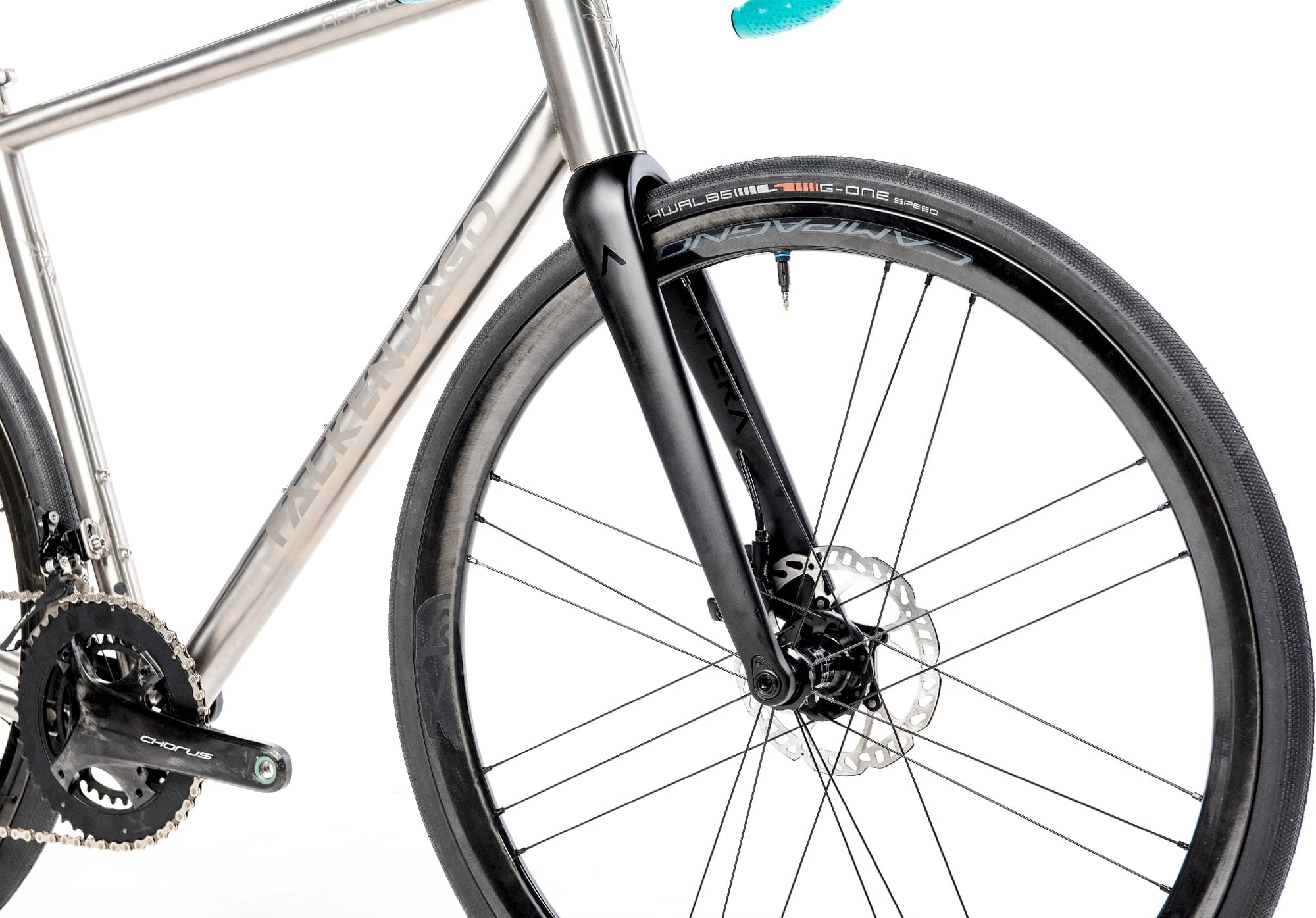

Suspension Fork
Parapera Carbon Speedgravel totally integrated

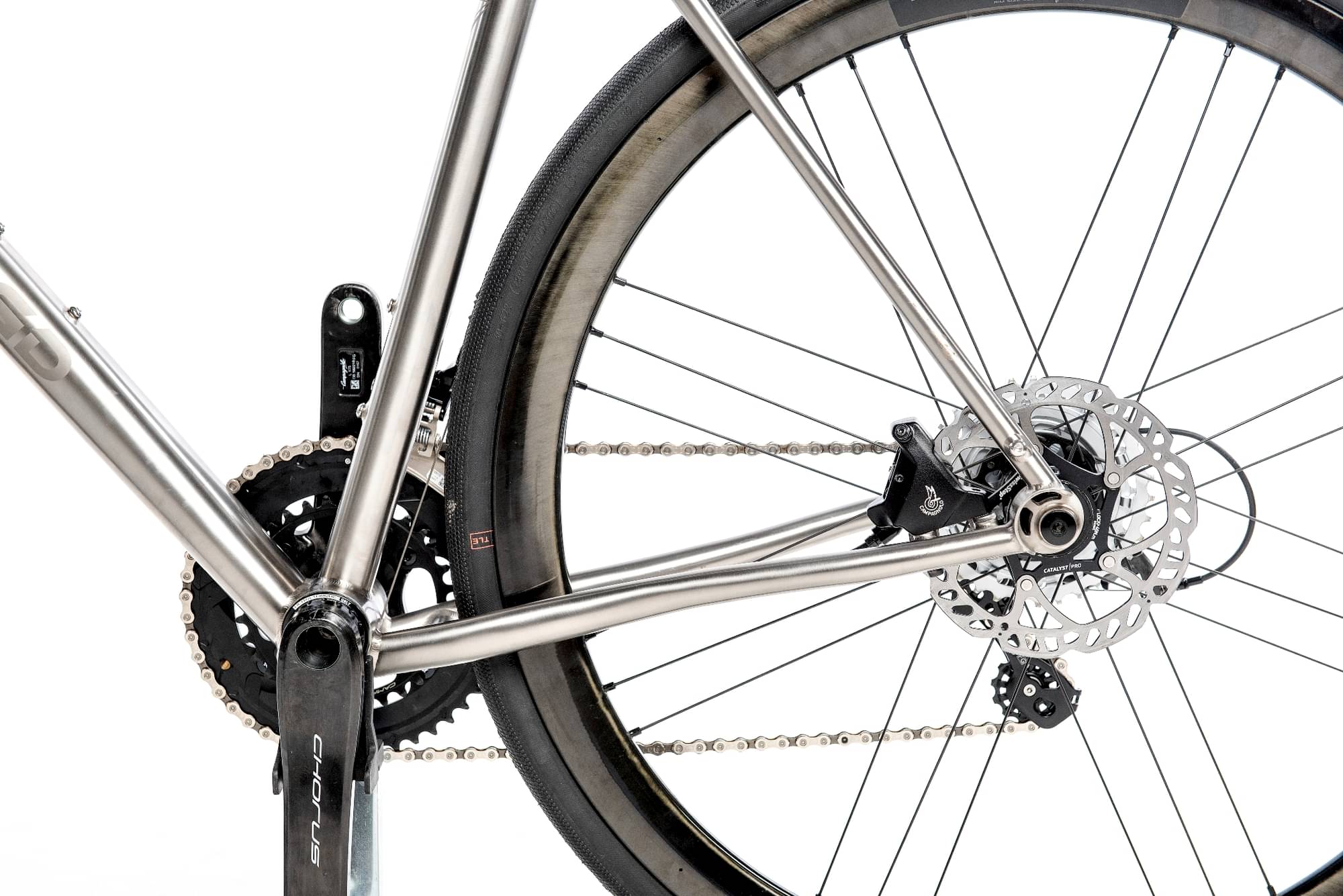

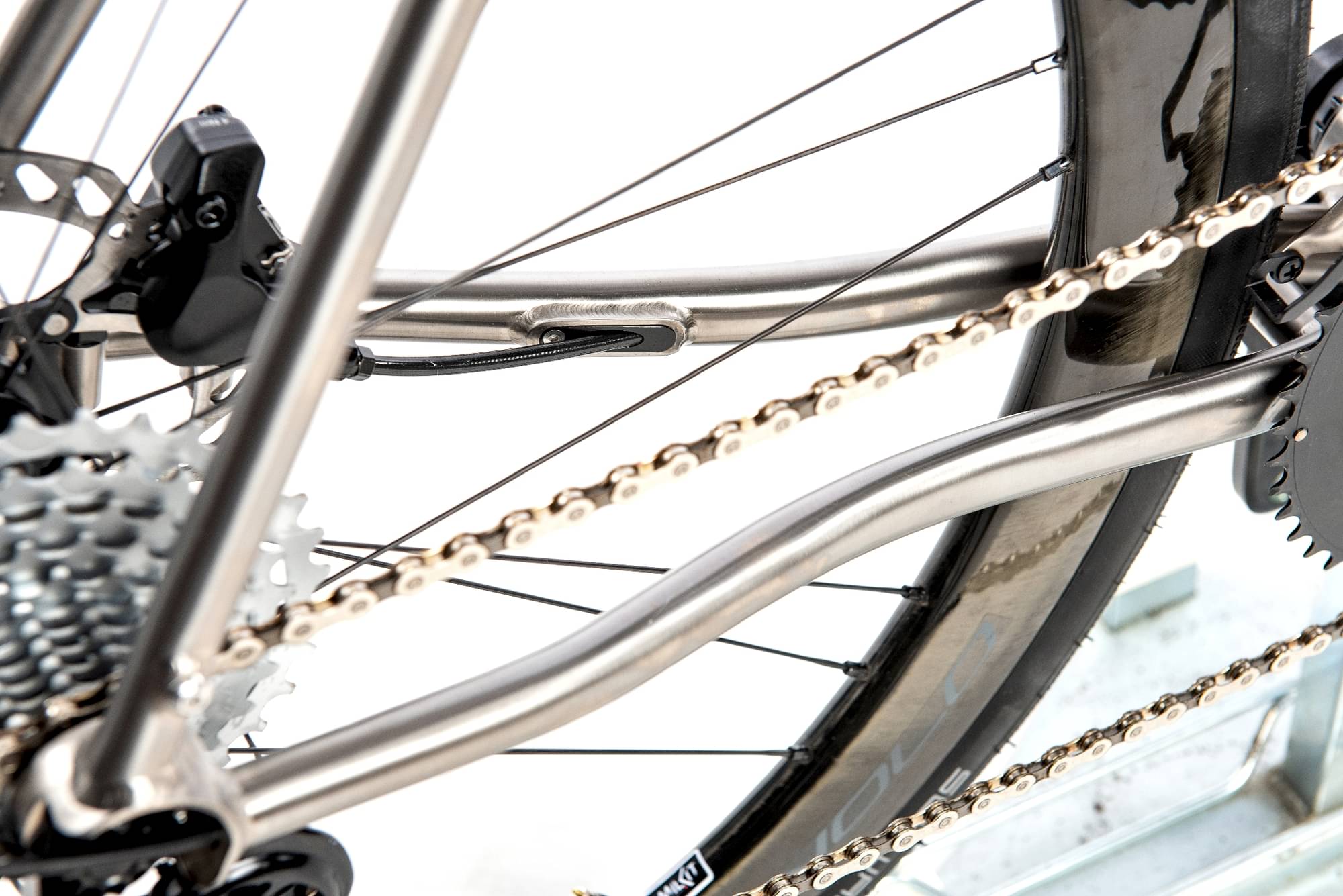

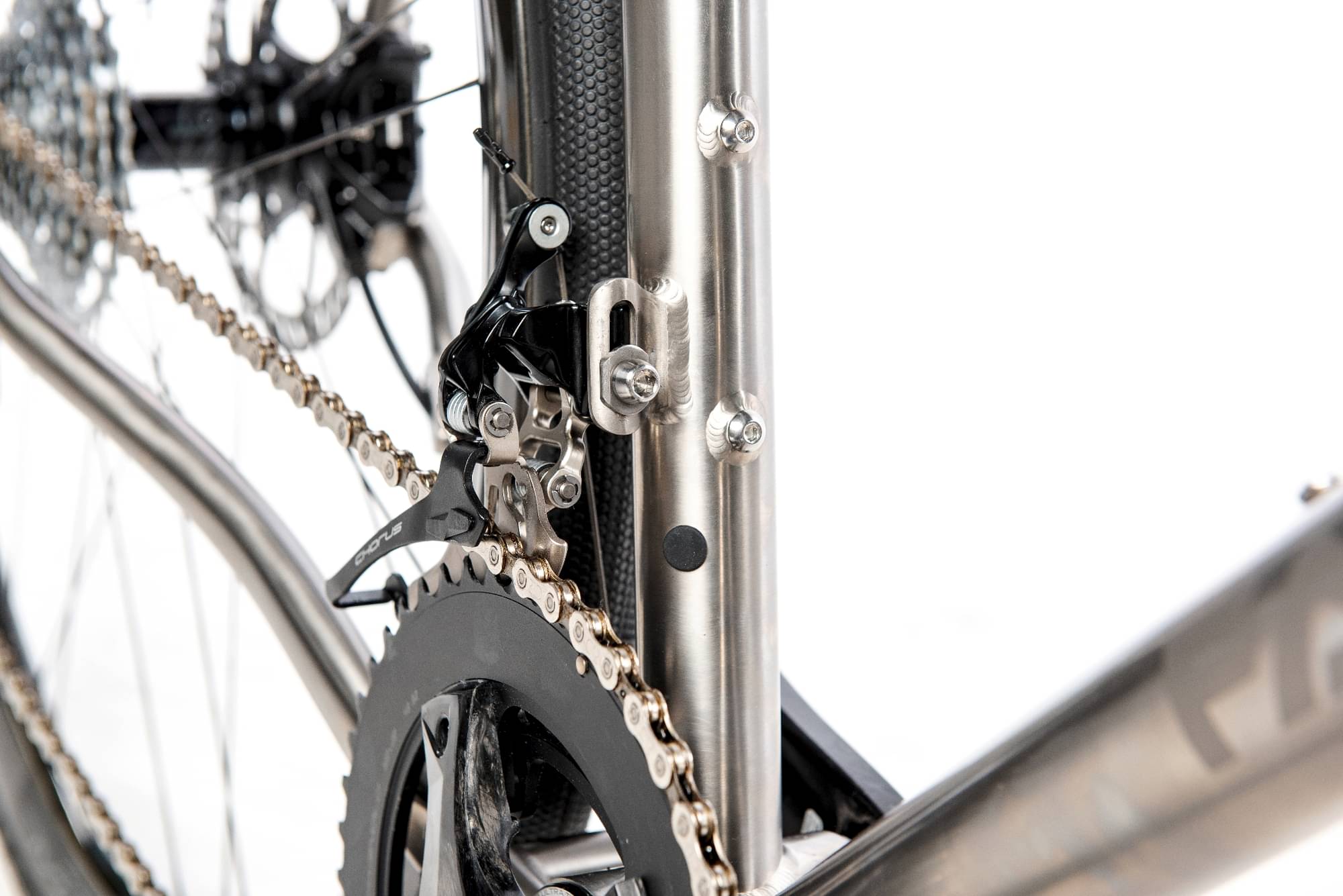

Drivetrain

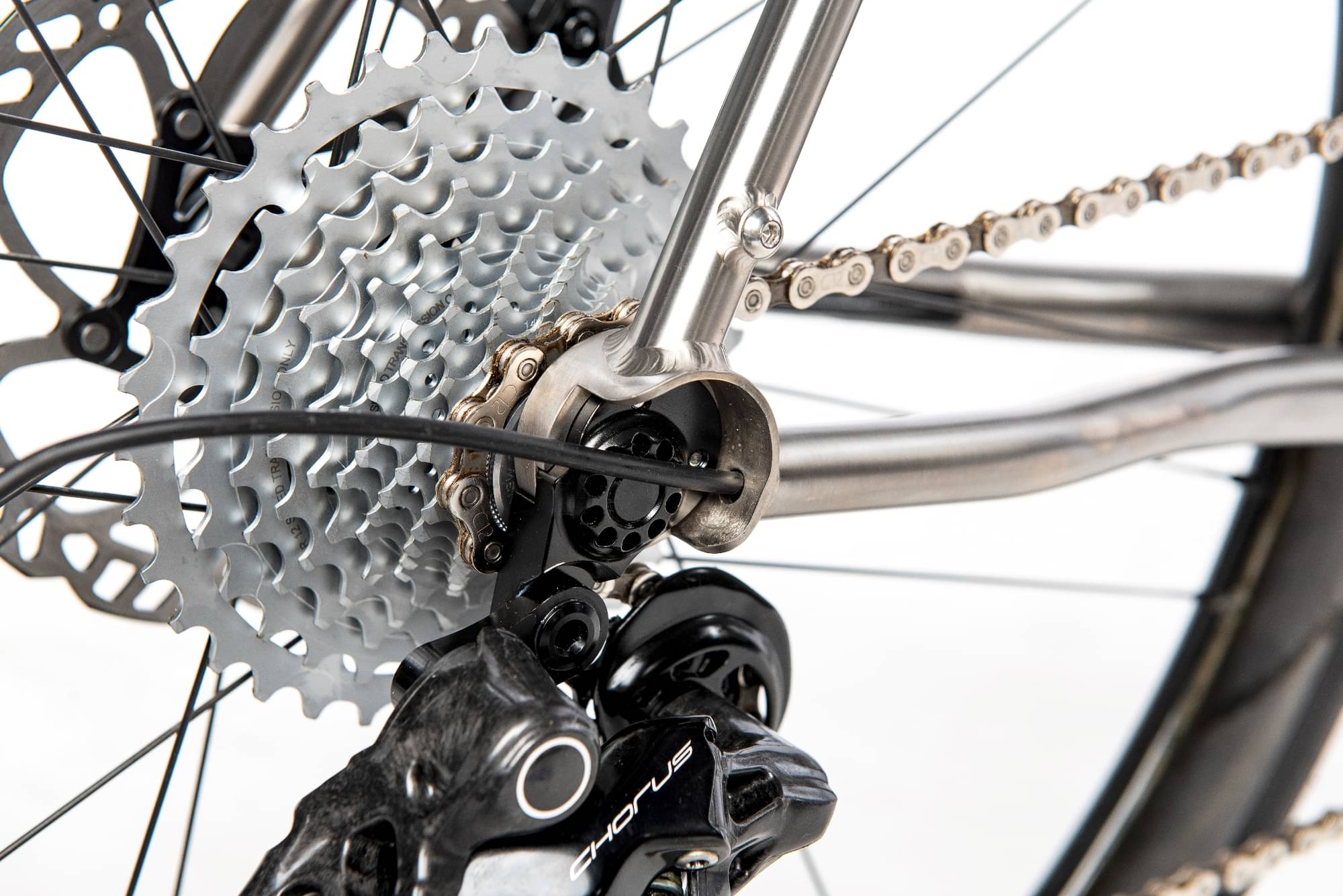

Rear Derailleur
Campagnolo Ekar 1x 13
Cassette
EKAR 13-speed 10-44 teeth

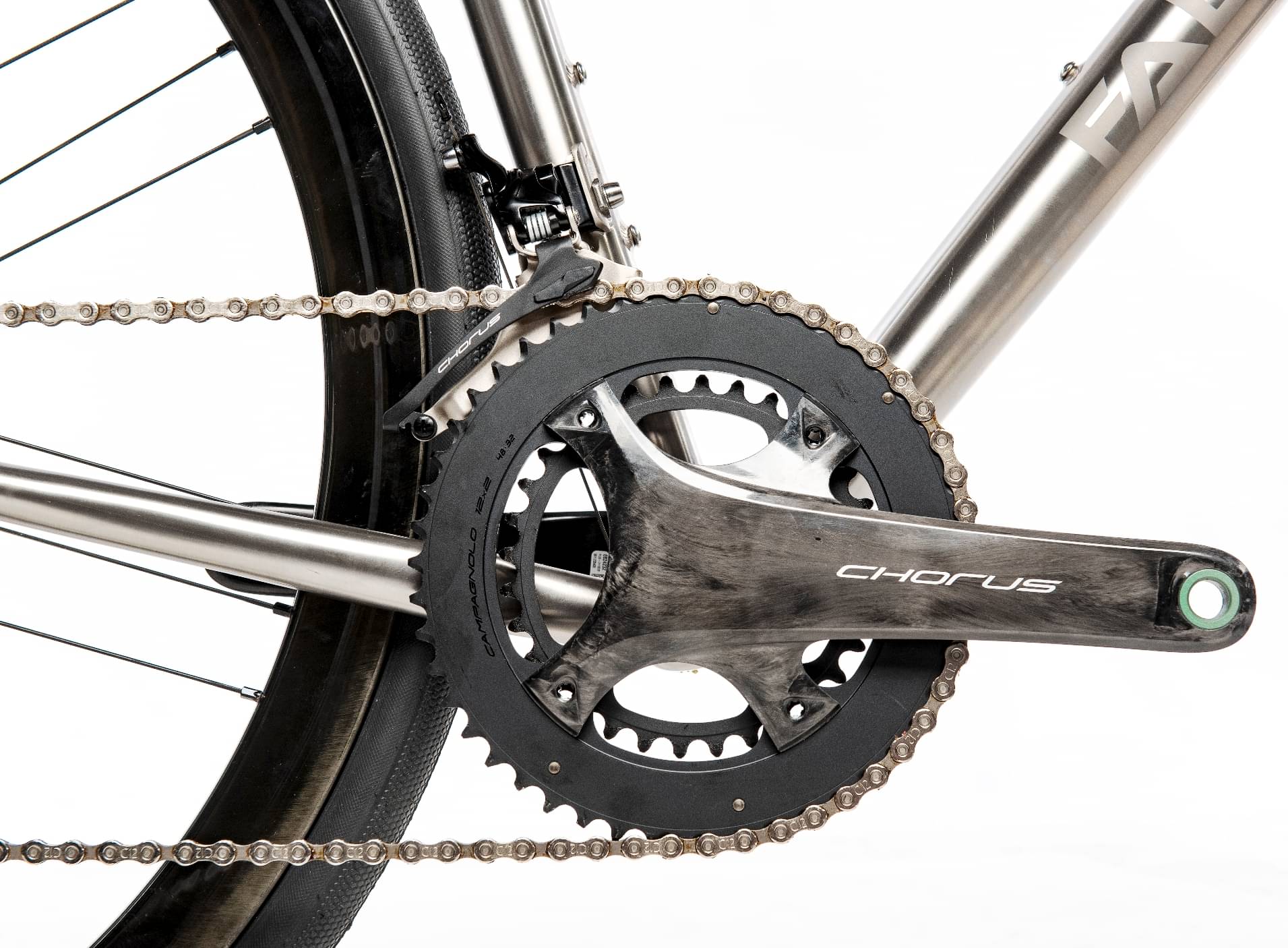

Crank
EKAR 13-speed 38T.
Pedals
without
Wheels
Rims
Mavic Allroad SL, 28 inches
Tires
Schwalbe Pro One 25mm
Brakes
Brakes
Depending on the Campa group you choose

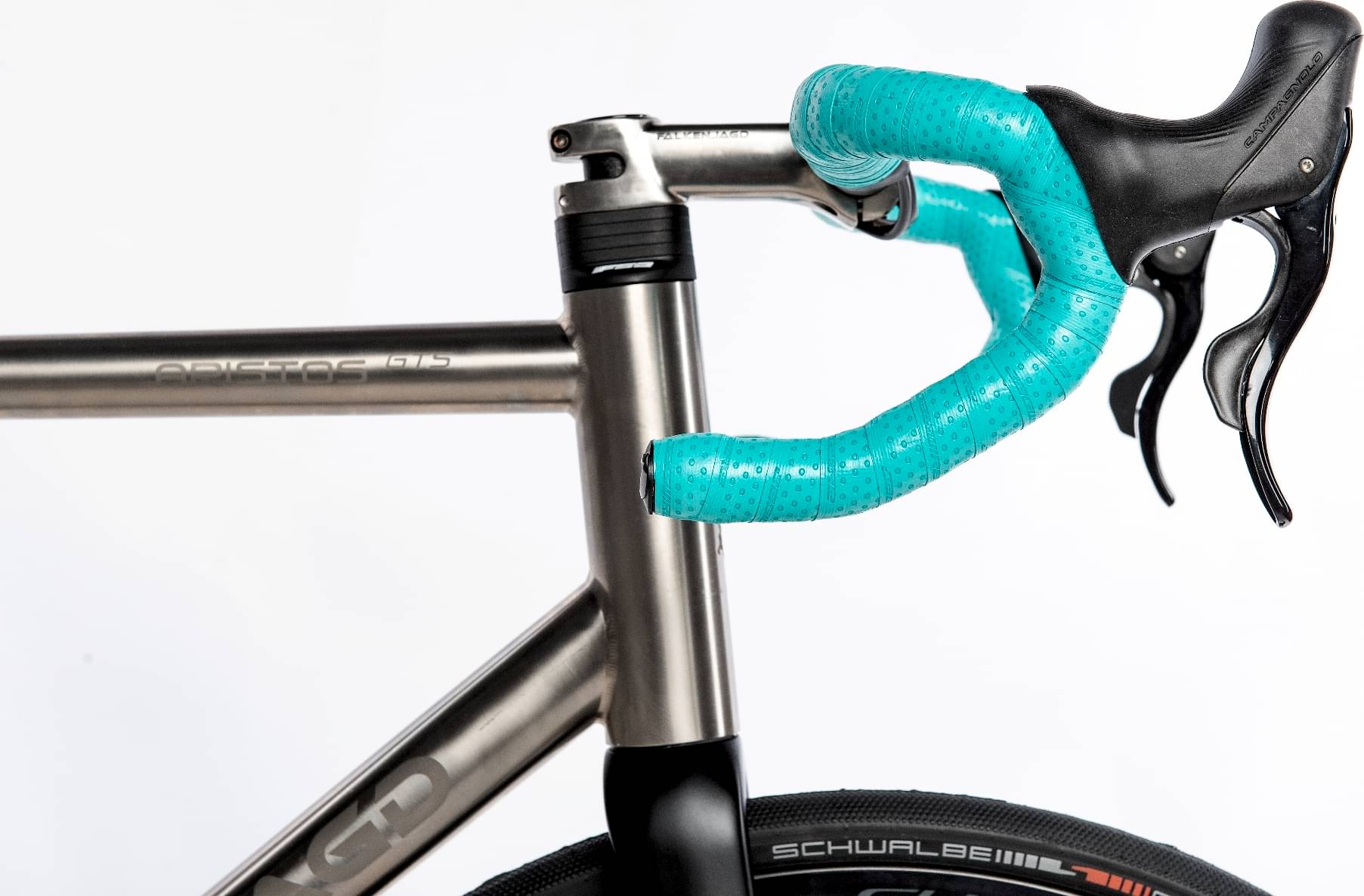

Cockpit

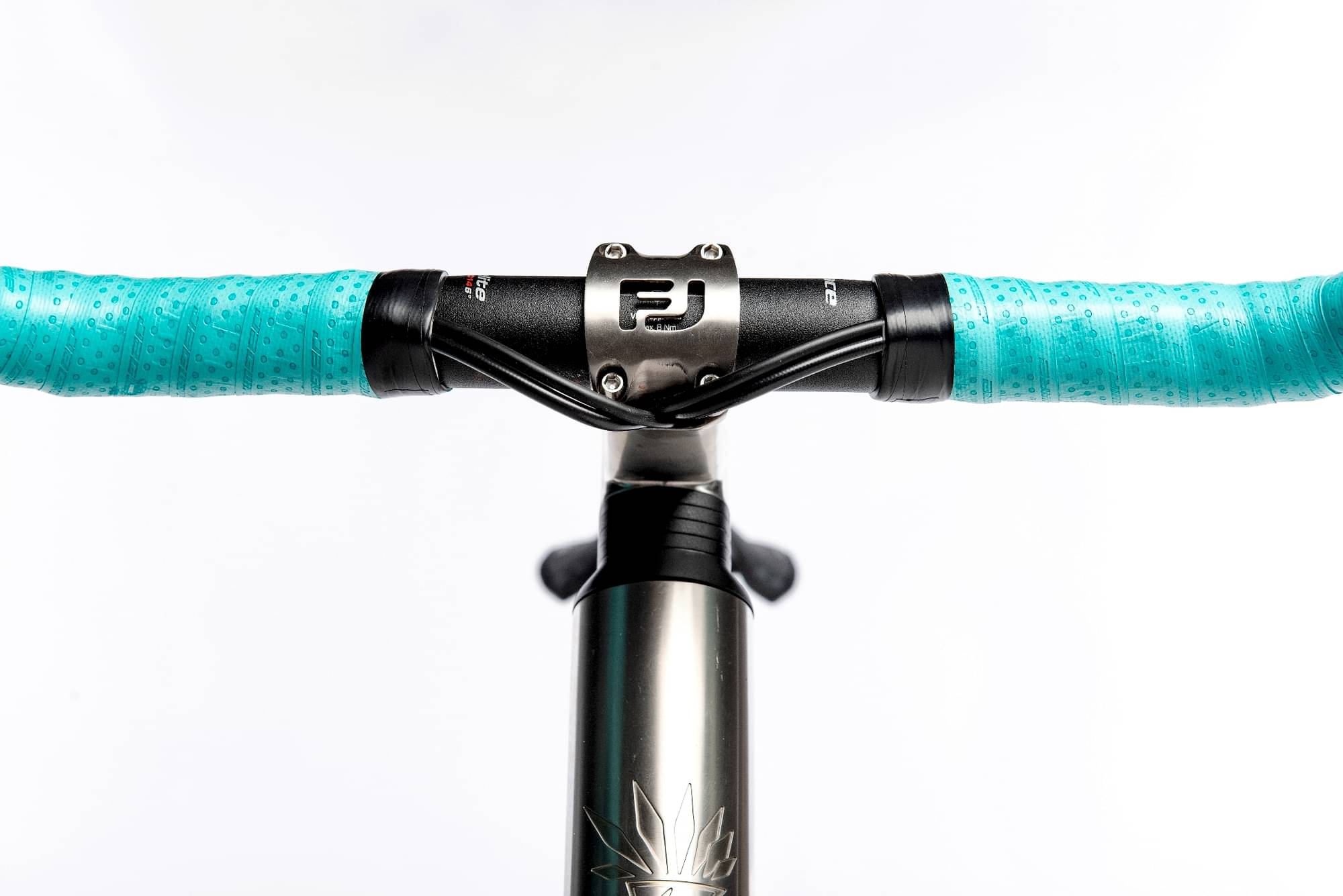

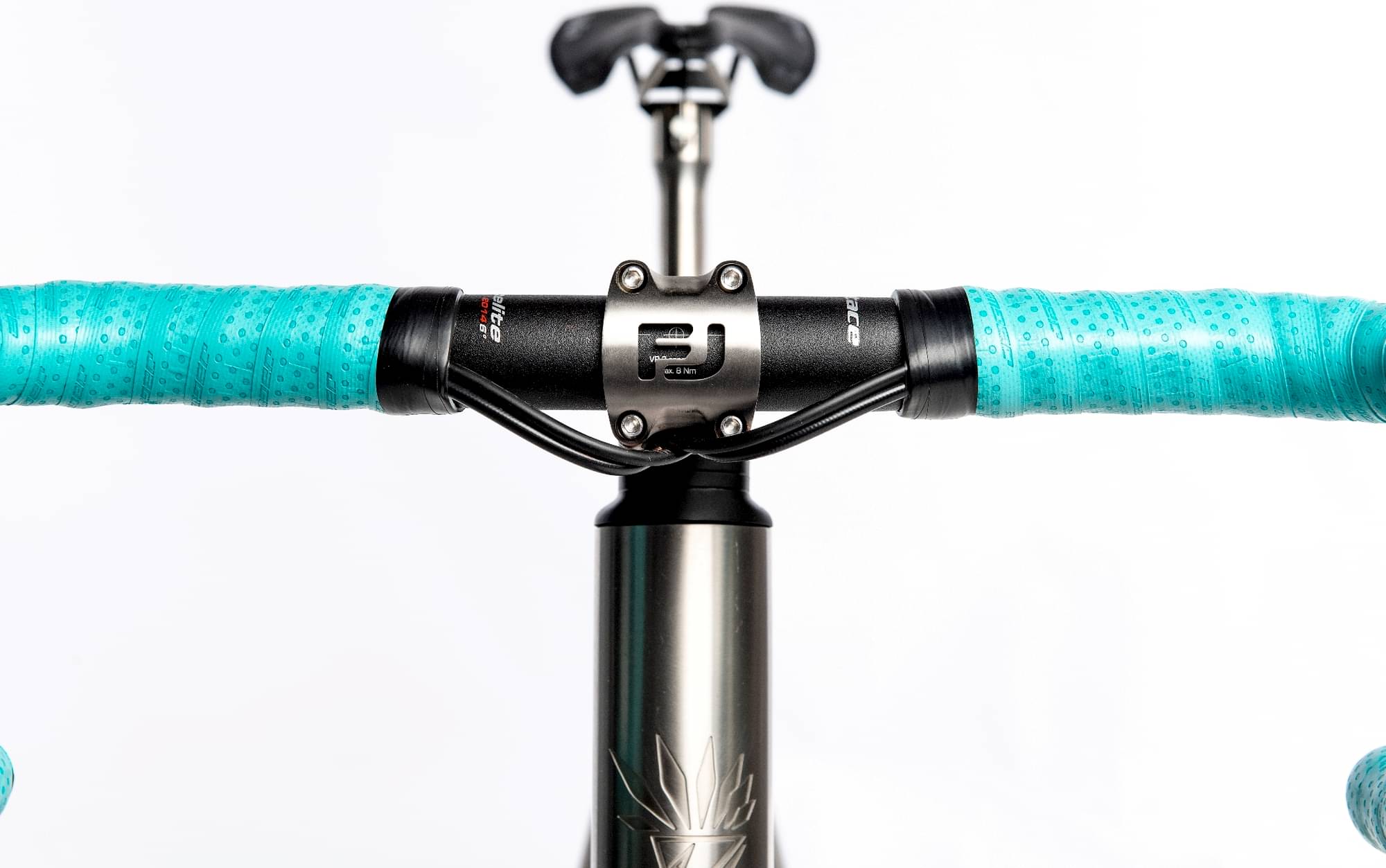

Stem
Racing steel Race light Black

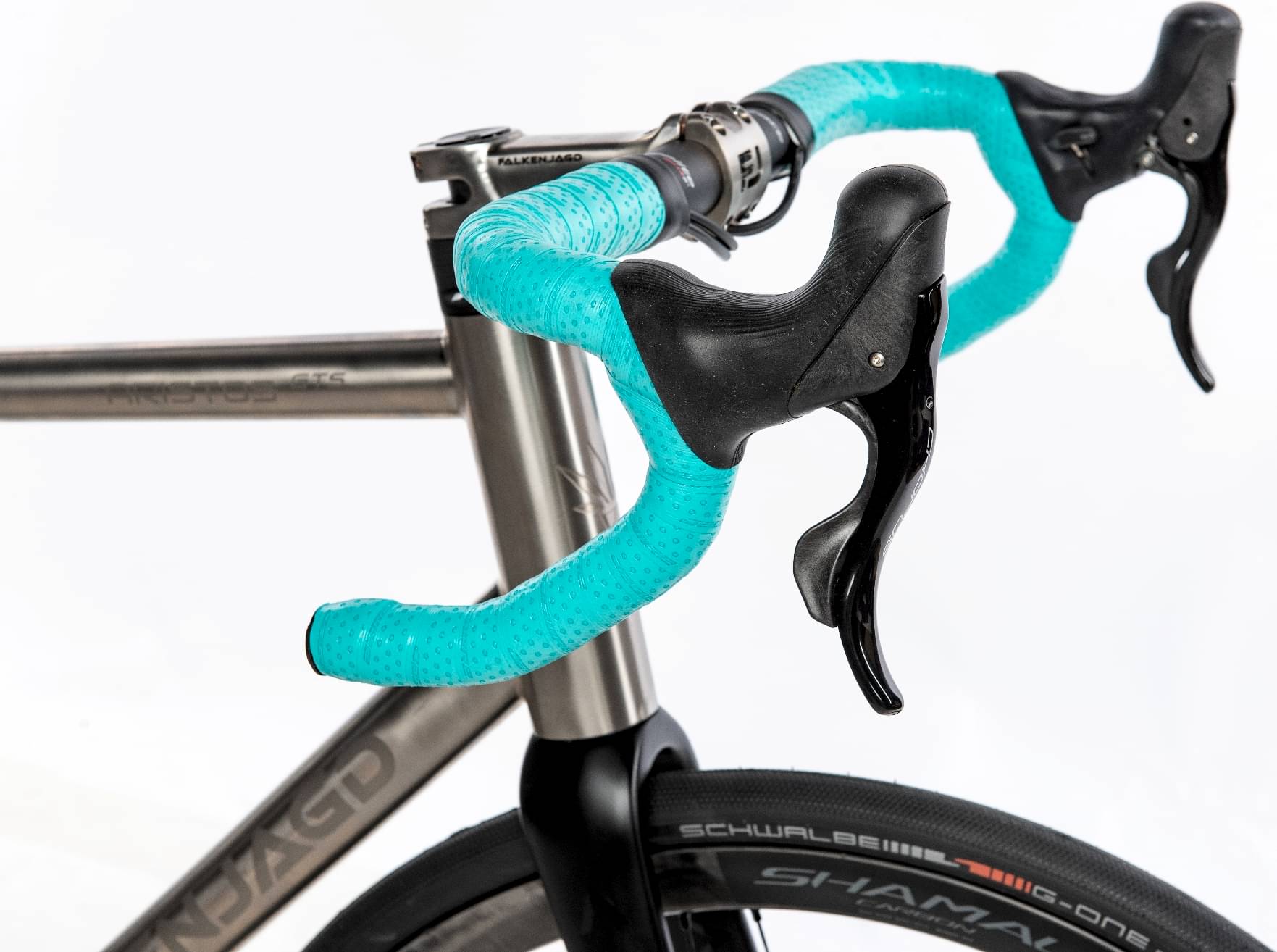

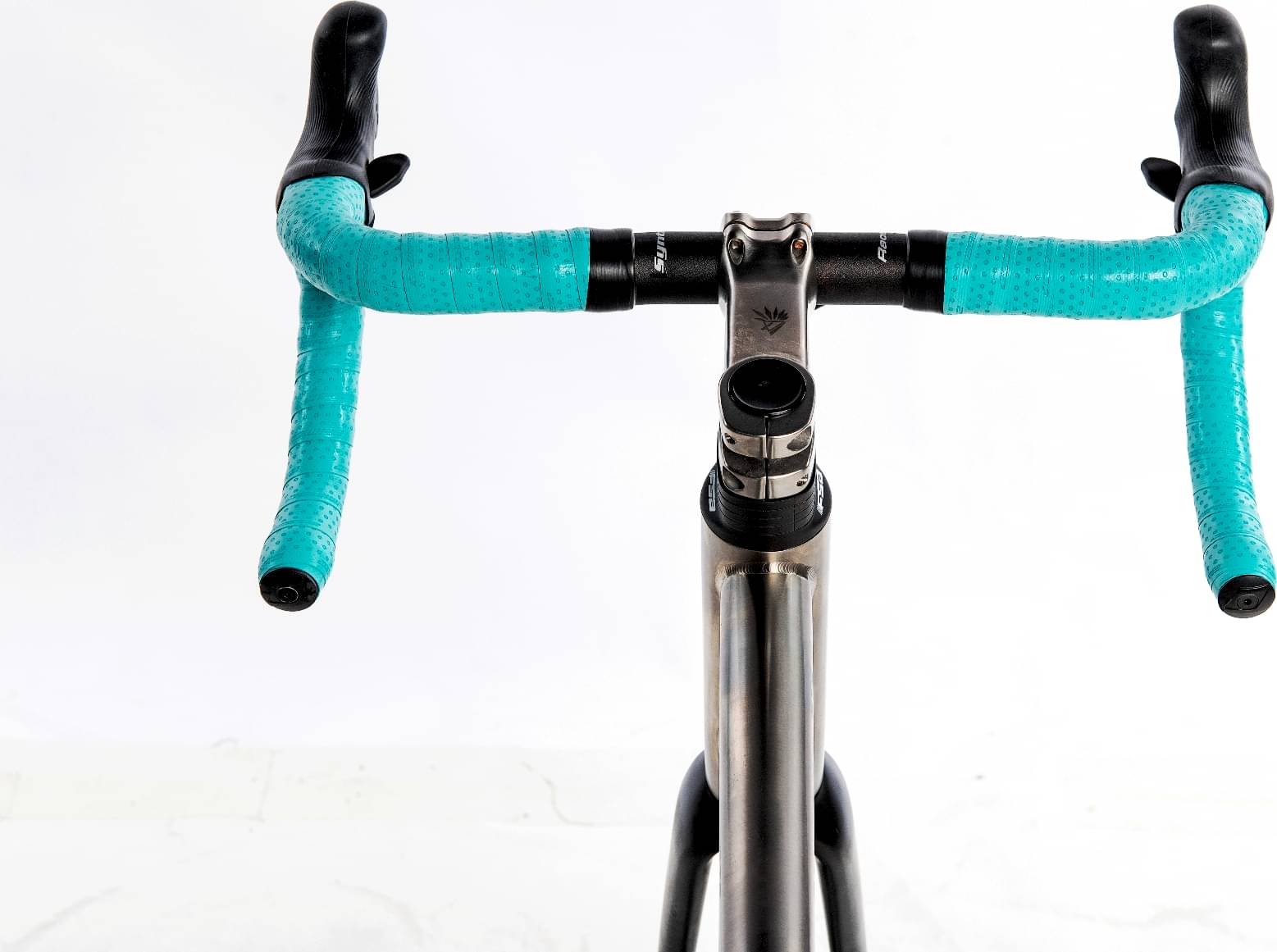

Handlebar
Syntace Racelite 440mm
Seat
Saddle
without

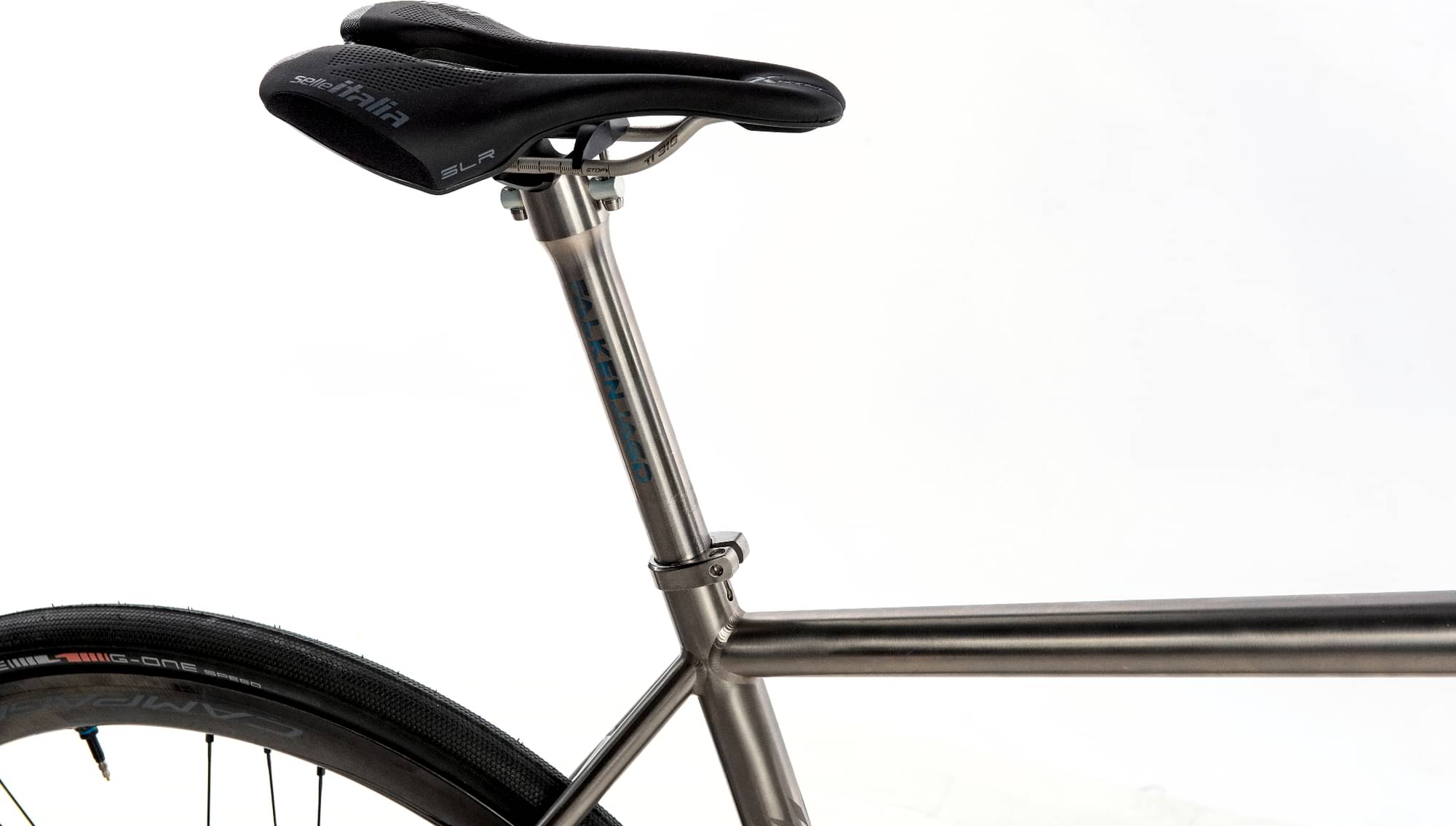

Seatpost
Parapera Carbon extralight
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.428 mm | 1.467 mm | 1.5 mm | 1.525 mm | 1.541 mm |
| Stack | 547 mm | 572 mm | 594 mm | 619 mm | 638 mm |
| Reach | 383 mm | 390 mm | 396 mm | 406 mm | 414 mm |
| Top Tube Length | 540 mm | 560 mm | 575 mm | 595 mm | 615 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Head Tube Angle | 72.5 ° | 73 ° | 73 ° | 73.5 ° | 74 ° |
| Head Tube Length | 135 mm | 160 mm | 185 mm | 210 mm | 230 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
