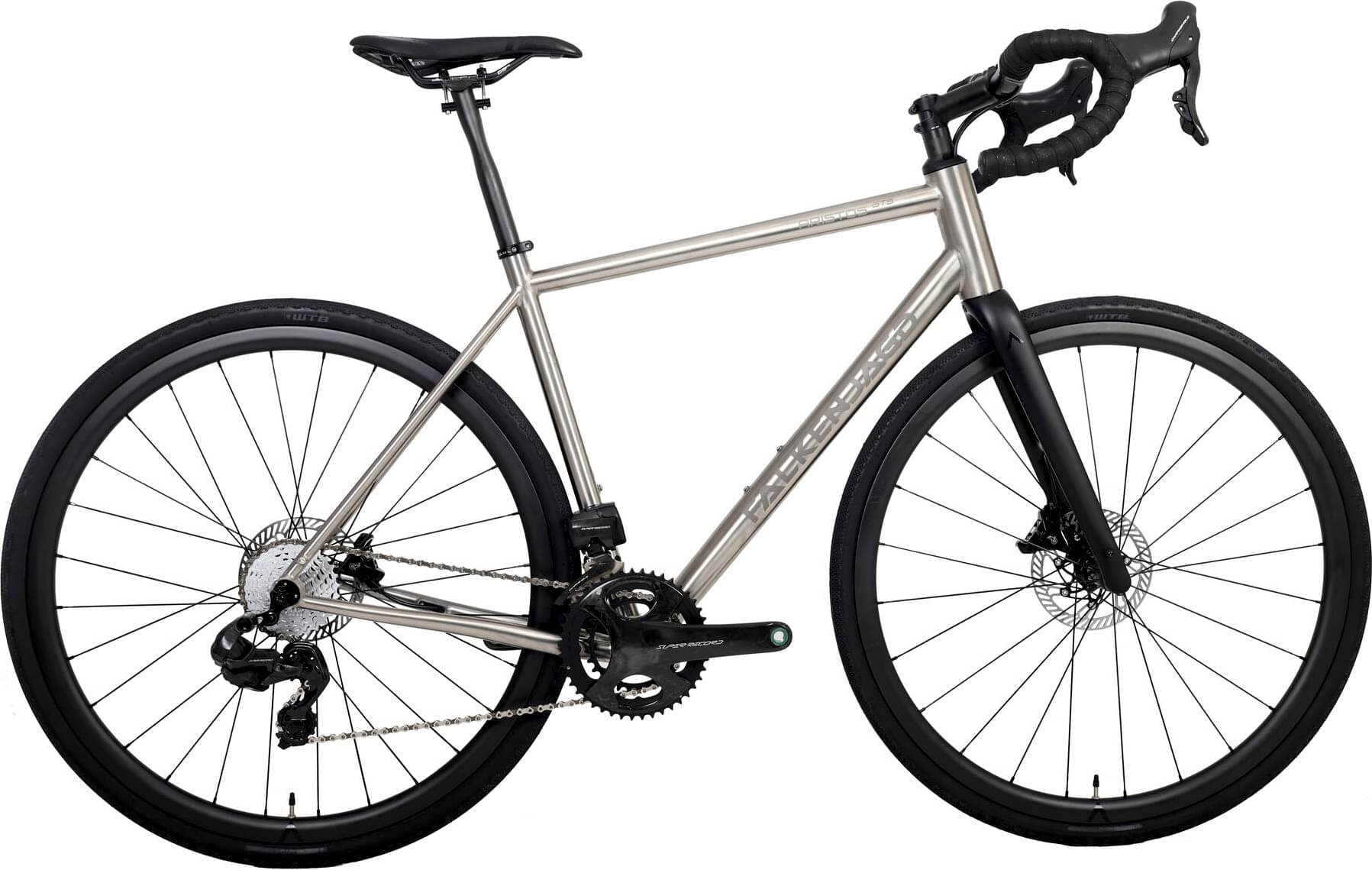

falkenjagd ARISTOS GTS Super Record WL 2024
2024 Road
Estimate price |
7,561$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset Super Record Wireless -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Campagnolo Super Record Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 167cm
SM
165cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
XXL
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

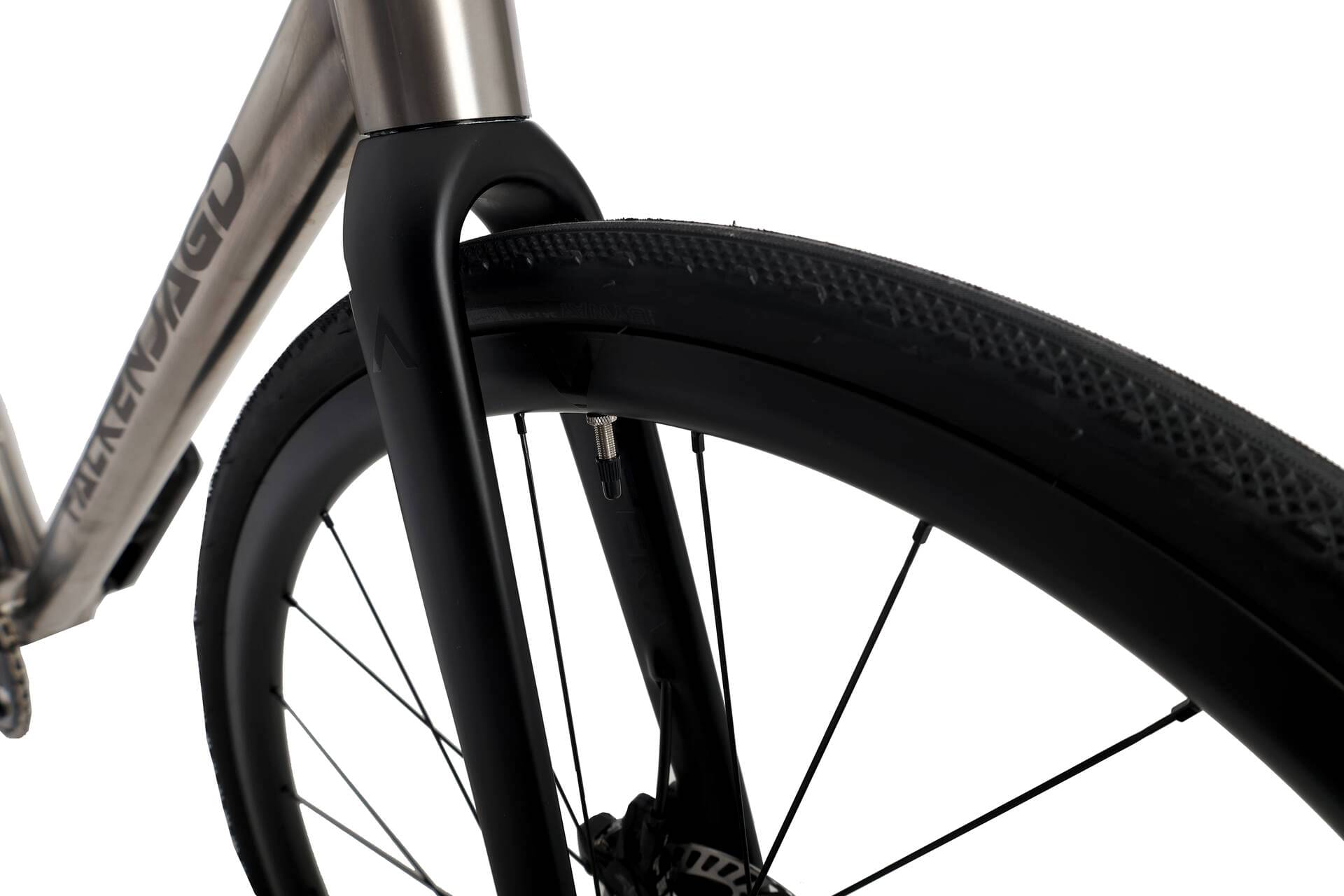

Suspension Fork
PARAPERA Carbon Speed Gravel totally integrated

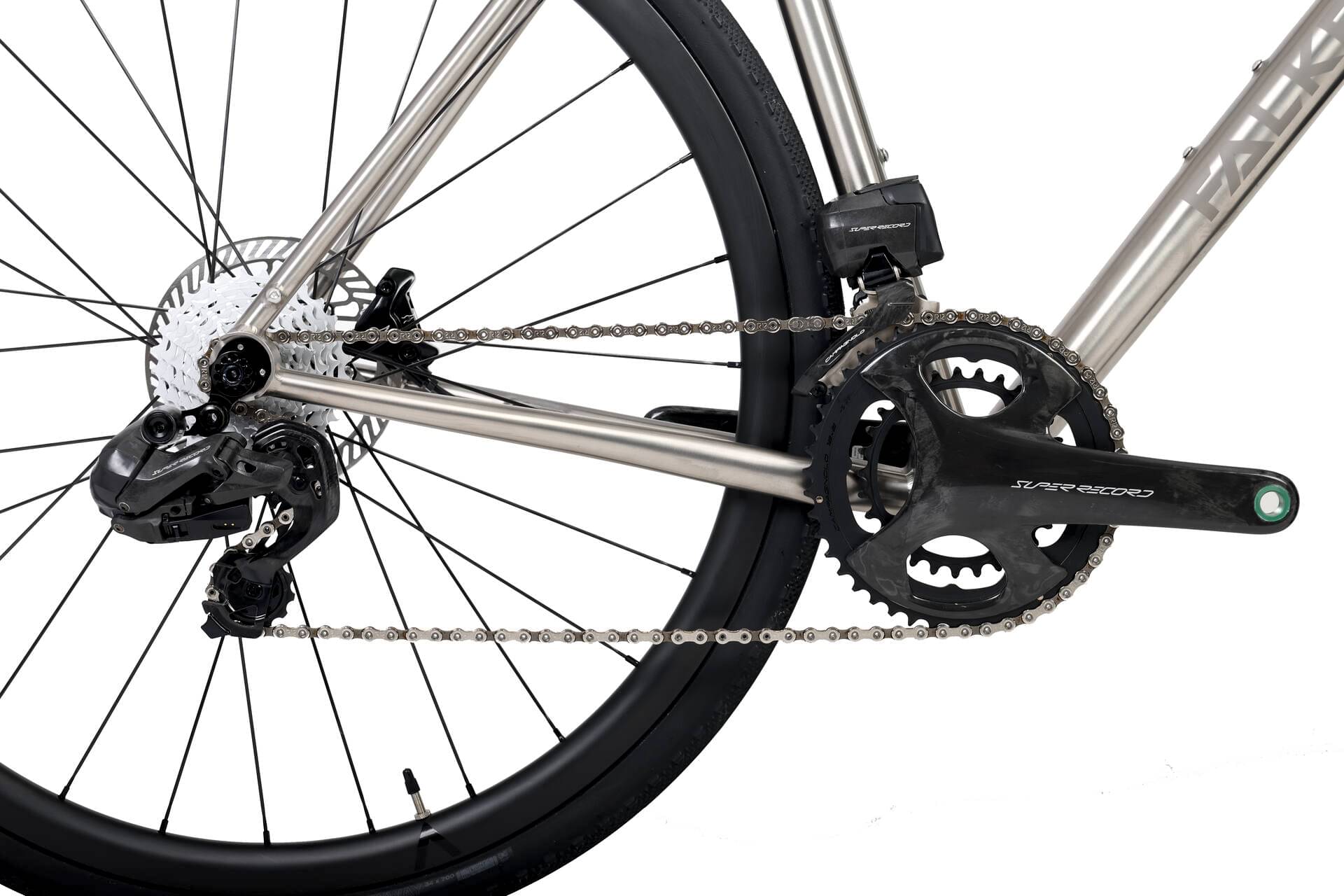

Drivetrain

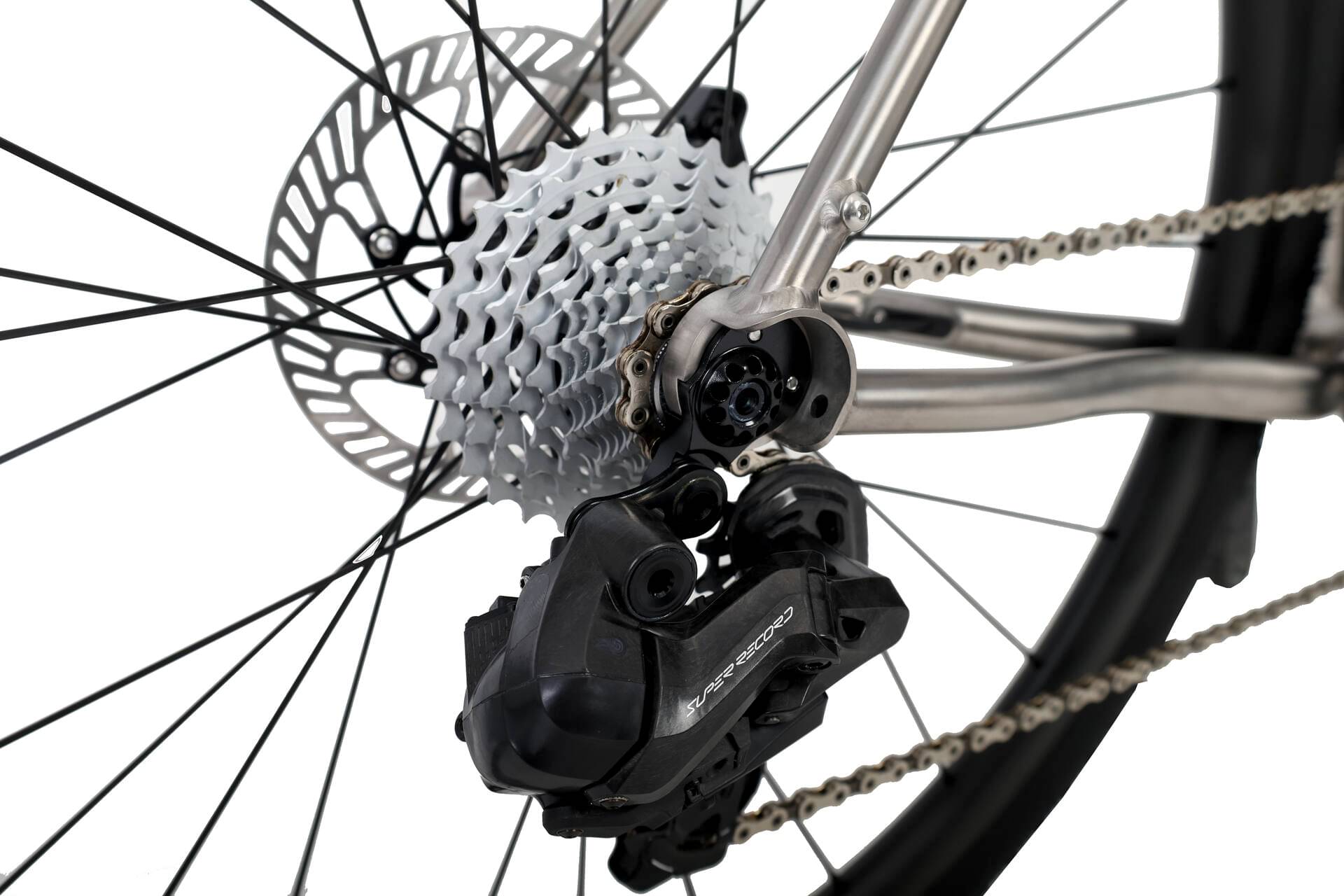

Rear Derailleur
Campagnolo Super Record Wireless 12-speed disc
Cassette
Campagnolo Super Record wireless 12-speed, 10-29

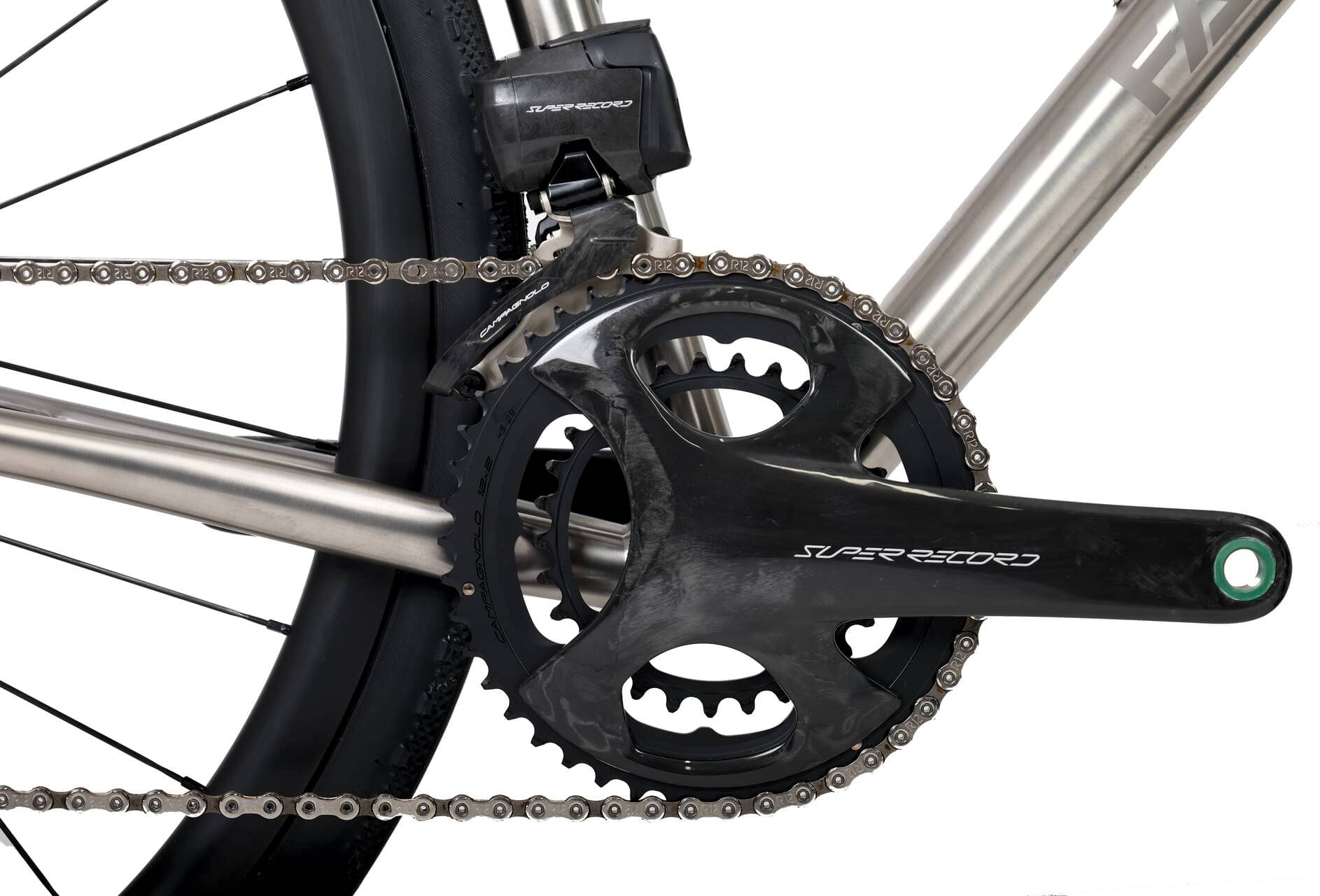

Crank
Campagnolo Super Record wireless 2-fold 29-45 new SuperCompact
Pedals
without
Wheels
Rims
Parapera Carbon SLS superlight 30mm

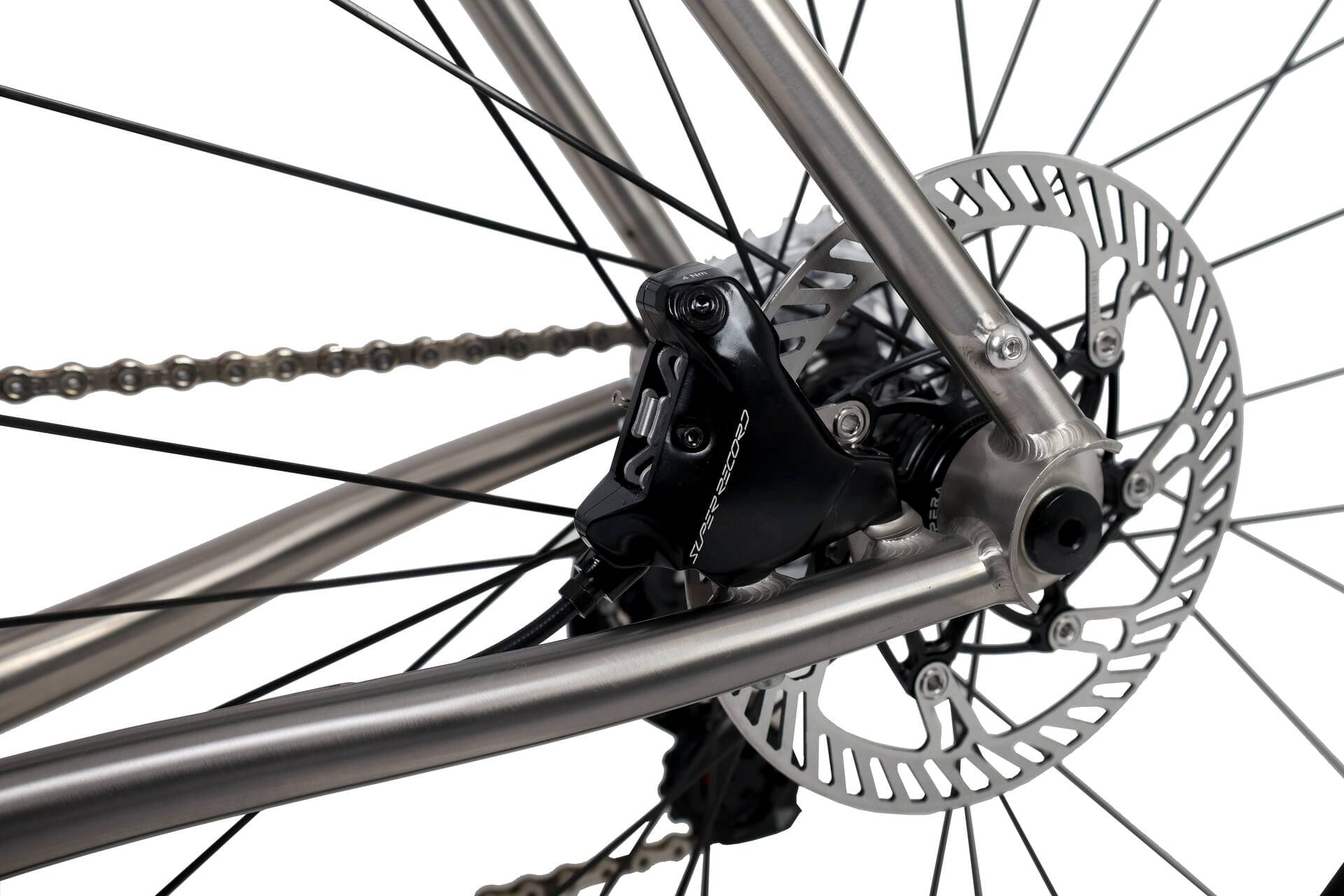

Brakes
Brakes
Campagnolo Super Record

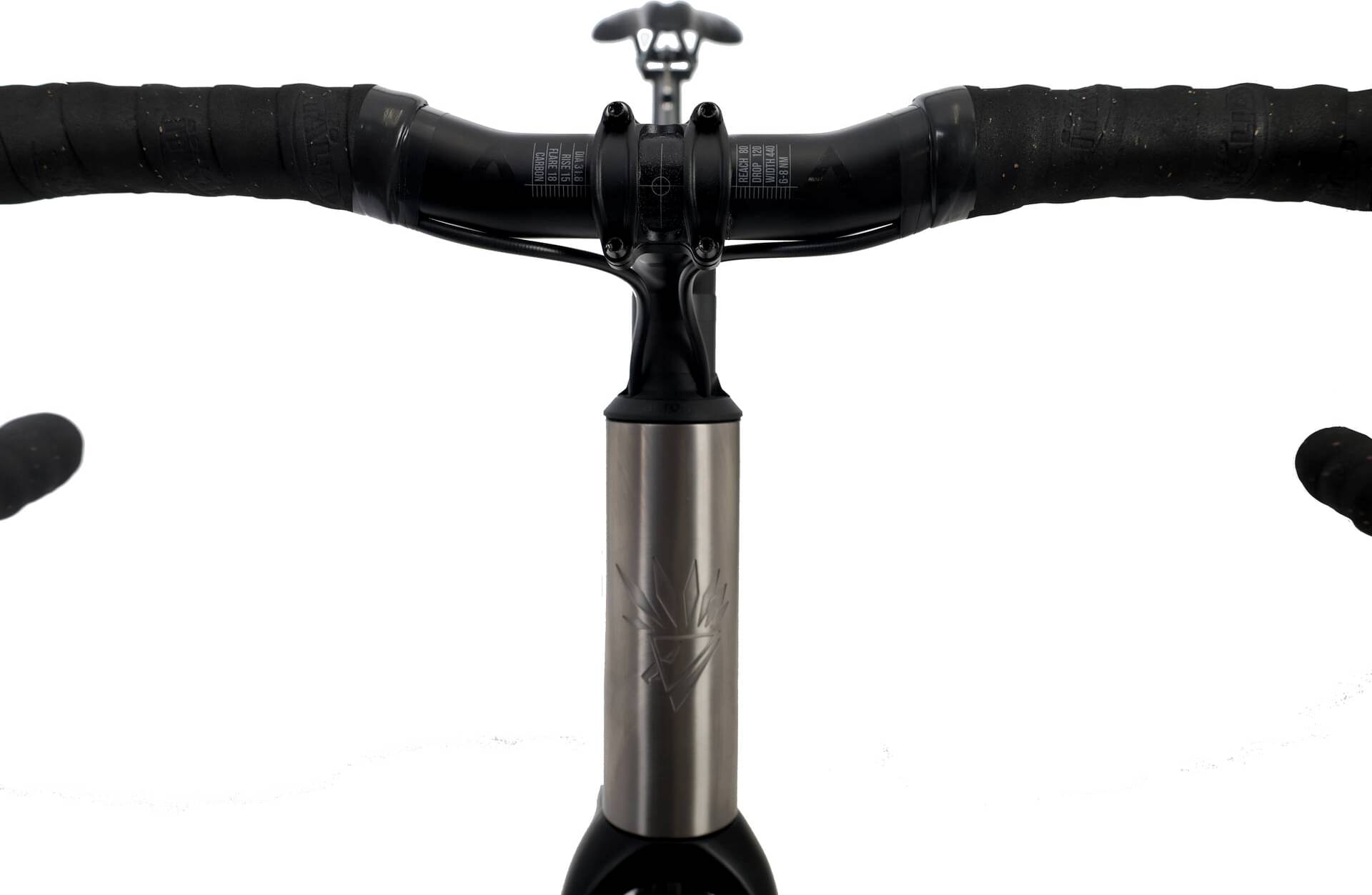

Cockpit

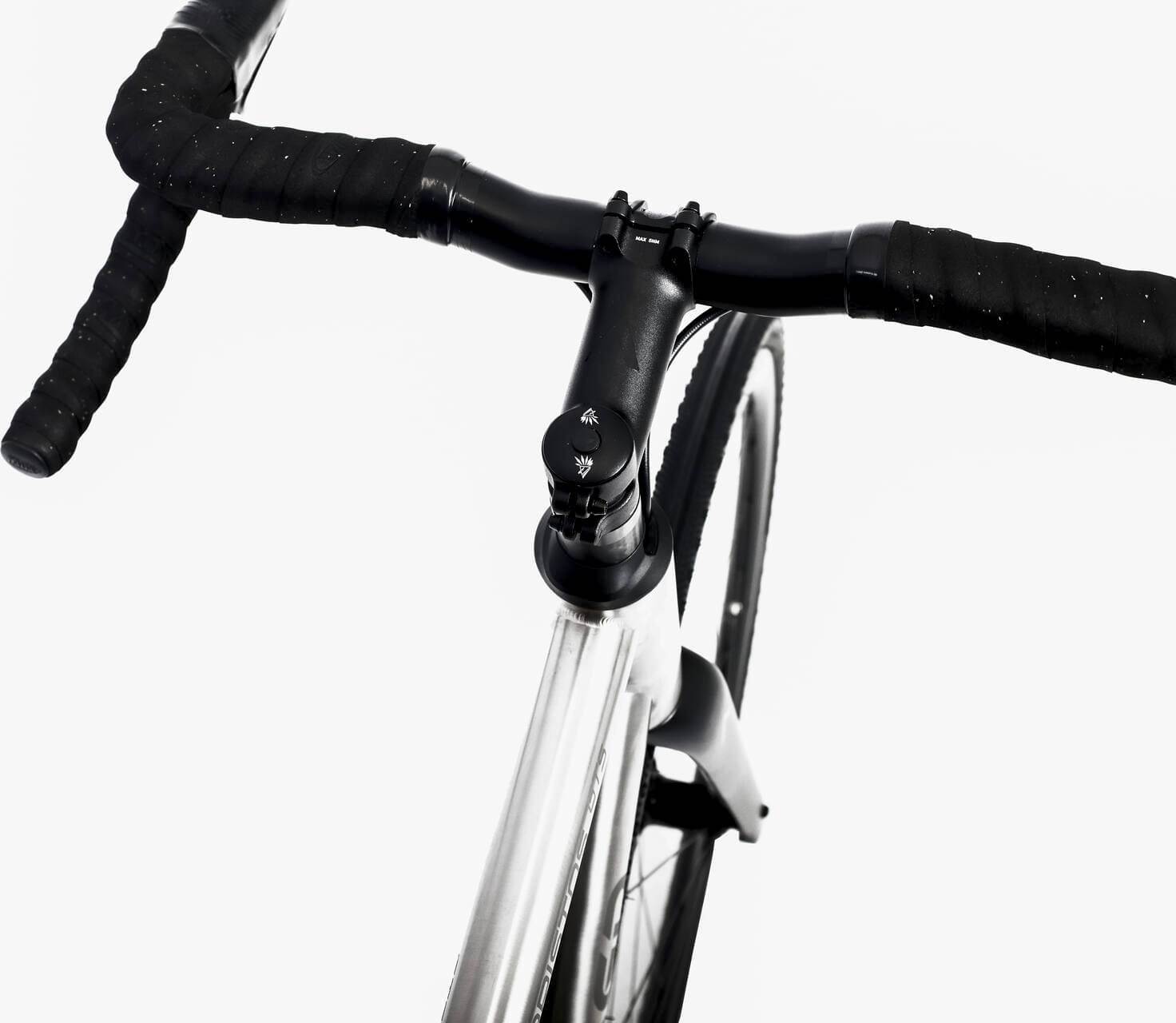

Stem
Parapera Aluminium superlight

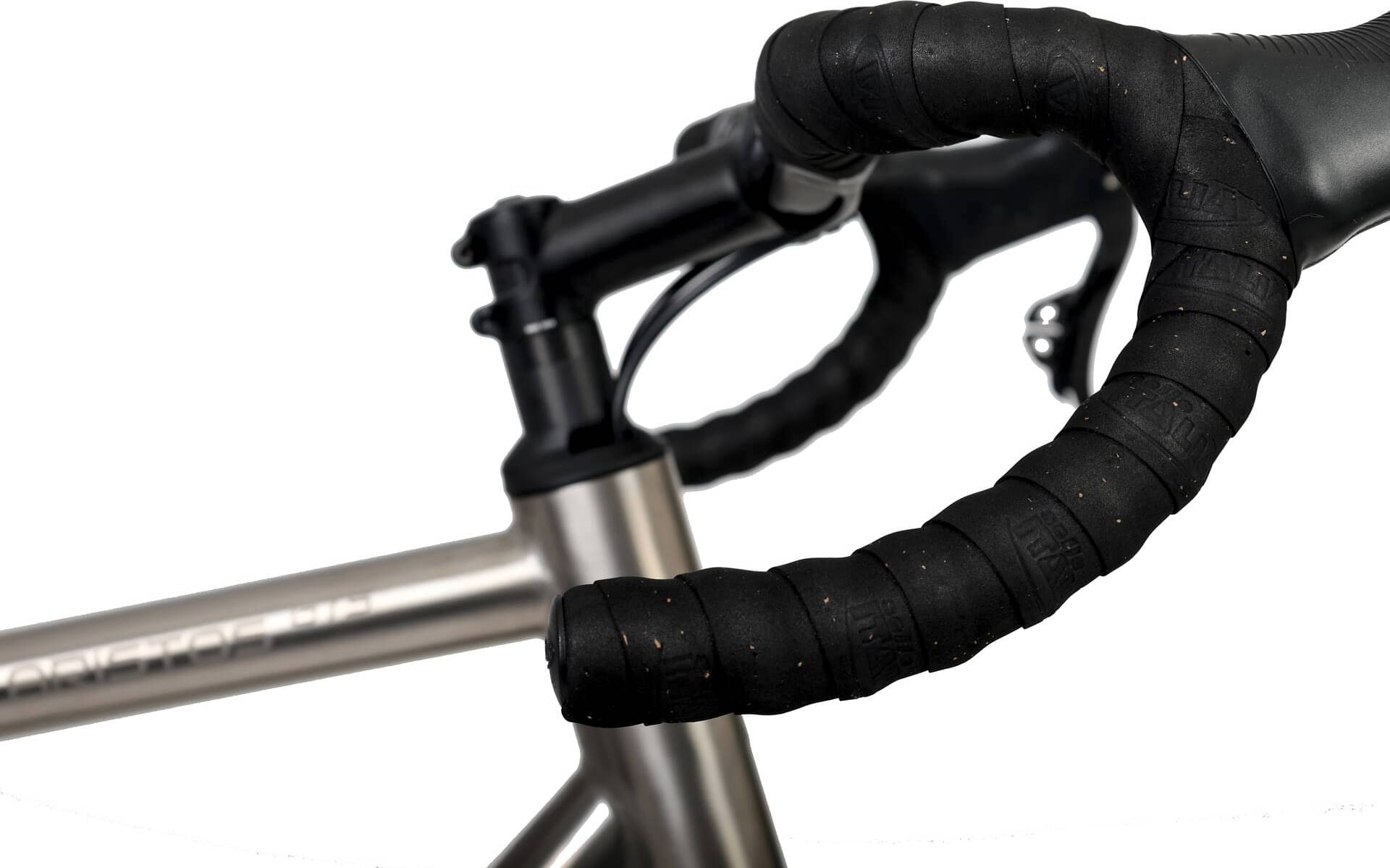

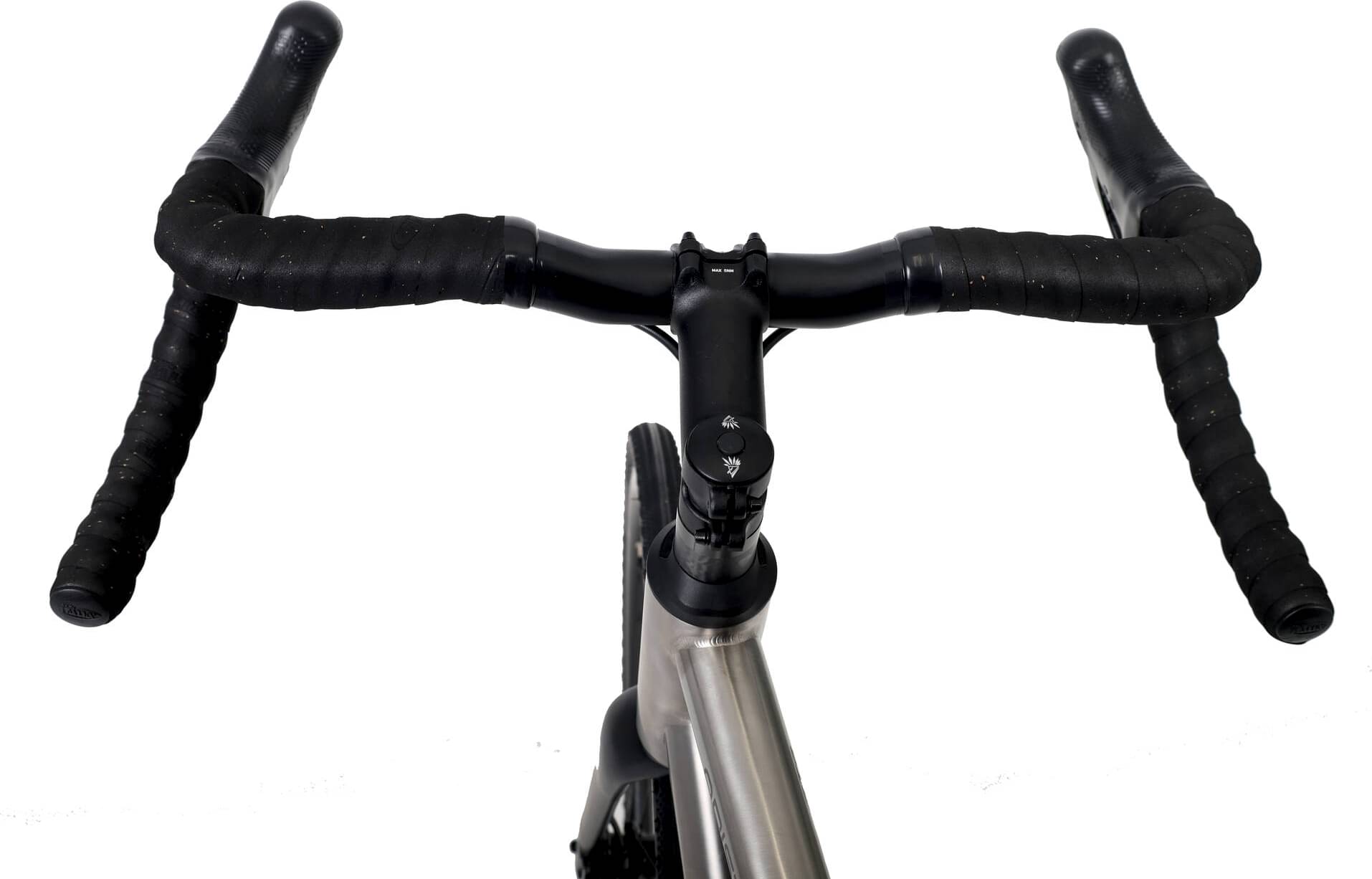

Handlebar
PARAPERA Carbon Speed Gravel totally integrated

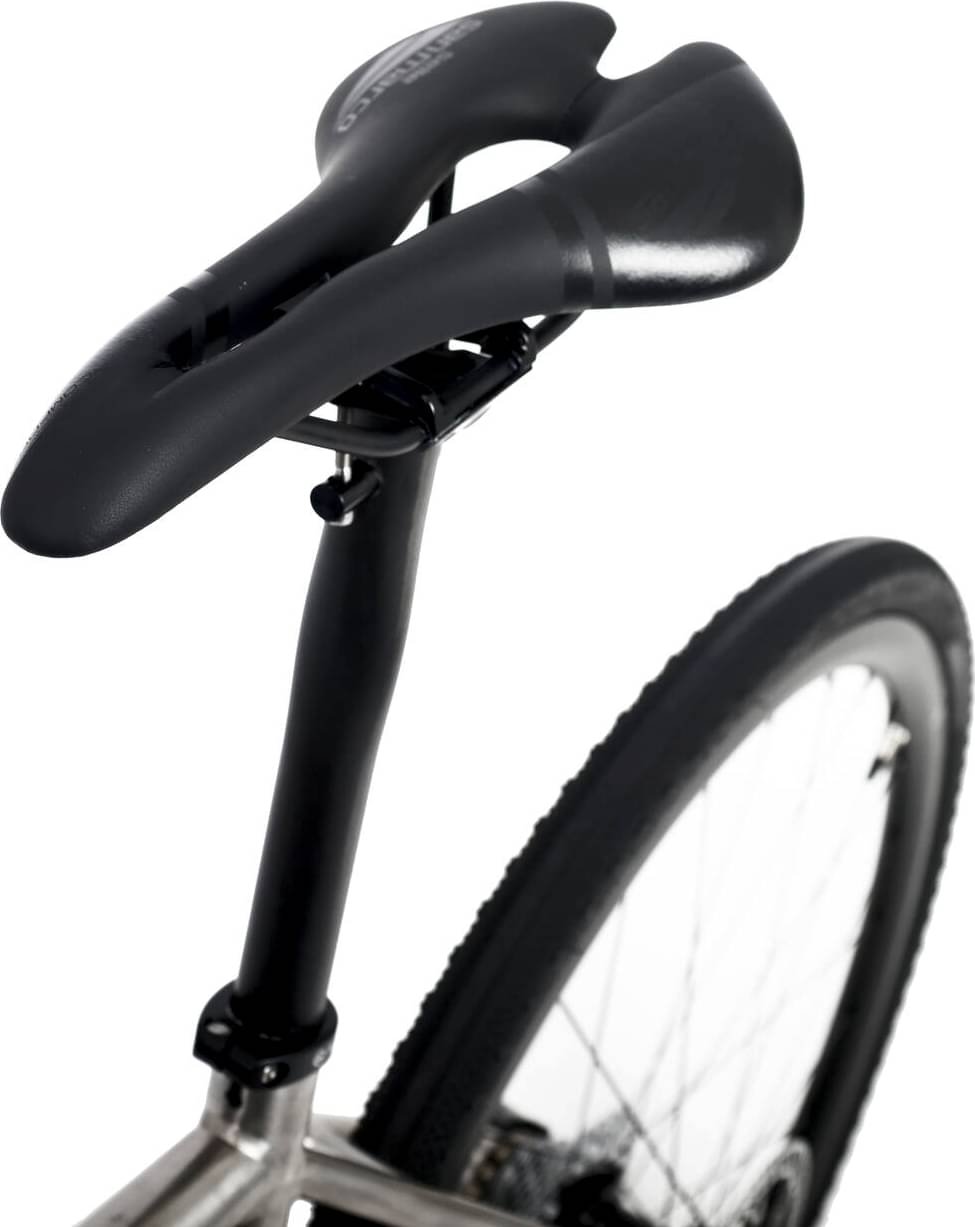

Seat
Saddle
Selle San Marco Aspide

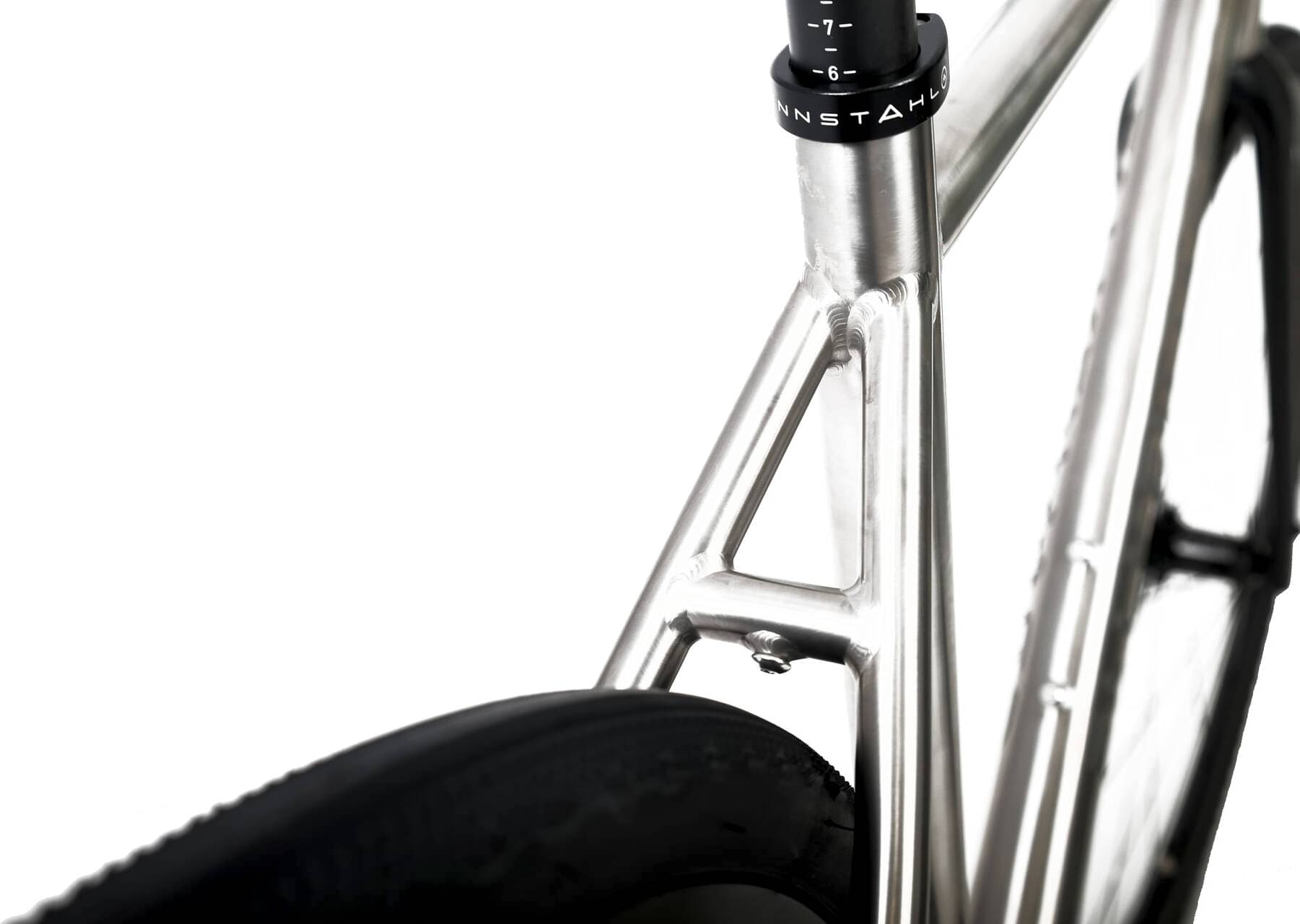

Seatpost
Parapera Carbon superlight
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.393 mm | 1.428 mm | 1.467 mm | 1.5 mm | 1.525 mm | 1.541 mm |
| Bottom Bracket Height | 276 mm | 277 mm | 277 mm | 278 mm | 279 mm | 281 mm |
| Front Center | 561 mm | 582 mm | 593 mm | 605 mm | 617 mm | 617 mm |
| Rake | 20 mm | 42 mm | 43 mm | 43 mm | 42 mm | 35 mm |
| Trail | 99 mm | 66 mm | 62 mm | 62 mm | 60 mm | 64 mm |
| Stack | 528 mm | 547 mm | 572 mm | 594 mm | 619 mm | 638 mm |
| Reach | 379 mm | 383 mm | 390 mm | 396 mm | 406 mm | 414 mm |
| Top Tube Length | 535 mm | 545 mm | 560 mm | 575 mm | 595 mm | 615 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° | 74 ° |
| Head Tube Length | 125 mm | 135 mm | 160 mm | 185 mm | 210 mm | 230 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 965 mm | 986 mm | 997 mm | 1010 mm | 1022 mm | 1023 mm |
| Bottom Bracket Drop | 73 mm | 72 mm | 72 mm | 71 mm | 70 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 165 cm | 168 cm | 177 cm | 184 cm | 195 cm |
| Rider Max Height | 167 cm | 171 cm | 180 cm | 187 cm | 201 cm | 205 cm |
