Bike details
Overview
Key information split into simple groups.

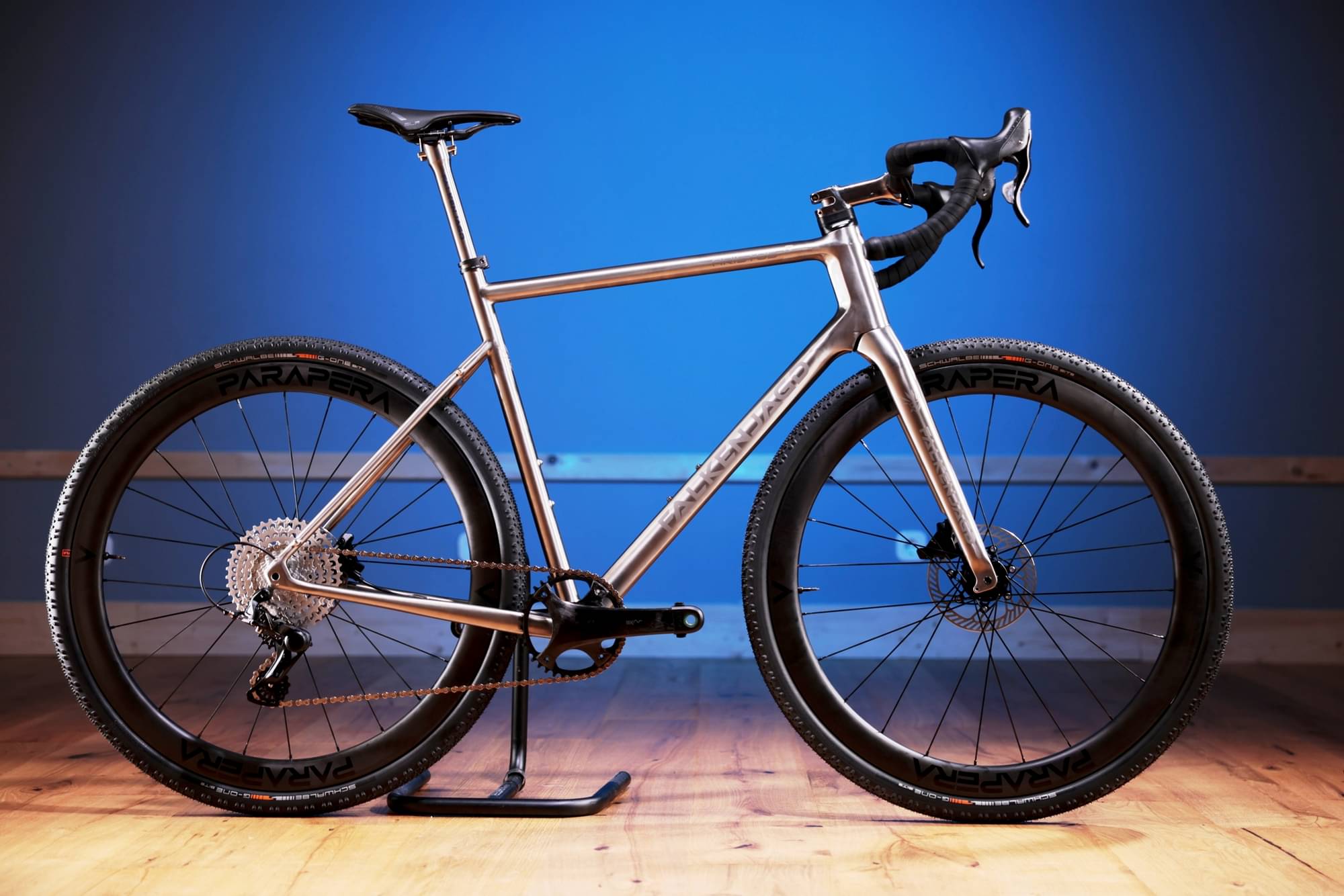

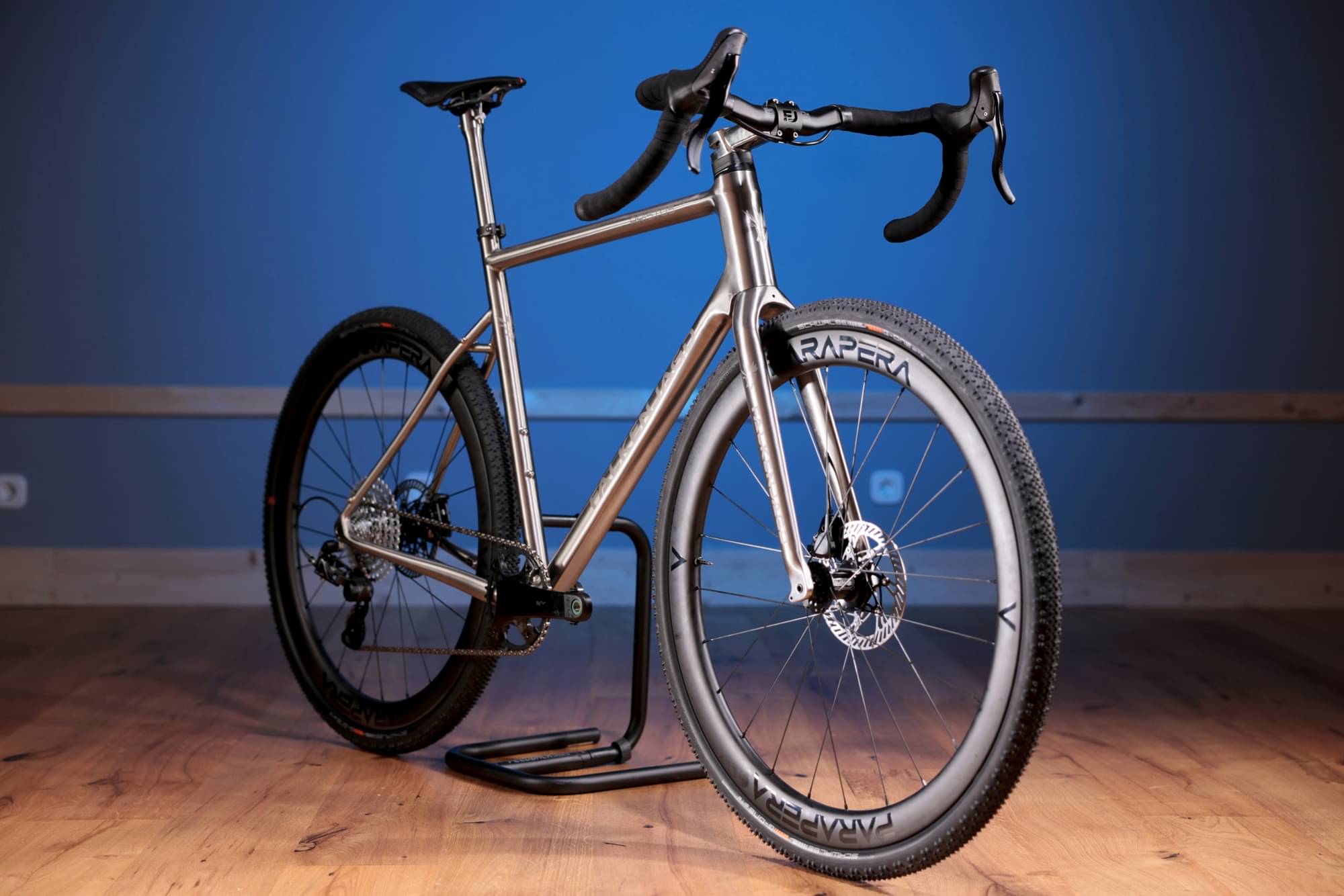

Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

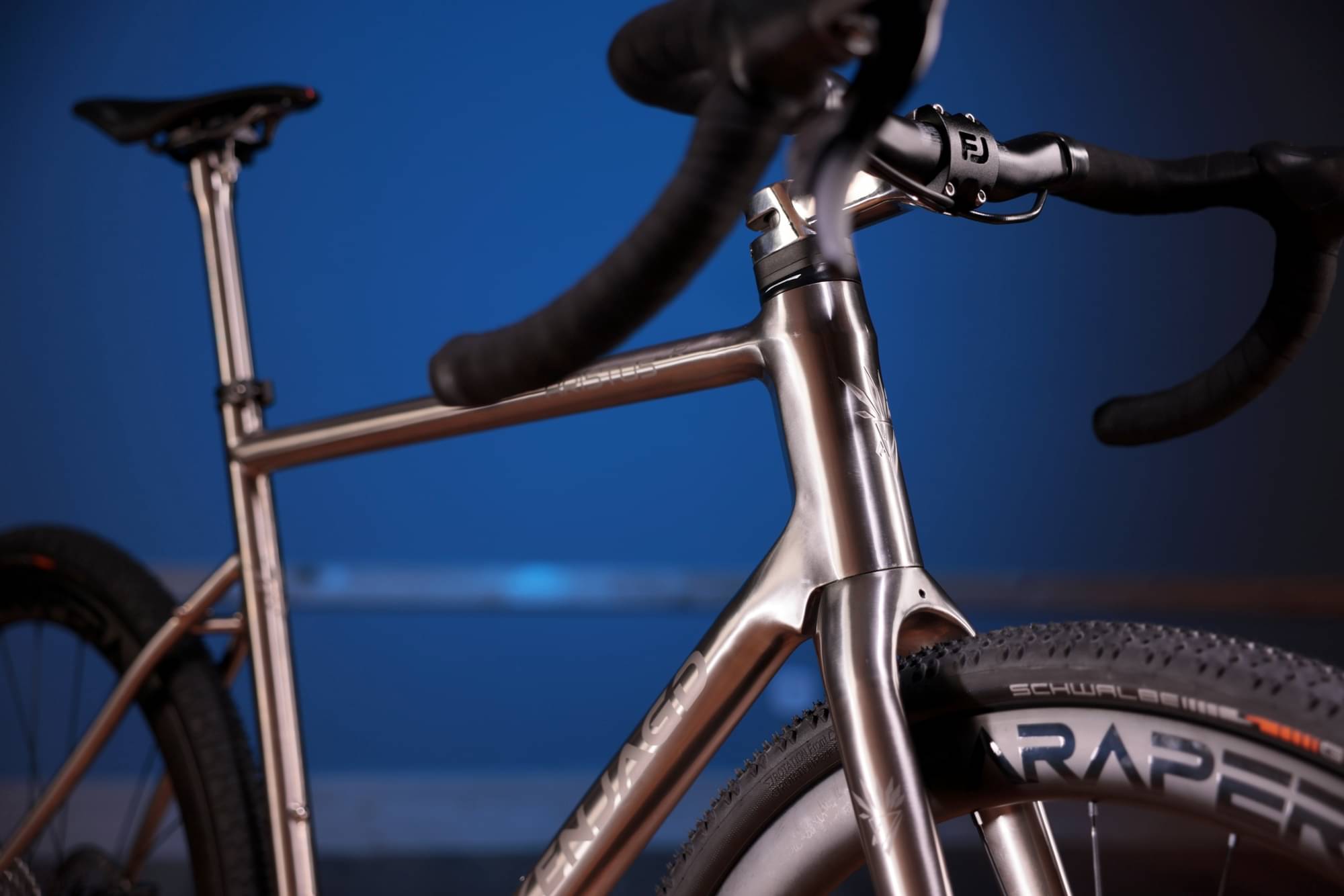

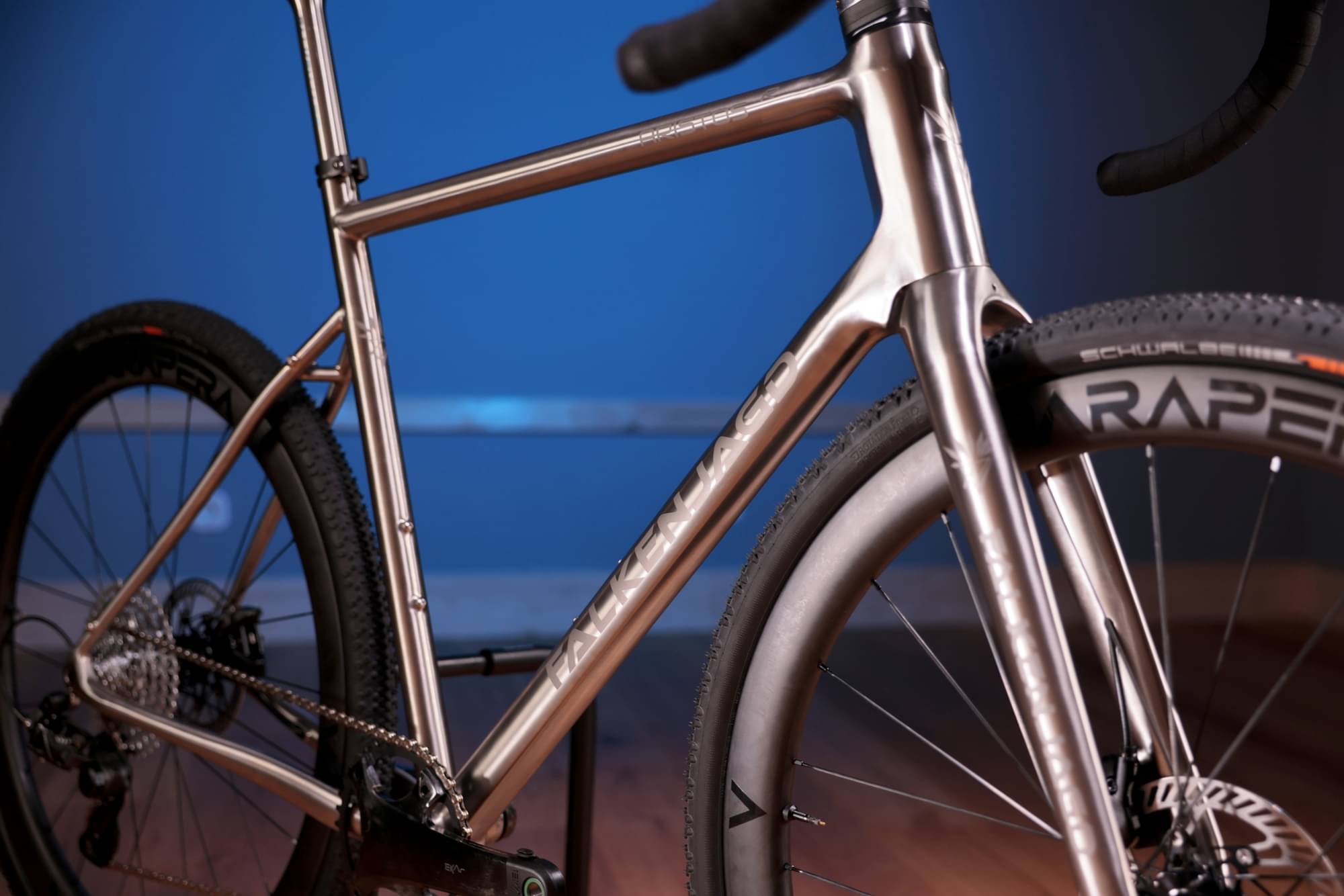

Frame

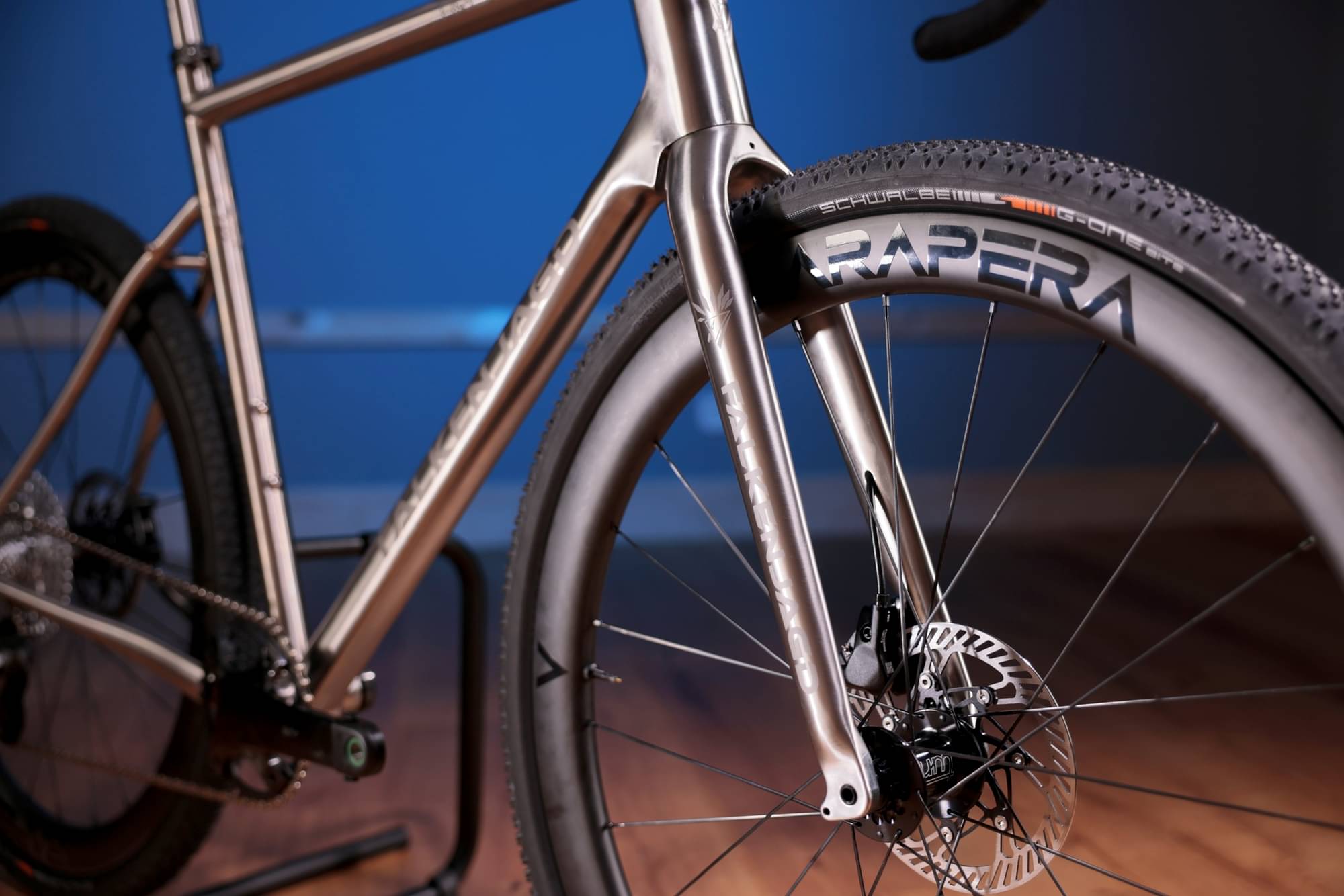

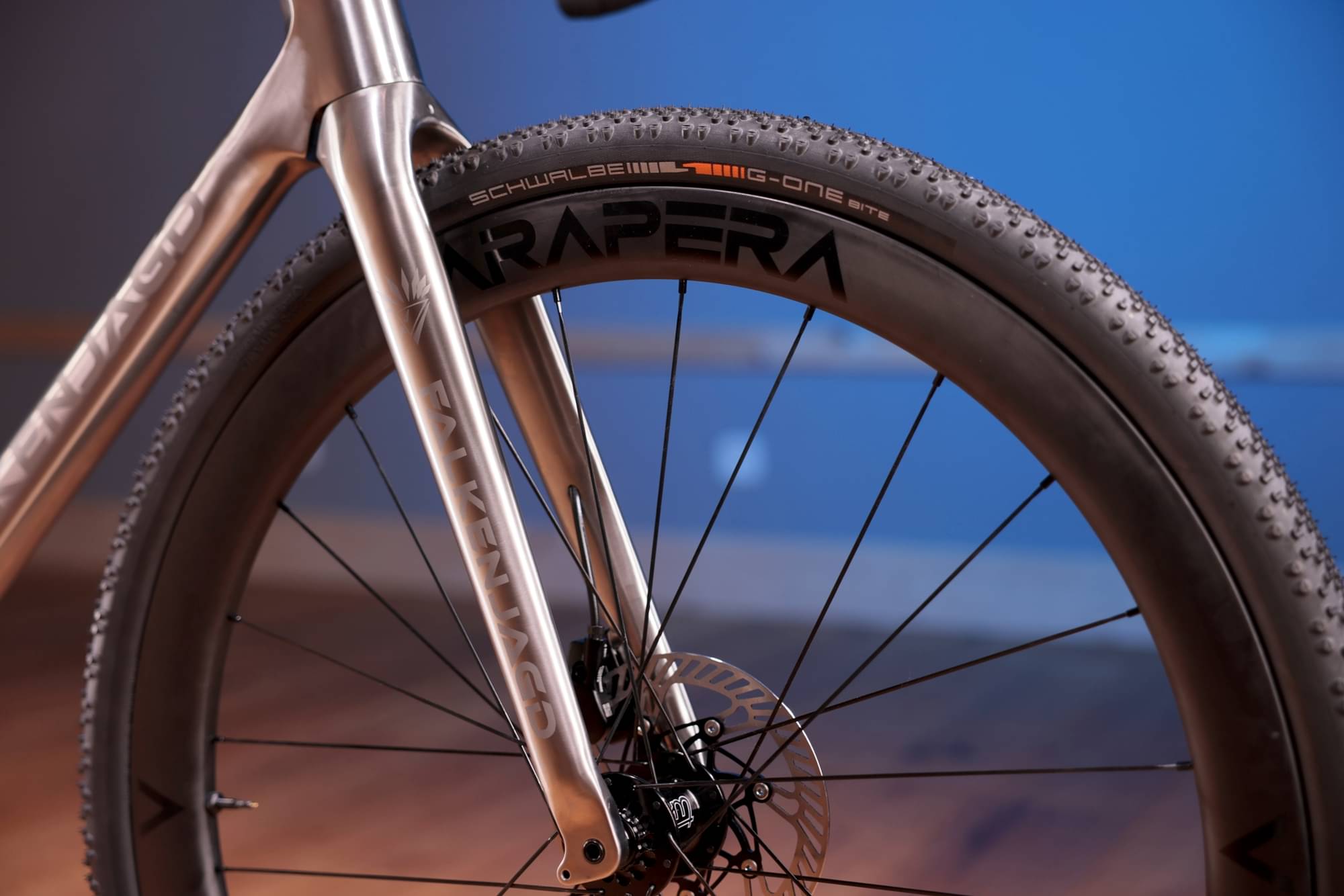

Suspension Fork
Falcon Hunting Titan Gravel 3D

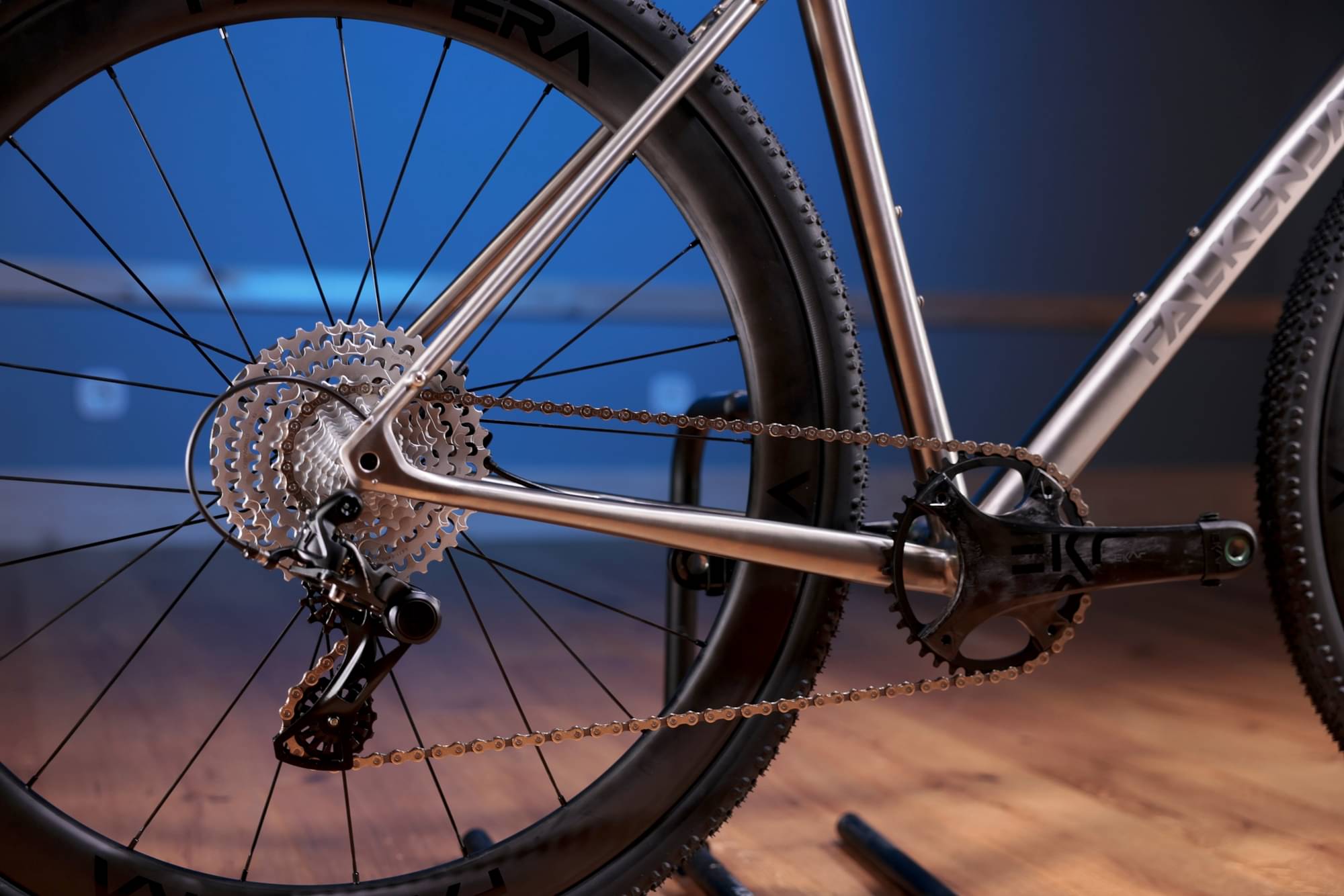

Drivetrain

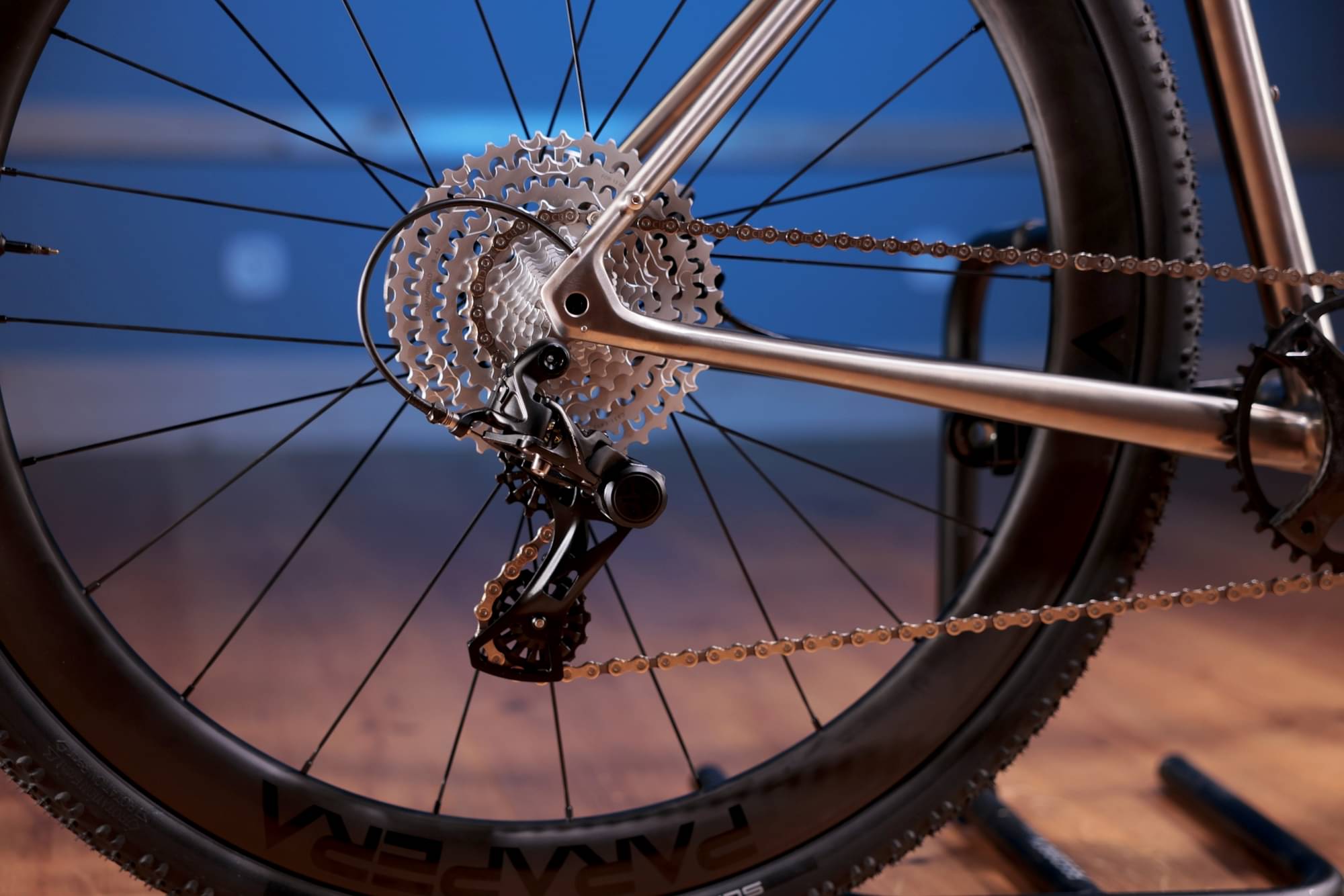

Rear Derailleur
Campagnolo Ekar 1x 13
Cassette
EKAR 13-speed 10-44 teeth

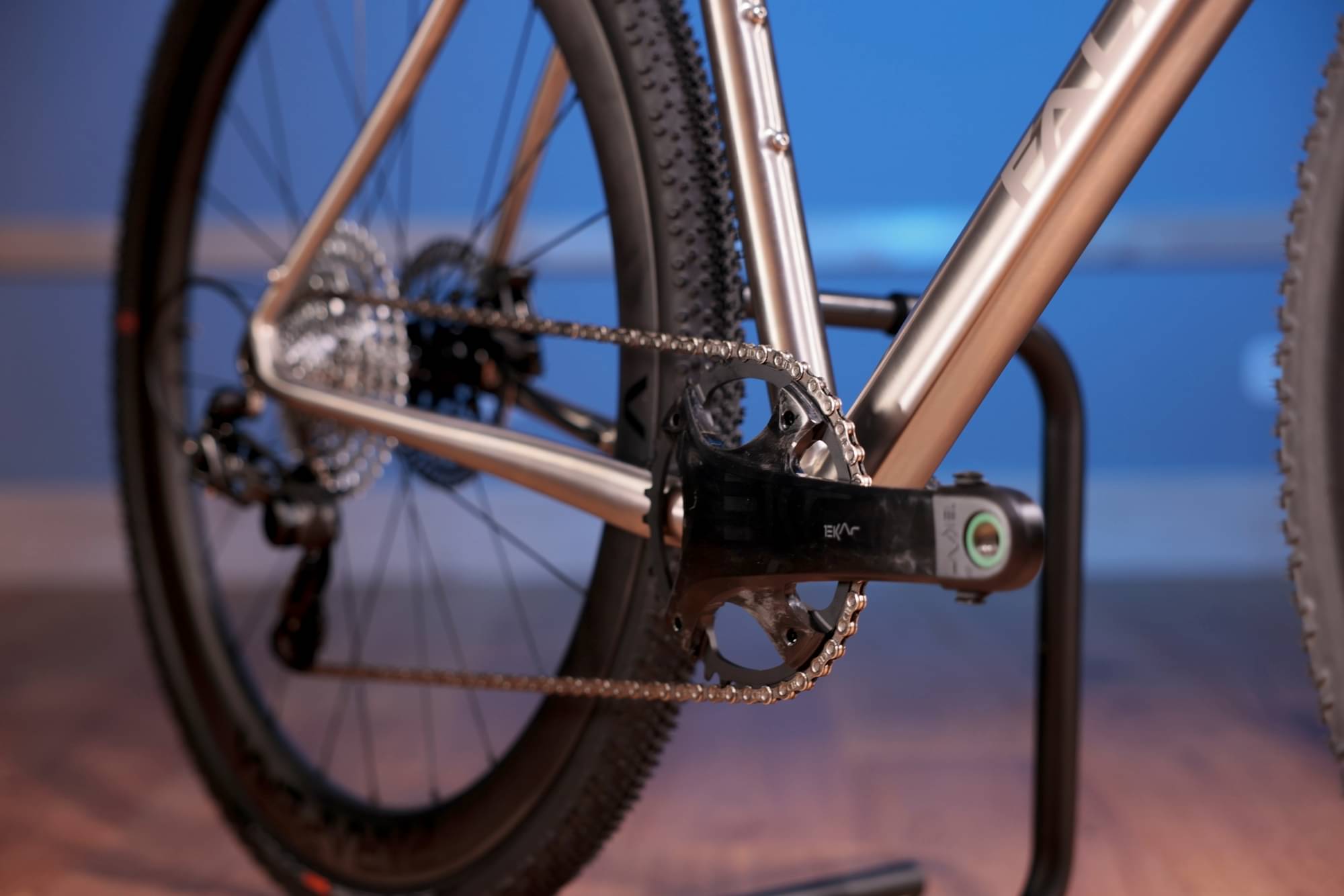

Crank
EKAR 13-speed 38T.
Pedals
without
Wheels
Rims
Campagnolo Shamal Carbon Disc 2022

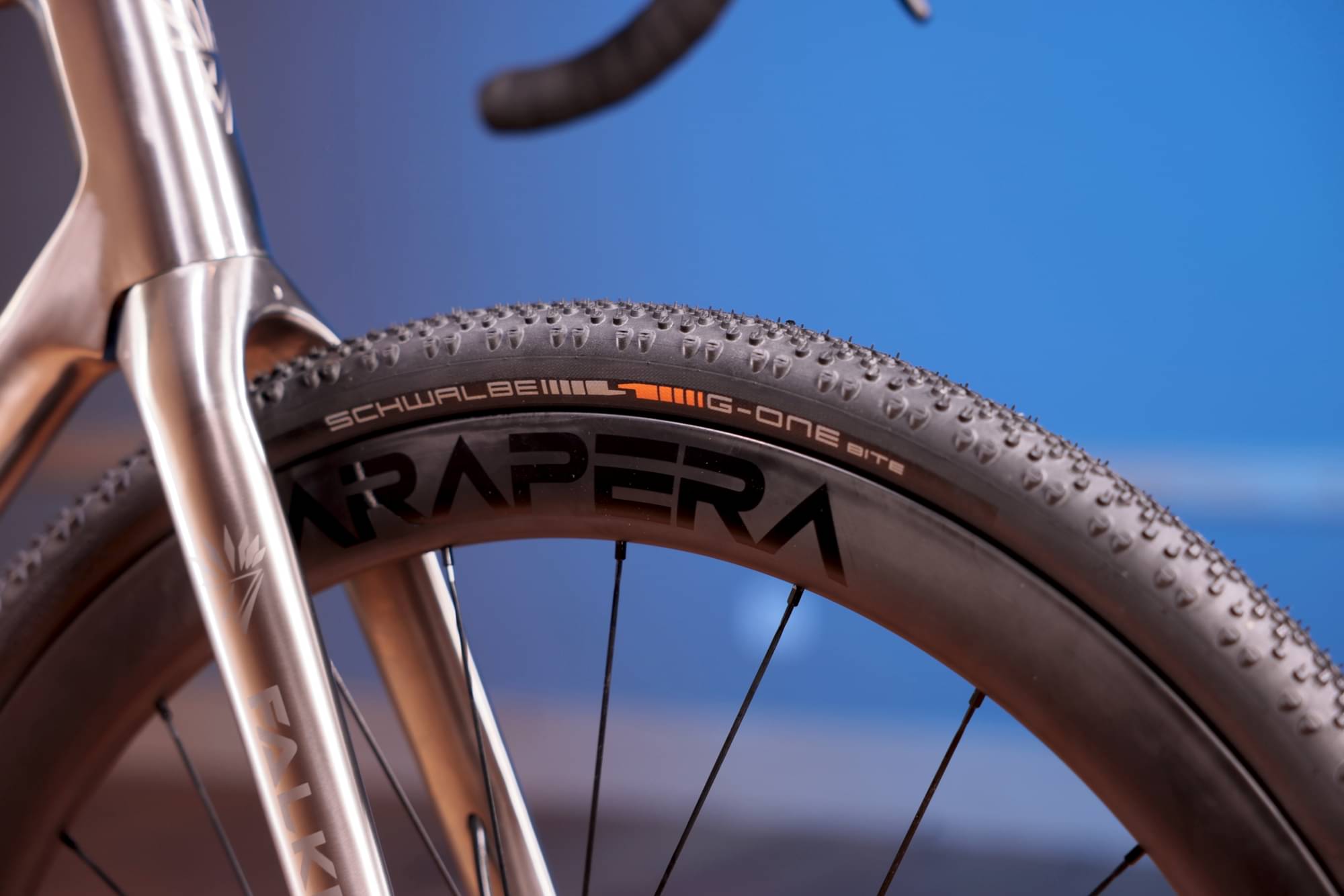

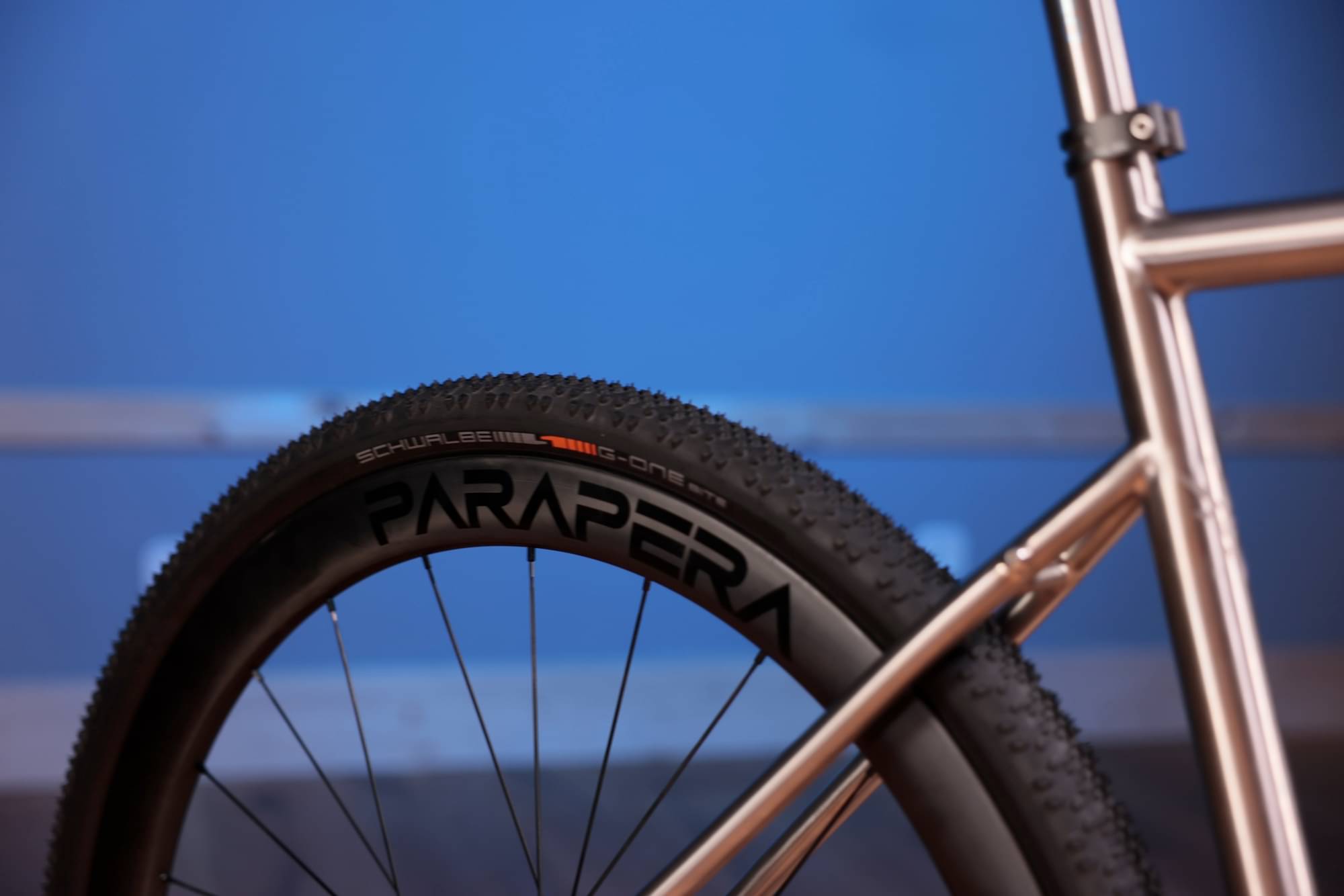

Tires
Schwalbe G One-R 622-40
Brakes
Brakes
Campagnolo Ekar
Cockpit

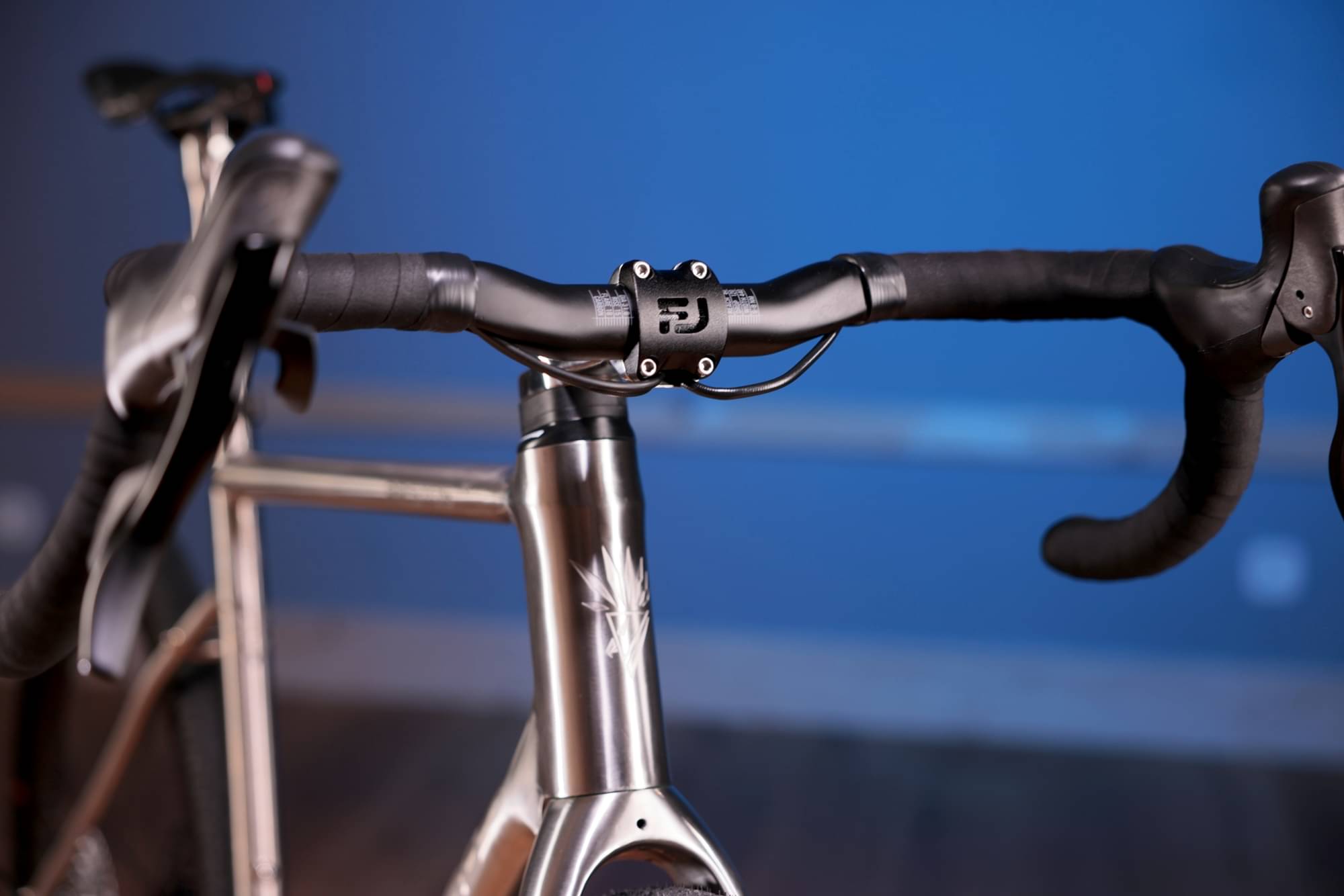

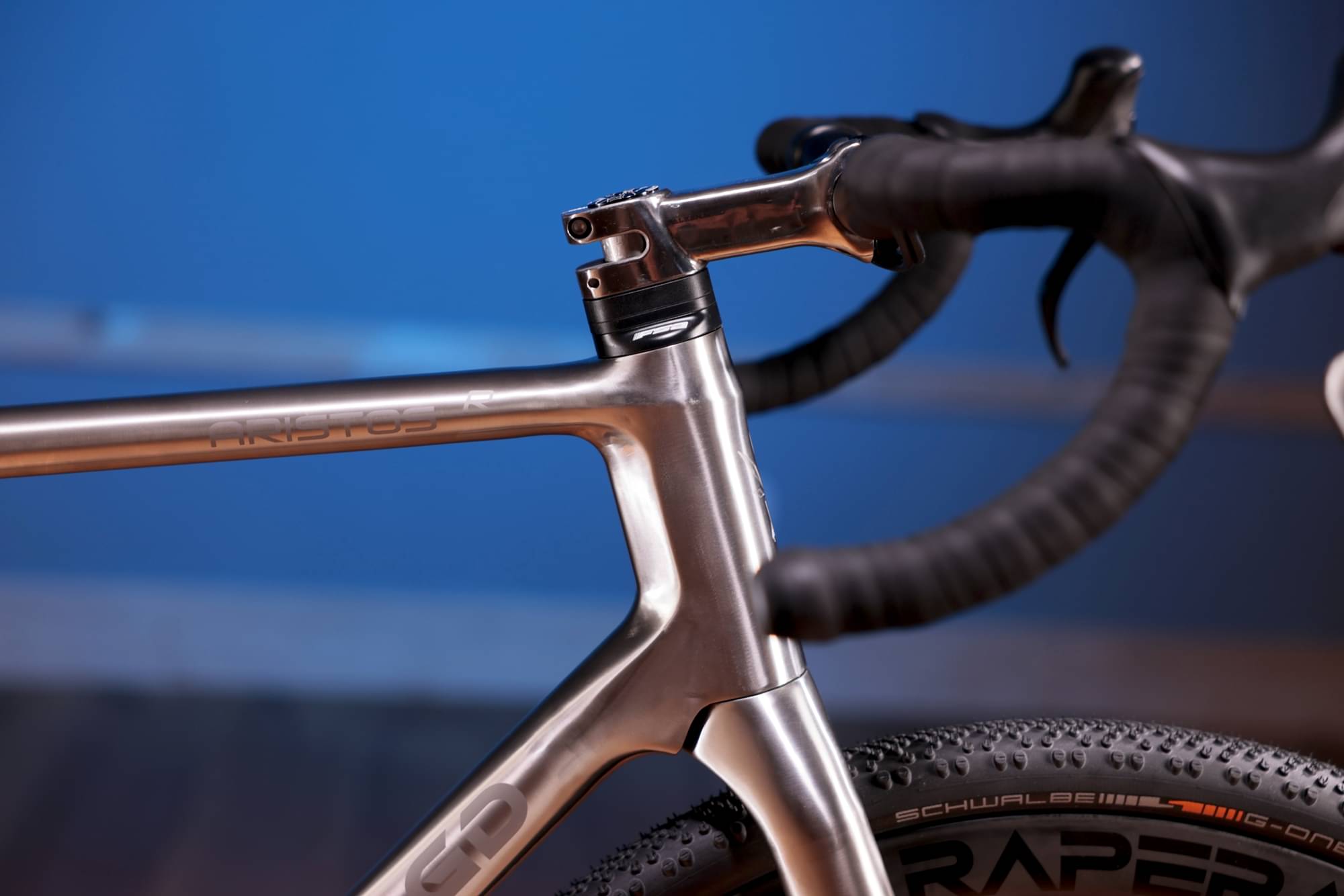

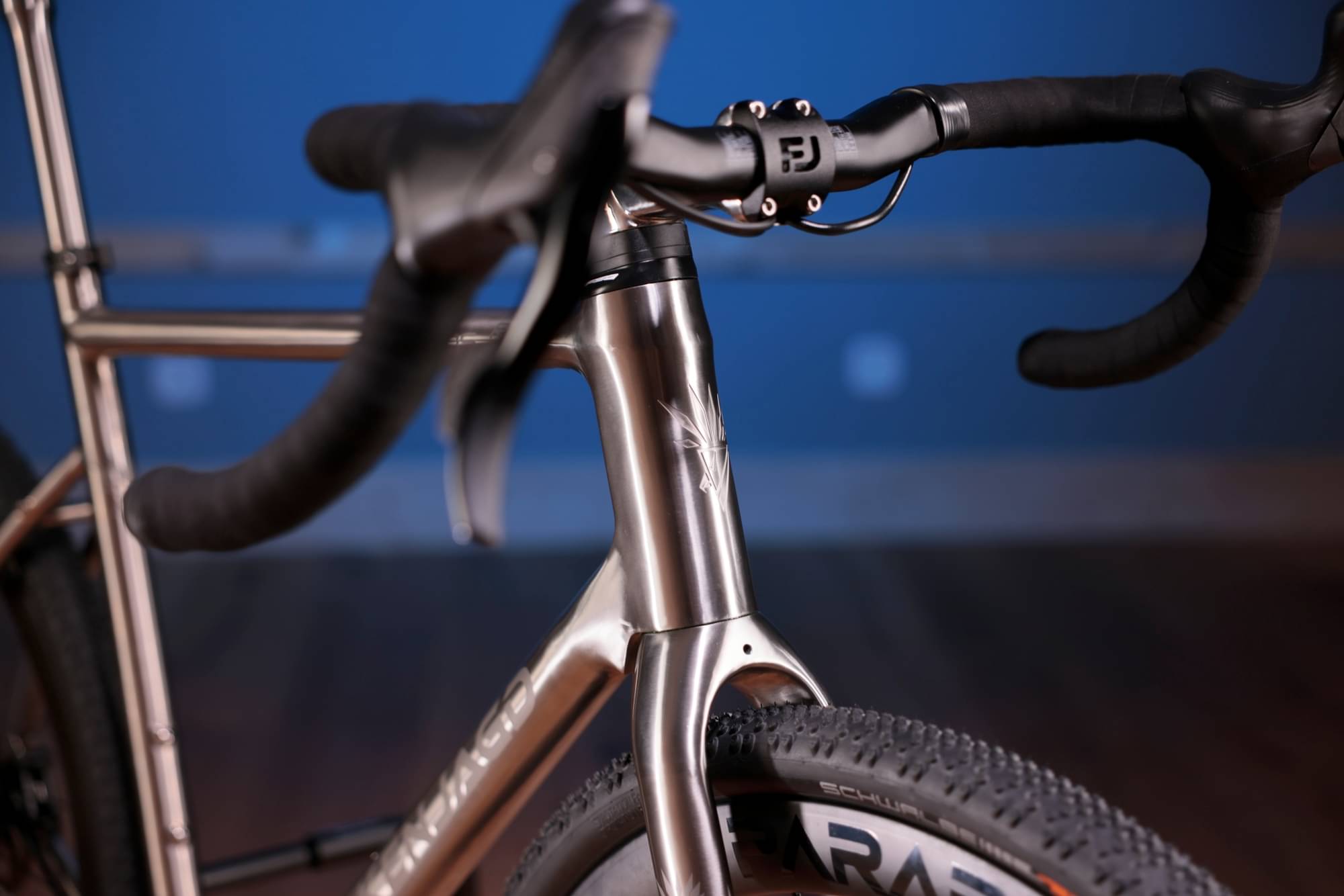

Stem
Falconry Titan

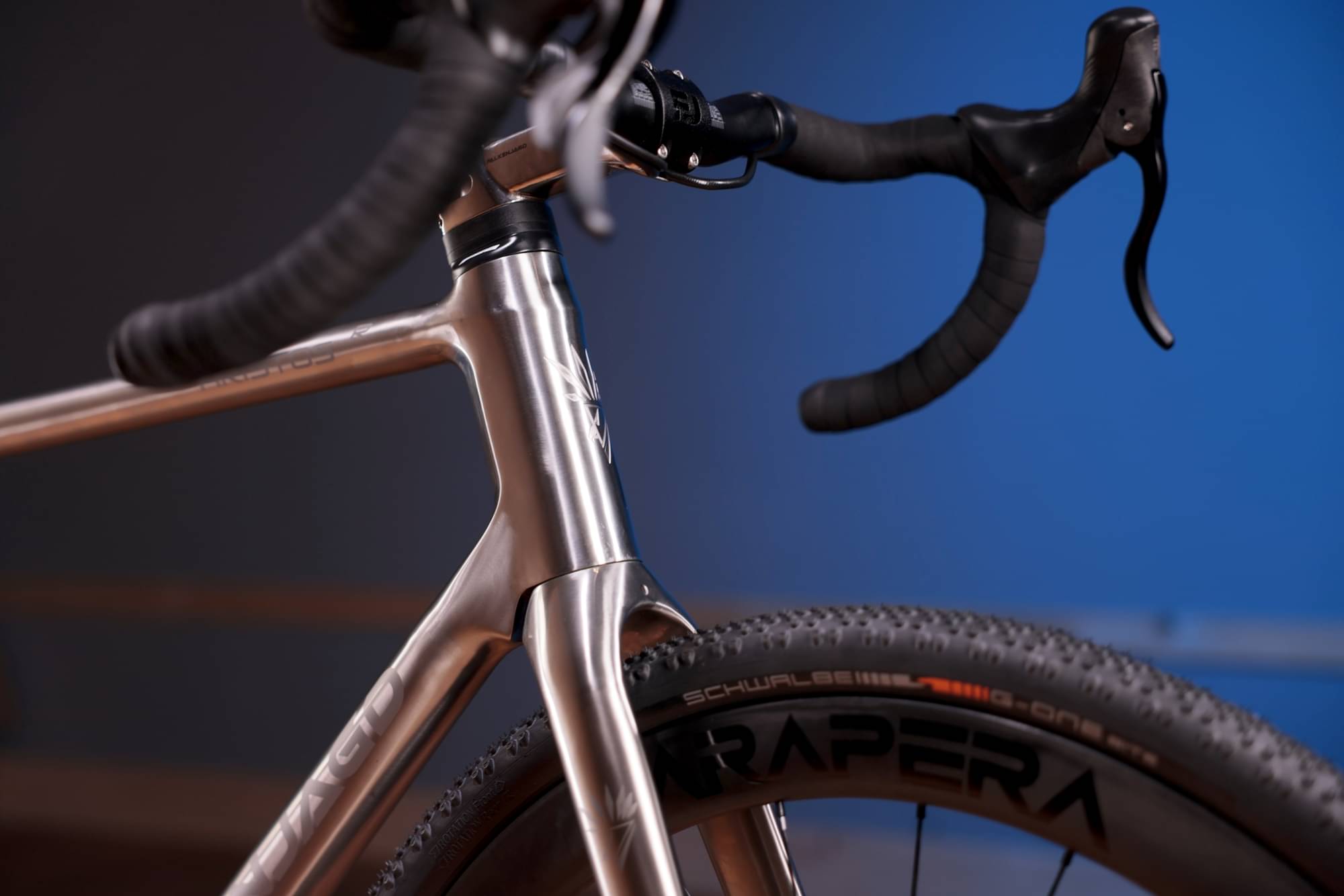

Handlebar
Syntace Racelite 420mm
Seat
Saddle
without

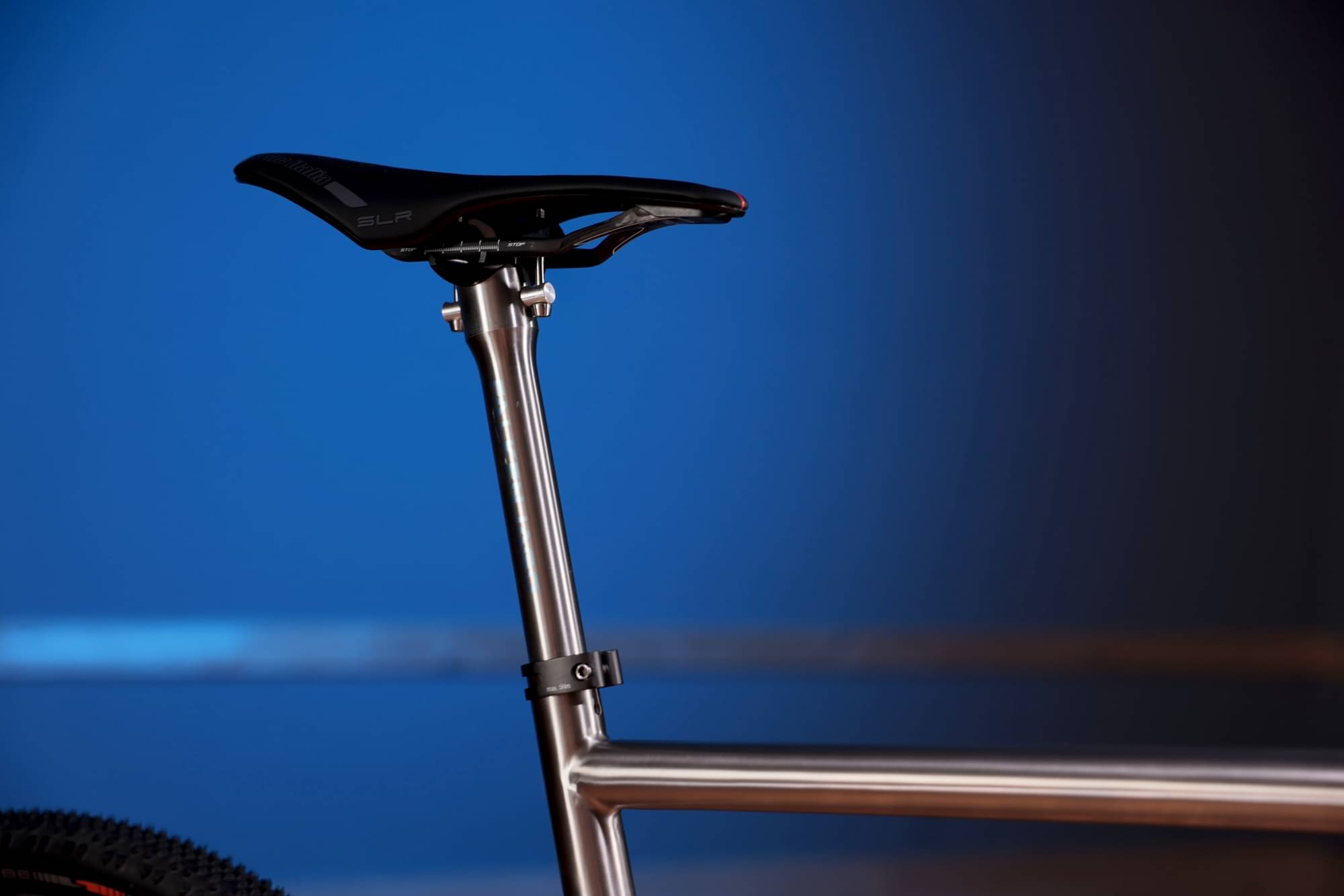

Seatpost
Parapera Carbon extralight
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.483 mm | 1.529 mm | 1.548 mm | 1.555 mm | 1.458 mm |
| Stack | 559 mm | 587 mm | 607 mm | 619 mm | 621 mm |
| Reach | 377 mm | 384 mm | 392 mm | 398 mm | 426 mm |
| Top Tube Length | 545 mm | 560 mm | 575 mm | 590 mm | 625 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 130 mm | 155 mm | 170 mm | 180 mm | 185 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
