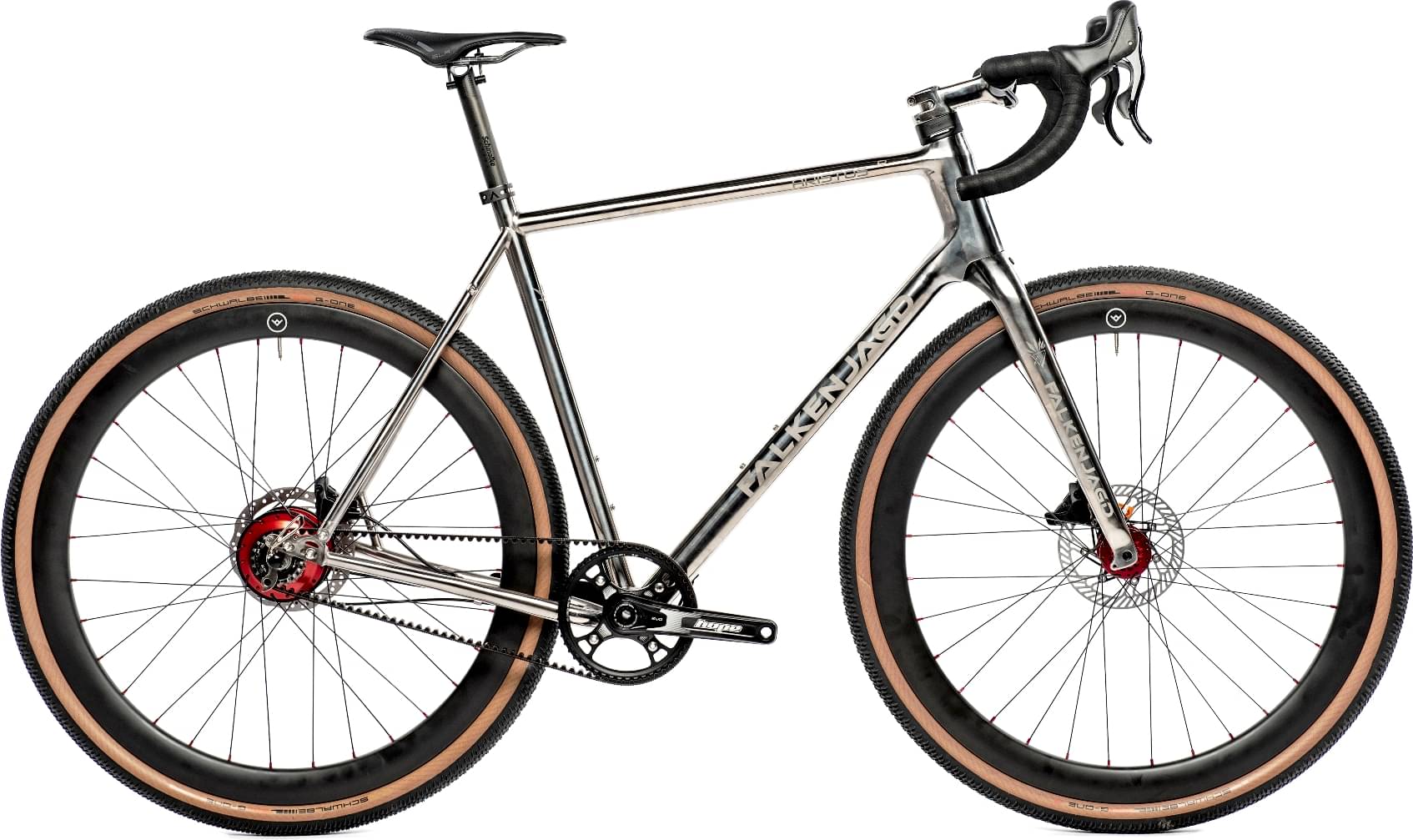

falkenjagd Aristos R Rohloff Gravel 2024
2024 Road
Estimate price |
9,240$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

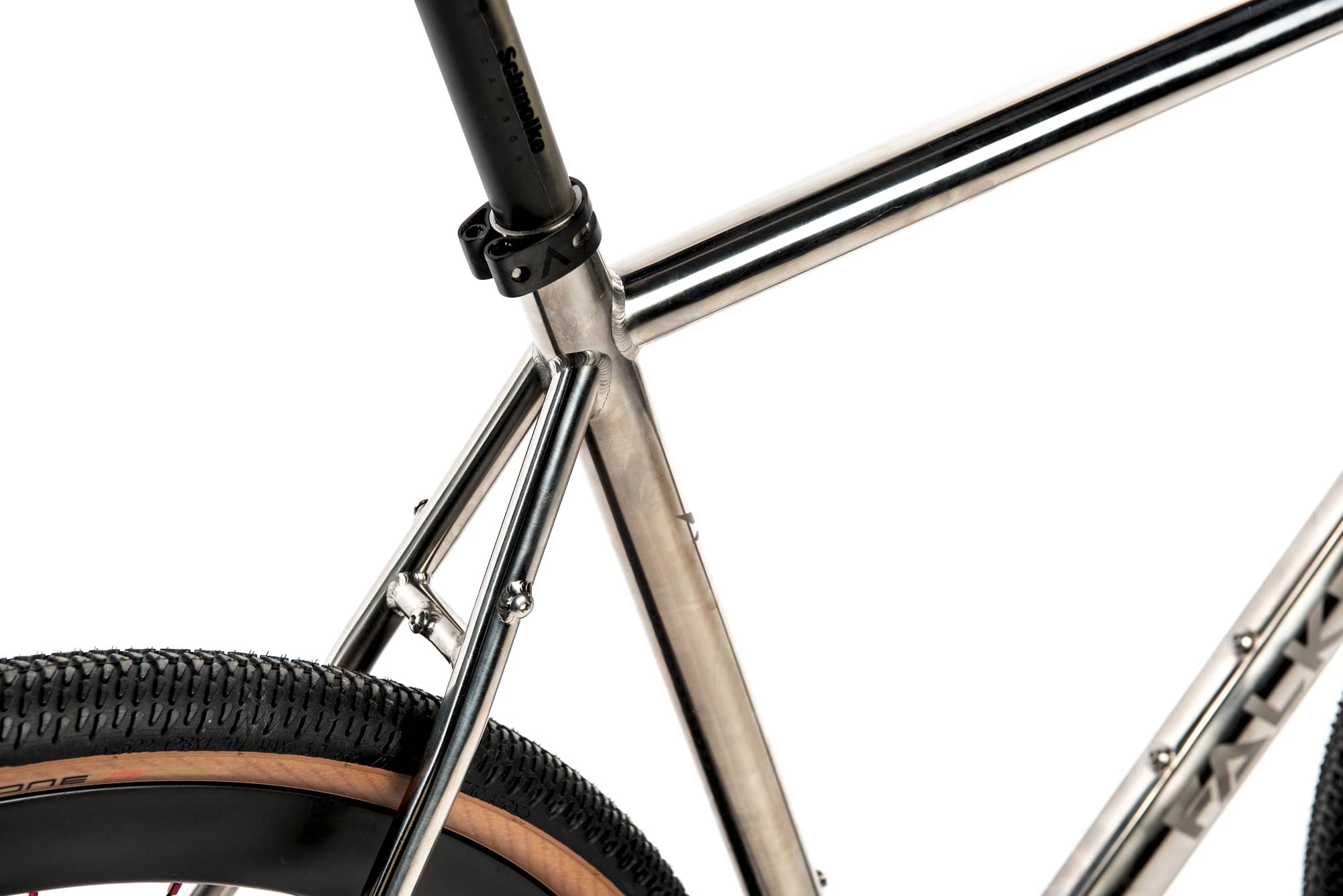

Frame Titanium -
Wheels 700c -
Groupset Gates -
Suspension Rigid -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

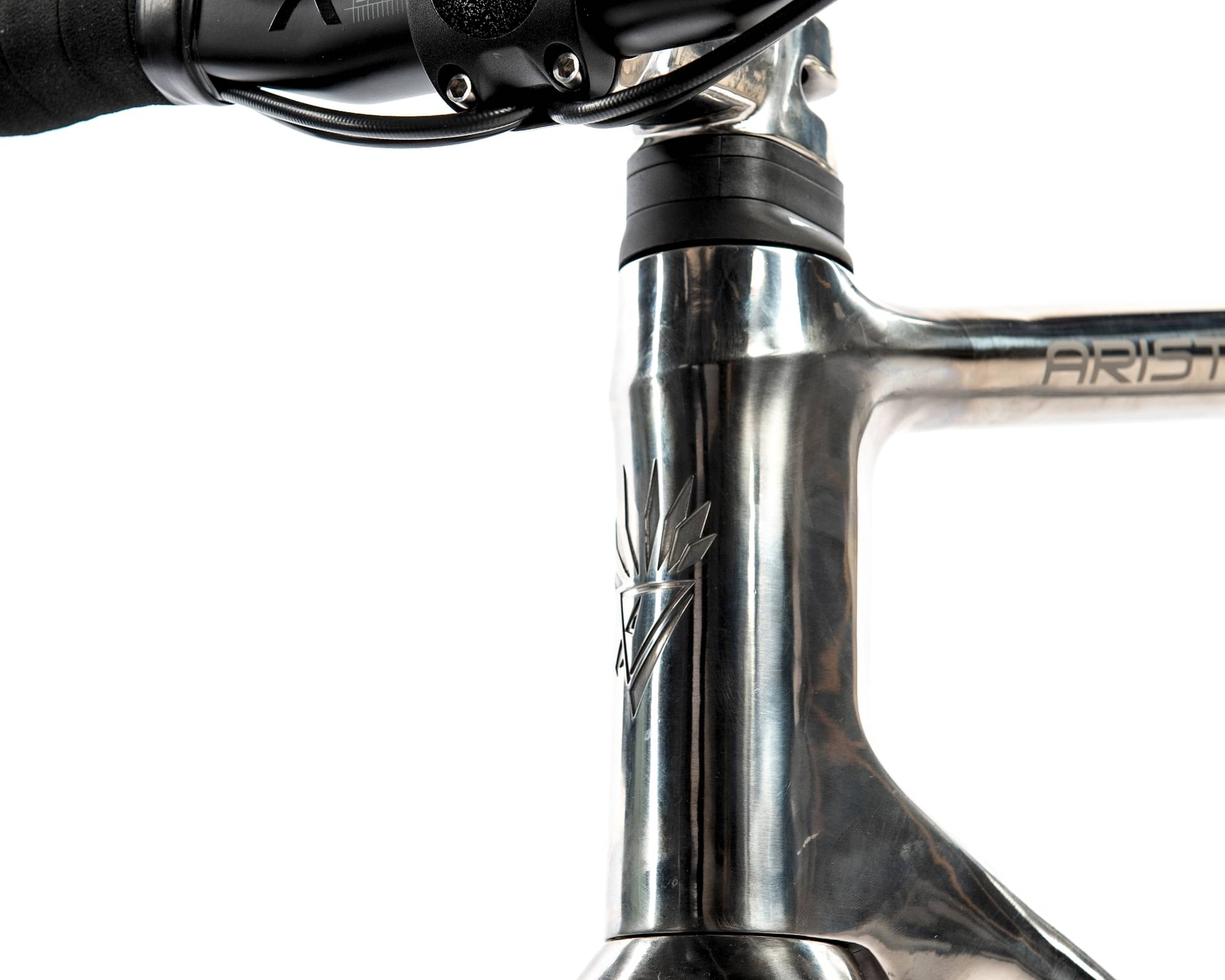

Frame
Suspension Fork

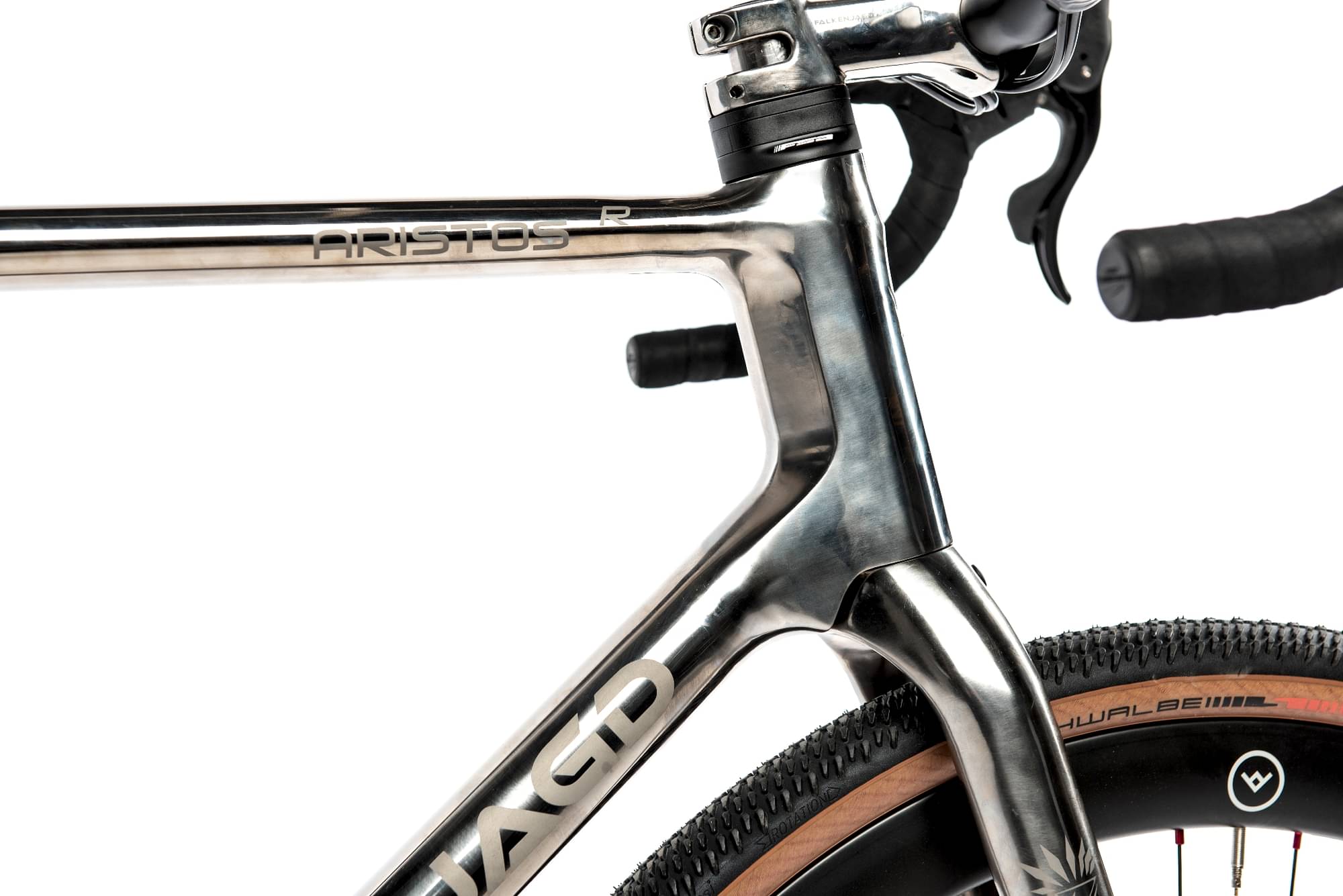

Falcon Hunting Titan Gravel 3D
Drivetrain
Cassette
CDX pulley

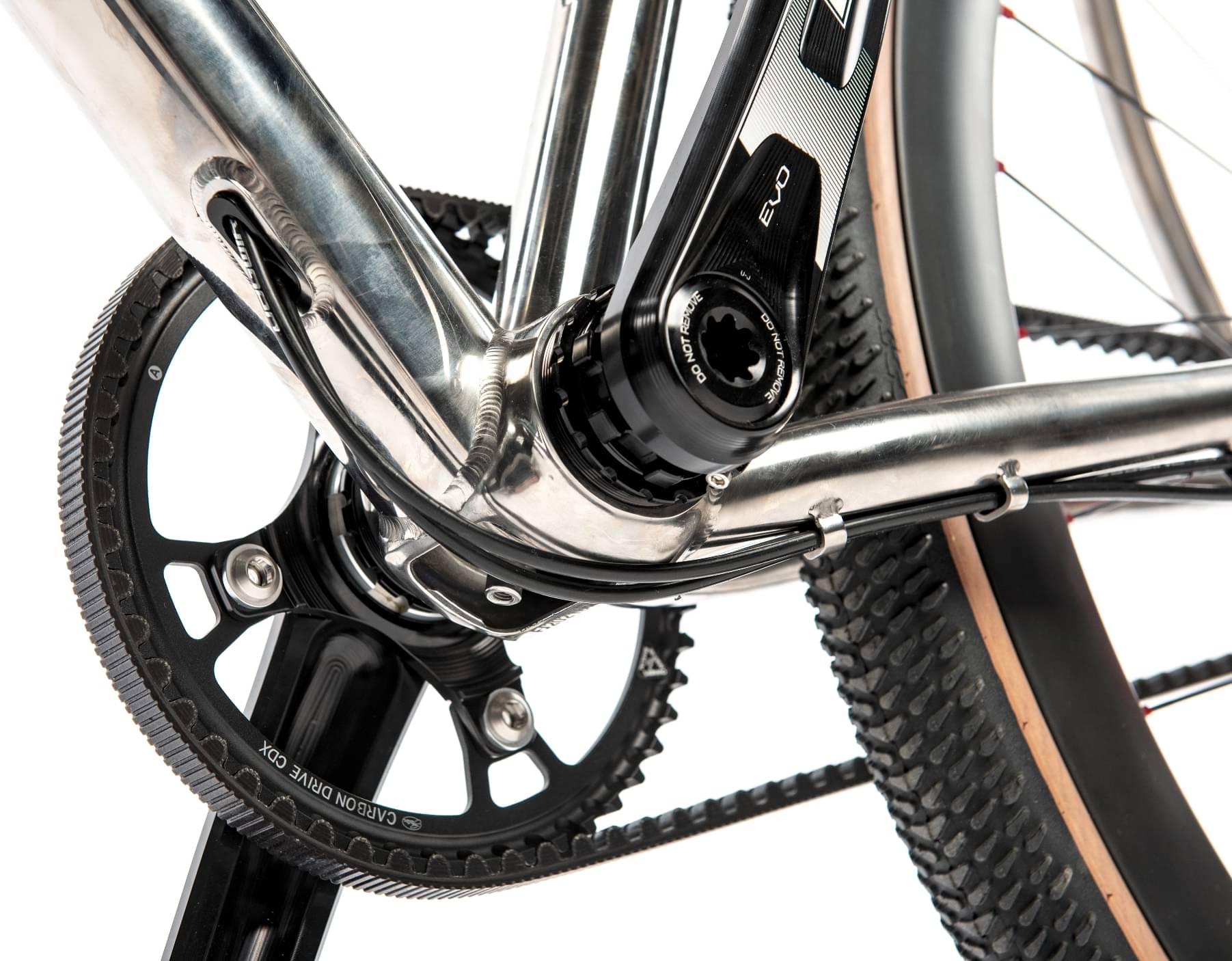

Crank

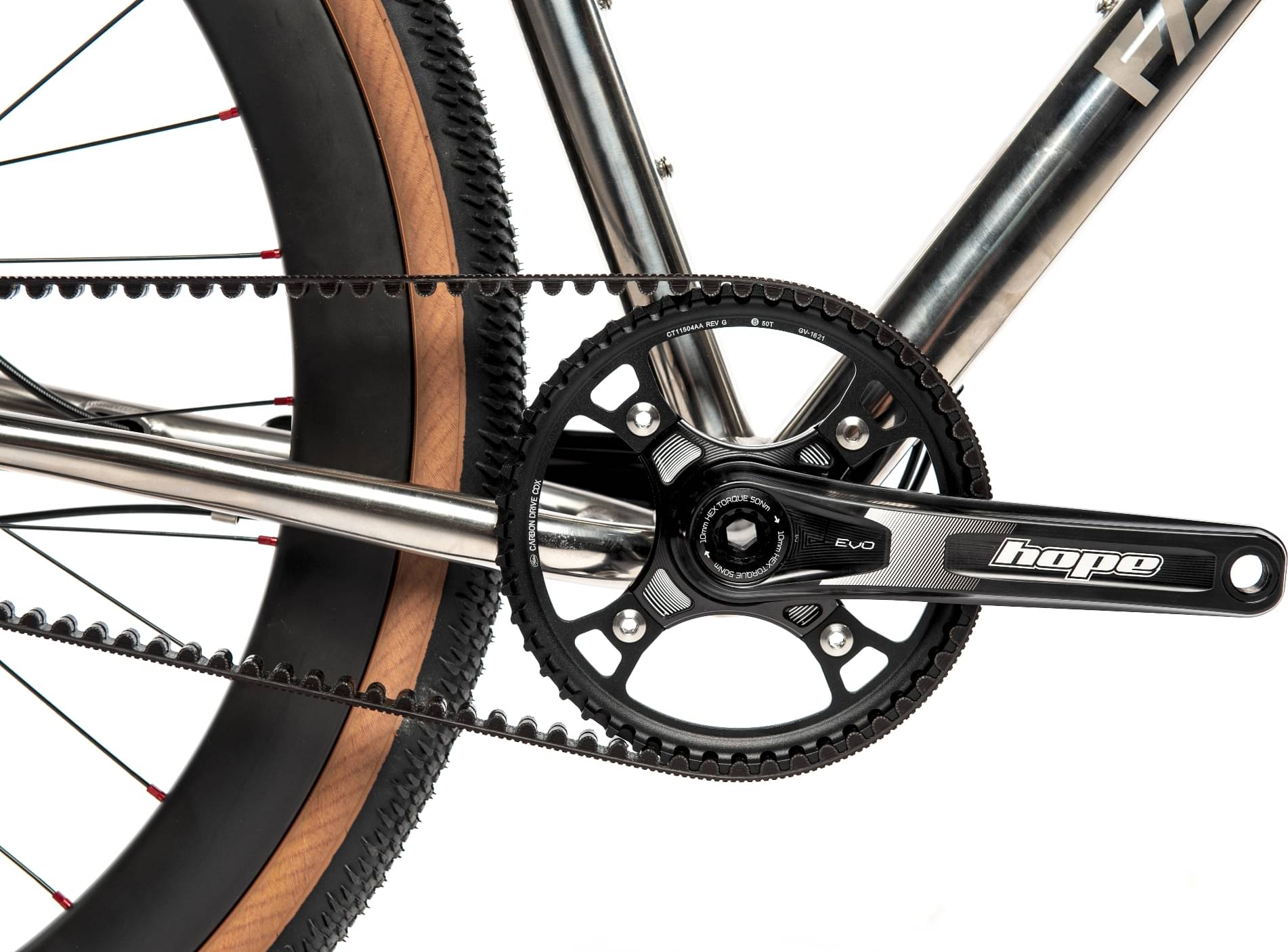

Gates SS550 Carbondrive crankset (175mm)
Pedals
without
Wheels
Rims

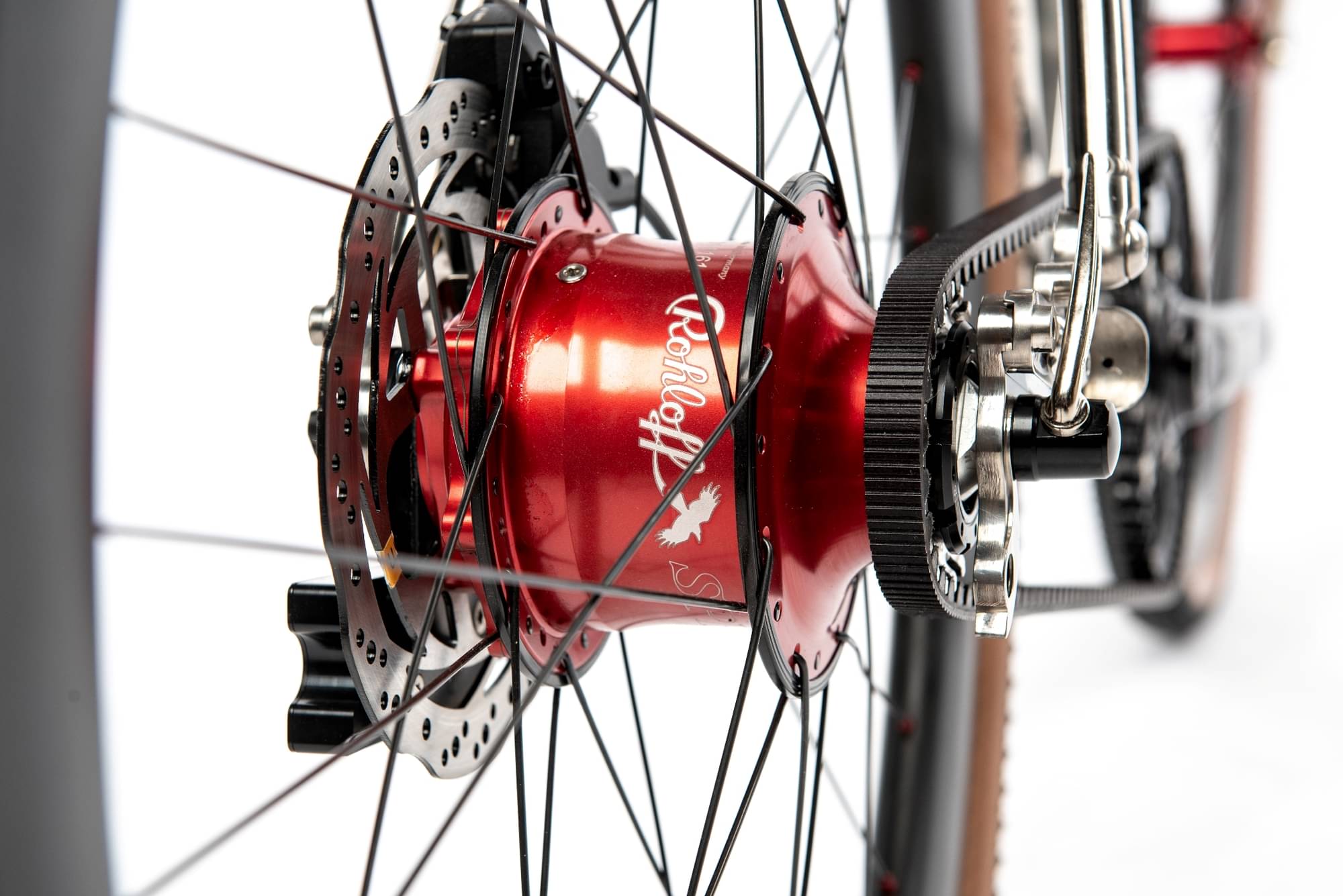

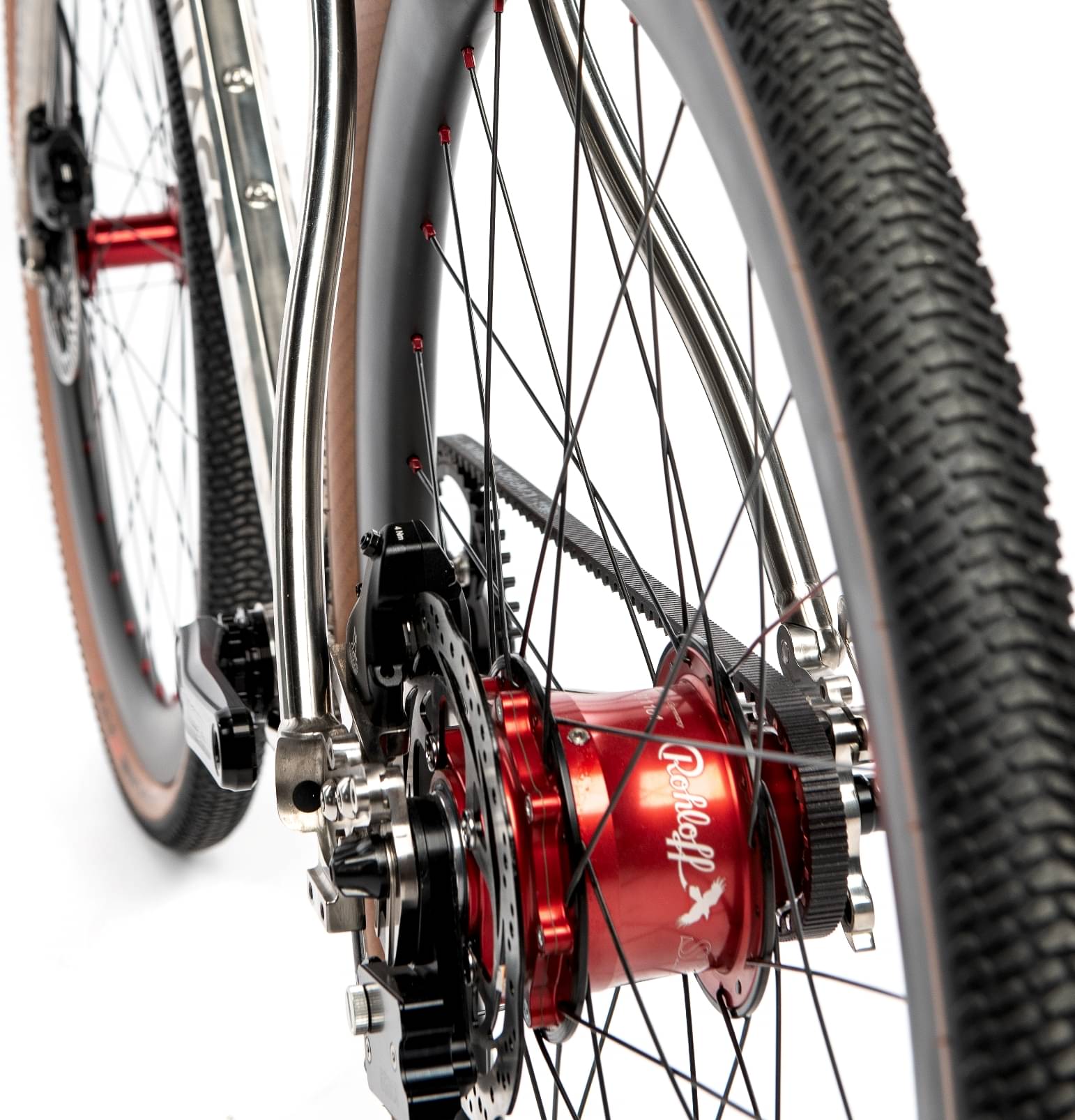

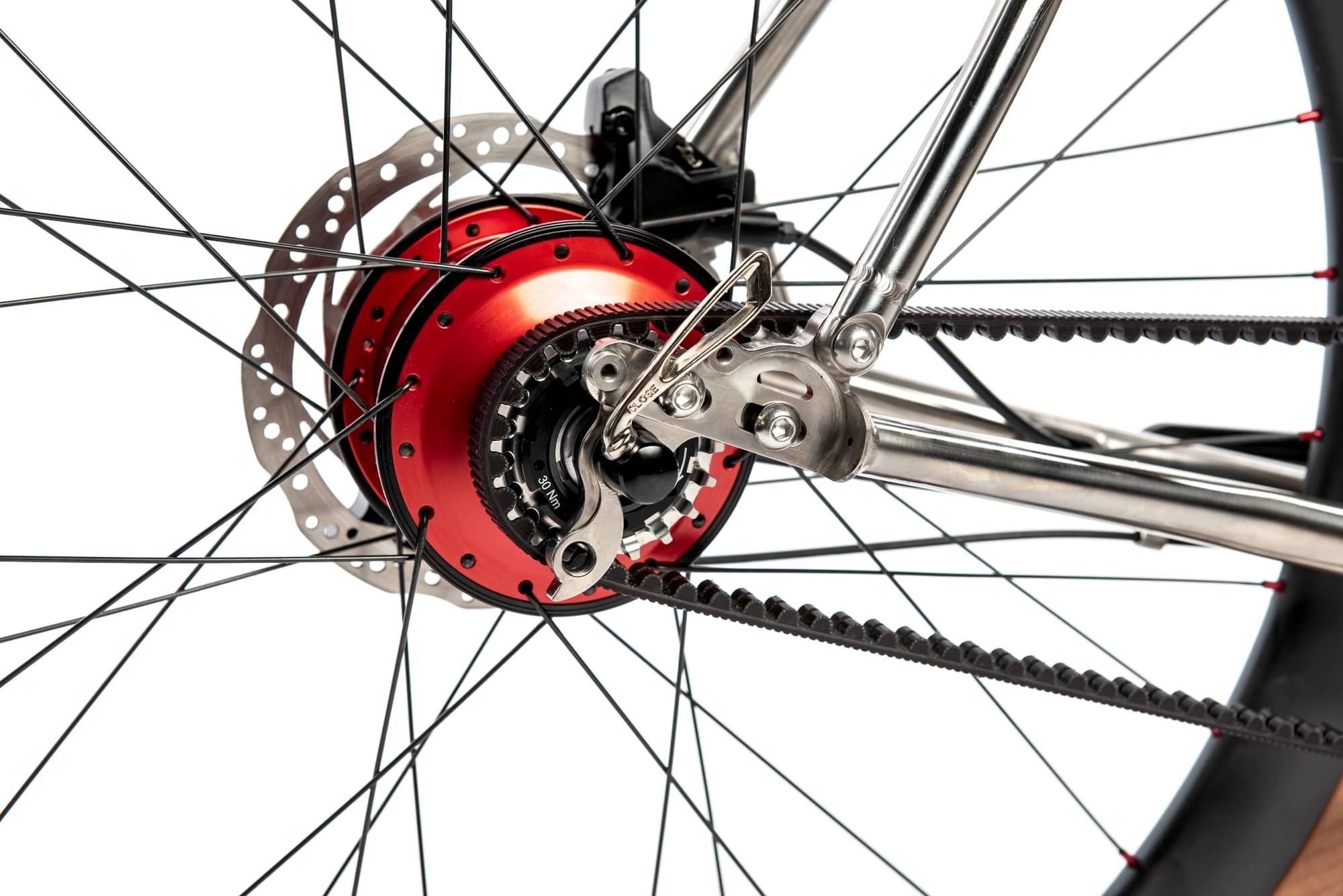

28 inch BLACK: Tune Killhill 12/rear Rohloff/rim Mavic 1025
Tires
Schwalbe G-One Allround 622-35

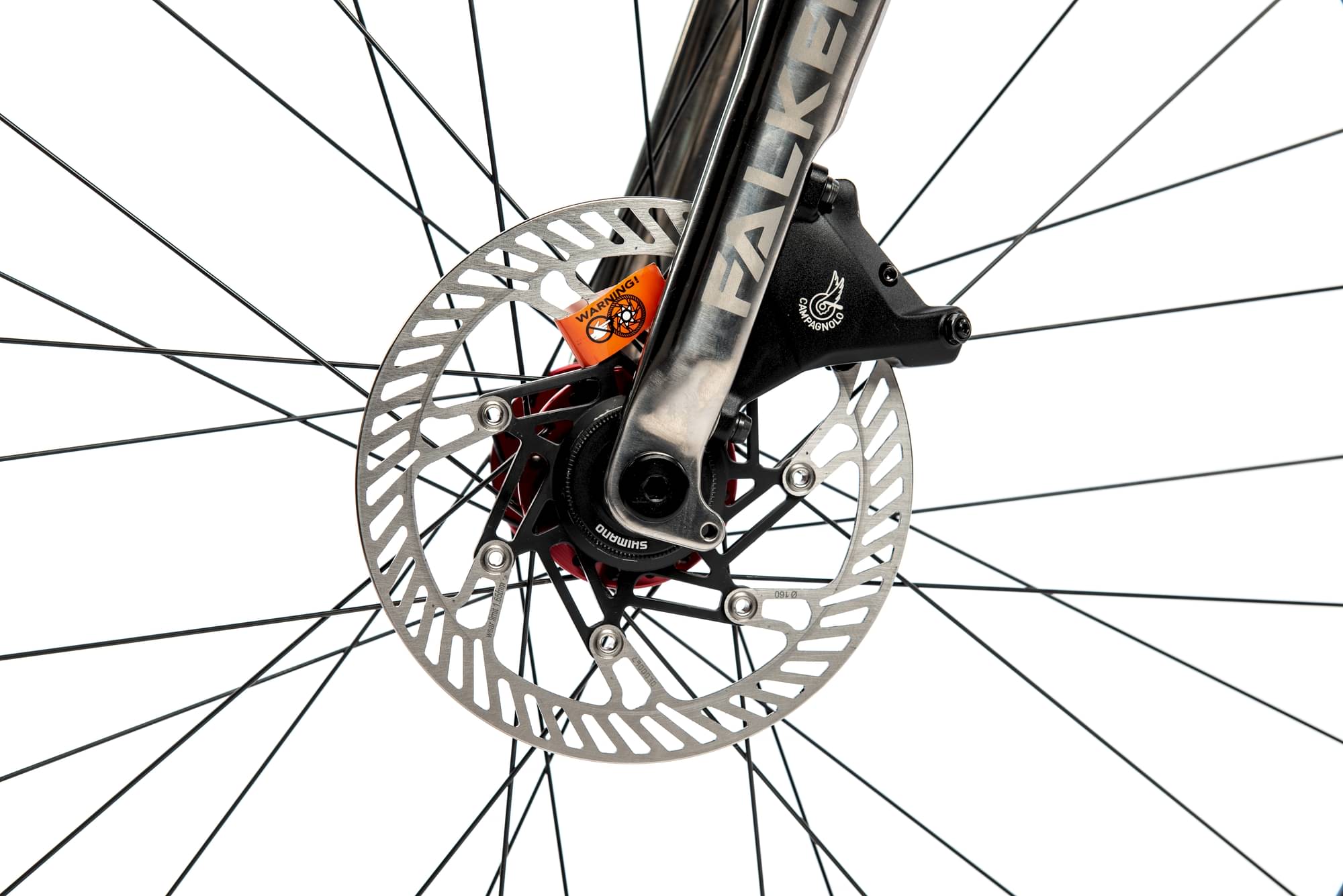

Brakes
Brakes

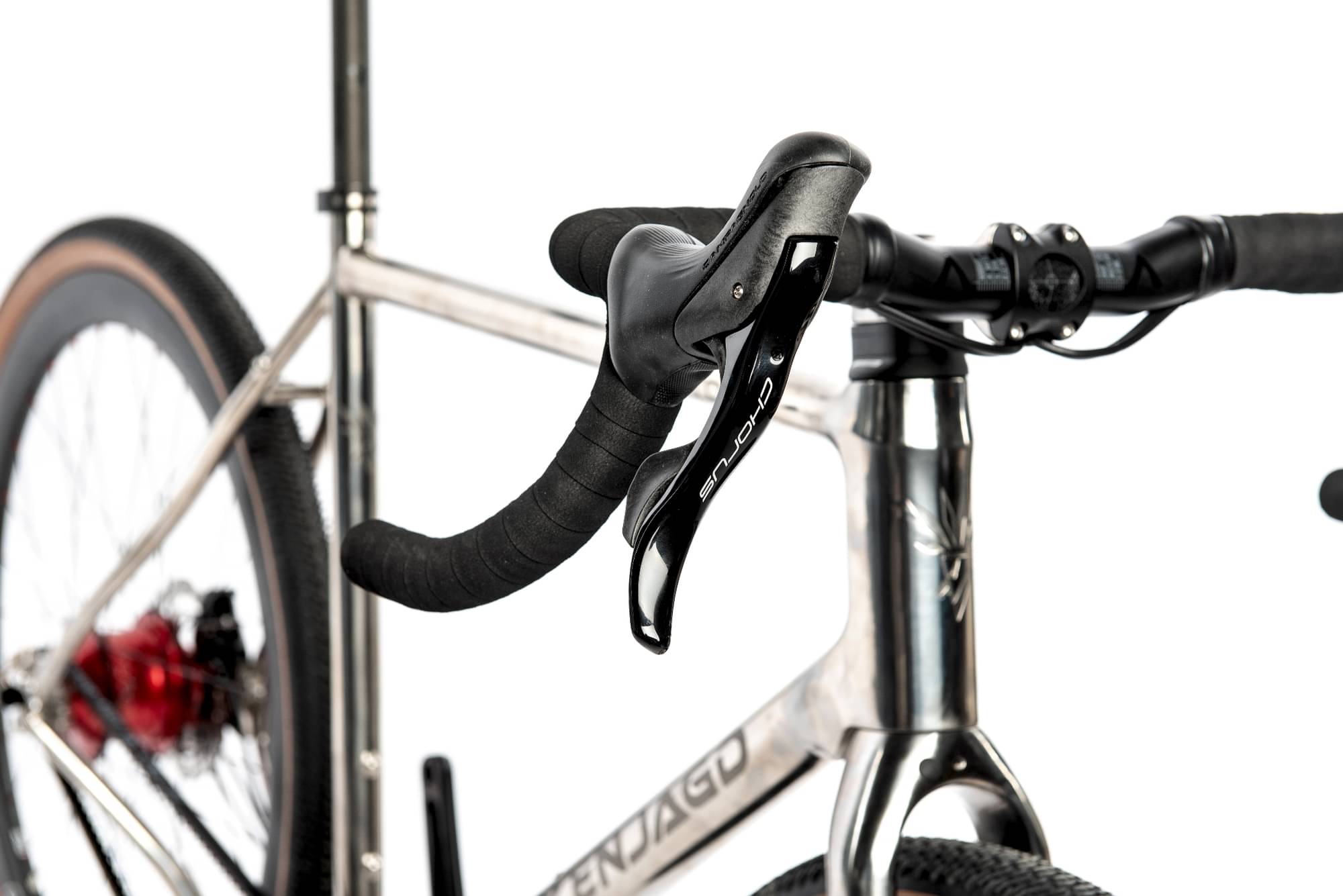

Shimano GRX
Cockpit

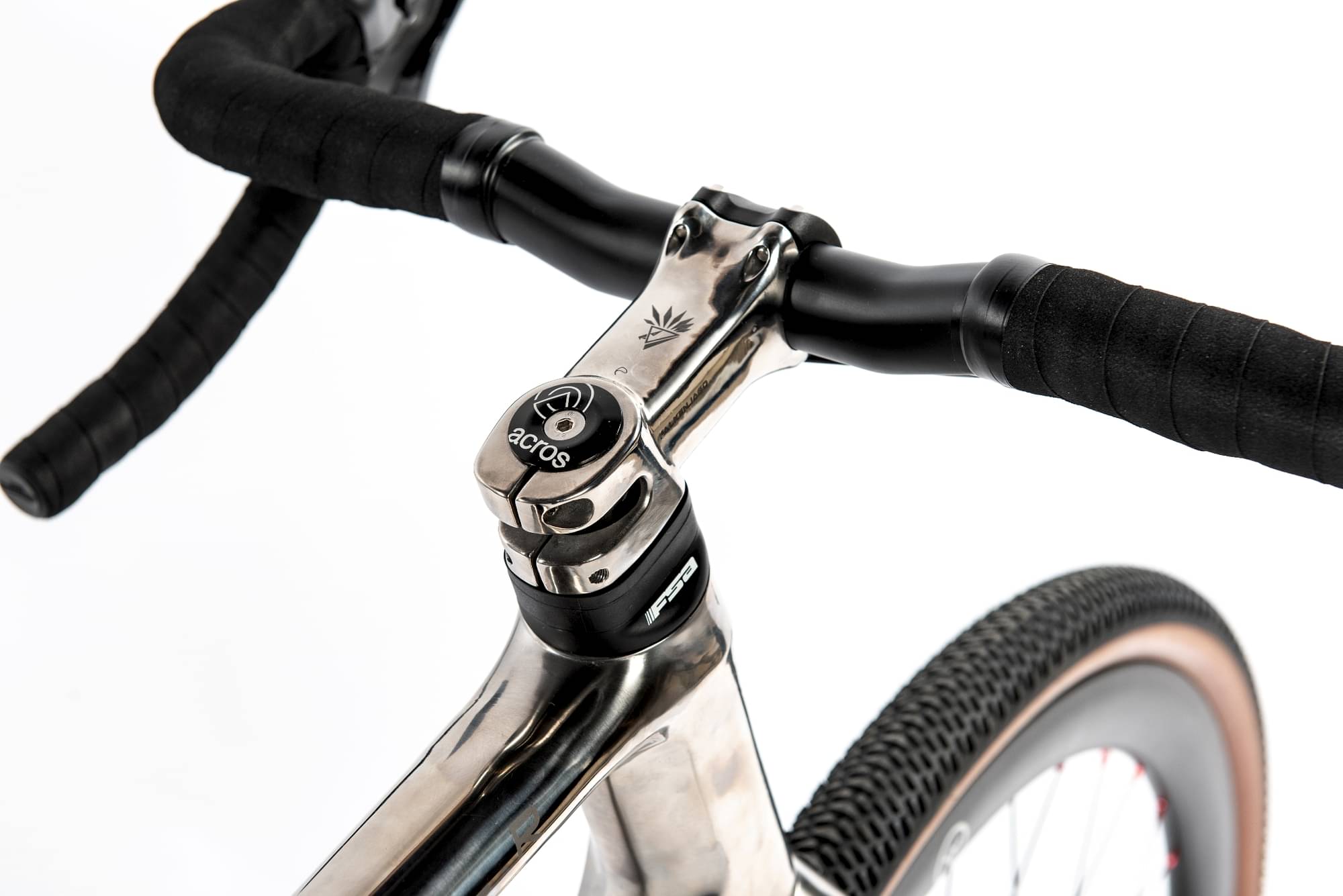

Stem

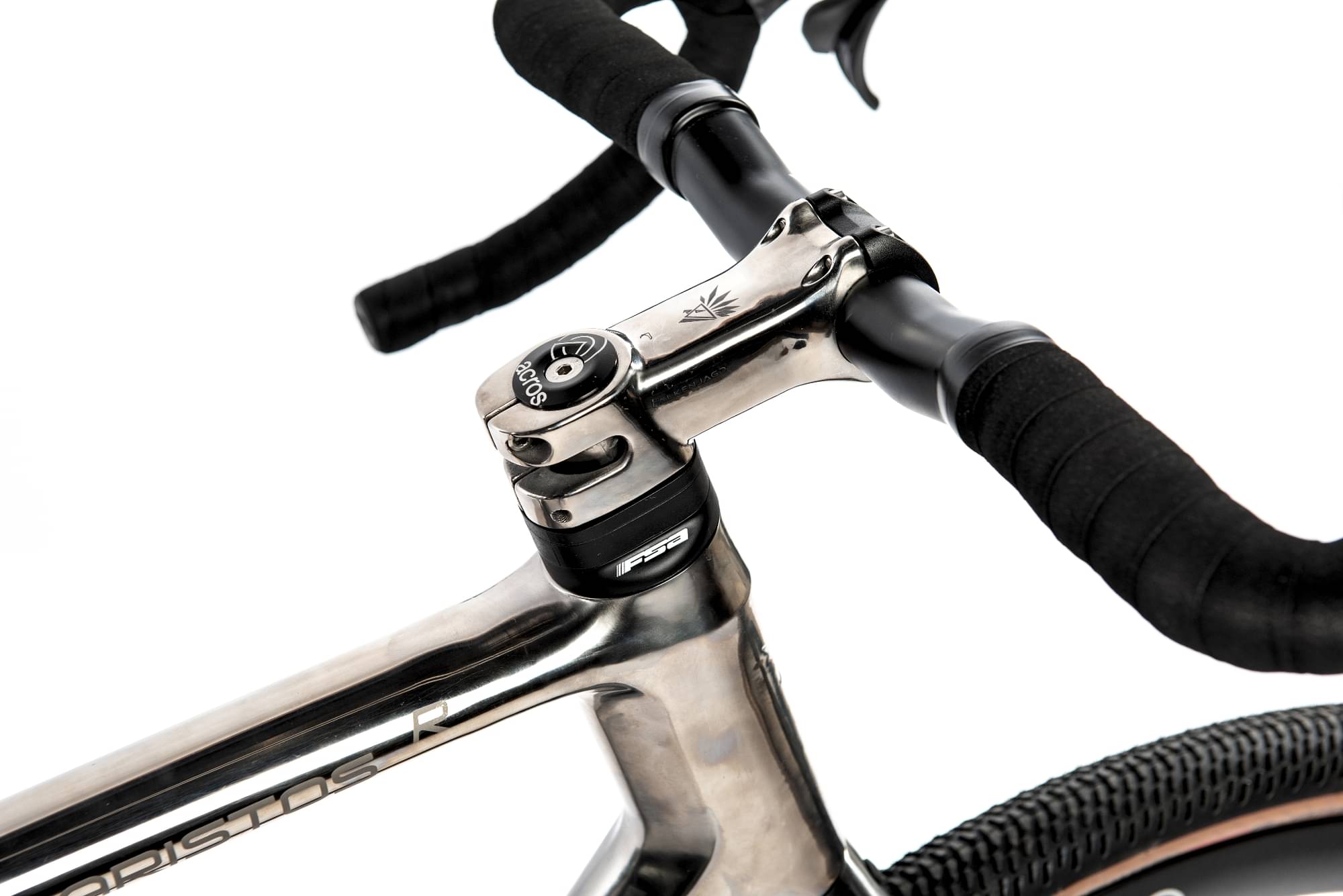

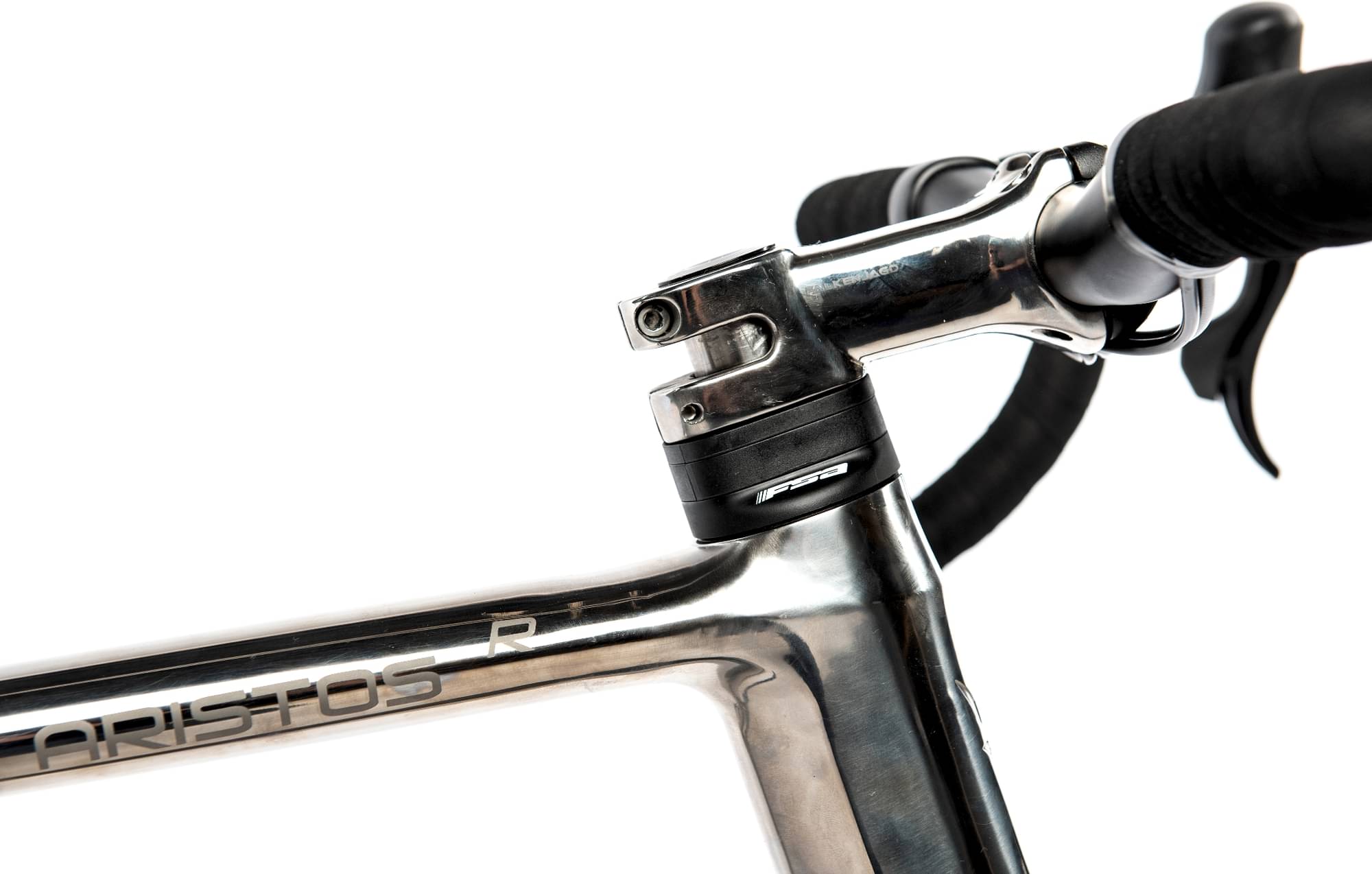

Falconry Titan

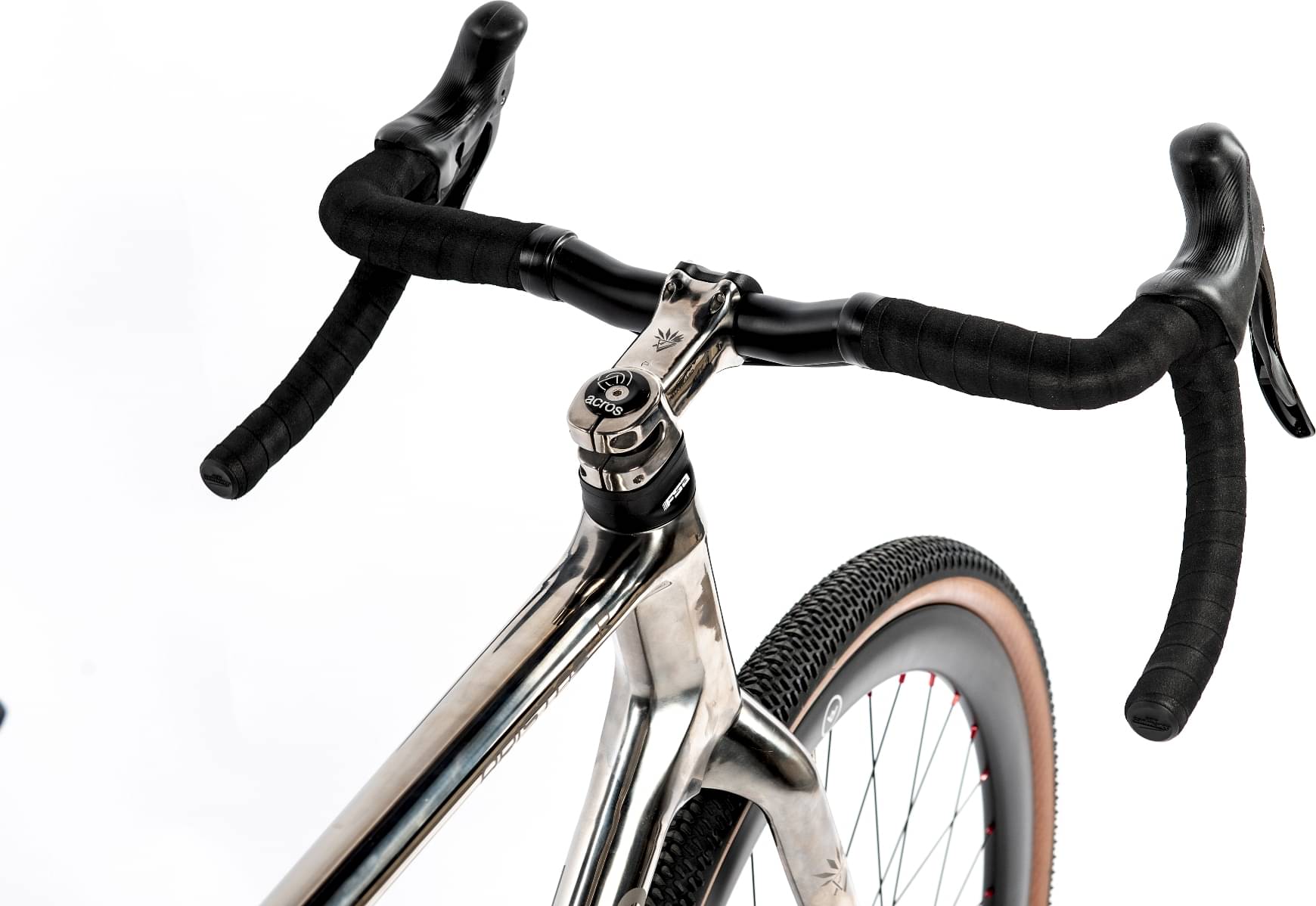

Handlebar

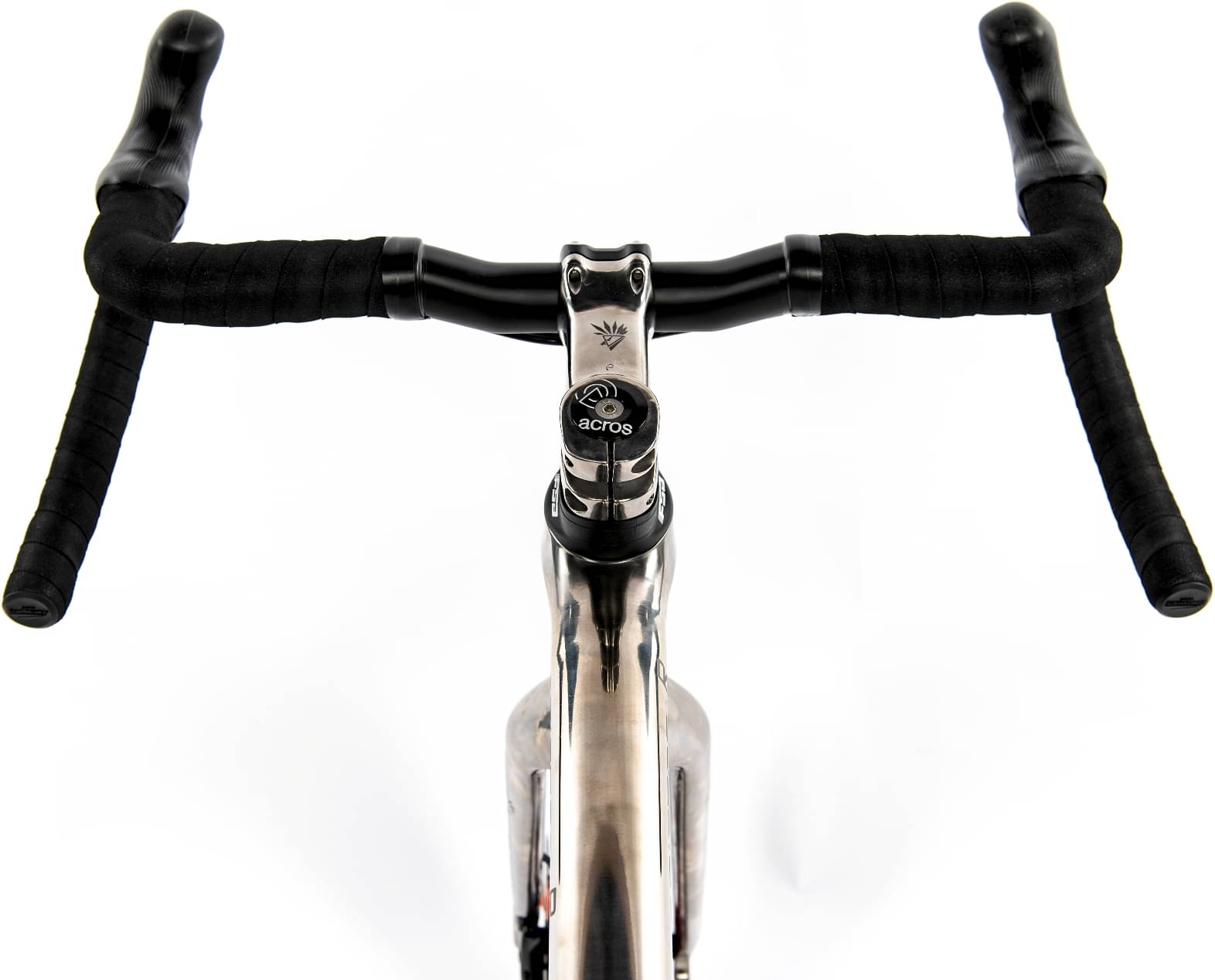

DXC Gravel
Seat
Saddle
without
Seatpost
Carbon racing steel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.454 mm | 1.448 mm | 1.482 mm | 1.505 mm | 1.443 mm |
| Stack | 548 mm | 562 mm | 587 mm | 608 mm | 619 mm |
| Reach | 377 mm | 388 mm | 396 mm | 404 mm | 429 mm |
| Top Tube Length | 540 mm | 555 mm | 570 mm | 590 mm | 625 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 120 mm | 130 mm | 155 mm | 175 mm | 185 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
