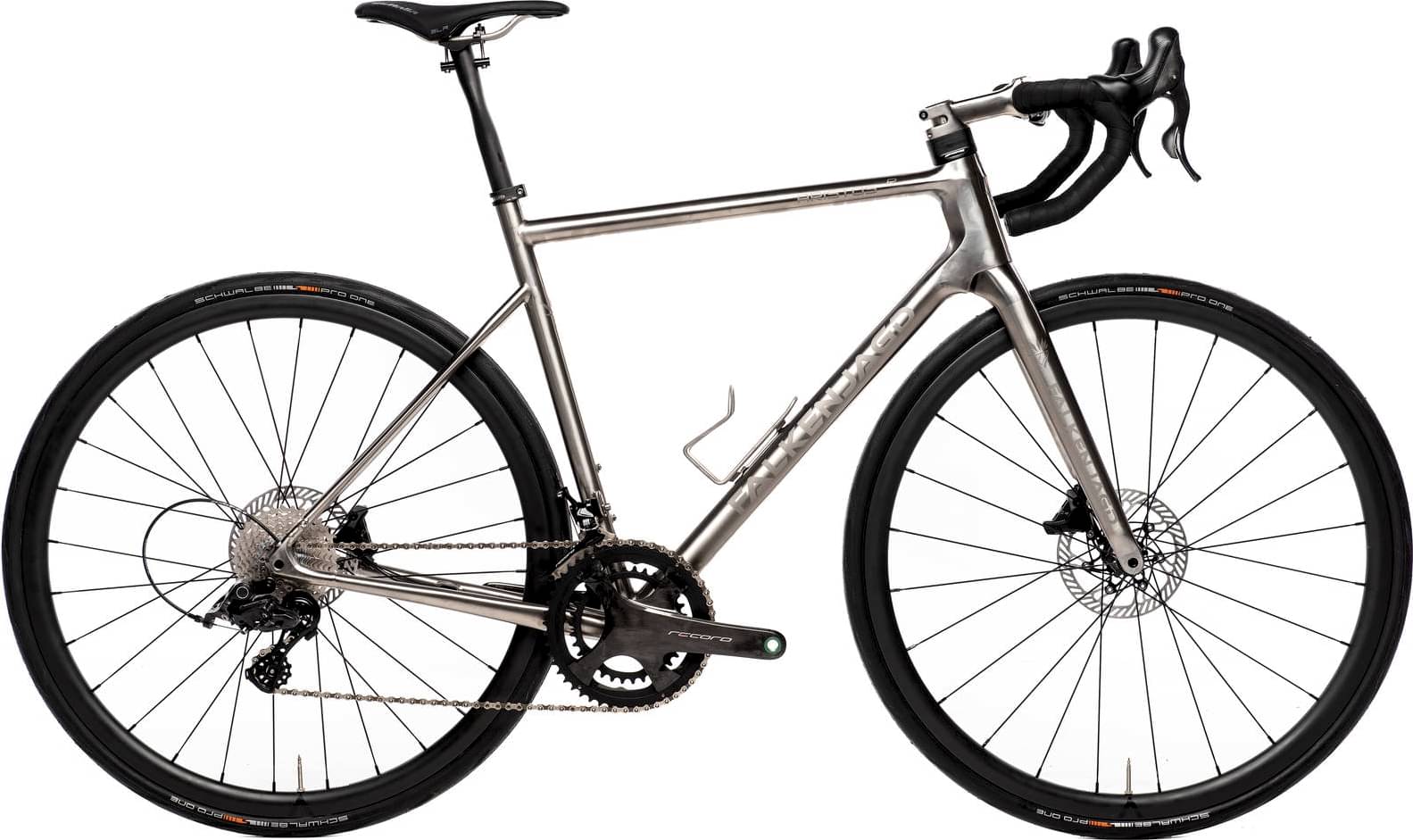

falkenjagd Aristos R Speed Gravel 2024
2024 Road
Estimate price |
9,240$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 167cm
SM
165cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
XXL
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components

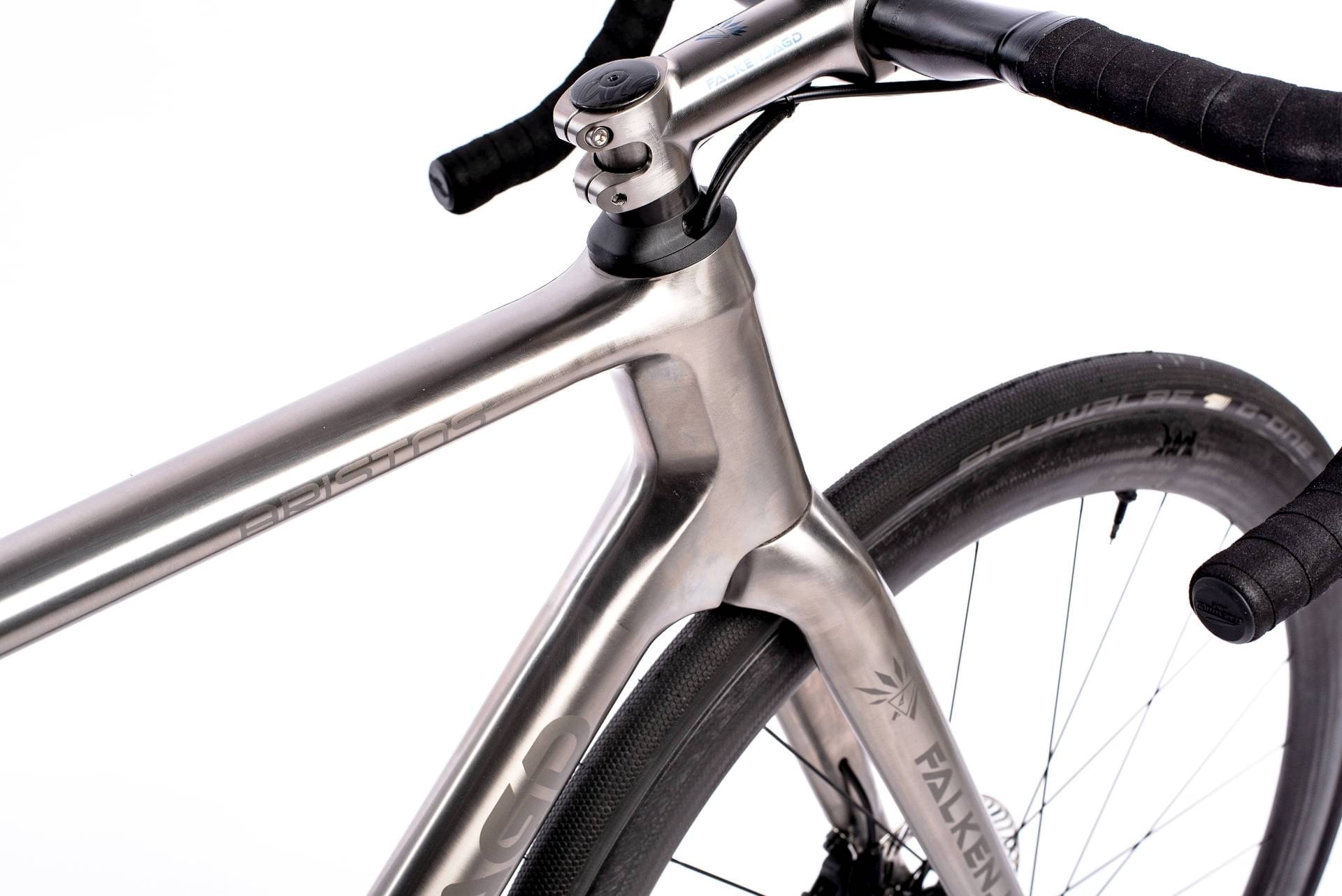

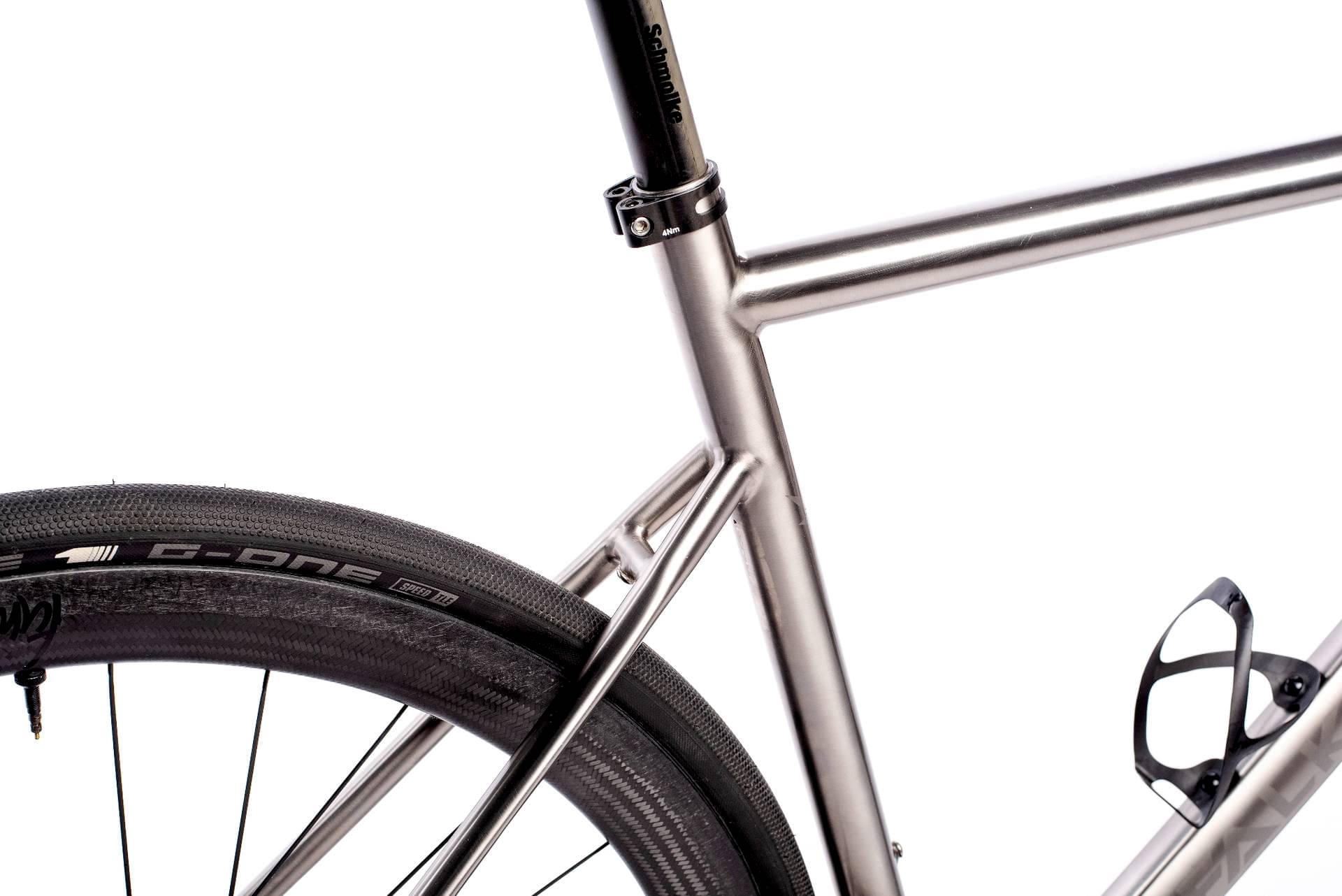

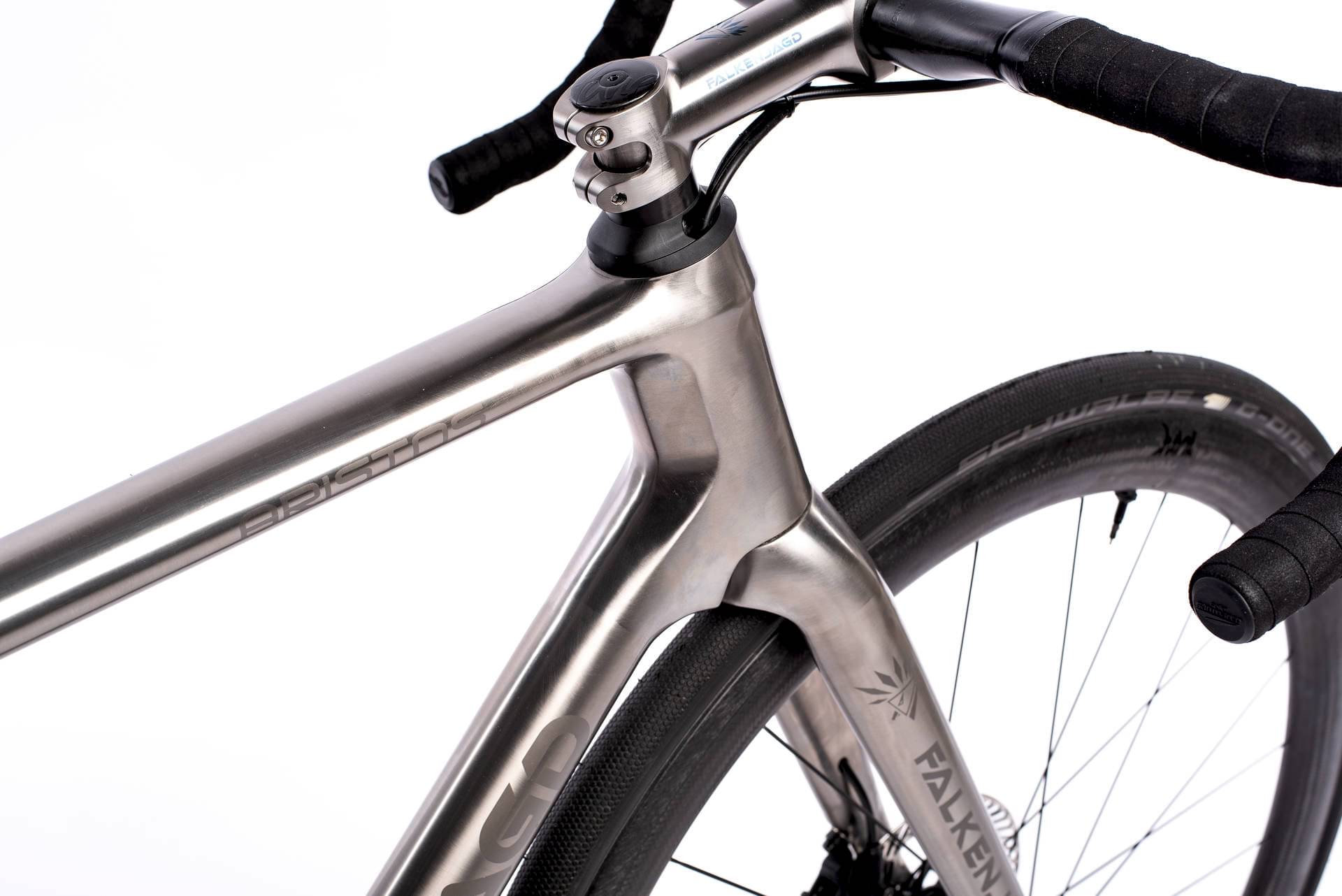

Frame
Suspension Fork
FALKENJAGD Titan Speed Gravel 3D

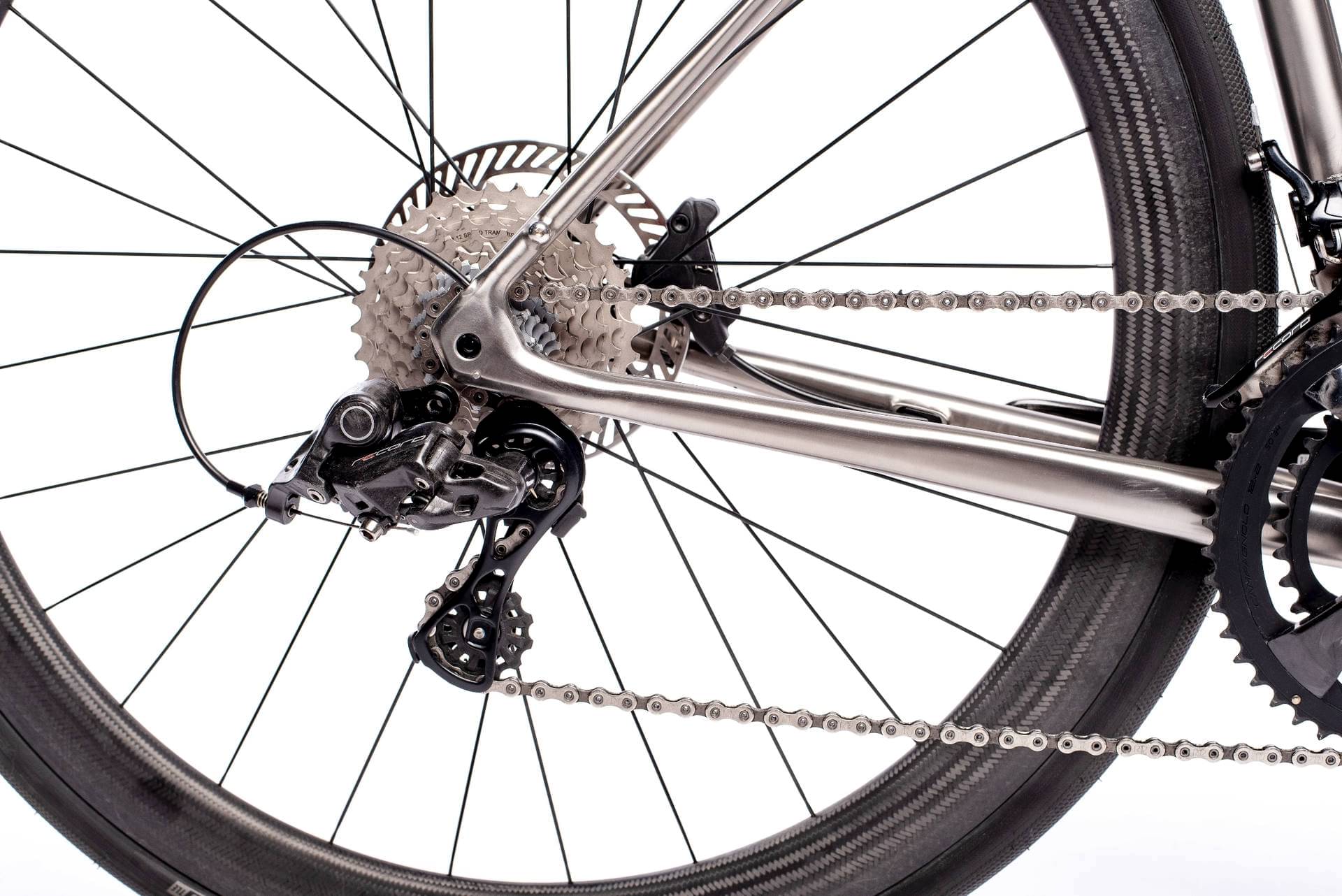

Drivetrain
Rear Derailleur
Campagnolo Ekar 1x 13
Cassette
EKAR 13-speed 10-44 teeth
Crank
EKAR 13-speed 38T.
Pedals
without
Wheels
Rims
Campagnolo Shamal Carbon Disc 2024

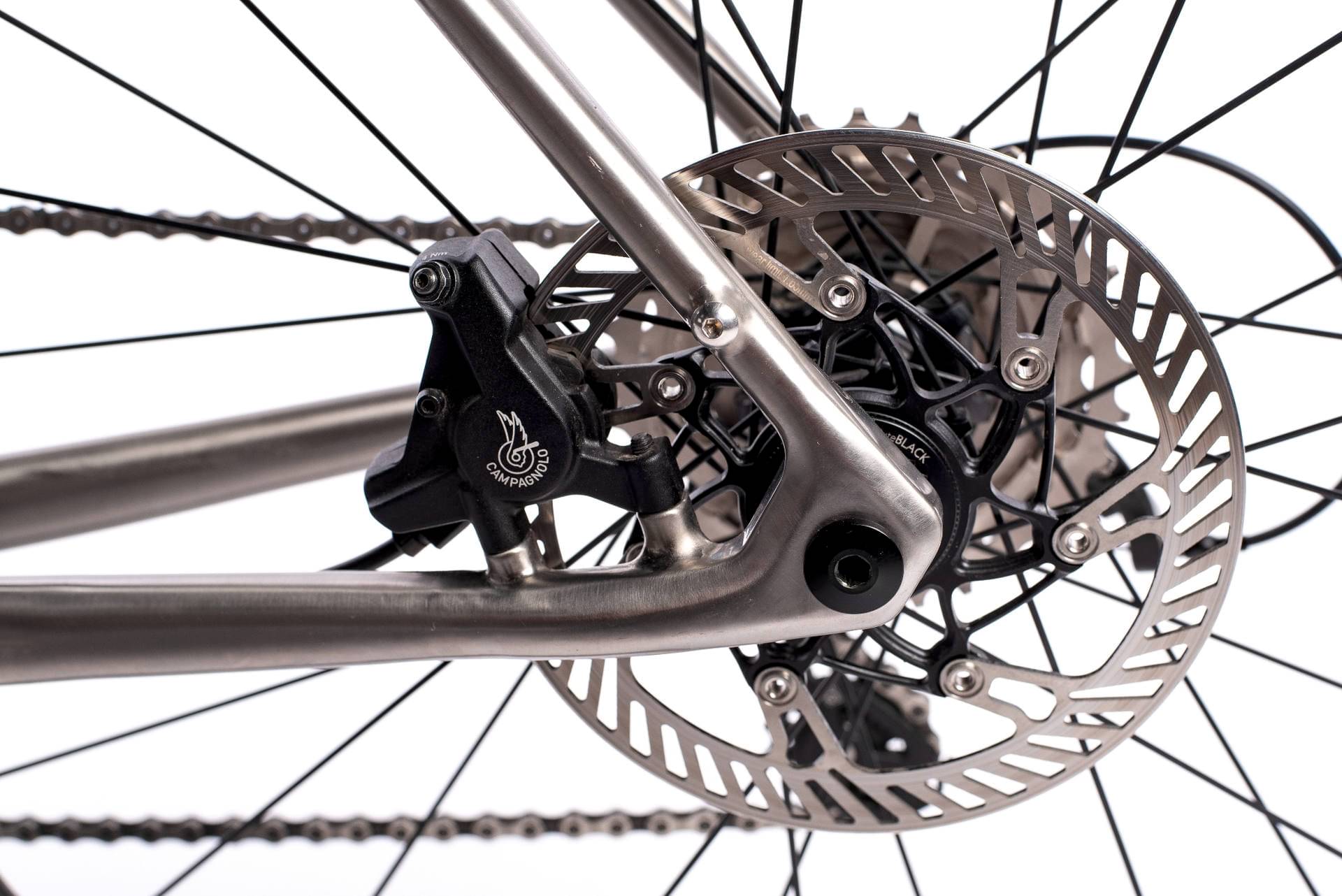

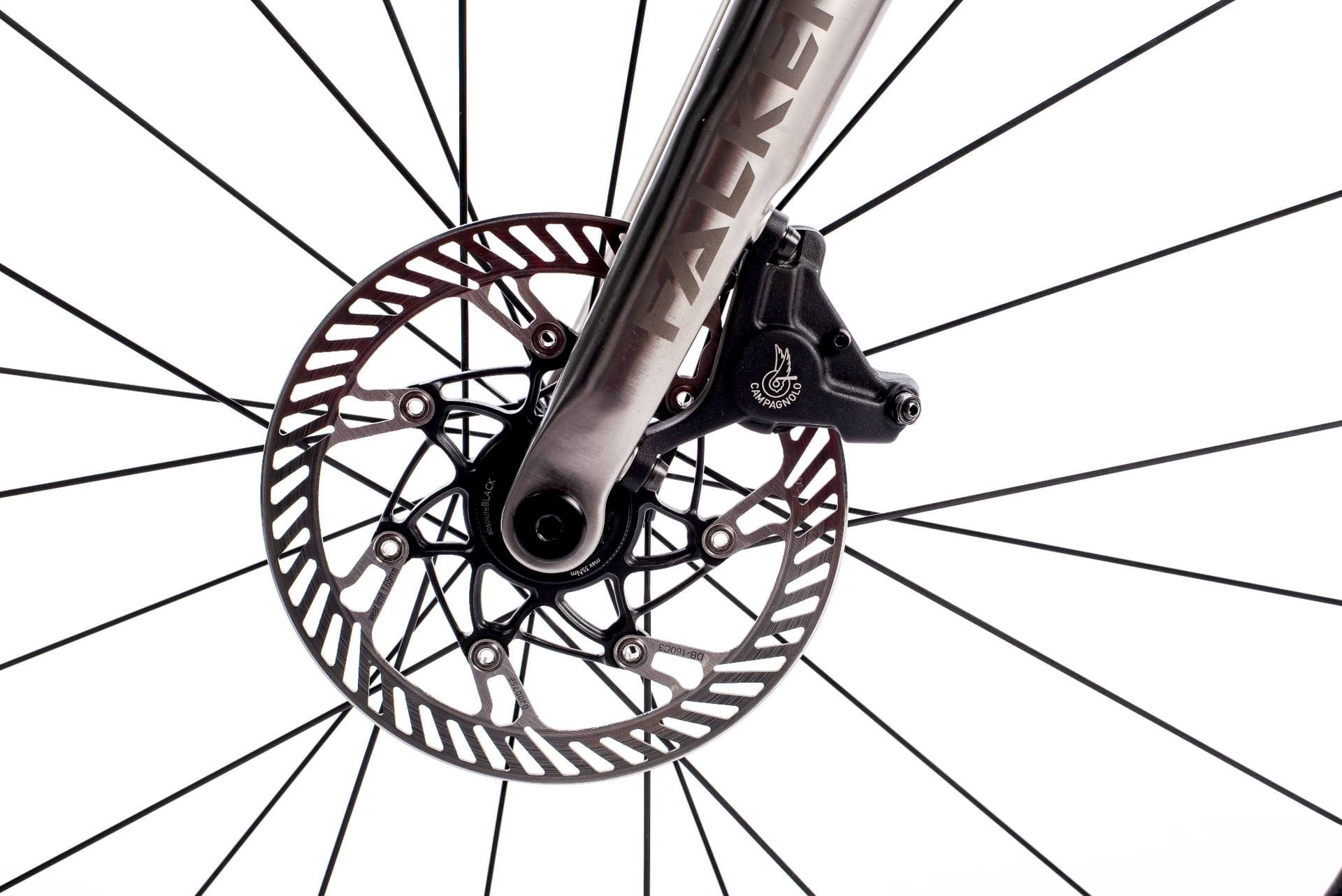

Brakes
Brakes
Depending on the Campa group you choose

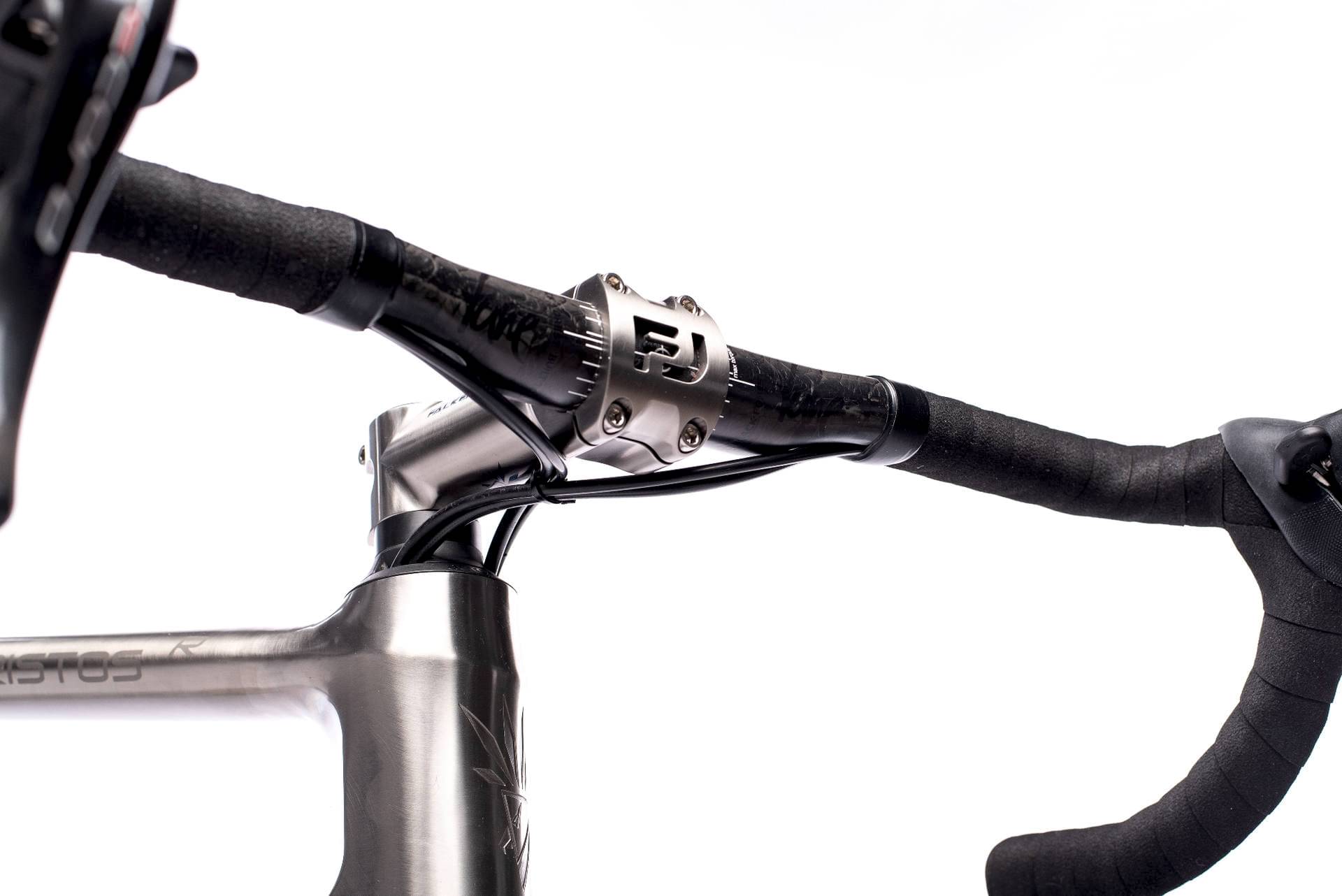

Cockpit
Stem
FALCON HUNTING Titan
Handlebar
Syntace Racelite 420mm

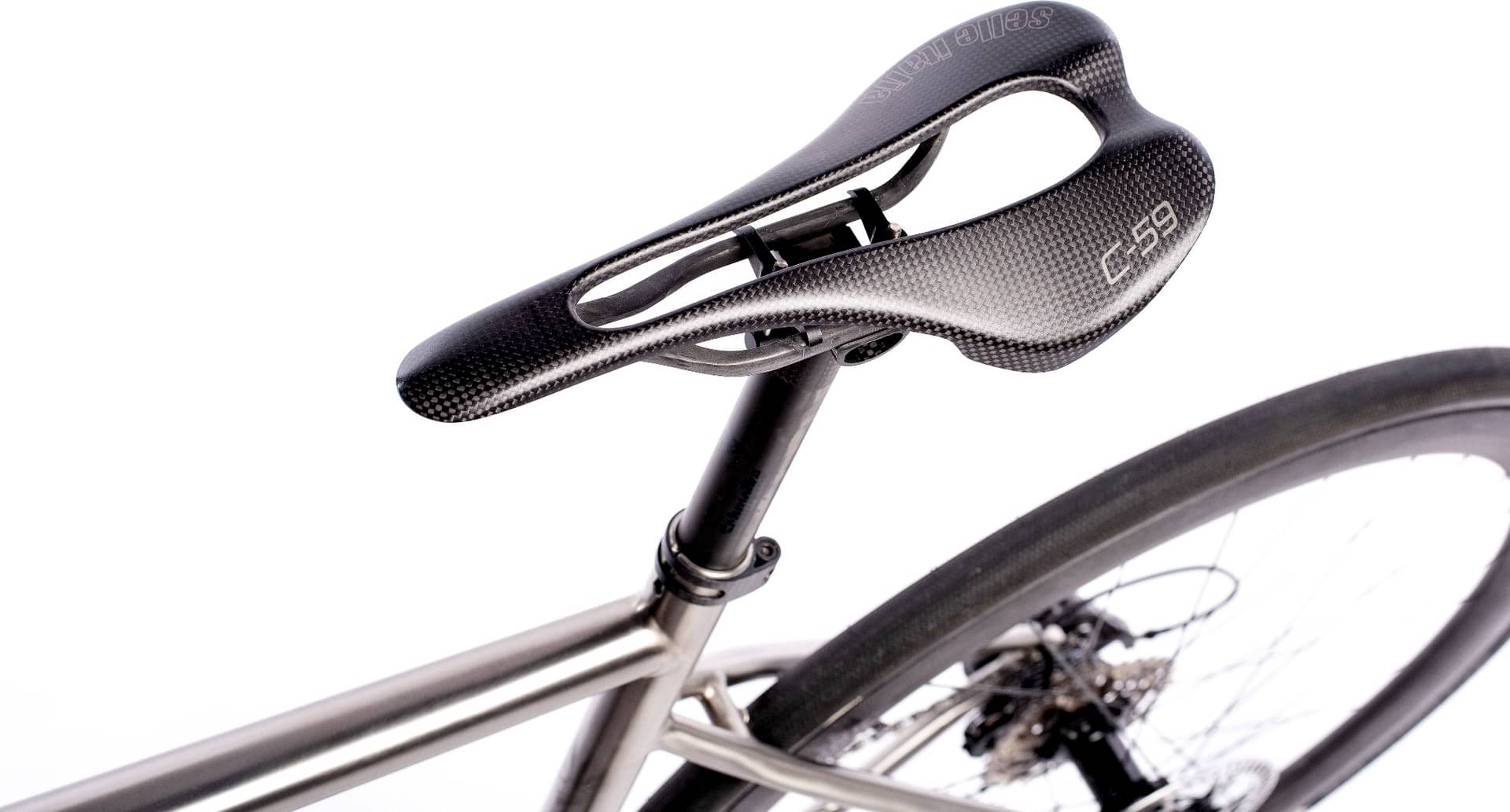

Seat
Saddle
without
Seatpost
PARAPERA Carbon extralight
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.435 mm | 1.398 mm | 1.421 mm | 1.453 mm | 1.47 mm | 1.461 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 278 mm | 279 mm | 281 mm |
| Front Center | 576 mm | 586 mm | 592 mm | 595 mm | 607 mm | 614 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 42 mm | 41 mm |
| Trail | 71 mm | 71 mm | 68 mm | 62 mm | 60 mm | 57 mm |
| Stack | 534 mm | 534 mm | 550 mm | 571 mm | 594 mm | 605 mm |
| Reach | 372 mm | 382 mm | 387 mm | 393 mm | 404 mm | 414 mm |
| Top Tube Length | 525 mm | 535 mm | 550 mm | 565 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 510 mm | 520 mm | 540 mm | 560 mm | 590 mm | 600 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72 ° | 73 ° | 73.5 ° | 74 ° |
| Head Tube Length | 120 mm | 120 mm | 135 mm | 155 mm | 175 mm | 185 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 980 mm | 990 mm | 996 mm | 1000 mm | 1012 mm | 1020 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 71 mm | 70 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 165 cm | 168 cm | 177 cm | 184 cm | 195 cm |
| Rider Max Height | 167 cm | 171 cm | 180 cm | 187 cm | 201 cm | 205 cm |
