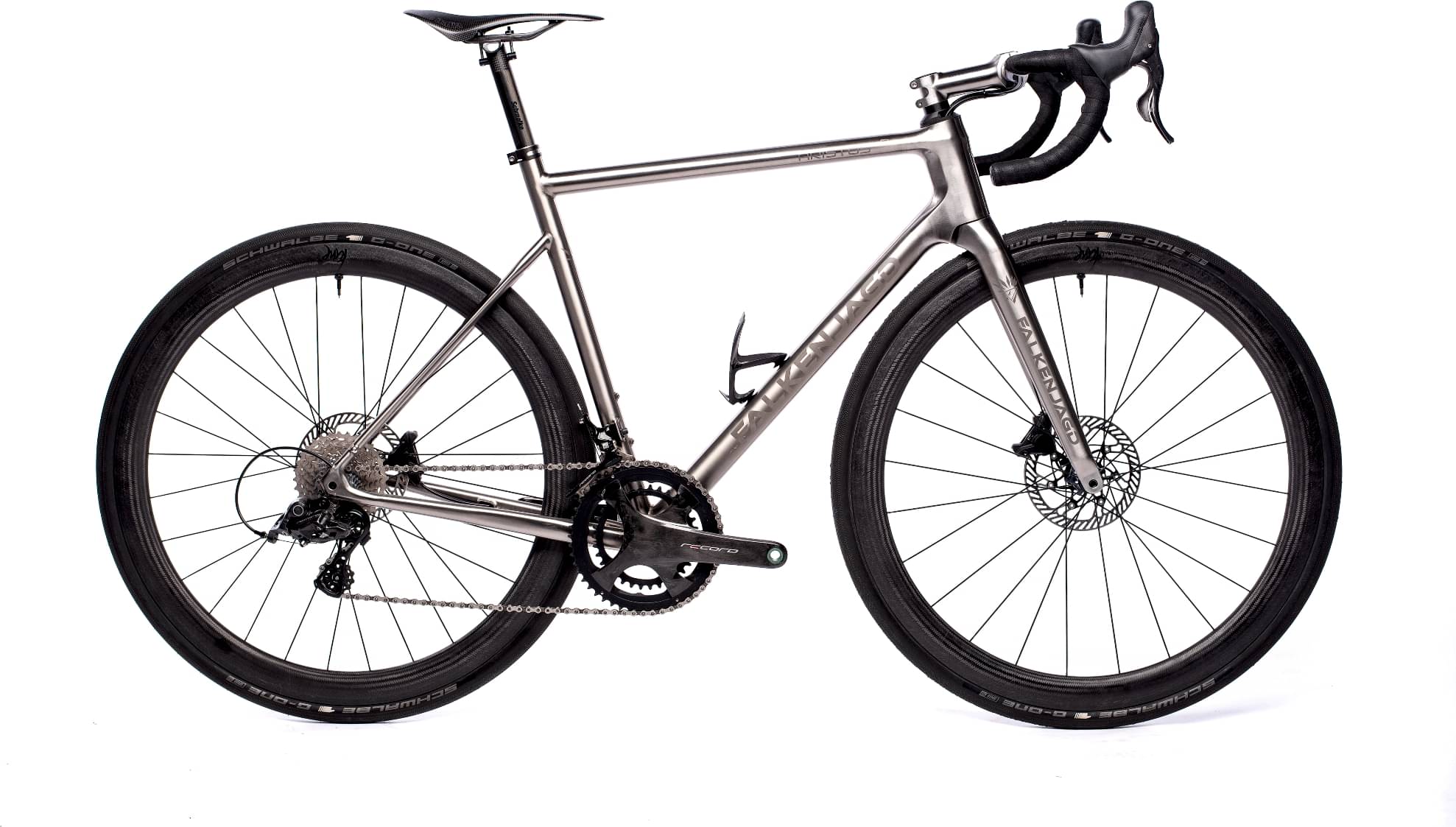

falkenjagd Aristos R SpeedGravel 2024
2024 Road
Estimate price |
9,372$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

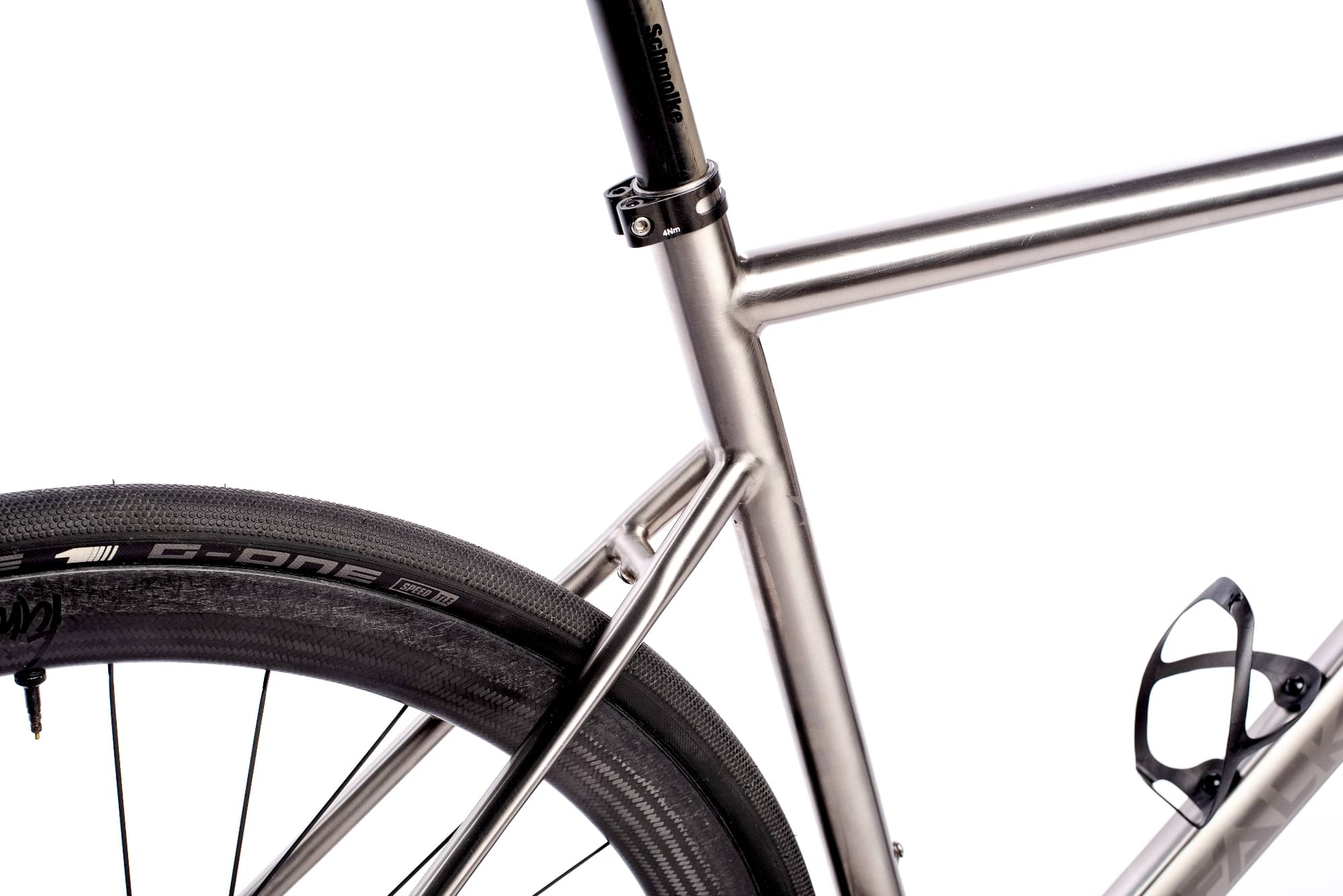

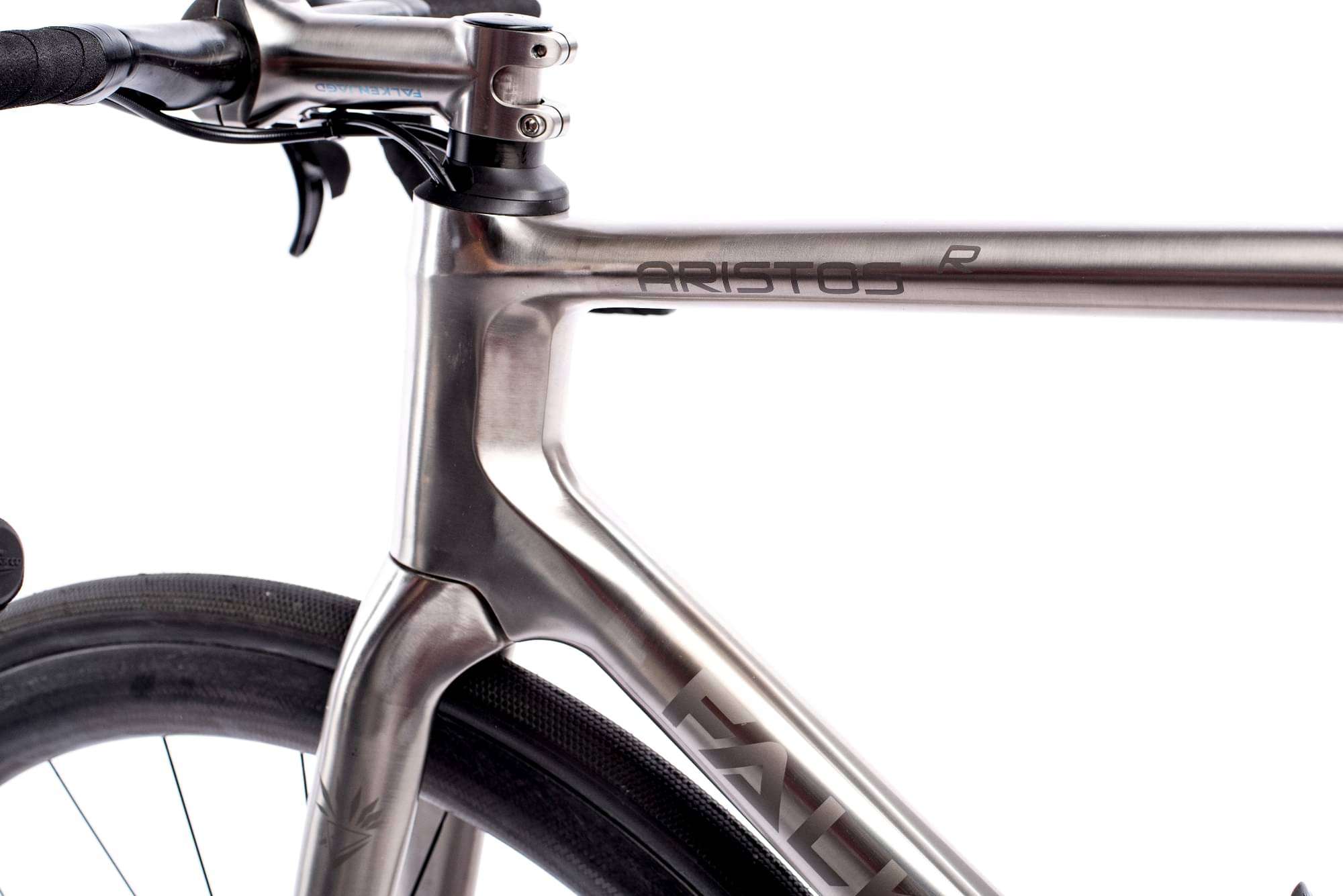

Frame
Suspension Fork
Falcon Hunting Titan SpeedGravel 3D
Drivetrain

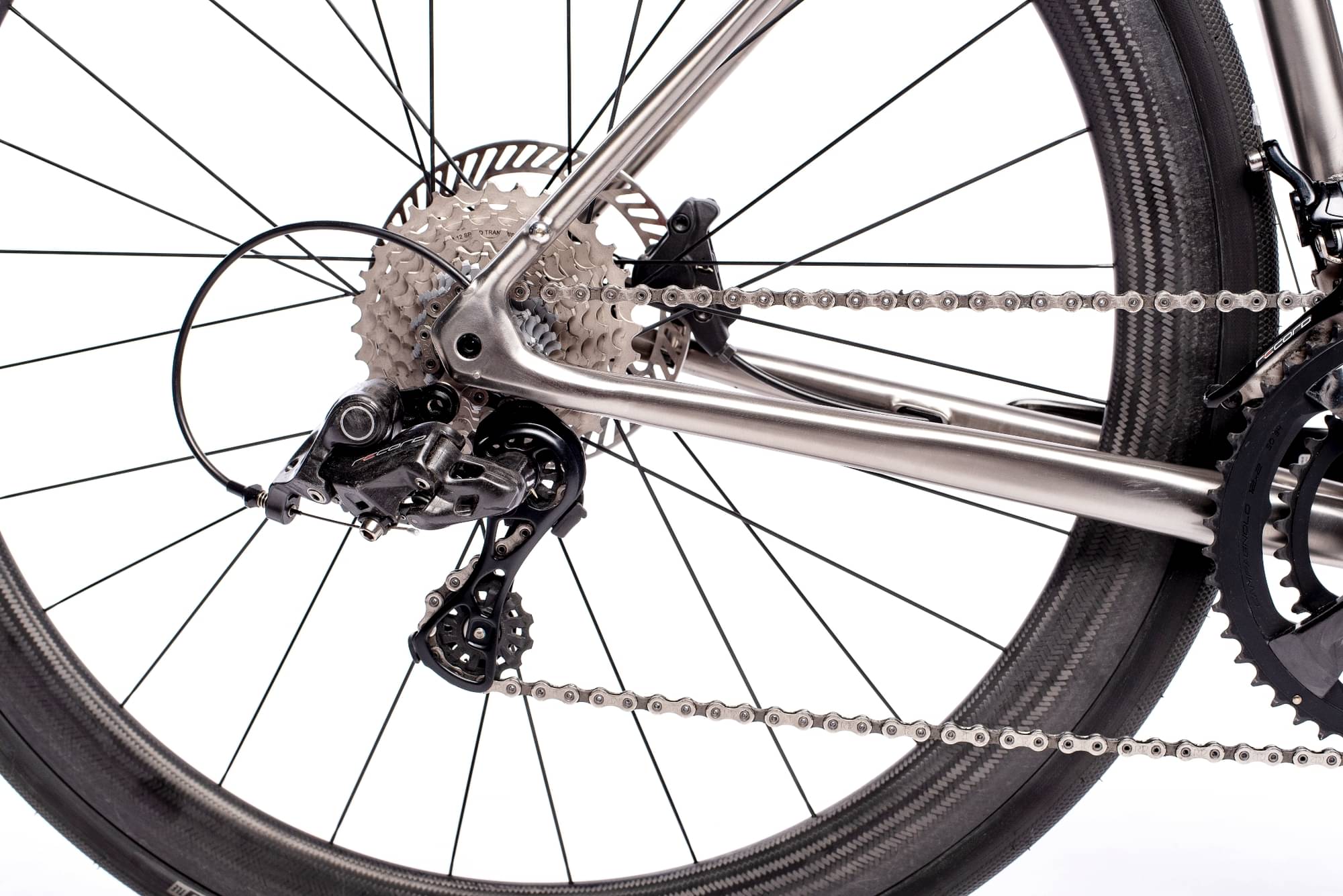

Rear Derailleur
Campagnolo Ekar 1x 13
Cassette
EKAR 13-speed 10-44 teeth
Crank
EKAR 13-speed 38T.
Pedals
without
Wheels
Rims
Campagnolo Shamal Carbon Disc 2022
Tires
Schwalbe Pro One 23mm

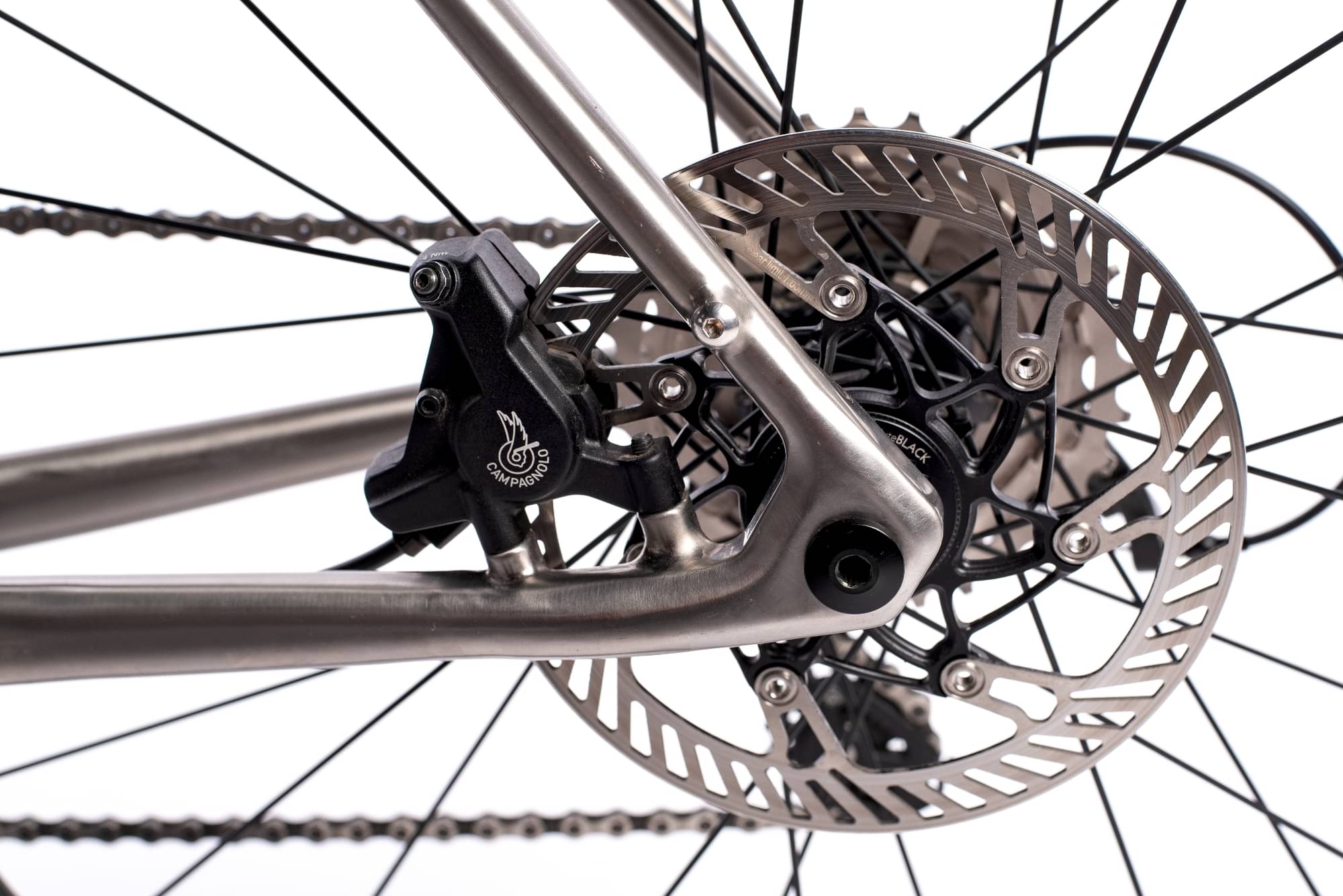

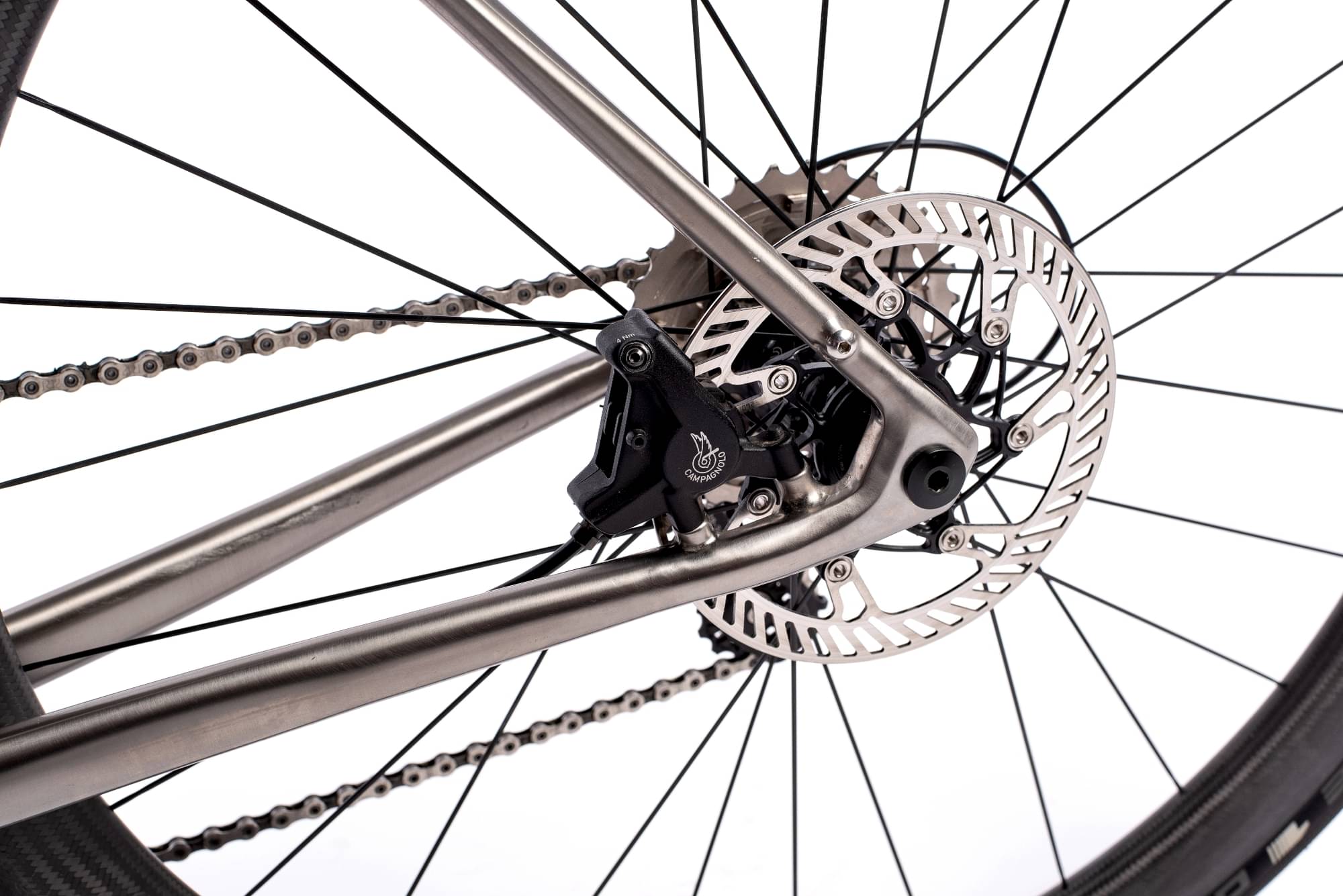

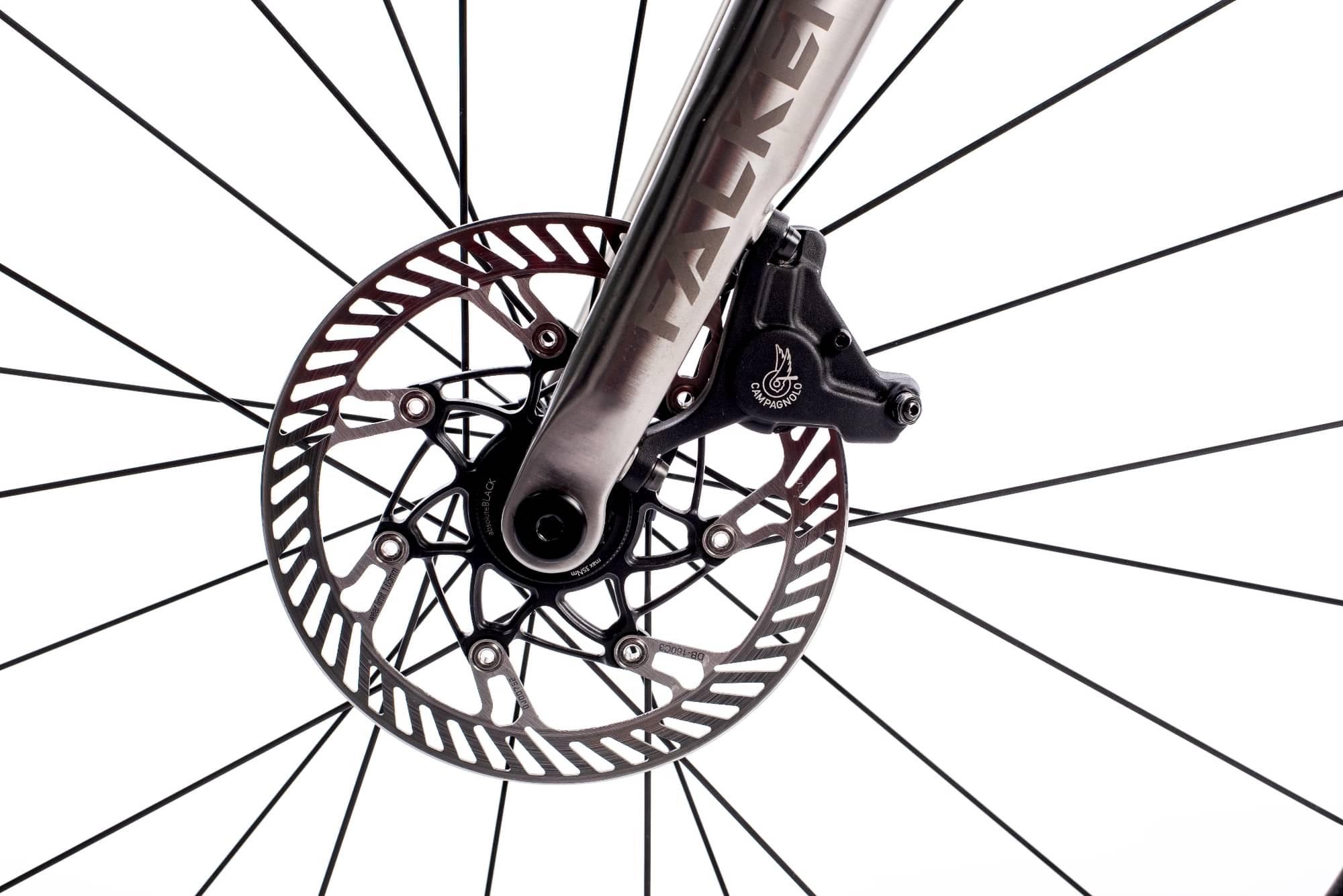

Brakes
Brakes
Depending on the Campa group you choose
Cockpit

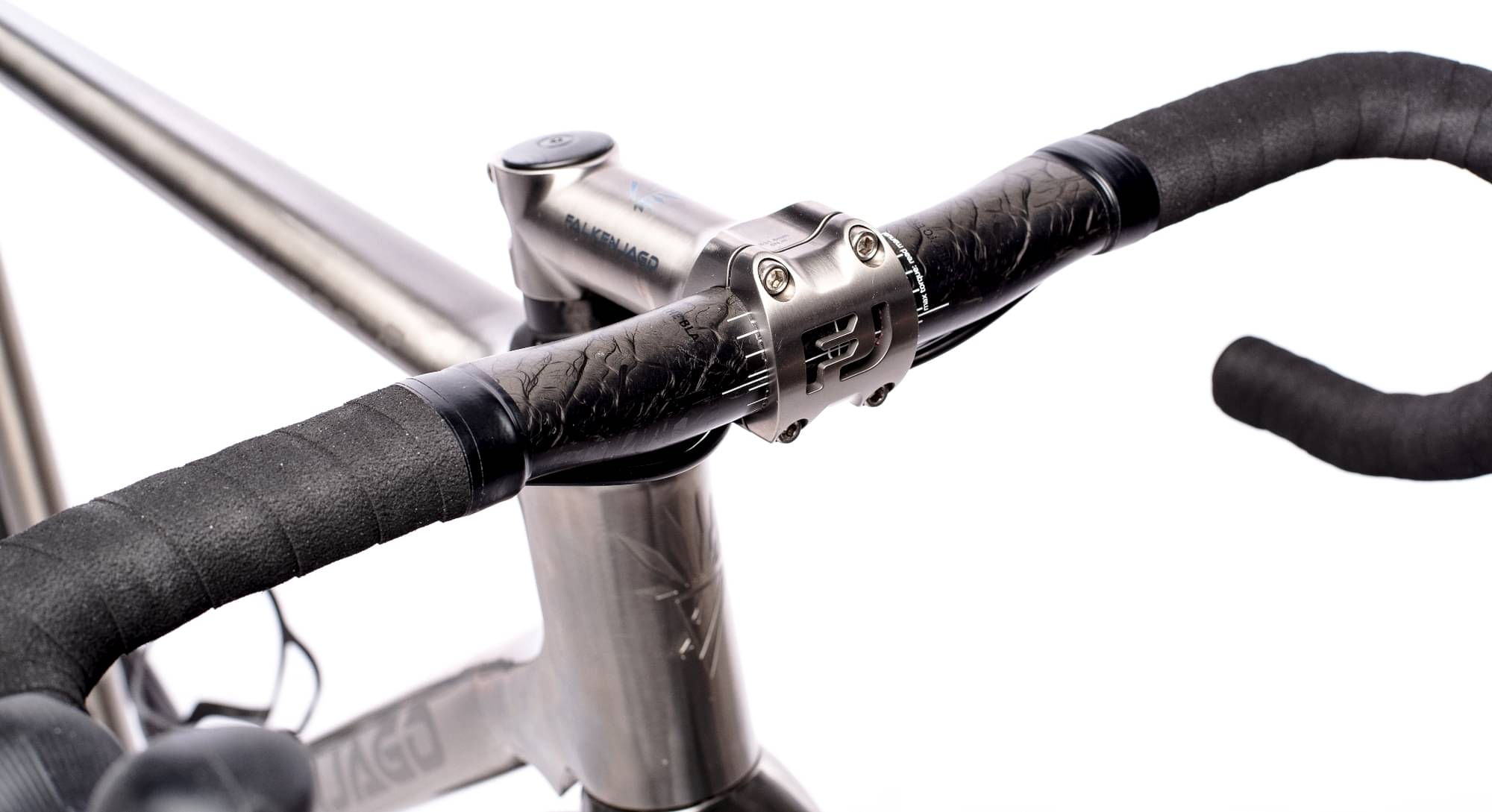

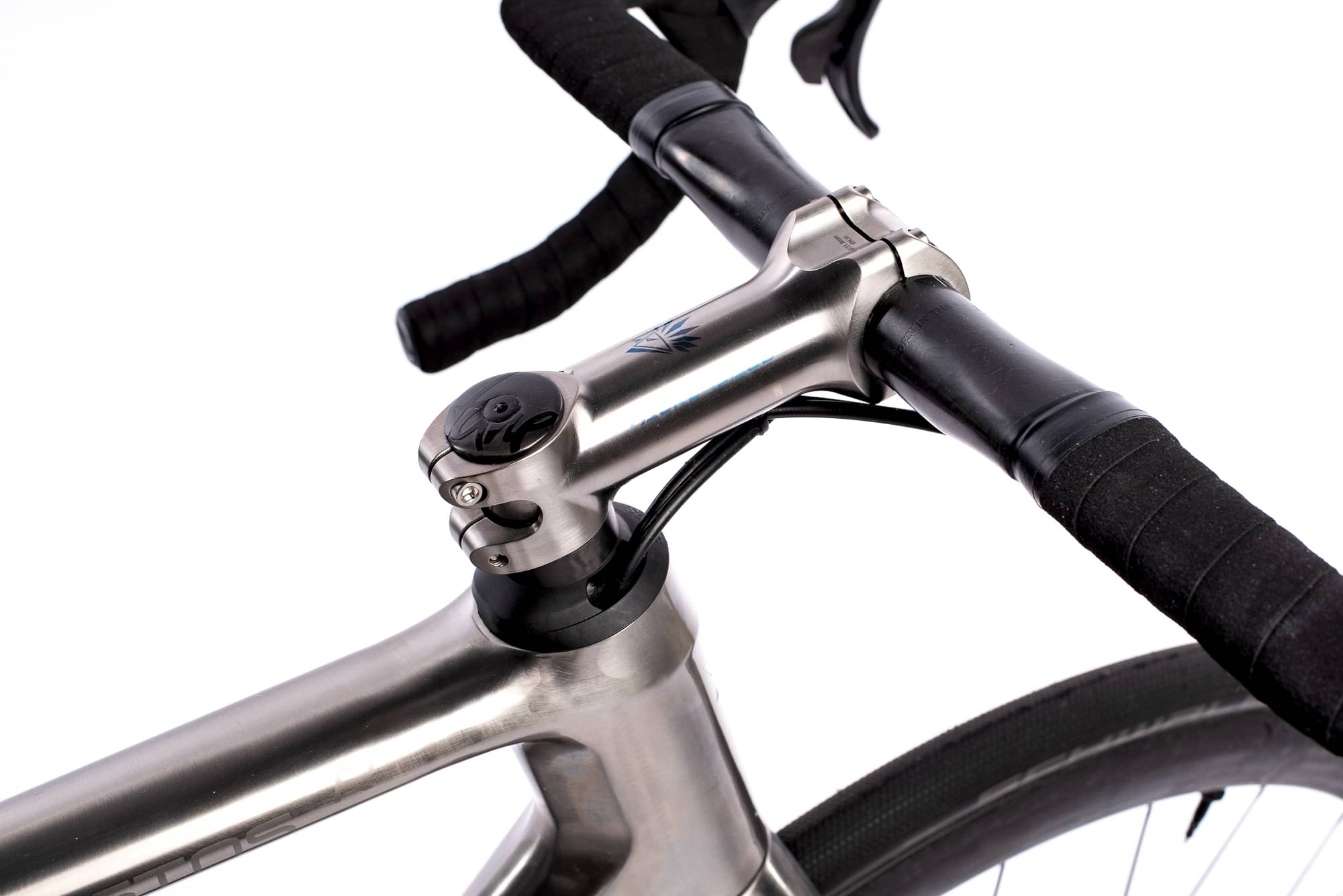

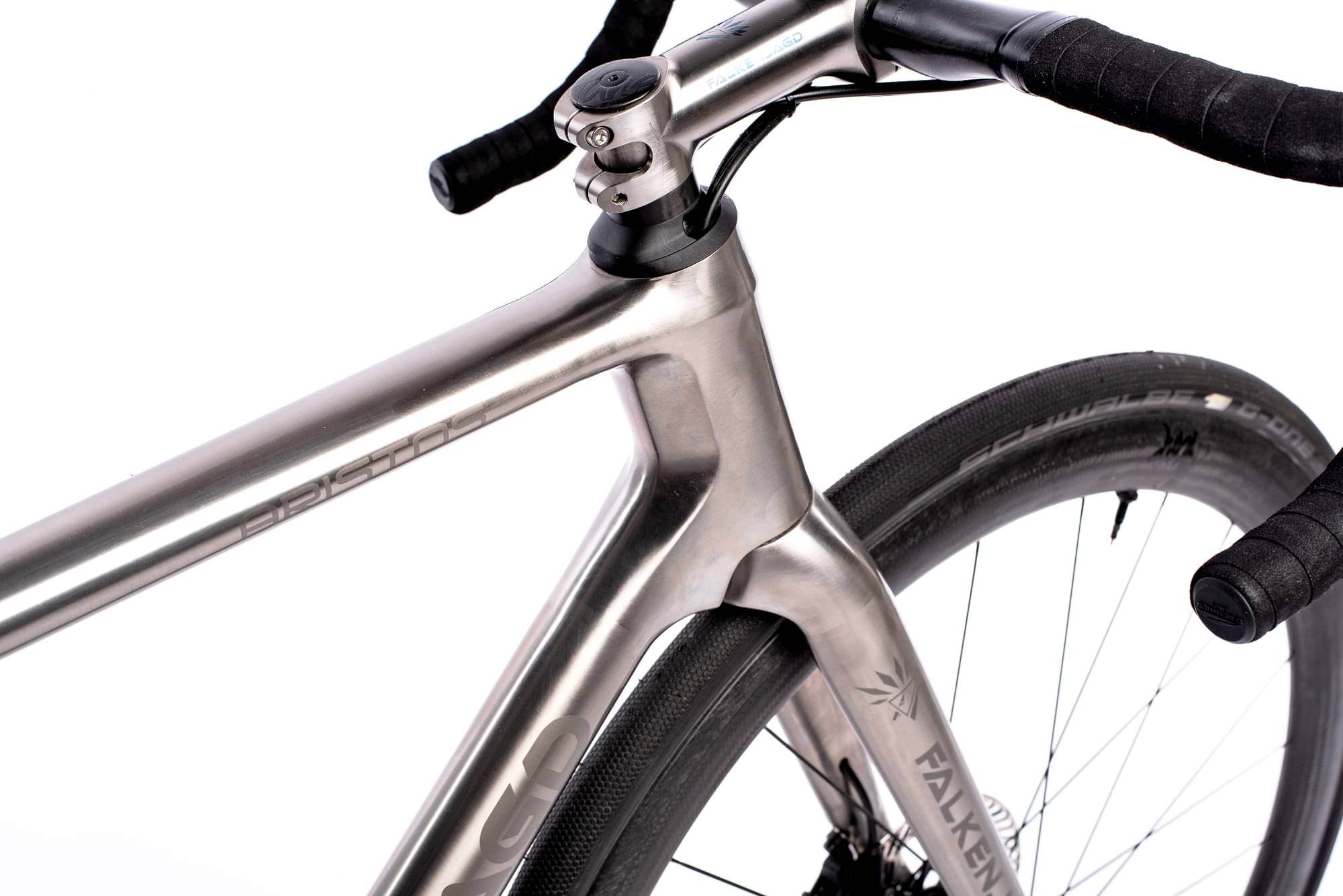

Stem
Falconry Titan

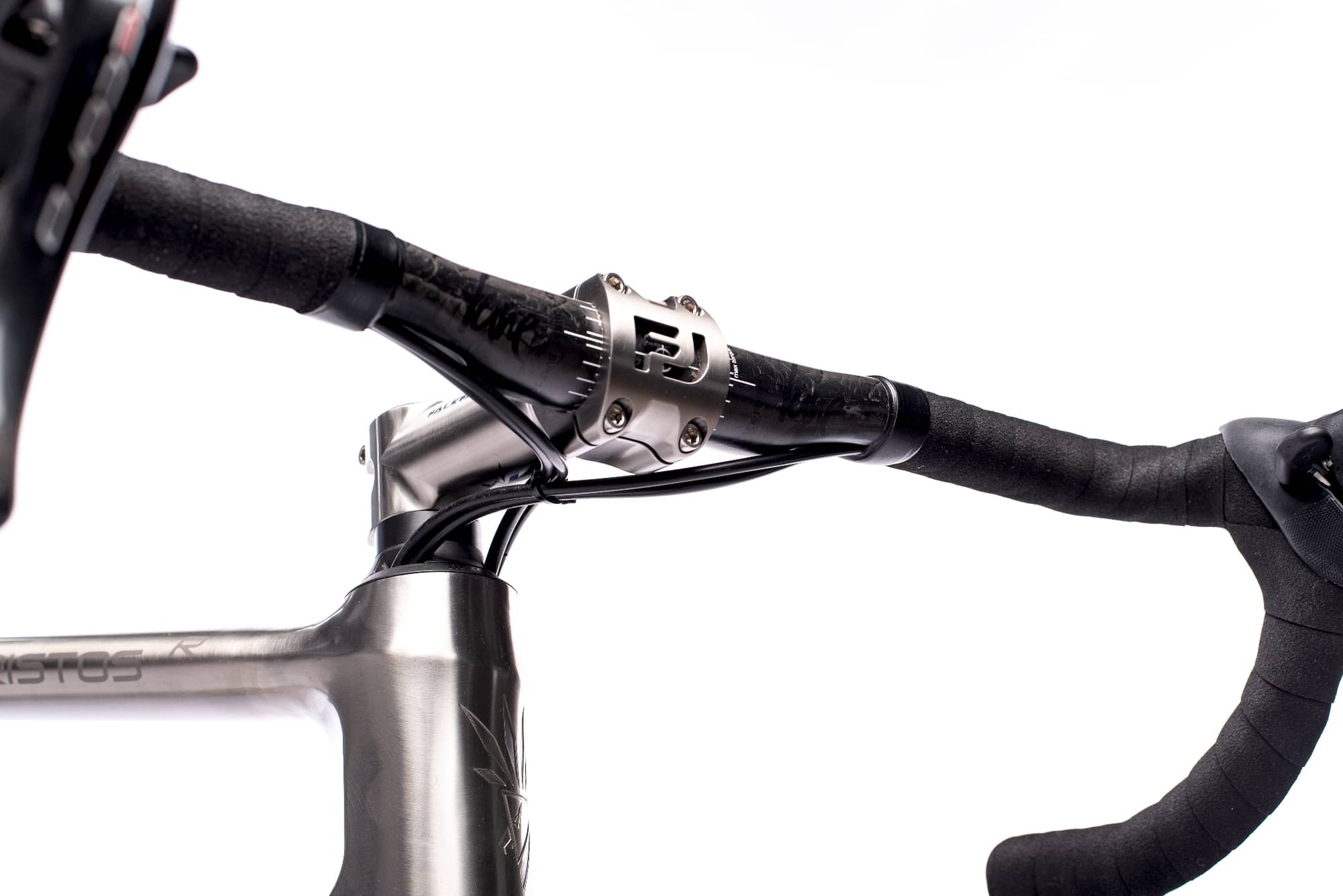

Handlebar
Syntace Racelite 420mm
Seat

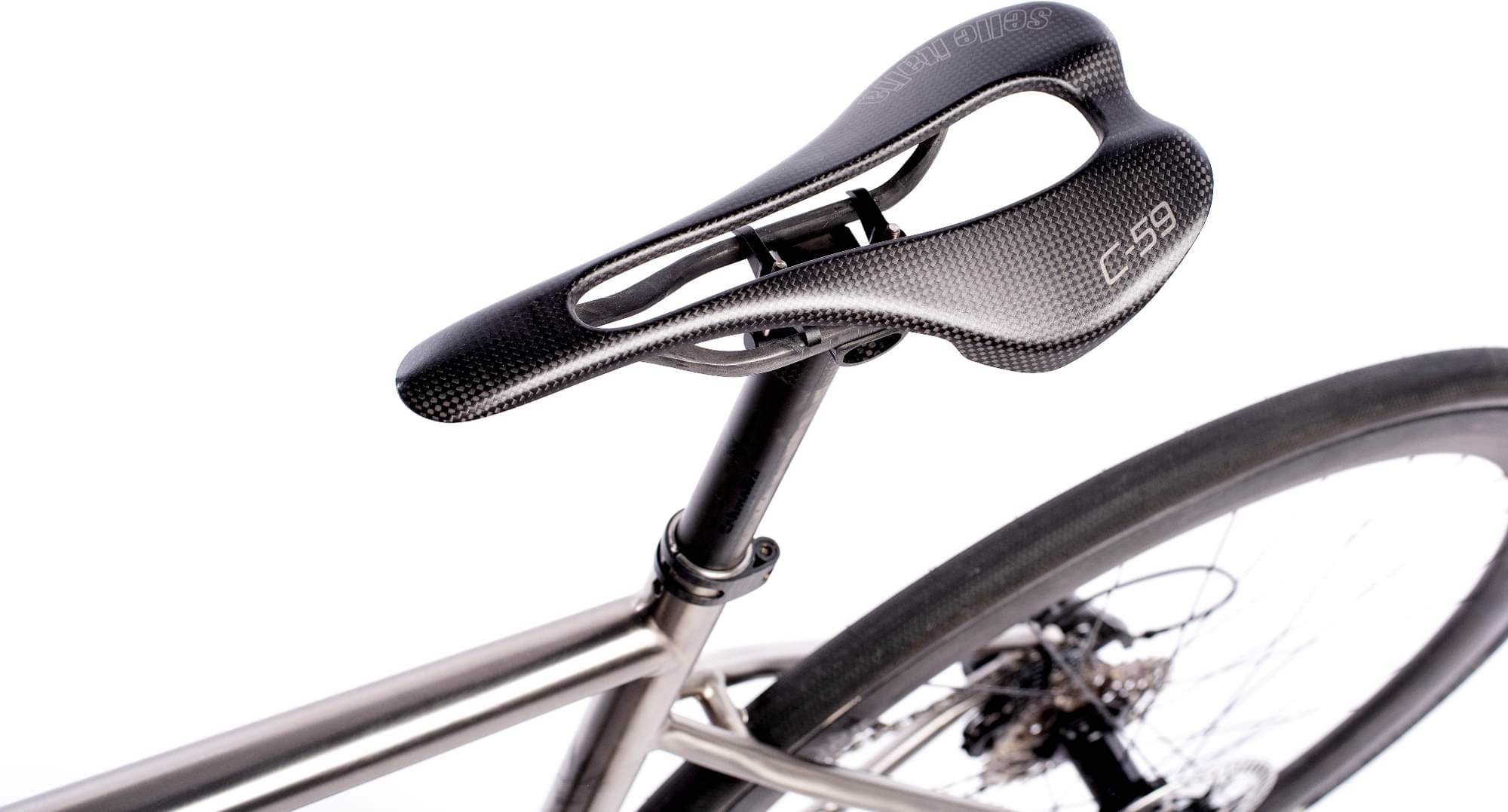

Saddle
without
Seatpost
Parapera Carbon extralight
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.398 mm | 1.421 mm | 1.453 mm | 1.47 mm | 1.461 mm |
| Stack | 534 mm | 550 mm | 571 mm | 594 mm | 605 mm |
| Reach | 382 mm | 387 mm | 393 mm | 404 mm | 414 mm |
| Top Tube Length | 535 mm | 550 mm | 565 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Head Tube Angle | 71.5 ° | 72 ° | 73 ° | 73.5 ° | 74 ° |
| Head Tube Length | 120 mm | 135 mm | 155 mm | 175 mm | 185 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
