Bike details
Overview
Key information split into simple groups.

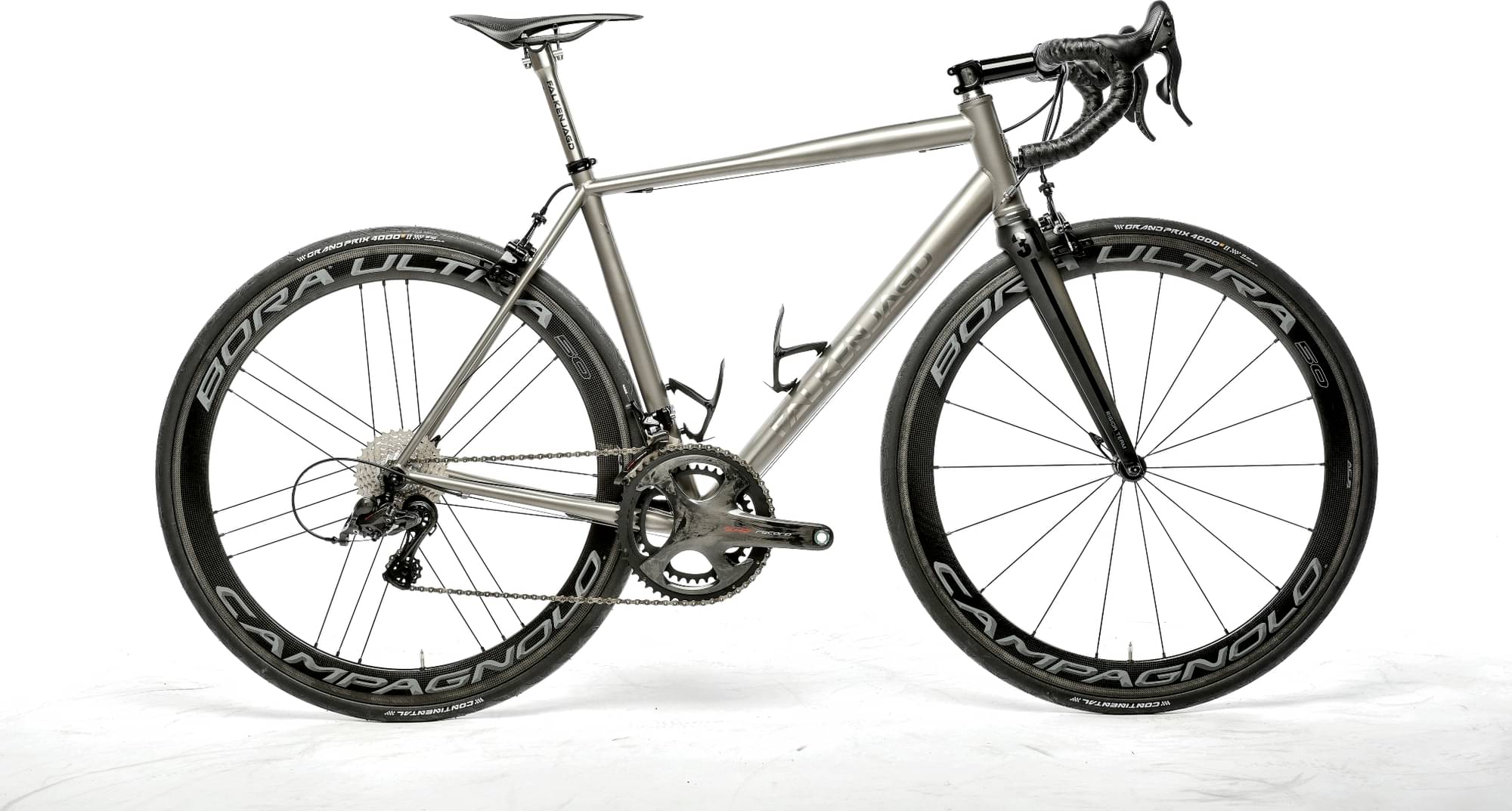

Bike summary
-
-

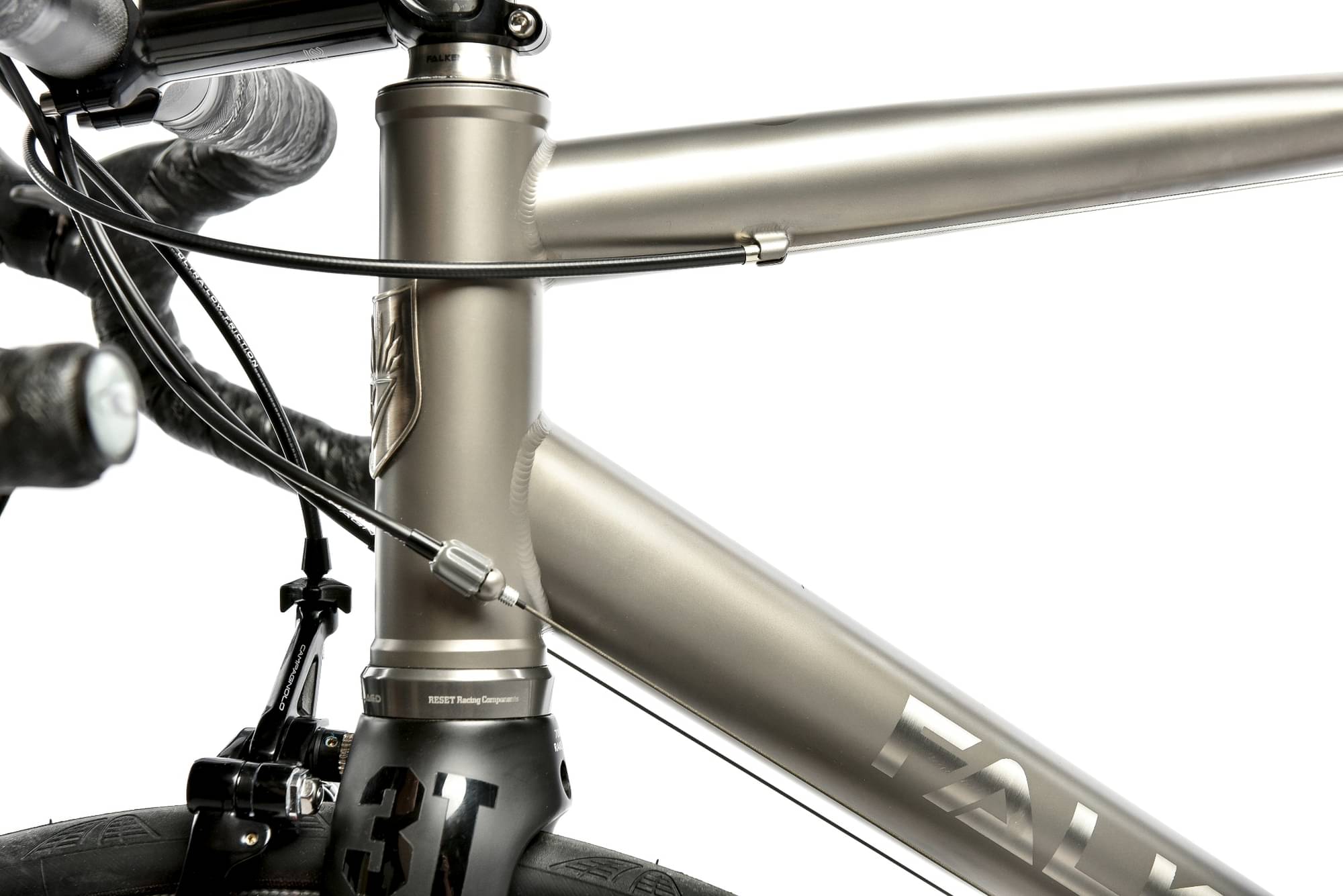

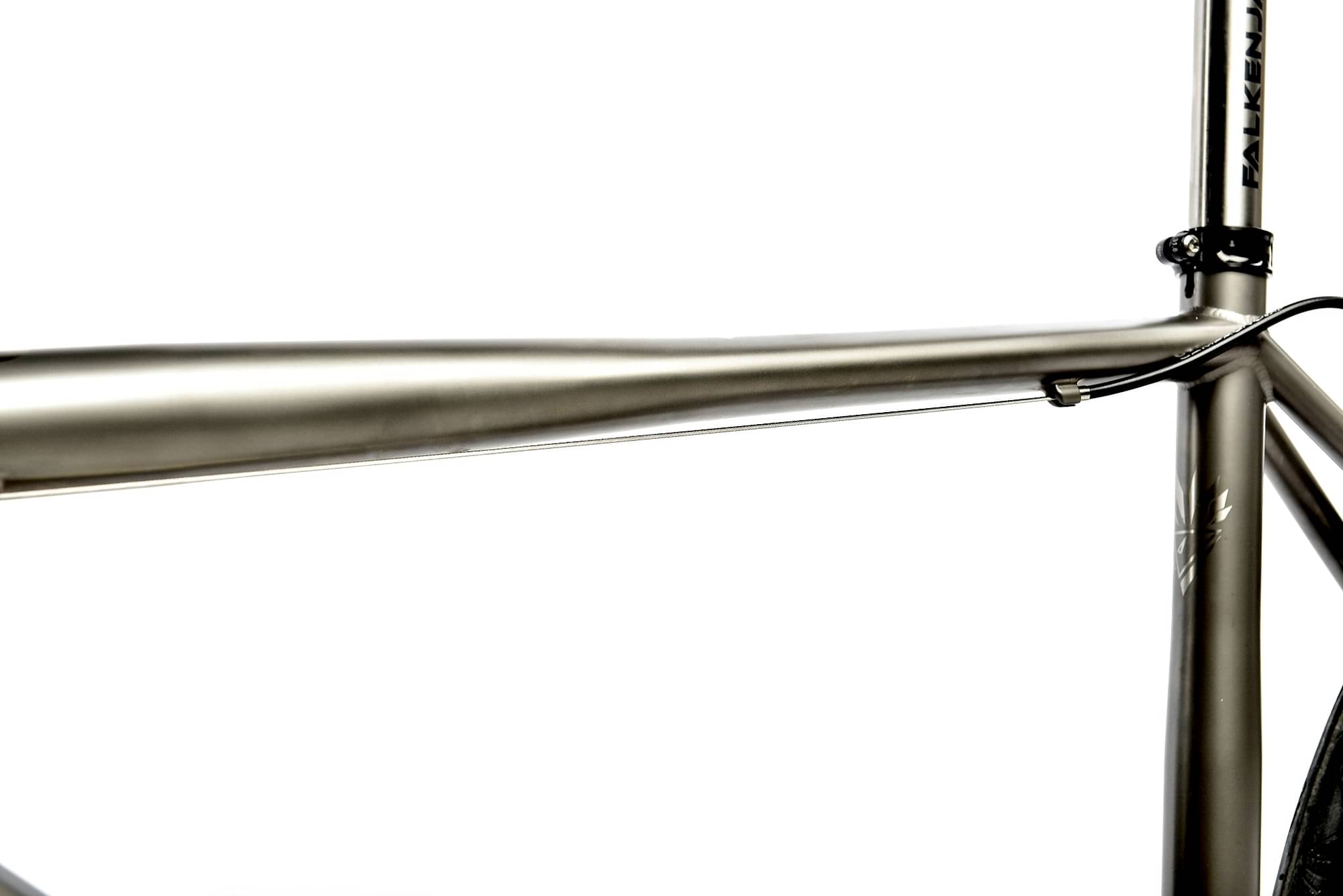

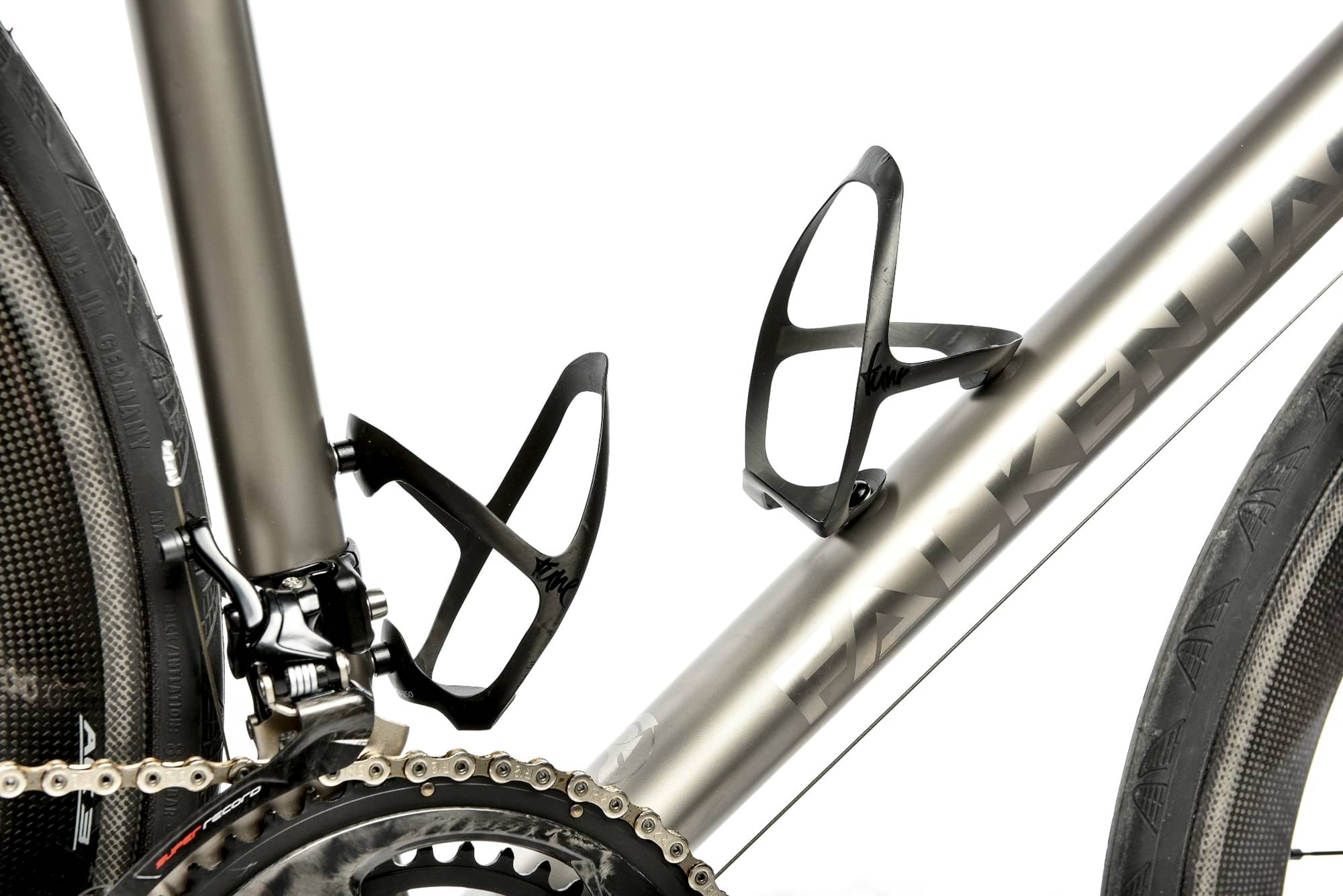

Frame Titanium -
Wheels 700c -
Groupset Chorus -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Falconry Titan Aristos RS
Drivetrain

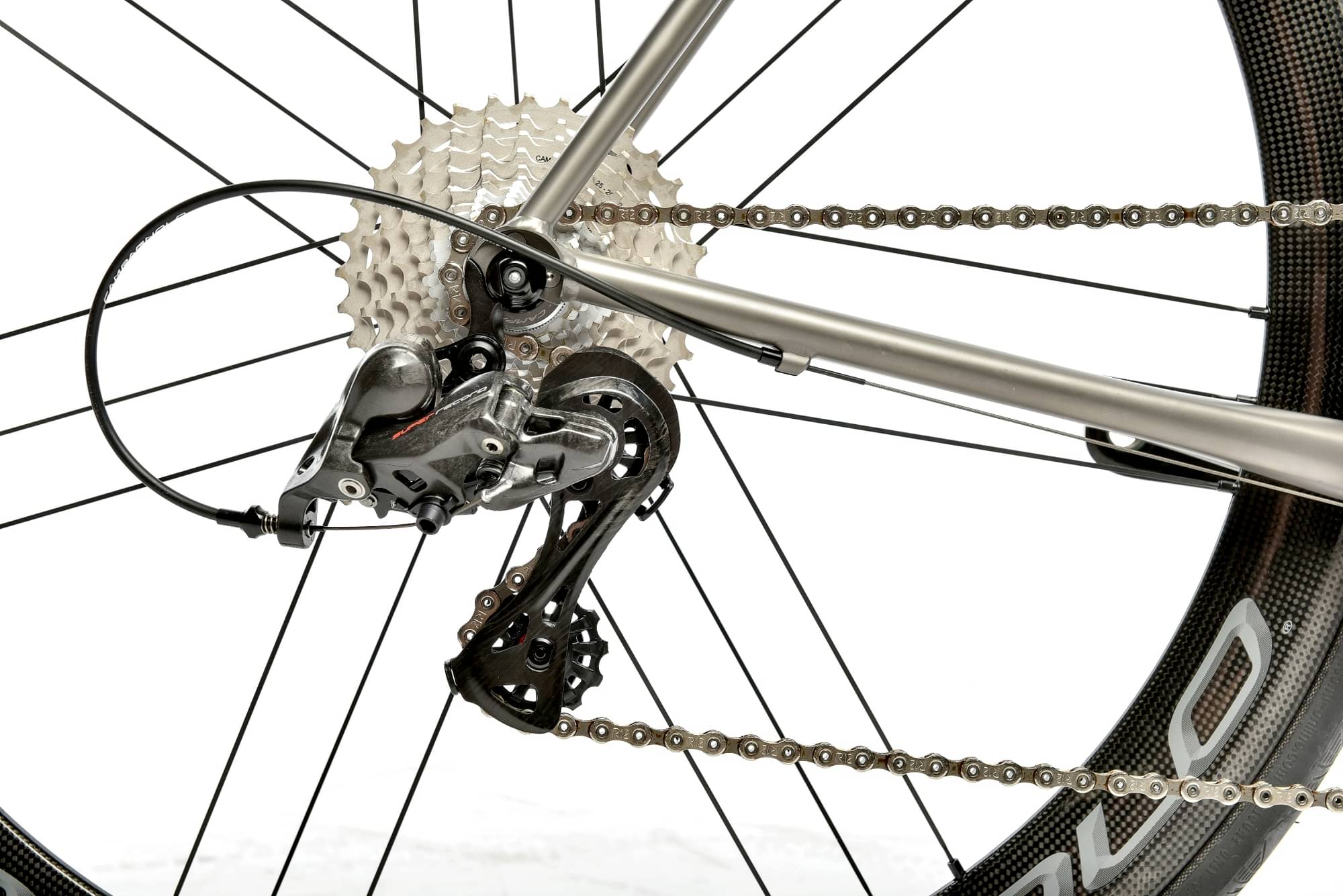

Rear Derailleur
Campagnolo Chorus Super Compact 12-speed
Cassette
12-fold 11-34

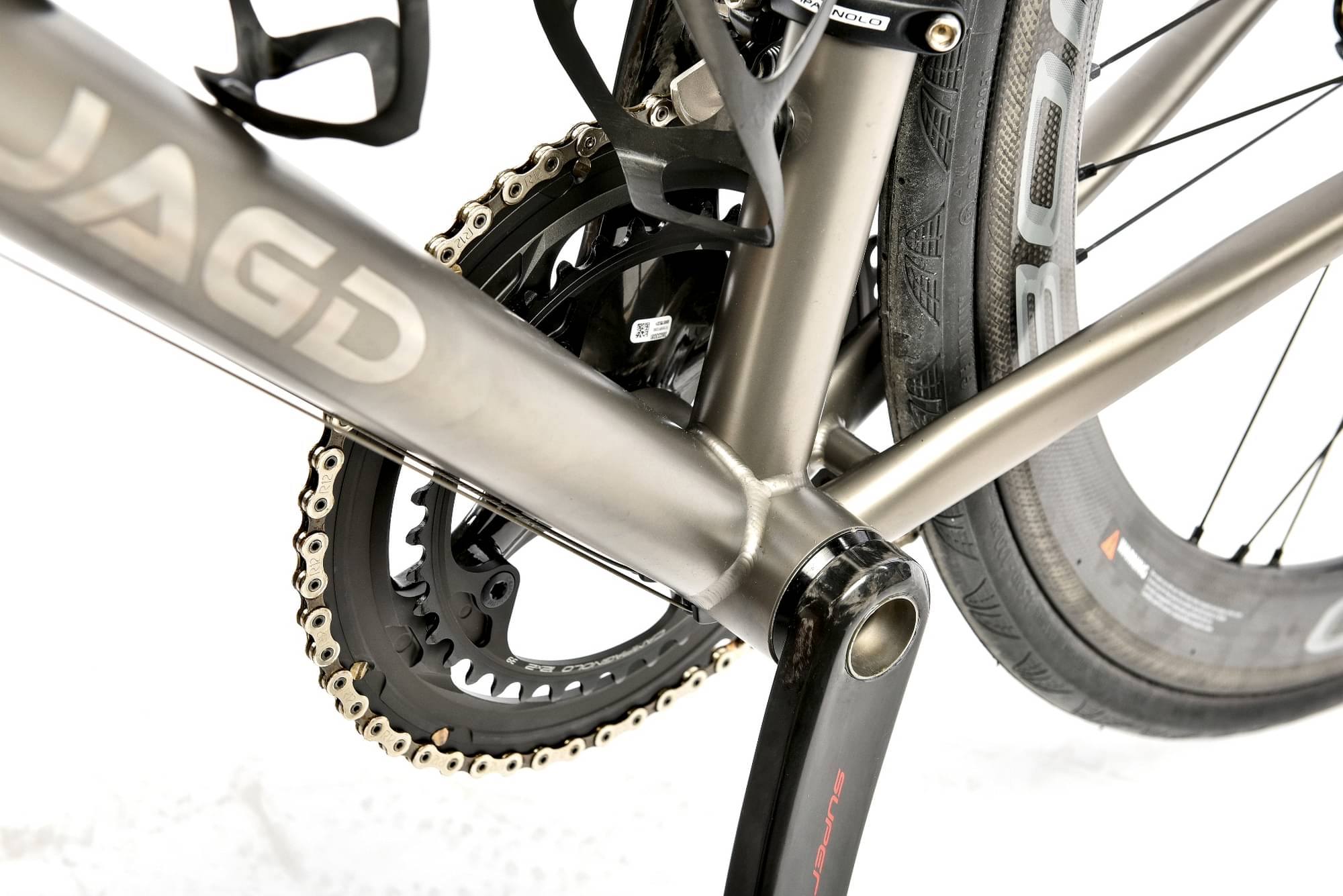

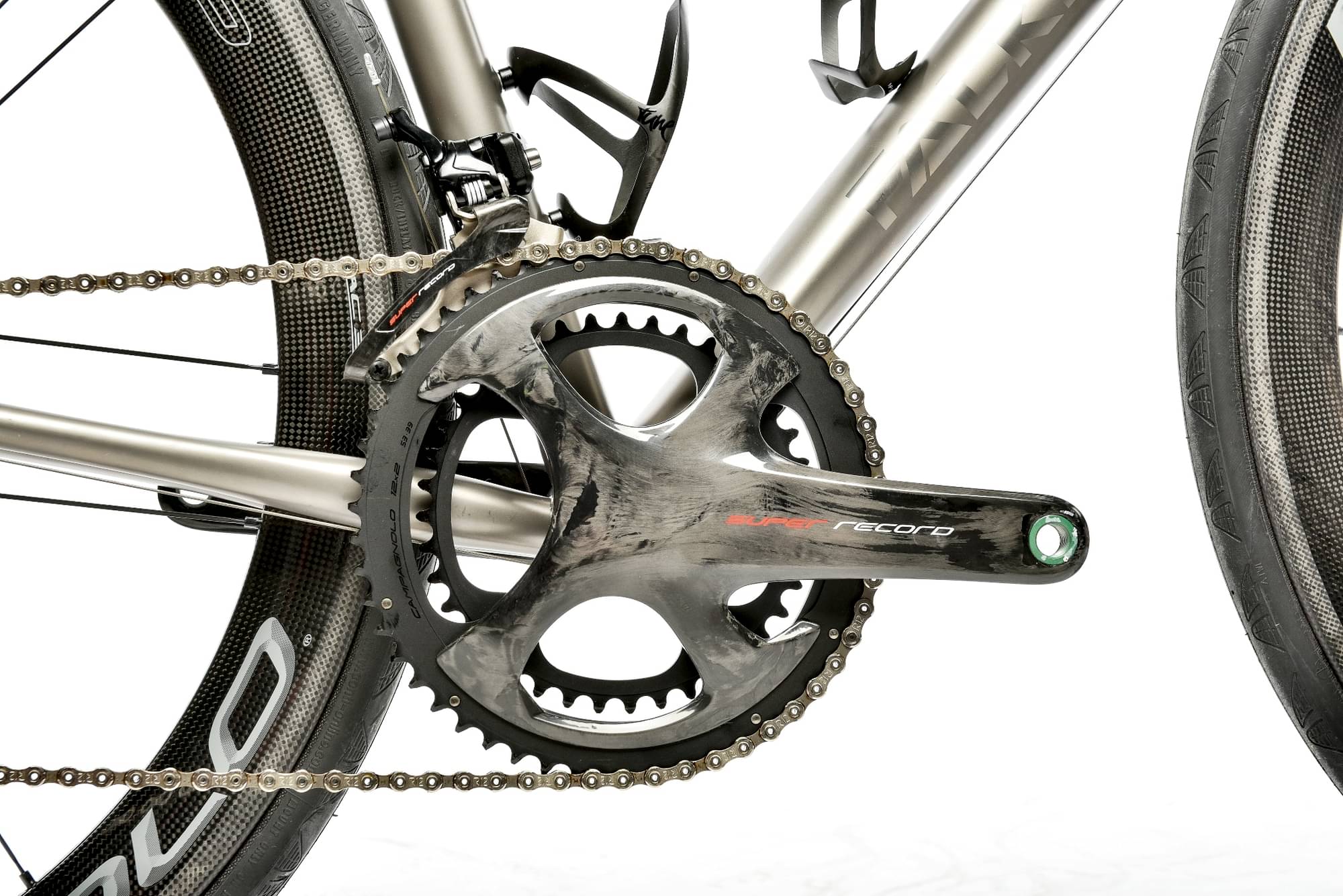

Crank
Chorus 2-fold Super Compact 2-fold 34/50
Pedals
without
Wheels
Rims
Tune TSR35, MIG 70-24L/MAG 170-28L/SAPIM D-Light black incl. quick release AC 14
Tires
Schwalbe Pro One 23mm
Brakes
Brakes
according to the selected group
Cockpit

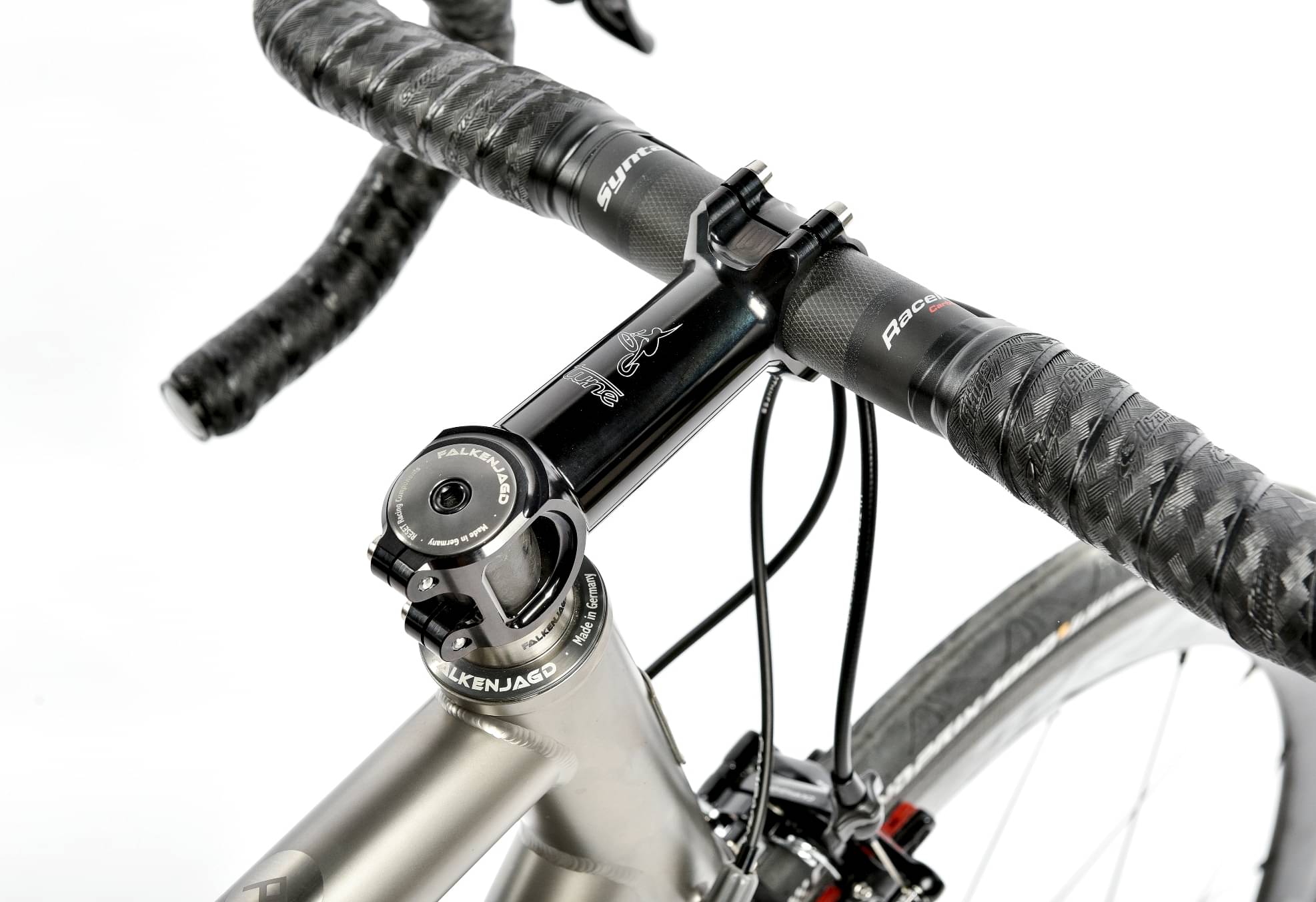

Stem
Racing steel Race light Black

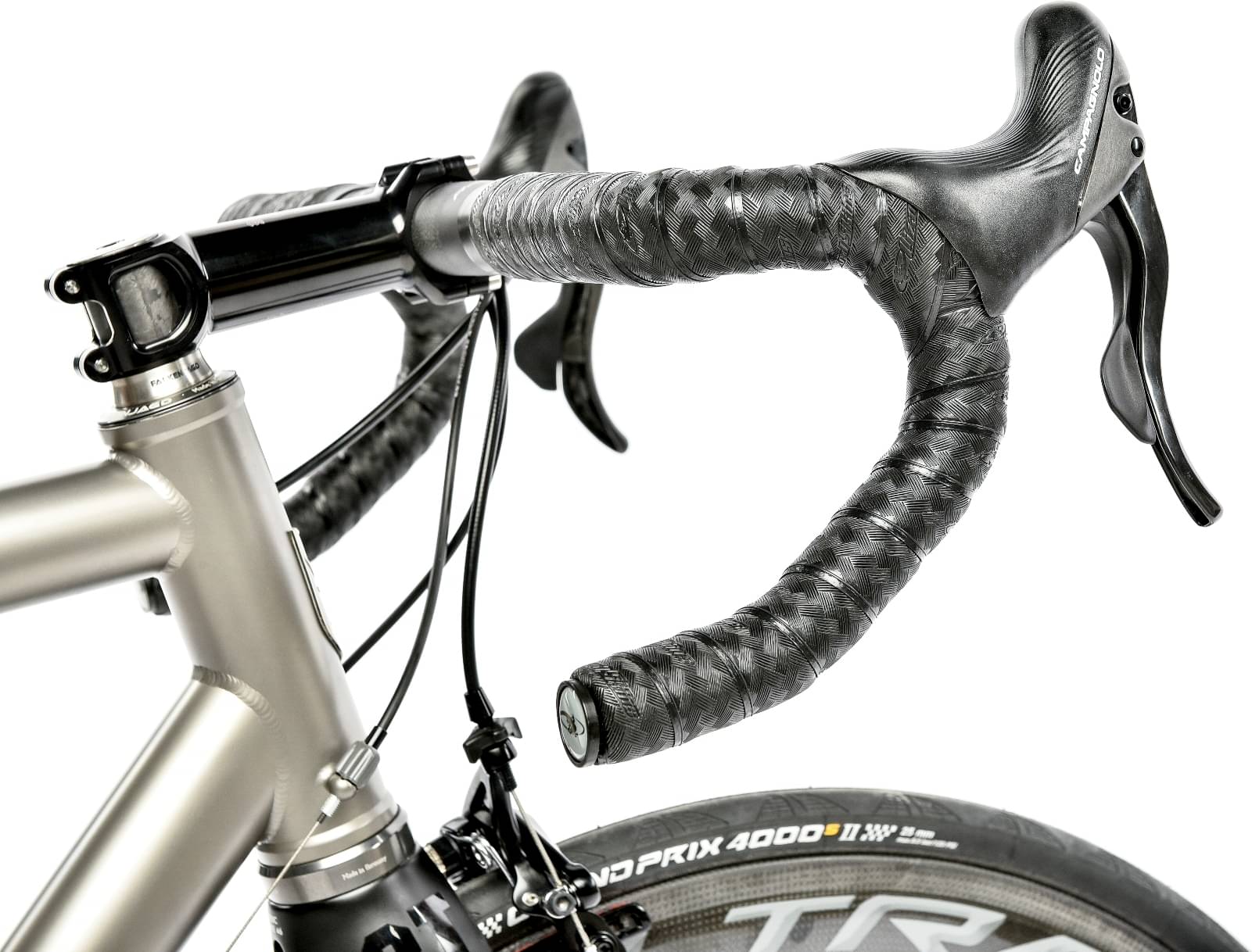

Handlebar
Syntace Racelite 420mm
Seat
Saddle
without

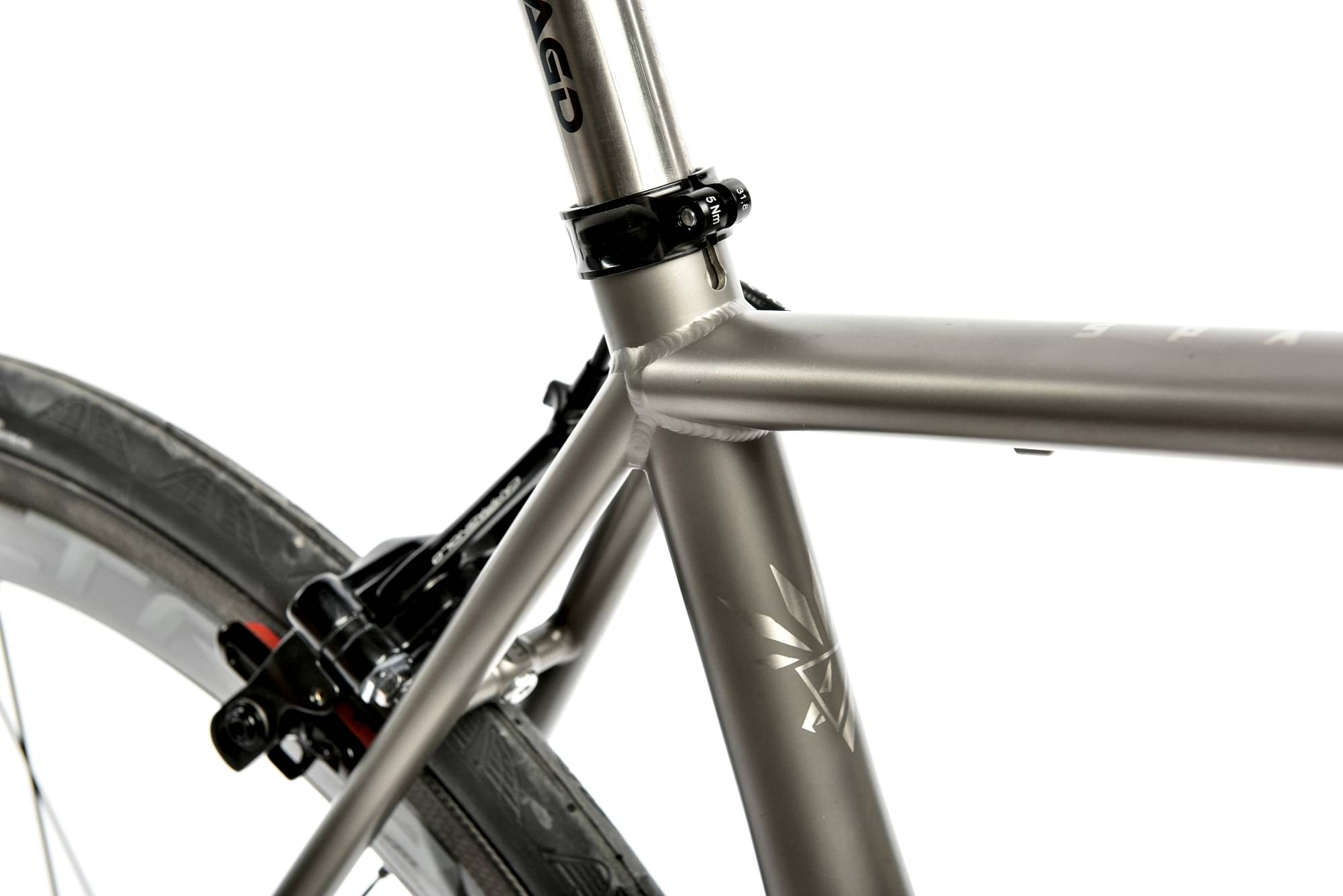

Seatpost
Carbon racing steel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 271 mm | 273 mm |
| Top Tube Length | 530 mm | 550 mm | 565 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Head Tube Angle | 72.5 ° | 73 ° | 73.25 ° | 73.5 ° | 74 ° |
| Chainstay Length | 406 mm | 406 mm | 408 mm | 408 mm | 410 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 65 mm | 63 mm |
| Standover Height | 739 mm | 756 mm | 784 mm | 795 mm | 820 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
