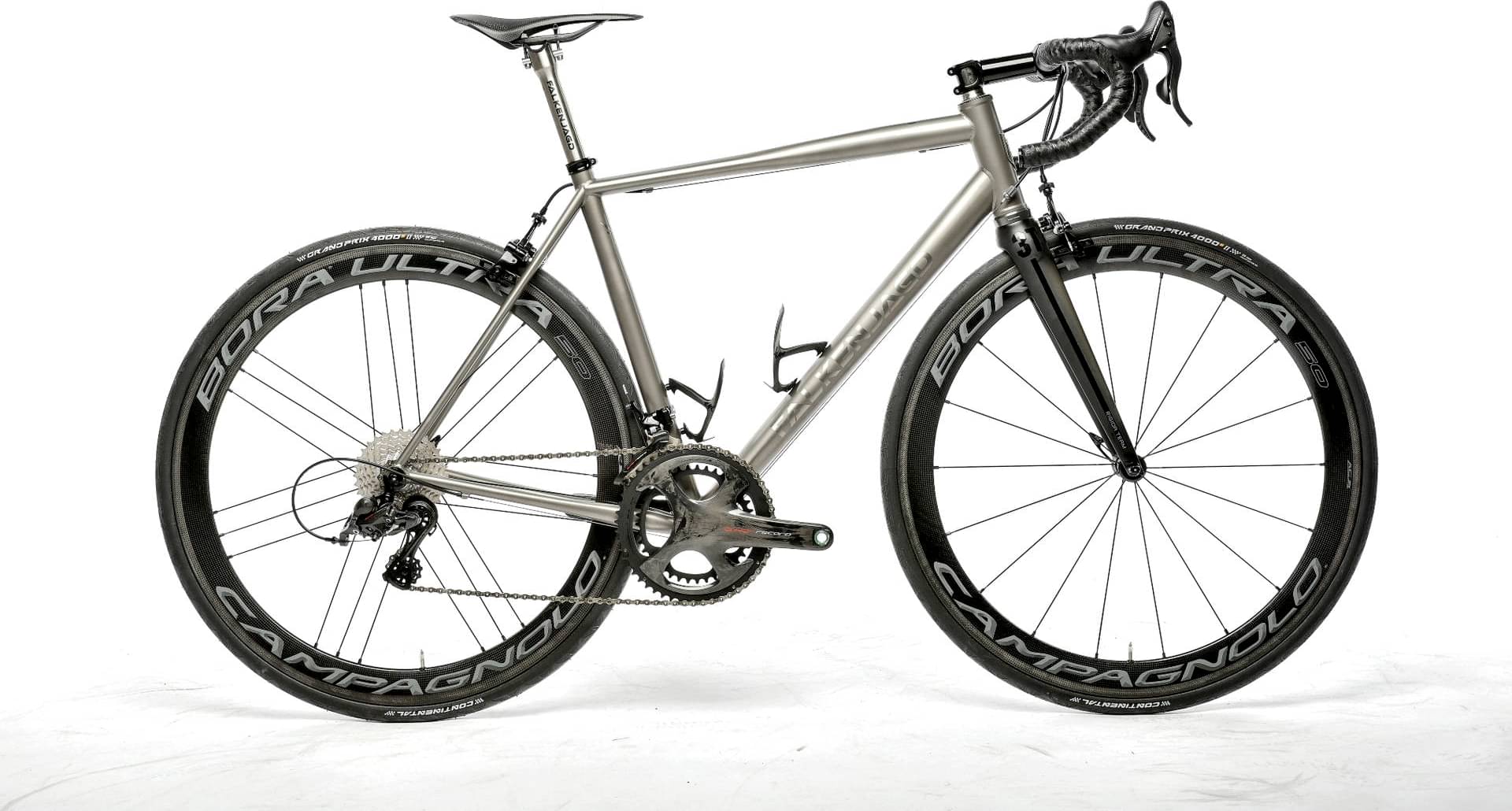

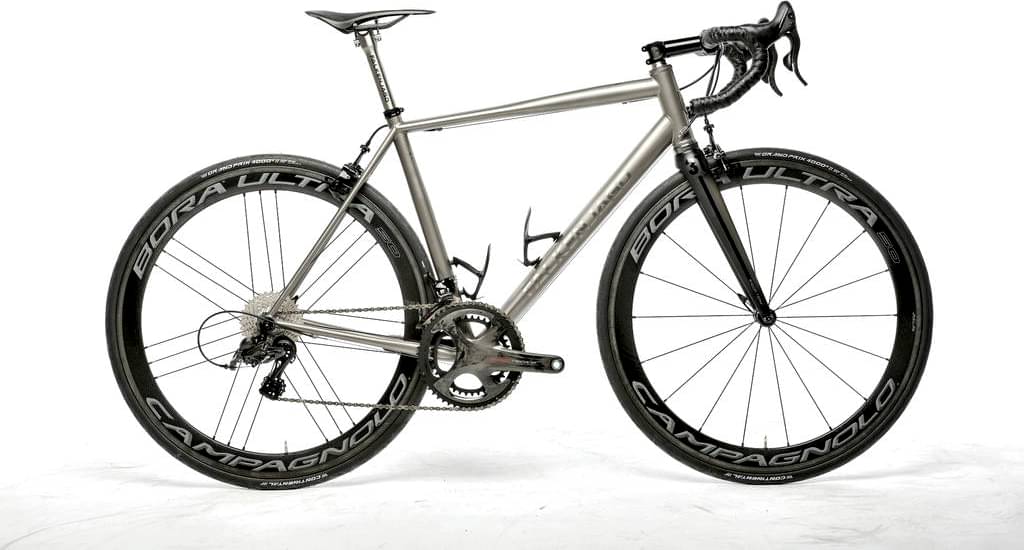

falkenjagd Aristos RS Racing 2024
2024 Road
Estimate price |
8,133$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

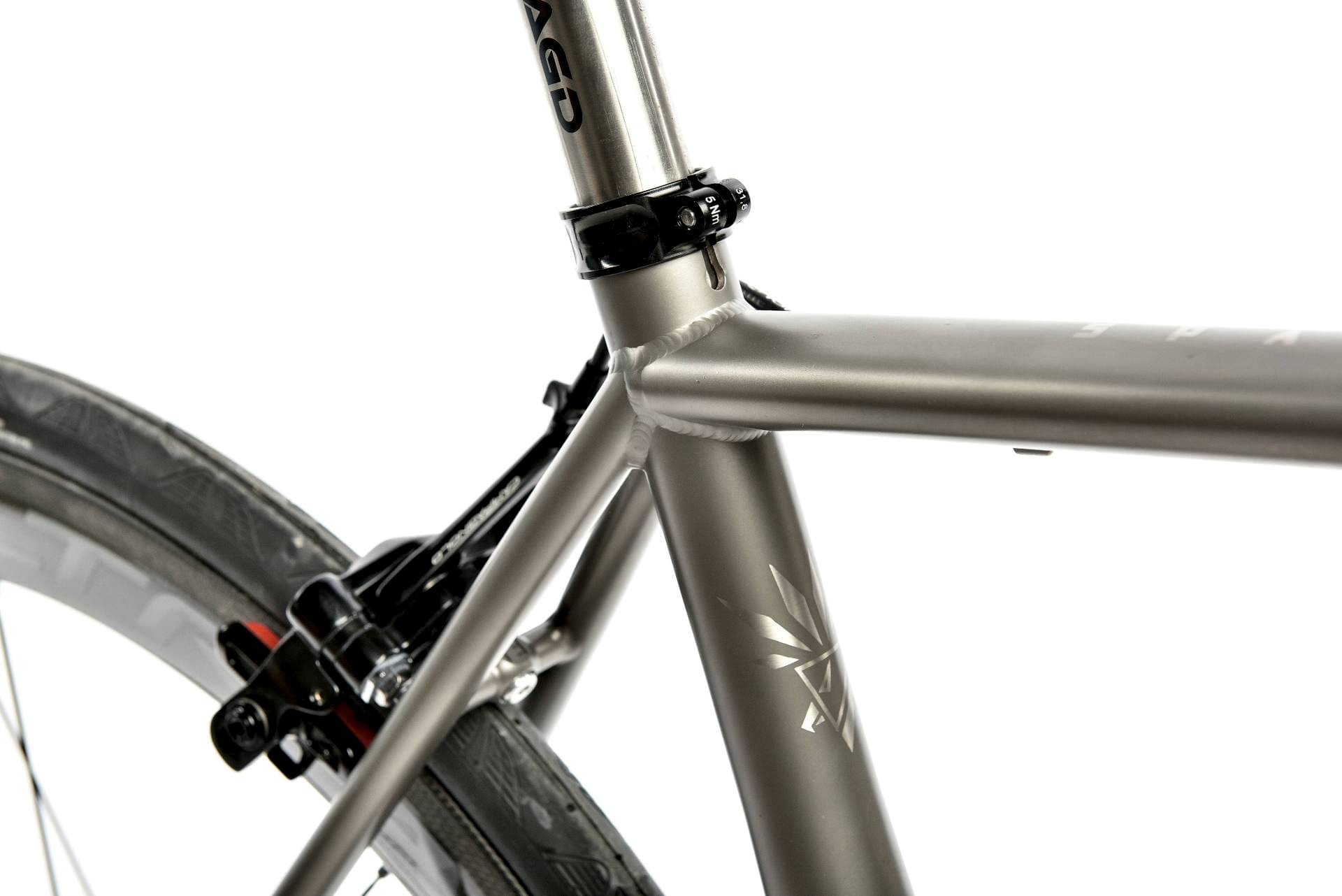

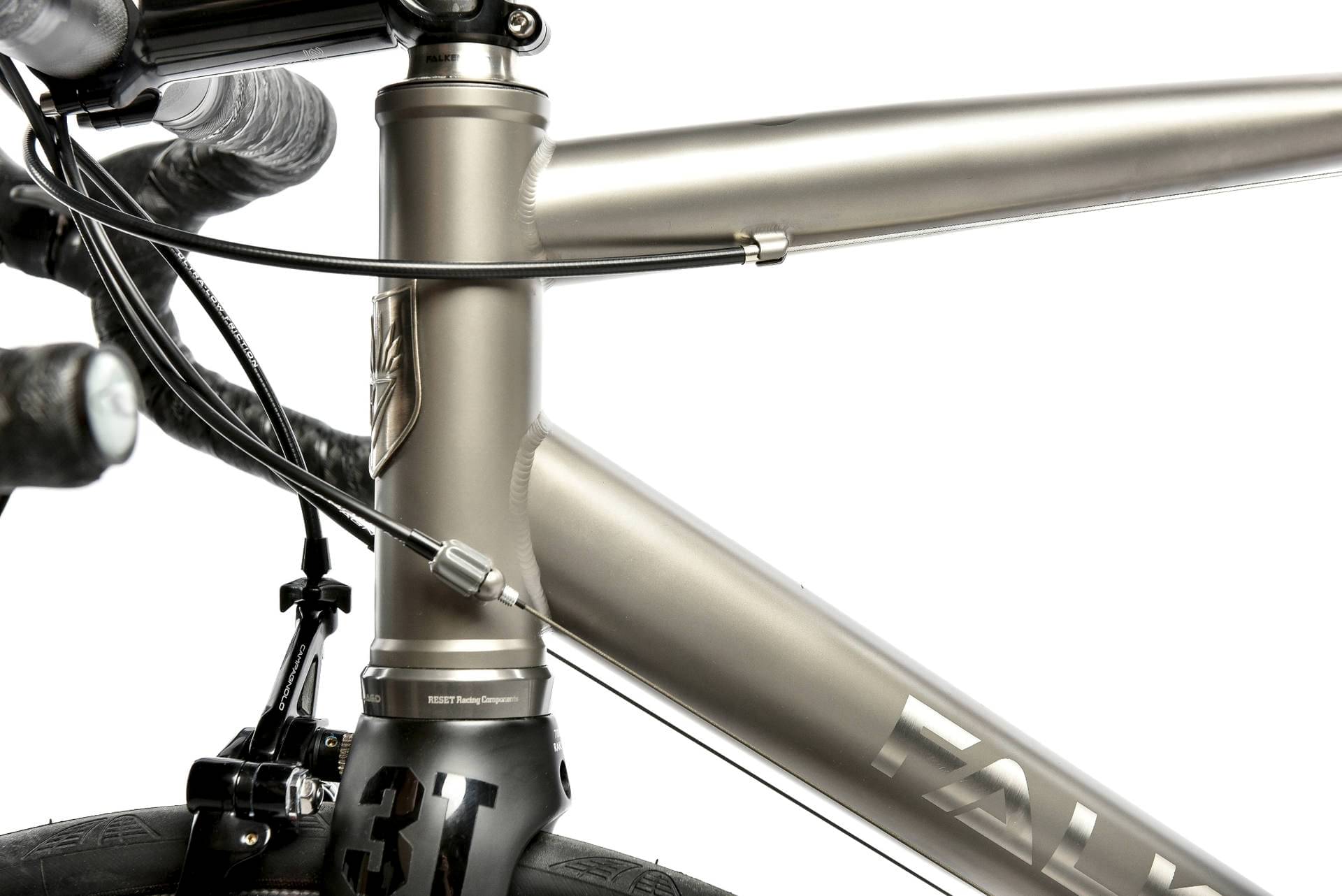

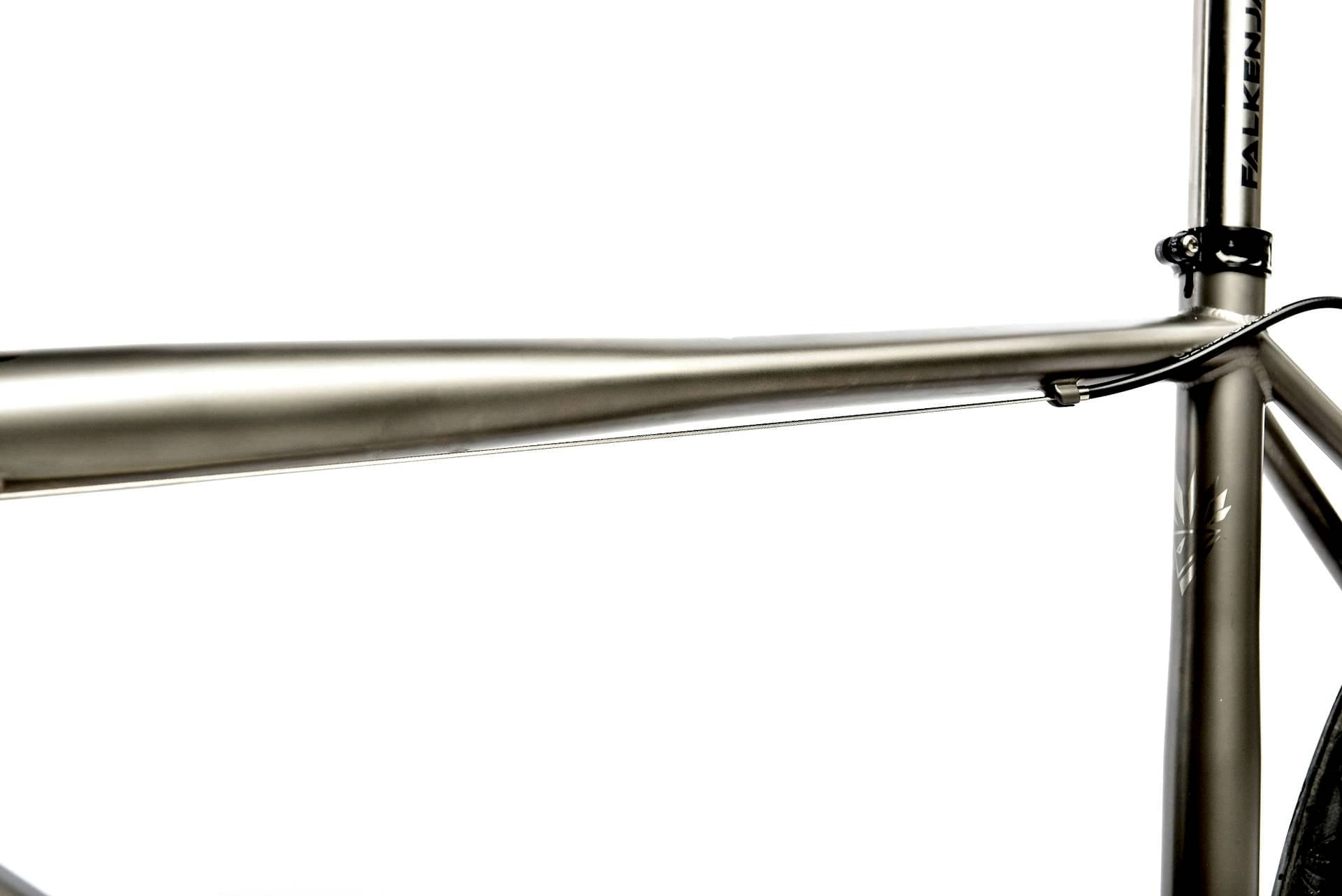

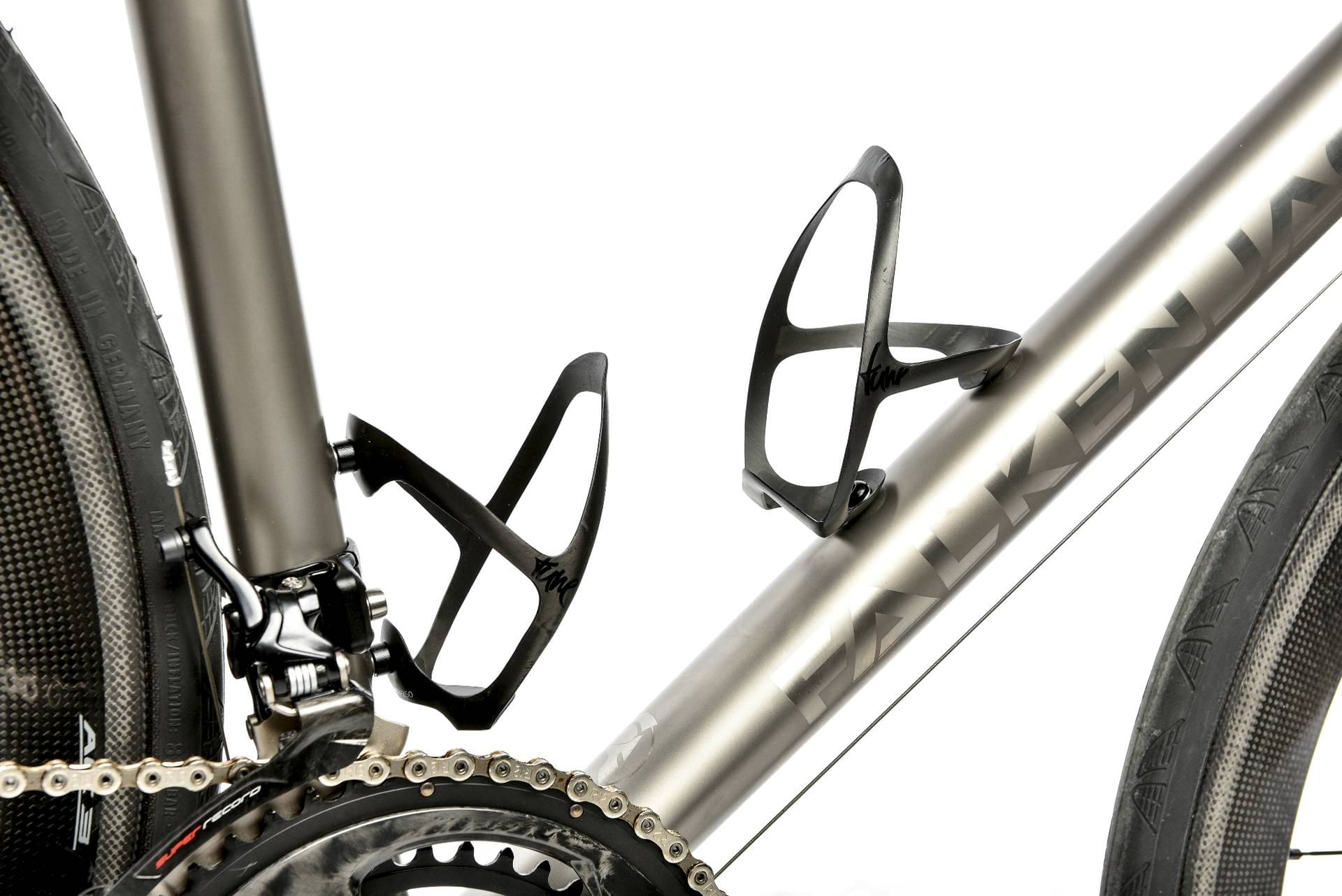

Frame Titanium -
Groupset Chorus -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Rim
Sizing
Recommended size guide.
SM
165cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
XXL
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
FALCON HUNTING Titan Aristos RS
Drivetrain

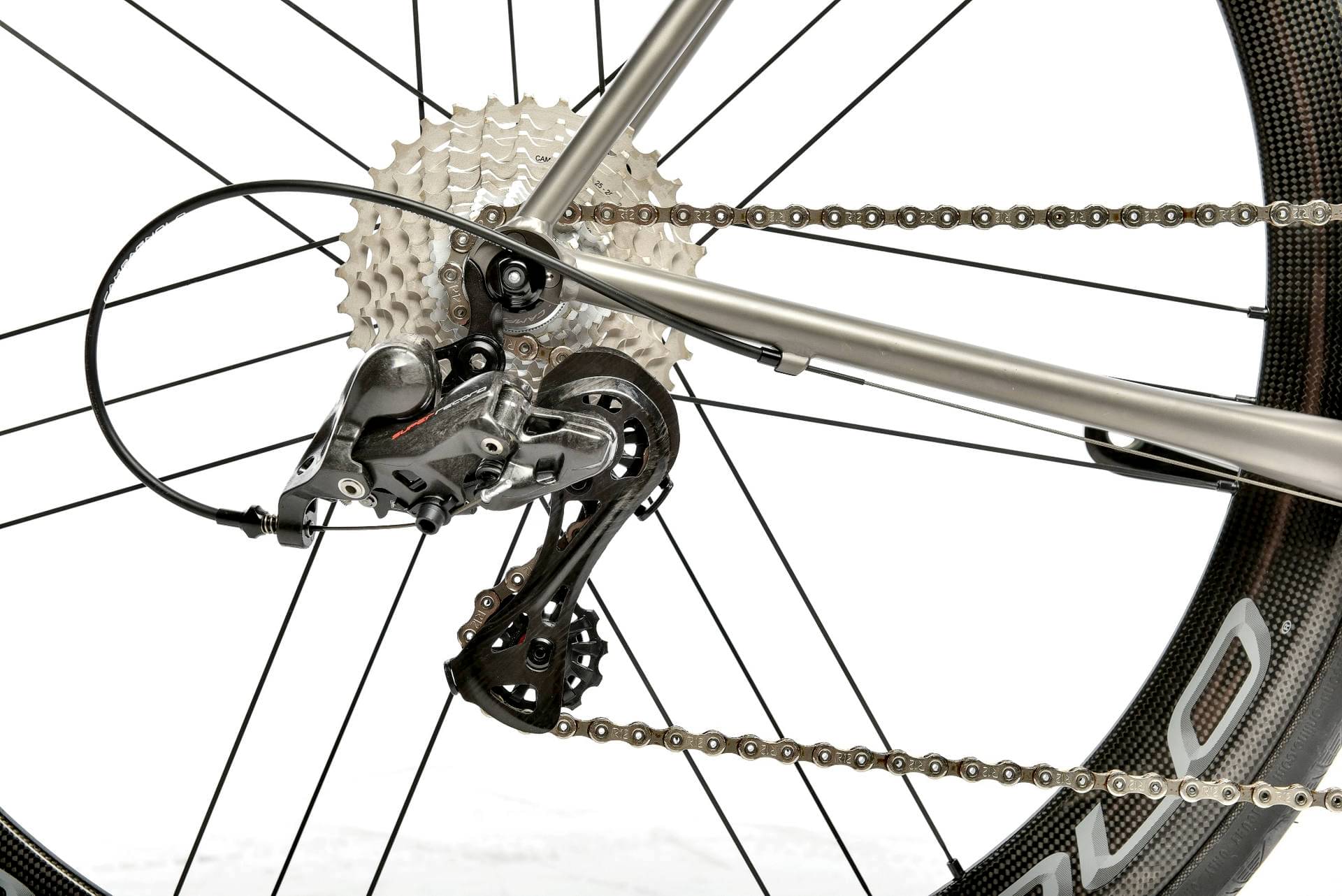

Rear Derailleur
Campagnolo Chorus Super Compact 12-speed
Cassette
12-fold 11-34

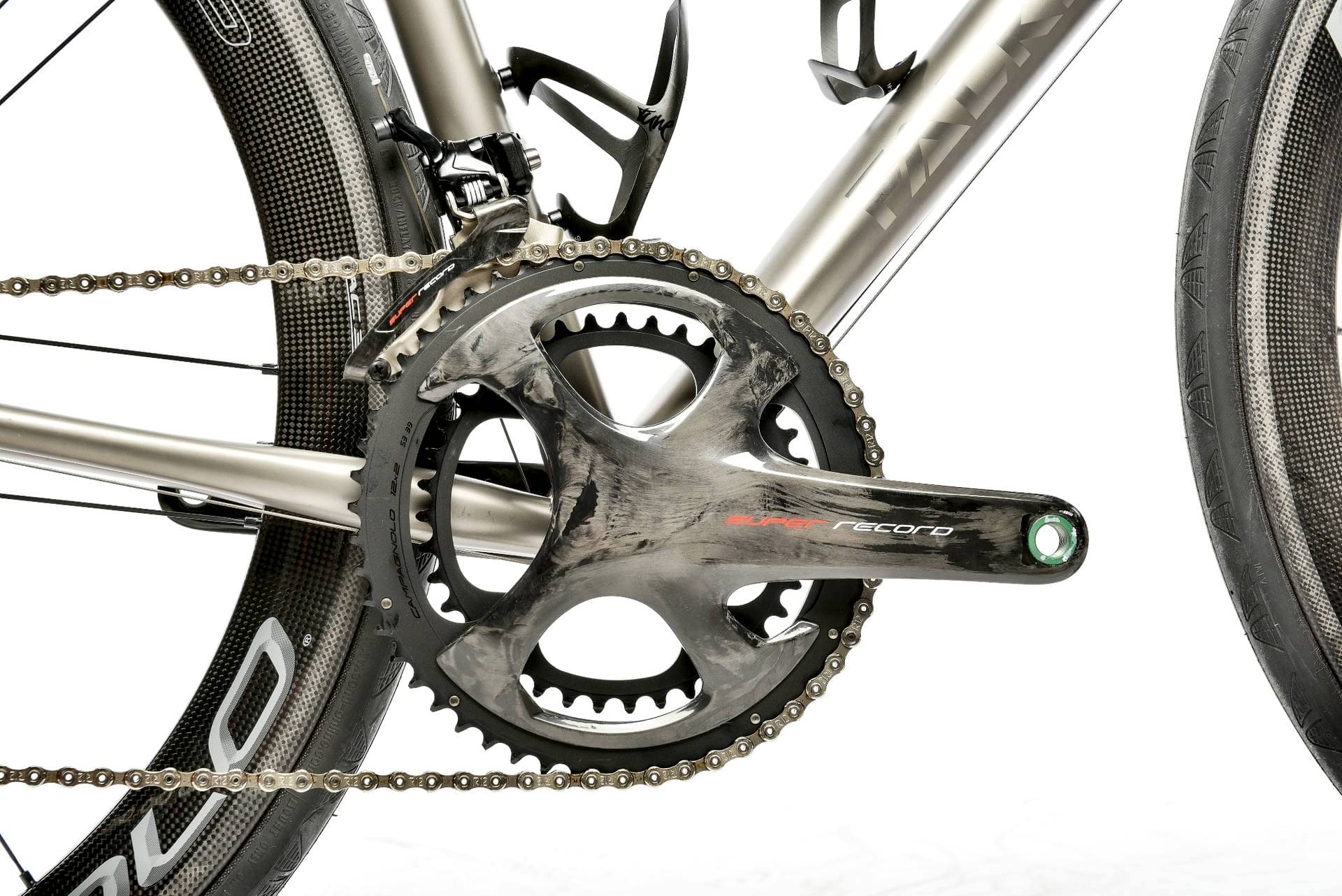

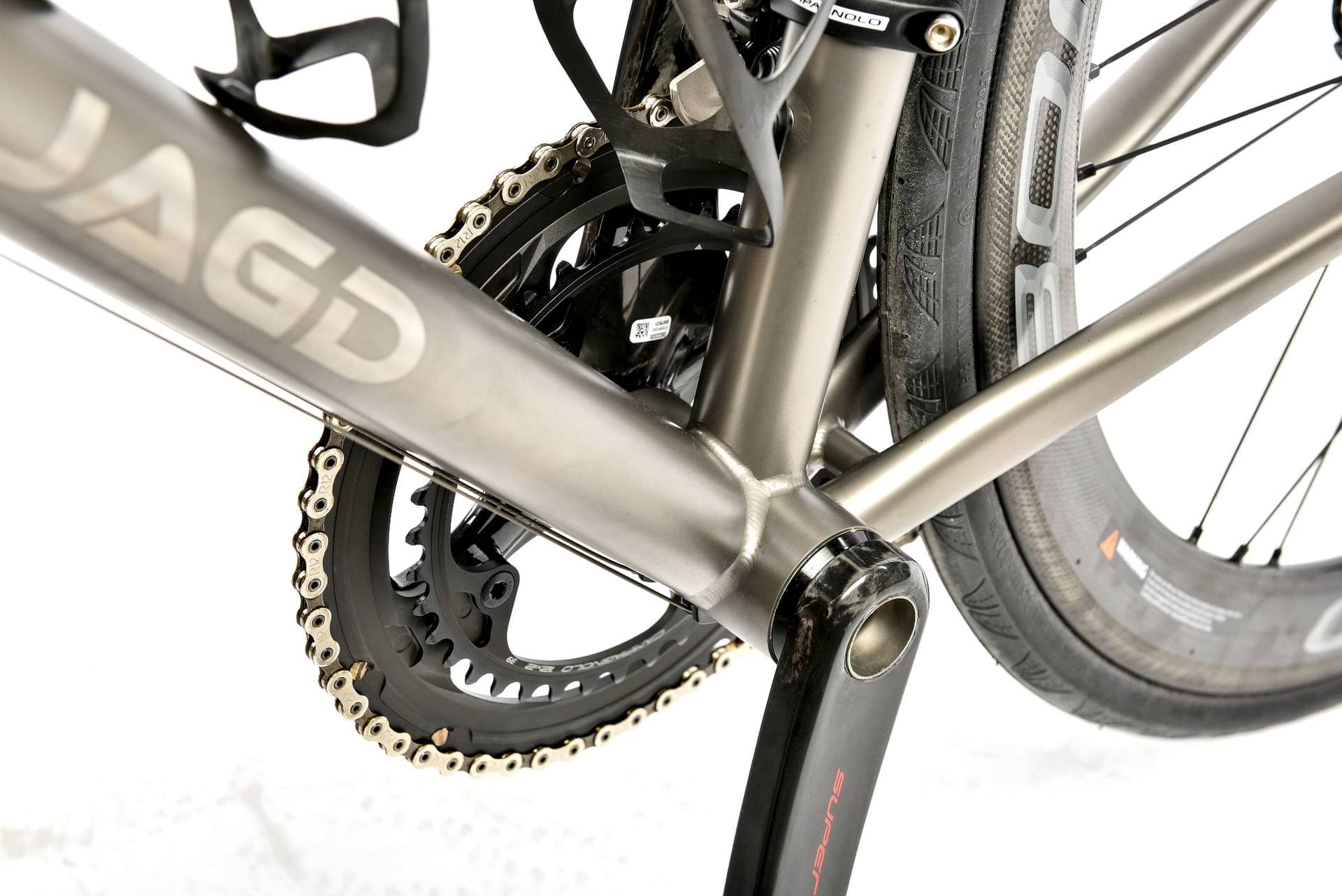

Crank
Chorus 2-fold Super Compact 2-fold 34/50
Pedals
without
Wheels
Rims
Tune TSR35, MIG 70-24L/MAG 170-28L/SAPIM D-Light black incl. quick release AC 14
Brakes
Brakes
according to the selected group

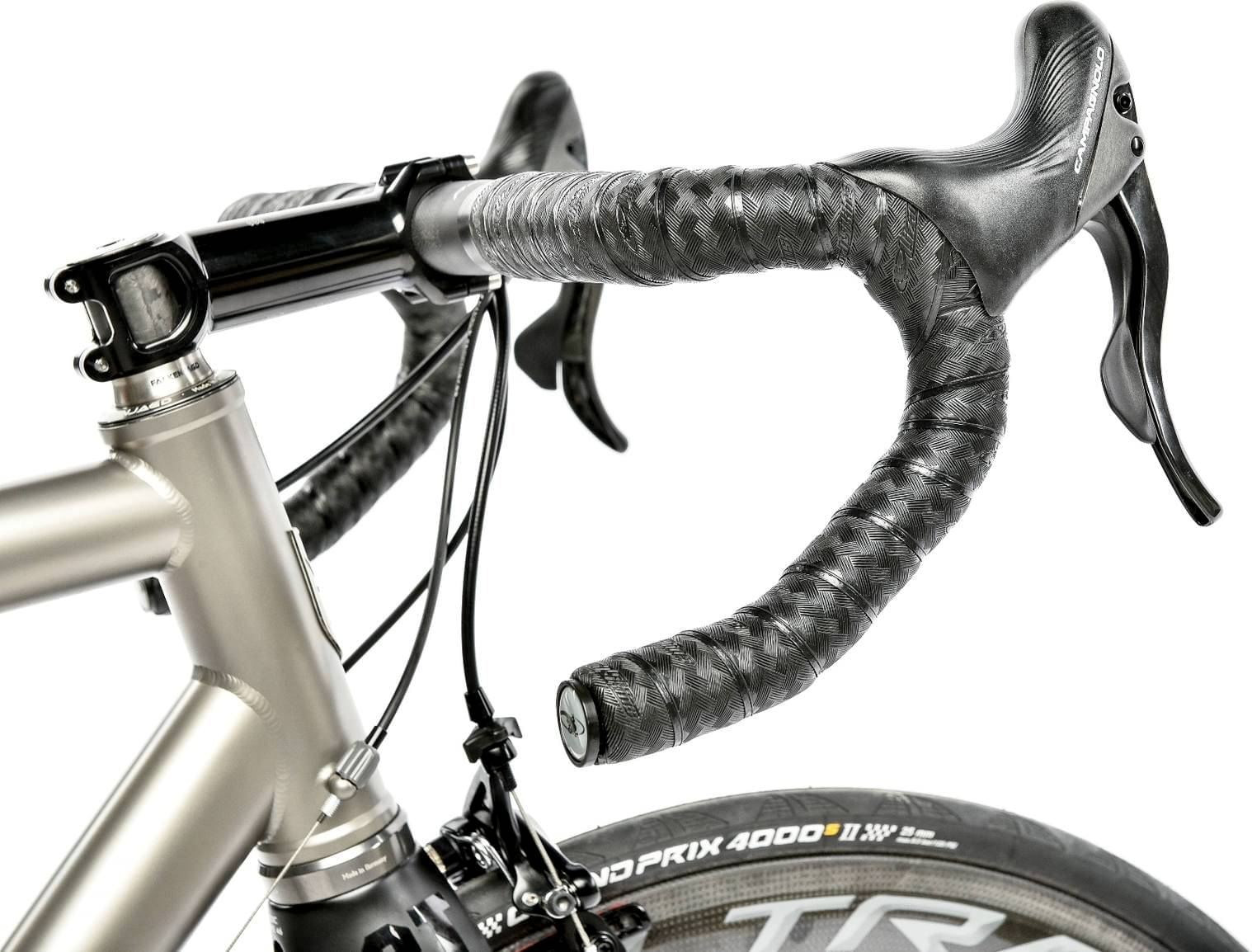

Cockpit

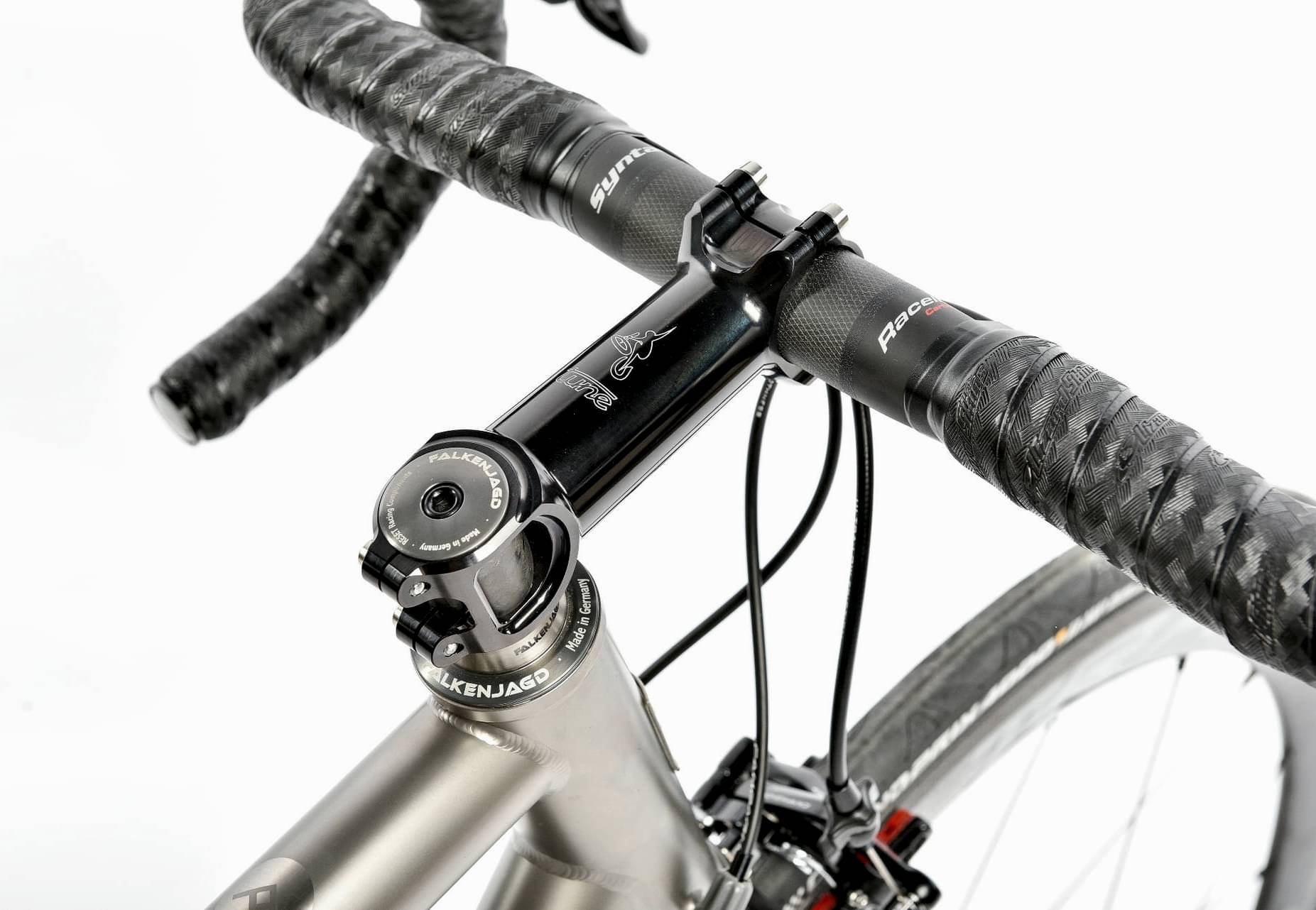

Stem
RACING STEEL Race light Black
Handlebar
Syntace Racelite 420mm
Seat
Saddle
without
Seatpost
RACING STEEL Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.359 mm | 1.382 mm | 1.415 mm | 1.433 mm | 1.667 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 265 mm | 266 mm | 268 mm |
| Front Center | 572 mm | 582 mm | 593 mm | 607 mm | 616 mm |
| Rake | 43 mm | 47 mm | 48 mm | 46 mm | 20 mm |
| Trail | 61 mm | 54 mm | 51 mm | 52 mm | 76 mm |
| Stack | 519 mm | 535 mm | 556 mm | 579 mm | 690 mm |
| Reach | 382 mm | 387 mm | 393 mm | 404 mm | 414 mm |
| Top Tube Length | 530 mm | 550 mm | 565 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 72.5 ° | 73 ° | 73.25 ° | 73.5 ° | 74 ° |
| Head Tube Length | 125 mm | 145 mm | 160 mm | 185 mm | 210 mm |
| Chainstay Length | 406 mm | 406 mm | 408 mm | 408 mm | 410 mm |
| Wheelbase | 967 mm | 977 mm | 991 mm | 1005 mm | 1017 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 71 mm | 70 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 168 cm | 177 cm | 184 cm | 195 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm | 201 cm | 205 cm |
