Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

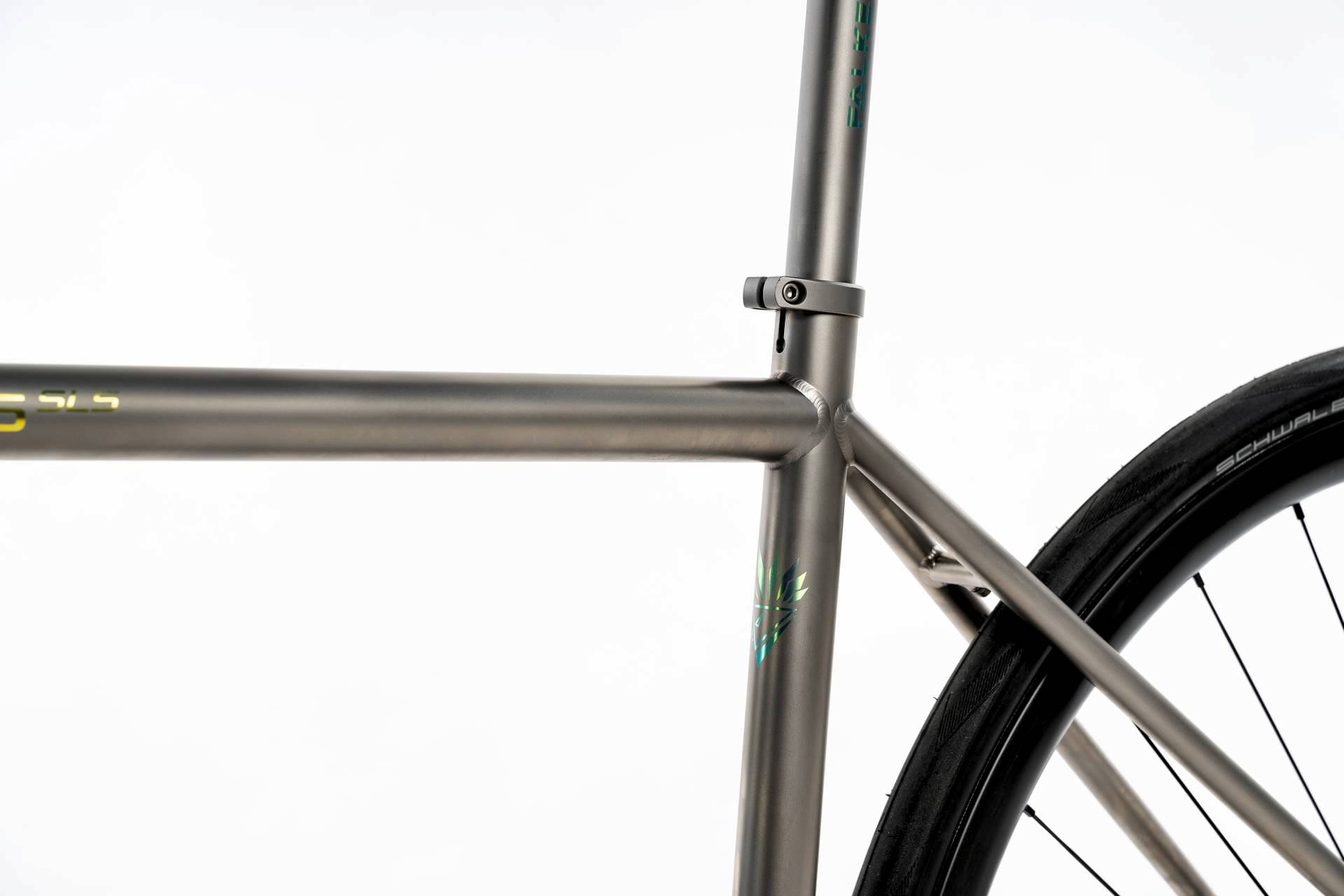

Frame Titanium -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -

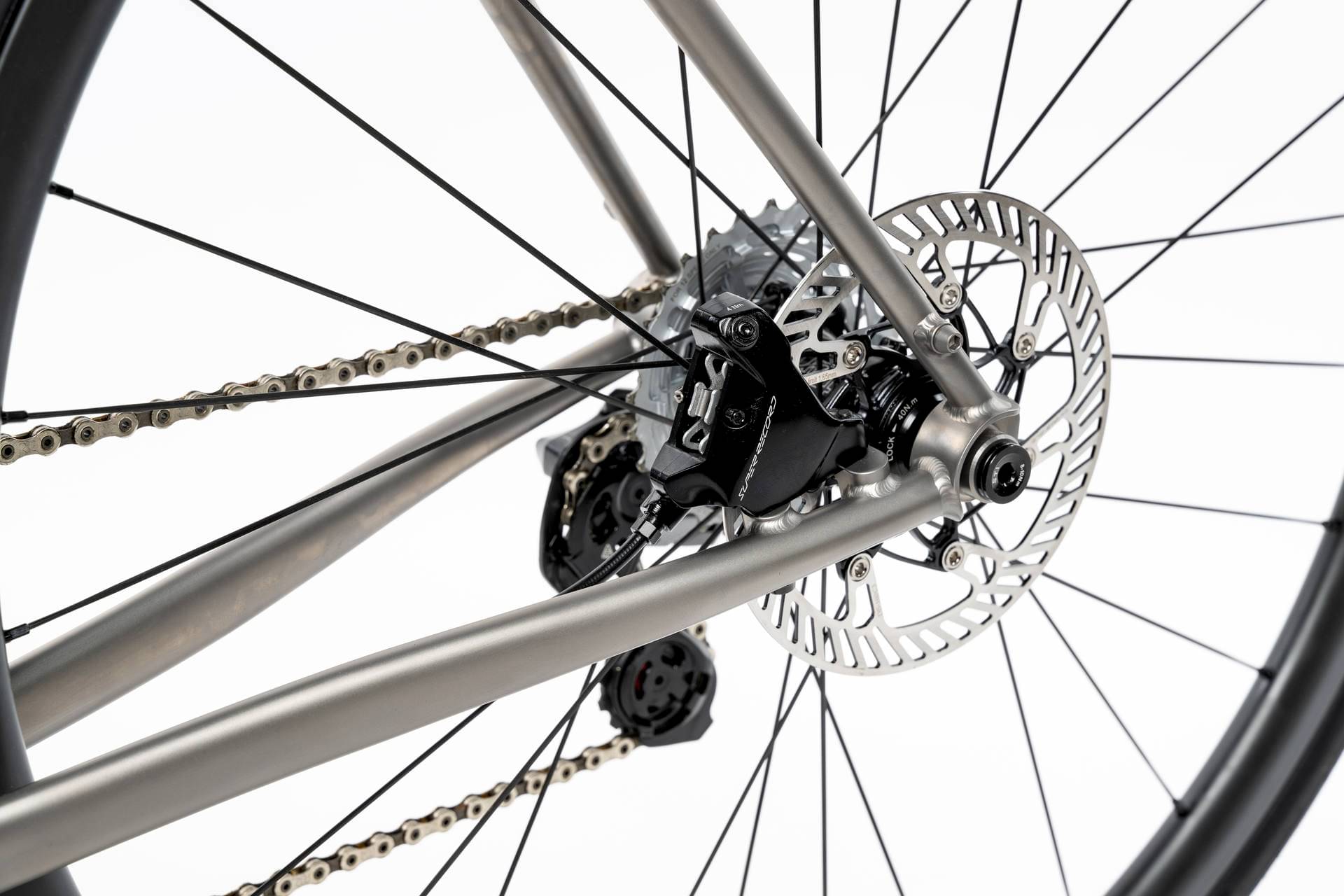

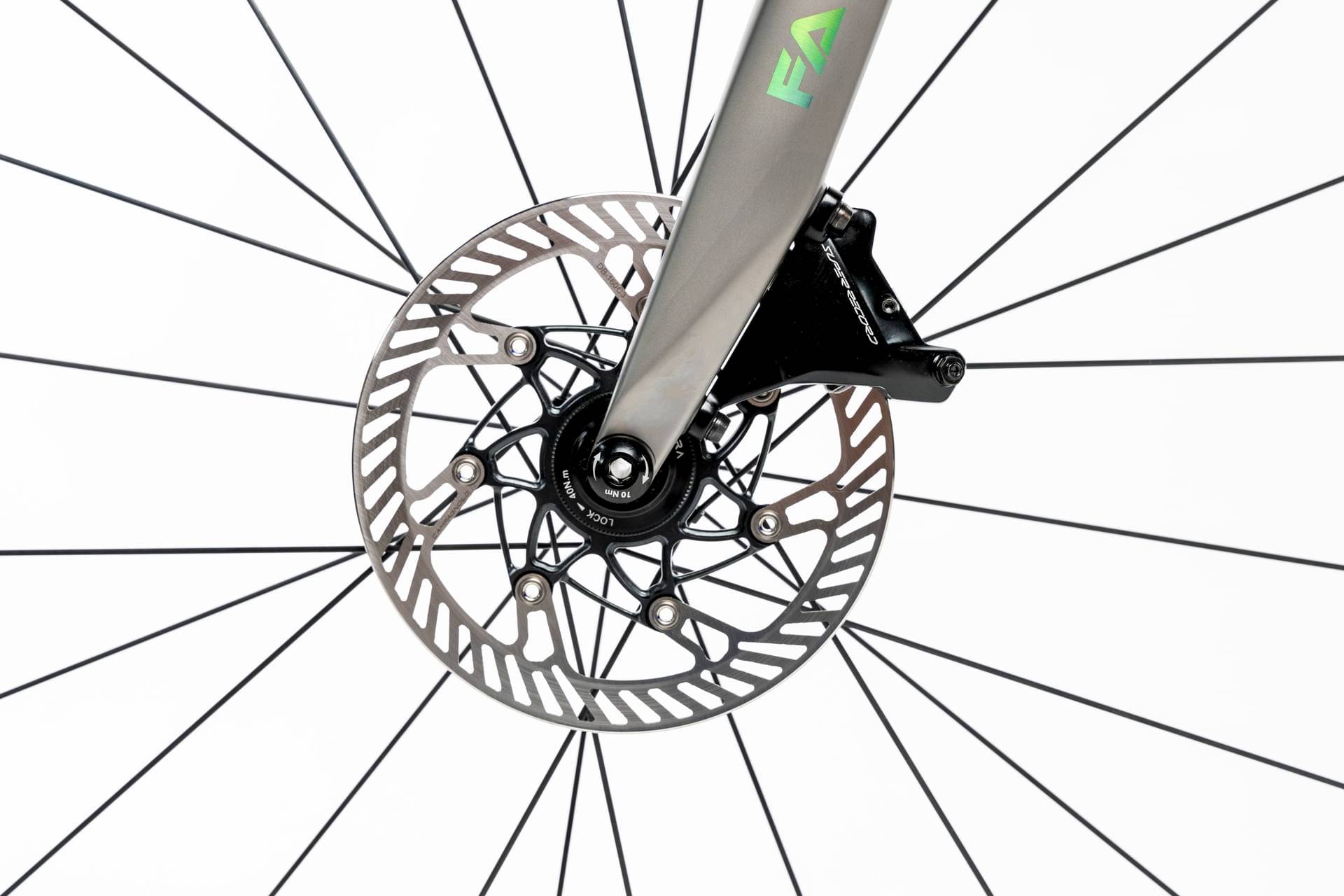

Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
165cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
XXL
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

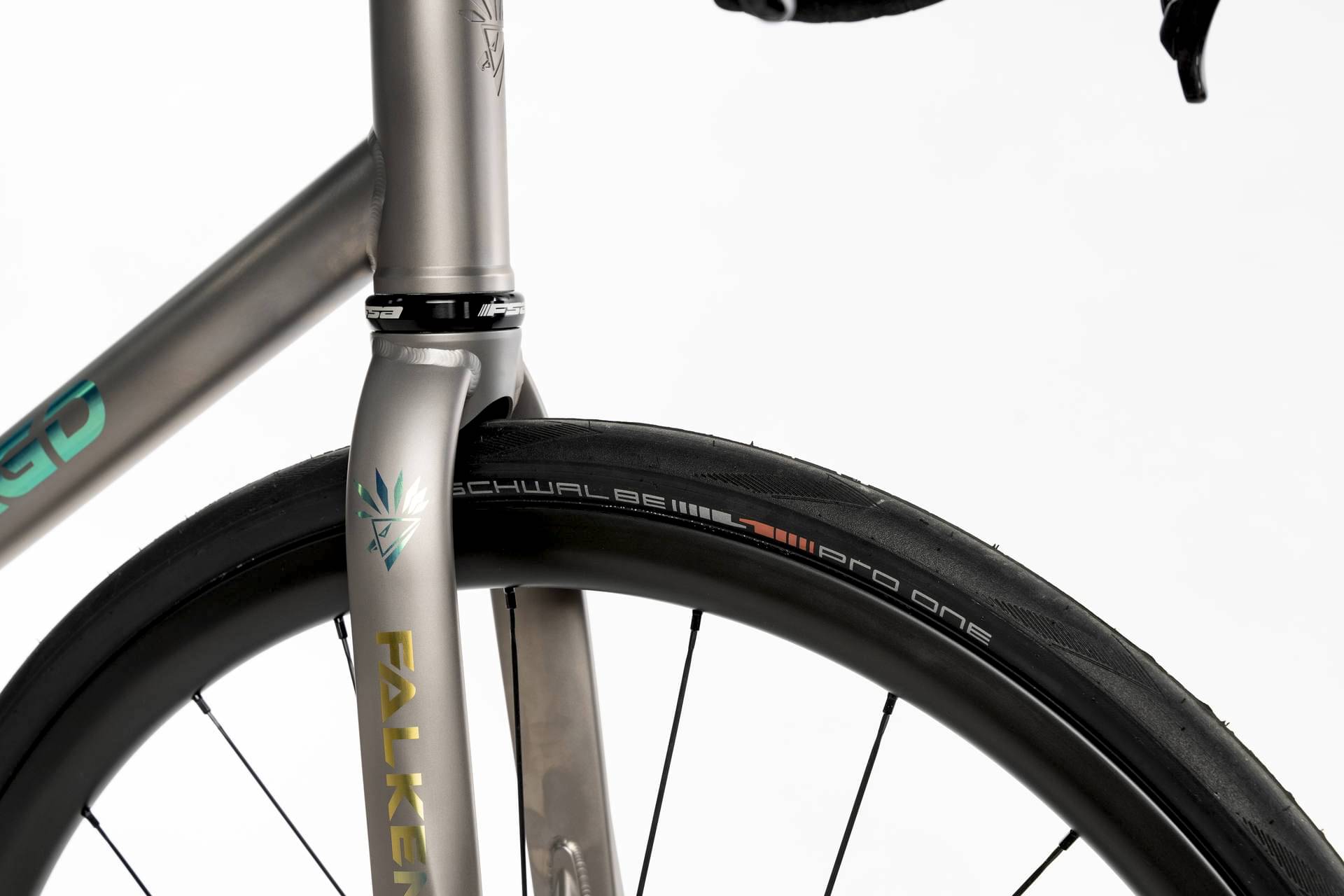

Suspension Fork
FALKENJAGD Titan Gravel Axios64 colour etched

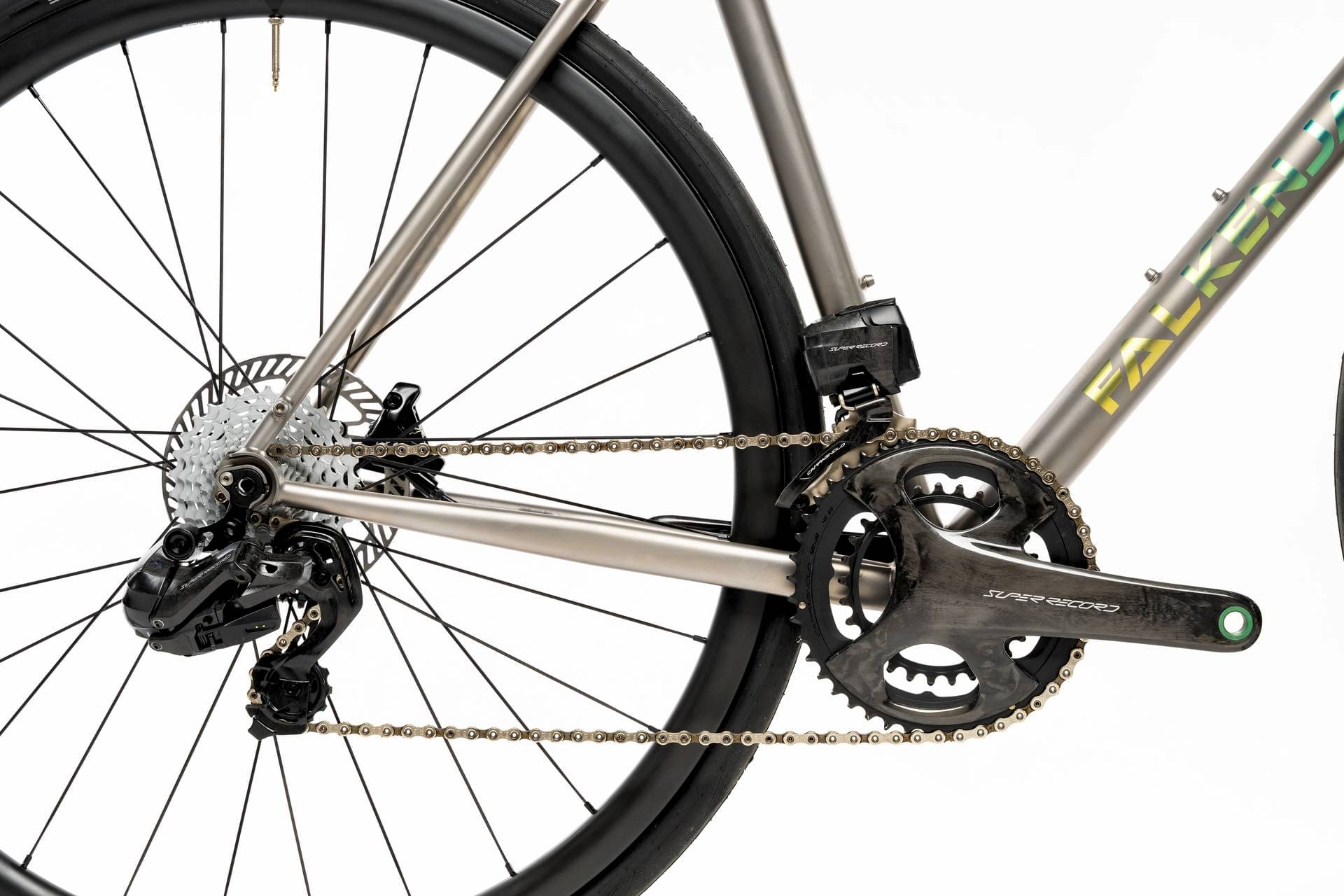

Drivetrain

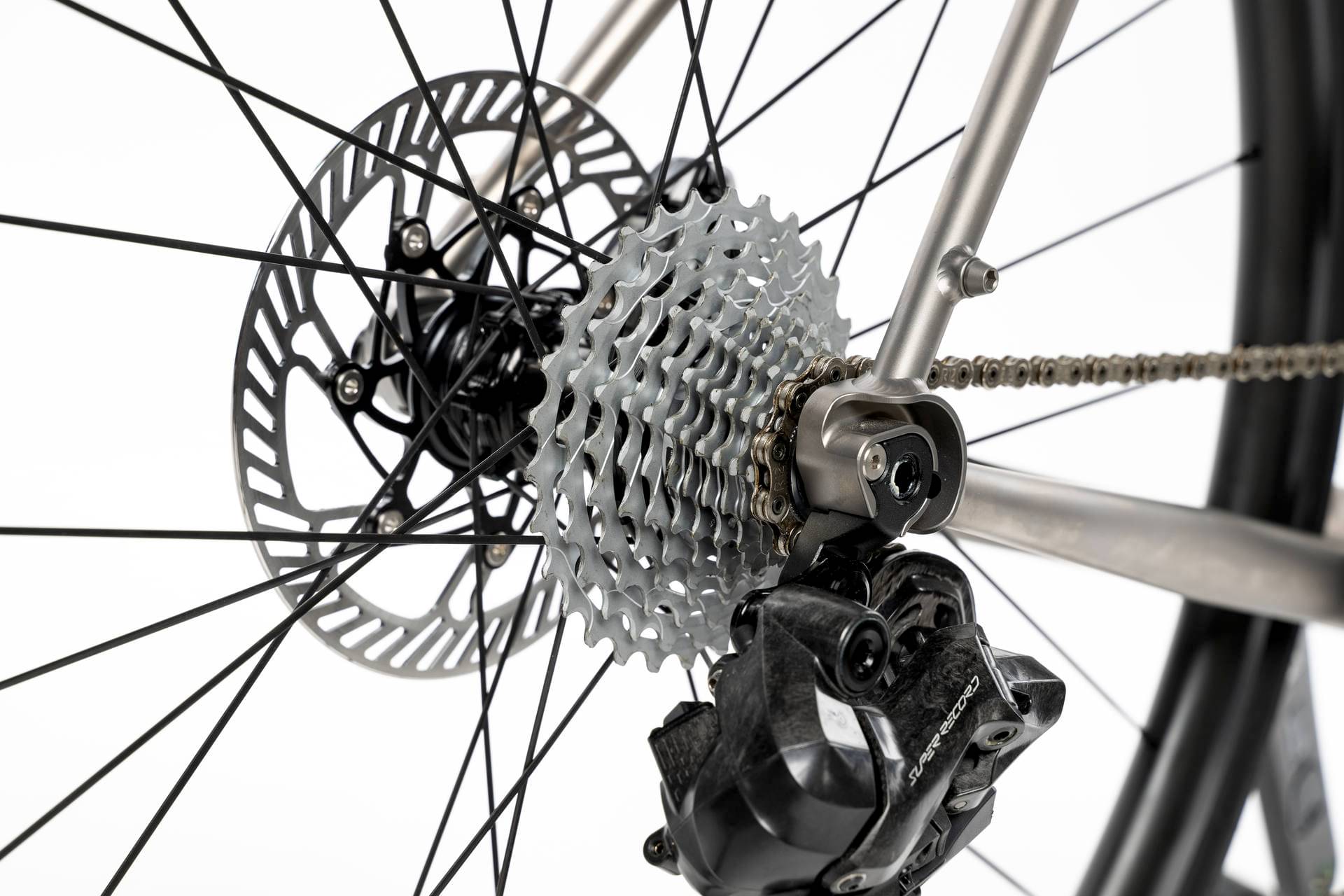

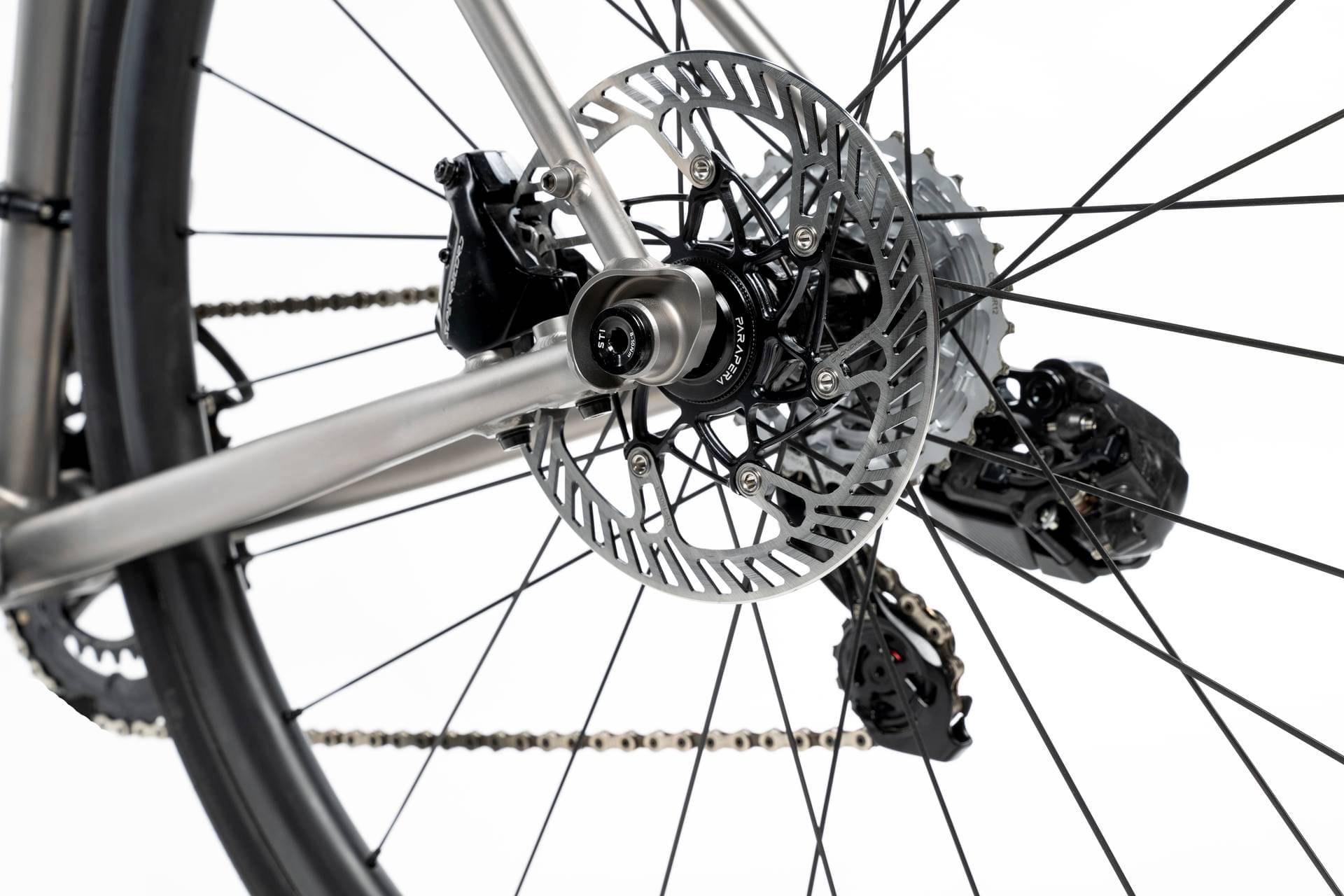

Rear Derailleur
Campagnolo Ekar 1x 13
Cassette
EKAR 13-speed 10-44 teeth

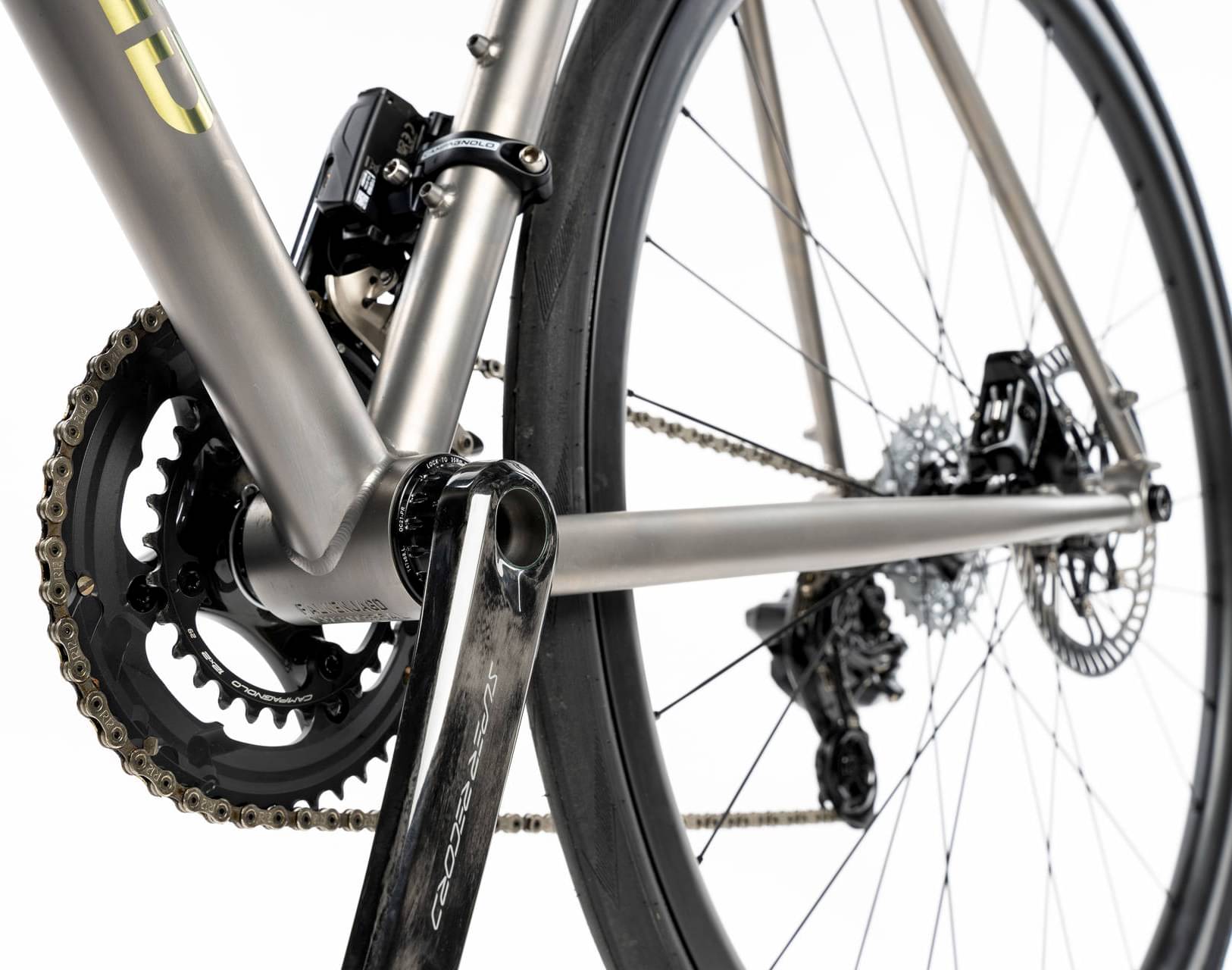

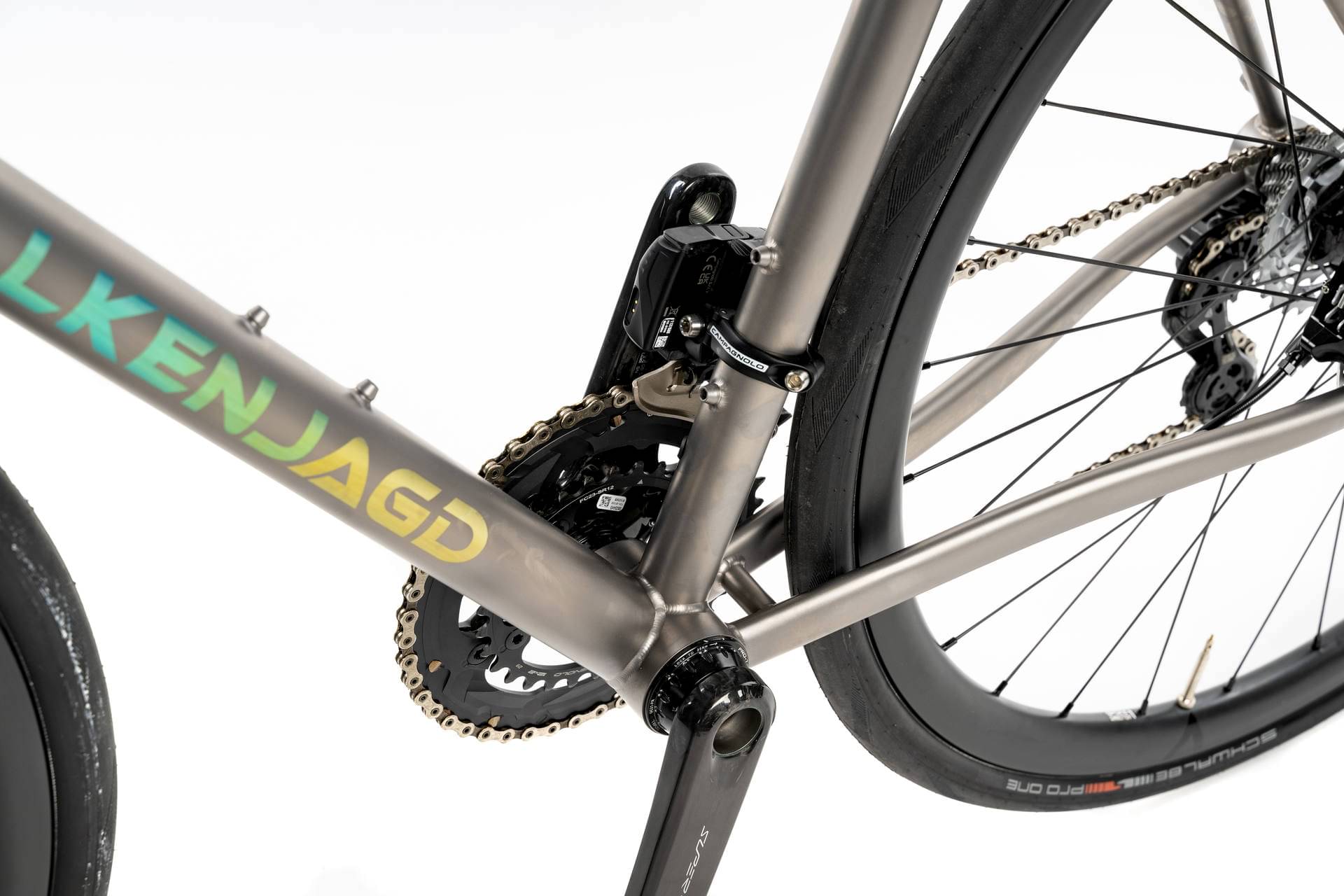

Crank
EKAR 13-speed 38T.
Pedals
without
Wheels
Rims
Campagnolo Shamal Carbon Disc 2024

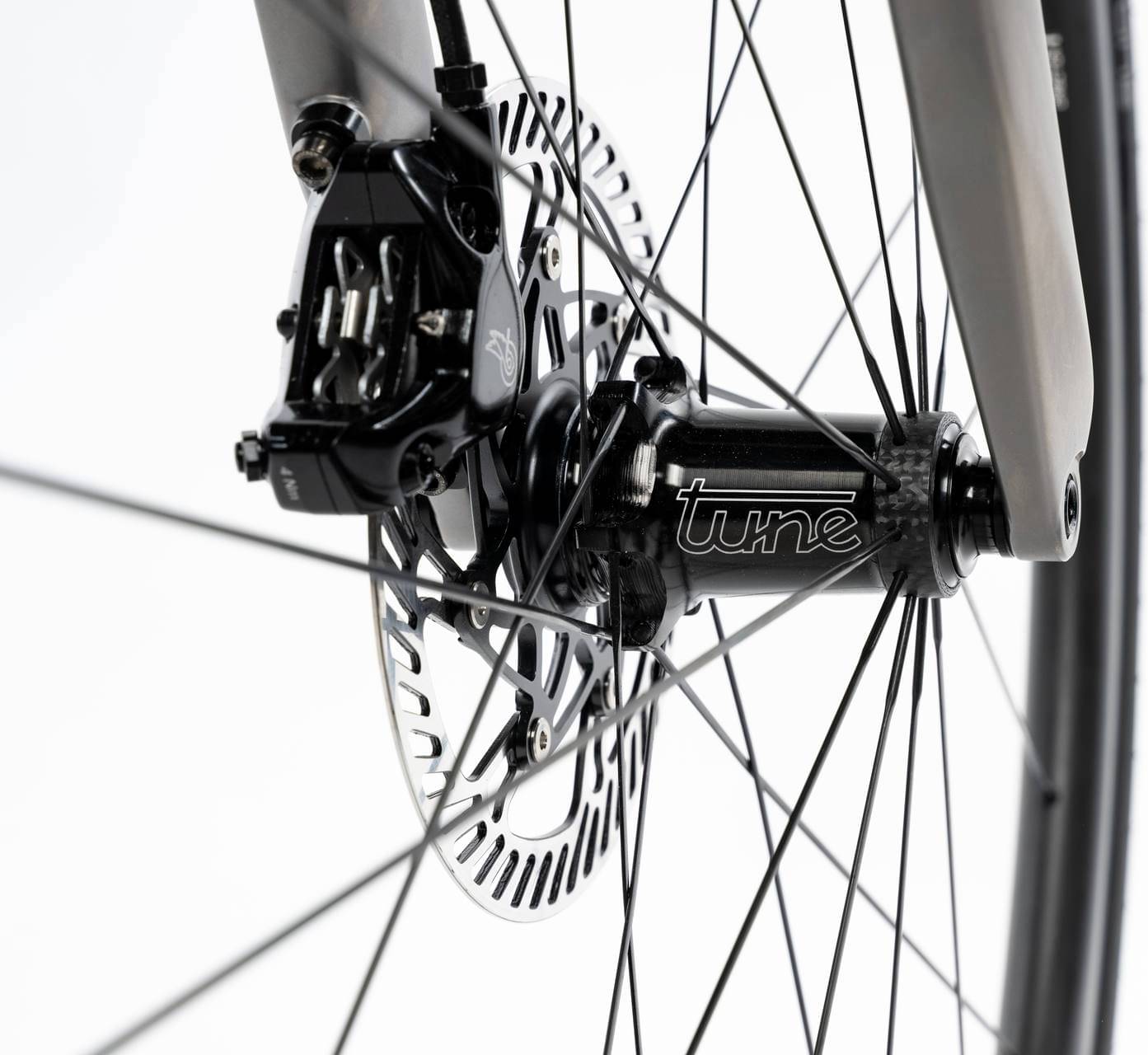

Brakes
Brakes
Depending on the Campa group you choose
Cockpit

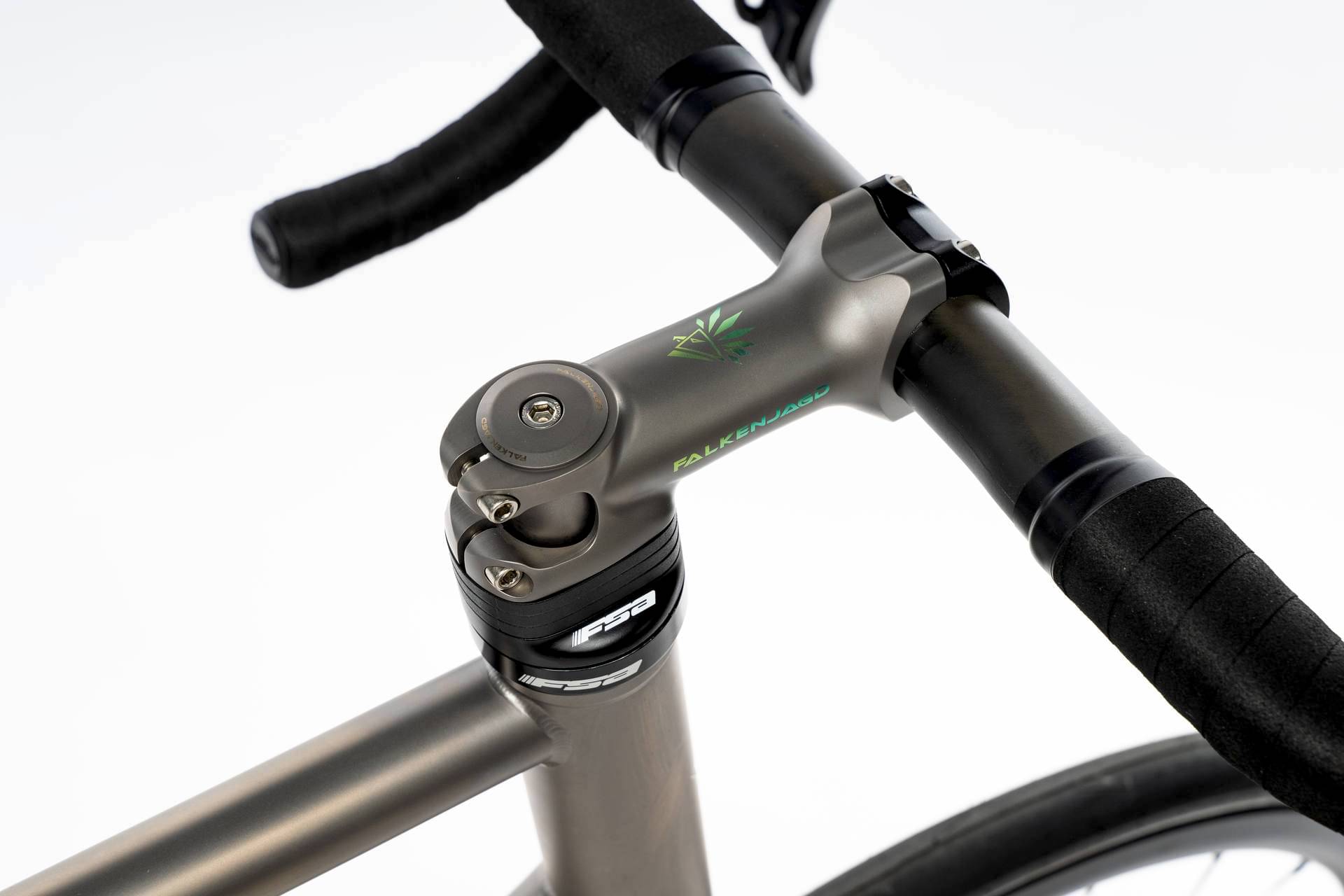

Stem
FALCON HUNTING Titan Axios64 colour etched

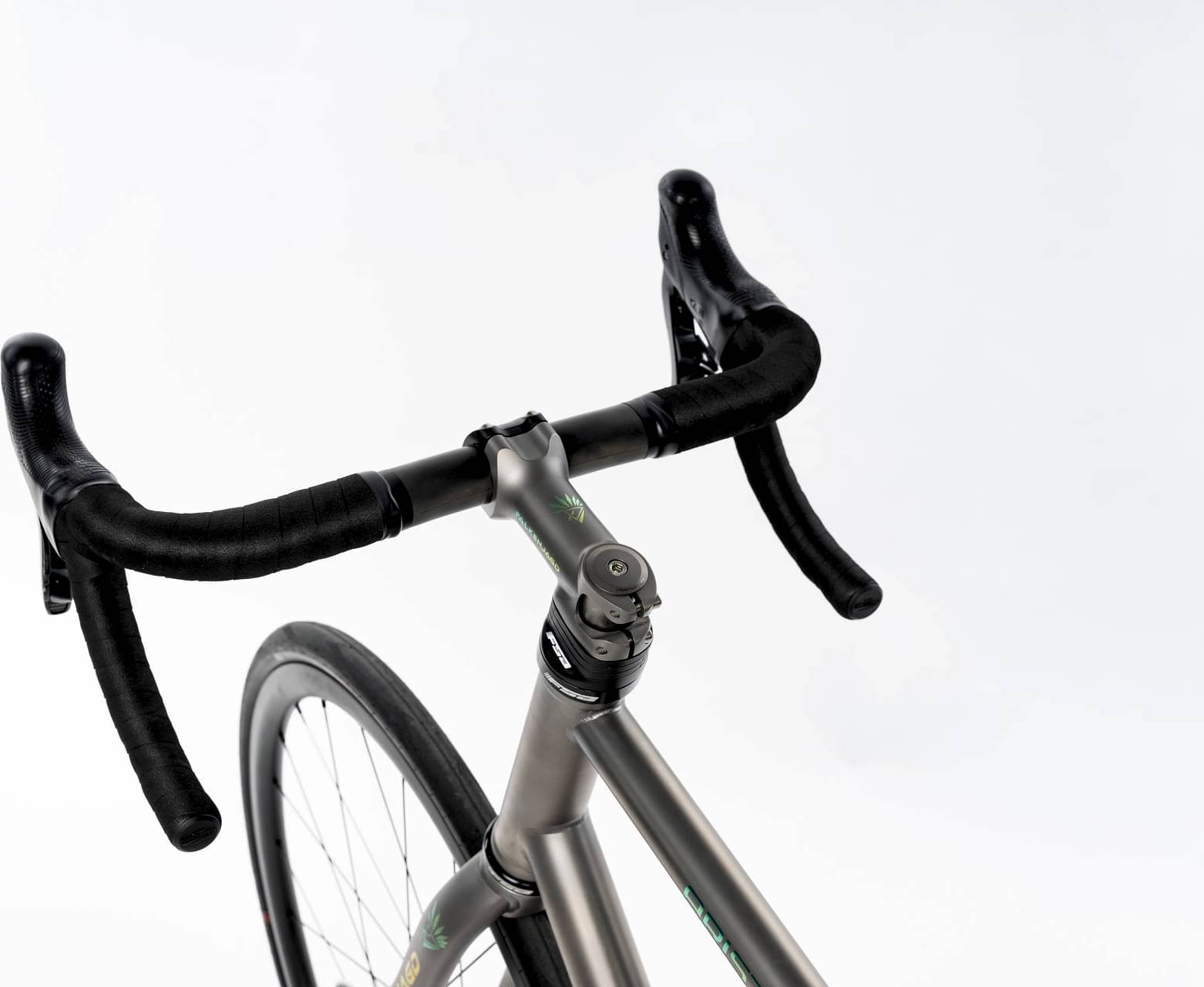

Handlebar
Syntace Racelite 420mm
Seat

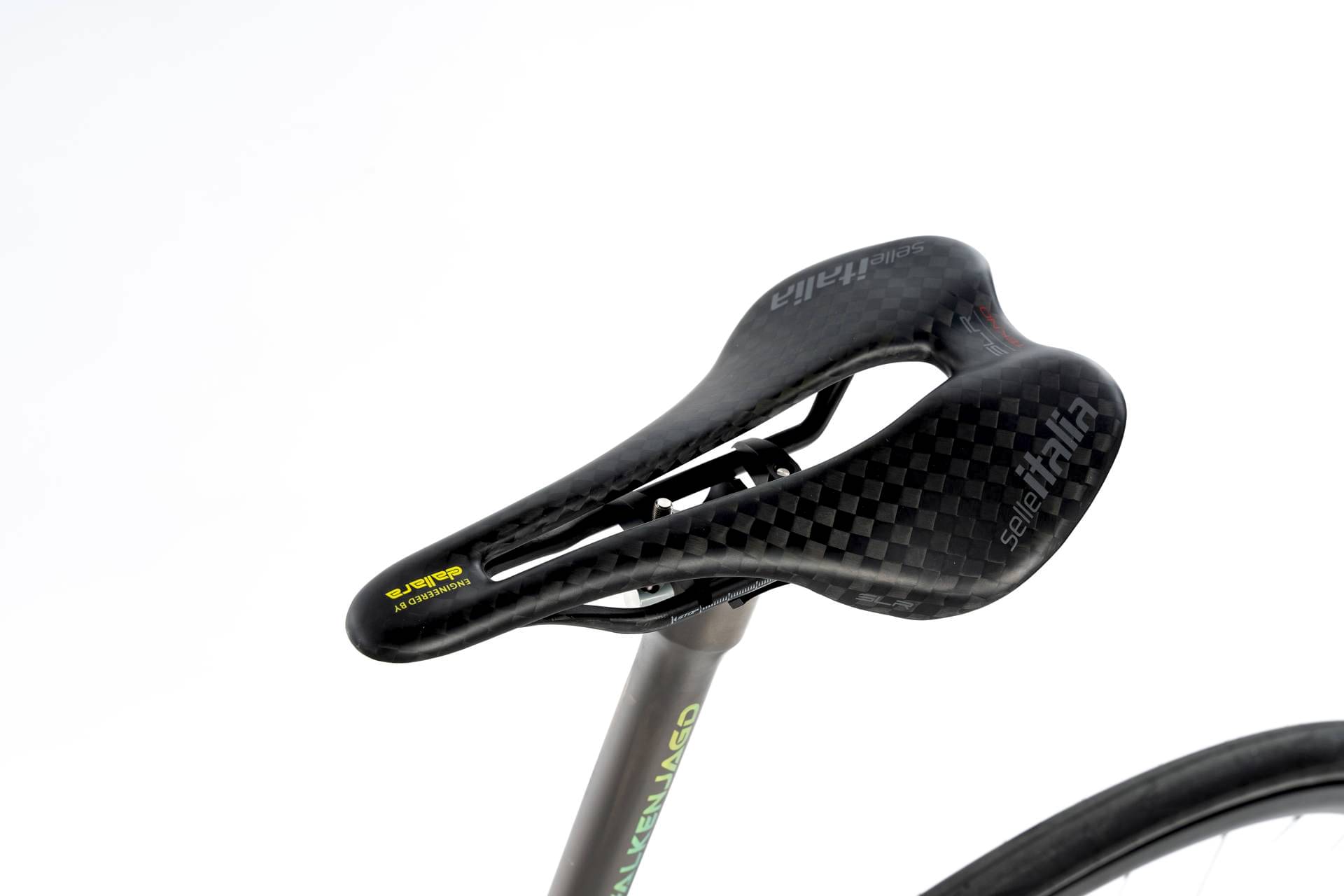

Saddle
without
Seatpost
FALKENJAGD Titan 400mm colour etched
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.398 mm | 1.421 mm | 1.453 mm | 1.47 mm | 1.461 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 278 mm | 279 mm | 281 mm |
| Front Center | 579 mm | 590 mm | 597 mm | 612 mm | 618 mm |
| Rake | 45 mm | 50 mm | 48 mm | 47 mm | 45 mm |
| Trail | 63 mm | 54 mm | 55 mm | 54 mm | 53 mm |
| Stack | 534 mm | 550 mm | 571 mm | 594 mm | 605 mm |
| Reach | 382 mm | 387 mm | 393 mm | 404 mm | 414 mm |
| Top Tube Length | 530 mm | 550 mm | 565 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 72.5 ° | 73 ° | 73.25 ° | 73.5 ° | 74 ° |
| Head Tube Length | 135 mm | 160 mm | 185 mm | 210 mm | 230 mm |
| Chainstay Length | 408 mm | 408 mm | 410 mm | 410 mm | 412 mm |
| Wheelbase | 976 mm | 987 mm | 997 mm | 1012 mm | 1021 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 71 mm | 70 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 168 cm | 177 cm | 184 cm | 195 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm | 201 cm | 205 cm |
