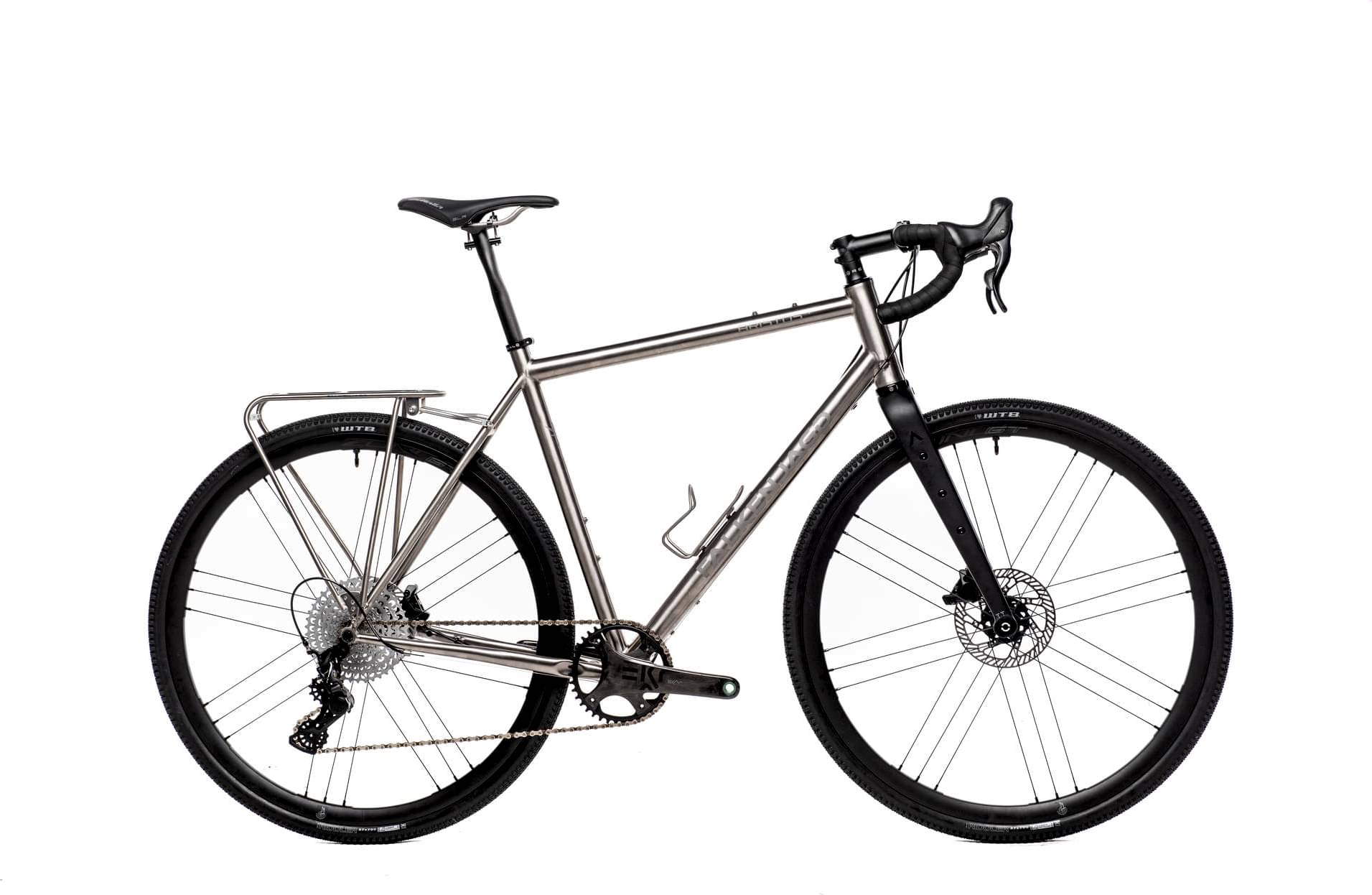

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

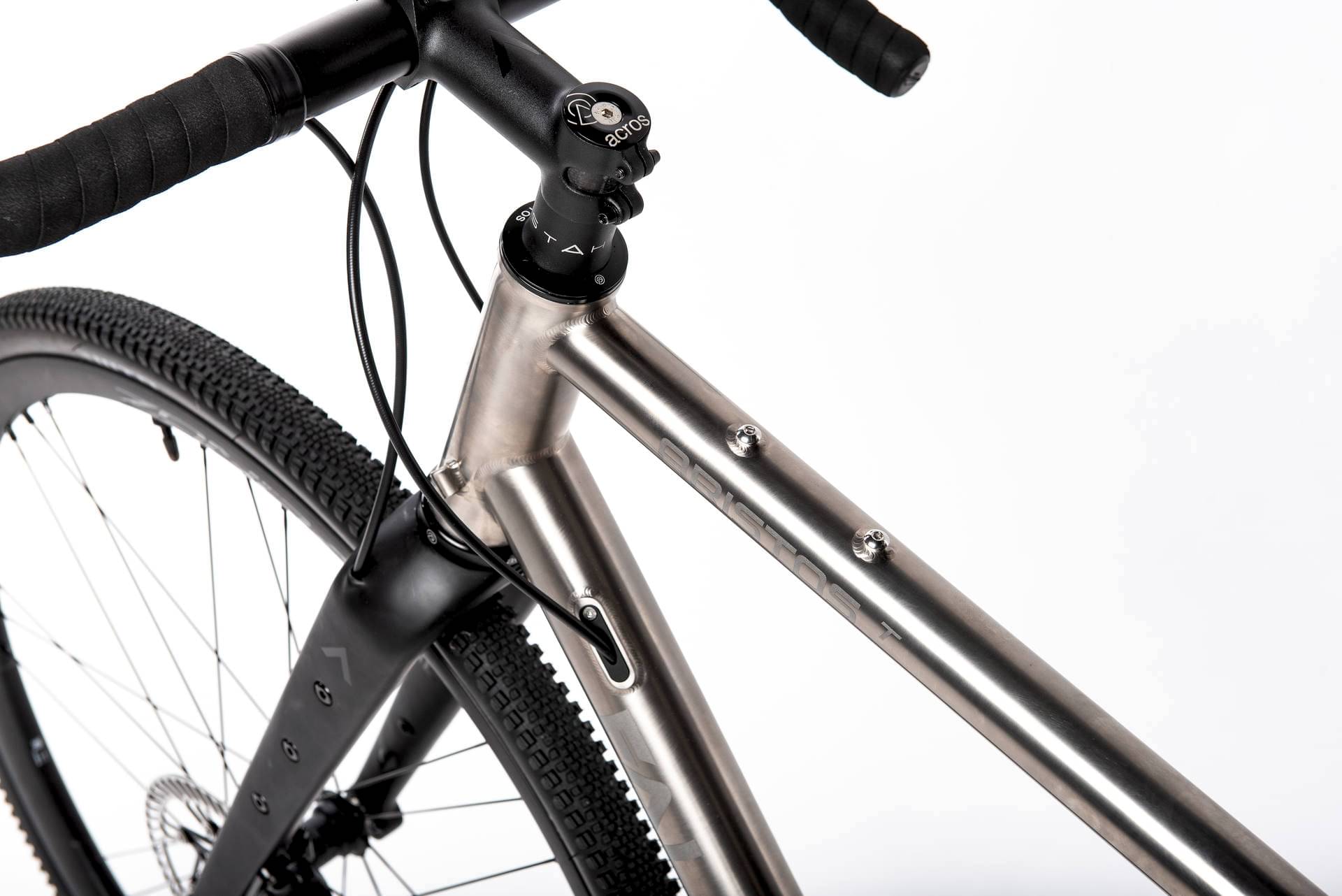

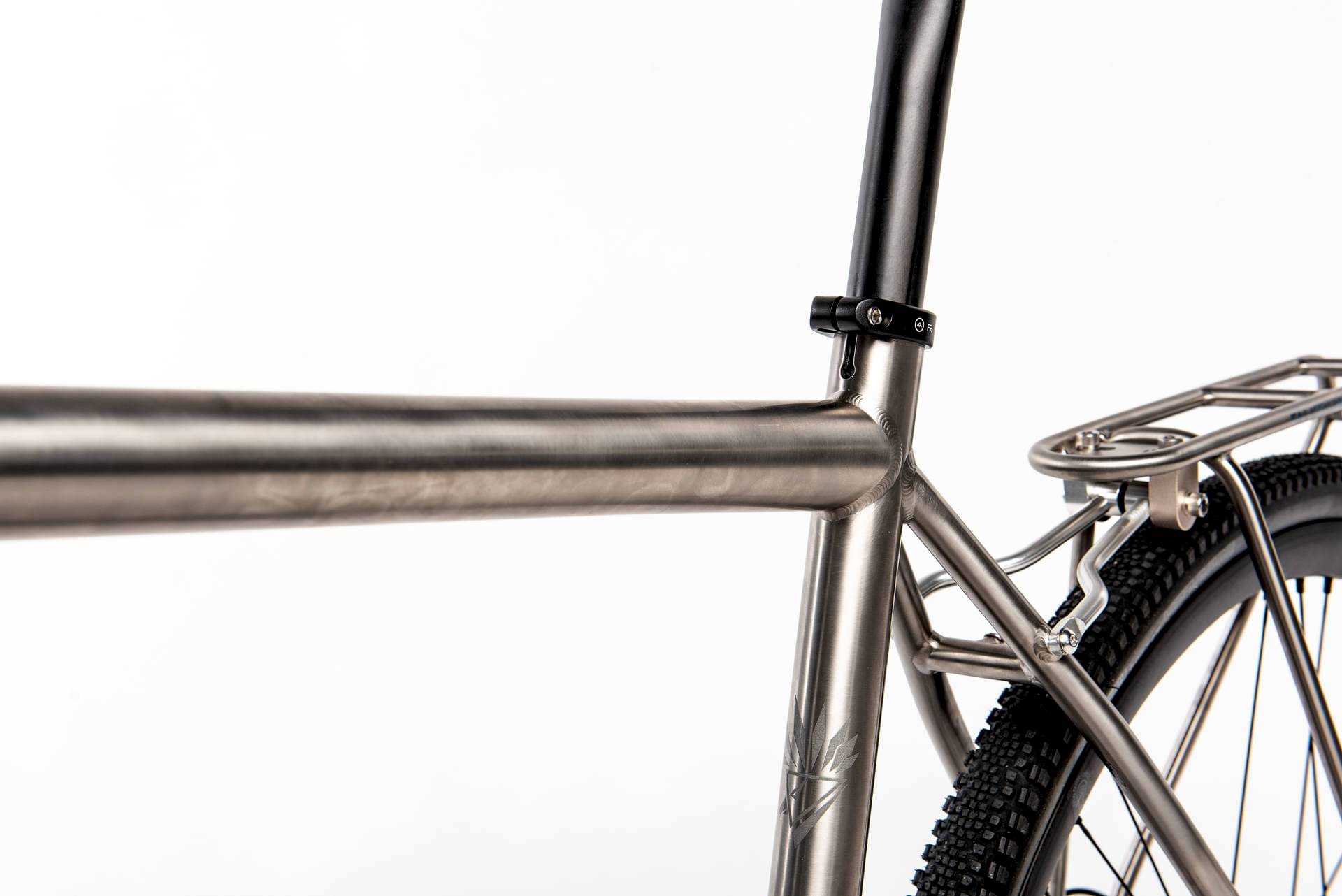

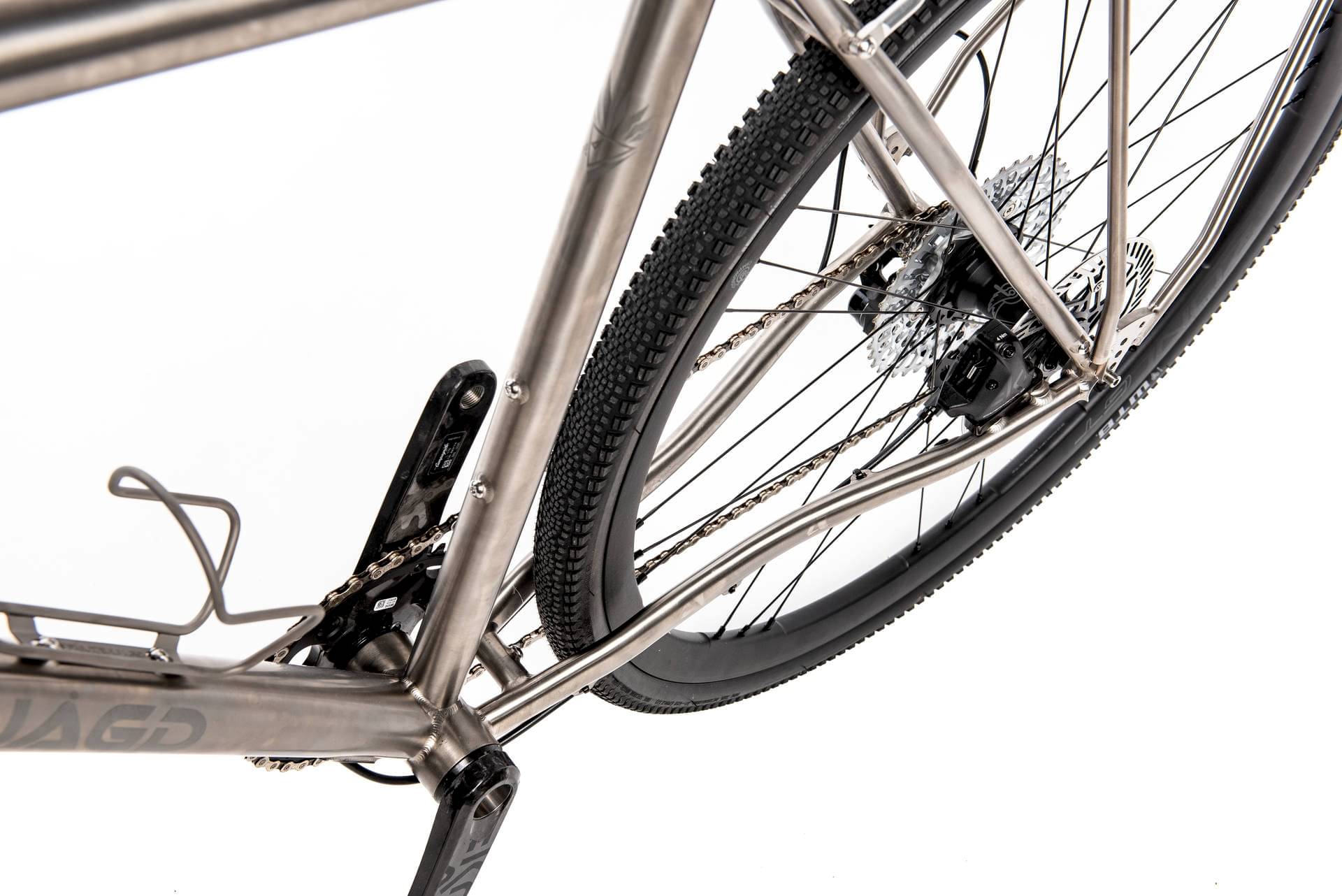

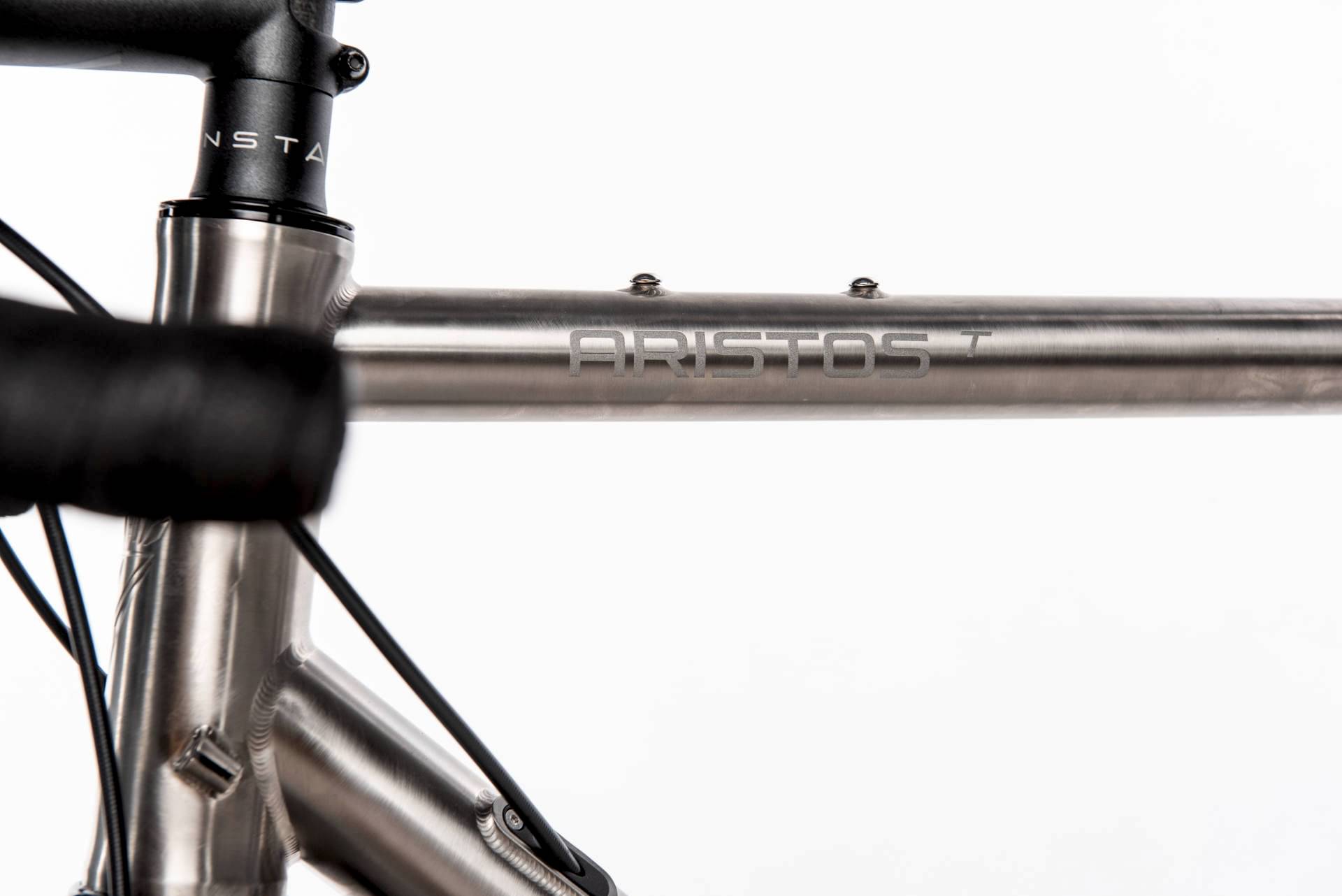

Frame Titanium -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -

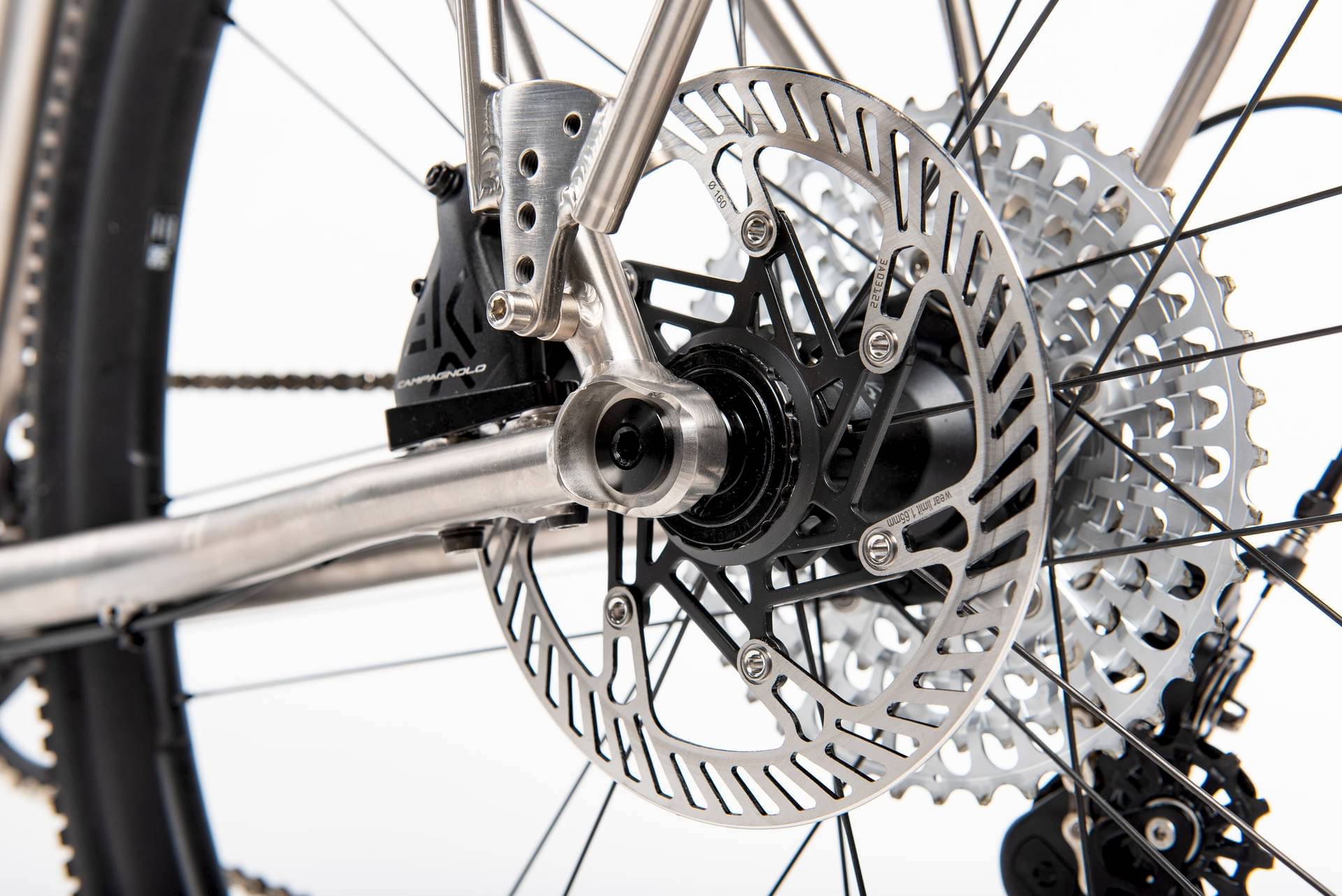

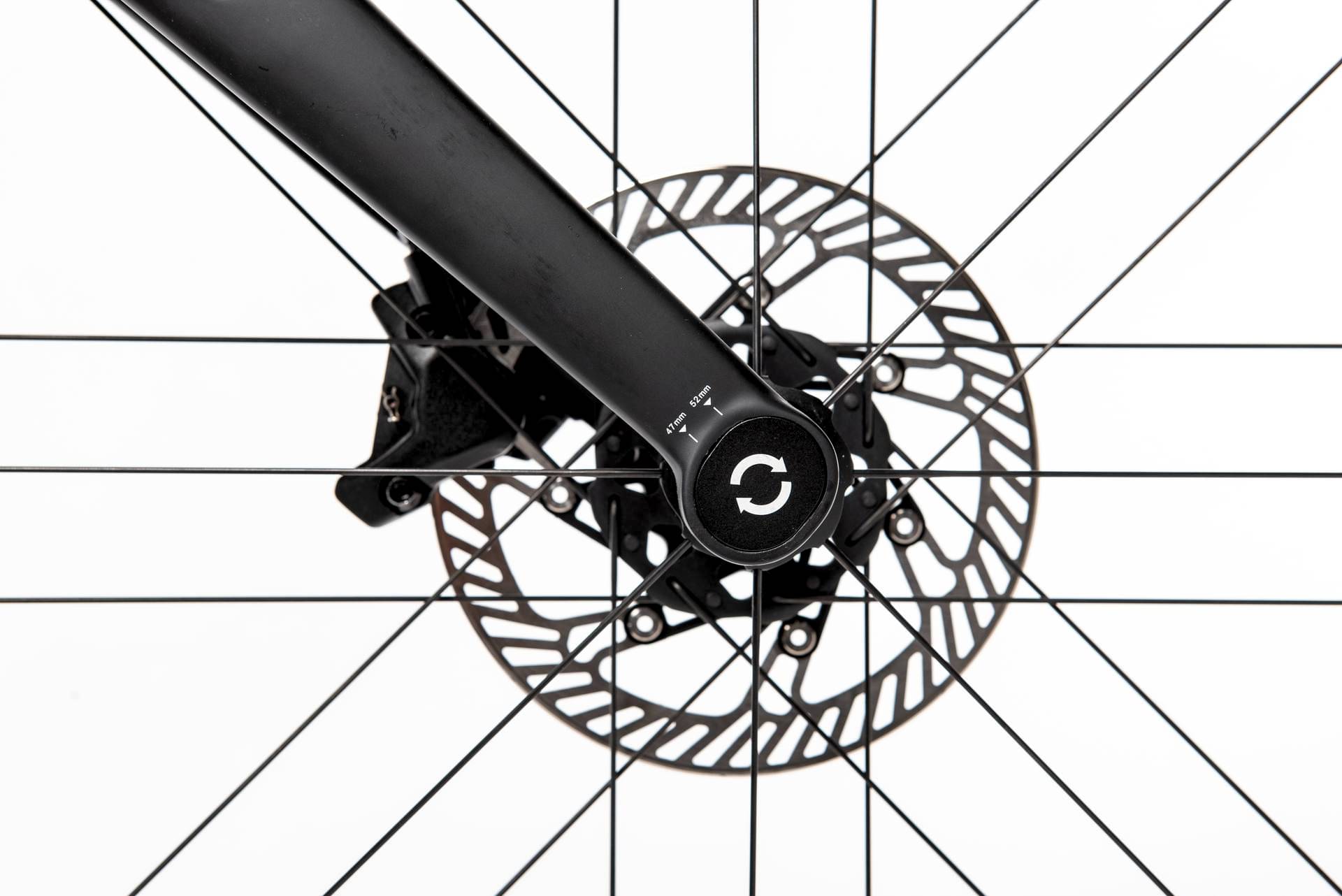

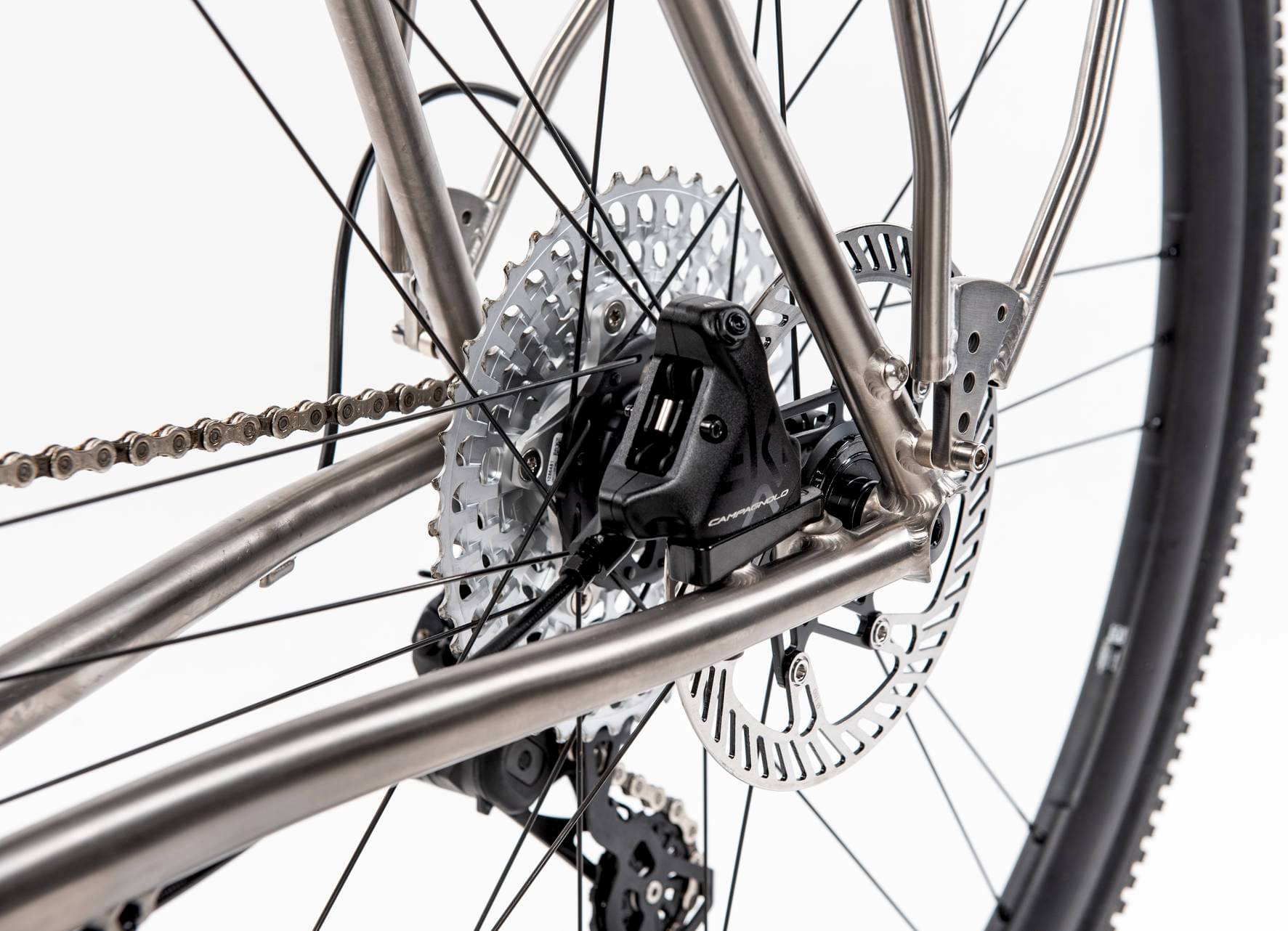

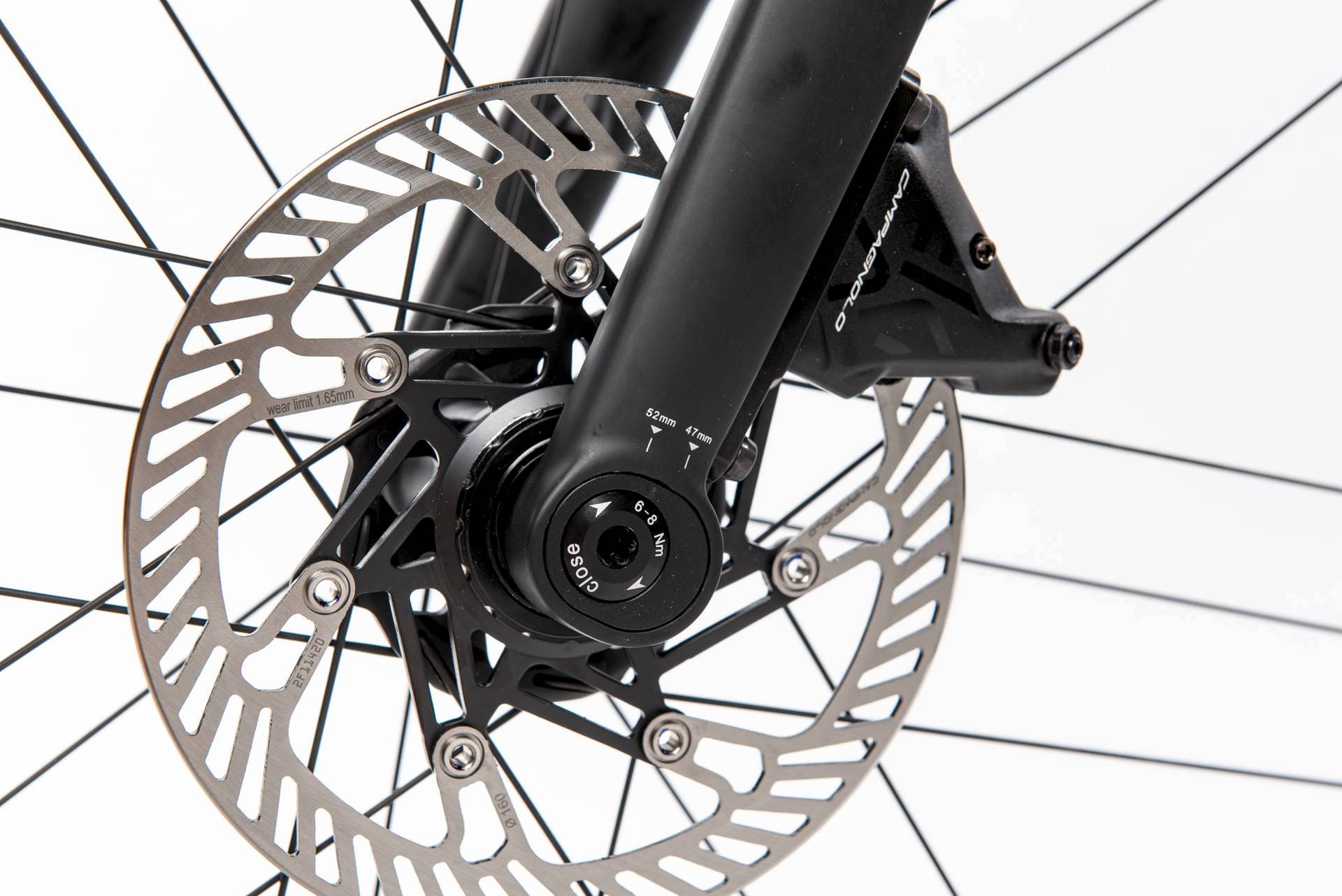

Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
165cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
XXL
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

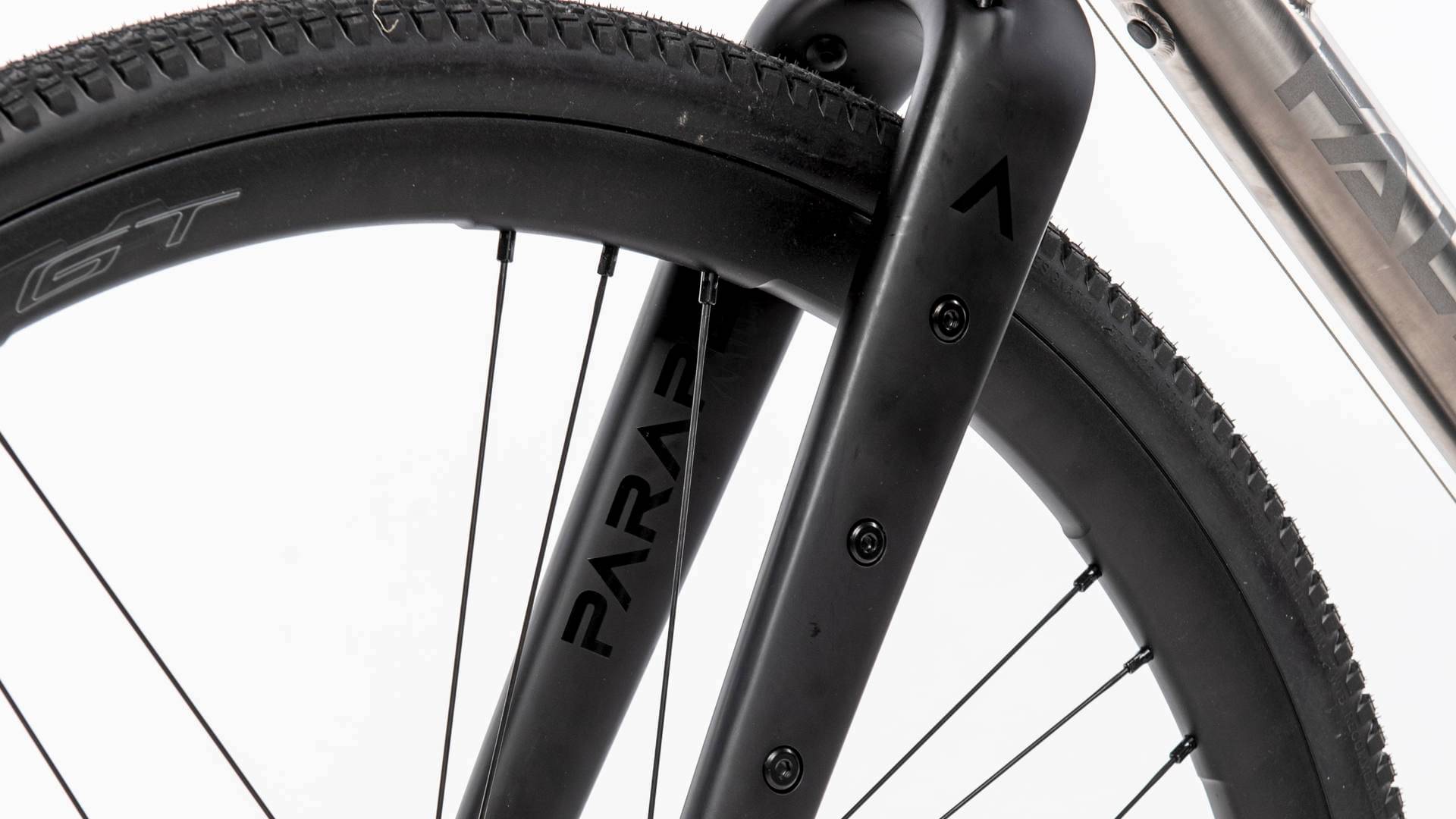

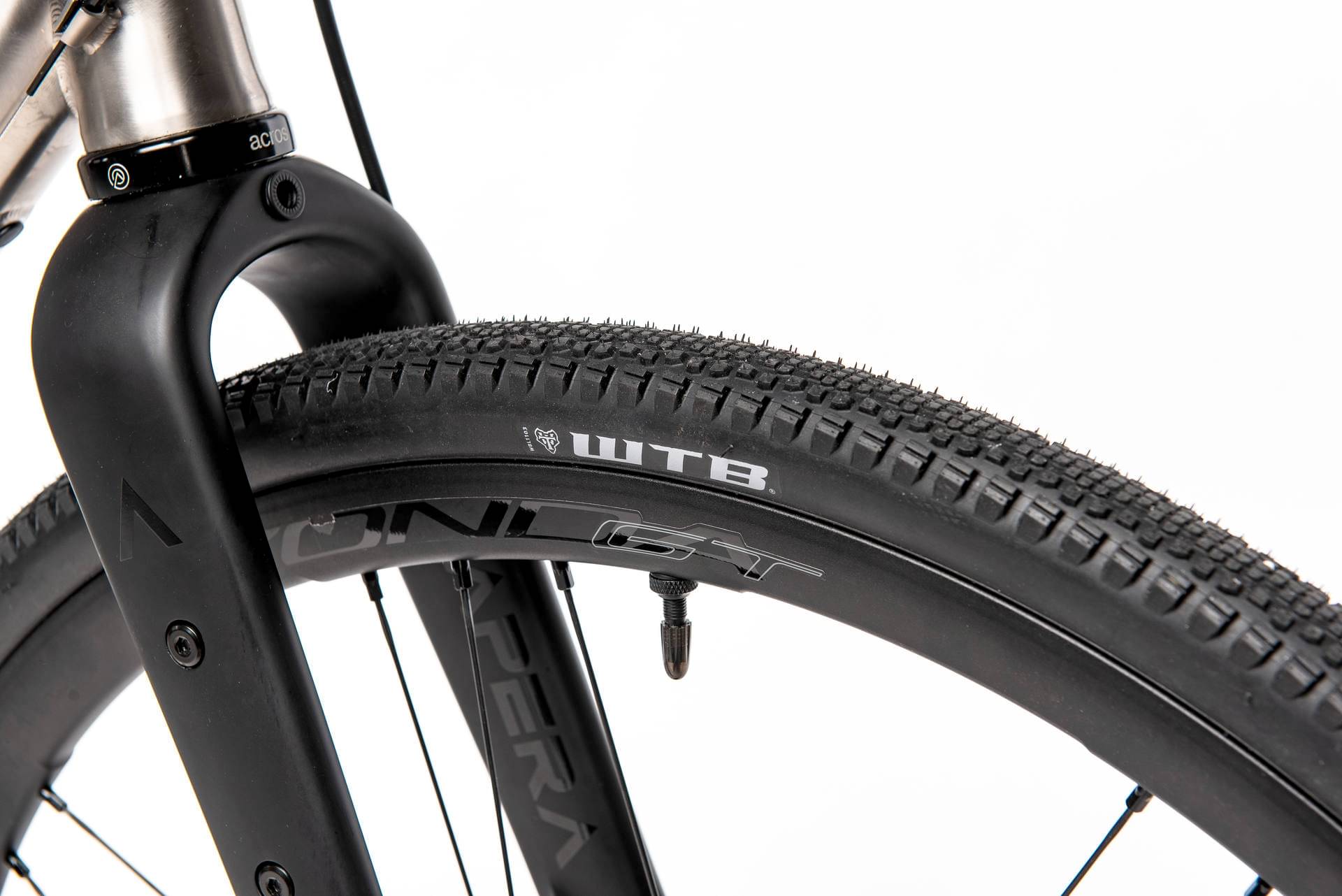

Suspension Fork
PARAPERA Carbon Adventure Any Cage totally integrated
Drivetrain
Rear Derailleur
Campagnolo Ekar 1x 13

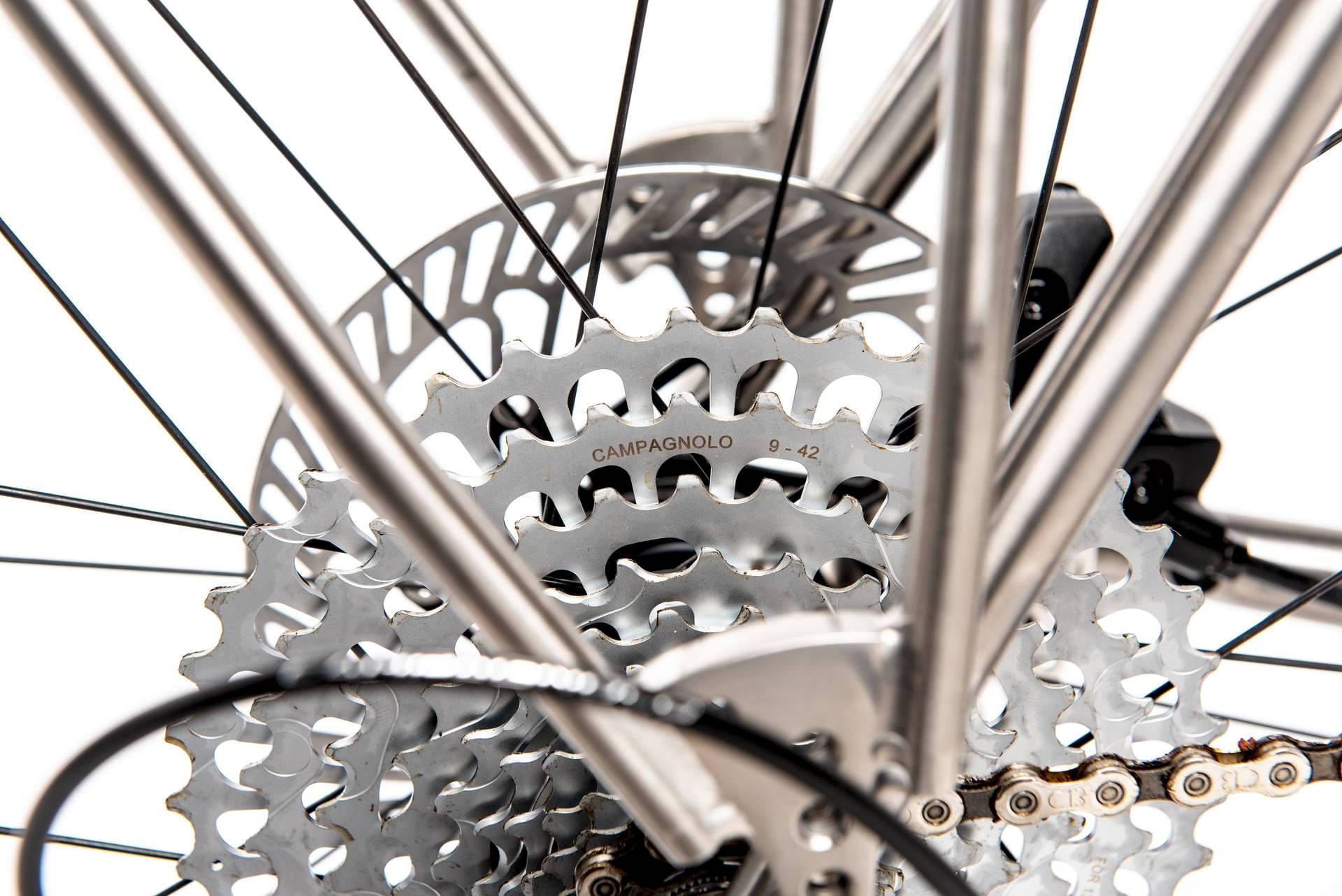

Cassette
EKAR 13-speed 10-44 teeth

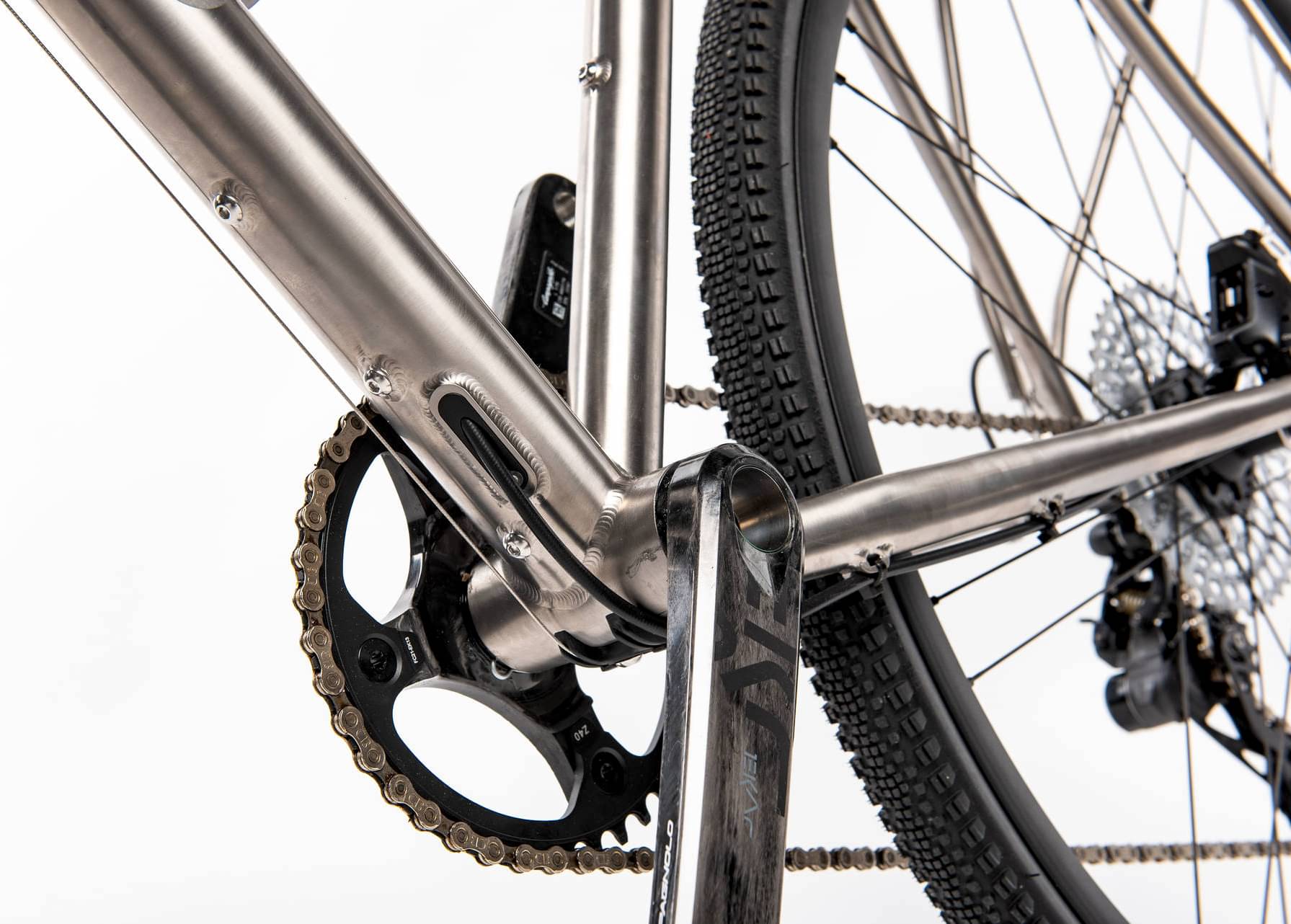

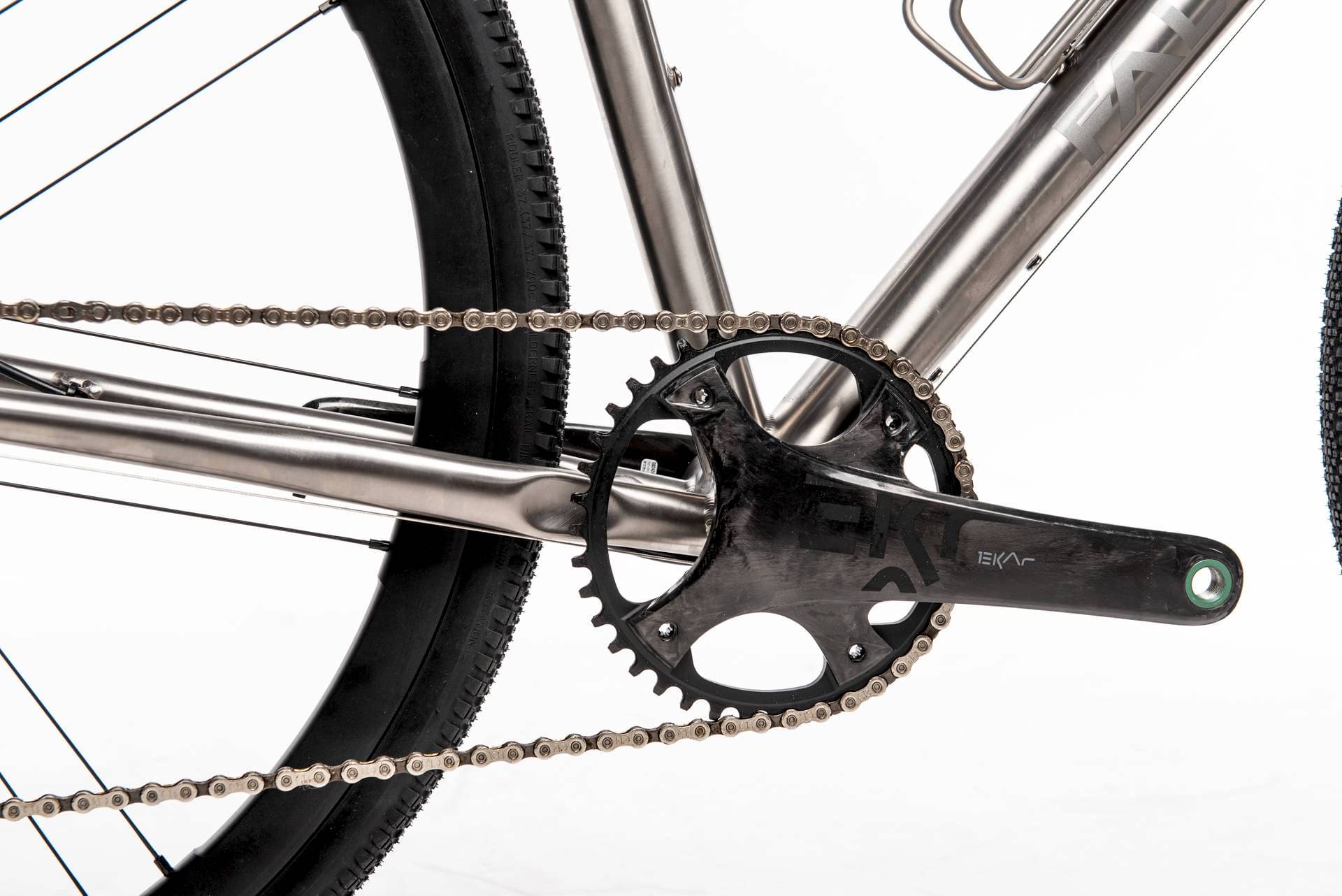

Crank
EKAR 13-speed 38T.
Pedals
without
Wheels
Rims
Mavic Allroad SL, 28 inches
Brakes
Brakes
Depending on the Campa group you choose
Cockpit
Stem
RACING STEEL Race light Black

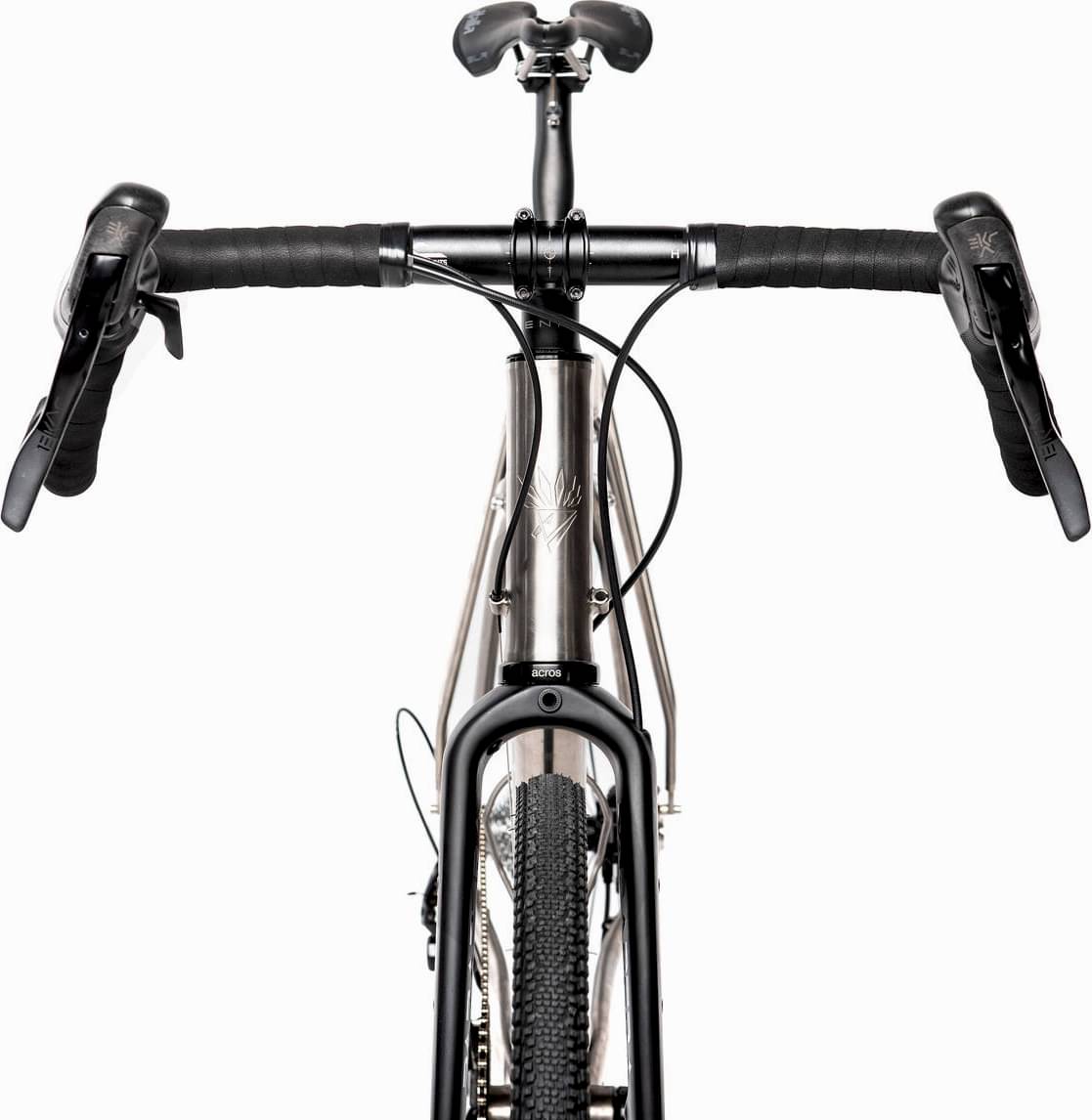

Handlebar
Syntace Racelite 440mm
Seat
Saddle
without
Seatpost
PARAPERA Carbon extralight
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.468 mm | 1.478 mm | 1.501 mm | 1.499 mm | 1.513 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 278 mm | 279 mm | 281 mm |
| Front Center | 586 mm | 601 mm | 606 mm | 622 mm | 668 mm |
| Rake | 44 mm | 42 mm | 43 mm | 44 mm | 55 mm |
| Trail | 67 mm | 69 mm | 65 mm | 61 mm | 49 mm |
| Stack | 555 mm | 575 mm | 590 mm | 610 mm | 649 mm |
| Reach | 378 mm | 389 mm | 393 mm | 407 mm | 429 mm |
| Top Tube Length | 545 mm | 560 mm | 570 mm | 593 mm | 633 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 530 mm | 550 mm | 570 mm | 610 mm |
| Head Tube Angle | 72 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 130 mm | 150 mm | 165 mm | 185 mm | 230 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1005 mm | 1021 mm | 1026 mm | 1042 mm | 1089 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 71 mm | 70 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 168 cm | 177 cm | 184 cm | 195 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm | 201 cm | 205 cm |
