Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Campagnolo Ekar Mechanical Disc
Sizing
Recommended size guide.
SM
165cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
XXL
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
FALKENJAGD Titan Gravel NEW X-12 standard FLAT mount

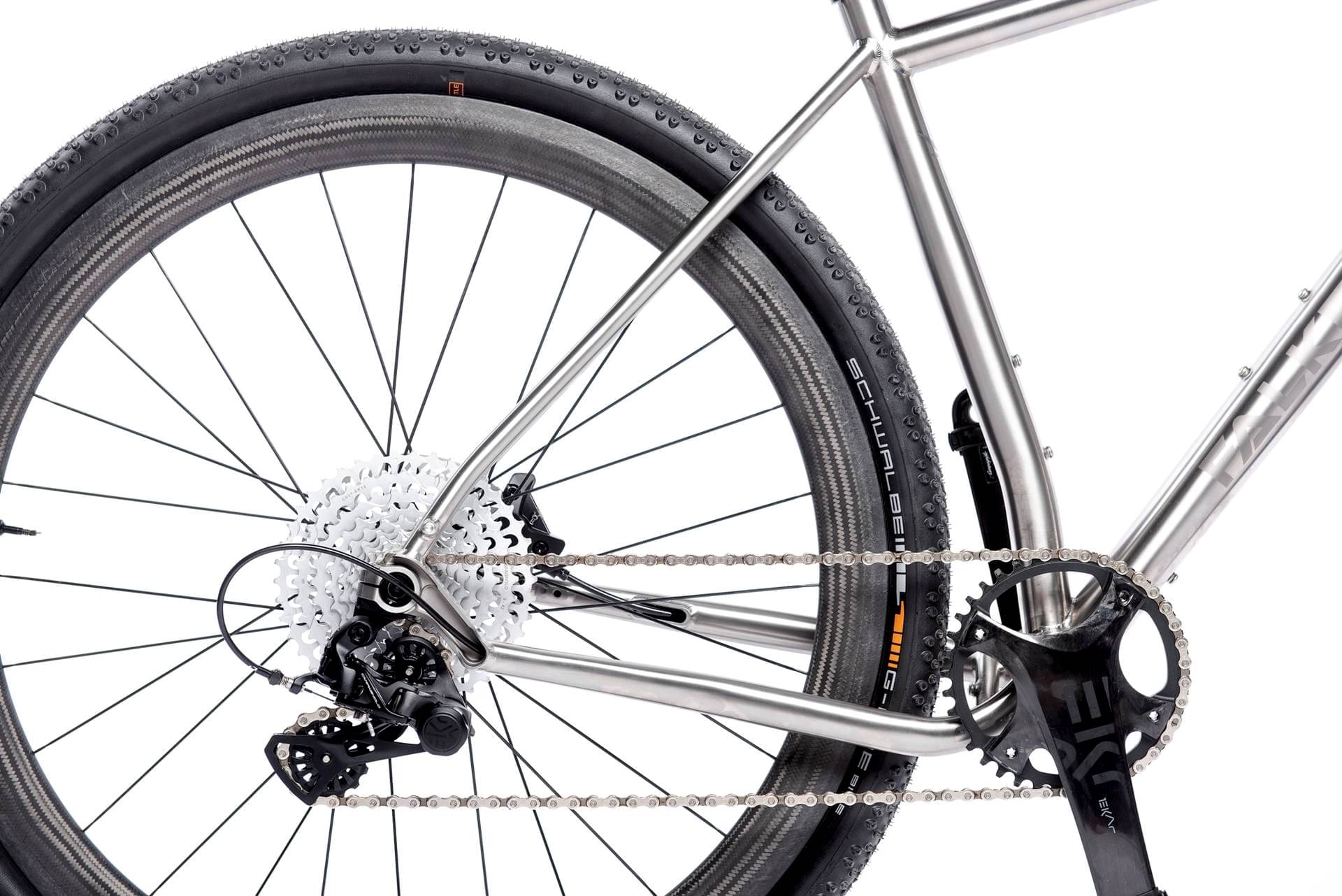

Drivetrain

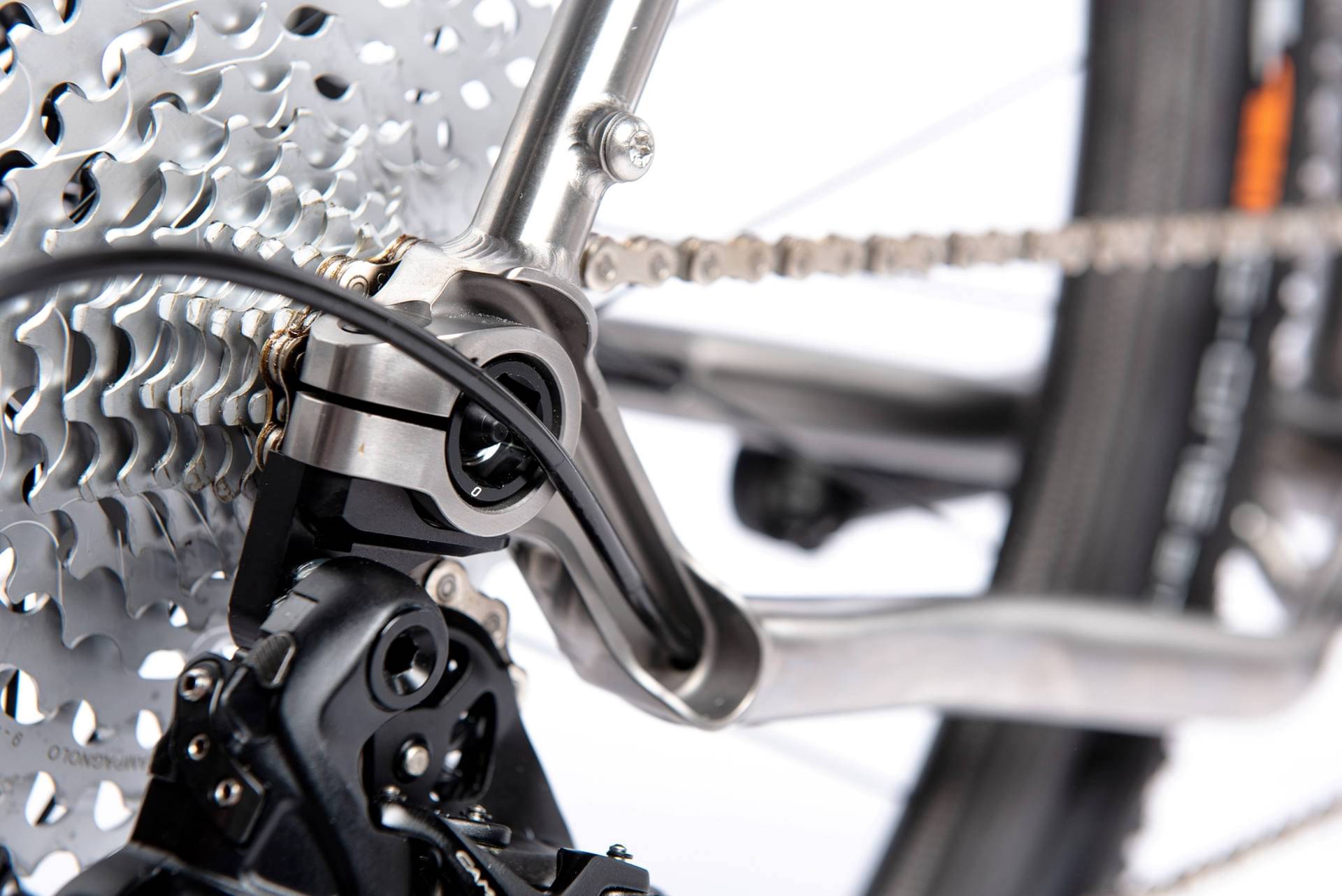

Rear Derailleur
Campagnolo EKAR GT 1x 13
Cassette
Campagnolo EKAR GT 10-48 teeth
Crank
Campagnolo EKAR GT 38 teeth
Pedals
without
Wheels
Rims
Fulcrum RED 500
Brakes
Brakes
Campagnolo EKAR GT
Cockpit
Stem
RENTAL STEEL Race light Black
Handlebar
Acros Gravelbar
Seat
Saddle
Selle Italia SLR Boost Magnesia
Seatpost
PARAPERA Carbon extralight
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.485 mm | 1.529 mm | 1.548 mm | 1.558 mm | 1.458 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 304 mm | 305 mm | 306 mm |
| Front Center | 633 mm | 660 mm | 681 mm | 703 mm | 731 mm |
| Rake | 60 mm | 69 mm | 74 mm | 84 mm | 83 mm |
| Trail | 79 mm | 70 mm | 64 mm | 54 mm | 55 mm |
| Stack | 560 mm | 587 mm | 607 mm | 620 mm | 621 mm |
| Reach | 377 mm | 384 mm | 392 mm | 398 mm | 426 mm |
| Top Tube Length | 540 mm | 565 mm | 585 mm | 605 mm | 630 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 470 mm | 500 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 130 mm | 155 mm | 170 mm | 185 mm | 210 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1053 mm | 1080 mm | 1102 mm | 1124 mm | 1152 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 70 mm | 69 mm | 68 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 168 cm | 177 cm | 184 cm | 195 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm | 201 cm | 205 cm |
