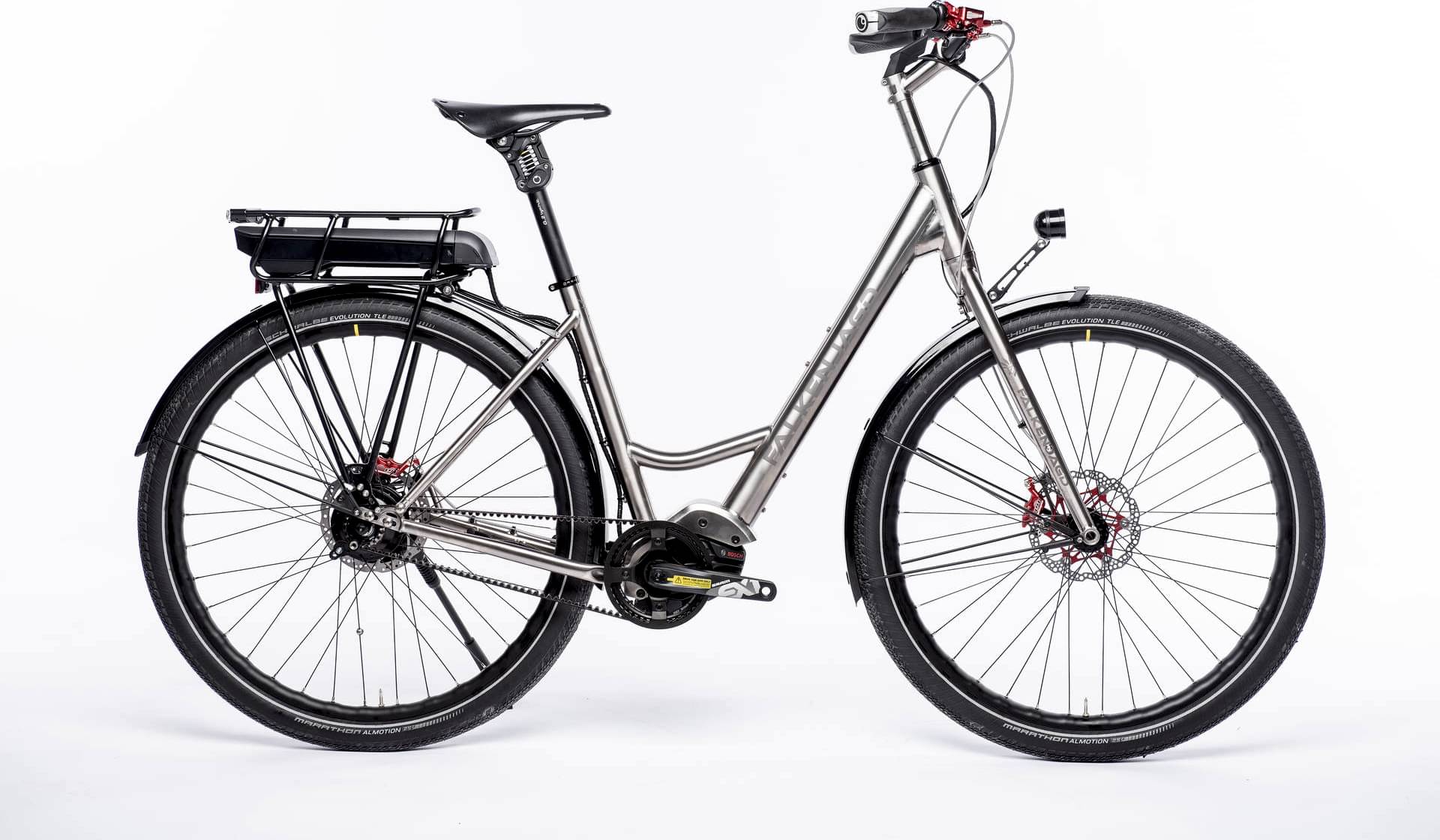

falkenjagd Hoplit E14 Touring Wave 2024
2024 E-bike
Estimate price |
12,838$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset RED -
Suspension Rigid -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch 500W as a luggage rack version -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
168cm - 180cm
LG
177cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
FALKENJAGD titanium rigid fork MTB/touring bike 110mm Boost
Drivetrain
Rear Derailleur
Rohloff E-14 red
Crank
SRAM EX 1
Pedals
without
Wheels
Rims
Rohloff E-14 black, Tune King 15/rim Mavic 1030 with 36 holes (sold out)
Brakes
Brakes
Magura MT5 4 piston brake
Cockpit
Stem
Ergotec Swell XR adjustable
Handlebar
Ergotec Rizer 700mm, height 30mm, setback 12 degrees
Seat
Saddle
without
Seatpost
By Schulz G2 spring support
Motor & Battery
Motor
Bosch Performance CX with Nyon display
Battery
Bosch 500W as a luggage rack version
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.63 mm |
| Front Center | 660 mm | 678 mm |
| Rake | 44 mm | 42 mm |
| Trail | 69 mm | 71 mm |
| Stack | 660 mm | 670 mm |
| Reach | 395 mm | 411 mm |
| Top Tube Length | 603 mm | 622 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° |
| Seat Tube Length | 445 mm | 483 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 135 mm |
| Chainstay Length | 460 mm | 460 mm |
| Wheelbase | 1111 mm | 1129 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Wheels | 650 | 650 |
| Rider Min Height | 168 cm | 177 cm |
| Rider Max Height | 180 cm | 186 cm |
