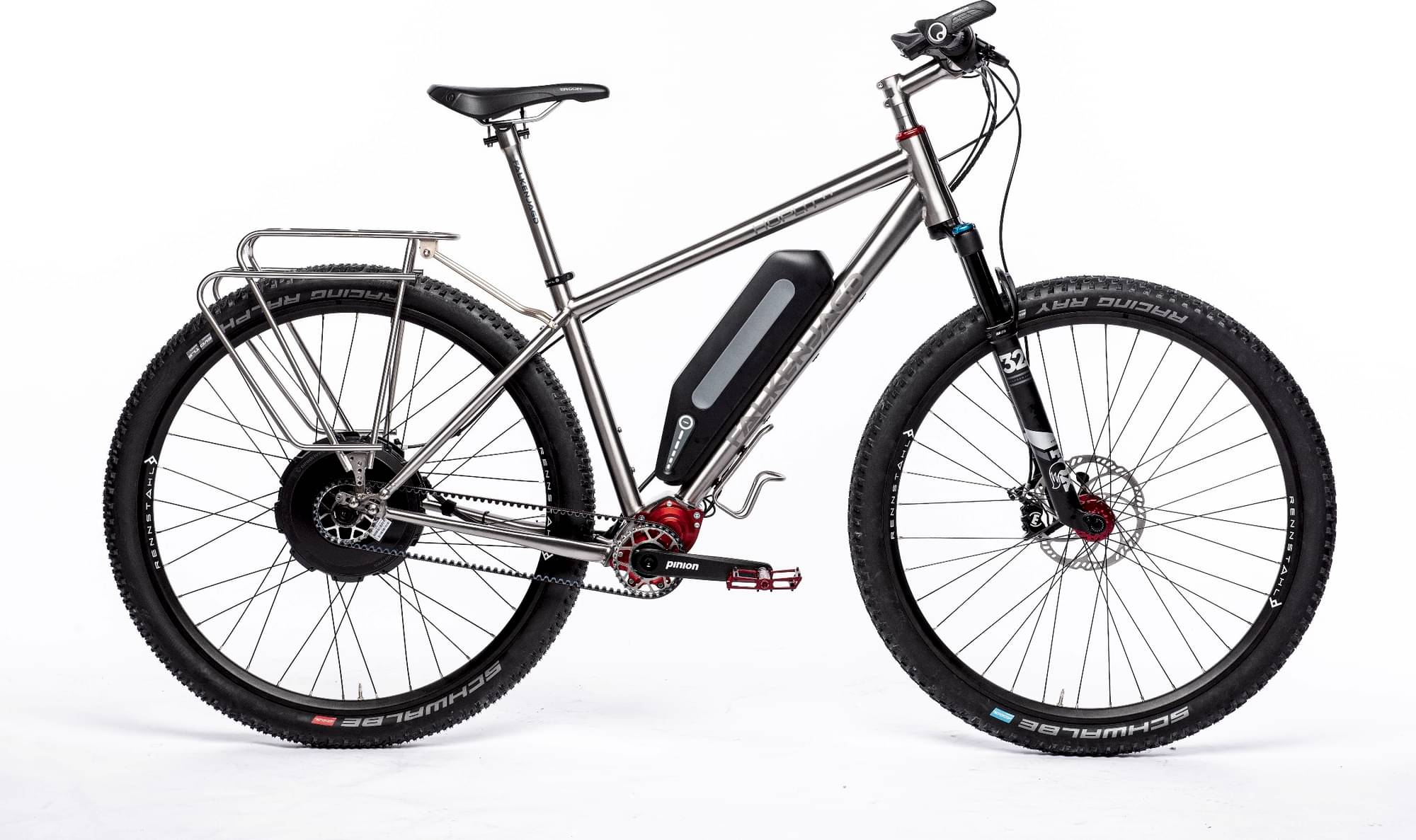

falkenjagd Hoplit PI E-MTB 2024
2024 E-bike
Estimate price |
11,310$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Titanium -
Wheels 27.5" -
Groupset Pinion -
Suspension Rigid -
Battery Alber V.2 with 576Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork

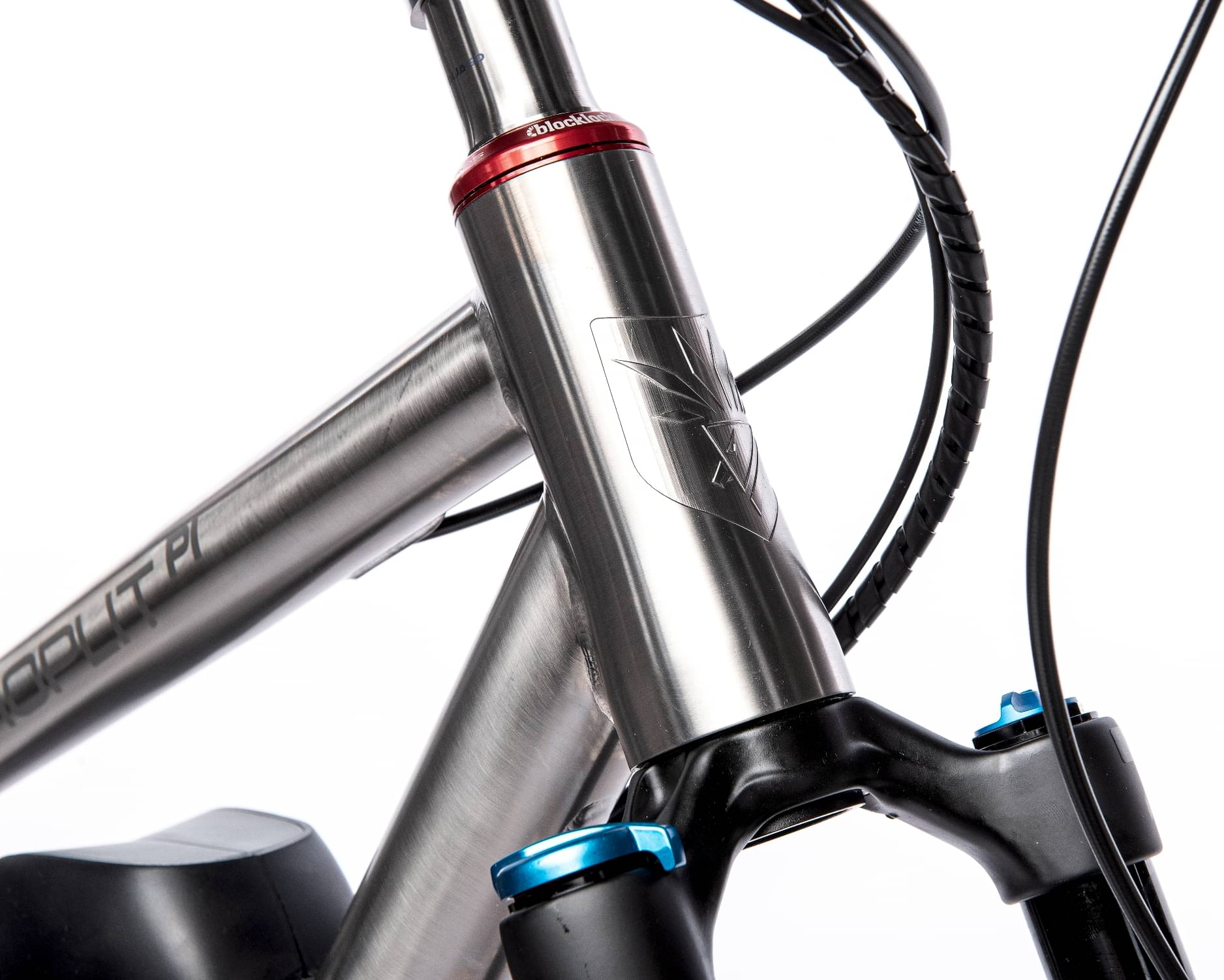

Falkenjagd titanium rigid fork MTB/travel bike 110mm Boost
Drivetrain
Rear Derailleur

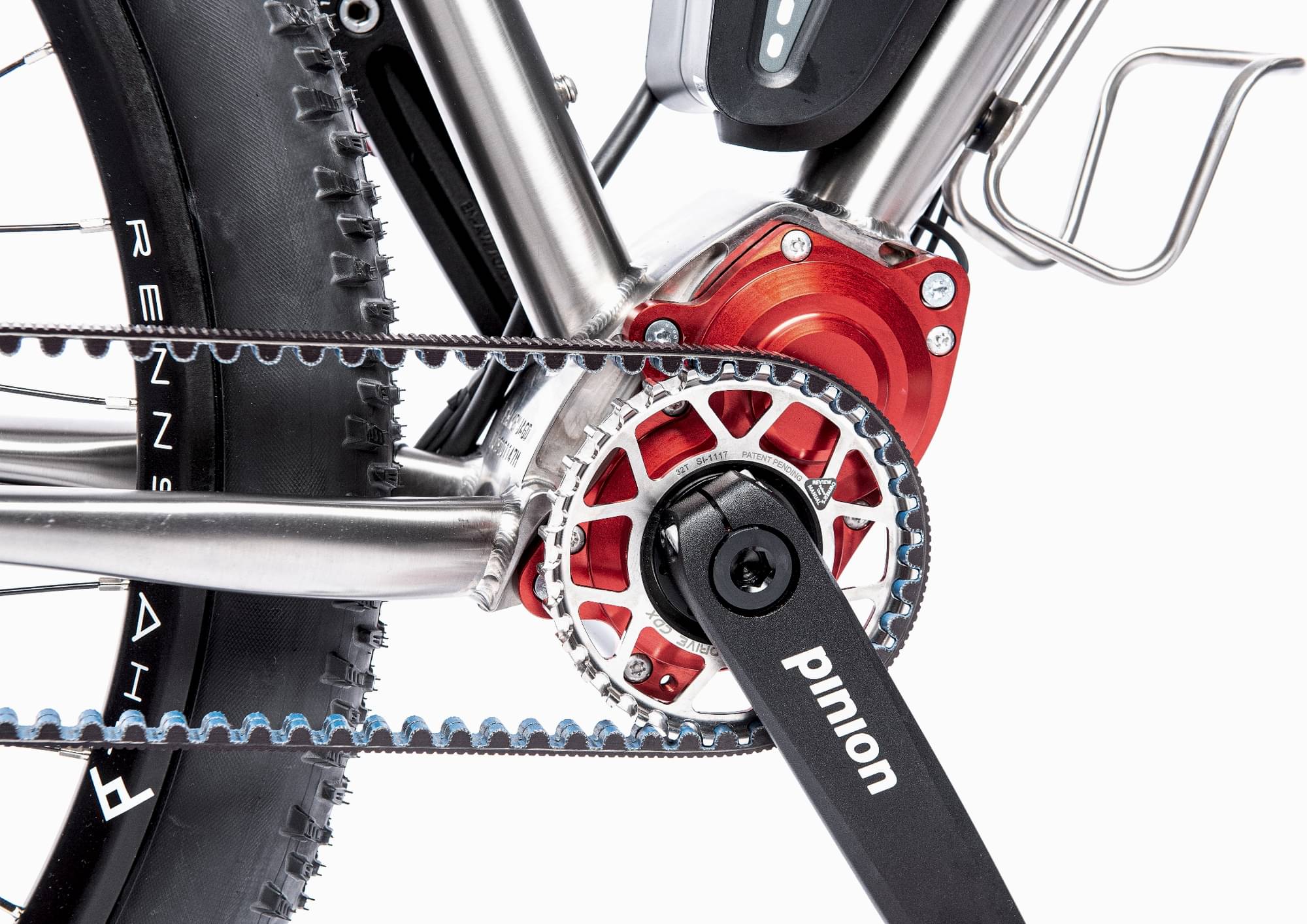

Pinion C9 black
Crank
Pinion
Bottom Bracket
Pinion, press-fit
Pedals
without
Wheels
Rims

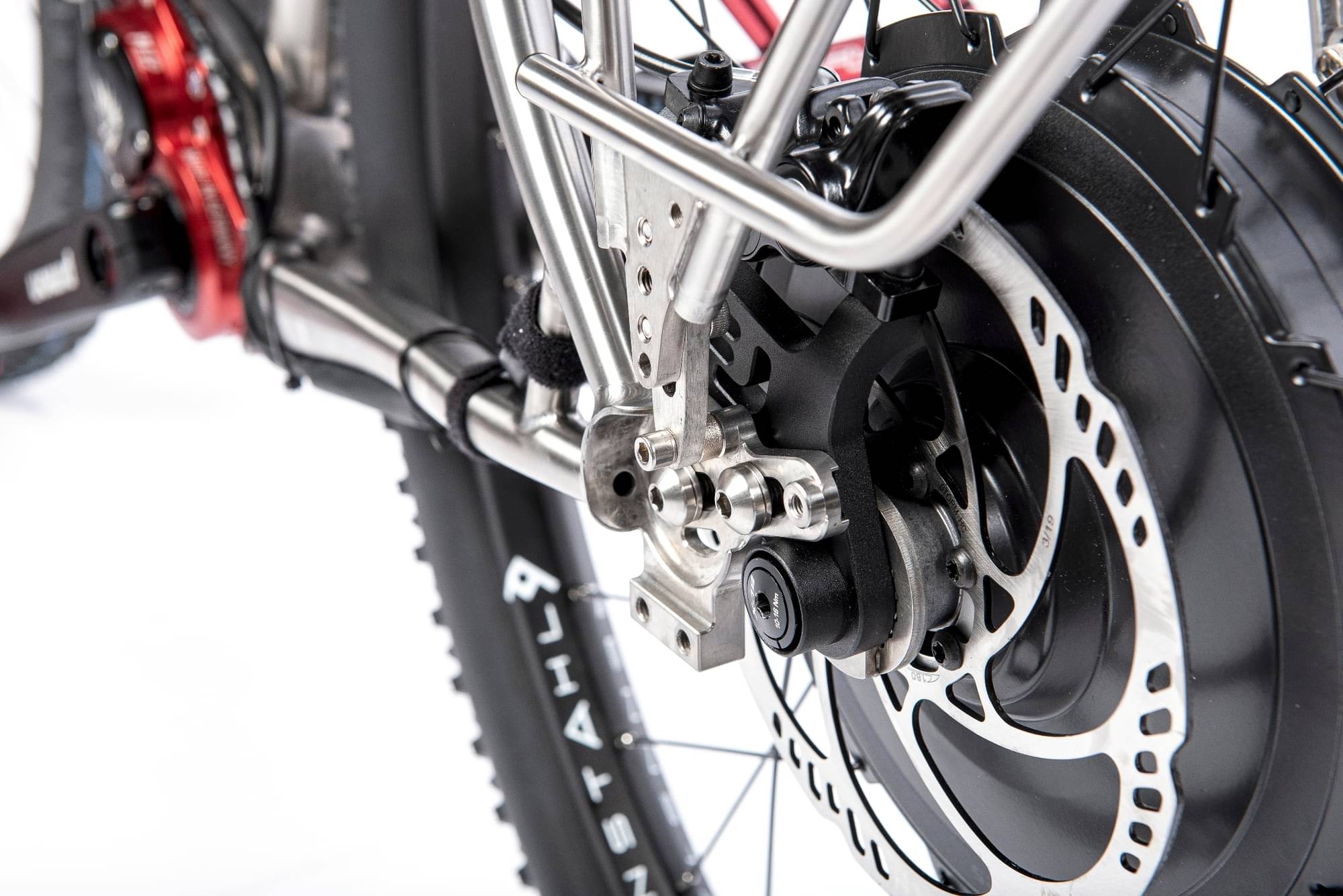

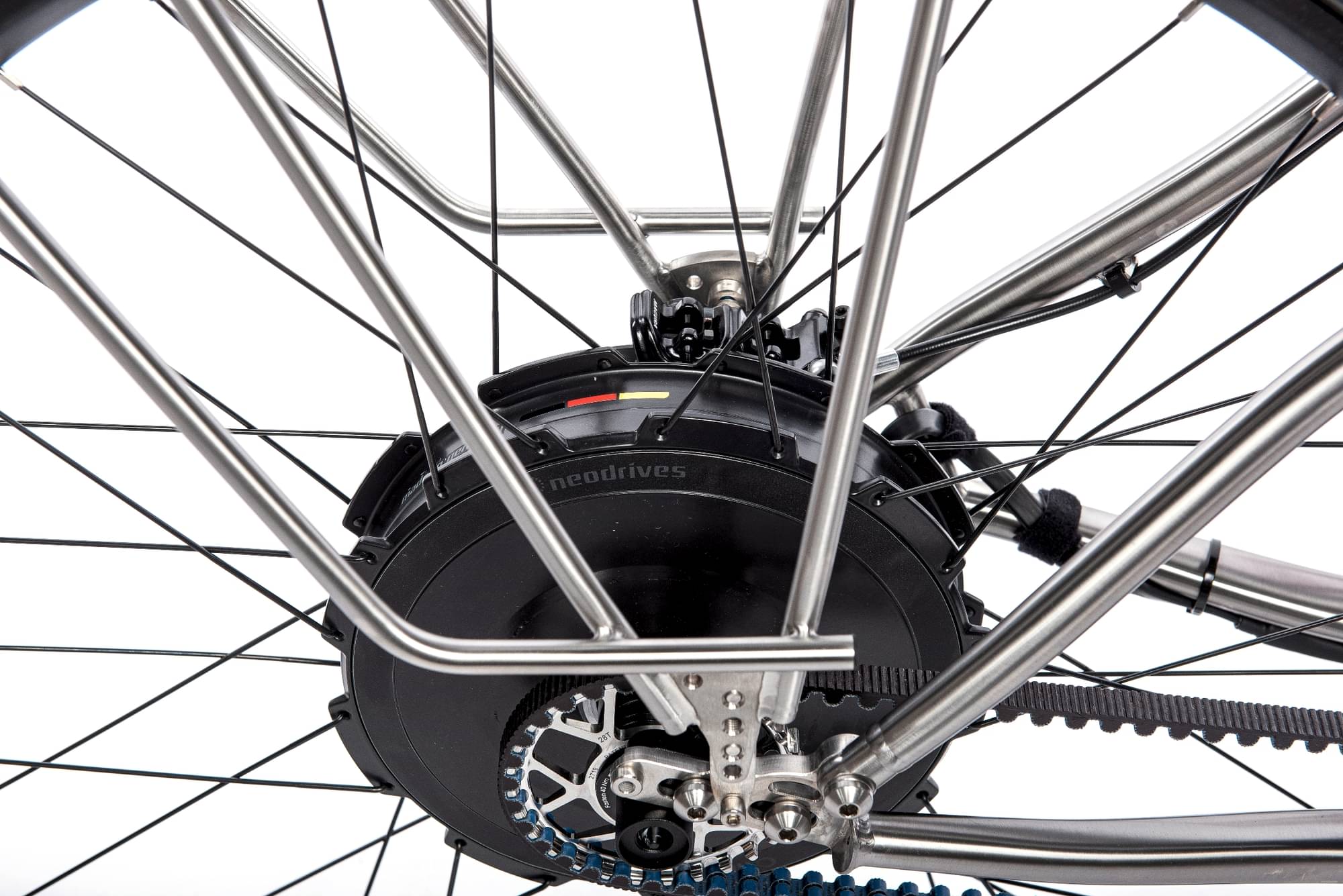

Alber Z20 Neodrives 250W, 40Nm, Tune King15 (when the lighting system is powered by a battery) BOOST/
Tires

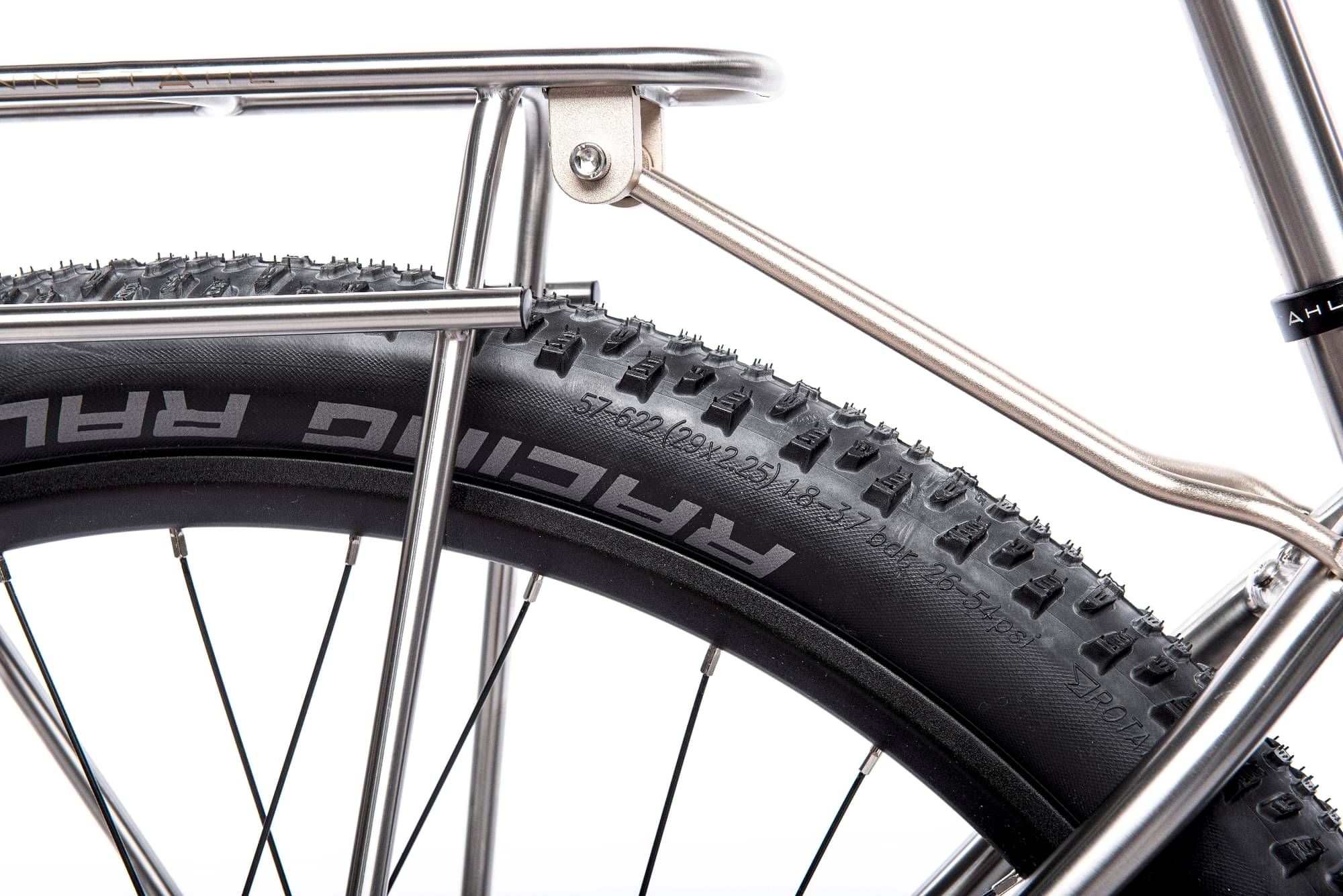

Schwalbe Marathon Almotion 27.5 x 2.15
Brakes
Brakes

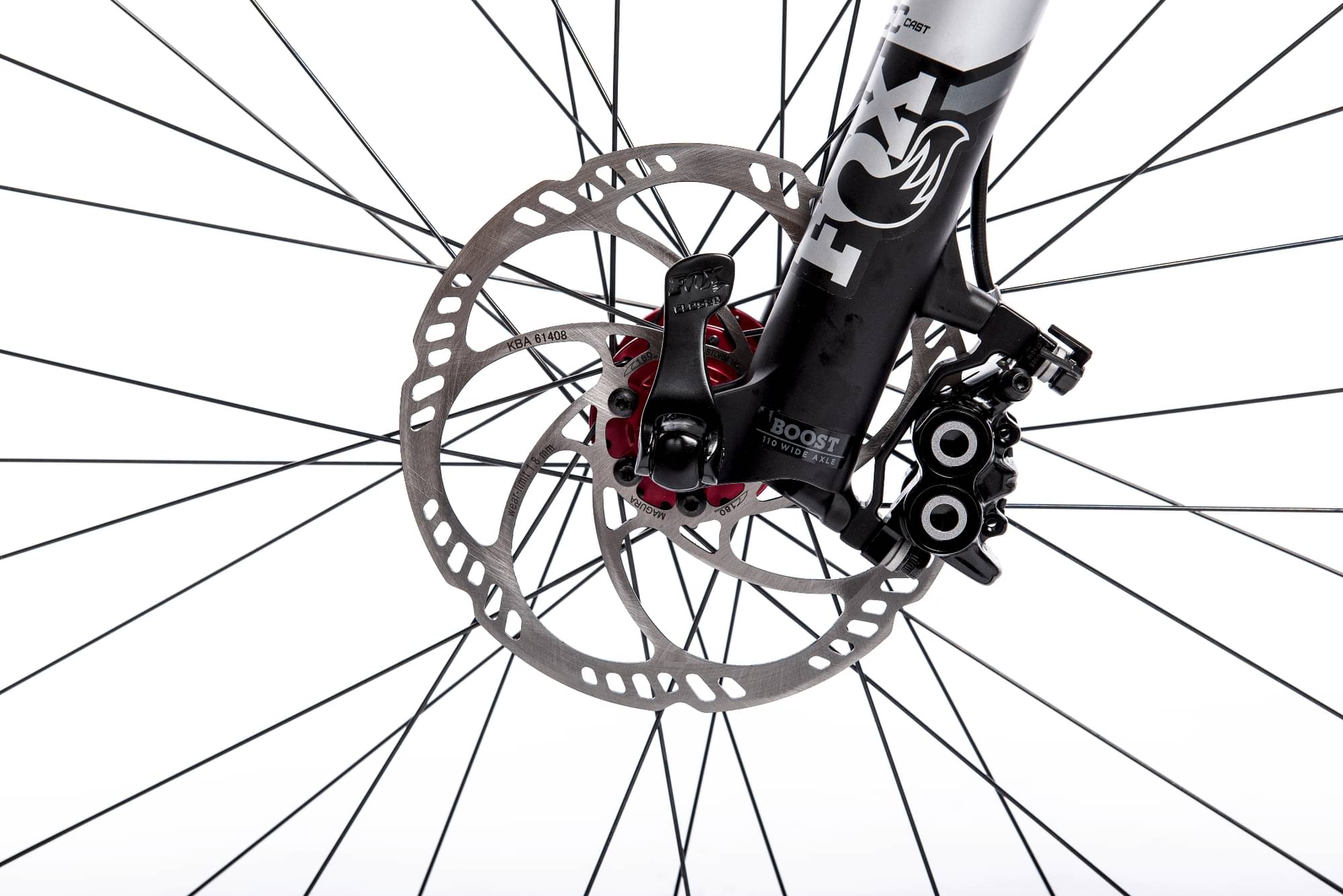

Magura MT5 4 piston brake
Cockpit
Stem
Falconry Titan
Handlebar
Falconry Titan Flat 710mm
Seat
Saddle
without
Seatpost

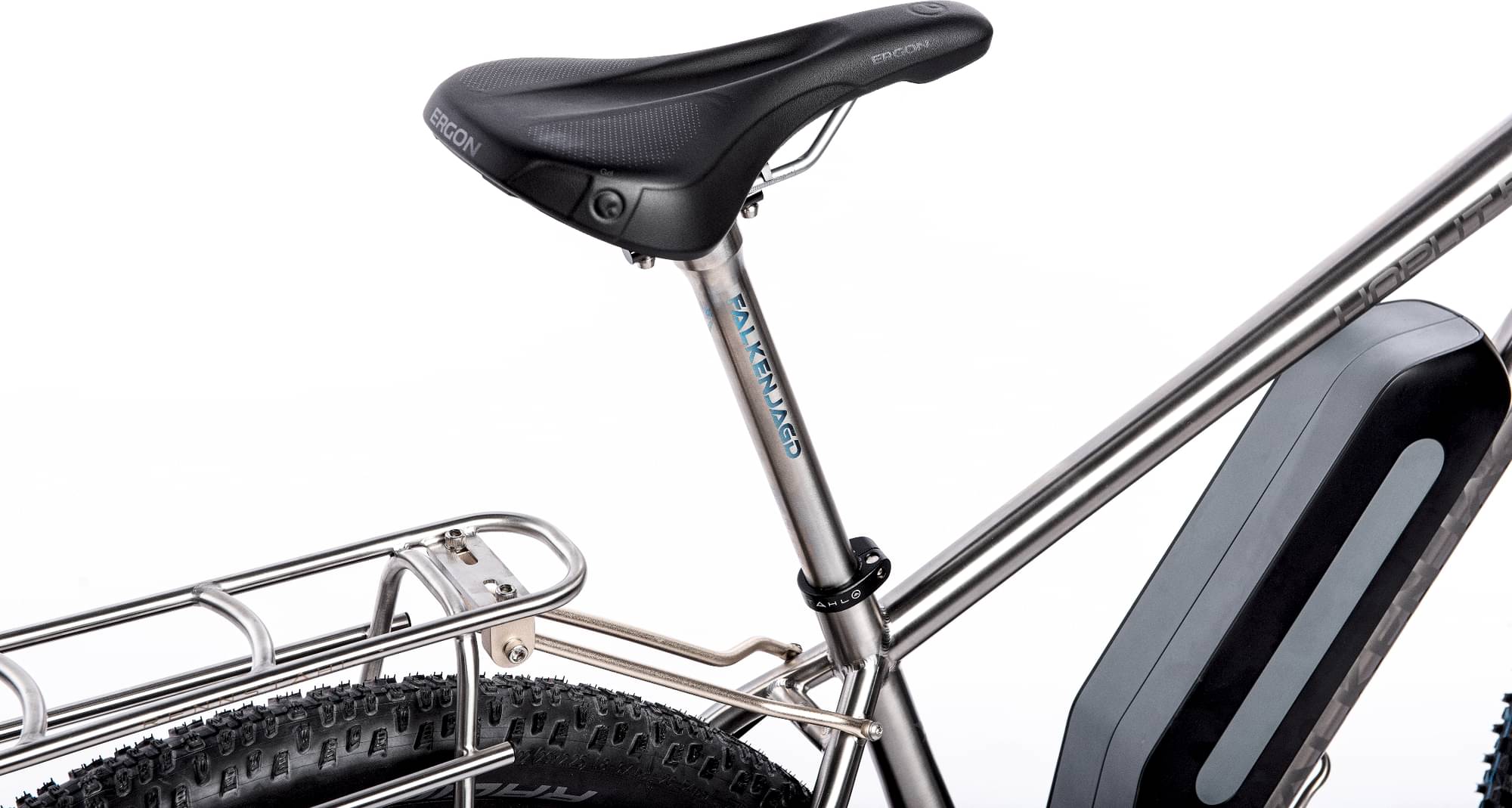

Falcon hunting titanium 400mm
Motor & Battery
Battery
Alber V.2 with 576Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm | 295 mm |
| Top Tube Length | 580 mm | 603 mm | 622 mm | 642 mm | 655 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm | 170 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 745 mm | 785 mm | 815 mm | 845 mm | 845 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
