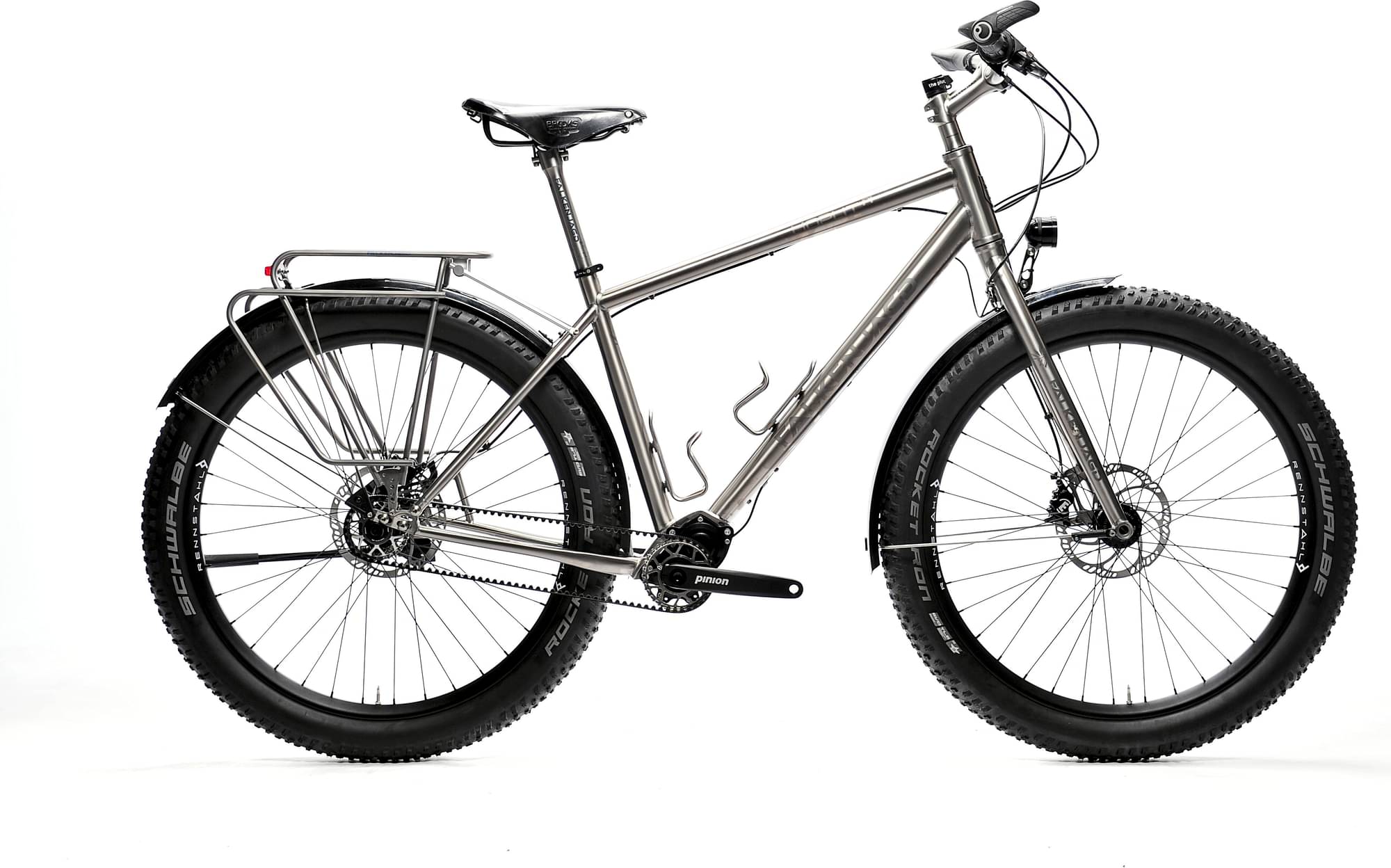

falkenjagd Hoplit PI PLUS Reiserad 2024
2024 Road
Estimate price |
9,975$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset Pinion -
Suspension Rigid -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork

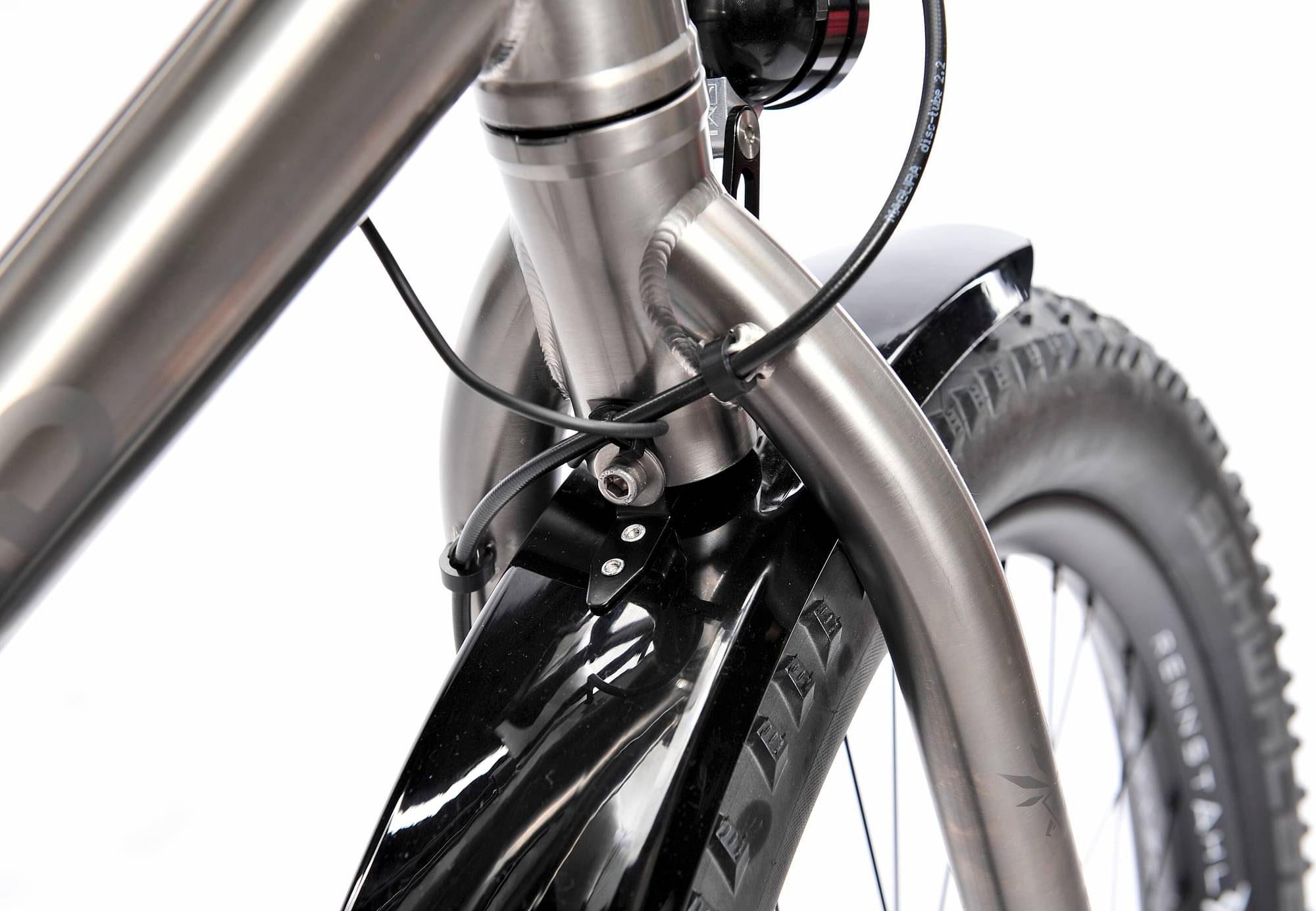

Falkenjagd titanium rigid fork MTB/travel bike 110mm Boost
Drivetrain
Rear Derailleur

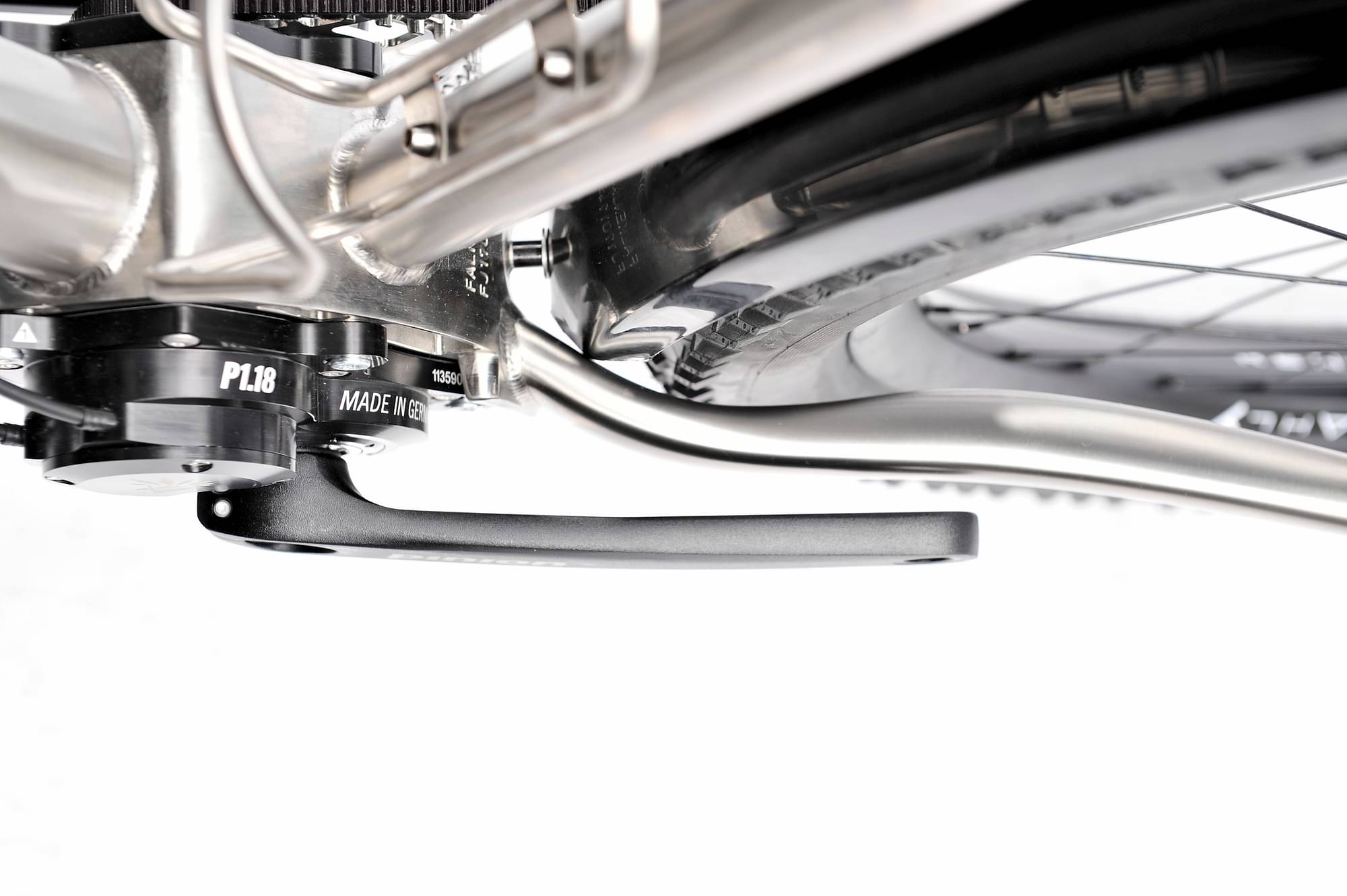

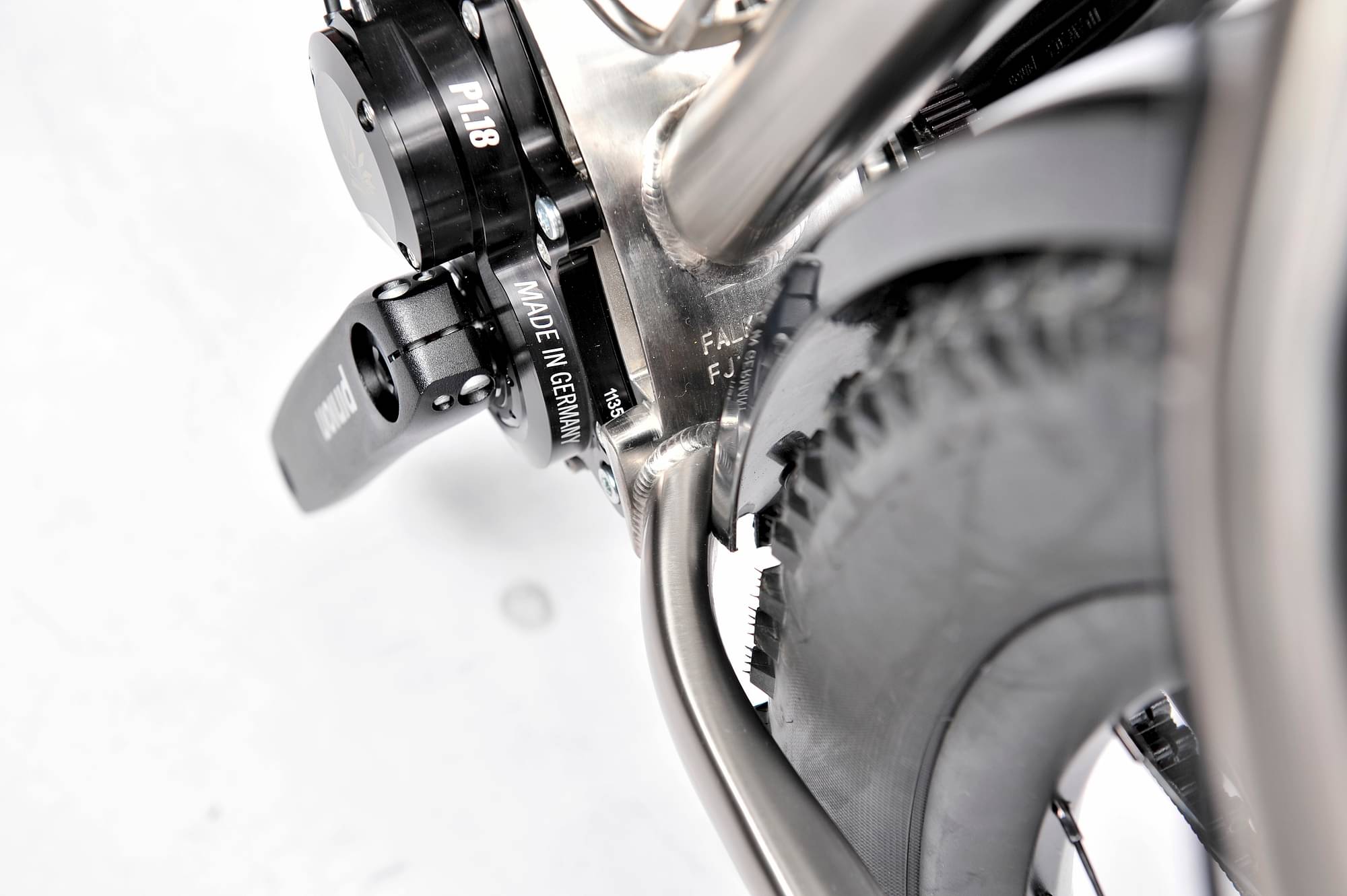

Pinion C9 black
Crank
Pinion
Bottom Bracket
Pinion, press-fit
Pedals
without
Wheels
Rims

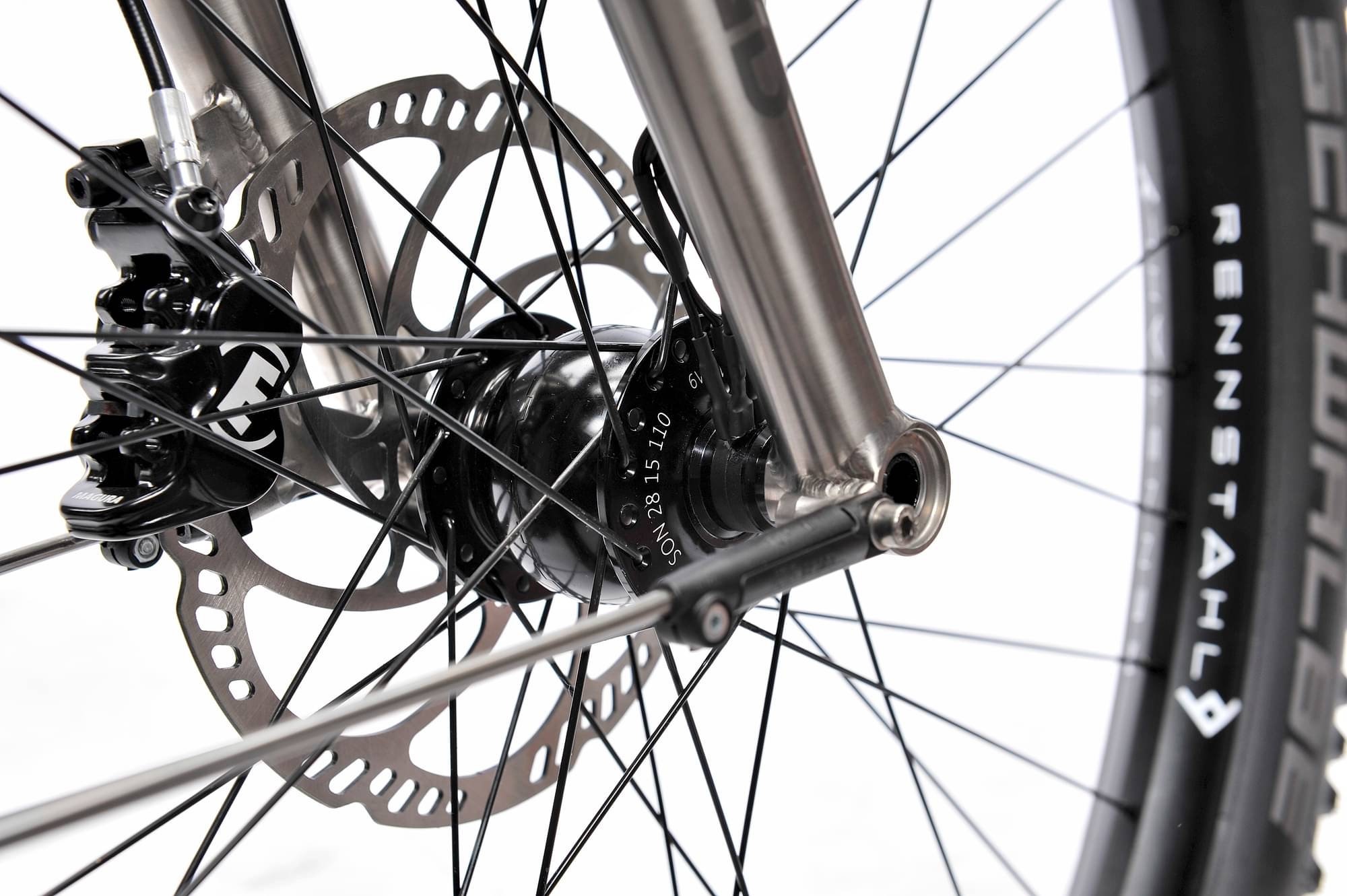

Mavic/Tune 36L. 148x 12mm BLACK /front SON 28 15-110 Boost
Tires
Schwalbe Johnny Watts 27.5 x 2.60 inches
Brakes
Brakes
Magura MT5 4 piston brake
Cockpit
Stem
Falconry Titan
Handlebar
Falconry Titan Flat 710mm
Seat
Saddle
without
Seatpost
Falcon hunting titanium 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Bottom Bracket Height | 285 mm | 290 mm | 290 mm | 290 mm |
| Top Tube Length | 603 mm | 622 mm | 642 mm | 655 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 135 mm | 145 mm | 170 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Bottom Bracket Drop | 70 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 785 mm | 815 mm | 845 mm | 865 mm |
| Wheels | 650 | 650 | 650 | 650 |
