Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset Pinion -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 171cm
MD
168cm - 180cm
LG
177cm - 187cm
XL
184cm - 201cm
XXL
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
PARAPERA Carbon MTB Bikepacking Boost Fork (NO mudguard option!)
Drivetrain
Rear Derailleur

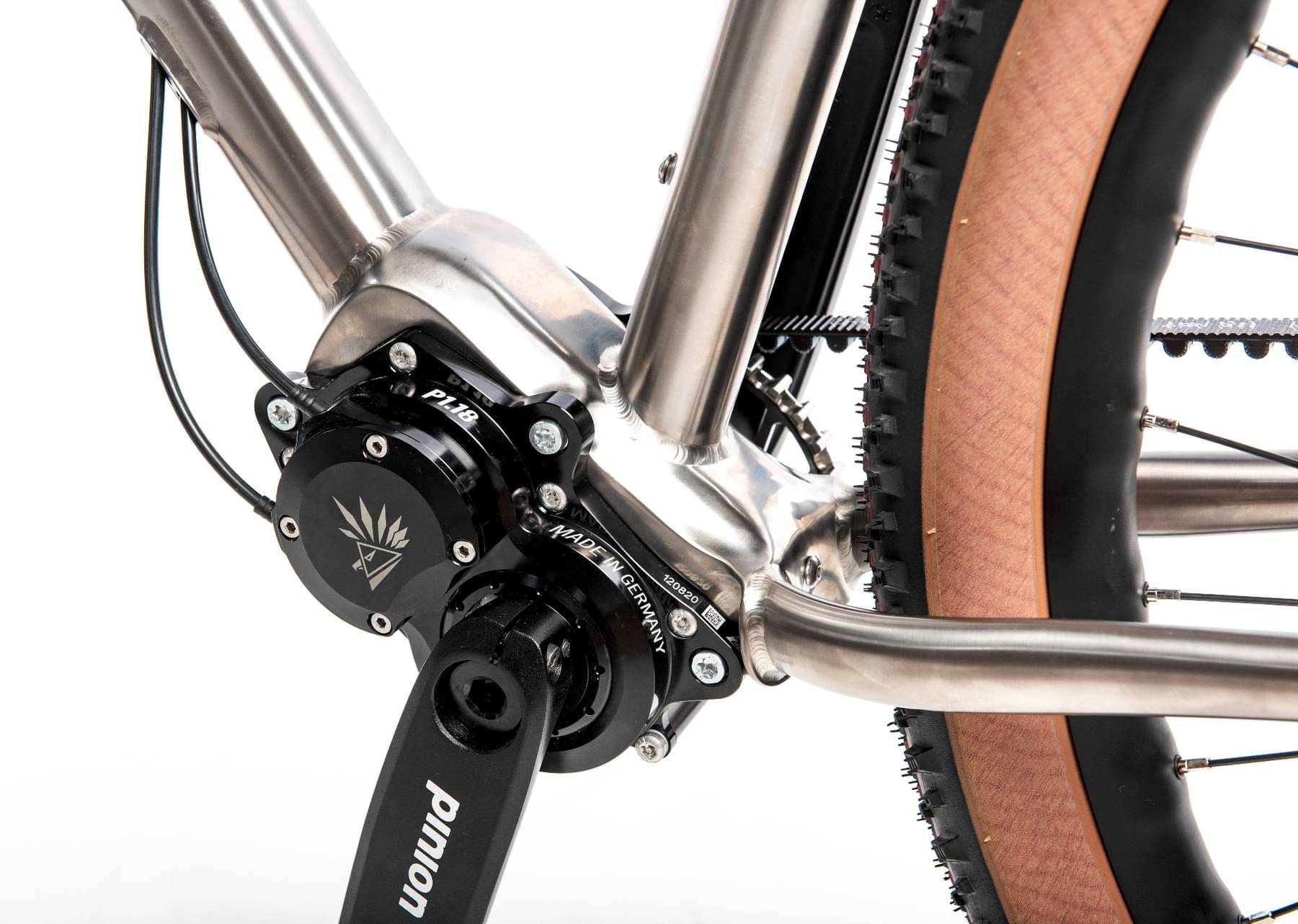

Pinion C9 black
Crank
Pinion
Bottom Bracket
Pinion, press-fit
Pedals
without
Wheels
Rims

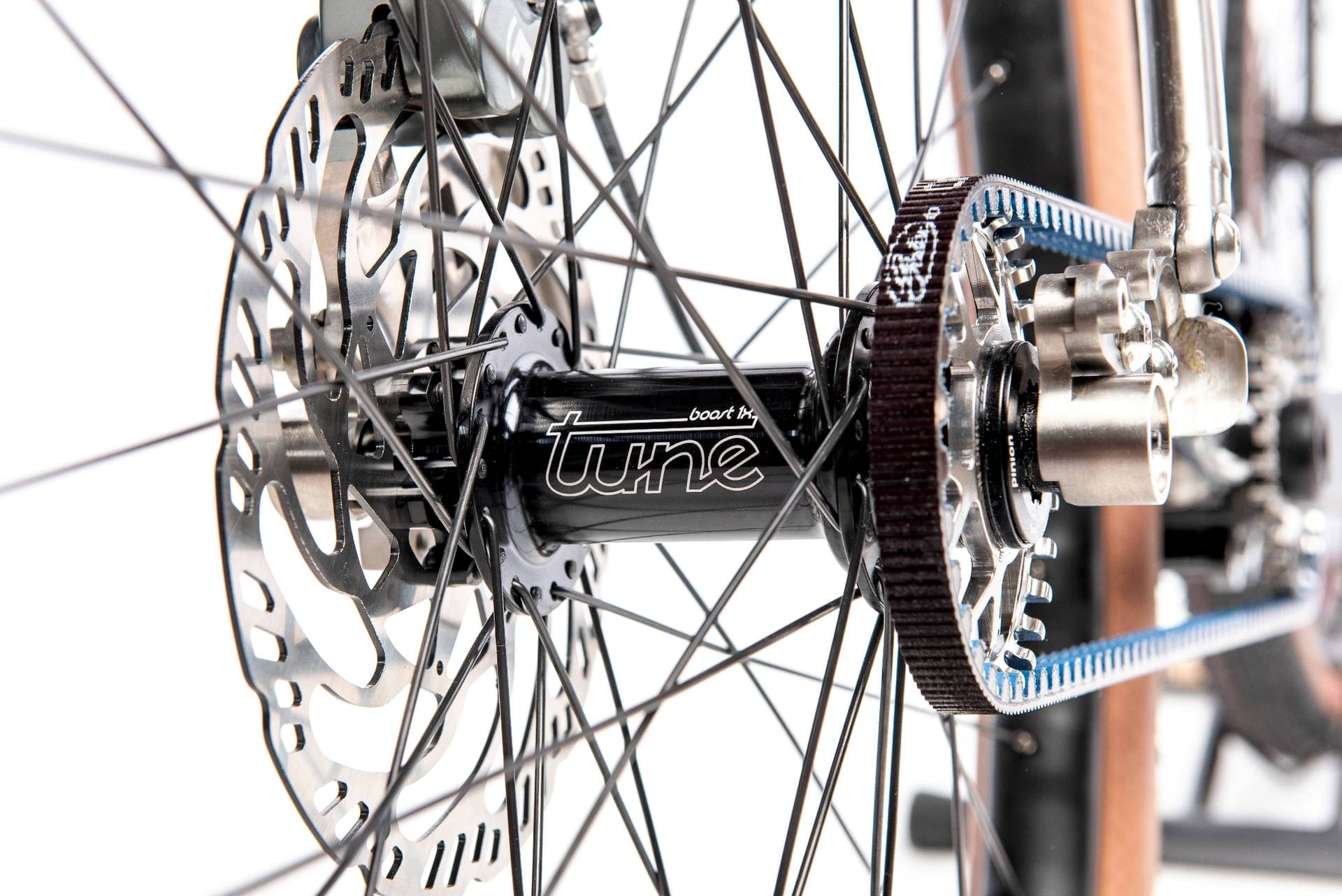

29" Mavic 1030/ TUNE hub 148mm x 12mm BOOST, 36 hole (with dynamo SON 28), black
Brakes
Brakes
Magura MT5 4 piston brake

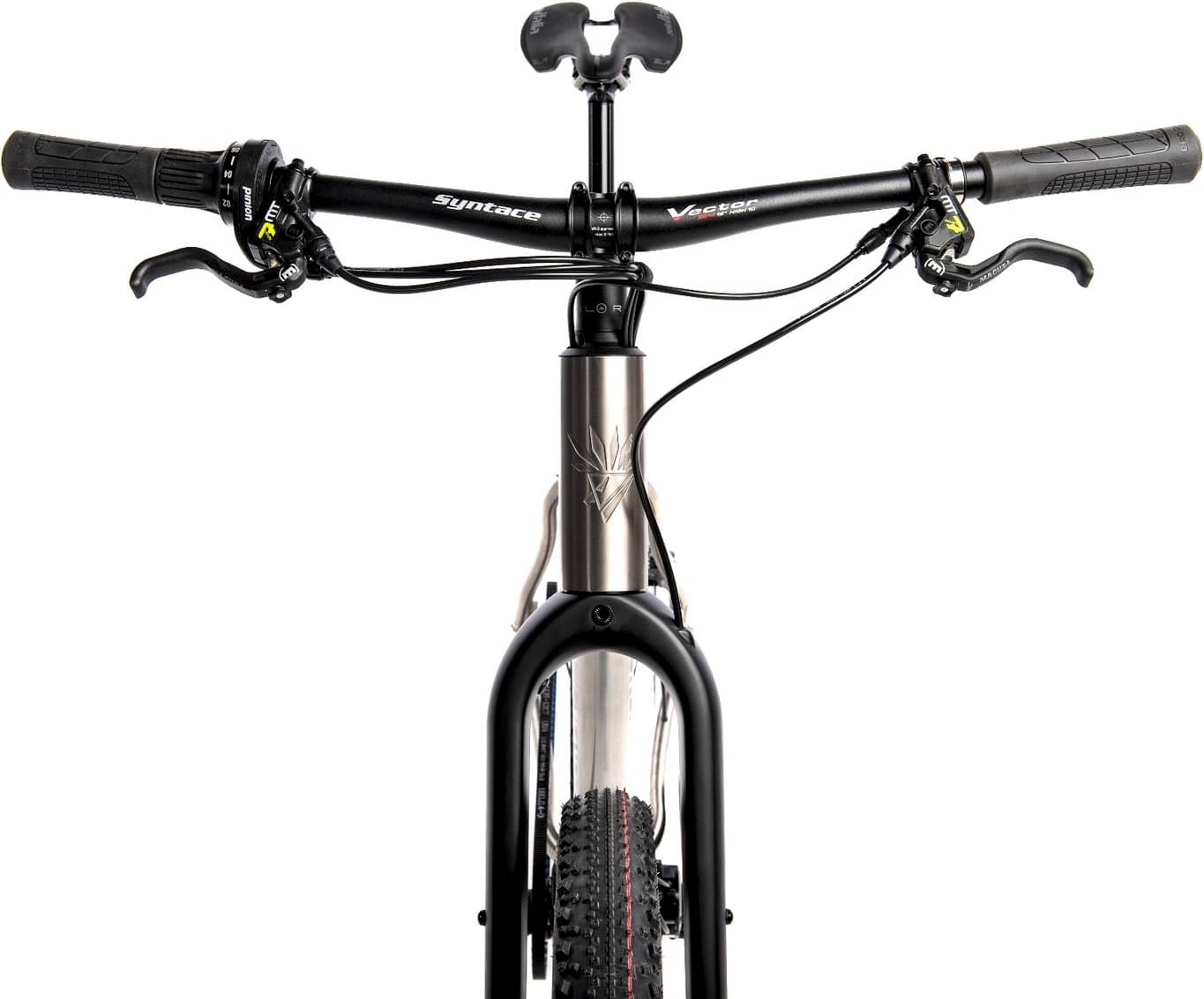

Cockpit
Stem
RENNSTAHL Extralight

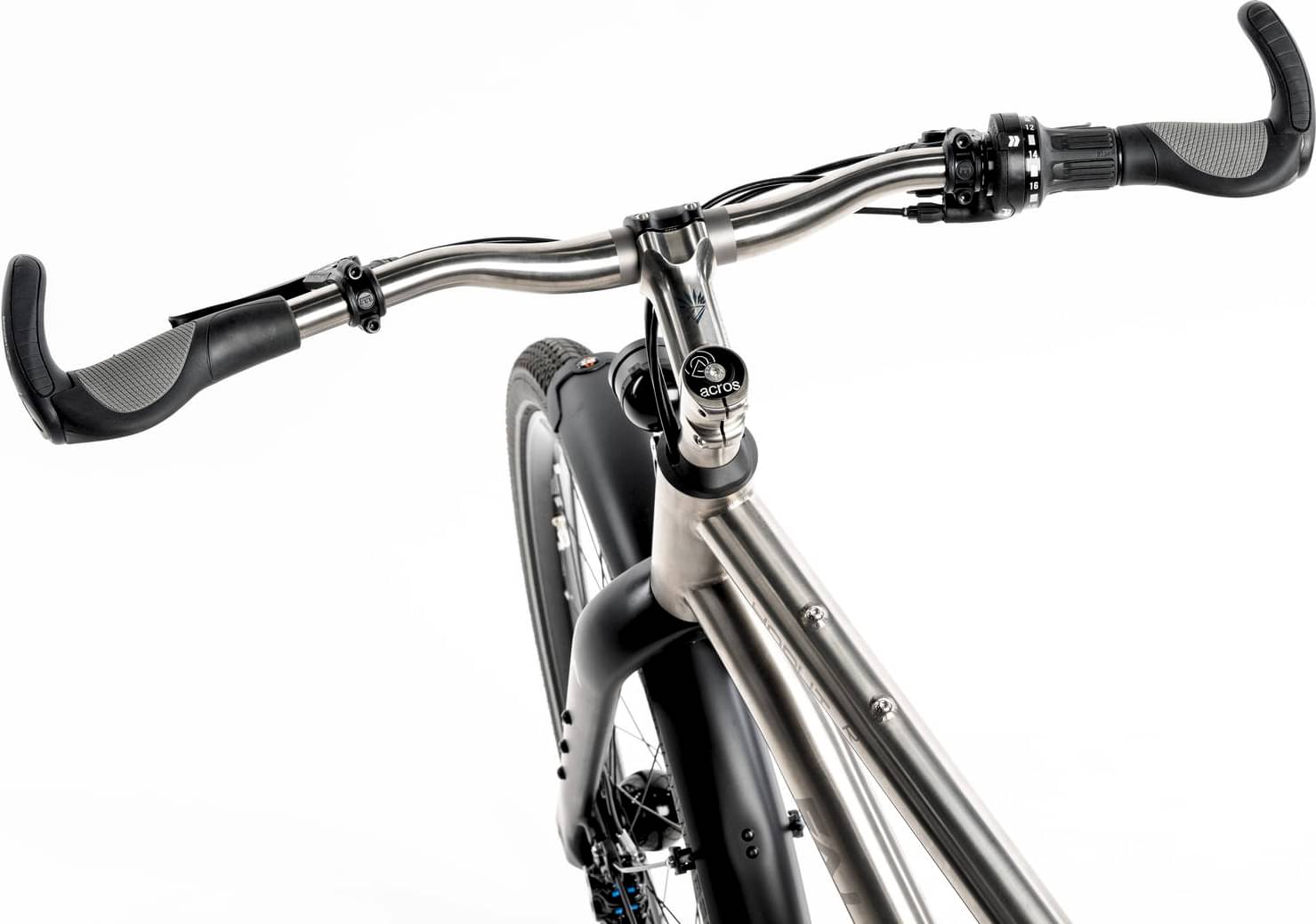

Handlebar
Ergotec Touring
Seat
Saddle
without
Seatpost
FALKENJAGD Titan (mandatory in combination with backlight)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.735 mm | 1.671 mm | 1.63 mm | 1.589 mm | 1.558 mm |
| Front Center | 645 mm | 665 mm | 683 mm | 704 mm | 735 mm |
| Rake | 48 mm | 60 mm | 58 mm | 59 mm | 61 mm |
| Trail | 71 mm | 52 mm | 54 mm | 53 mm | 57 mm |
| Stack | 656 mm | 660 mm | 670 mm | 680 mm | 690 mm |
| Reach | 378 mm | 395 mm | 411 mm | 428 mm | 443 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 645 mm | 655 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 405 mm | 445 mm | 483 mm | 533 mm | 555 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 70 ° |
| Head Tube Length | 125 mm | 135 mm | 145 mm | 155 mm | 170 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 450 mm |
| Wheelbase | 1089 mm | 1111 mm | 1129 mm | 1150 mm | 1175 mm |
| Bottom Bracket Drop | 75 mm | 70 mm | 70 mm | 70 mm | 75 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 168 cm | 177 cm | 184 cm | 195 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm | 201 cm | 205 cm |
