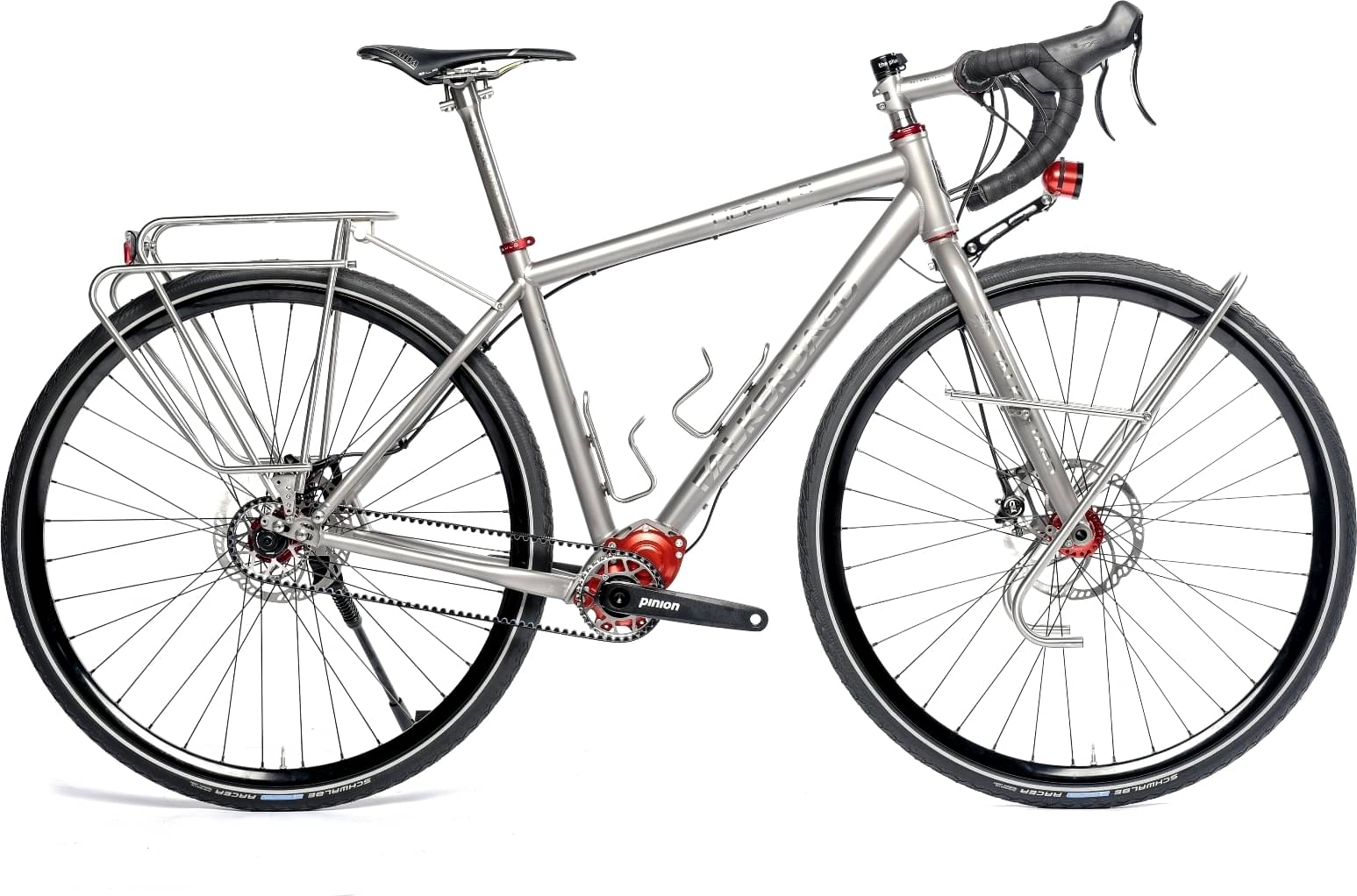

falkenjagd Hoplit PI Reiserad Randonneur 2024
2024 Road
Estimate price |
9,742$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset Pinion -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Falkenjagd titanium rigid fork MTB/travel bike 110mm Boost
Drivetrain
Rear Derailleur

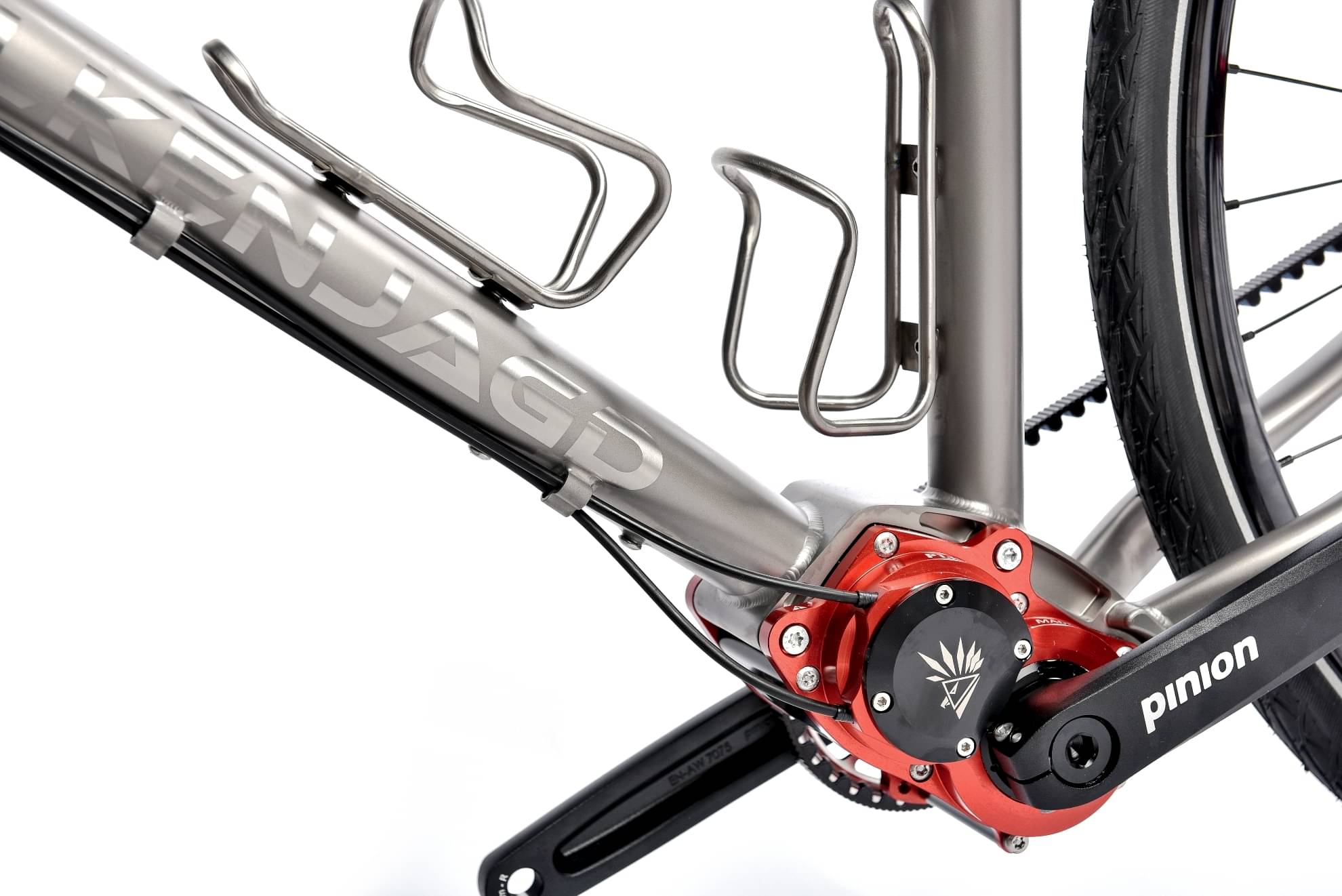

Pinion C9 black
Crank
Pinion
Bottom Bracket
Pinion, press-fit
Pedals
without
Wheels
Rims
Mavic/Tune 36L. 148x 12mm BLACK /front SON 28 15-110 Boost
Tires
Schwalbe Marathon Almotion 27.5 x 2.15

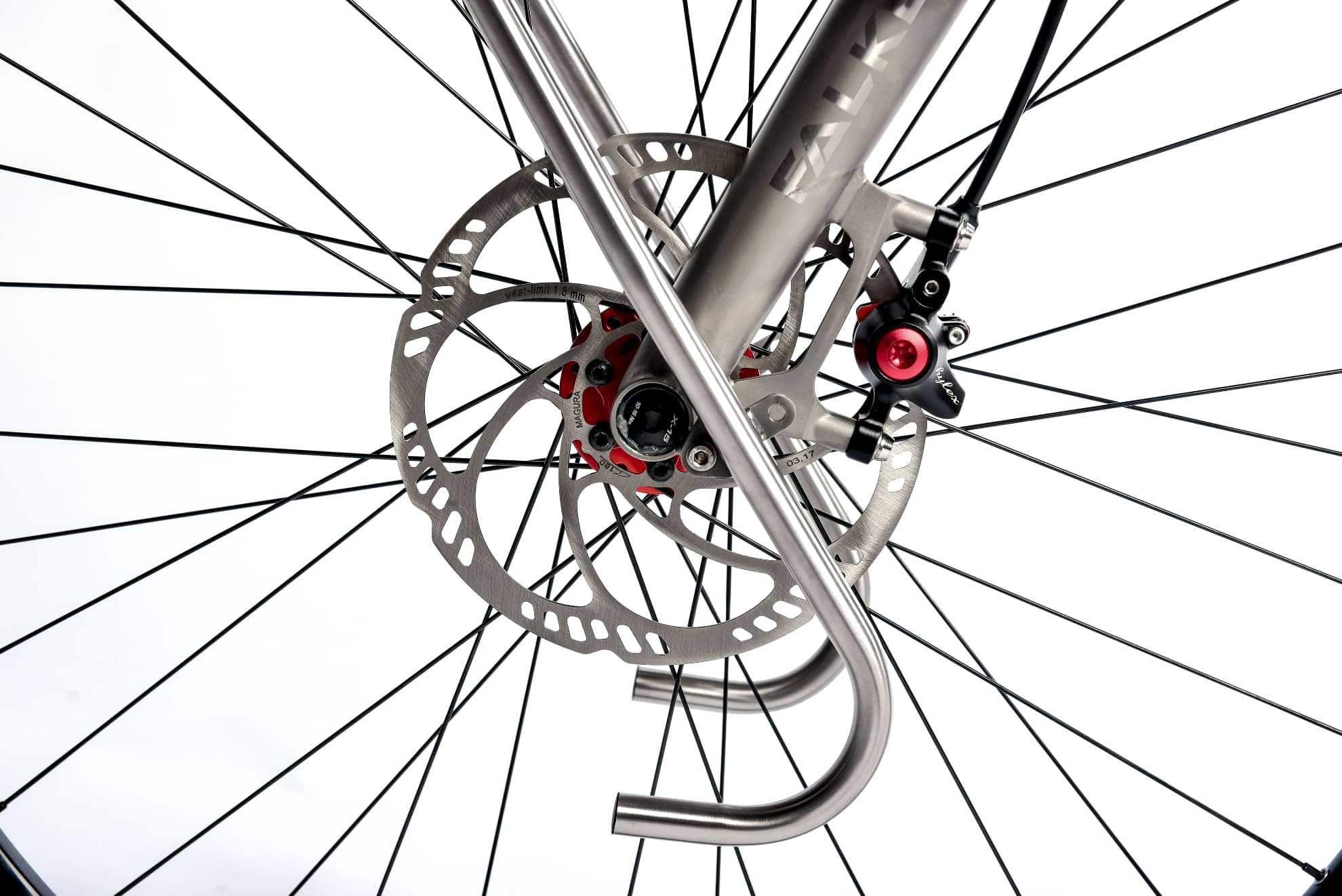

Brakes
Brakes
TRP Hylex
Cockpit

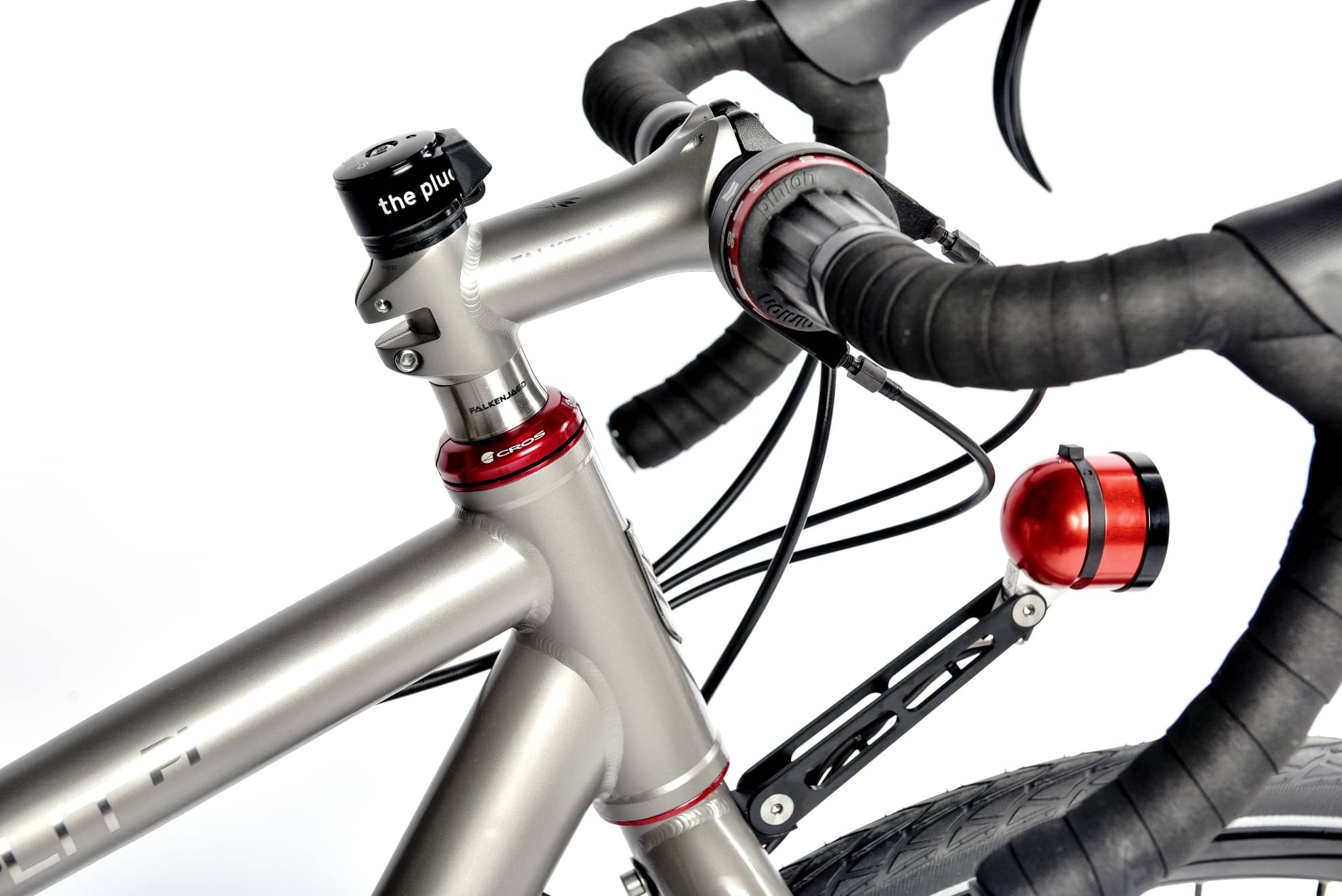

Stem
Racing steel Race light Black
Handlebar
VNT divisible 420mm
Seat
Saddle
without
Seatpost
Falcon hunting titanium 400mm € 100.00
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm | 295 mm |
| Top Tube Length | 580 mm | 603 mm | 622 mm | 642 mm | 655 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm | 170 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 745 mm | 785 mm | 815 mm | 845 mm | 845 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
