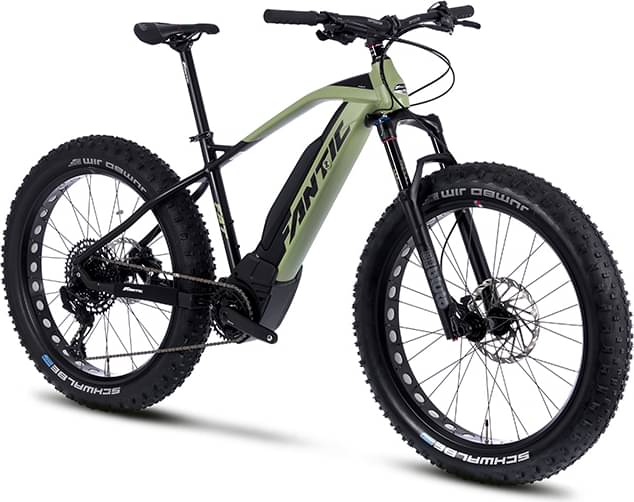

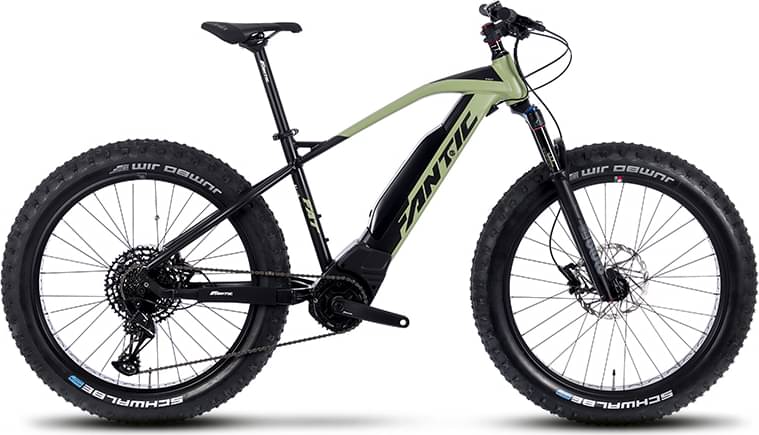

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox Bluto RL
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Brose 70Nm mid-drive -
Battery Fantic, Lithium Ion, 36 Volt, 630Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium frame, Sizes: S - M - L
Suspension Fork
RockShox Bluto, 120mm
Drivetrain
Rear Derailleur
SRAM SX
Cassette
SRAM SX Eagle 12V 11-50
Chain
SRAM SX
Wheels
Front Hub
Gipiemme thru axle 15mm
Rear Hub
Gipiemme thru axle 12mm
Rims
Gipiemme 26"
Tires
Schwalbe JUMBO-JIM, 26 X 4"
Brakes
Brakes
Front: SRAM Level, 2P, Hydraulic Disc Brake, 200mm disc, Rear: SRAM Level, 2P, Hydraulic Disc Brake, 180mm disc
Cockpit
Stem
FSA Logo - Ø31,8 - 60mm - Rise ±6°
Handlebar
FSA Ø31,8 -760m- Rise 15mm
Seat
Saddle
Selle Italia Model X Comfort superflow
Seatpost
FSA Ø30.9
Motor & Battery
Motor
Brose T-Alu, Torque/Coppia: 70 Nm
Battery
Fantic, Lithium Ion, 36 Volt, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.502 mm | 1.467 mm | 1.512 mm |
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm |
| Front Center | 690 mm | 694 mm | 702 mm |
| Rake | 54 mm | 51 mm | 51 mm |
| Trail | 80 mm | 80 mm | 77 mm |
| Stack | 610 mm | 613 mm | 638 mm |
| Reach | 406 mm | 418 mm | 422 mm |
| Top Tube Length | 584 mm | 605 mm | 630 mm |
| Seat Tube Angle | 74 ° | 73 ° | 72 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm |
| Head Tube Angle | 68 ° | 68.5 ° | 69 ° |
| Head Tube Length | 120 mm | 120 mm | 145 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1175 mm | 1179 mm | 1187 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
