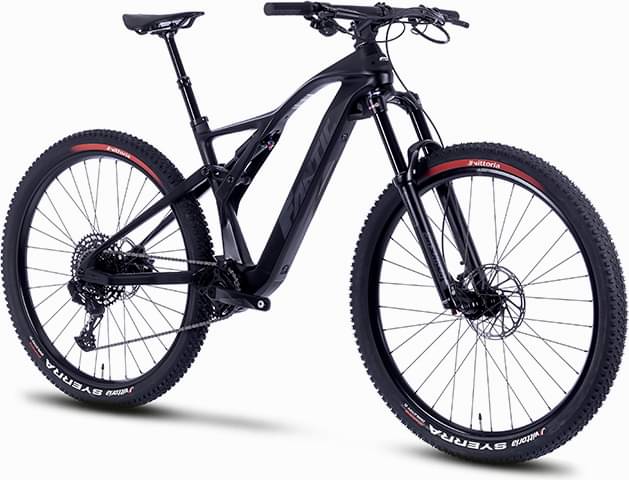

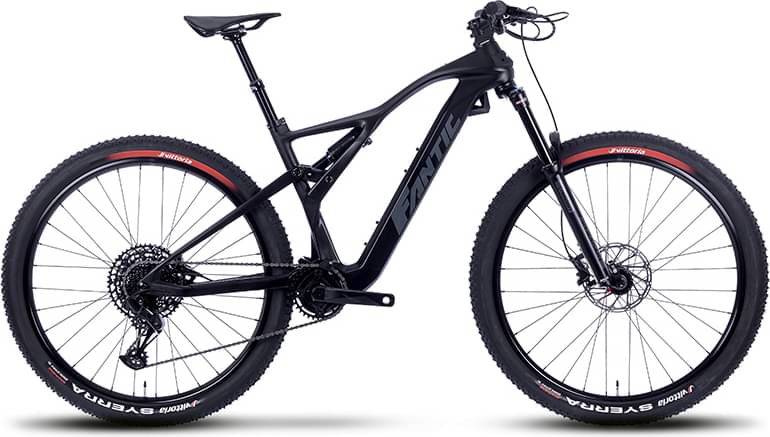

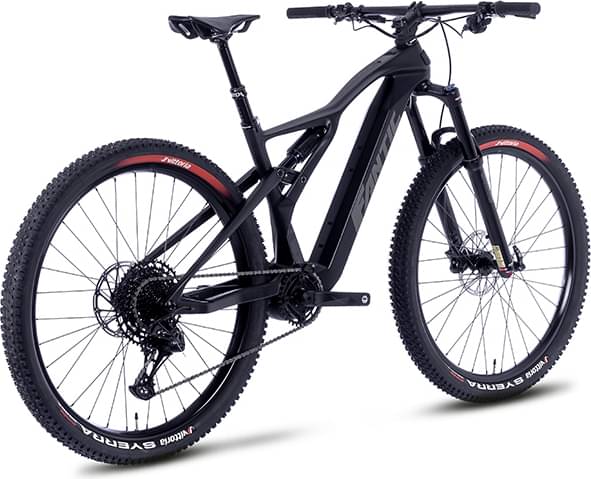

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Fork Suntour RAIDON -
Groupset SX Eagle -
Suspension Full -
Motor TQ 50Nm hub-drive -
Battery TQ integrated, Lithium Ion, 360Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Suntour RAIDON34 LOR
Rear Shock
Suntour EDGE PLUS 2CR
Drivetrain
Rear Derailleur
SRAM SX
Shift Levers
SRAM SX
Cassette
SRAM SX, 12V, 11-50
Crank
SRAM 34t
Chain
SRAM SX
Wheels
Rims
GBC Radiale 29"
Tires
Front: Vittoria SYERRA - 29"x 2.4, Rear: Vittoria SYERRA - 29"x 2.4
Brakes
Brakes
SRAM LEVEL 2 Piston disc brake
Cockpit
Stem
GBC Ø31,8 x 70mm +8°
Handlebar
GBC Ø31,8 FLAT
Seat
Saddle
Selle Italia Model-X Superflow
Seatpost
RST ELEV8 A2 Ø30.9
Motor & Battery
Motor
TQ HPR-50, Torque/Coppia: 50 Nm
Battery
TQ integrated, Lithium Ion, 360Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
