Bike details
Overview
Key information split into simple groups.

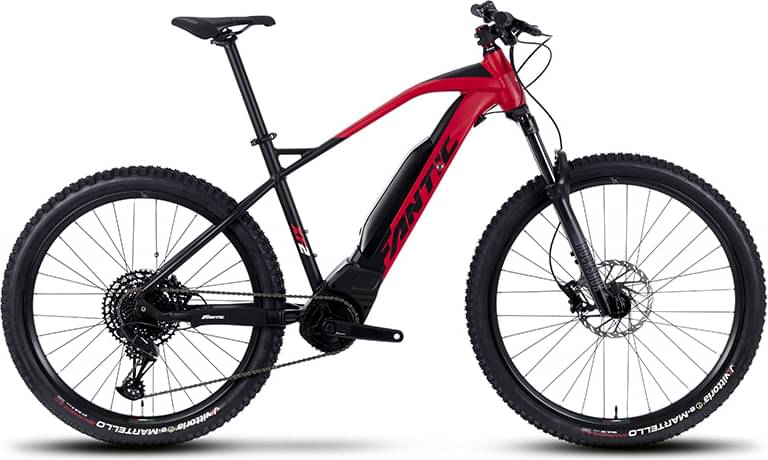

Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Brose 70Nm mid-drive -
Battery Fantic, Lithium Ion, 36 Volt, 630Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium, Sizes: S - M - L
Suspension Fork
RockShox Recon Silver RL, 120mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Cassette
SRAM SX,12V, 11-50
Chain
SRAM SX
Wheels
Front Hub
Gipiemme N28, 110mm, boost, thru axle 15mm
Rear Hub
Gipiemme N33, 148mm, boost, thru axle 12mm
Rims
Gipiemme, tubeless ready
Tires
Vittoria Barzo, front 29’’x 2.25” / Rear 27.5” x 2.6”
Brakes
Brakes
Front: SRAM Level, 2P, Hydraulic Disc Brake, 200mm disc, Rear: SRAM Level, 2P, Hydraulic Disc Brake, 180mm disc
Cockpit
Stem
FSA Logo - Ø31,8 - 60mm - Rise ±6°
Handlebar
FSA Ø31,8 -760m- Rise 15mm
Seat
Saddle
Selle Italia Model X Comfort superflow
Seatpost
FSA
Motor & Battery
Motor
Brose T-Alu, Torque/Coppia: 70 Nm
Battery
Fantic, Lithium Ion, 36 Volt, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.527 mm | 1.519 mm | 1.562 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Front Center | 688 mm | 697 mm | 705 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 85 mm | 82 mm |
| Stack | 615.5 mm | 627.5 mm | 653 mm |
| Reach | 403 mm | 413 mm | 418 mm |
| Top Tube Length | 580 mm | 605 mm | 630 mm |
| Seat Tube Angle | 74 ° | 73 ° | 72 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm |
| Head Tube Angle | 68 ° | 68.5 ° | 69 ° |
| Head Tube Length | 110 mm | 120 mm | 145 mm |
| Chainstay Length | 468 mm | 468 mm | 468 mm |
| Wheelbase | 1151 mm | 1160 mm | 1168 mm |
| Bottom Bracket Drop | 52 mm | 52 mm | 52 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
