Felt AR Frameset 2010
2010 Road
Estimate price |
2,499$
Weight | 1.2 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

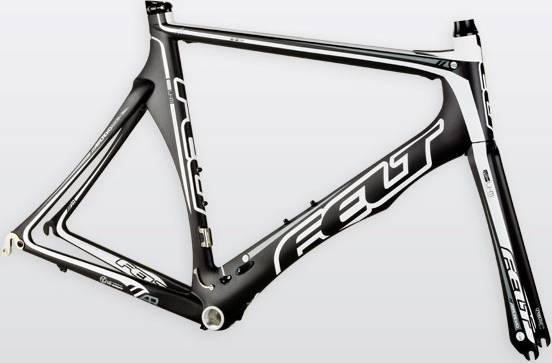

Felt Aero Road UHM Ultra-High Modulus Modular Monocoque Carbon Fiber Frame w/3KP Finish, Internal Cable Routing, Carbon Fiber dropouts & replaceable derailleur hanger
Suspension Fork
Felt 1.2A Bladed Aero UHM Ultra-High Modulus Carbon Fiber, 100% Carbon Fiber monocoque Fork w/Carbon Dropouts. 385 grams
Cockpit
Headset
FSA 1-1/8" Integrated w/20mm Cone Spacer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 578 mm | 581 mm | 584 mm | 589 mm | 620 mm |
| Rake | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73.125 ° | 73 ° | 73 ° |
| Seat Tube Length | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 121.6 mm | 141.6 mm | 161.6 mm | 181.6 mm | 201.6 mm |
| Chainstay Length | 403 mm | 403 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 971 mm | 974 mm | 980 mm | 993 mm | 1016 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 740 mm | 765 mm | 785 mm | 789 mm | 807 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
AR Frameset is a Felt Ar model. Felt launched 41 frames of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Aero frames average price
According to our math, the average price for a trustworthy Aero frame is 2657$. However, this doesn’t mean that if you spend less money on an Aero frame, you couldn’t get a decent one. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
When Felt released this model in 2010, its price was 2499$. In conclusion, this frame price is 6.32% lower than the price of the average Aero frame.
Aero frames average weight
On a deeper look, we notice that the average weight of an Aero frame is 1.79 kg (3.95 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much lighter than average, AR Frameset has a weight of 1.2 kg (2.65 lbs). In other words, this model is 49.17% lighter than the average Aero frame.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
AR Frameset has a carbon fork, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
