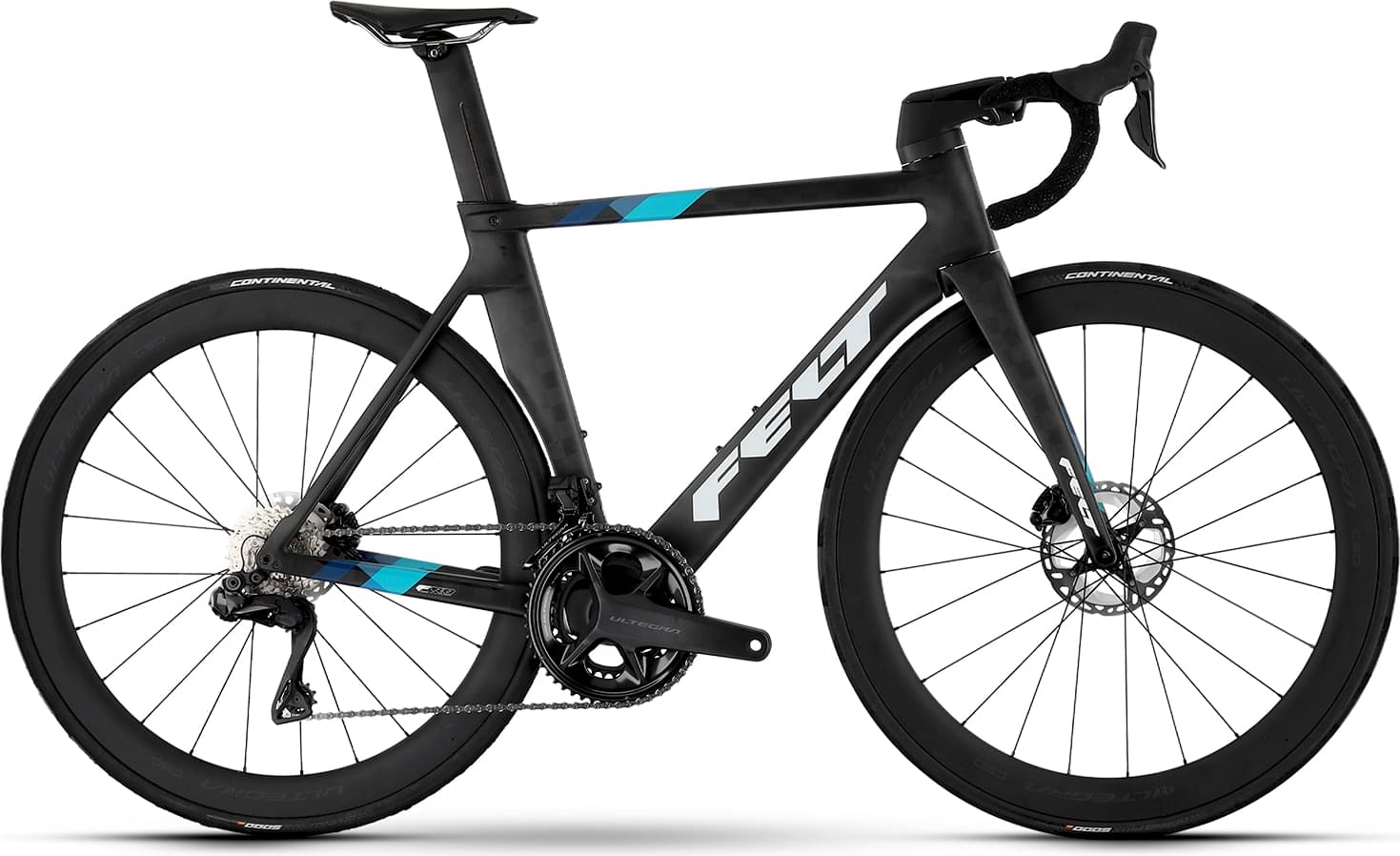

Felt AR FRD Ultimate Ultegra Di2 2025
2025 Road
Estimate price |
9,306$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Ultegra Hydraulic Disc
Sizing
Recommended size guide.
48cm
152cm - 169cm
51cm
166cm - 174cm
54cm
171cm - 179cm
56cm
176cm - 184cm
58cm
181cm - 189cm
61cm
186cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt AR 3.0, UHC Ultimate + TeXtreme carbon
Suspension Fork
Felt AR 3.0, UHC Ultimate + TeXtreme carbon
Drivetrain
Rear Derailleur
Shimano Ultegra Di2, RD-R8150, Shadow, 24-S
Front Derailleur
Shimano Ultegra Di2, FD-R8150
Shift Levers
Shimano Ultegra Di2, ST-R8170
Cassette
Shimano CS-R8100, 11-30 T
Crank
Shimano Ultegra, FC-R8100, 52/36 T
Chain
Shimano CN-M8100
Wheels
Rims
Shimano Ultegra, WH-R8170, Tubeless ready, Center lock, 12x100/12x142 mm
Tires
Continental Grand Prix 5000 TR, 700x25
Brakes
Brakes
Front: Shimano BR-R8170, 2-piston, Hydraulic disc brake, Rear: Shimano BR-R8170, 2-piston, Hydraulic disc brake
Cockpit
Stem
Felt Sprint, -6 °
Handlebar
48 cm: PRO Vibe Aero 31.8 mm, 380 mm, 51 cm: PRO Vibe Aero 31.8 mm, 400 mm, 54, 56, 58, 61 cm: PRO Vibe Aero 31.8 mm, 420 mm
Headset
IS (NO.44)
Seat
Saddle
Prologo Dimension 143 TIROX
Seatpost
Felt AeroRoad IL 2.0, 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.354 mm | 1.36 mm | 1.407 mm | 1.424 mm | 1.419 mm | 1.451 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 577 mm | 579 mm | 580 mm | 588 mm | 603 mm | 622 mm |
| Rake | 52 mm | 47 mm | 47 mm | 43 mm | 43 mm | 43 mm |
| Trail | 61 mm | 59 mm | 54 mm | 55 mm | 59 mm | 68 mm |
| Stack | 501 mm | 518 mm | 539 mm | 561 mm | 579 mm | 608 mm |
| Reach | 370 mm | 381 mm | 383 mm | 394 mm | 408 mm | 419 mm |
| Top Tube Length | 509 mm | 529 mm | 543 mm | 560 mm | 580 mm | 605 mm |
| Seat Tube Angle | 74.3 ° | 74.4 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 441 mm | 473 mm | 502.5 mm | 526 mm | 553 mm | 601 mm |
| Head Tube Angle | 71 ° | 72.1 ° | 73 ° | 73.5 ° | 73.5 ° | 73 ° |
| Head Tube Length | 97 mm | 111 mm | 130 mm | 150 mm | 167 mm | 197.5 mm |
| Chainstay Length | 408 mm | 408 mm | 410 mm | 410 mm | 410 mm | 412 mm |
| Wheelbase | 974 mm | 977 mm | 980 mm | 988 mm | 1003 mm | 1024 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 705 mm | 734 mm | 760 mm | 780 mm | 807 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 166 cm | 171 cm | 176 cm | 181 cm | 186 cm |
| Rider Max Height | 169 cm | 174 cm | 179 cm | 184 cm | 189 cm | 195 cm |
