Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Aero Road UHC Advanced + TeXtreme® carbon fiber, MMC w/ InsideOut construction, carbon fiber BB30 & dropouts, 7075 CNC aluminum replaceable rear derailleur hanger, electronic-specific internal cable routing
Suspension Fork
Felt Aero Road UHC Advanced + TeXtreme® carbon fiber monocoque construction, AeroTaper 1.125" - 1.25" carbon fiber steer tube w/ integrated crown race, crown, blades & dropouts
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 short cage
Front Derailleur
Shimano Ultegra Di2 braze-on
Shift Levers
Shimano Ultegra Di2
Cassette
Shimano 11-speed, 12-25T
Crank
Shimano Ultegra 48cm = 165mm 51cm = 170mm 54 - 56cm = 172.5mm 58 - 61cm = 175mm
Bottom Bracket
Token For BB30 Frame w/ Shimano Crankset, Alloy CNC Cups inserted w/ Sealed Bearings
Chain
Shimano 11-speed
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Fulcrum Racing Quattro
Rear Hub
Fulcrum Racing Quattro, 11-speed
Rims
Fulcrum Racing Quattro 17C
Spokes
Fulcrum Aero Butted
Tires
Continental Grand Prix 4000 S II, 700c x 23c
Brakes
Brakes
Front Brake: Shimano Ultegra dual pivot caliper/Rear Brake: Shimano Ultegra direct mount
Brake Levers
Shimano Ultegra Di2
Cockpit
Stem
3T ARX II Team Stealth, +/-6° rise, Ø31.8mm 48cm = 80mm 51cm = 90mm 54 - 56cm = 100mm 58cm = 110mm 61cm = 120mm
Handlebar
3T Aeronova Team Stealth carbon fiber, 104mm reach, 127mm drop, Ø31.8mm 48 - 51cm = 400mm 54 - 56cm = 420mm 58 - 61cm = 440mm
Grips
Felt VelvetGel Tape
Headset
FSA No. 382/DJ integrated, 1.125" - 1.25" sealed cartridge bearing w/ Felt VariableHeight Cone Spacers (20mm PC, 4.5mm aluminum), 2 x 10mm + 1 x 5mm PC headset spacers, Felt compression device, carbon fiber top cap & aluminum bolt
Seat
Saddle
Prologo Zero II Ti2.0
Seatpost
Felt Vibration Reducing Aero Road flip position UHC + TeXtreme carbon fiber w/ 3T DiffLock™ Comfort Module internals, 350mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.37 mm | 1.42 mm | 1.44 mm | 1.44 mm | 1.47 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 577 mm | 579 mm | 580 mm | 588 mm | 603 mm | 622 mm |
| Rake | 52 mm | 50 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 61 mm | 52 mm | 56 mm | 55 mm | 52 mm | 51 mm |
| Stack | 516 mm | 529 mm | 552 mm | 573 mm | 594 mm | 623 mm |
| Reach | 373 mm | 385 mm | 389 mm | 398 mm | 412 mm | 423 mm |
| Top Tube Length | 516 mm | 536 mm | 551 mm | 566 mm | 586 mm | 611 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 550 mm | 590 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 73 ° | 73.5 ° | 74 ° | 74 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 160 mm | 180 mm | 210 mm |
| Chainstay Length | 414 mm | 414 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 980 mm | 983 mm | 986 mm | 994 mm | 1009 mm | 1030 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 716 mm | 746 mm | 770 mm | 791 mm | 818 mm | 851 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

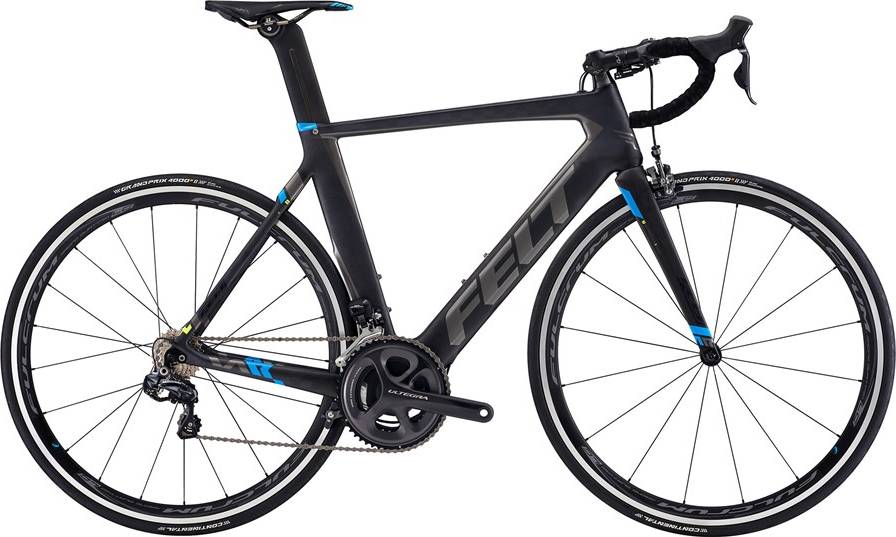

AR2 is a Felt Ar2 model. There are 9 bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero bikes
Our math shows that the average cost of a dependable Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5699$. Comparing this to the average Aero bike price, we see that the price is 35.34% more expensive.
Average weight for Aero bikes
If we make a quick analysis of the average weight of an Aero bike, we get 7.34 kg (16.18 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly heavier than average, AR2 has a weight of 7.67 kg (16.91 lbs). In other words, this model is 4.5% heavier than the average Aero bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
AR2 components
Fork material
AR2 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the AR2 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The AR2 comes with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
