Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Aero Road UHC Advanced MMC Carbon Fiber Frame w/ 3KP Weave, Mechanically Optimized Internal Cable Routing, Carbon Fiber dropouts & Forged replaceable derailleur hanger
Suspension Fork
Felt AR UHC Advanced 100% Carbon Fiber Monocoque Fork; Carbon 1.125 Steerer tube, Crown, Blades, and Dropouts
Rear Shock
n/a
Drivetrain
Rear Derailleur
SRAM RED
Front Derailleur
SRAM Red braze-on, double
Shift Levers
SRAM Red Double Tap, 20 speed
Cassette
SRAM Cassette, 11-26T
Crank
SRAM RED GXP, 53/39T; 51cm=170mm, 54cm-56cm=172.5mm, 58cm-61cm=175mm
Bottom Bracket
SRAM GXP compatible External Bearing
Chain
SRAM 10 speed w/ PowerLock
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
SRAM S30 AL Race Premium 18H Front hub w/ Low Friction Japanese Bearings and Light weight quick release
Rear Hub
SRAM S30 AL Race Premium 20H Rear hub SRAM 10 speed compatible freehub body w/ Low Friction Japanese Bearings and Light weight quick release
Rims
SRAM S30 AL Race 30mm deep Hybrid Toroidal® Aluminum, 18H Front, 20H Rear
Spokes
Sapim CX-Ray spokes, Laced radial Front; Laced 2x non-drive, radial drive Rear; Aluminum Internal Spoke Nipples
Tires
Vittoria Rubino Pro Slick, 700c x 23c, 150tpi
Brakes
Brakes
SRAM Dual Pivot w/ Cartridge Brake Shoes
Brake Levers
SRAM RED
Cockpit
Stem
Felt SL 6061 Aluminum 3D Forged +/-7° Rise, Ø31.8mm Bar Clamp, custom Cr-Mo bolts, 128g, 51cm=90mm, 54cm=100mm, 56cm=100mm, 58cm=110mm, 61cm=120mm.
Handlebar
Felt VS Aero 2014 Triple Butted Aluminum w/ Aerodynamic Wing Top Section, w/ Ergonomic Drop, Ø31.8mm, 51cm=400mm, 54cm-56cm=420mm, 58cm-61cm=440mm
Grips
Felt Gel Ribbon Cork Tape w/ Felt 3D Logo
Headset
FSA Integrated, w/ Aluminum 25mm Conical Spacer, 2 X 10mm Aluminum Headset Spacers, Felt Carbon Fiber Top Cap & 7075 Anodized Aluminum Bolt
Seat
Saddle
Felt SL Road Saddle w/ Carbon Fiber Injection Molded Base, Superlight Multi-Density Foam, Embossed Cover & Hollow Cr-Mo rails
Seatpost
Felt Aero UHC Advanced Carbon Fiber Standard Offset Bladed Monocoque Design, Length = 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.4 mm | 1.441 mm | 1.46 mm | 1.437 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 578 mm | 581 mm | 584 mm | 598 mm | 620 mm |
| Rake | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Stack | 519.5 mm | 540.3 mm | 561.6 mm | 580.8 mm | 601.7 mm |
| Reach | 384.8 mm | 385.9 mm | 389.6 mm | 397.7 mm | 418.8 mm |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 412 mm | 412 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 980 mm | 983 mm | 989 mm | 1002 mm | 1025 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 749 mm | 774 mm | 794 mm | 798 mm | 816 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |

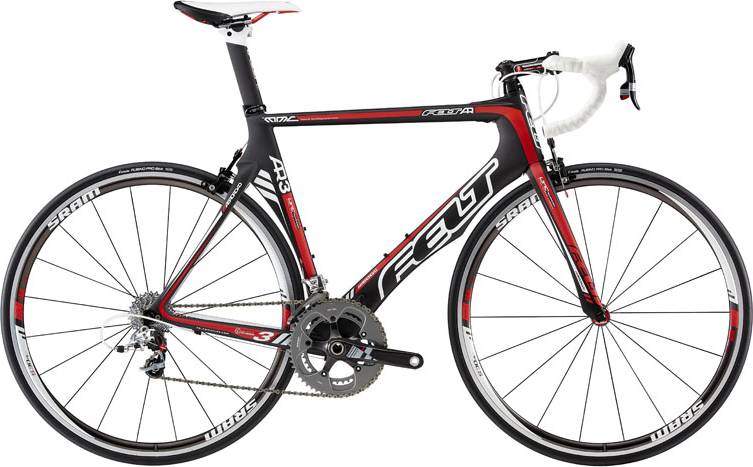

About this model
AR3 is a Felt Ar3 model. Felt released 9 bikes variations of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Felt released this model in 2011, its price was 5499$. If we compare this with the average Aero bike cost we notice that the price is 30.59% more expensive.
Aero bikes average weight
The average weight for Aero bikes is 7.34 kg (16.18 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 7.26 kg (16.01 lbs), Felt bike is slightly lighter than average. In short, the average Aero bike weight is 1.1% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on AR3 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
