Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Aero Road UHM Ultra High Modulus Modular Monocoque carbon fiber frame with 3KP finish; internal cable routing, carbon fiber dropouts & replaceable derailleur hanger
Suspension Fork
Felt 1.3A bladed aero HM High Modulus fork with aero carbon fiber blades, carbon fiber crown, carbon fiber steerer tube & carbon fiber dropouts: 450 grams
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano 105 SS Short Cage
Front Derailleur
Shimano 105 braze-on, double
Shift Levers
Shimano 105 STI, 20-Speed
Cassette
Shimano 10-Speed Cassette, 11-25T
Crank
FSA Gossamer Compact Mega EXO, 2-PC, Cold Forged Aluminum w/ CNC 7075/T6 Aluminum Chainrings, 52/36T; 51cm=170mm, 54cm-56cm=172.5mm, 58cm-61cm=175mm
Bottom Bracket
FSA Mega EXO
Chain
Shimano 10-Speed
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Felt AeroR4 Sealed Bearing CNC Machined 7075 Aluminum 20H w/ Cr-Mo Quick Release Skewer
Rear Hub
Felt AeroR4 Sealed Bearing CNC Machined 7075 Aluminum 24H w/ Cr-Mo Quick Release Skewer
Rims
Felt AeroR4 700c 27mm Deep Aluminum w/ CNC Machined Braking Surface, 20H Front/24H Rear
Spokes
Alpina Bladed butted 1.8/0.9 x 2.3/1.8mm w/ Aluminum Nipples
Tires
Vittoria Rubino, 700c x 23c
Brakes
Brakes
SuperLight Dual Pivot w/ Cartridge Brake Shoes, Stainless Hardware & Teflon Bushings
Brake Levers
Shimano 105 STI
Cockpit
Stem
Felt 1.2 6061 Aluminum 3D Forged Ø31.8mm w/ +/-7° Rise, 51cm=80mm, 54cm=90mm, 56cm=100mm, 58cm=110mm, 61cm=110mm
Handlebar
Felt 1.3 2014 Triple Butted Aluminum w/ Aerodynamic Wing Top Section, w/ Ergonomic Drop, Ø31.8mm, 51cm=400mm, 54cm-56cm=420mm, 58cm-61cm=440mm
Grips
Felt Gel Ribbon Cork Tape w/ Felt 3D Logo
Headset
FSA 1 1/8 Integrated w/ 20mm Cone & 2 X 7.5mm Spacer Stack
Seat
Saddle
Felt 1.2 Road Saddle w/ Carbon Injected Base, Embossed Cover & Hollow Cr-Mo Rails
Seatpost
Felt 1.1a UHM Carbon Fiber Standard Offset Bladed Monocoque Design x 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 578 mm | 581 mm | 584 mm | 589 mm | 620 mm |
| Rake | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73.125 ° | 73 ° | 73 ° |
| Seat Tube Length | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 121.6 mm | 141.6 mm | 161.6 mm | 181.6 mm | 201.6 mm |
| Chainstay Length | 403 mm | 403 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 971 mm | 974 mm | 980 mm | 993 mm | 1016 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 740 mm | 765 mm | 785 mm | 789 mm | 807 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |

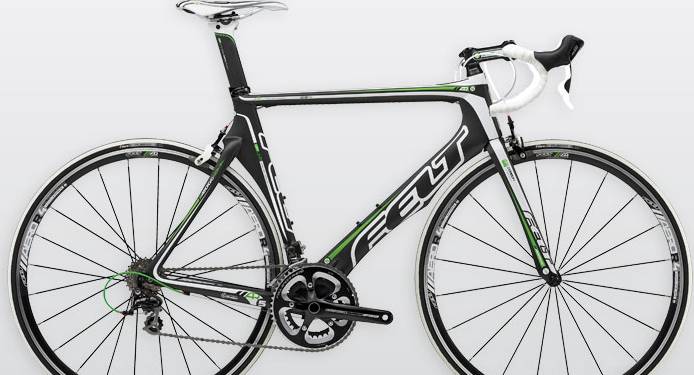

About this model
AR5 belongs to the Felt Ar5 model. Felt launched 9 bikes of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Felt released this model in 2010, its price was 2999$. If we compare this with the average Aero bike cost we notice that the price is 40.41% smaller.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
AR5 components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The AR5 2010 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Felt AR5 is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
