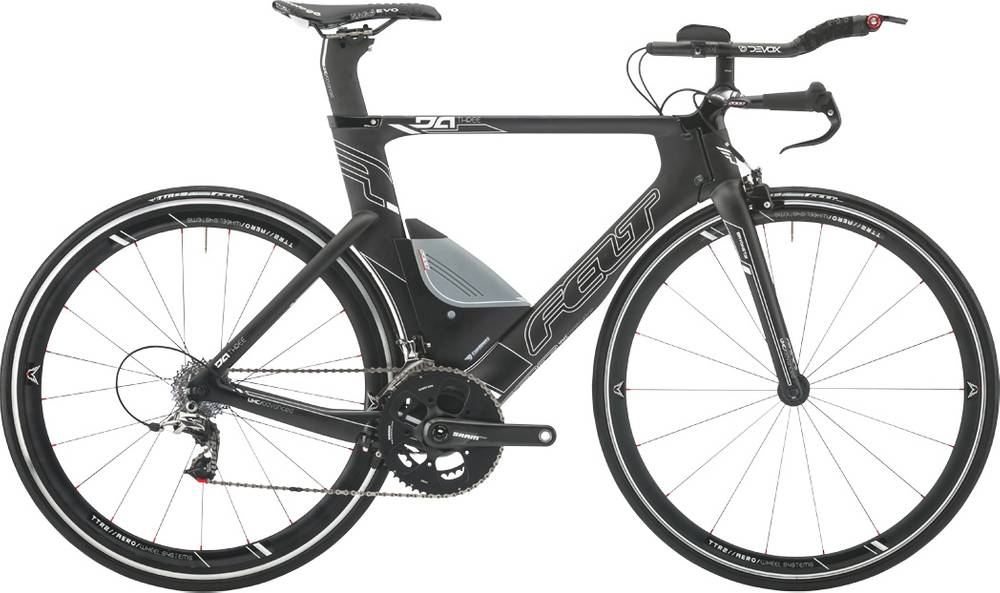

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED, SRAM -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Aero TT/Tri UHC Advanced MMC Carbon Fiber Frame w/ 3KP Weave, InsideOut internal molding process, aluminum BB30 shell, internal electric or external mechanical cable routing, Carbon Fiber dropout & aluminum rear derailleur hanger
Suspension Fork
Felt Bayonet 3 UHC Advanced MMC Carbon Fiber monocoque fork; 100% Carbon Fiber 1-piece blades, dropouts & crown w/ Felt compression device
Rear Shock
n/a
Drivetrain
Rear Derailleur
SRAM RED
Front Derailleur
SRAM RED braze-on w/chain watcher
Shift Levers
SRAM Carbon TT 500
Cassette
SRAM, 11-26T
Crank
SRAM S950 BB30 52/36T; 51cm=170mm, 54cm-56cm=172.5mm, 58cm=175mm
Bottom Bracket
SRAM BB30
Chain
SRAM 10-speed
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Felt TTR2
Rear Hub
Felt TTR2
Rims
Felt TTR2
Spokes
Stainless steel
Tires
Felt Aero TTR2 Clincher, 700c x 23c, 127 tpi
Brakes
Brakes
Felt Integrated Aero w/ cartridge brake pads
Brake Levers
SRAM TT 500
Cockpit
Stem
Felt Bayonet 3 Integrated 2D forged & CNC machined aluminum Fixed Position w/ custom Cr-Mo bolts, Ø31.8mm bar clamp, 51cm=70mm(ext) x 30mm(rise), 54cm=70mm(ext) x 60mm(rise), 56cm=100mm(ext) x 30mm(rise), 58cm=100mm(ext) x 60mm(rise)
Handlebar
Felt Bayonet 3 6061 hydroformed aluminum, w/ internal cable routing, perfect fit adjustability, UHC Ultimate + Nano Carbon Fiber ƒ-Bend 3-position extensions w/aluminum arm rests & dimpled gel pads
Grips
Devox Gel Velvet Tape w/ Felt Logos & Felt tri-tip grips
Headset
Felt Integrated Bayonet 3 Stainless Steel 19mm ACB
Seat
Saddle
Prologo NAGO EVO TRI 40, nylon injected base w/active density padding & Cro-Mo rails
Seatpost
Felt Aero DA/B UHC Advanced Carbon Fiber Forward Offset Bladed Monocoque Design
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.12 mm | 1.22 mm | 1.19 mm | 1.19 mm | 1.2 mm |
| Bottom Bracket Height | 291 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 565 mm | 577 mm | 593 mm | 614 mm | 635 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 73 mm | 64 mm | 60 mm | 61 mm | 61 mm |
| Stack | 435 mm | 490 mm | 499 mm | 518 mm | 538 mm |
| Reach | 389 mm | 401 mm | 418 mm | 434 mm | 449 mm |
| Top Tube Length | 473 mm | 502 mm | 523 mm | 543 mm | 563 mm |
| Seat Tube Angle | 76.5 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 470 mm | 510 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 78 mm | 80 mm | 88 mm | 108 mm | 128 mm |
| Chainstay Length | 377 mm | 397 mm | 397 mm | 397 mm | 397 mm |
| Wheelbase | 937 mm | 964 mm | 980 mm | 1001 mm | 1022 mm |
| Bottom Bracket Drop | 45 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 726 mm | 772 mm | 796 mm | 815 mm | 835 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
DA3 is part of the Felt Da3 model. Felt released 4 bikes variations of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Triathlon bikes
Our math shows that the average cost of a dependable Triathlon bike is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2013 and its price was 5169$. Doing a quick comparison, we notice that DA3 price is 23.75% higher than the average cost of a Triathlon bike.
Average weight for Triathlon bikes
The average weight for Triathlon bikes is 8.9 kg (19.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
DA3 weighs 8.61 kg (18.98 lbs) and is slightly lighter than the average. In short, the average Triathlon bike weight is 3.37% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
DA3 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the DA3 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Felt DA3 is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
