Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Cyclocross UHC Performance MMC carbon fiber w/ 3KP weave, shoulder friendly top tube, InsideOut internal molding process, BB30 shell, Di2 internal/mechanical external convertible cable routing, 1 piece forged aluminum dropouts & 7075 CNC machined aluminum replaceable derailleur hanger
Suspension Fork
ENVE Cross specific fork, carbon fiber construction w/ 1.125"" to 1.5"" tapered steerer tube, cantilever brake pivots
Drivetrain
Bottom Bracket
BB30, press-fit
Cockpit
Headset
FSA NO.42 CX 1.125"" --> 1.5"" integrated, w/ aluminum 15mm conical spacer w/ brake cable hanger, 2 X 10mm aluminum headset spacer, 1 x 5mm aluminum headset spacer, Felt carbon fiber top cap & 7075 anodized aluminum bolt
Seat
Seatpost
n/a
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 53cm | 55cm | 57cm | 60cm | 63cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.427 mm | 1.435 mm | 1.456 mm | 1.453 mm | 1.468 mm | 1.466 mm | 1.471 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 583 mm | 584 mm | 585 mm | 605 mm | 620 mm | 646 mm | 645 mm |
| Rake | 50 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 525 mm | 538 mm | 549 mm | 568 mm | 587 mm | 607 mm | 618 mm |
| Reach | 368 mm | 375 mm | 377 mm | 391 mm | 400 mm | 414 mm | 420 mm |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 150 mm | 170 mm | 195 mm | 200 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1005 mm | 1005 mm | 1007 mm | 1027 mm | 1042 mm | 1068 mm | 1067 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 726 mm | 751 mm | 779 mm | 796 mm | 814 mm | 834 mm | 864 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

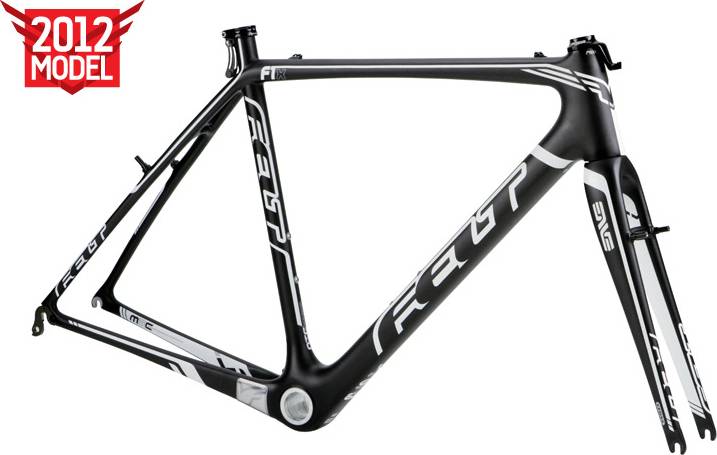

F1X Frame – 2012 belongs to the Felt F1x model. 11 frames variations carry this model name so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Cyclocross frames average price
Our math shows that the average cost of a dependable Cyclocross frame is 1405$. However, even though the average price of a Cyclocross frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
This frame was released in 2011 and its price was 1999$. If we compare this with the average Cyclocross frame cost we notice that the price is 42.28% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
F1X Frame – 2012 components
Fork material
F1X Frame – 2012 has a carbon fork, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
