Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Race Road UHC Ultimate + TeXtreme® carbon fiber, MMC w/ InsideOut construction, carbon fiber BB30 & dropouts, 7075 CNC aluminum replaceable rear derailleur hanger, electronic-specific internal cable routing
Suspension Fork
Felt Race Road UHC Ultimate carbon fiber monocoque construction, ControlTaper 1.125" - 1.5" carbon fiber steer tube w/ integrated compression device & crown race, crown, blades & dropouts
Rear Shock
n/a
Drivetrain
Rear Derailleur
n/a
Front Derailleur
n/a
Shift Levers
n/a
Cassette
n/a
Crank
n/a
Bottom Bracket
n/a
Chain
n/a
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
n/a
Rear Hub
n/a
Spokes
n/a
Tires
n/a
Brakes
Brakes
n/a
Brake Levers
n/a
Cockpit
Stem
n/a
Handlebar
n/a
Grips
n/a
Headset
FSA NO.42 integrated, 1.125" - 1.5" sealed superlight cartridge bearing w/ carbon fiber 8.7mm cone spacer, 2 x 10mm + 1 x 5mm carbon fiber headset spacers, Felt carbon fiber top cap & aluminum bolt
Seat
Saddle
n/a
Seatpost
Dorico LTD high-modulus carbon fiber 27.2mm diameter, 280 mm, 350 mm, 25mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.34 mm | 1.35 mm | 1.37 mm | 1.38 mm | 1.44 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 577 mm | 578 mm | 580 mm | 588 mm | 604 mm | 622 mm |
| Rake | 52 mm | 50 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 61 mm | 52 mm | 56 mm | 54 mm | 53 mm | 52 mm |
| Stack | 506 mm | 520 mm | 532 mm | 554 mm | 575 mm | 613 mm |
| Reach | 376 mm | 387 mm | 395 mm | 403 mm | 418 mm | 425 mm |
| Top Tube Length | 516 mm | 536 mm | 551 mm | 566 mm | 586 mm | 611 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 540 mm | 570 mm | 610 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 73 ° | 73.5 ° | 74 ° | 74 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 140 mm | 160 mm | 200 mm |
| Chainstay Length | 409 mm | 409 mm | 411 mm | 411 mm | 413 mm | 416 mm |
| Wheelbase | 975 mm | 977 mm | 980 mm | 989 mm | 1006 mm | 1028 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 687 mm | 723 mm | 756 mm | 776 mm | 802 mm | 840 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

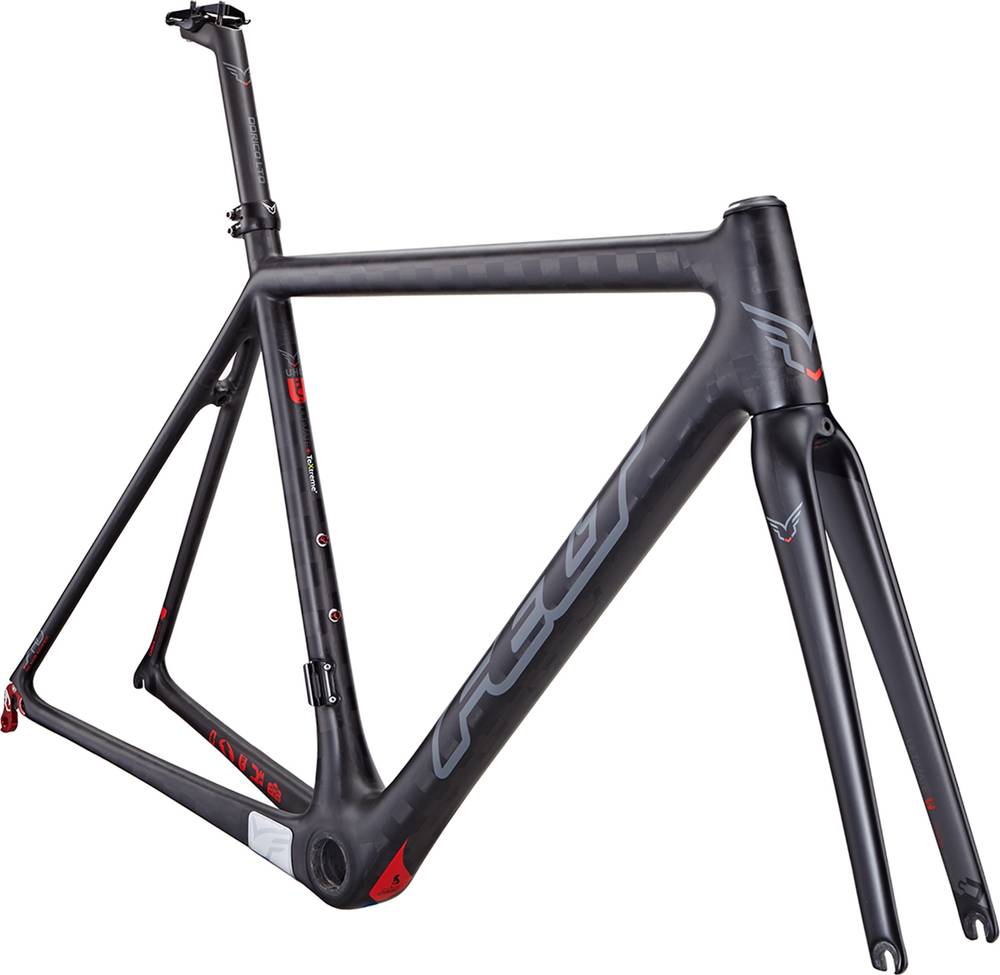

FRAMESET: F FRD is part of the Felt F Frd model. Felt released 4 frames variations of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race frames
If you want an acceptable Race frame you should know that the average price is 2445$. However, even if your budget is less than the average, you might still be able to get a top-quality Race frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2015 for 3999$. Comparing this to the average Race frame price, we see that the price is 63.56% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
FRAMESET: F FRD components
Fork material
FRAMESET: F FRD has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
