Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Aero Track UHC Advanced carbon fiber, MMC w/ InsideOut construction, threaded BB, horizontal dropouts w/ titanium surfaces & integrated chain tensioners
Suspension Fork
Felt Aero Track UHC Ultimate carbon fiber monocoque construction, 1.125" carbon fiber steer tube, crown, blades & dropouts w/ aluminum steer tube plug
Rear Shock
n/a
Drivetrain
Rear Derailleur
n/a
Front Derailleur
n/a
Shift Levers
n/a
Cassette
n/a
Crank
n/a
Bottom Bracket
n/a
Chain
n/a
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
n/a
Rear Hub
n/a
Spokes
n/a
Tires
n/a
Brakes
Brakes
n/a
Brake Levers
n/a
Cockpit
Stem
n/a
Handlebar
n/a
Grips
n/a
Headset
n/a
Seat
Saddle
n/a
Seatpost
n/a
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.19 mm | 1.16 mm | 1.17 mm | 1.19 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 566 mm | 582 mm | 598 mm | 619 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 60 mm | 59 mm | 54 mm | 52 mm |
| Stack | 472 mm | 483 mm | 504 mm | 530 mm |
| Reach | 398 mm | 415 mm | 429 mm | 447 mm |
| Top Tube Length | 533 mm | 553 mm | 573 mm | 603 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 505 mm | 525 mm | 545 mm | 570 mm |
| Head Tube Angle | 73 ° | 73.5 ° | 74 ° | 74.5 ° |
| Head Tube Length | 80 mm | 90 mm | 110 mm | 135 mm |
| Chainstay Length | 378 mm | 378 mm | 378 mm | 378 mm |
| Wheelbase | 938 mm | 953 mm | 970 mm | 990 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 748 mm | 757 mm | 777 mm | 803 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model

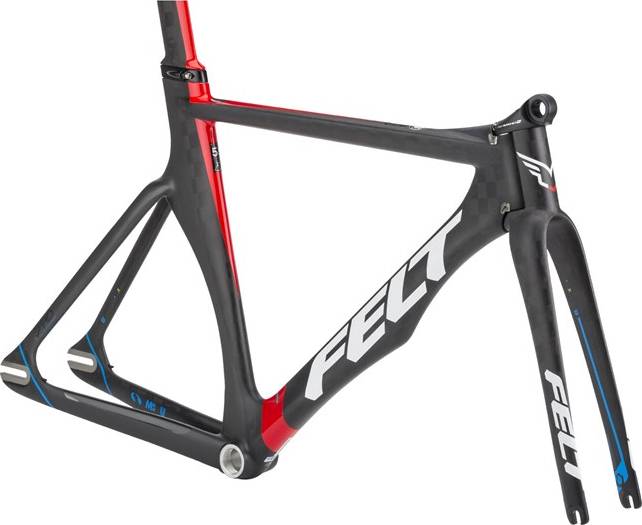

FRAMESET: Tk FRD belongs to the Felt Tk model. There are 5 frames that carry this model name.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Track frames
If you want an acceptable Track frame you should know that the average price is 2508$. However, you could also get a good Track frame even if you pay a lower amount than the average price. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
This frame was released in 2017 and its price was 3999$. In conclusion, this frame price is 59.45% higher than the price of the average Track frame.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
