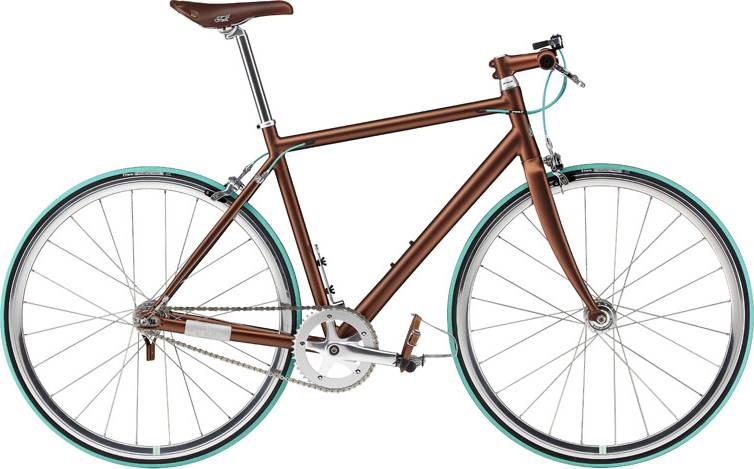

Felt GRIDLOC 2011
2011 Urban
Estimate price |
999$
Weight | 9.51 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset X3 -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Single Speed Urban Design, 6061 Super-lite Aluminum Hydroformed & Butted Tubes, Hidden & removable Rear brake and shifter cable routing, CNC machined Track Dropouts w/ steel inserts, Custom Top Tube Pad/Dashboard/Protector.
Suspension Fork
Felt UHC Performance Carbon Fiber Design w/ 3KP Weave, Carbon Blades, Aluminum Crown & 1.125 Steerer, and Dropouts
Rear Shock
n/a
Drivetrain
Rear Derailleur
n/a
Front Derailleur
n/a
Shift Levers
3 speed thumb shifter
Cassette
13T x 1/2 pitch x 3/32 width fixed cassette sprocket w/ lock ring F/W: 16T x 1/2 pitch x 3/32 width Freewheel
Crank
Track Forged Aluminum, w/ 144mm B.C.D. Chainring, 46T x 3/32; 51cm=165mm, 54-56cm=170mm, 58cm-61cm=175mm
Bottom Bracket
FSA 68mm w/ Forged Chromoly Square Taper
Chain
KMC Z610X Track 3/32 width
Chain Guide
n/a
Pedals
Felt BMX FB Design Platform
Wheels
Front Hub
Sturmey Archer Hi-Flange
Rear Hub
Sturmey Archer SX3 3 speed 36H fixed gear hub
Rims
Felt Aluminum 30mm deep V-section Aero Rim w/ Machined Braking Surface & Wear Indicator & CUSTOM CURBSIDE GRAPHIC
Spokes
2.0mm Stainless Steel w/ Brass spoke nipples
Tires
Felt SPEED All-Weather ROAD, 700c x 25c
Brakes
Brakes
Tektro Long Reach Dual Pivot Caliper for Fender Clearance w/ removable cartridge brake pads, Stainless Hardware, Teflon Bushings
Brake Levers
Tektro Front & Rear brake levers
Cockpit
Stem
Felt Mr. Tea Bar 6061 Aluminum Ø31.8mm constant diameter flat bar, Integrated 1.125 100mm long stem, 0° sweep, 540mm wide, Knurled Diamond Texture
Handlebar
Michael Bolt-in 32mm oversize end plugs
Grips
Felt Gel Ribbon Cork Tape w/ Felt 3D Logo
Headset
FSA 1.125 Integrated w/ 25mm Aluminum Cone & 2 X 10mm Aluminum Straight Spacer, Felt Tornado Aluminum Top Cap & 2024 Anodized Aluminum Bolt
Seat
Saddle
Felt Urban Classic Road Saddle w/ Riveted Custom Cover & steel rails
Seatpost
Felt SL 6061 Aluminum, Ø27.2mm, 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 56cm | 54cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.326 mm | 1.41 mm | 1.348 mm | 1.431 mm | 1.446 mm |
| Front Center | 583 mm | 589 mm | 591 mm | 599 mm | 614 mm |
| Rake | 45 mm | 43 mm | 45 mm | 43 mm | 43 mm |
| Stack | 513 mm | 557 mm | 535 mm | 578 mm | 597 mm |
| Reach | 387 mm | 395 mm | 397 mm | 404 mm | 413 mm |
| Head Tube Length | 120 mm | 160 mm | 140 mm | 180 mm | 200 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheelbase | 979 mm | 985 mm | 987 mm | 996 mm | 1010 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 714 mm | 760 mm | 741 mm | 780 mm | 806 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
GRIDLOC is a Felt Gridloc model. Felt released 4 bikes variations of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hipster bikes
If you want to purchase a solid Hipster bike, it is important to know that the average cost is 612$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hipster bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2011 and its price was 999$. In conclusion, this bike price is 63.24% higher than the price of the average Hipster bike.
Average weight for Hipster bikes
If we make a quick analysis of the average weight of a Hipster bike, we get 9.81 kg (21.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 9.51 kg (20.97 lbs), the GRIDLOC model is slightly lighter than average. In conclusion, the average Hipster bike weighs 3.15% more than GRIDLOC.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
GRIDLOC has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on GRIDLOC are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
